An Authentication Protocol for Wireless Ad Hoc

Networks with Embedded Certiﬁcates

Robert E. Hiromoto

and J. Hope Forsmann

Department of Computer Science, University of Idaho, Moscow, Idaho 83844-1010, U.S.A.

Idaho National Laboratory, 2525 N. Fremont, Idaho Falls, Idaho 83415, U.S.A.

Abstract. Wireless ad hoc networks may be conﬁgured as a ﬁxed topology of

sensors or allowed to migrate as mobile nodes. The ﬂexibility of these networks,

therefore, provides opportunities for their deployment in real-time and in adverse

situations as encountered in civil and military applications. These advantages are,

unfortunately, curtailed by the unconstrained nature of these networks in pro-

viding a trusted level of connectivity. The establishment of secret keys and the

authentication of trusted ad hoc group nodes are essential elements for a secure

network. In this paper, we develop an authentication protocol for wireless ad hoc

networks that is derived from a canonical splitting of time- and frequency-space

(channel) over which information propagates under the constraint of a collision-

avoidance protocol.

1 Introduction

The rapid deployment of wireless ad hoc networks even under the most severe condi-

tions, has elevated their prominence in all aspects of homeland security and military

communications. However, these infrastructure-less networks are prone to require ex-

plicit network cooperation, route maintenance in the event of link failure, and informa-

tion losses resulting from data packet collisions. These routing protocols for dynamic

networks have been discussed in [11] and [19]. Furthermore, without data encryption

and trusted node authentication, these networks are vulnerable to malicious attacks that

may be categorized by the following techniques: eavesdropping; man-in-the-middle;

replay; impersonation; session hijacking; reﬂection; and interleaving attacks.

Intelligent information processing provides network security approaches that has

prompted researchers to propose numerous security protocols for the establishment of

secret keys; and in particular, the authentication of wireless ad hoc network nodes. A

taxonomy and classiﬁcation of services that rely on authentication are studied by [17,

10]. The use of local time-stamp authentication protocols [14], a hop-by-hop authenti-

cation [26], recommendation and reference protocol that is inspired by human behav-

ior [24], location-limited channels with pre-authentication [20, 1], an end-to-end data

authentication scheme that relies on mutual trust between nodes [23], a threshold se-

cret sharing using an identity-based cryptosystem to provide end-to-end authentication

[6], under loosely time synchronized nodes with one-way chain as a cryptographic key

where each such value is associated with a time interval [25].

E. Hiromoto R. and Hope Forsmann J. (2008).

An Authentication Protocol for Wireless Ad Hoc Networks with Embedded Certiﬁcates.

In Proceedings of the 4th International Workshop on Artiﬁcial Neural Networks and Intelligent Information Processing, pages 89-99

DOI: 10.5220/0001509500890099

 SciTePress

In [3], a self-organized public-key management scheme is proposed that maintains

no centralized services, yet, allows each node to generate private-public key pairs; to

issue public key certiﬁcates for its neighboring nodes; and to perform authentication

via a chain of public-key certiﬁcates regardless of the network partition. Several re-

ﬁnements to this proposed scheme are presented in [2] where each certiﬁcate is issued

with a limited validity time period that contains its issuing and expiration time. After

expiration of the valid time period, new certiﬁcate are issued to its neighboring nodes.

In addition, nodes in alliance with their neighboring nodes form trust groups that com-

municate using the group’s private and public key. The authenticity between nodes is

performed by validating their cached public-key certiﬁcates chain. The public keys and

certiﬁcates are modeled as a directed graph for which transitive properties can identify

nodes belonging to a trust group.

A major difﬁculty with the solution speciﬁcations for certiﬁcate-based authentica-

tion, as described above, is the amorphous structure of wireless ad hoc networks in both

static and dynamic systems. The unconstrained nature of malicious attacks in such net-

works are, therefore, difﬁcult if not impossible to protect against. Geometrically, the use

of public/private-key certiﬁcates is a one-dimensional parameterization of the problem

domain. Whether in the form of a certiﬁcate-chain or a cluster-key shared with multiple

neighboring nodes, the various approaches are limited by their reliance on artiﬁcial so-

lutions that do not embrace the dynamical properties or behavior of these systems. With

this in mind, we argue for a “canonical” reformulation of the authentication problem in

wireless ad hoc networks and derive an alternative solution technique that is described

in a two-dimensional setting.

If security is deemed critical then as in all practical engineering considerations,

tradeoffs must be identiﬁed and enforced. To this end, we propose a different approach

to authentication in wireless ad hoc networks that imposes a collision-avoidance policy

on data transmission that has the property of untangling the authentication process such

that certiﬁcates are no longer exchanged explicitly.

In the remainder of the paper, we outline the proposed approach, and provide pos-

sible means of implementations.

2 An Authentication Protocol with Embedded Certiﬁcates (APEC)

The proposed authentication protocol introduces a sequence of unique, non-overlapping

communication time-slots that are assigned to each authenticated node of the network.

Time-slots are used as an implicit certiﬁcate to ensure trust. In addition, we impose on

top of each time-slot a pseudo-randomly corollated frequency channel F

over which a

data packet must be sent in time-slot T

. This dependence between time-slots and fre-

quency channels introduces a two-dimensional description of network communication

and thus allows for a clear decomposition of the problem domain.

The protocol is described in terms of a cluster with a single cluster head or admin-

istrator node as follows:

1. Assume that an initial authentication phase has veriﬁed the trust of nodes that have

joined the cluster.

2. The cluster head sends a public key to all nodes in the cluster.

3. The public key is used by every node to select the appropriate addem, multipliers,

etc to construct a common pseudo-random number generator (PRNG) using a hash-

table. Two such PRNGs are constructed RandT() and RandF, that produces the

sequences for T

and F

; respectively.

4. From the public key, a random seed is produce and used to seed RandT(). Each T

that is generated is in turn used as a seed to generate a corresponding F

from the

pseudo-random number generator RandF().

5. After each complete communication time period, the order of the sequence of time-

slots are permuted.

At the end of these steps, a sequence of T

time-slots with their randomly corre-

lated frequency channel, F

, are created, and forms m-coordinate, 2-tuples (T

, F

In addition, the details of the PRNG construction are known to each entrusted node in

the network; and therefore, allows a deterministic recreation of all present and future

m-coordinate pairs. This becomes important when a node cannot send data packets to

the cluster head in one hop but instead requires a multi-hop link to reach its destination.

3 A Space-Time Coordinate Basis with Collision-Avoidance

Communication can be parameterized as a space-time, 2-tuple coordinate basis. Time

(time-slot), T

, is taken as the moment (over the time-slot duration) that a message

is sent or received. Space is the physical channel over which the message is sent or

received. For a wireless network this channel is associated with a particular radio fre-

quency, F

, over which a message is sent out or received. We characterize this 2-tuple

by (T

, F

In order to avoid ambiguities, it is important that a collision-avoidance protocol be

adopted for a wireless network so that no two data packets arrive at a given destination

during the same time-slot. This property is reﬂected in the following deﬁnition:

Deﬁnition: Two valid communication coordinates (T

, F

) and (T

, F

) within a wire-

less ad hoc network must necessarily satisfy the condition that T

6= T

; however, it

is not sufﬁcient since some time-slots may be forbidden. (collision-avoidance assump-

tion).

The collision-avoidance assumption restricts a clustered network of wireless nodes

to communicate only over predetermined, non-overlapping send or receive time-slots.

As a consequence, certain types of external attacks can be detected if two or more

distinct data packets arrive during the same time-slot.

The collision-avoidance assumption is examined by Forsmann et al., [8]. The per-

spective of their study is the QoS of unmanned aerial vehicles for autonomous formation

ﬂight. For the sake of this paper, we consider only the cluster formation with a single

cluster head node, and assume that all communication is directed between a cluster

head and each individual node within the cluster. It is, however, possible that the mobil-

ity of each vehicle (node) may require the use of intermediate nodes to form a multi-hop

message-forwarding link if the sending node drifts out of radio range with the cluster

head. Multi-hop network routing links are addressed using a modiﬁed version of the

AODV route-discovery protocol as described by Forsmann et al.

Under the assumptions of a collision-avoidance protocol and the two-dimensional

representation of communication events within a wireless mobile ad hoc network, we

introduce a cryptographic confusion algorithm that replaces the traditional certiﬁcate-

based authentication procedures that have been attempted for these infrastructure-less

networks. The following desired set of properties provide the foundation for our ap-

proach:

Property 1: A unique time-slot and frequency channel pair is assigned to only one node

within the network.

Property 2: It is desirable to conceal the selection of the radio frequency channel F

each round of a node’s communication time-slot sequence.

Property 3: For each communication period a new sequence order for a given node’s

time-slots T

are assigned.

Property 4: The length of a time-slot duration depends upon the time-skewing experi-

ence by each node’s clock. It will be assume that each node is equipped with a GPS

device for time synchronization.

The process for concealing the selection of T

and F

is performed using a pair of

orthogonal PRNGs as outline in Frederickson et al., [9]. Their work examined the issue

of reproducibility of Monte Carlo random walk algorithms for parallel execution. The

use of a single PRNG in a parallel processing environment has the effect of reordering

the sequence of pseudo-random numbers that are generated. Although this additional

randomness may seem advantageous, the ﬁnal result cannot be compared for correct-

ness with the results of the sequential execution that uses the same PRNG. Without this

veriﬁcation, it is not clear whether or not the parallel program has been implemented

correctly.

Analogously, a wireless ad hoc network represents a collection of parallel process-

ing nodes that can be assured a unique {T

, F

} pair for each entrusted node without

incurring inter-node co-channel interference. To ensure this property, each node must

be given a different random number sequence in a deterministic fashion. Figure 1 illus-

trates the orthogonal structure for a pair of PRNG that result in a reproducible random

number scheme.

Below, we summarize some typical PRNGs in use and techniques used in creating

parallel pseudo-random number generators (PPRNG).

4 Pseudo-Random Number Generation

4.1 Types of Generators

The following list are commonly used pseudo-random number generators:

– Additive and subtractive Lagged Fibonacci (LF)

– Generalized Shift Register (GSR)

Fig. 1. RanT and RanF .

– Multiplicative Linear Congruential (MLC) and

– Combination Generators (CG)

A uniform (double precision) ﬂoating-point random number sequence x

in the interval

[0, 1) or (0, 1) are produced by the following recursions:

MLC (a, m = 2

= aX

i−1

mod m; x

= X

/m, (i = 1, 2, ...)

GSR (r, s, ⊕

= X

i−r

⊕

i−s

; x

= X

, (i = r, r + 1, ...) (1)

LF (r, s, ±m = 2

= X

i−r

± X

i−s

mod 2

; x

= X

, (i = r, r + 1, ...)

CG:

= X

 Y

; (i = r, r + 1, ...)

where  is either the exclusive-or-operator or addition modulo some integer m, and X

and Y are sequences from two independent generators. It is best if the cycle length of

the two generators is relatively prime, for this implies that the cycle length of Z will be

the product of that of the basic generators. One can show that the statistical properties

of Z are no worse than those of X or Y [15]. Good combined generators have been

developed by L’Ecuyer [13], based on the addition of Linear Congruential sequences.

4.2 Parallel Pseudo-Random Number Generation

Historically, the introduction of PPRNG was an attempt to address various efﬁciency

issues inherent in the parallel execution of scientiﬁc applications such as lattice gauge

and Ising model calculations. Within this context, the quality of PPRNGs have been

studied by a number of researchers [4], [5], [16], [18],[21]. More recently, their use in

games and graphics have drawn interest [22], [12].

As a brief overview, we list below several approaches that have been studied and

applied in the design of PPRNGs. The descriptions are only meant to provide a high

level, structural description of several different possible parallel techniques.

– Leapfrog – The pseudo-random sequence is partitioned in turn among nodes so

that node i gets the sequence r

, r

i+m

, . . ., where m is the total number of nodes or

time-slots.

– Sequence splitting – The sequence is partitioned by splitting it into non-overlapping

contiguous sections. In particular, if it is known that the cycle length of a pseudo-

random sequence is l

then node i + 1 gets the sequence r

[il

/m]+1

, r

[il

/m]+2

, . . .

(i+1)l

– Independent sequences – For some generators, the initial seeds can be chosen in

such a way as to produce long period independent subsequences on each processor.

– Cycle parameterization – For PRNGs’ that have more than one distinct cycle, it is

possible to select a seed that begins in one cycle and a different seed that begins

in a different cycle resulting in two sequences that do not overlap. The Lagged

Fibonacci Generator is an example of a generator with this property. By associating

each seed with a cycle number i, parameter i determines the cycle from which the

sequence is drawn.

4.3 Reproducibility and Cycle Lengths

In order to ensure reproducibility, each node must be given a different random number

sequence in a deterministic fashion. This can be accomplished by creating a random

seed unique to each node (e.g., the time-slot) that in turn is used to seed a different

(orthogonal) random number generator that produces a second “independent ” pseudo-

random (frequency channel) sequence. This deterministic approach is reproducible and

requires no inter-node communication, whose costs are typically high. More impor-

tantly, the absence of inter-node communication is extremely desirable from a security

standpoint.

A pseudo-random number generator deﬁnes at most 2

different conﬁgurations

(states) where b is the number of bits that represent the number of possible states. The

sequence, after generating 2

different conﬁgurations, must repeat .

It is desirable, therefore, to use PPRNGs with the longest cycle length to guarantee

the minimal biasing of the results. This, however, does not eliminate the advantages of

a small cycle length as long as the coordinates that are produced are not exactly the

same. Hence even if the random number sequence repeats, if the {T

, F

} pair remain

unique, the bias remains low.

As a consequence, it is assumed that the correlation between pairs of pseudo-random

number generators has little effect on network authentication unless the bias results in

, F

) cycles.

4.4 Security

Pseudo-random number generation is a process that either provides security or is vul-

nerable to attacks that can compromise the security of a system. The PRNG process

is provocatively attractive to attackers because it is typically a single isolated, hard-

ware/software component whose deterministic output is disguised as random. If an

attacker can substitute pseudo-random bits generated in a way that can be predicted,

security is totally compromised.

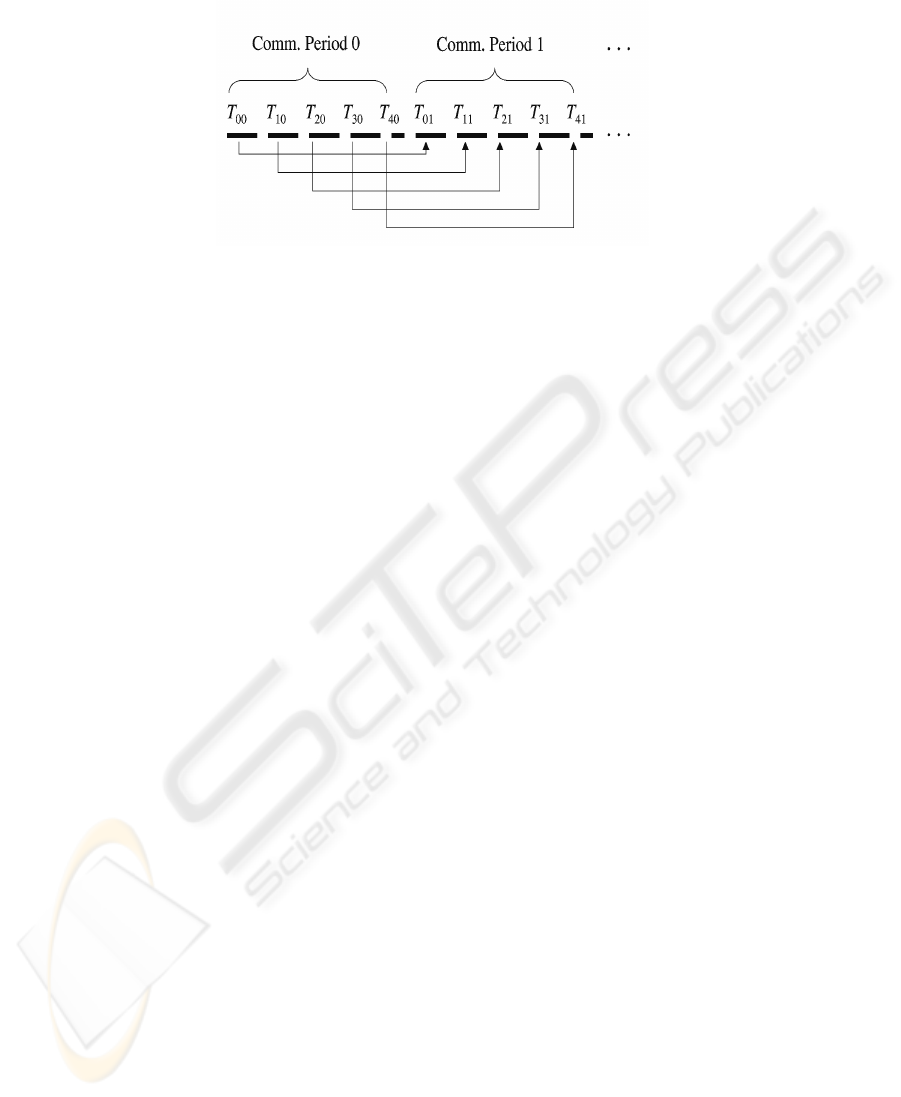

Fig. 2. Direct Mapping Constant Increment δt

= τ .

5 Time-Slot Selection

The sequence of time-slots for one complete communication period

, T

, . . . , T

m−1

, }

A communication period, τ, is deﬁned as the sum over all m time-slots (m ≥ n) in

the closed interval [T

, T

m−1

τ =

m−1

i=0

The requirement (m ≥ n) for an n node wireless network is imposed for three reasons.

First, m may be viewed as a cryptographic parameter that introduces a level of confu-

sion, as is shown later. Second, the choice of m introduces idle time-slots over which

no data packets should be sent or received. Third, m provides a slight window (delay)

between the end of one time-slot and the beginning of the next.

After each communication period, a new sequence of unique non-overlapping time-

slots are assigned to each node. This assignment is deﬁned by the following equation:

j,i+1

= T

j,i

+ δt

, (2)

for i, j = 0, 1, . . . , m. In this notation index j is the node number and i is the iteration

or communication period number.

There are several ways of selecting δt

. One simple approach is to maintain the

order of time-slots for each node from one iteration to the next. Figure 2 illustrates the

case for δt

= τ.

A second and possibly more secure approach is to apply a permutation on the order

of the previous time-slot sequence. The permutation of the sequence is shown in Fig. 3.

For a permutation π, we associate a permutation matrix P

and a distance matrix

whose values represent the number of column swaps from their original position to

their ﬁnal position in the permutation. For example, if π = {0, 3, 2, 1}, then

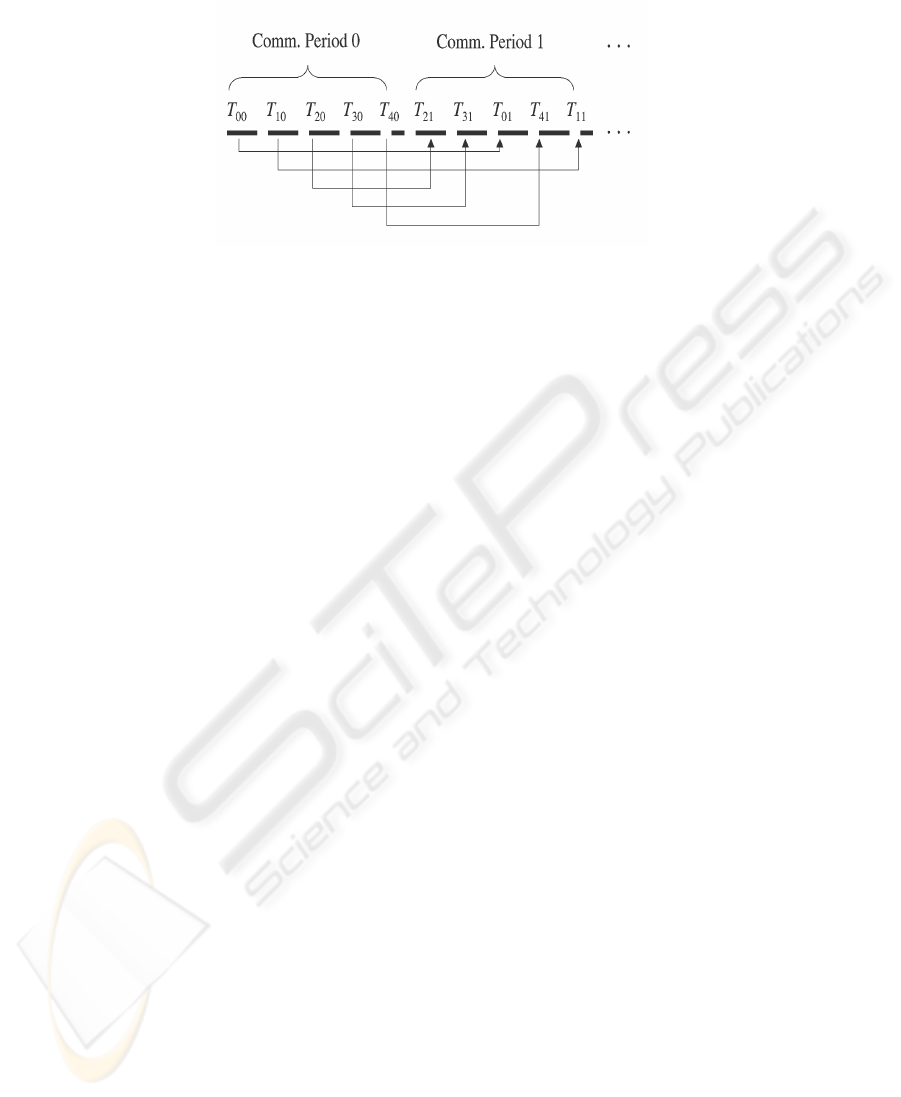

Fig. 3. Permutation Mapping Variable Increment δt



1 0 0 0

0 0 0 1

0 0 1 0

0 1 0 0



and



0 0 0 0

0 0 0 −2

0 0 −1 0

0 +2 0 0



The distance matrix can then be used to deﬁne a time-slot increment vector δt

given by

δt

= τ θ

+ δtD

· θ, (3)

where

θ =



of length m, and

δt = τ /m.

The components of Eqn. 3 are then applied to Eqn. 2.

5.1 Multi-Hop Authentication

The requirement for pseudo-random reproducibility is most important in the instant

that a network topology has migrated beyond a single-hop radio range to a multi-hop

environment. In such a situation, a routing protocol is employed to initiate route dis-

covery. As part of the data transfer process, the destination node may have need of

the source nodes identity and the chosen route path. To obtain this information any

entrusted node intercepting the packets can recompute the node’s time-slot seed using

the original public-key and compute the appropriate frequency channel for the current

communication period. With this information, the source node and route path can be

identiﬁed. The implications of this scenario is that only trusted nodes can determine the

communication route, destination and source nodes in a calculable time frame.

5.2 Security Complexity

APEC is a cryptographic system protocol based on a source of random bits, whose

output is used in creating unique time-slot and frequency channel pairs. APEC employs

two “orthogonal” pseudo-random number generators that cooperate in parallel to assign

node-speciﬁc send/receive, time-slots that are in turn used to seed a pseudo-random as-

signment of time-slot, correlated frequency channels. In this construction, the sequence

of frequency channels can be systematically applied in turn to the same time-slot but on

different periods of the communication cycle.

The order of time-slots assigned to each node can remain in the same order or be

reordered to increase cryptographic confusion. In this paper, a reordering of the time-

slot sequence is presented using a simple permutation π.

The security complexity is stated by the following theorem.

Theorem: The brute force complexity for guessing the correct sequence of coordinate

basis pair for a b-bit random sequence and a permutation of the sequence order for m

time-slots is O(2

× m!).

Proof: A pseudo random number generator is a ﬁnite state machine with at most 2

different states where b is the number of bits that represent the state. The brute force

complexity of guessing the time-slots is O(2

). However, since the frequency channels

are coupled to the seed of a unique time-slot the complexity of the coupled random

number states requires a total of O(2

). If we also apply a permutation to the previous

time-slots sequence for every communication period the brute force complexity for m

time-slots is O(m!). The ﬁnal complexity is the product of the time-slot, frequency

channel and the permutation operations. 2

6 Conclusions

Geometrically, the use of public/private keys as certiﬁcates for authentication in wire-

less ad hoc networks is a one-dimensional solution in a two- or higher-dimensional

problem domain. The novel abstraction taken here is to design an authentication pro-

tocol that embodies the dynamic processes and captures the essential behavior of the

system in a “self-certiﬁable” manner. In this context, we achieve a canonical formula-

tion of the authentication problem in wireless ad hoc networks and as such derive an

alternative solution technique devoid of explicit certiﬁcate passing.

The contributions of this paper is the design of a new authentication protocol that

relies on a collision-avoidance protocol to guarantee the detection of unauthorized at-

tempts to compromise a wireless ad hoc network of trusted nodes. The protocol creates

a random, yet deterministic sequence of coupled time-slots and associated frequency

channels that are unique to each node in the network. For each communication period,

the order of the sequence of time-slots may remain unaltered or the order can be re-

arranged deterministically without coordination via inter-node communication. If an

analogy can be made between frequency channels to colors in the visual range, the

communication in an APEC system would appear to be a coordinated light show.

References

1. D. Balfanz, D. K. Smetters, P. Stewart and H. Chi. Wong, “Talking to Strangers: Authen-

tication in Ad-Hoc Wireless Networks,” Symposium on Network and Distributed Systems

Security (NDSS ’02).

2. Chih-Peng Chang, Jen-Chiun Lin, Feipei Lai, “Trust-group-based authentication services for

mobile ad-hoc networks,” 1st International Symposium on Wireless Pervasive Computing,

16-18 Jan. 2006,

3. Srdjan Capkun, Levente Buttyan, Jean-Pierre Hubaux, “Self-Organized Public-Key Manage-

ment for Mobile Ad-hoc Networks,” in ACM International Workshop on Wireless Security,

WiSe 2002.

4. Chiu, T. W. “Shift-register sequence random number generators on the hypercube concurrent

computers,” in G. C. Fox, editor, The Third Conference on Hypercube Concurrent Computers

and Applications, Volume 2, pages 1421-1429 (1988).

5. Paul D. Coddington and Sung-Hoon Ko, “Techniques for empirical testing of parallel random

number generators,” Proceedings of the 12th international conference on Supercomputing,

pp. 282 - 288 (1998).

6. H. Deng, A. Mukherjee, D. P. Agrawal, “Threshold and Identity-Based Key Management and

Authentication for Wireless Ad Hoc Networks,” International Conference on Information

Technology: Coding and Computing (ITCC’04) (2004).

7. W. Difﬁe, P.C. van Oorschot, and M.J. Wiener, “Authentication and authenticated key ex-

changes,” Designs, Codes and Cryptography 2 (1992).

8. J. Hope Forsmann, Robert E. Hiromoto, and John Svoboda, “A Time-Slotted On-Demand

Routing Protocol for Mobile Ad Hoc Unmanned Vehicle Systems,” SPIE 2007, Orlando

Florida, April 9-12 2007.

9. P. Frederickson, R. Hiromoto, T. Jordan, B. Smith, and T. Warnock, “Pseudo-Random Trees

in Monte Carlo,” Parallel Computing, Vol. 1, No. 2, pp. 175-180, (December 1984).

10. S. Hahm, Y. Jung, S. Yi, Y. Song, I. Chong, and K. Lim, “Self-organized Authentication

Architecture in Mobile Ad-hoc Networks,” International Conference on Information Net-

working (ICOIN) (2005).

11. D.B. Johnson and D.A. Maltz, “Dynamic Source Routing in Ad Hoc Wireless Networks,”

Mobile Computing, vol. 353, Kluwer Academic Publishers (1996).

12. Sylvain Lefebvre and Hugues Hoppe, “Perfect Spatial Hashing,” ACM Trans. Graph. 25, 3,

579588 (2006).

13. P. L’Ecuyer, “Efﬁcient and portable combined random number generators,” Comm. of the

ACM, 31:742774, 1988.

14. H. Lou, P. Zerfos, J. Kong, S. Lu, and L. Zhang, “Self-Securing Ad Hoc Wireless Networks,”

Seventh IEEE Symposium on Computers and Communications (ISCC’02).

15. G. Marsaglia, “A current view of random number generators,” In Computing Science and

Statistics: Proceedings of the XVIth Symposium on the Interface, pages 3-10, 1985.

16. M. Mascagni S. A. Cuccaro and D. V. Pryor, ”Techniques for testing the quality of parallel

seudorandom number generators”, In Proceedings of the Seventh SIAM Conference on Par-

allel Processing for Scientiﬁc Computing, pp. 279-284, Philadelphia, Pennsylvania, 1995.

SIAM.

17. D. Park, C. Boyed, E. Dawson ”Classiﬁcation of Authentication Protocols: A Practical Ap-

praoch”, Proceedings of the Third International Workshop on Information Security.

18. O. E. Percus and M. H. Kalos, ”Random number generators for MIMD parallel processors,”

J. of Par. Distr. Comput., 6:477-497, 1989.

19. C. Perkins, ”Ad Hoc On Demand Distance Vector (AODV) Routing”, Internet Draft, draft-

ietfmanet-aodv-00.txt, November 1997.

20. F. Stajano and R. Anderson, “The Resurrecting Duckling: Security Issues in Ad-Hoc Wire-

less Networks”, M. Roe B. Christianson, B. Crispo, editor, Security Protocols, 7th Interna-

tional Workshop Proceedings, LectureNotes in Computer Science. Springer Verlag, 1999.

21. A. Srinivasan, D. M. Ceperley and M. Mascagni, ”Random Number Generators for Parallel

Applications,” in Monte Carlo Methods in Chemical Physics, D. Ferguson, J. I. Siepmann,

and D. G. Truhlar, editors, Advances in Chemical Physics series, Volume 105, John Wiley

and Sons, New York (1998).

22. Stanley Tzeng and Li-Yi Wei, “Parallel White Noise Generation on a GPU via Cryptographic

Hash,” Proceedings of the 2008 symposium on Interactive 3D graphics and games, (2008).

23. L. Venkatraman and D. Agrawal, “A Novel Authentication Scheme for Ad Hoc Networks,”

IEEE Wireless Communications and Networking Conference (WCNC 2000), vol. 3, pp.

1268-1273.

24. A. Weimerskirch and G. Thonet, “A Distributed Light-Weight Authentication Model for Ad-

hoc Networks,” Proc. of 4th International Conference on Information Security and Cryptol-

ogy (ICISC 2001).

25. S. Zhu, S. Setia and S. Jajodia, “LEAP: Efﬁcient Security Mechanisms for Large-Scale Dis-

tributed Sensor Networks,” 10th ACM Conference on Computer and Communications Secu-

rity (CCS ’03) (2003).

26. S. Zhu, S. Xu, S. Setia and S. Jajodia, “LHAP: A lightweight hop-by-hop authentication

protocol for ad-hoc networks,” Proc. of ICDCS 2003 International Workshop on Mobile and

Wireless Network (MWN 2003), May 2003.
