A CONCURRENCY CONTROL MODEL FOR MULTIPARTY

BUSINESS PROCESSES

Juha Puustjärvi

Lappeenranta University of Technology, Skinnarilankatu 34, Lappeenranta, Finland

Keywords: Web services, WS-Coordination, concurrency control, workflows, business processes, advanced transaction

models.

Abstract: Although the issue of atomicity of multiparty business processes is well understood and widely studied, the

concurrency control issues of multiparty business processes is not studied nor well understood. In this

paper, we restrict ourselves on this issue. First we motivate the need of concurrency control in this context.

Then, we present a liberal correctness criterion, called set-serializability and a scheduler based on timestamp

ordering rule that produces set-serializable executions. Technically the scheduler is very simple and it can

be easily integrated with the protocol that ensures the atomicity of the multiparty business processes. In

implementing the atomicity protocol and the scheduler we utilize the WS-Coordination, which is a general

and extensible framework for defining protocols for coordinating activities that are part of business

processes.

1 INTRODUCTION

Web services are self-describing modular

applications that can be published, located and

invoked across the Web (Newcomer, 2002). Once a

service is deployed, other applications can invoke

the deployed service. The service can be anything

from a simple request to complicated business

process.

Another nice feature of web services is that new

and more complex web services can be composed of

other web services (Daconta et al, 2003; Marinescu,

2002). However, in many cases composed web

services are useful only if they can be processed

atomically.

WS-Coordination (Singh & Huns, 2005) is a

general and extensible framework for defining

protocols for coordinating activities that are part of

business processes. In particular, WS-

BusinessActivity (Singh & Huns, 2005) is a protocol

that exploits WS-Coordination to define

coordination type for long-duration business

transactions.

The long duration of business activities prohibits

locking data resources to make actions hidden from

other concurrent activities, and so the transactions

supported by WS-BusinessActivity do not have

isolation characteristics. The atomicity of the

transactions supported by WS-BusinessActivity is

based on compensating transactions (Garcia-Molina,

1983).

Although the issue of atomicity of composed

Web services and multiparty business processes are

widely studied, (e.g., (XLANG, 2001; XAML, 2003;

BTP, 2002; WSFL, 2003; BPEL, 2004)) the issue of

isolation in this context is not addressed. We

therefore focus on analysing concurrency control

issues of multiparty business processes.

In our analysis, similar to (Puustjärvi, 2001), we

view multiparty business processes from workflows

point of view, i.e., we view workflows as collections

of tasks that are organized to accomplish some

business process. As a result we can easily map

workflows into structured transactions: the

transaction represents the workflow and its

subtransactions represent the tasks of the workflow.

In particular the goal of this paper is to:

1. to demonstrate the need of concurrency

control in the context of multiparty

workflows,

2. to develop an appropriate correctness

criterion for the execution of concurrent

multiparty workflows,

3. to develop an appropriate concurrency

control method for managing multiparty

workflows, and

209

Puustjärvi J. (2008).

A CONCURRENCY CONTROL MODEL FOR MULTIPARTY BUSINESS PROCESSES.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 209-215

DOI: 10.5220/0001513102090215

 SciTePress

4. to demonstrate how WS-Coordination can

be utilized in implementing a scheduler for

multiparty workflows.

On the other hand, our analysis will show that the

concurrency control of multiparty workflows is a

trade off between

• workflow execution correctness,

• workflow system performance, and

• the simplicity of workflow specification

and management.

Our viewpoints are presented in the following

sections as follows: First, in Section 2, we introduce

a multiparty workflow and illustrate its isolation

requirements. Then, in Section 3, we give a short

introduction to concurrency control methods and

schedulers. In Section 4, we focus on concurrency

control correctness criteria. In Section 5, we first

introduce our developed concurrency control

criterion, called set-serializability, and then we

describe the concurrency control method that

supports set-serializability. In addition we

demonstrate how this method can be integrated with

an atomicity protocol and how WS-Coordination can

be utilized in developing the runtime environment

for multiparty workflows. Finally, Section 6

concludes the paper by discussing the advantages

and disadvantages of our developed solutions.

2 MOTIVATION

We now represent a multiparty business process

which correct execution requires coordination to

ensure its atomicity and as well as its isolation.

Consider an oil broker on the Web. In order for

the broker to deliver oil, the broker requires

additional value-added services provided by third

parties, such as chemical provider, shipping,

payment financing, and casualty insurance. The

broker will not agree to the delivery of oil until all of

these services are available, i.e., the correctness

requires the execution to be atomic.

From technology point of view the software

providing the multiparty business process needs to

coordinate with each of the participating Web

services. These include (1) the chemical provider's

inventory system; (2) credit institution to check

customer creditability; (3) an insurance policy

service to insure the product being shipped; (4) a

financing service to ensure payment; and (5) a

transportation service to guarantee timely shipment

and delivery.

We now describe this multiparty business

process by a workflow in Figure 1. (By a workflow

instance we refer to an execution of a workflow) Its

task Enter order provides an interface for customers.

It records orders, which include (among other

things) information of the ordered chemicals and the

deadline for the delivery. Then two parallel tasks are

processed: Purchase chemical task updates the

inventory of the chemical provider and Check

creditability task checks the customer’s credit

information from a credit institution. After their

successful processing, Order transportation task

orders the delivery from a transportation company,

and finally transportation is insured and the

customer is charged.

Enter order

Check

creditability

Purchase

chemical

Order

transportation

Charge

customer

Figure 1. Oil broker’s business process.

Insure

transportation

Figure 1: Oil Broker’s business process.

To illustrate workflow isolation requirements, we

now give three isolation requirements for this oil

broker’s workflow and consider the effects of their

violations.

Case 1: Businesses often enumerate events with

unique sequence numbers, and so there may be a

reguirement that those numbers (given in the task

Enter order) must constitute a monotone series with

no gaps. So, a new order number cannot be issued

until it is sure that the previous workflow will not

fail. However, as the workflow may fail at any time

during its execution, the only way to ensure that

there are no gaps is to execute the workflows

serially.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

210

Case 2: Assume that the balance of unpaid bills of a

customer has a predefined upper limit. The balance

is checked in the task Check creditability, and if the

new order would cause an overdraft then the work-

flow is aborted (a semantic failure). Otherwise, the

new balance is updated in the task Charge customer.

Now, to ensure that the limit will not be executed as

a result of two or more concurrent workflows of the

same customer, the workflows pertaining to the

same customer should be processed in a serializable

way, or at least the tasks Check creditability, Insure

transportation and Charge customer pertaining to the

same client should be processed in a serializable

way.

Case 3: Assume that the existence of an ordered

product is checked in the task Purchase chemical,

and that the ordered product is not removed from

chemical provider’s inventory database until in the

task Order transportation task. Now, to ensure that

the ordered product is still in the inventory, the task

Purchase chemical and Order transportation should

be executed as one transaction, or at least they

should constitute a unit of isolation.

3 TRADITIONAL

CONCURRENCY CONTROL

METHODS

We now give a short introduction to the notions that

are related to concurrency control. In particular, we

consider the notions that we use in later analysis.

Concurrency control is the activity of

coordinating the actions of processes that operate in

parallel, access shared resources, and therefore

potentially interfere with each other (Bernstein et al,

87). A scheduler is a program that controls the

execution of concurrent activities (Gray & Reuter,

93). When it receives an operation it may

immediately schedule it, delay it, or reject it. Each

scheduler usually favours one or two of these

choices.

Almost all types of schedulers have an

aggressive and a conservative version. An aggressive

scheduler tends to avoid delaying operations, and so

it loses the opportunity to reorder operations it

receives later on. A conservative scheduler tends to

delay operations, and so it can reorder operations it

receives later on.

Locking is the most common type of schedulers

(Bernstein & Newcomer, 1997). The idea behind

locking schedules is intuitive: each resource to be

accessed (e.g., data item or a web service) has a lock

associated with it, and before an activity (e.g.,

transaction or workflow) may access a resource, the

scheduler first examines the associated lock. If no

activity holds the lock then the scheduler obtains the

lock on behalf of the re-questing activity.

With timestamp methods a unique time stamp is

assigned to each transaction. Transactions are then

processed so that their execution is equivalent to a

serial execution in timestamp order. This

concurrency control mechanism allows a transaction

to access a data item only if it had been last accessed

by an older transaction; otherwise it rejects the

operation and restarts the transaction.

Each type of scheduler works well for certain

types of applications. We will show that an

aggressive scheduler based on timestamp ordering

method will work well with multiparty business

processes. However, the traditional correctness

criterion would be overly restrictive and therefore

we will introduce a more liberal correctness

criterion.

4 CONCURRENCY CONTROL

CRITERIA

A natural and sufficient criterion for isolation

correctness is that the execution is serializable, i.e.,

equivalent to a serial execution. Moreover this

traditional criterion is intuitive and clear. However,

though it is suitable for traditional transactions it

would overly restrict the concurrency of long lasting

activities such as multiparty workflows. However,

by using semantic information it is possible to

weaken the serializability criterion, and yet ensure

execution correctness. On the other hand, analogous

with traditional semantic concurrency control

models (Lynch, 1983; Garcia-Molina 1983) the use

of semantic information makes the specification as

well as the management of the system more

complex.

With multiparty workflows the requirements for

concurrency control significantly deviates from

those used with databases. In particularly there are

no consistency constraints between the data stored in

communicating applications but rather (as illustrated

in Section 2) the workflows may interfere with each

others through accessing dirty data (i.e., data that is

written by uncommitted activities). Therefore

neither the correctness criterion nor the concurrency

control methods (e.g., two-phase locking) developed

A CONCURRENCY CONTROL MODEL FOR MULTIPARTY BUSINESS PROCESSES

211

for databases are suitable for managing multiparty

workflows.

We next illustrate how we can capture semantic

information from multiparty workflows and use it in

developing an appropriate correctness criterion and

concurrency control method for multiparty business

processes.

5 THE MODEL

In this section we introduce our model which

describes our developed correctness criterion and

concurrency control method. In addition we describe

how it can be implemented by extending the 2PC-

protocol (Bernstein and Hadzilacos, 1987) that is

used for ensuring the semantic atomicity of

multiparty business processes.

5.1 Serializability-sets

As the analysis of the oil broker’s workflow in

Section 2 showed, there is no need for requiring

global serializability of workflows. By globally

serializable execution we refer to the execution,

which is equivalent to a serial execution of

workflows. Instead, it seems that a sufficient

isolation requirement is that certain sets (comprised

of tasks or workflow instances) should be executed

in a serializable way. Each such a set we call a

serializability set.

In order to illustrate the forms of serializability

sets we now assume that we have two workflows,

denoted by Wi and Wj. For example, the workflow

Wi could be the oil broker’s workflow presented in

Section 2.

The tasks of the workflow Wi are denoted by Ti,1, …

Ti,m, and anagolously the tasks of workflow Wj are

denoted by Tj,1, … Tj,n. So workflow Wi is

comprised of m tasks and the workflow Wj is

comprised of n tasks.

We next characterize the nature of serializability

sets by making the difference between four kinds of

serializability sets:

1. One or more tasks of the same workflow, say

Ti,s and T i,k, have to be executed serially

(e.g., cases 2 and 3 of Section 2). So the

serializability set is of the form {Ti,s, Ti,k,}.

2. The instances of one workflow, say the in-

stances of workflow Wi have to be executed

serially (e.g., case 1 of Section 2). So the

serializability set is of the form {Wij}.

3. Two or more task instances, say T i,s and Ti,k,

from different workflows have to be executed

serially. So the serializability set is of the form

{Ti,s and Ti,k}.

4. The instances of two or more workflows, say

the instances of workflows Wi and Wk, have to

be executed serially. So the form of the

serializability set is of the form {Wi, Wj}.

We denote by S the set of consisting of all

serializability sets, i.e., if there are n serializability

sets denoted by S1, …,Sn, then S={S1, …,Sn}. It

clear that each tasks belongs into zero, one or more

serializability sets.

5.2 Set-serializability Criterion

Now we can specify our used isolation correctness

criterion:

Set-serializability Criterion. The execution of a set

of workflows is set-serializable, if the execution of

the workflow and tasks instances in each

serializability set is serializable.

Note that this criterion is much more liberal (i.e.,

allows much more concurrency), than the traditional

serializability criterion. The reason is that only those

workflow instances or task instances, which really

need serializable execution are enforced to be se-

rializable. In contrast with traditional serializability

criterion it is assumed that all activities require

serializable execution. Hence, the traditional

serializability criterion is called syntactic

concurrency control model, which means that no

semantic information of transactions are given.

Instead, our model is based on a semantic

concurrency control model, in which it is assumed

that the workflow designer gives semantic in-

formation through serializability sets. In practice this

means that a workflow designer has to know the

workflow well enough to be able to specify

appropriate serializability sets.

5.3 Enforcing Set-serializable

Executions

In order to identify different instances of the same

workflow, an instance identifier is attached to each

workflow instance. In our solution the identifier is

determined according to the workflow identifier and

the time the workflow instance starts. Similarly,

tasks instances are identified by workflow identifier,

task identifier and timestamp.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

212

We next consider how we can use timestamp

method in scheduling the workflow instances. The

sufficient requirement is that the task instances of

each serializability-set are executed in the order

determined by their timestamps.

As each task corresponds to the request of a web

service, the service provider has to serve the request

in the order determined their time-stamps. This

means that there must be a standard module (i.e., a

scheduler) that can be combined to the web service.

In other words, assume that a task Ti belongs to one

or more isolation cluster. Then there must be a

scheduler, say scheduler S(ti), which follows the

following rule in handling requests:

Request Scheduling Rule: accept the execution

request of the task Ti belonging to serializability sets

Si, …,Sn, if the timestamps of the last accepted

request of the serializability sets S1, …, Sn are older

than the timestamp of Ti, and otherwise reject the

request.

If a request (a task) is rejected then the

corresponding workflow instance has to be aborted

and restarted. The abortion requires that the tasks of

the workflow instance which are already processed

have to be compensated. This, however, requires no

extra modules because the mechanisms which

support the atomicity of the workflows support

abortions through compensating actions.

In Figure 2 we illustrate the scheduler of task Ti.

It is assumed that task Ti is processed by Web

service Wi, and therefore scheduler Si locates on the

Web service Wi. The figure illustrate the case where

task Ti belongs to serializability set S1, S2 and S3,

and therefore the data structure maintained by the

scheduler Si includes the timestamps (denoted

lastS1, lastS2 and lastS3) of the last accepted

requests of the serializability sets S1, S2 and S3.

Scheduler Si

Web service Wi

Request to execute Task Ti

lastS1

lastS2

lastS3

Figure 2. A scheduler attached to Web service.

Figure 2: A scheduler attached to Web service.

5.4 Exploiting WS-Coordination in

Enforcing Set-serializability

A way to coordinate the activities of Web services is

to provide a Web service which function is to do the

coordination. In order to alleviate the development

of such coordinators WS-Coordination provides a

specification that can be utilized in developing the

coordinator. According to the WS-Coordination a

coordinator is an aggregation of the following

services:

• An activation service: defines the operation

that allows the required context to be created.

In particular, a context identifier is created and

passed to the services that participate to the

same coordination.

• A registration service: defines the operation

that allows a web service to register its

participation in a coordination protocol.

• A coordination protocol service for each

supported coordination type.

In Figure 3, the architecture (following the

specification of WS-Coordination) of the

coordinator that supports multiparty workflows is

presented.

Coordinator

TwoPhasedBusinessActivity-protocol

Activation service Registration service

Create Coordination

Context

Protocol messages

Registration

service

Figure 3. The components of the coordinator.

Figure 3: The components of the coordinator.

After an application has created a coordination

context, it can send it to another application. The

context contains the information required for the

receiving application to register into the

coordination. In principle an application can choose

either the registration service of the original

application or use some other (own) coordinator. In

the latter case the application forwards the context to

the chosen coordinator.

In our solution each participating application

uses its own coordinator. We illustrate this by the

example presented in Section 2. For simplicity, in

A CONCURRENCY CONTROL MODEL FOR MULTIPARTY BUSINESS PROCESSES

213

the Figure 4, we only present oil broker’s

communication with two participants (chemical

manufacturer and credit institution).

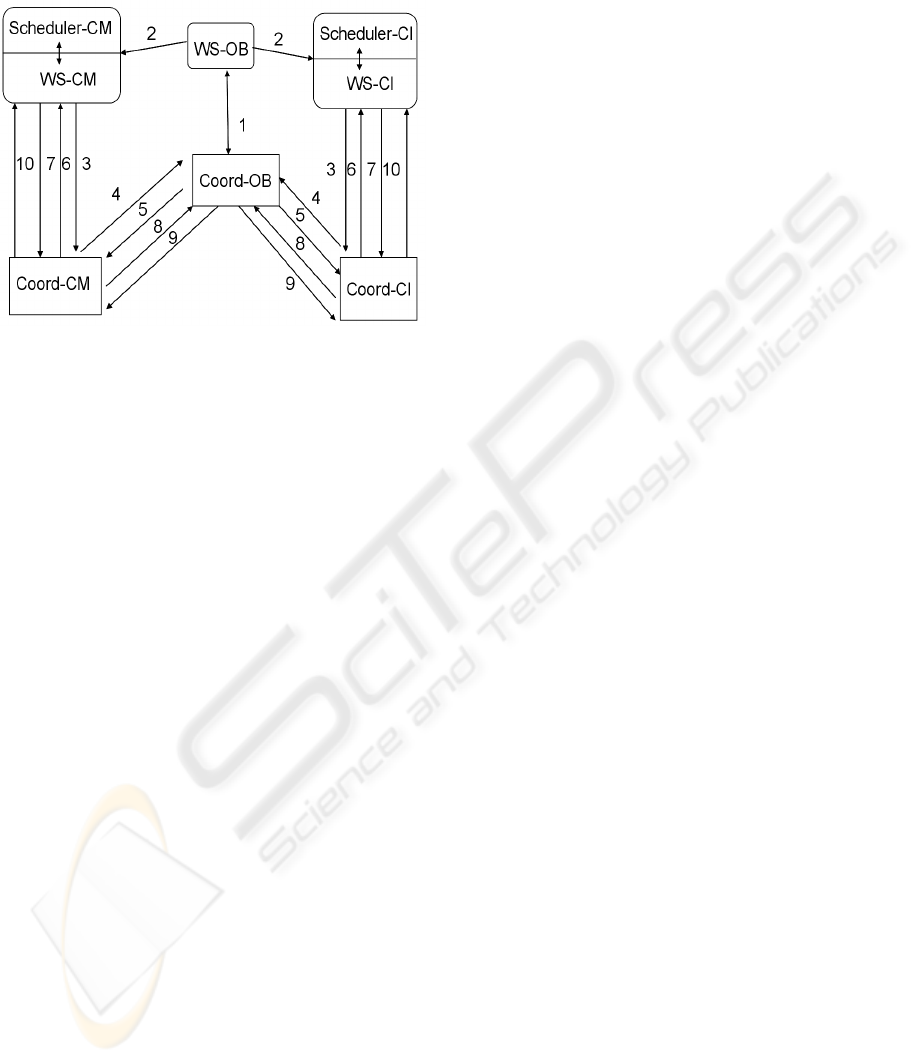

Figure 4: The coordination structure between schedulers,

Web services and their coordinators.

In the figure WS-OB stands for oil broker’s Web

service, WS-CM stands for chemical manufacturer’s

Web service, WS-CI stands for credit institution’s

Web service, Coord-OB stands for oil broker’s

coordinator, Coord-CM stands for chemical

manufacturer’s coordinator and Coord-CI stands for

credit institution’s coordinator.

The communication proceeds as follows:

1. Oil broker’s Web service asks its coordinator to

create a coordination context for Atomic

Transaction -type coordination (2PC-type

coordination), and then the coordinator returns

the context which includes information where its

registration service can be found. In addition,

the context includes a timestamp on which the

scheduling will be based on.

2. Oil broker’s Web service sends oil purchase

message to manufacturer’s Web service and

creditability request to credit institution’s Web

service. Both messages include context

information. As the task Purchase chemical and

Check creditability belongs to the same

serializability set, the Web services have to

schedule them., i.e., ensure that they are executed

in the order determined by their timestamps. If

there is a violation in the timestamp order then

the compensation protocol is started which

undoes the effects of the tasks that are already

executed (note that in this example there are no

such tasks).

3. Oil broker’s Web service, chemical

manufacturer’s and credit institution’s Web

services send the context information to their

own coordinators.

4. Manufacturer’s coordinator and credit

institution’s coordinator register to oil broker’s

coordinator.

5. Oil broker’s coordinator sends the request

message to chemical manufacturer’s and credit

institution’s coordinator.

6. Chemical manufacturer’s coordinator and credit

institution’s coordinator request their Web

services to execute the activity.

7. Chemical manufacturer’s Web service and credit

institution’s Web service inform their

coordinators whether the execution failed or not.

8. Chemical manufacturer’s coordinator and credit

institution’s coordinator informs oil broker’s

coordinator whether the execution failed or

whether it was successfully executed.

9. If there were no failure then oil broker’s

coordinator sends the Commit-message to

chemical manufacturer’s Web service and credit

institution’s Web service; otherwise it sends the

Abort-message.

10. Chemical manufacturer’s coordinator informs its

Web service and credit institution’s coordinator

informs its Web service whether the multiparty

workflow is committed or aborted. In the case of

abortion the web services execute the

compensating transactions which undo the

effects of the executed transactions.

6 CONCLUSIONS

With traditional database transactions the need for

concurrency control is usually motivated by the

phenomena such as lost update and inconsistent

retrieval, and the commonly used correctness

criterion for schedules (histories) is serializability.

With multiparty business processes the requirements

for concurrency control significantly deviates from

those used with databases. Therefore neither the

correctness criteria nor the concurrency control

methods developed for databases are suitable for

multiparty business processes.

A nice feature of our developed concurrency

control model is that it enforces scheduling only on

those workflow instances that really need it. In

contrast with traditional database systems all the

transactions are enforced under scheduling which

significantly decreases the throughput of the system.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

214

Another nice feature of our concurrency control

method is that it can be easily integrated with the

atomicity protocol. In addition, technically the

timestamp ordering scheduler is very simple (e.g.,

compared with the locking schedulers in database

systems) as it only checks whether request are

served in the order determined by the timestamps.

A disadvantage of our semantic concurrency

control model is that the business process designer is

burden with defining the serializability-sets.

However, obviously there is no way around of

burden the designer if some semantic concurrency

control model is used.

REFERENCES

Bernstein, P. V. Hadzilacos, V. & N. Goodman, N.

Concurrency Control and Recovery in Database

Systems. Addison-Wesley, 1987.

Bernstein, P. & Newcomer, E. Principles of Transaction

Processing. Morgan Kaufmann Publisher. 1997

BPEL, 2004. BPEL4WS – Business Process Language for

Web Sevices. http://www.w.ibm.com/developersworks/

webservices/library/ws-bpel/BPEL, 2004.

BPEL, 2004. BPEL4WS – Business Process Execution

Language for Web Sevices. http://www.w.ibm.com/

developersworks/webservices/library/ws-bpel/

BTP, 2002. BTP- Business Transaction Protocol, http://

www.oasis-open.org/committees/business-transactions/

documents/primer/.

Daconta, M., Obrst, L. & K. Smith, K. The semanticweb.

Indianapolis: John Wiley & Sons. 2003

Garcia-Molina, H. Using semantic knowledge for

transaction processing in a distributed database. ACM

Transactions on Database Systems, 8(2):186-313, 1983.

Gray, J. & Reuter A. 1993. Trasaction Processing:

Concepts and Techniques. Morgan Kaufman.

Lynch N.. Multilevel atomicity – a new correctness

criterion for database concurrency control. ACM

Transactions on Database Systems, 8(4):65-76.

Marinescu, D. Internet-based workflow anagement. John

Wiley & Sons, 2002.

Newcomer E., 2002. Understanding Web Services

Addison-Wesley.

Puustjärvi, J. Workflow concurrency control. The

Computer Journal, 44(1), 2001.

Singh, M & Huhns, M. Service Oriented Computing:

Semantics, Processes, Agents. John Wiley &Sons, Ltd.

2005.

WSFL, 2003. WSFL- Web Services Flow Language.

http://www.ebpml.org/wsfl.htm

XAML, 2003. Transaction Author Markup Language

(XAML). http://xml.coverpages.org/xaml.html

XLANG, 2001. XLANG–Web Services for Business

Process Design. http://www.gotdotnet.com/team/

xml_wsspecs/xlang-c/default.htm

A CONCURRENCY CONTROL MODEL FOR MULTIPARTY BUSINESS PROCESSES

215
