HAPTICS AND EXTENSIBLE 3D IN WEB-BASED

ENVIRONMENTS FOR E-LEARNING AND SIMULATION

Felix G. Hamza-Lup and Ivan Sopin

Computer Science, Armstrong Atlantic State University, Savannah, Georgia, U.S.A.

Keywords: Haptics, H3D, X3D, 3D Graphics.

Abstract: Knowledge creation occurs in the process of social interaction. As our service-based society is evolving into

a knowledge-based society, there is an acute need for more effective collaboration and more effective

knowledge-sharing systems to be used by geographically scattered people. We present the use of 3D

components and standards, such as Web 3D in combination with the haptic paradigm, for

e-learning and simulation.

1 INTRODUCTION

Web-based knowledge transfer is becoming a field

of research which deserves the attention of the

research community, regardless of their domain of

expertise, especially because of the potential of

advanced technologies such as Web 3D and haptics.

In the context of global communication, these

technologies are becoming more stimulating through

the possibility of creating collaborative spaces for e-

learning and simulation.

In this paper we present several advanced

features of Web 3D in conjunction with two

successful projects employing those features. The

paper is structured as follows: In section 2 we

provide a brief introduction to the e-learning

concept. In section 3 we discuss the details of

different modalities to enrich user interaction with

web-based 3D and haptics. In section 4 we introduce

two case studies demonstrating the potential of X3D

in simulation and training: 3DRTT, a radiation

therapy medical simulator; and HaptEK16, an e-

learning module which provides interaction through

haptic feedback for teaching high-school physics

concepts. We conclude in section 5 with a set of

remarks and conclusions.

2 BACKGROUND AND

RELATED WORK

Let us take a look at the notion of e-learning.

According to Anohina (2005), as illustrated in figure

1, the concept of Internet-based learning is broader

than Web-based learning. The Web is only one of

the Internet services that uses a unified document

language (HTML), unified resource locator (URL),

browsers, and is based on the HTTP protocol.

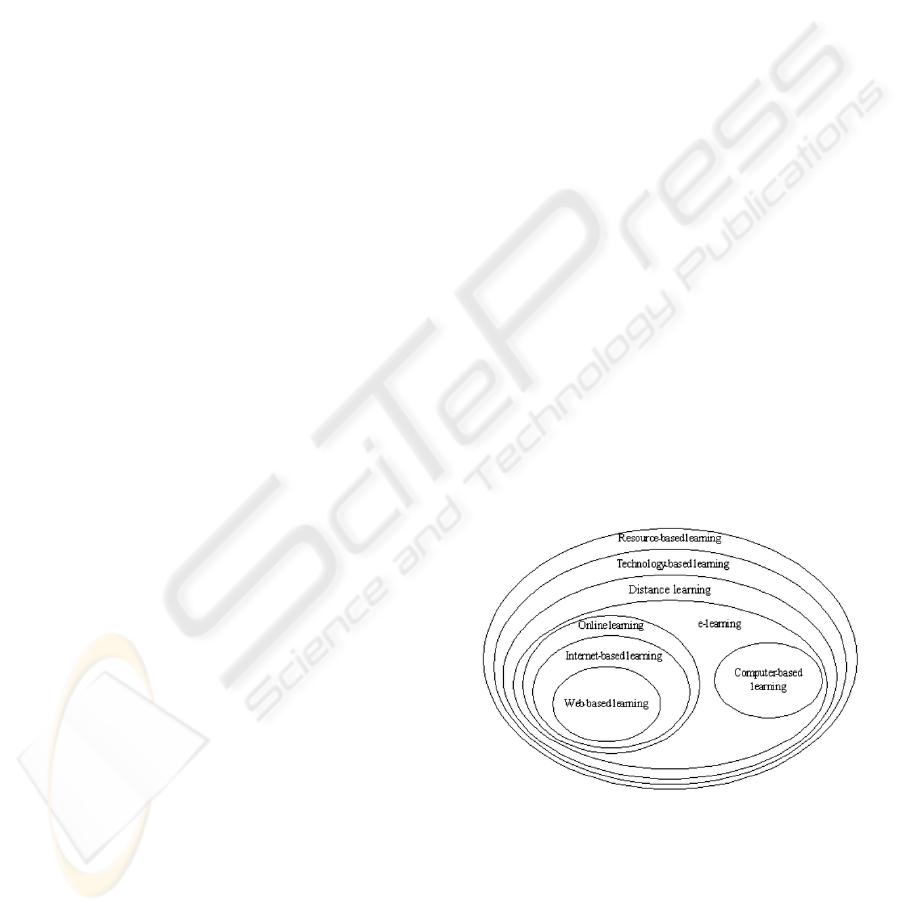

Figure 1: Subsets relationships among the group of terms.

As the largest network in the world, the Internet

offers other services besides Web: e-mail, file

transfer facilities, etc. Hence, learning could be

organized not only on the Web basis, but, for

example, as correspondence via e-mail as well.

Furthermore, the Internet employs a multitude of

proprietary protocols along with HTTP.

309

G. Hamza-Lup F. and Sopin I. (2008).

HAPTICS AND EXTENSIBLE 3D IN WEB-BASED ENVIRONMENTS FOR E-LEARNING AND SIMULATION.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 309-315

DOI: 10.5220/0001514303090315

 SciTePress

Due to the advances in 3D technology, it is now

possible to develop 3D interfaces and environments

to enhance the learning process and deploy these

interfaces on the Web. An example is Extensible 3D

(X3D), an ISO standard for real-time 3D computer

graphics and the successor to Virtual Reality

Modelling Language (VRML). X3D combines both

3D geometry and runtime behavioral descriptions

into a single file, encoded in a particular format such

as Extensible Markup Language (XML). It is an

initiative to leverage 3D as digital media as easily as

text and 2D graphics. It provides a means of

associating behaviors and dynamic scripts with 3D

objects, so that users can interact with those objects.

On the other hand, advanced interfaces are

undergoing a shift towards the incorporation of a

new paradigm: haptics. Interfaces combining 3D

graphics and haptics have the potential to facilitate

our understanding of various concepts and

phenomena as well as to promote new methods for

teaching and learning.

Haptic technologies offer a new way of creating

and manipulating 3D objects. For instance, in

Interactive Molecular Dynamics (Stone,

Gullingsrud, and Schulten, 2001) the users

manipulate molecules with real-time force feedback

and a 3D graphical display. Another example,

SCIRun (Durbeck et al, 1998), is a problem-solving

environment for scientific computation which is

used to display flow and vector fields such as fluid

flow models for airplane wings.

Initial pilot demonstrations with biology students

using augmented graphical models and haptic

feedback support the hypothesis that this method

provides an intuitive and natural way of

understanding difficult concepts and phenomena

(Sankaranarayanan et al, 2003). Another research

group, at the University of Patras, Greece, is

involved in designing simulations to aid children in

comprehending ideas concerning several subject

areas of science such as Newtonian Laws, Space

Phenomena, and Mechanics Assembly (Pentelios,

Christodoulou, and Papatheodorou, 2004). Tests

show that haptics technology improves the level of

human perception due to the deeper immersion

provided.

Other fields, such as mathematics and especially

geometry, also benefit from haptic interaction.

Recently, a system was proposed to allow the haptic

3D representation of a geometric problem’s

construction and solution (Kaufmann, Schmalstieg,

and Wagner, 2000). Initial performance evaluation

indicates the system’s amplified user-friendliness

and higher efficiency compared with the traditional

learning approach.

National Aeronautics Space Administration

(NASA) has shown interest in the potential use of

haptics in educational technology. The Learning

Technologies Project at the Langley Research

Center is concerned with innovative approaches for

supporting K-16 education. Pilot study results from

the use of simple haptics-augmented machines have

yielded positive feedback with 83% of the

elementary school and 97% of the college students,

rating the software from “Somewhat Effective” to

“Very effective” (Williams, M.-Y.C., and Seaton,

2000, 2003).

3 USER INTERACTION

User interaction can be enriched through 3D content

and haptics. In what follows we explore in more

detail the potential of combining X3D with

additional web-enabled instruments, such as HTML

and JavaScript, to provide control over the 3D

world. We also explain and explore the haptic

paradigm and its potential applications in the web-

based environment.

3.1 X3D Graphics Visualization

On their own, X3D files are simply formatted lines

of code. To visualize the graphical content of X3D

online, a web browser needs a special plug-in. Most

of the X3D plug-in vendors release their software at

no cost for public use and a small license fee for

commercial use. One example is the BitManagement

Contact X3D player.

Usually, X3D plug-ins are equipped with a set of

basic controls for customizing the user interface and

specifying the properties of user interaction:

navigational tools, graphics modes, and rendering

settings, just to name a few. While useful, these

features only facilitate the user in exploring the

visual content, but do not provide any means of

altering it. It is the X3D standard itself that allows

users to dynamically modify and interact with the

3D graphical scene. There are several alternatives to

implement such systems. In the following two

subsections we discuss the advantages and

drawbacks of a stand-alone X3D based simulation

environment in comparison with an environment

where the functionality is enriched with JavaScript

functions and HTML.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

310

3.2 X3D-based GUI

An X3D-based graphical user interface (GUI)

implies that the entire functionality is embedded in

the X3D and no control is possible outside the X3D

content.

If radical changes are made to the application,

the code of the file with graphical content has to be

altered. This entails the necessity to provide an

updated version of the file and also to manually

refresh the X3D scene. Such organization largely

corresponds to the common client/server interaction

on the web. When an HTML form is populated with

data, the user has to press the “Submit” button to

request the server response.

The three-dimensional scope introduced by X3D

brings into play new aspects of GUI/user interaction.

For instance, volumetric controls, easily

implemented in X3D, can better mimic the behavior

of the objects. A multitude of components can also

be controlled by simply clicking, dragging, rotating,

or actuating them through a system of specifically

designated sensors. The scripting capabilities of

X3D enrich the GUI interactivity, enabling

developers to create efficient control panels meeting

the project-specific tasks. The potential to create 3D

GUIs and organize information in the third

dimension is considerable.

3.3 HTML/JavaScript-based GUI

A different approach to improving the GUI

interactivity is involving external tools that could

effectively communicate with the 3D graphical

scene. A good example of such tools is HTML and

JavaScript, most commonly used to build web pages.

In HTML/JavaScript-based GUI, JavaScript is

the driving force of most of the features while

HTML only serves as its operating environment.

However, JavaScript makes it difficult to encode

unconventional GUI components needed to closer

represent the dynamics of the virtual objects in the

3D scene. These difficulties arise because browsers

usually do not support such tools that go beyond the

facilities of regular HTML widgets. Therefore,

creation of powerful and flexible task-oriented GUI

components requires the usage of the traditional

HTML objects (layers, inputs, etc.) combined with

extensive JavaScript code.

With the interface functionality programmed as

JavaScript functions, the 3D scene still derives its

maneuverability from the methods implemented in

the X3D scripting nodes. The browser and X3D

environments communicate through mutual function

calls. The browser refers to the virtual scene as to an

HTML document’s object with a number of public

functions. Different X3D plug-in manufacturers

provide their own sets of such functions. X3D

feedback is composed of dynamic injections of

JavaScript code. Because both, visual content and

HTML/JavaScript GUI, are synchronized

automatically, no manual page updates are

necessary. However, synchronization between

HTML and X3D can be an issue in such

implementation. The synchronization involves

continuous calls between the two media and may

consume considerable CPU power.

New client/server communication techniques are

also feasible for the development of various dynamic

environments. For instance, asynchronous

JavaScript (AJAX) is used in our HTML/JavaScript-

based GUI (details in section 4.1) to obtain the

listing of external X3D components loaded in the

scene. Therefore, without “page refresh”, the user is

able to visualize external 3D objects and manipulate

them as if they were initially in the 3D scene.

3.4 Multimodal, Haptic-based GUI

Besides traditional GUIs, a novel paradigm, haptic

feedback (from the Greek haptesthai, meaning

“contact” or “touch”), may improve the interface

usability and interactivity. The tactile sense is the

most sophisticated of all our senses as it incorporates

pressure, heat, texture, hardness, weight, and the

form of objects.

Lederman, Klatzky, and Metzger (1985)

summarized four basic procedures for haptic

exploration, each one eliciting a different set of

object characteristics:

• Lateral motion (stroking) provides information

about the surface texture of the object.

• Pressure gives information about how firm the

material is.

• Contour following elicits information on the

form of the object.

• Enclosure reflects the volume of the object.

Recent haptic technologies are capable of delivering

realistic sensory stimuli at a reasonable cost,

opening new opportunities for academic research

and commercial developments (Stone, 2000). Such

devices have a distinct set of performance measures

(Wall, 2004):

• Degrees of freedom (DOF) – the set of

independent displacements that specify

completely the position of a body or a system.

HAPTICS AND EXTENSIBLE 3D IN WEB-BASED ENVIRONMENTS FOR E-LEARNING AND SIMULATION

311

• Workspace – the volume within which the

joints of the device will permit operation.

• Position resolution – the minimum detectable

change in position possible within the

workspace.

• Maximum force/torque – the maximum possible

output of the device, determined by such

factors as the power of the actuators and

efficiency of any gearing systems.

• Maximum stiffness – the maximum stiffness of

virtual surfaces presented on the device. It

depends on the maximum force/torque, but is

also related to the dynamic behaviour of the

device, sensor resolution, and the sampling

period of the controlling processor.

The addition of haptic feedback enables the users to

feel the virtual objects they manipulate. We have

experimented with the PHANTOM® Omni™

device, developed by Sensable Technologies

(illustrated in figure 2). The Omni™ became one of

our choices due to its low cost and force-feedback

qualities. It is also backed by an open source

Application Programming Interface (API).

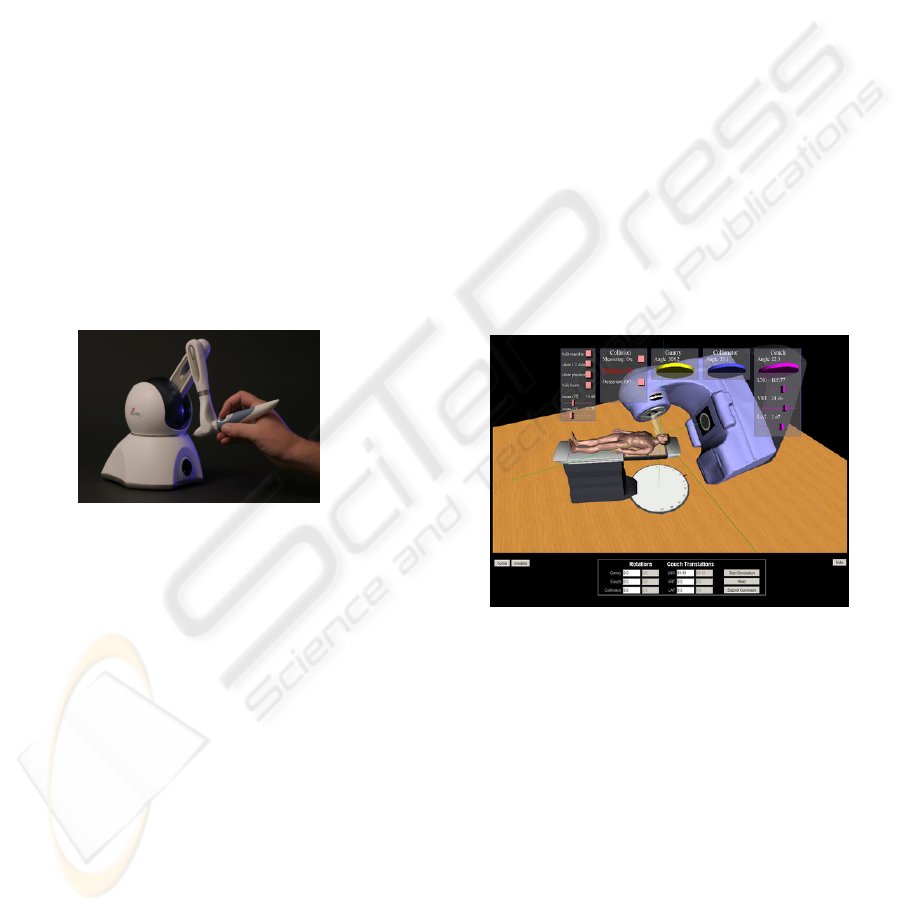

Figure 2: Phantom® Omni™ Device.

4 CASE STUDIES

To illustrate the concepts discussed so far, we will

describe two successful projects developed at our

laboratory (www.cs.armstrong.edu/felix/news) using

X3D and haptic technologies: a web-based medical

simulator (3DRTT) and a haptic-based module for

teaching physics (HapteK16).

4.1 Medical Simulators – 3DRTT

Visual simulation in medicine plays a very important

role as the success of an operation relies upon

practical procedures and the physician’s (or

surgeon’s) experience. Many complex treatment

processes are preplanned well in advance of the

operation. This is especially the case with radiation

therapy. Medical personnel concerned with the

planning part (e.g. correct radiation dosages,

appropriate patient setup) are sometimes frustrated

by the fact that a theoretically sound plan proves

inconsistent with the current hardware and patient

constraints (e.g. collisions with the patient and

treatment hardware may occur).

3D Radiation Therapy Training (3DRTT) is a

web-based 3D graphical simulator for radiation

therapy. It simulates linear accelerators (linacs) used

to deliver radiation doses to an internal tumor,

therefore destroying cancerous cells. The project

focuses on improving the efficiency and reliability

of the radiation treatment planning and delivery

process by providing accurate visualization of the

linacs hardware components as well as careful

imaging of their interactive motion.

The virtual representation of the treatment

settings (figure 3) provides patients and therapists

with a clear understanding of the procedure.

Equipped with patient CT data, the treatment

planner can simulate a series of patient-specific

setups and, also detect unforeseen collision scenarios

for complex beam arrangements. Hence the

necessary adjustments in the treatment plan can be

made beforehand and validated.

Figure 3: 3DRTT Simulator with X3D GUI.

Another important application of 3DRTT is

improving the current level of radiation therapy

education and training. With such web-based 3D

simulation tools at the disposal of radiation therapy

staff, there is plenty of room for exploring various

treatment procedures (linac components, motion

limitations, associated accessories, etc.) and gaining

experience for future operations.

Currently, two versions of the simulator, with

X3D and HTML/JavaScript-based GUIs (refer to

sections 3.2 and 3.3), are available on the project’s

website (http://www.3drtt.org). The X3D-based

version provides tools for controlling the angles and

locations of the machine’s parts (figure 3). The GUI

is composed of several semitransparent pannels

WEBIST 2008 - International Conference on Web Information Systems and Technologies

312

containing various volumetric controls. The controls

are designed to logically correspond to the assigned

operations (specifically, scrolls for rotations, slides

for translations, and buttons for switching between

different simulation modes) and therefore improve

the overall intuitiveness (Hamza-Lup et al, 2007).

The user can easily rearrange the GUI components

to avoid occlusions of important parts of the scene.

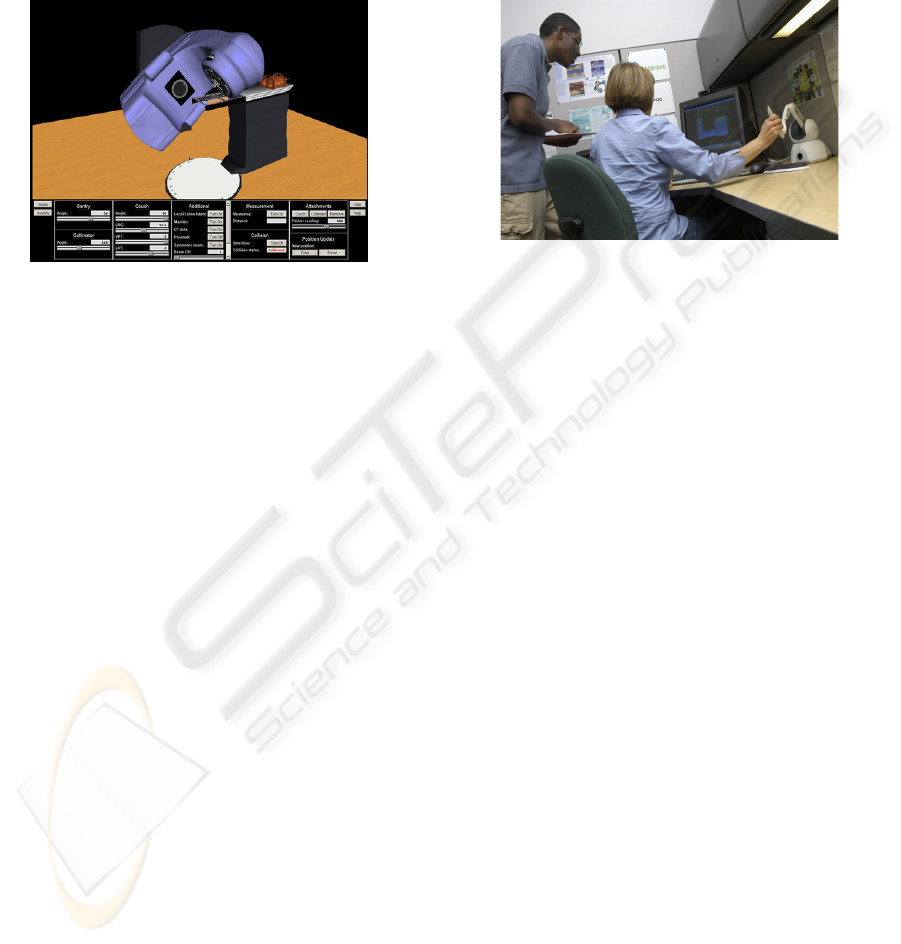

Figure 4: 3DRTT with HTML/JavaScript-based GUI.

The HTML/JavaScript-based GUI alternative

supports the same functionality and also provides

new and highly useful features (figure 4) as follows.

Instead of floating X3D menus, the simulator

controls are shifted to the HTML document scope.

The set of GUI elements includes sliders, buttons,

and displays that support the learnability of the

interface. For the convenience of navigation in the

virtual space, the control panel can be hidden and

brought back per user request, improving in this way

the navigation throughout the simulator. HTML

introduces new methods of accessing and

dynamically processing external modules. For

instance, the user may load various hardware

attachments for the linacs directly in the virtual

world. The source X3D file for the simulator does

not “know” how many attachments are available at

the moment, what their names are, etc. However, at

the user’s request, an AJAX function makes a call to

a Java Servlet Pages code stored on the server and

receives the listing of available files as the response.

This listing is transmitted to an X3D script that

handles the loading and embedding of specified files

into the virtual environment. Therefore, no

alterations of the X3D source code are necessary

when new attachments are uploaded to the server

because they become immediately accessible.

4.2 E-Learning Module – HaptEK16

HaptEK16 is designed to assist students in

understanding Pascal’s principle and other difficult

concepts of hydraulics. The simulator includes three

simulation modules: pressure measurement,

hydraulic machine, and hydraulic lifting simulation.

Students can interact with the 3D scene using a

haptic device, as illustrated in figure 5. The

functionality of the simulator is implemented

through Python, X3D, and the Sense Graphics’ H3D

API (http://sensegraphics.com), discussed further.

Figure 5: Students using the HaptEK16 hydraulics

module.

Python is an object-oriented programming language

that offers strong support for integration with other

toolkits and APIs. It is a rapidly growing open

source programming language. According to

InfoWorld (McAllister, 2004), Python’s user base

nearly doubled in 2004 and currently includes about

14% of all programmers. Python is available for

most operating systems, including Windows, UNIX,

Linux, and Mac. Some of the Python’s strengths

which were considered when selecting the language

to implement the system functionality include

• Low complexity: wxPython (an auxiliary library

for GUI) was selected because of its ease of

use and reduced complexity compared with

Java/Swing;

• Prototyping: Prototyping in Python is quick and

simple and often leads to a quick prototype that

can be adapted for the development of the final

system;

• Maintainability: The code in Python is easy to

modify and/or redesign. Less time is spent

understanding and rewriting code which leads

to an efficient integration of new features.

H3D is an opened X3D-based haptic API. It is

written entirely in C++ and uses OpenGL for

graphics rendering and OpenHaptics (de-facto

industry standard haptic library) for haptic

rendering. With its haptic extensions to X3D, H3D

API is an excellent tool for writing hapto-visual

applications that combine the sense of touch and 3D

graphics. The main advantage of H3D to

HAPTICS AND EXTENSIBLE 3D IN WEB-BASED ENVIRONMENTS FOR E-LEARNING AND SIMULATION

313

OpenHaptics users is that, being a unified scene

graph API, it makes management of both graphics

and haptics rendering easy.

The scene graph concept facilitates application

development, but it can still be time consuming. For

this reason, SenseGraphics extended their API with

scripting capabilities in order to empower the user

with the ability of rapid prototyping. The design

approach used in HaptEK16 was the one

recommended by SenseGraphics: i.e. geometry and

scene-graph structure for a particular application

were defined using X3D, and application and user

interface behaviors were described using Python and

wxPython.

Programming the sense of touch for a virtual

object involves two steps. First, the programmer

must specify the haptic device to use; second, a set

of haptic properties must be defined for each

“touchable” object. To specify the haptic device, an

instance of the DeviceInfo node is created, and the

haptic device is added to it. HLHapticsDevice is the

node used to manipulate a Phantom device. The

graphical representation of the device (in case of

HaptEK16 a sphere) is also specified in the

containerField group, as illustrated in figure 6.

<HLHapticsDevice

positionCalibration="1e-3 0 0 -.15

0 2e-3 0 .05 0 0 1e-3 0 0 0 0 1">

<Shape>

</Appearance>

</Shape>

<Transform translation="0 0 0.08"

rotation="1 0 0 1.570796">

<Shape>

</Appearance>

<Cylinder radius="0.005"

height="0.1" />

</Shape>

</Transform>

</Group>

</HLHapticsDevice>

</DeviceInfo>

Figure 6: Specifying the haptic device.

To implement the tactile sensation for a generic

shape, one must add a surface node with haptic

properties to the shape’s Appearance node. In

HaptEK16 this is accomplished with a fictional

surface node added to the cylinder’s Appearance

node. The DynamicTransform node is added to

define properties for rigid body motion, as illustrated

in figure 7.

<DynamicTransform DEF="DYN1"

mass=".05" inertiaTensor=".1 0 0 .1 0 0 0 .1">

<Shape>

<Material

diffuseColor="0 .8 .8" />

<FrictionalSurface

dynamicFriction=".6"

staticFriction=".2" />

</Appearance>

<Cylinder DEF="LEFTCYL"

height=".085" radius=".045" />

</Shape>

</DynamicTransform>

Figure 7: Implementing haptic properties.

The X3D file format is used by H3D as an easy way

to define geometry and arrange scene-graph

elements such as user interfaces. A screenshot of the

HaptEK16 e-learning module is illustrated in

figure8.

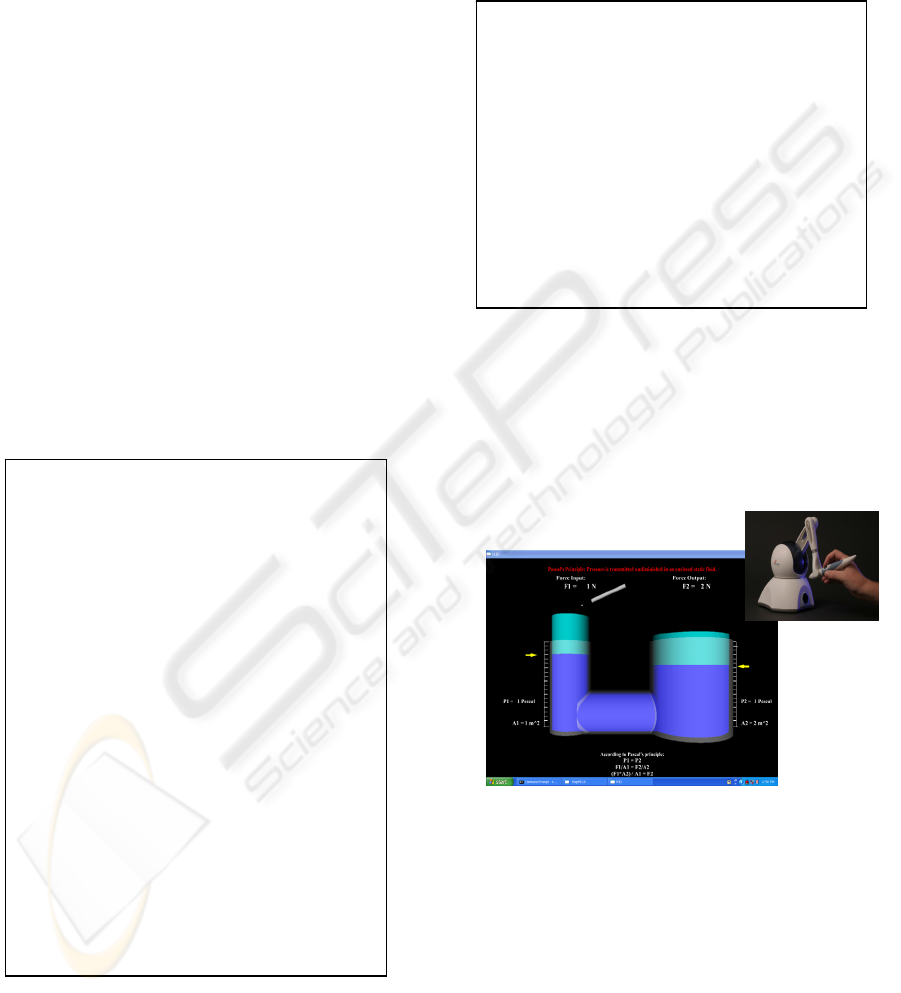

Figure 8: HaptEK16 screenshot and corresponding

Phantom® Omni™ device from Sensable Technologies.

A set of test questionnaires were designed and

implemented for the assessment of the e-learning

module. The results from the assessment tests

proved that the students who had the opportunity to

use HaptEK16 scored better (13% higher total

scores) than the group that did not. Such results

prove the potential of using X3D and haptics to

develop novel simulation and training environments.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

314

5 CONCLUSIONS

3DRTT serves as an example of a web-based system

extensively taking advantage of X3D to improve the

efficiency of the user-interface interaction as well as

to provide powerful means of professional education

and training. Naturally, complex concepts and

settings are better understood when provided with

visual support, especially in complex scenarios.

Easy access, simple control, and advanced

capabilities of visualizing in 3D and online radiation

therapy treatment scenarios proved to be of great

value to the radiation therapists using our system.

Currently, 3DRTT has over sixty registered users

and keeps attracting the attention of other

professionals working in the radiation therapy field.

Another development, the haptic e-learning

module (HapteK16) facilitates student understanding

of difficult concepts (e.g. in physics) and has the

potential to augment or replace traditional laboratory

instruction with an interactive interface offering

enhanced motivation, retention, and intellectual

stimulation. HaptEK16’s haptics-augmented

activities allow students to interact and feel the

effects of their choices. We believe the force

feedback will lead to more effective learning and

that the HaptEK16 project has significant

educational potential.

Considering the advances in software and

hardware technology, we will see many applications

of haptics and 3D graphics in near future web-based

information systems and applications.

REFERENCES

Anohina, A. (2005) Analysis of the terminology used in

the field of virtual learning. Journal of Educational

Technology & Society, 8(3) July, pp.91-102.

Durbeck, L.; Macias, N.J.; Weinstein, D.M.; Johnson,

C.R.; Hollerbach, J.M. (1998) SCIRun haptic display

for scientific visualization. In: Salisbury, K.J. and

Srinivasan, M.A. ed. Proceedings of the Third

Phantom User's Group Workshop, October 3-6,

Cambridge USA. Massachusetts Institute of

Technology.

Hamza-Lup, F.; Sopin, I.; Lipsa, D.; Zeidan, O. (2007)

X3D in radiation therapy procedure planning. In:

Proceedings of the International Conference on Web

Information Systems and Technologies, March 3-6,

2007, Barcelona, Spain. pp.359-64.

Kaufmann, H.; Schmalstieg, D.; Wagner, M. (2000)

Construct3D: a virtual reality application for

mathematics and geometry education. Education and

Information Technologies, 5(4) December, pp.263-76.

Klatzky, R. L.; Lederman, S.J.; Metzger, V. A. (1985)

Identifying objects by touch: An "expert system."

Perception and Psychophysics, 37(4), pp.299-302.

McAllister, N. (2004) What do developers want?

[Internet] Available from:

<http://www.infoworld.com/article/04/09/24/39FErrdev_1

.html> [Accessed 24 September 2007].

Pantelios, M.; Tsiknas, L.; Christodoulou, S.;

Papatheodorou, T. (2004) Haptics technology in

Educational Applications, a Case Study. Journal of

Digital Information Management, 2(4), pp.171-179.

Sankaranarayanan, G.; Weghorst, S.; Sanner, M.; Gillet,

A.; Olson, A. (2003) Role of haptics in teaching

structural molecular biology. In: Proceedings of the

11th Symposium on Haptic Interfaces for Virtual

Environment and Teleoperator Systems (HAPTICS

'03), March 22-23, Los Angeles, CA, pp.363-366.

Stone, J.E.; Gullingsrud, J.; Schulten, K. (2001) A system

for interactive molecular dynamics. In: Hughes, J.F.,

and Sequin, C.H. ed. Proceedings of Symposium on

Interactive 3D Graphics, March 19-21, Research

Triangle Park USA. ACM SIGGRAPH, pp.191-194.

Stone, R. J. (2000) Haptic feedback: a brief history from

telepresence to virtual reality. In: Proceedings of the

First International Workshop on Haptic Human-

Computer Interaction, August 31 – September 1,

Glasgow Scotland. Springer-Verlag, pp.1-16.

Williams II, R.L.; Chen, M.-Y.; Seaton, J.M. (2001)

Haptics-augmented high school physics tutorials.

International Journal of Virtual Reality, 5(1).

Williams II, R.L.; Chen, M.-Y.; Seaton, J.M. (2003)

Haptics-augmented simple machines educational tools.

Journal of Science Education and Technology, 12(1),

pp.16-27.

Wall, S. (2004) An investigation of temporal and spatial

limitations of haptic interfaces. Ph.D. Thesis,

Department of Cybernetics, University of Reading.

HAPTICS AND EXTENSIBLE 3D IN WEB-BASED ENVIRONMENTS FOR E-LEARNING AND SIMULATION

315
