ANALYSIS, DESIGN AND IMPLEMENTATION OF IDS USING

DATA MINING

B. V. Patel

Computer Technology Department, Shah & Anchor Kutchhi Polytechnic, Mumbai, India

B. B. Meshram

Computer Technology Department, Veermata Jijabai Technological Institute, Mumbai, India

Keywords: Normal Network Traffic, IP, TCP, UDP Packet Format, Fuzzy, Association, Classification, Certainty.

Abstract: To achieve the implementation of intrusion detection system (IDS), we have integrated the Fuzzy Logic

with extended Apriori Association Data Mining to extract more abstract patterns at a higher level which

look for deviations from stored patterns of normal behaviour of the computer network. Here the various

packet formats of TCP, UDP, IP etc are used to study the normal behaviour of the network. Genetic

algorithms are used to tune the fuzzy membership functions. The tuned data by genetic algorithms is

processed by the modified Apriori algorithm. The association pattern is populated by genetic algorithm for

the selection of best population of the network traffic. This best populated data is classified by the C4.5

algorithms to find intrusions. The deployment of IDS is done under the control of secure linux environment

and the system is tested in the distributed environment.

1 INTRODUCTION

"Intrusion Detection is the process of monitoring the

events occurring in a computer system or network

and analyzing them for signs of intrusions. Intrusion

is defined as attempts to compromise the

confidentiality, integrity, availability, or to bypass

security mechanism of a computer or network."

While information system in an organization has

become a valuable asset of the organization,

attempts to compromise it have also increased.

Intrusion detection systems add an early warning

capability to a company’s defences, alerting to the

type of suspicious activity that typically occurs

before and during an attack. Since we cannot stop an

attack, intrusion detection systems should not be

considered an alternative to traditional good security

practices. There is no substitute for a carefully

thought out corporate security policy, backed up by

effective security procedures which are carried out

by skilled staff using the necessary tools (Meshram,

2004, Kumar, 2005). Instead, intrusion detection

systems should be viewed as an additional tool in the

continuing battle against hackers and crackers.

However, our work aims to eliminate, as much as

possible, the manual and ad-hoc elements from the

process of building an intrusion detection system

(Meshram, 2004). The central theme of our approach

is to describe a data mining framework for

adaptively building Intrusion Detection (ID) model.

The rest of the paper is organized as below:

The section 2 presents the literature survey and

modified algorithms used in this implementation,

section 3 describes data and process modelling of

the system and 4

section presents the

implementation of the system, finally 5

section

summarizes the results.

2 PROPOSED ALGORITHMS

USED IN IMPLEMENTATION

The proposed algorithms used in this

implementation are modified to meet the needs of

network data.

V. Patel B. and Meshram B. (2008).

ANALYSIS, DESIGN AND IMPLEMENTATION OF IDS USING DATA MINING.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 81-86

DOI: 10.5220/0001516100810086

 SciTePress

2.1 Extensions of Apriori Algorithm

The basic Apriori algorithms(Meshram, 2004) do

not consider any domain knowledge and as a result

they can generate many “irrelevant" (i.e.,

uninteresting) rules. The above limitations and

generalization is achieved by incorporating two

modifications to the basic Apriori algorithm. They

are: Axis attributes, Reference attributes.

Interestingness Measures based on Attributes:

The basic algorithms implicitly measure the

interestingness (i.e., relevancy) of patterns by their

support and confidence values, without regard to any

available prior domain knowledge. That is, assume I

is the interestingness measure of a pattern p, then

I(p) = f(support(p); confidence(p)) Where f is some

ranking function. We attempt to utilize the schema

level information about audit records to direct the

pattern mining process. Assume IA is a measure on

whether a pattern p contains the specified important

(i.e. “interesting") attributes, our extended

interestingness measure is

Ie(p) = fe(IA(p); f(support(p); confidence(p)))

= fe(IA(p); I(p))

Where fe is a ranking function that first considers

the attributes in the pattern, then the support and

confidence values.

Using the Axis Attributes (IA): We describe

several schema-level characteristics of audit data, in

the forms of “what attributes must be considered",

that can be used to guide the mining of relevant

features. We call the essential attribute(s) as axis

attribute(s) when they are used as a form of item

constraints in the association rules algorithm. During

candidate generation, an item set must contain

value(s) of the axis attribute(s). We consider the

correlation among non-axis attributes as not

interesting. In other words,

IAx (p) = 1 if p contains axis attribute(s)

= 0 otherwise (not interesting attribute).

Using the Reference Attributes (IR): Another

interesting characteristic of system audit data is that

some attributes can be the references of other

attributes. These reference attributes normally carry

information about some “subject", and other

attributes describe the “actions" that refer to the

same “subject". It is important to use the “subject" as

a reference when finding such frequent sequential

“action" patterns because the “actions" from

different “subjects" are normally irrelevant. This

kind of sequential pattern can be represented as:

(Subject = X; action = a);

(Subject = X; action = b) → (subject = X; action = c)

Thus subject is simply reference (or a variable).In

other words,

IAr (p) = 1 if the item sets of p refer to the same

reference attribute value otherwise 0.

Level-wise Approximate Mining: In daily network

traffic, some services, for example, gopher, account

for very low occurrences. Yet we still need to

include their patterns into the network traffic profile,

we will then get unnecessarily a very large number

of patterns related to the high frequency services.

Here the idea is to first find the episodes related

to high frequency axis attribute values. We then

iteratively lower the support threshold to find the

episodes related to the low frequency axis values by

restricting the participation of the “old" axis values

that already have output episodes. More specifically,

when an episode is generated, it must contain at least

one “new" (low frequency) axis value. Then we can

infer the more information required in the

classification of the network data.

2.2 Integration of Fuzzy Logic with

Modified Apriori

Although association rules can be mined from audit

data for anomaly intrusion detection, the mined rules

are at the data level. Integrating fuzzy logic with

association rules allows one to extract more abstract

patterns at a higher level.

2.2.1 Probability of Fuzzy Logic Association

Rules

Let T = {t

, t

, ..., t

} be the database and ti

represents the i

tuple in T. Moreover, we use I =

, i

, ..., i

} to represent all attributes appeared in T

and ij represents the j

attribute. Since I contain set

of items, we call I an itemset. We can retrieve the

value of attribute i

in the j

record simply by t

[ik].

Besides, each attribute ik will associate with several

fuzzy sets. We use F

= {f1

, f2

, ..., fl

} to

represent set of fuzzy sets associated with ik and fj

represents the j

fuzzy set in F

Given a database T with attributes I and those

fuzzy sets associated with attributes in I, we want to

find out some interesting, potentially useful

regularities in a guided way. Our proposed fuzzy

association rule is in the form: If X is A then Y is B.

In the above rule, X = {x

, x

, ..., x

} and Y = {y

, ..., y

} are item sets. X and Y are subsets of I and

they are disjoint which means that they share no

common attributes. A = {fx

, fx

, ..., fx

} and B =

{fy

, fy

, ..., fy

} contain the fuzzy sets associated

with the corresponding attributes in X and Y. For

WEBIST 2008 - International Conference on Web Information Systems and Technologies

example, an attribute x

in X will have a fuzzy set f

in A such that f

ε F

is satisfied.

We use significance and a certainty factor to

determine the satisfiability of itemises and rules.

Significance Factor: To generate fuzzy association

rule, we have to find out all large k-item sets which

are item sets with significance higher than a user

specified threshold.

We use the following formula to calculate the

significance factor of <X, A>, i.e. S<X, A>

Significance = (Sum of votes satisfying <X, A>) /

(Total number of records in T)

<X, A>

= ∑t

ε T ∏x

ε X {αa

])}/ total (T)

where

ε A(t

]) if m

>=w

αa

]) ={

0 otherwise.

In the above equation, <X, A> represents the

itemset-fuzzy set pair, where X is set of attributes xj

and A is the set of fuzzy sets aj.

Certainty Factor: When we obtain a large item set

<Z, C>, we want to generate fuzzy association rules

of the form, 'If X is A then Y is B.' where X

C Z, Y

= Z -X, A C C and B = C-A. We can calculate the

certainty factor as follows:

Certainty = Significance of <Z, C> / Significance of

<X, A>

Since the significance factor of an item set is the

measure of the degree of support given by records,

we use significance to help us estimate the

interestingness of the generated fuzzy association

rules. The certainty reflects fraction of votes support

<X, A> will also support <Z, C>.

2.3 Genetic Algorithm

This algorithm originates from Darwin’s Evaluation

Theory (Carvalho, 2002). We have used the Genetic

Algorithm in distributed environment (Carvalho,

2002).

2.3.1 Applications of Genetic Algorithms in

Fuzzy Systems

Without a computer-aided tool (such as GAs), the

task of defining membership functions for the fuzzy

variables in a target system is usually completed by

human experts manually. To ease or release human

experts from this tedious work, GAs have been

extensively used to derive optimal or sub-optimal

membership functions. Integrating fuzzy logic with

association rules allow one to extract more abstract

patterns of normal behaviour. If deviation is beyond

certain threshold, the anomaly is detected as an

attempt to intrude network. Genetic algorithms are

used to tune the fuzzy membership functions.

2.3.2 Similarity among Fuzzy Association

and Fitness Function

The fitness function for the genetic algorithm is

based on the similarity of rule sets mined from

different sets of audit data. The similarity between

two fuzzy association rules and between two fuzzy

rule sets is defined as:

Given two association rules, R1: X →Y, c, s, and

R2: X’→Y’, c’, s’; if X=X’ and Y=Y’, then the

similarity between R1 and R2 is:

similarity (R1, R2) = max {0, 1-max [ c- c’| /c, |s-

s’|/s}

Otherwise, similarity (R1, R2) =0

The similarity between two rule sets S1 and S2 is:

Similarity (S1, S2) = (s/|S1|) * (s/|S2|)

Where s= ∑vR1εS1and vR2 εS2 similarity (R1, R2),

and |S1| and |S2| are the total number of rules in S1

and S2, respectively.

Two different sets of audit data were available

for testing the fuzzy logic genetic algorithm: a

normal data set with no intrusions and “abnormal”

data set with different types of intrusions. The

abnormal data set is created using tool called

nemesis. The normal data (created by TCPdump) set

was partitioned into two sets. One partition of the

normal audit data is called the reference data and

one set is called normal data. The following two

fitness functions have been designed and tested

(Axelsson, 2000):

F1= Srn / Sra

F2= Srn – Sra

where Srn is the similarity between a reference rule

set and the “normal” rule set, Sra is the similarity

between the reference rule set and abnormal rule set.

2.4 GA and C4.5 for Intrusion

Detection

Intrusion Detection System deals with huge amount

of data which contains irrelevant and redundant

features causing slow training and testing rate,

higher resource consumption as well as poor

detection rate. To overcome this problem a

combined approach of GA and C4.5 is used.

We have used genetic algorithms for feature

extraction and elimination from the association

rules.

Here the fitness function is given by the formula:

Fitness = (TP / (TP + FN)) * (TN / (FP + TN)),

ANALYSIS, DESIGN AND IMPLEMENTATION OF IDS USING DATA MINING

where TP, FN, TN and FP stand for the number of

true positives, false negatives, true negatives and

false positives.

Then the classification of the data is done by

using C4.5 Algorithms in distributed environment

(Carvalho, 2002).

The C4.5 algorithm uses a splitting criterion

based on Information Gain Ratio. The idea is to

partition the given training set in such a way that the

information needed to classify the given example is

reduced as much as possible. Formally let s be

training set and |s| be number of elements in s, and

freq (C

,s) s number of records that belongs to class I

where i={1,2,…,N}.The average information i.e.

entropy to identify the given class is:

Info(s) =-∑freq (C

, s) /|s| * log

(freq (C

, s) /|s|)

Hence the amount of information needed to split the

set s into N distinct subsets {s

} in agreement to test

(Test

) result, is:

Info

TestA

(s)= ∑|s

|/|s| *Info(s

)

The gain is computed as:

gainRatio(Test

)=gain(Test

)/splitInfo(Test

)

where ,

gain(Test

)=Info(s)-Info

TestA

(s) and

splitInfo(Test

) =-∑ |s

|/|s| * log

(|s

|/|s|) for I = 1 to n.

3 ANALYSIS AND DESIGN

OF THE SYSTEMS

This section introduces the analysis and design of

the system.

3.1 Data Model

This section introduces the data structure design

(Meshram, 2004) used for authoring system of the

IDS. The TCPdump data contains packet data

captured by tcpdump as below:

For UDP Datagram. (Timestamp, Packet type,

Source address, Source port, Destination address,

Destination port, Protocol, Size)

For TCP Datagram. (Timestamp, Packet type,

Source address, Source port, Destination address,

Destination port, flag, Sequence number, Contained

data up to, Number of user data, Acknowledgement,

Window size, Option ).

The network data captured is pre-processed and

fuzzyfied, genetic algorithmic evaluated data is

stored in the following data structure.

Fuzzyfier. (attributes: significance_s_a,

significance_s_c, Signifiance_z_a, Signifiance_z_c ;

Genetic_Evaluator. (attributes:

crossover_probability mutation, probability,

noofgenerations, chromosome; methods:

generation_population(), crossover(), mutate(),

calculate_fitness()).

The output of these files are given to the extended

Apriori algorithms:

Itemset.txt. The itemset.txt which is used by

training module contains the candidate item sets and

its frequencies.

Itemset (Candidate item set, frequencies)

Rules.txt. The rules.txt file which is an output of

the training module and one of the inputs of

detection module contains association rules

generated by Apriori algorithm.

Rules.txt (Frequent item set )

Intrusioninfo.txt. The intrusioninfo.txt which is

generated by detection module contains the

information about intruder.

The intruders and alerts are stored in the following

file.

Intrusion-Detection (attributes: Connection time, IP

address, Port, status, Significance, certainty;

methods: generate_alarm(); detection_alarm();

display_results()).

3.2 Process Model

The flow of information of the intrusion detection

system is as shown in figure 1

The Input Data Pre-processing. The network-

based approached relies on the tcpdump data as

input, which gives per packet information. We used

data a 2 GB dataset that we collected over a 24hrs

span. We used it as the normal data. This data was

pre-processed as grouping records corresponding to

one connection. Following this, Content-based,

Time-based and Connection-based features were

extracted from the data.

The Training Module. IDS is trained using a data

set in which the attacks and the attack-free periods

are correctly labelled. Both parts of the stream are

fed into this module which performs a conventional

association rules discovery with the aid of fuzzy

logic and genetic algorithms. The output of this

module is a profile of rules that depict the behaviour

of the network with the possible known attacks.

The Detection Module. In order to detect intrusions

in the test data, the Intrusion Detector is invoked,

which is implemented using Genetic algorithm and

C4-5 algorithm to labels the event as either normal

or attacks depending on the certainty theory.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

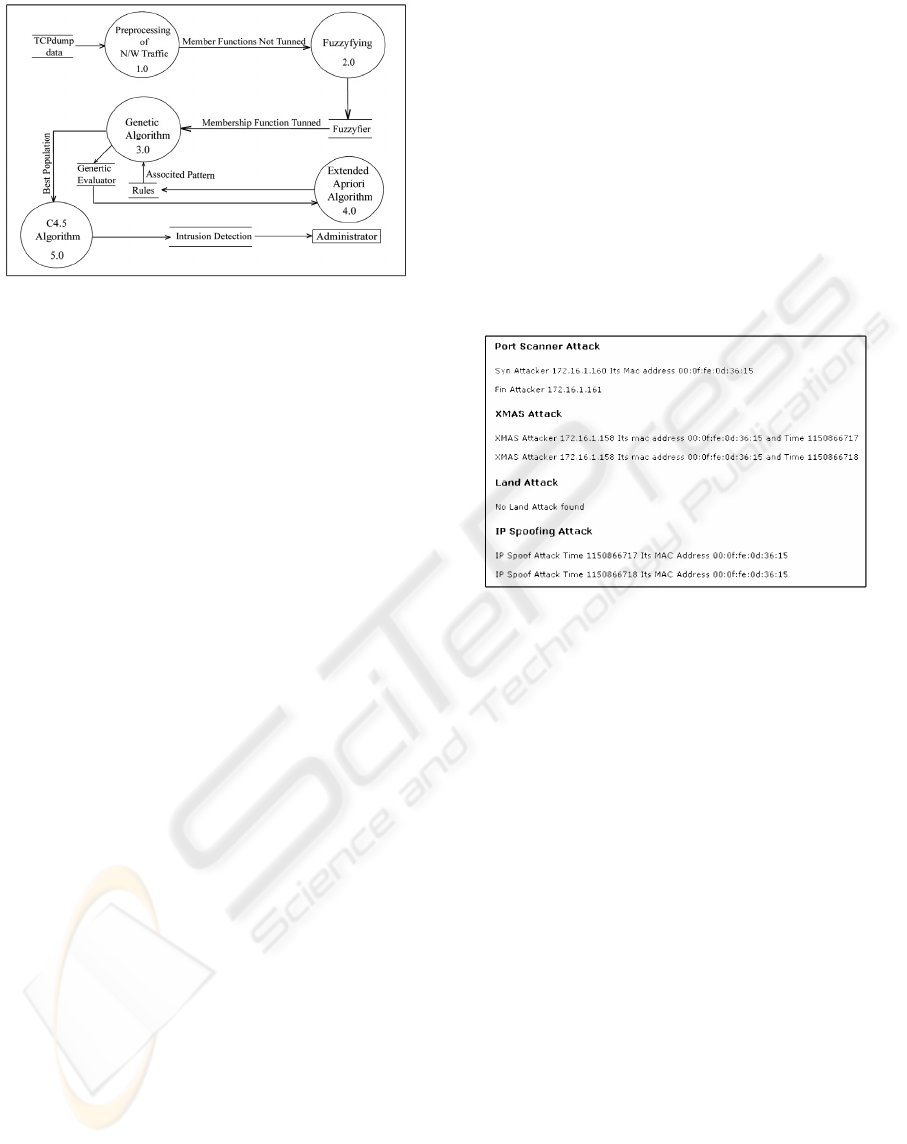

Figure 1: Flow of information of IDS system.

4 IMPLEMENTATION

Tcpdump data is captured and downloaded it in

text.txt file by the following command:

# tcpdump –i eth0 >> test.txt

Algorithms1: Input Pre-Processing ( )

Input: test.txt

>>text.txt file contains the packet information of

many records.

Procedure : Pre-Processing ( )

In this module, data in text.txt is processed to

generate itemset.txt file. The basic task is to extract

extensive set of features for data mining algorithm.

This task is perform on the basis of protocol of the

packet and frequency of item set. The frequent Item

set and their frequency is stored in itemset.txt file.

Output: Itemset.txt

>>itemset.txt file contains frequent Item set and

their frequency

Algorithms2: Training Module ( )

Input: itemset.txt of module-1

Procedure : Training Module( ). In this module, data

in Itemset.txt is processed to generate rules.txt file.

The basic task is to perform Apriori algorithm

integrated with fuzzy logic and genetic algorithms

on Itemset.txt to generate association rules.

Output: rules.txt

>>rules.txt file contains association rules by which

intrusion detection is performed.

Algorithms3: Detection Module ( )

Input: rules.txt of module-2 and netstat.txt ( training

data)

>> netstat.txt is obtained by capturing packets

through tcpdump as below:

# tcpdump –i eth0 >> netstat.txt

Procedure: Detection Module ( )

The rules are stored in rules.txt file and processed by

the genetic algorithms. In this module, detection

process (C4.5 algorithms) is performed on

netstat.txt. This task is performed by C4.5 algorithm

and produce Intrusion information on network. This

intrusion information is stored in intrusioninfo.txt

file

Output: intrusioninfo.txt

>> intrusioninfo.txt file contains attack type,

connection time, IP address, port and status

depending on the data etc. you can read the file and

understand the attack. The content of the

intrusioninfo.txt are observed in the multimedia

authoring graphical interface as in figure 2.

Figure 2: Intrusion Detection.

The backend of the system is oracle 9i and the

behavioural model and user interface is implemented

using Java. The implemented IDS is configured in

the distributed Linux environment under the control

of role based security and fire wall(Karvande, 2004).

5 CONCLUSIONS

We have demonstrated that the integration of fuzzy

logic with extended Apriori algorithm generates

more abstract and flexible patterns for anomaly

detection.

Fuzzy association rules can be used to implement a

network intrusion detection system based upon the

assumption that an attack can be identified as burst

traffic in audit logs. GA-optimized fuzzy logic i.e.,

maximizes the similarity between normal association

rule sets while minimizing the similarity between a

normal and an abnormal association rule set. In

addition to tuning membership functions for fuzzy

association rules, genetic algorithms is used for

feature selection. They can also be used tune other

association rule mining parameters such as

minimum significance and minimum certainty.

ANALYSIS, DESIGN AND IMPLEMENTATION OF IDS USING DATA MINING

The intrusion detection process is performed by

C4.5 algorithm and produce intrusion information

for the administrator.

This data mining approach will not only reduce

training and testing time but also guarantee high

detection rates and low false positive rates among

different datasets.

REFERENCES

B. B. Meshram, Alok K. Kumar, 2004. HyIDS: Hybrid

Intrusion Detection System in the Proceedings of

National Conference on Research & Practices in

Current Areas of IT, Department of Computer Science

& Engineering, Sant Harchand Sing Longowal Central

Institute of Engineering & Technology, Longowal,

Dist Sangar( Punjab)-148106.

Alok K. Kumar , B. B. Meshram, 2005. NAD: Statistical

Network Anomaly Detector. In International

Conference Systemics, Cybernetics and Informatics

Icsci – 2005, Under The Aegis Of Pentagram Research

Centre Pvt. Ltd. Venue: Dr. Mcr Hrd Institute Of

Andhra Pradesh, Hyderabad.

B. B. Meshram, T.R.Sontakke, 2001. Object Oriented

Database schema Design. In 7Th International

Conference on Object Oriented Information Systems.,

Calgary, Canada.

Z. Malik, B. B. Meshram, 2004. A Study on Data Mining.

In Proceedings of National Conference on Research &

Practices in Current Areas of IT, Department of

Computer Science & Engineering, Sant Harchand Sing

Longowal Central Institute of Engineering &

Technology, Longowal, Dist Sangar( Punjab)-148106.

S. S. Karvande, B.B.Meshram, 2004. Design And

Implementation Of Application Layer Firewall For

Secure Internet Access. In International Conferences

on Soft Computing, Department of Computer

Applications, Computer Science & Engineering,

Information Technology, Bharath Institute of Higher

Education & Research, Chennai, Tamilnadu.

B. V. Patel, B. B. Meshram, 2007. Carpace 1.0 For

Multimedia Email Security. In International

Multiconference of Engineers and Computer

Scientists, Hong Kong.

Fan W., Miller M., Stolfo S., Lee W., Chan P, 2001. Using

Artificial Anomalies to Detect Unknown and Known

Network Intrusions. In Proceedings of the First IEEE

International Conference on Data MiningCA,

http://www.cc.gatech.edu/~wenke/papers/artificial_an

omalies.ps.

Axelsson S. 2000. Intrusion Detection Systems: A

Taxomomy and Survey. Technical report No 99-15,

Dept. of Computer Engineering, Chalmers University

of Technology, Sweden. http://www.ce.chalmers.se/

staff/sax/taxonomy.ps.

Frederick K. K. 2001, Network Intrusion Detection

Signatures. http://online.securityfocus.com/infocus/

1524.

Marin J., Ragsdale D., Surdu J, 2001. A Hybrid Approach

to the Profile Creation and Intrusion Detection. In

Proceedings of the DARPA Information Survivability

Conference and Exposition.

http://www.itoc.usma.edu/Documents/Hybrid_DISCEX_

AcceptedCopy.pdf.

Lee W.,2000.A data mining and CIDF based approach for

detecting novel and distributed Intrusions. In Third

International Worksho on Recent Advances in

Intrusion Detection, RAID. Toulouse, France.

http://www.cc.gatech.edu/~wenke/papers/lee_raid_00.ps.

Elson D., 2000. Intrusion Detection, Theory and Practice.

http://online.securityfocus.com/infocus/1203.

NSS Group, 2002. Intrusion Detection Systems

http://www.nss.co.uk/ids/edition3/index.htm.

Jones A. K., Sielken R. S., 2000. Computer system

intrusion detection: a survey.

http://www.cs.virginia.edu/~jones/IDS-research/

Documents/jones-sielken-survey-v11.pdf.

Carvalho, D.R., Freitas, 2002, Genetic Algorithm with

sequential with sequential niching for discovering

small disjunct rules. In proceedings of Genetic and

Evolutionary Computation Conference.

WEBIST 2008 - International Conference on Web Information Systems and Technologies
