MDA-BASED DEVELOPMENT OF DATA-DRIVEN WEB

APPLICATIONS

Attila Adamk

o and Lajos Koll

Department of Information Technology, Faculty of Informatics

University of Debrecen, Egyetem t

er 1., 4032 Debrecen, Hungary

Keywords:

MDA, UML2, Web Information System, XForms, XML Schema.

Abstract:

Due to the last decade’s technological changes, the more or less static Web sites has been evolving into Web-

based distributed applications in the past few years. Many competitive technologies have appeared but when

modeling a Web application, details of current technologies should be detached from the model of the appli-

cation domain since they are evolving very dinamically so they become obsolete relatively soon. We propose

an MDA-based method which can be used for designing and implementing Web Information Systems in the

above mentioned manner. Web applications are composed of several models (expressed in UML2): structural

model describes the underlying data structure, composition model deﬁnes an abstract page structure, while

navigational paths are modeled by navigational diagrams and use cases capture common user activities. By

the help of XML, XSLT and XForms, prototypes can be generated from these UML models rapidly.

1 INTRODUCTION

The evolution of Web technologies increased the

presence of the Web in our everyday life: starting

from personal home pages through corporate portals

and Web shops up to Web applications implement-

ing complex business processes. This diversity of

applications makes the selection of the appropriate

technology and platform more difﬁcult, in particu-

lar, when these applications should collaborate each

other. The best practices tells us to keep the modeling

of the application domain and the technological de-

tails separated.

Performing early demonstrations is an important

factor during the communication with the customer.

The models should formulate the complete structural

description of the Web site, resulting in an incomplete

prototype which may be used for testing and demon-

strating purposes.

Following these guidelines, the approach pre-

sented in Section 2 helps in the development of small

and medium sized data-oriented Web applications us-

ing UML. Use cases, activity and class diagrams are

used to describe the behaviour and the structure of the

Web application.

1.1 Model Driven Architecture

OMG’s Model Driven Architecture (MDA) provides a

framework which allows applications to be described

in a platform-independent manner. In MDA, artifacts

are formal models describing a given aspect of the

system. MDA uses UML as a standard modeling lan-

guage in order to achieve a common understanding

among stakeholders.

In case of a technological change (or evolution),

a PIM is not subject to change as it contains the

platform-independent model of applications. All

what we need is to create a PSM in order to show

how platform-independent components manifest on

the new platform or technology. A PSM metamodel

should be deﬁned (or reﬁned) which can describe the

new platform in an abstract way to make the creation

of platform-speciﬁc models easier. Transformation

rules are also needed for mapping PIM metamodel el-

ements to PSM metamodel elements. Applying them

to an existing PIM will result PSMs for the new plat-

form. The ﬁnal step in the development process is the

transformation of each PSM to code. Because a PSM

ﬁts its technology rather closely this transformation

could be done relatively easy.

252

Adamkó A. and Kollár L. (2008).

MDA-BASED DEVELOPMENT OF DATA-DRIVEN WEB APPLICATIONS.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 252-255

DOI: 10.5220/0001522202520255

 SciTePress

1.2 UML Proﬁles

The MDA approach requires a language which uses

formal deﬁnitions so the tools will be able to trans-

form these models automatically. OMG recommends

the use of UML to construct platform-independent

models. The power of UML in our case is the model-

ing of the structural aspects of a system. This is done

through the use of class diagrams which enables the

generation of PSMs with all structural features.

The semantics of UML models can be extended

by applying UML proﬁles by adding stereotypes and

tagged values which is a common way for buliding

UML models for particular domains. These proﬁles

are considered to reside in the metamodel layer al-

lowing to deﬁne UML “dialects” that can be used by

models in the model layer. This mechanism is useful

for both PIMs and PSMs.

For PIMs, a new proﬁle should be deﬁned to sup-

port a given design methodology. There are sev-

eral proﬁles for that purpose (G

omez and Cachero,

2003; Koch and Kraus, 2003; Conallen, 2000) but

they might not be appropriate for a different design

strategy (see Section 2).

Many popular UML Proﬁles for speciﬁc platforms

(e.g., UML Proﬁle for EJB, UML Proﬁle for CORBA,

and so on) also exist but due to the extensibility mech-

anism new ones may also be created. This is how new

platforms and technologies should be handled.

Therefore, UML Proﬁles might serve as a basis

for deﬁning a PIM–PSM tranformation. This should

be deﬁned using the concepts of the metamodels used

for describing PIM (source) and PSM (target).

2 DEVELOPMENT PROCESS

Several years ago, one of the authors of this article has

been envolved in a project which aim was to develop

a Web-based application for the Doctoral School of

Mathematics and Computer Science at the University

of Debrecen. The requirements against the system

were to keep track of students and teachers of the

Doctoral School, and manage data of doctoral pro-

grams and courses, as well. Nowadays, almost all of

the applied technologies are out-of-date but there are

several new requirements that have been arisen since

the system’s deployment. For that reason, this legacy

system has become difﬁcult to maintain so we con-

sidered of applying a model-based solution to reduce

development time and maintenance costs.

The ﬁrst step durig system design is the analysis

of requirements to gather and formalize user requests.

Using use cases and activity diagrams, we could de-

Figure 1: Phases of development.

termine the outline of the system and describe its fun-

damental functional aspects from the different users’

viewpoints.

The second step is the conceptual modeling of

data structure and access paths of the application.

This is achieved by UML2 class diagrams which are

applying our UML proﬁle. At conceptual level, struc-

tural, composition, navigational and presentational

models are created. Several design methods (OO-

HDM (Schwabe and Rossi, 1998), WebML (Fra-

ternali, 1999), UWE (Koch and Kraus, 2003), Jim

Conallen’s WAE (Conallen, 2000), etc.) follow more

or less the same way.

After a platform-independent model has been de-

veloped, it is subject to a model transformation which

results in a platform-speciﬁc model which serves as

a starting point for code generation. Our method is

illustrated in Figure 1.

2.1 Models of the Design Phase

2.1.1 Structural Model

Main modeling elements of the structural model are

classes, associations and packages. For a common

Web application, use cases and activity diagrams are

the base of the conceptual design of the domain.

However, in case of data-centric applications

(which we consider), the structural model of the appli-

cation domain is typically much more complex than

any other models that have been mentioned previ-

ously. It is very important to create a class diagram

which is of a good quality since many other activities

(such as generating some primitive navigational ele-

ments like information access along associations) are

relying on it. This implies that some kind of quality

assurance for these models should be applied which

have not been considered by this time.

MDA-BASED DEVELOPMENT OF DATA-DRIVEN WEB APPLICATIONS

253

2.1.2 Composition Model

Composition model is intended to deﬁne a mapping

between concepts of the structural model and Web

pages. One should think of a page as an object of

the composition model which is associated with the

entities of the structural model. Hence, a page can ar-

bitrarily intermix information originating from multi-

ple entities, and moreover, it is possible to extend the

content with derived attributes or relationships.

An element (object) of the compositional model

should be considered as the content of a page which

should be rendered somehow (described by the pre-

sentational model) along with several navigational el-

ements (given using the navigational model). This ac-

tually provides a view over the structural model ele-

ments which is extremely useful when different user

groups are subject to access different page contents

since several views might be deﬁned on the same

structural elements.

This model is similar to the one deﬁned by

WebML (Ceri et al., 2002) but we use UML for de-

scribing composition model elements. Classes with

<<page>> stereotype represent the abstract informa-

tion content of a Web page. (Recall that we are

still not considering any presentational issues.) These

classes are in association with classes of the struc-

tural model. Such associations has the <<consists>>

stereotype.

After the structural model has been created, a

skeleton for the composition model is generated

which can further be used as a starting point for de-

scribing complex compositions. This idea reﬂects the

fact that in data-driven applications, the majority of

pages is close to be deﬁned as a one-to-one mapping

to structural model elements. Retrieving a PhD Stu-

dent’s data or adding a new supervisor are examples

of such pages.

2.1.3 Navigational Model

The next stage in the development process is the nav-

igational design. The navigational model speciﬁes

which elements of the composition model can be ac-

cessed from other parts of the application. In the nav-

igation model’s building process, the developer takes

crucial design decisions such as what navigation paths

are required to ensure the application’s functionality.

These decisions are based on the composition model,

use case diagrams and navigational requirements that

the application needs to satisfy.

The navigational diagram is strongly connected

to the composition one since it deﬁnes the naviga-

tional paths among compositional model elements,

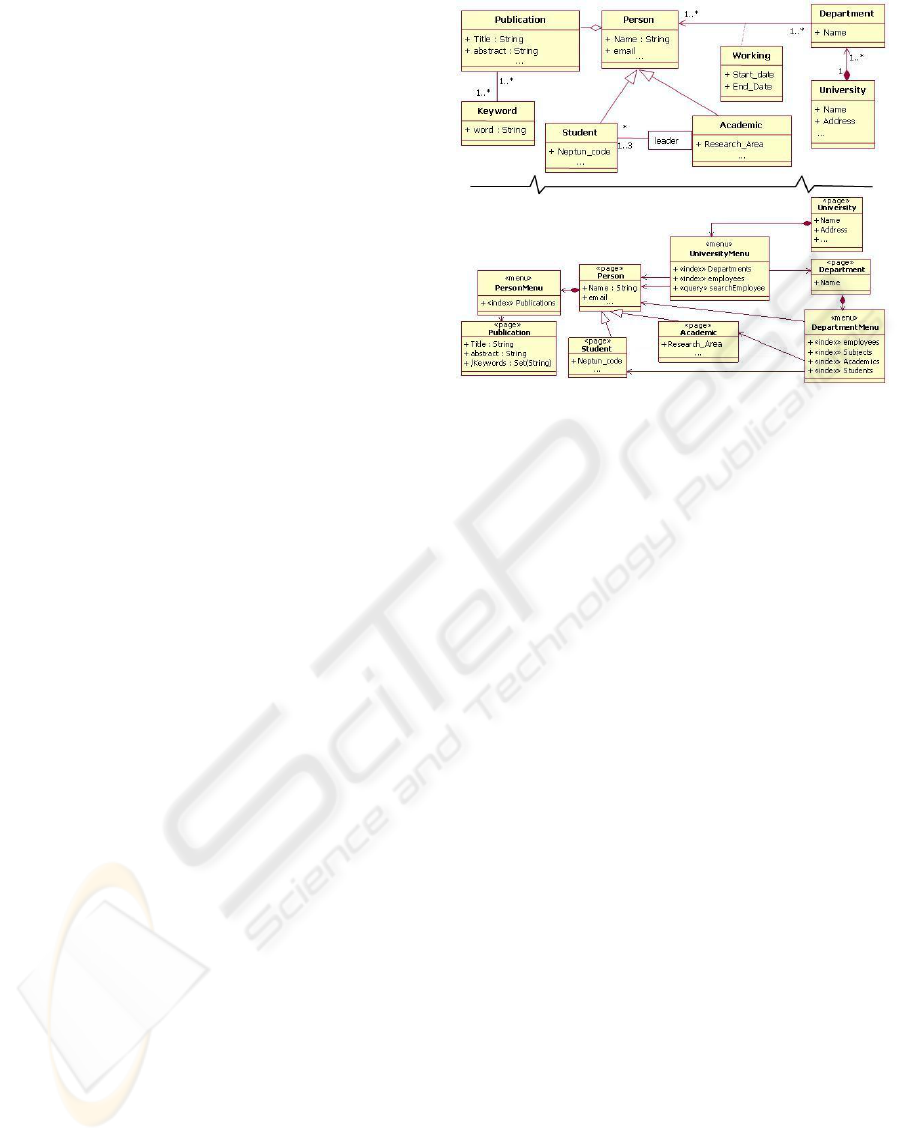

Figure 2: Structural and navigational diagrams.

i.e., abstract page views of the application. In gen-

eral, new associations might be added for direct navi-

gation to avoid navigation paths of length greater than

one. However, there may be some classes in the struc-

tural model that are not subject to be a visiting target.

Therefore, they should be omitted from the naviga-

tional diagram. The navigation inside the application

mostly occurs along associations which are used to

describe the relation between pages. Typically, these

associations appear as either hyperlinks or menus in

the user interface.

Subsets of the structural and navigational dia-

grams of the Doctoral School are shown in Figure 2.

Since the navigational diagram supplements the com-

position model with some additional associations and

classes representing different access structures such

as menus, queries and indices, composition model is

omitted from the ﬁgure.

2.1.4 Presentational Model

Presentational aspects are not dealt in this paper. The

main goal of presentational modeling is to map the el-

ements of the composition model to some well-known

GUI primitives. This task can also be applied at a con-

ceptual level since it does not hold information about

concrete implementation. After the PIM–PSM trans-

formation, some of those primitives might be replaced

by others if the target platform does not support the

given one (e.g., tree view of some hierarchical data

might be replaced by a list with indented sublists).

WEBIST 2008 - International Conference on Web Information Systems and Technologies

254

2.2 PIM–PSM Transformations

For the transformation of the structural model we use

Hibernate which provides an implicit PSM (relational

model) so we does not deal with issues of this kind

of model transformation. Composition and naviga-

tional models are used to formalize page templates

along with presentational model. These templates are

used to generate concrete pages using W3C’s XForms

standard for handling user inputs. The PSMs are rep-

resented with XML documents which allow XSLT to

be used for the page generation from templates.

2.3 Code Generation

We use the Eclipse Modeling Framework to create

the conceptual models. In the deployed application,

all the communication is based on XML documents.

When a user interacts with the system by ﬁlling and

submitting forms, an XML document is created and

passed to the server side. However, user-supplied data

should be validated against the data model. Since

XML documents’ validation are based on any of

the well-known XML schema languages (e.g., DTD,

XML Schema, RelaxNG), a schema was needed. A

freely available Eclipse plug-in called hyperModel

(http://www.xmlmodeling.com/hypermodel) is able

to transform a UML2 class diagram into an XML

Schema, therefore we applied it in our process.

The generated XML Schema is one of the most

important part of our architecture since it is used as

the base of the generation of XForms pages. On the

other hand, it is applied for validating all the XML

documents which are used for intra-system commu-

nication, as well. XForms pages might be embedded

in more complex XHTML pages which conform to

the composition and navigational model deﬁned at the

conceptual modeling phase.

For creating models, OMG’s XML Metadata In-

terchange (XMI) gives the possibility of a kind of

tool-independence. As XMI is being an industrial

standard for exchanging metadata of UML models in

XML format, it is supported by all the major model-

ing tools so—in a collaborative environment—teams

might use different tools. First of all, UML diagrams

should be saved in an XMI-compliant format. After-

wards, XMI should be imported to Eclipse and let

hyperModel do the transformation to XML Schema

(.xsd). XForms pages are generated directly from

the .xsd using an XSLT. The whole process is shown

in Figure 3.

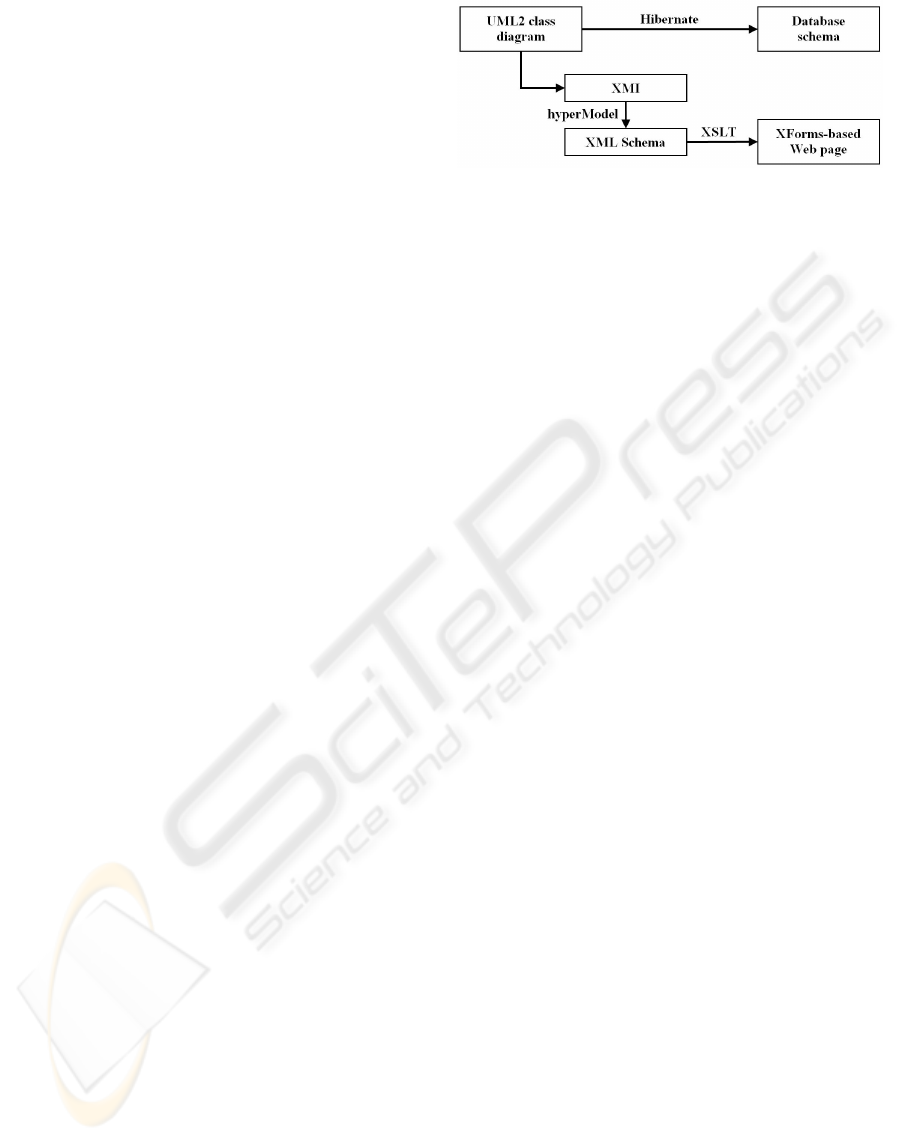

Figure 3: Using UML and XML technologies to create pro-

totypes.

3 FUTURE WORK

The presented approach is applicable for rapid design

and development of data-driven Web applications us-

ing MDA. We merely focused on building rapid pro-

totypes based on XForms pages generated from an

XML Schema.

Obviously, the current state of our work could

only be a part of a more comprehensive WIS develop-

ment framework. Due to the lack of space, we could

only enumerate our future plans: include modeling

of personalization and presentation (Fraternali, 1999);

presentational aspects should cover current technolo-

gies like AJAX, OpenLaszlo, etc.; introducing the

concepts of page fragments (portlets). Later on, statis-

tical models should be applied to achieve higher qual-

ity. For the correct measurement we need to identify

operational proﬁles and applicable statistical models

to ﬁnd the relevant factors and methods.

REFERENCES

Ceri, S., Fraternali, P., Bongio, A., Brambilla, M., Comai,

S., and Matera, M. (2002). Designing Data-Intensive

Web Applications. Morgan Kaufmann Publishers Inc.,

San Francisco, CA, USA.

Conallen, J. (2000). Building Web applications with

UML. Addison-Wesley Longman Publishing Co.,

Inc., Boston, MA, USA.

Fraternali, P. (1999). Tools and approaches for developing

data-intensive web applications: a survey. ACM Com-

put. Surv., 31(3):227–263.

omez, J. and Cachero, C. (2003). OO-H method: extend-

ing UML to model web interfaces. pages 144–173.

Koch, N. and Kraus, A. (2003). Towards a common meta-

model for the development of web applications. Cueva

Lovelle, Juan Manuel (ed.) et al., Web engineering.

International conference, ICWE 2003, Oviedo, Spain,

July 14-18, 2003. Proceedings. Berlin: Springer. Lect.

Notes Comput. Sci. 2722, 497-506 (2003).

Schwabe, D. and Rossi, G. (1998). An object oriented

approach to web-based applications design. Theor.

Pract. Object Syst., 4(4):207–225.

MDA-BASED DEVELOPMENT OF DATA-DRIVEN WEB APPLICATIONS

255
