TRANSFORMING A COMPETENCY MODEL TO

ASSESSMENT ITEMS

Onjira Sitthisak, Lester Gilbert and Hugh C. Davis

Learning Technologies Group, School of Electronics and Computing Science

University of Southampton, Highfield, Southampton, SO17 1BJ, U.K.

Keywords: Competency, adaptive assessment, knowledge level.

Abstract: The problem of comparing and matching different learners’ knowledge arises when assessment systems use

a one-dimensional numerical value to represent “knowledge level”. Such assessment systems may measure

inconsistently because they estimate this level differently and inadequately. The multi-dimensional

competency model called COMpetence-Based learner knowledge for personalized Assessment (COMBA) is

being developed to represent a learner’s knowledge in a multi-dimensional vector space. The heart of this

model is to treat knowledge, not as possession, but as a contextualized space of capability either actual or

potential. The paper discusses the automatic generation of an assessment from the COMBA competency

model as a “guide-on-the–side”.

1 INTRODUCTION

In recent years, a variety of tools and learning

environments have been created and installed in

schools, universities, and organisations to support

learning. Mostly these tools have been created to

support e-learning content and collaborative learning

activities like a virtual classroom (Koper and Specht,

2007). However, e-learning suggests not only new

technologies for instruction but also new

pedagogical approaches to enhance learning. One

new pedagogical approach is machine-processable

competency modelling. A competence model is

introduced for storing, organizing and sharing

learners’ performance data in order to seek and

interpret evidence for where the learners are in their

learning, where they want to go, and how they can

get there. Pedagogically effective and informed

competency data is vital in any assessment system.

One of the desired outcomes of an assessment

system is information about the learners’ knowledge,

identifying what learners can do by representing

their current state of knowledge (Shepard, 2000).

This information is collected and updated during the

assessment process. Most assessment systems

assume that knowledge is something that a learner

possesses or fails to possess, and seek to estimate a

learner’s “knowledge level”. As a result, such

assessment systems may measure “knowledge level”

inconsistently because they estimate this level

differently, and inadequately because they use one-

dimensional numerical values (Sitthisak et al.,

2007). The proposed solution is to consider the

learners’ “learned capability” instead of their

“knowledge level”, and to consider competencies

and learned capabilities as a multidimensional space.

In the context of an adaptive assessment system,

an assessment is part of the process of diagnosing

the learner’s competence. The key idea of an

adaptive assessment system is that questions are

selected by the computer to individually match the

learner’s competence (Way, 2005). The system’s

evaluation of the learner’s competence is then used

to guide the adaptation of the system (Aroyo et al.,

2006). The system may skip over what learners have

learned and find out what they should learn further.

While an adaptive system may be more efficient for

summative assessment, a system of adaptive

formative assessment is likely to be of greater

advantage to learners, since they would receive

relevant, personalized feedback. Establishing

adaptive formative assessment systems to support

lifelong learning is extremely challenging and relies

on introducing a competency model to the adaptive

assessment. Our intention is not to promote a

particular technological platform, but to demonstrate

333

Sitthisak O., Gilbert L. and C. Davis H. (2008).

TRANSFORMING A COMPETENCY MODEL TO ASSESSMENT ITEMS.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 333-338

DOI: 10.5220/0001524303330338

 SciTePress

how a competency model can be applied to adaptive

assessment.

In this paper, we introduce an advanced

competency model named COMpetence-Based

learner knowledge for personalized Assessment

(COMBA). The COMBA model is represented in a

multi-dimensional vector space, and we explore the

assembly of competencies into a tree structure. We

then consider the key task of adaptively generating

assessments from such a competencies structure.

2 THE MULTI-DIMENSIONAL

COMBA MODEL

Competence-based approaches in the field of e-

learning, institutional admissions, learners seeking

courses, e-portfolios, job references, human resource

management, and job descriptions are becoming

more common. They appear to offer the opportunity

to develop tools and services for data exchange,

discovery, processing, analysis, and visualization to

meet needs of learners, tutors, program managers,

examination bodies, professional societies,

employers, legislators, and so on. We suggest that a

complete and coherent model of competencies

would support storing, organizing and sharing of

achieved, current, and intended performance data

relating to all aspects of education and training in a

persistent and standard way (Sitthisak et al., 2007).

We have been developing a competency model,

named COMBA, which is proposed for all domains

where learning and teaching take place.

In the first stage of developing the model

(Sitthisak et al., 2007), we conceptualised

“competency” as involving a capability associated

with a given subject matter content, requiring a

proficiency level, and associated with evidence, any

required tools, and a definition of the situation which

contextualizes the competency. In the second stage

of developing the model (Sitthisak et al., 2007), we

implemented an exemplar UK Royal College of

Nursing competency (UK Royal College of Nursing,

2005) reflecting relevant features of a learner’s

behaviour and knowledge that affected their learning

and performance. An outcome of this

implementation exposed a critical issue involving

the expression of ethical practice in the COMBA

model. One of the conceptions of competence for a

nursing graduate is competence in ethical practice

(Ramritu and Barnard, 2001) as well as the other

characteristics of professional service delivery

involving knowledge and psychomotor skill

(Defloor et al., 2006). Hence, attitude, the way in

which a learner exhibits their knowledge and skill, is

included in the COMBA model, as illustrated in

Figure 1.

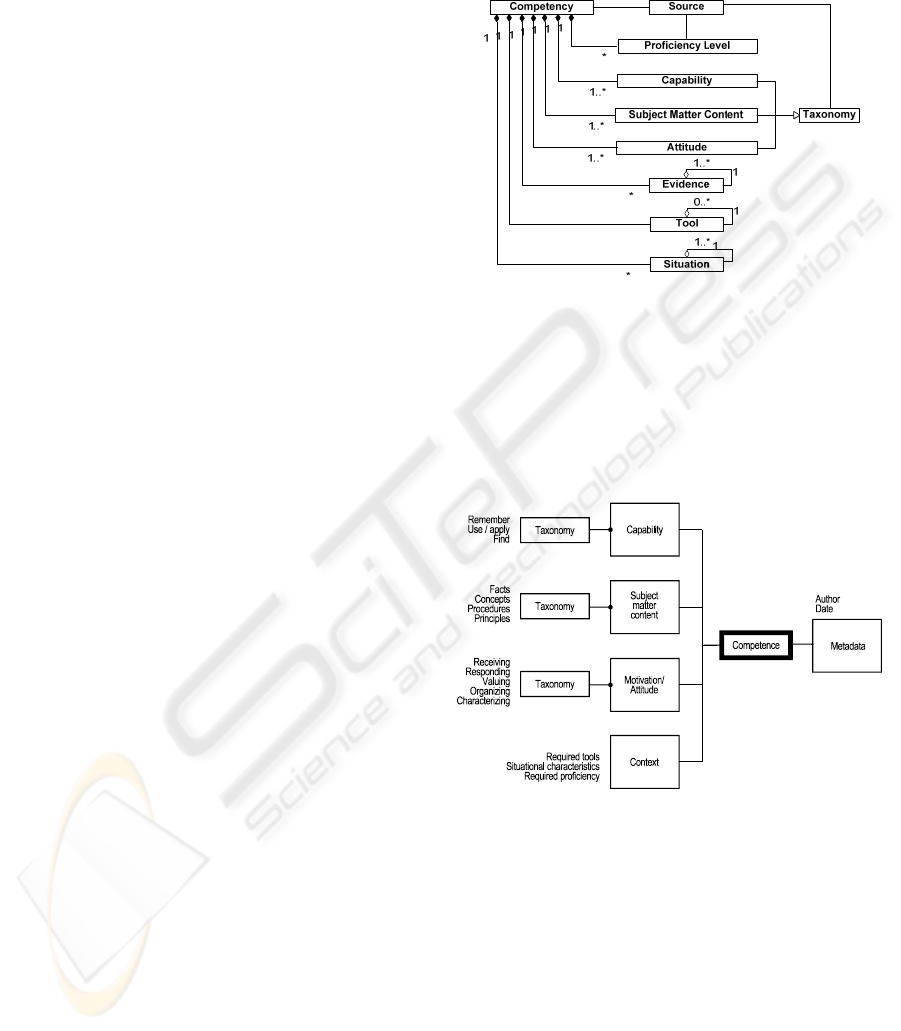

Figure 1: Competency model including attitude

component.

The COMBA model considers knowledge in the

widest possible sense, and involves the following

four major components: subject matter, capability,

attitude, and context, along with metadata as

illustrated in Figure 2.

Figure 2: Individual competence model.

The challenge of capturing and using knowledge

starts with the problem of understanding its nature

and representation. The failure of previous efforts to

‘intelligently process knowledge’ (e.g. intelligent

tutoring systems) may be due to their pedagogically

and cognitively inadequate characterization of this

knowledge, and their simplistic assumptions that

knowledge is some thing a learner possesses or fails

to possess.

The heart of the COMBA model is to treat

knowledge, not as possession, but as a

contextualized multidimensional space of capability

either actual or potential. Accordingly, the three

WEBIST 2008 - International Conference on Web Information Systems and Technologies

334

important components of the COMBA model

(capability, subject matter content, and attitude),

which are referred from relevant taxonomies or

ontologies, may be represented in a vector space as

in Figure 3. The learned capability is the learner’s

required or observed behaviour, for example using

Bloom’s taxonomy (Bloom and Krathwohl, 1956).

The subject matter content in Figure 3 is based on

Merrill’s analysis (Merrill, 1983), and attitude is

based on a version of Krathwohl’s taxonomy

(Krathwohl and Anderson, 2002).

Figure 3: Multidimensional space of competency model.

In this paper, we choose competencies from health

care because they are amongst the most

sophisticated and challenging to implement

(Kunzmann, 2006). Table 1 represents some nursing

competencies based on the multidimensional space

of the COMBA model. For example, C00 (students

are able to use and value ethical principles)

comprises C10 (students are able to actively apply

ethical principles) and C20 (students are able to

actively use professional regulation). In order to

achieve C10, students should be able to demonstrate

client confidentiality respectfully (C11), and to

identify ethical issues sensitively (C12). In order to

achieve C20, students should be able to identify the

limitations in their own practice (C22), and to

considerately evaluate professional regulation (C21).

There is a common competency for C21 and C22

which is C23 (students are able to recognize the

need for referral willingly). In order to achieve C21,

students should be able to recall relevant

professional regulations willingly (C24). This shows

that we can map effectively these more complicated

competencies into the COMBA model. The subject

matter, capability taxonomy, attitude taxonomy, and

competence were ontologically represented based on

the Simple Knowledge Organisation System

(SKOS).

Table 1: Some example nursing competencies represented

in the competency model.

Competency

No.

Capability Subject Matter Attitude

C00 Use Ethical

principles

Values

C10 Apply Ethical issues Actively

C11 Demonstrate Client

confidentiality

Respectfully

C12 Identify Ethical Issues Sensitively

C20 Use Professional

regulation

Actively

C21 Evaluate Professional

regulation

Considerately

C22 Identify Limitation in

own practice

Values

C23 Recognize Need for

referral

Willingly

C24 Recall Professional

regulations

Willingly

3 THE COMPETENCY TREE

Competencies are assembled into trees. A tree

structure is a particular way of representing a

structure in a graphical form (Johnson and

Shneiderman, 1991). While the relationship between

nodes is modelled as a family relation such as parent

and child, there is no ordering of nodes on the same

level, and this yields a tree structure rather than a

hierarchy. It is assumed that all children of a defined

competency are required in order to achieve

proficiency for the parent. While the tree structure

defines a top-down or bottom-up structure, it does

not imply sequencing as might be implied in a

hierarchy. For example, a competency tree may

specify how to roll up the assessment for each

competency throughout a competency tree without

implying sequencing of assessments of same level

competencies. So the issue of pedagogical

sequencings are not considered at this stage by

representing competencies as a tree structure instead

of a hierarchy.

One of the advantages of a competence tree

structure is that a tree structure separates the

composition rule in the domain from other structural

components. Hence, an application of the

competency model, such as in adaptive assessment,

may add other rules, perhaps based on pedagogical

sequencing, in order to control the adaptation within

the competency tree.

More technically, the COMBA model specifies the

network of assembled competencies as a directed

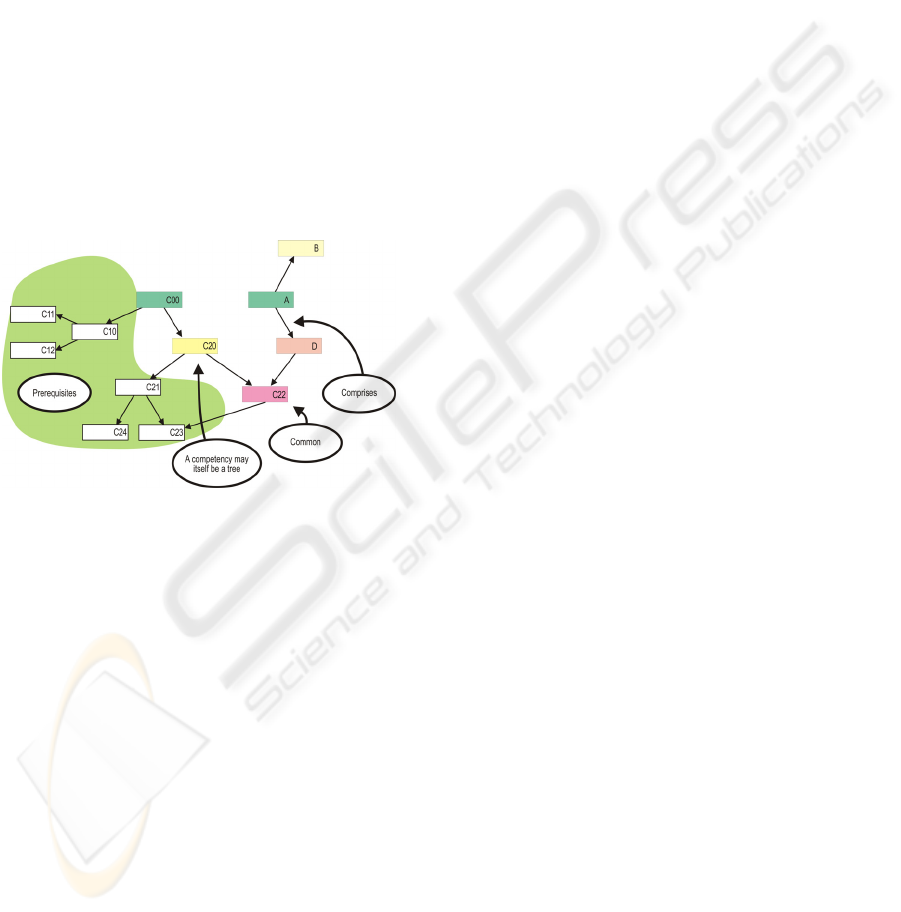

acyclic graph. In competency terms, Figure 4

Subject Matter

Attitude

Capability

TRANSFORMING A COMPETENCY MODEL TO ASSESSMENT ITEMS

335

implies that competency C00 is decomposed into

sub-competencies C10 and C20, such that C10 and

C20 contribute to C00. A node may have more than

one parent, provided the parent is not a child of the

node. Figure 4 shows a “forest” of two competency

trees, where arrows represent parent-child

relationships. A competency tree may specify

common children for more than one node, or more

than one origin node. For example, C00 and A

represent different competencies that have certain

competencies in common such as C22.

It is expected that competency trees will be

different for different communities and users. For

example, a tree of nursing competencies from the

UK Royal College of Nursing would have many

points of difference from a similar tree from the

Canadian Nursing Association. At a personal level, a

student nurse may develop his or her own tree to

reflect their own competencies, both achieved and to

be attained.

Figure 4: Competency tree.

4 GENERATING ASSESSMENT

ITEMS FROM A COMPETENCY

TREE

Assessments may be categorized as formative,

summative, or diagnostic (McMillan, 2006).

Formative assessment provides prescriptive

feedback to assist learners in achieving their

competences (Rolfe and MaPherson, 1995). It is

intended to help the learner deal with deficiencies in

their understanding, knowledge, or competence. In

contrast, summative assessment is generally given at

the end of a period of learning to establish what

knowledge, skills, and/or attitudes the learner has

acquired over a period of time. It helps to establish

whether learners have attained the competences

required, and is not focussed on supporting learning.

Diagnostic assessment is an in-depth assessment

related to strengths and weaknesses in each skill

area, which identifies priorities and needs (Sewell,

2004). It helps to determine what learners can

already do within the goals of the curriculum. This

paper focuses on formative and diagnostic

assessment.

There are two problems of traditional formative

assessment. First, learners are likely to need

different kinds of formative assessment at different

stages in their ‘learning journeys’ (Brown, 2006).

Second, formative assessment usually only provides

a list of the learner’s deficiencies (Rolfe and

MaPherson, 1995) without clearly specifying their

boundaries. These problems are relieved by using an

assessment tree suggested in this paper.

4.1 Constructing an Assessment Item

We assume an assessment which takes place in the

context of the COMBA model. The competency tree

might be used to drill down into component

competencies for the tested competency, helping to

define what to test and how to test it. An assessment

for a competency often actually tests component

competencies. For example, a paediatric nurse

course (Nursing and Midwifery Council) may test

knowledge of professional regulation by testing the

learners’ ability to demonstrate and evaluate

understanding of professional regulation including

the demonstration of a variety of specific skills and

attitudes, as illustrated in Table 1.

A generic assessment item can be directly

formulated from a competence specification by

using the parameters of that competence: capability,

subject matter content, attitude and other contexts

such as tool and situation as the authoring question

templates in Table 2. For example, the assessment

corresponding to C11 might be something like

“What information must be kept confidential in

situation A?”, or “Identify the information which

doesn’t need to be kept confidential in situation B”,

as illustrated in Table 3.

A formative assessment may contain items to

test finer grained competencies. A competency tree

can be used as a guide to assemble the necessary set

of test items for assessing each competency. In this

process, the competency tree is transformed to an

assessment tree. An assessment tree consists of

question nodes from Table 3, where each question

node corresponds to a competency node, as

illustrated in Figure 5.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

336

Table 2: Question templates.

No. Question Templates

a [Capability] + [Subject]

b [Capability] + [Subject] + [Situation]

c [Capability] + [Subject] + [Attitude]

d [Subject] + [Situation]

Table 3: Some example questions represented from the

competencies.

Compet-

ency

No.

Ques-

tion

No.

Question Temp-

late

C00 Q1 Identify the outcomes if

ethical principles were

not valued.

Q2 List ethical principles. a

Q3 What ethical principles

are involved [in situation

X]?

C10 Q4 Identify the possible

outcomes if ethical issues

were not actively applied.

Q5 How would you apply

ethical issues [in situation

Y]?

Q6 Define the specific

ethical issues [in situation

Z].

Figure 5: The group of questions based on a competency

tree.

Different organizations or communities of practice

may have different processes and policies for

assessment. By specifying a particular competency

tree or sub-tree to be assessed, it is possible to align

the assessment needed based on the needs of the

organization or community of practice. Hence, the

competency tree defines a standard way to specify

explicitly the component competencies to be

assessed, and provides a “guide on the side”,

automatically generating a set of general assessment

items.

4.2 Navigating Assessment Items on the

Competency Tree

There are a number of adaptive assessment methods

and technologies that can be used to assess learners’

strengths and weaknesses based on item-by-item

and learner responses (Brusilovsky, 2001). These

allow learners to be tested on materials at a level

appropriate to their current understanding. Adaptive

assessments change their behaviour and structure

depending on the learners’ responses and inferred

abilities.

There are two major adaptation techniques;

presentational adaptation and navigational

adaptation (Brusilovsky, 2001). An adaptive system

may apply these two techniques with questions.

Traversing the competency tree may start at the leaf

node or the root node depend on the objective of

each application. As a result, a competency tree may

be traversed, mapped, extended, visualized, and

searched by a variety of applications and tools. For

example, a competency tree may be used to specify

how to roll up the assessments for each competency

in order to personalize the assessment and match

assessment items to the individual competences of

each learner.

There is a set of possible assessment items

associated with each competence node, as illustrated

in Figure 5. Given a pruned competency tree (a tree

whose remaining branches and leaves represent

competencies not yet attained by a learner), an

adaptive assessment system now needs to sequence

the assessment items. Sequencing could be based

upon pedagogical considerations, and arranged

according to the taxonomies of subject matter

content (Merrill, 1983), of capability (Bloom and

Krathwohl, 1956), and so on. For example, an

adaptive assessment system may start with

assessment items at the lower level of the capability

taxonomy and progress to the higher levels, in order

to reach the boundary of the learner’s understanding.

On the other hand, sequencing could be based on the

learner’s preferences. Depending on the learner’s

answers, the next assessment item will be presented.

This involves regenerating the sequence based on

the learner’s unfolding competences. The result of

an adaptive assessment partitions the competency

tree into “what the student can do” and “what the

student is ready to learn” (Falmagne et al., 2003)

and finding the boundaries of competence for the

learner.

TRANSFORMING A COMPETENCY MODEL TO ASSESSMENT ITEMS

337

5 CONCLUSIONS

We have proposed the next generation of a

competency model named COMBA to support

adaptive assessment. The COMBA model includes

“attitude”, identified as a critical issue exposed by

working with nursing competencies, as well as

including subject matter domain knowledge, and

learned capabilities. The multi-dimensional

COMBA model represents competency in terms of a

tree structure. Generating assessment items from the

competency tree is illustrated. Then, an adaptive

assessment involves constructing an item sequence

which dynamically reconfigures as the learner’s

competency develops.

The benefits of a COMBA-enabled adaptive

system are to help learners identify and diagnose

their boundaries of their own competencies,

understand them, and find out how to progress by

comparing them with a given or ideal competency

tree. Adaptive assessment involves the dynamic

sequencing of assessment items derived from the

COMBA competency tree depending on the learner's

responses.

Learning is improved by allowing the learner to

become familiar with the variety of assessment items

that correspond to the variety of situations, tools,

capabilities and subject matter content, expressed in

a COMBA competence tree, of the domain of

interest. We believe that a COMBA competency

model is critical to successfully ensuring a

pedagogic focus on learner and learning activities.

REFERENCES

Aroyo, L., Dolog, P., Houben, G. J., Kravcik, M., Nilsson,

A. N. a. M. and Wild, F., 2006. Interoperability in

Personalized Adaptive Learning. Education

Technology and Society 9(2): 8-14.

Bloom, B. S. and Krathwohl, D. R., 1956. Taxonomy of

educational objectives: The classification of

educational goals by a committee of college and

university examiners. New York, Longman.

Brown, S., 2006. Using Formative Assessment to promote

student learning. from

http://www.ldu.leeds.ac.uk/news/events/documents/Br

ownPowerPoint.pdf.

Brusilovsky, P., 2001. Adaptive Educational hypermedia.

Defloor, T., Hecke, A. V., Verhaeghe, S., Gobert, M.,

Darras, E. and Grypdonck, M., 2006. The clinical

nursing competences and their complexity in Belgian

general hospitals. Journal of Advanced Nursing 56(6):

669-678.

Falmagne, J.-C., Cosyn, E., Doignon, J.-P. and Thiery, N.,

2003. The Assessment of Knowledge, in Theory and

in Practice. Integration of Knowledge Intensive Multi-

Agent Systems.

Johnson, B. and Shneiderman, B., 1991. Tree-Maps: a

space-filling approach to the visualization of

hierarchical information structures. Proceedings of the

2nd conference on Visualization '91, San Diego,

California, IEEE Computer Society Press.

Koper, R. and Specht, M. (2007). TenCompetence:

Lifelong Competence Development and Learning.

Competencies in Organizational E-Learning:

Concepts and Tools. M.-A. Sicilia, Idea Group.

Krathwohl, D. R. and Anderson, L., 2002. A revision of

bloom's taxonomy: An overview. Theory into Practice

41(4): 212-218.

Kunzmann, C., 2006. Ontology-based Competence

Management for Healthcare Training Planning: A

Case Study. Proceeding of the International

Conference on Knowledge Management, Austria.

McMillan, J. H., 2006. Classroom Assessment: Principles

and Practice for Effective Instruction, Pearson

Technology Group.

Merrill, M. D., 1983. Component Display Theory.

Encyclopeadia of Educational Technology, from

http://coe.sdsu.edu/eet/articles/cdt/index.htm.

Nursing and Midwifery Council. from http://www.nmc-

uk.org/aFrameDisplay.aspx?DocumentID=171.

Ramritu, P. L. and Barnard, A., 2001. New nurse

graduates' understanding of competence. International

nursing review.

Rolfe, I. and MaPherson, J., 1995. Formative assessment:

how am I doing? Lacent 345(8953): 837-839.

Sewell, J., 2004. Diagnostic assessment within the Skills

for Life strategy. 30th IAEA Conference, Philadelphia.

Shepard, L. A., 2000. The Role of Assessment in a

Learning Culture. Journal Information for

Educational Researcher 29(7): 4-14.

Sitthisak, O., Gilbert, L. and Davis, H. C., 2007. Towards

a competency model for adaptive assessment to

support lifelong learning. TENCompetence Workshop

on Service Oriented Approaches and Lifelong

Competence Development Infrastructures,

Manchester, UK.

Sitthisak, O., Gilbert, L., Davis, H. C. and Gobbi, M.,

2007. Adapting health care competencies to a formal

competency model. The 7th IEEE International

Conference on Advanced Learning Technologies,

Niigata, Japan, IEEE Computer Society Press.

UK Royal College of Nursing. 2005. from

http://www2.rcn.org.uk/cyp/resources/a-

z_of_resources/competencies.

Way, W. D., 2005. Practical Questions in Introducing

Computerized Adaptive Testing for K-12 Assessments.

Research Report 05-03.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

338
