DYNAMIC SLA NEGOTIATION BASED ON WS-AGREEMENT

Antoine Pichot

Alcatel-Lucent, Route De Villejust, 91620 Nozay, France

Oliver W¨aldrich, Wolfgang Ziegler

Fraunhofer Institute SCAI, Department of Bioinformatics, 53754 Sankt Augustin, Germany

Philipp Wieder

IT and Media Center, University of Dortmund, 44221 Dortmund, Germany

Keywords:

Dynamic Service Level Agreement, Negotiation, Web Services Agreement, Commit Protocol.

Abstract:

In Grid, e-Science and e-Business environments Service Level Agreements (SLAs) are often used to establish

frameworks for the delivery of services between service providers and the home organisations of the cus-

tomers. While this high level SLAs, e.g. framework contracts, govern the relationship between the parties,

it is desirable for the end-user to have dedicated quality of service (QoS) also for individual services like

the orchestration of resources necessary for composed services. Grid level scheduling services typically are

responsible for the orchestration and coordination of resources in the Grid, which requires the Grid level sched-

uler to coordinate resource management systems probably located in different domains. As the site autonomy

has to be respected negotiating with the individual sites is the only way to achieve the intended coordination.

Electronic SLAs emerged as a new way to negotiate and manage usage of resources in the Grid and are al-

ready adopted by a number of management systems. Therefore, it is natural to look for ways to adopt SLAs

for Grid level scheduling. To realise this approach we need efﬁcient and ﬂexible protocols supporting dynamic

negotiation and creation of SLAs. In this paper we propose and discuss ongoing work on extensions to the

WS-Agreement protocol addressing these issues.

1 INTRODUCTION

A Service Level Agreement (SLA) is a contract be-

tween a service provider and its customer that de-

scribes the service, terms, guarantees, responsibilities

and service-level to be provided. In Grids, e-Science

and e-Business environments, SLAs are often used to

establish service-delivery frameworks between a ser-

vice provider and a service consumer domain. Such

”high-level” SLAs usually deﬁne the framework of

service provisioning and overall Quality of Service

(QoS). However, it is desirable and sometimes even

essential for the end-user to have dedicated QoS also

for individualservices, e.g. in a case of a high-priority

service request.

In this article we focus on electronic SLAs dynam-

ically negotiated and created by software programs on

behalf of end-users. The use case we consider is re-

source provisioning, i.e. an SLA-based service provi-

sion implies access to various kinds of resources, like

computing nodes, network connections, storage areas

or any combination of these.

Resource consumption varies over time and is

sometimes dependent on the successful completion

of previous tasks. An orchestrator communicates

on behalf of customers end-users with several

local resource managers to negotiate and create

dynamic SLAs. In the rest of the document,

for reasons of clarity, we will limit the problem

scope to use-cases where computing and network

resources are needed, and to a Grid scheduler

as orchestrator that has to negotiate, select and

schedule resources in order to execute a user’s

job and fulﬁl its requirements. As we will see,

co-ordinating the access to multiple resources at

the same time requires speciﬁc protocol features

that negotiation and agreement protocols do not

necessarily have. Fig. 1 describes the different steps

to be performed by a Grid scheduler to co-allocate

Pichot A., Wäldrich O., Ziegler W. and Wieder P. (2008).

DYNAMIC SLA NEGOTIATION BASED ON WS-AGREEMENT.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 38-45

DOI: 10.5220/0001525500380045

 SciTePress

resources: resource ﬁltering, SLA negotiation, SLA

creation, and job submission. This article presents

ongoing work in the Grid Resource Allocation

Agreement Protocol working group (GRAAP-WG,

<https://forge.gridforum.org/projects/graap-wg/>)

of the Open Grid Forum. The group is now working

on protocol extensions for the WS-Agreement (An-

drieux et al., 2007) speciﬁcation supporting the SLA

negotiation and creation phases.

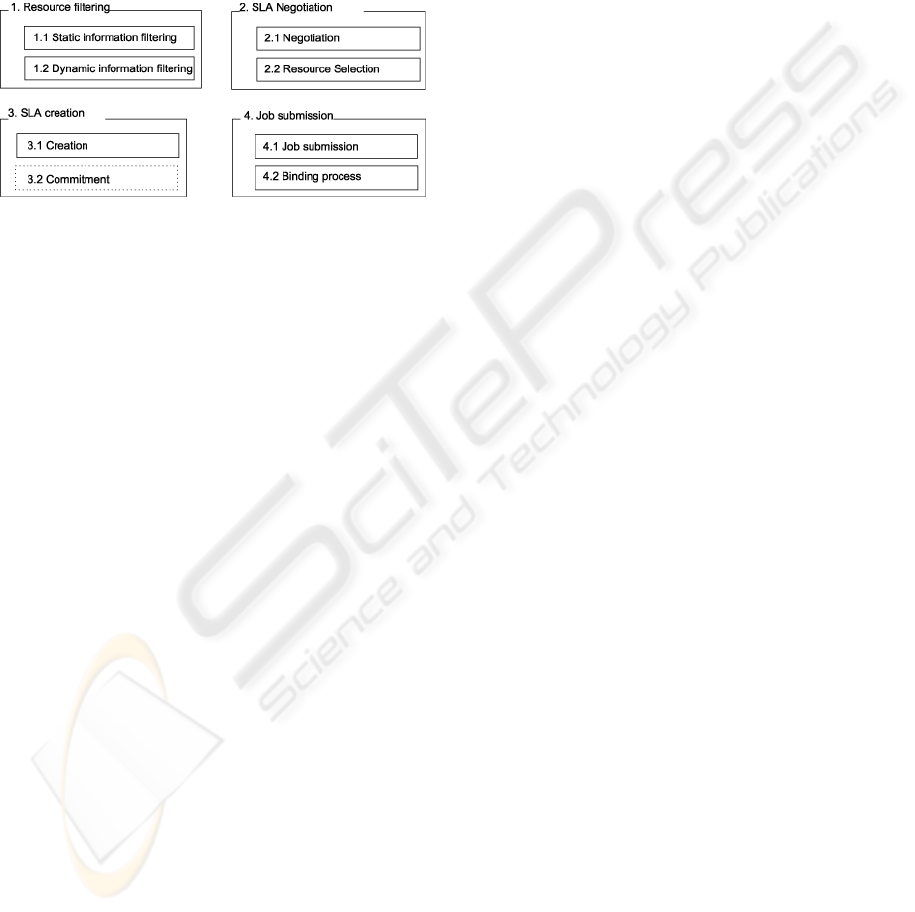

Figure 1: Resource selection & reservation.

In the following section we introduce work related

to negotiation of SLAs. Section 3 describes SLA

negotiation and creation problems, how distributed

databases’ commit protocol shed light to this prob-

lem. Section 4 describes how these problems can be

solved using the Web Services Agreement protocol

and Section 5 concludes the paper.

2 RELATED WORK

While WS-Agreement, since May 2007 the proposed

recommendation of the Open Grid Forum for a lan-

guage and a protocol to create SLAs, was becom-

ing stable over the last two years, the interest in

using SLAs for resource negotiation was growing

constantly. One indicator is the number of projects

and developments around resource management and

scheduling considering or already using SLAs. In the

following we brieﬂy discuss the different approaches.

Some of the projects, e.g. CATNETS (Joita

and Rana, 2006), openCCS (Keller, 2007),

AgentScape (Mobach et al., 2006), the

Community Scheduler Framework (CSF,

<http://sourceforge.net/projects/gcsf/>), and the

VIOLA MetaScheduling Service (MSS) (Wieder

et al., 2005), are using WS-Agreement to create

the SLAs. Some plan to use WS-Agreement,

e.g. the Grid Resource Management System

(GRMS, <http://www.gridge.org>) and GridWay

(<http://www.gridway.org/>) are in the planning

phase for integrating WS-Agreement. Finally, some

have not yet decided which technology to use or

are not using a web services stack at all: eNanos

(<http://www.bsc.es/grid/enanos/>), Grid super-

scalar (Badia et al., 2006) and the Highly-Available

Resource Co-allocator (HARC) (MacLaren, 2007).

CATNETS uses a market oriented mechanism of

offers and bids to determine the price of a resource

and to create an SLA based on the result, thus no

negotiation is used. openCCS, AgentScape and MSS

are Grid schedulers and use negotiation to reﬁne

offers and requests in order to create SLAs. In

case of MSS, this includes negotiation with several

resource providers to co-allocate multiple resources

or support workﬂow execution across multiple

resources. As WS-Agreement does not include a

protocol for negotiating the terms of an SLA, the

three approaches currently use proprietary extensions

of WS-Agreement for the negotiation. GRMS and

GridWay currently do plan not use WS-Agreement

for SLAs between provider and customer, but plan to

use WS-Agreement for the communication between

multiple co-operating Grid schedulers. This will

allow to negotiate usage of resources that are not

part of the environment of the the initially accessed

Grid scheduler. Scenarios and the corresponding re-

quirements for the protocol are developed in the Grid

Scheduling Architecture research group (GSA-RG,

<https://forge.gridforum.org/projects/gsa-wg/>) of

the Open Grid Forum. The developers of the eNanos

Grid resource broker and the Grid superscalar pro-

gramming environment are currently evaluating the

technology for the integration of SLAs into their

tools. In contrast, the HARC developers decided not

to use a web services stack and do the negotiation

based on plain XML-messages over HTTPS.

Moreover,the GRAAP Working Group has started

work on extending WS-Agreement to support nego-

tiation of agreements for use cases where the sim-

ple step creation are not sufﬁcient. In this paper

we discuss some general problems of negotiation in

distributed environments and present ﬁrst ideas how

negotiation could be implemented on top of WS-

Agreement.

3 NEGOTIATION, CREATION

AND COMMIT PROTOCOLS

In this section negotiation is brieﬂy discussed fol-

lowed by a presentation of commit protocols in dis-

tributed databases in Section 3.1 and commit proto-

cols for distributed resource management systems in

Section 3.2.

To run a job that requires several resources, like

networking and computational resources, managed by

DYNAMIC SLA NEGOTIATION BASED ON WS-AGREEMENT

different resource management systems (RMS), sev-

eral steps must be performed by a Grid scheduler.

Upon receipt of the job request, the scheduler starts

the ﬁrst phase: resource ﬁltering based on static in-

formation and dynamic information. Static informa-

tion does not change over time: number of CPUs, op-

erating system, location, etc. Dynamic information

changes over time: availability, load, etc. The second

phase is the negotiation process and results in the se-

lection of resources that can satisfy the job request.

The third phase is the SLA creation phase concluded

by the commitment of all service providers (or local

RMS) involved leading to a an reservation of the ne-

gotiated resources as described in the SLA. The last

phase is the job submission followed by the execution.

Negotiation is a widely studied topic and there are

numerous publications addressing different aspects,

e.g. (Shakun, 2002) is a general purpose negotiation

journal, (Briquet and de Marneffe, 2006) is a survey

about negotiation in distributed resource management

systems, while (Kuo et al., 2006b) and (Kuo et al.,

2006a) discuss aspects of service negotiation in the

Grid. In our context and in the simplest case, a user’s

job has to be executed and the Grid scheduler has to

select between different target systems. If all systems

are identical and only one parameter inﬂuences the se-

lection, i.e. price, this case is similar to a typical busi-

ness negotiation between one buyer and several sell-

ers. An auctioning mechanism like the ones described

in (Buyya, 2002) can be used. Of course, we take

the point of view of an end user, if we look at things

from a resource provider’s point of view, we have sev-

eral jobs that compete for one resource, i.e. several

buyers and one seller. If we look at the scheduler’s

point of view, we have many jobs that compete for

several resources, i.e. many buyers and many sellers.

Buyya (Buyya, 2002) (page 36) also surveyed sev-

eral distributed resource management systems based

on price.

Automatic negotiation of SLAs is a complex and

time consuming process (Jennings et al., 2001; Shen

et al., 2002; Green, 2004), when even two users have

to ﬁnd an agreement on multiple criteria. Imagine

how difﬁcult the problem becomes when multiple en-

tities have to reach an agreement (Czajkowski et al.,

2002). When at least two resources are needed at the

same time to run a job, e.g. a network connection

and a processing resource, several steps have to be

performed before reaching an agreement between the

resource providers and the consumer. Green (Green,

2004) cites mainly two frameworks for automatic ne-

gotiation: ontologies and web services. According to

him automated negotiation has three main consider-

ations: The negotiation protocol, the negotiation ob-

jects and the decision-making models. He considers

two options existing in order to achieve this type of

negotiation. One option is for the originating agent to

negotiate separately with each Autonomous System

(AS) along each potential path to ensure that an end-

to-end path is available. The dominant choice how-

ever, is to use a cascaded approach where each AS

is responsible for the entire path downstream of it-

self. This approach enhances agent autonomy as it is

only responsible for its immediate links. The auton-

omy of the cascaded approach struggles however with

the issue of price. In a cascading scenario an intelli-

gent agent would need to know the utility functions of

all the downstream domains if the best price combi-

nation is to be determined, which is private informa-

tion. In contrast, in this paper we limited the scope

to protocols that permit the negotiation of agreements

between two parties based on WS-Agreement rather

than tackling the full complexity of automated negoti-

ation. These bilateral agreements might then be com-

bined into one single agreement.

3.1 Commit Protocols for Distributed

Databases

Distributed transactional systems have been widely

studied. One of their objectives is to propagate a con-

sistent state across several systems, in a way that at

any time all systems can show a consistent state to

users. The consistent state or consistent view main-

tains and propagates between systems a logical co-

herent state. To provide crash recovery, several oper-

ations are logically grouped into transactions. Those

transactions permit the change from one consistent

view to another. For instance, you do not credit a

bank account if you have not debited another bank

account. However, these are two independent oper-

ations. A bank’s distributed database system must

group these two operations in one transaction. Thus it

permits the change from one consistent state “before

the transfer” to another “after the transfer”. Database

state changes are visible by other users once a trans-

action is committed to the system. In distributed

systems, each transaction can impact several differ-

ent systems not co-located. Thus distributed database

experts have developed commit protocols (Bhargava,

1987; Kohler, 1981; Oszu and Valduriez, 1991). As

Skeen described in (Skeen, 1981), “The processing of

a single transaction is viewed as follows. At some

time during its execution, a commit point is reached

where the site decides to commit or to abort the trans-

action. A commit is an unconditional guarantee to ex-

ecute the transaction to completion, even in the event

of multiple failures. Similarly, an abort is an uncondi-

WEBIST 2008 - International Conference on Web Information Systems and Technologies

tional guarantee to “back out” the transaction so that

none of its results persist. If a failure occurs before

the commit point is reached, then immediately upon

recovering the site will abort the transaction. Commit

and abort are irreversible.”

When a user needs to make a change in a dis-

tributed database, a co-ordinator will propagate this

change on all systems. As Skeen explains, upon re-

ceipt of a change request the co-ordinator forwards it

to all distributed systems. Upon the change request

receipt, all slaves go to the wait state. Then they

can decide whether or not to accept this change, and

send their response. The co-ordinator collects all re-

sponses to the change request, if one of them is neg-

ative, it goes in the abort state and sends an “abort”

to all systems, if all responses are positive, then the

co-ordinator goes in the commit state, and sends a

“Commit” to all systems. Upon receiving a “Com-

mit” (respectively “Abort”) all systems must commit

(respectively“Abort”) the change request. Fig. 2 (left)

represents a slave’s two phase commit protocol ﬁnite

state machine (FSM). This process is the two phase

commit process, supported by a two phase commit

protocol.

The problem of this process is that in case of sys-

tem failure. It’s impossible to know whether the trans-

action was committed or aborted. The wait state leads

to both commit and abort state. For instance, when

the co-ordinator fails after having sent a “commit”

to some slaves but not all, the remaining slaves are

blocked since they cannot know whether the transac-

tion should be aborted or cancelled.

To provide crash recovery, and avoid blocking

problems, Skeen introduced a three phase commit

protocol. He added an intermediary state before the

commitment as shown in Fig. 2 (middle). This state

corresponds to a prepare to commit. It’s impossible to

jump from this state to an abort state. He proved that

if a state transition was possible between the prepare

and the abort state, the protocol would be blocking.

As a consequence, from any state on the slave’s ﬁnite

state machine it is possible to determine whether the

transaction should be committed or aborted in case of

failure. In case of failure a slave in the “Wait” state

must abort, while a slave in the “Prepare” state must

commit.

3.2 Commit Protocols for Distributed

Resource Management Systems

In an environment with distributed RMS providing

guarantees on resource usage, a Grid scheduler may

create SLAs with its users. In a co-allocation use

case, this SLA takes into account several resources

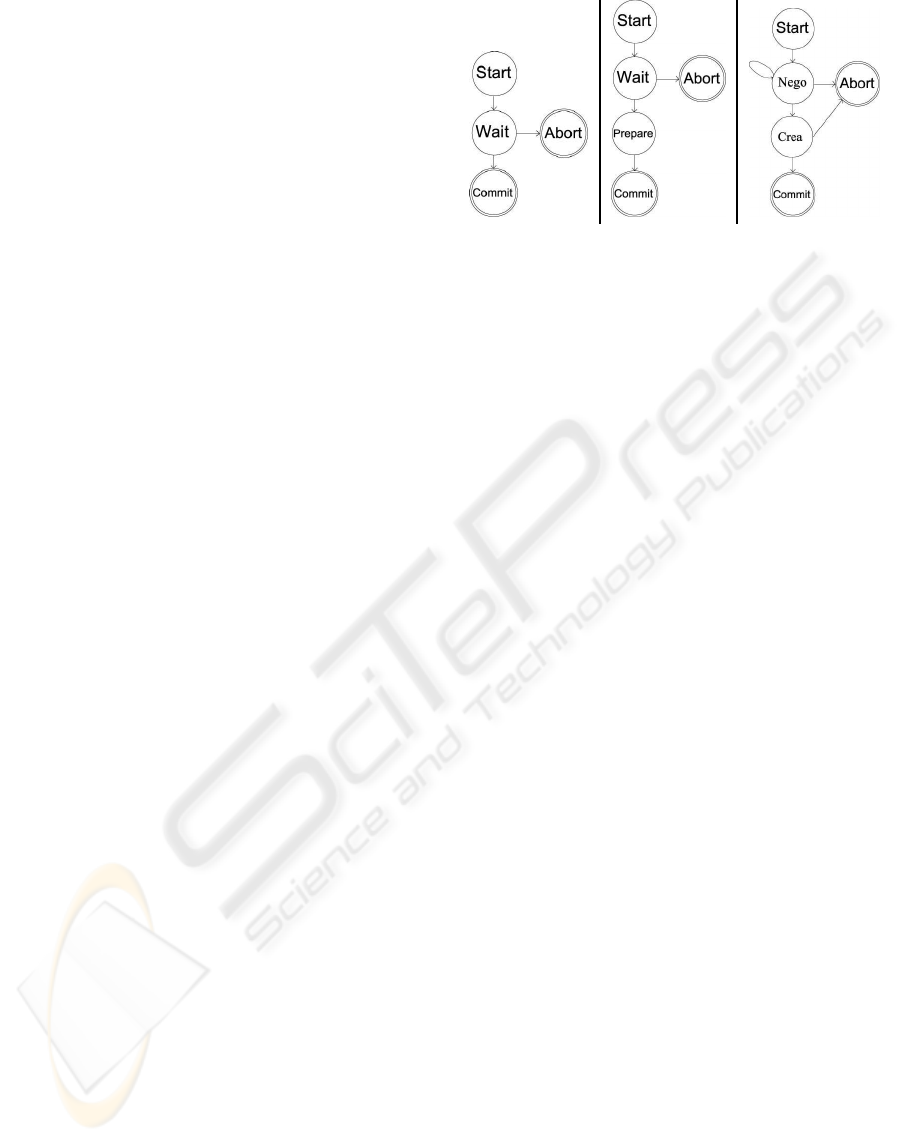

Figure 2: Two phase commit slave’s FSM (left), three phase

commit slave’s FSM (middle), and SLA negotiation and

creation resource provider’s FSM (right).

coming from several resource providers. With each

independent resource provider a bilateral SLA has

to be negotiated and created. A Grid scheduler has

to create these bilateral SLAs on behalf of its users.

For instance, in VIOLA, users may request network

and computational resources with a dedicated QoS.

The Grid scheduler has to orchestrate the individual

reservation of network and computational resources.

These two reservations are realised as two bilateral

SLAs. The essence of distributed databases’ com-

mit protocol is the transaction: a group of individual

operations linked logically. In a distributed resource

management system, co-allocation requires multiple

bilateral SLAs. For a user or a particular service re-

quiring multiple resources, either all of the individual

bilateral SLA must be created, or none. The user SLA

creation process is a transaction composed of multiple

bilateral SLA creation.

Before reaching an agreement, two steps must be

performed: negotiation and creation. The negotia-

tion process can involve all resource providers. Its

results are input to a resource provider selection pro-

cess. When two resources are needed, e.g. network

and computing, even if the negotiation involves many

compute resource providers, only one computational

resource will be selected. For many resources offered,

the negotiation process does not lead to an SLA cre-

ation process. This is the main reason why negotia-

tion must neither obligate the provider nor the con-

sumer of the SLA. However, the SLA negotiation and

creation process should minimise the number of dis-

carded agreement creation requests when it has been

previously negotiated. This should occur only when

there is a race condition: when two or more users

are competing simultaneously for the same resource

at the same time. The separation of agreement nego-

tiation and agreement creation process and minimis-

ing the number of discarded agreement creations after

negotiation are conﬂicting objectives.

One way to observe atomicity of the SLA creation

DYNAMIC SLA NEGOTIATION BASED ON WS-AGREEMENT

is to use a transaction and to rely on a two phase

commit protocol. Once resources have been negoti-

ated, the orchestrator starts the SLA creation process

by sending an SLA creation request to the selected

resource providers. Then each resource provider re-

sponds to the request with yes or a counter offer. If

all providers agree, the orchestrator sends a commit

reservation to all systems. Upon receipt of this mes-

sage, the reservation is committed and the SLA cre-

ated. Fig. 2 (right) shows this process.

When the resource provider receives an SLA ne-

gotiation offer, its state changes from “Start” to

“Nego”. It then answers the negotiation offer by ei-

ther accepting it or making a counter offer. In case

of a counter offer, it stays in the “Nego” state. It can

also abort the negotiation and proceed to the “Abort”

state. Once the orchestrator decides to start the SLA

creation process, upon receipt of the SLA creation

request, the resource provider’s state changes to the

“Crea” state. It stays there if it accepts the reser-

vation otherwise it goes to the “Abort” state. The

ﬁnal “Commit” state is reached when it receives a

“Commit” message from the orchestrator and that re-

sources are reserved and made unavailable to the rest

of the world. As mentioned above, this simple two

phase commit scenario can lead to a race condition

during the SLA creation process. While the resource

provider is in the “Crea” state, other users see the pre-

vious consistent state where resources are still avail-

able. To prevent this, the “Crea” state could imply

“locking” resources thus providing a pre-reservation

for the transaction lifetime. This prevents other users

from reserving the same resource at the same time. In

case of a lock request, second users’ transaction must

wait for the lock to be released.

Although the FSMs shown in the middle and on

the right-hand side of Fig. 2 look similar, we cannot

say that the SLA negotiation and creation process is

a three phase commit. It is a blocking protocol as de-

scribed by Skeen (Skeen, 1981). And it does not pro-

vide any guarantees against crashes. One could still

imagine a non blocking SLA creation protocol relying

on a three phase commit providing crash recovery. It

will not be discussed in this article.

4 SLA NEGOTIATION AND

CREATION WITH

WS-AGREEMENT

In order to co-allocate different types of resources

and/or resources from different domains, MSS has to

negotiate SLAs for the required resources. The eas-

iest way of SLA negotiation is a one step process,

where the context, subject and constraints of the nego-

tiation problem are deﬁned. The WS-Agreement pro-

tocol natively supports this kind of negotiation by the

getResourceProperties method. This method returns

a set of agreement templates representing acceptable

agreement offers for an agreement provider. These

agreement templates only provide hints on agree-

ment offers which might be accepted by an agreement

provider. They do not guarantee the agreement will

be accepted. An agreement template deﬁnes one ore

more services that are speciﬁed by their Service De-

scription Terms (SDT), their Service Property Terms

(SPT), and their Guarantee Terms (GT). Additionally

an agreement provider can constrain the possible val-

ues within the SDTs, SPTs, and GTs by deﬁning ap-

propriate creation constraints within the templates.

AgreementIntiator AgreementResponder:

AgreementFactory

getResourceProperty

getResourceProperty : AgreementTemplates

createAgreement (InitiatorAgreementEPR, AgrementOffer)

createAgreement (-,-) : CreatedAgreementEPR

Figure 3: WS-Agreement one step negotiation.

The creation constraints in agreement template

can be static or dynamic. Typical examples of a static

creation constraints are the minimum and maximum

numbers of CPU, nodes, or memory. As these are

properties of computing systems that are not likely

to change frequently agreement templates that only

contain static information usually are not restricted in

their lifetime.

Agreement templates can also contain more dy-

namic information. Such dynamic information can be

used to e.g. restrict the guaranteed execution time of

a given service based on the current resource avail-

ability. Since the availability of resources is likely

to change frequently, templates that contain such dy-

namic components have a short lifetime. A Grid

scheduler can use these dynamic templates to efﬁ-

ciently ﬁnd suitable time slots in order to e.g. co-

allocate resources.

However, it is not always desired to expose avail-

ability information, or sometimes it is even not pos-

sible to do this in a convenient way. A typical ex-

ample for this is the creation of an SLA in the net-

work domain. Here, it is simply not possible to in-

clude the availability information for all possible net-

work paths in a domain within one single SLA tem-

plate. This would make the templates far to complex

and therefore practically unusable. Therefore, the ef-

WEBIST 2008 - International Conference on Web Information Systems and Technologies

ﬁcient agreement on time constraints in SLAs in only

one phase is simply not feasible in this case. More

advanced multi-step negotiations are needed to solve

this problem.

4.1 Negotiation of Agreement Templates

Negotiation requires an iterative process between the

parties involved. To rely on WS-Agreement and min-

imise the extensions to the proposed standard, we sug-

gest not to negotiate SLAs but to negotiate and reﬁne

the templates that can be used to create an SLA. Here,

our focus is on the bilateral negotiation of agreement

templates.

In the following scenario we describe how an

agreement initiator (e.g. the Grid scheduler) ne-

gotiates agreement templates with two agreement

providers (e.g. a network scheduler and a CPU sched-

uler). We propose a simple offer/counter offer model.

In order to use this model in the WS-Agreement pro-

tocol, we propose a new function negotiateTemplate.

This function takes one template as input (offer), and

returns zero or more templates (counter offer). The

negotiation itself is an iterative process. In the follow-

ing scenario we describe a simple negotiation process.

During the negotiation process we call the agreement

initiator ’negotiation initiator’. Accordingly we re-

fer to the agreement providers as ’negotiation respon-

ders’.

1. Initialisation of the negotiation process

First, the negotiation initiator initialises the pro-

cess by querying a set of SLA templates from

agreement providers. To do so, it sends a stan-

dard WS-Agreement message, getResourceProp-

erty request, to agreement providers (not shown in

Fig. 4). From this templates, the initiator chooses

the most suitable one as a starting point for the

negotiation process. This template deﬁnes the

context of the subsequent iterations. All subse-

quent offers must refer to this agreement template.

This is required in order to enable an agreement

provider to validate the creation constraints of the

original template during the negotiation process,

and therefore the validity of an offer.

2. Negotiation of the template

After the negotiation initiator has chosen an

agreement template, it will create a new agree-

ment template based on the chosen one. The new

created template must contain a reference to the

originating template within its context. Further-

more, the agreement initiator may adjust the con-

tent of the new created template, namely the con-

tent of the service description terms, the service

Grid Scheduler CPU Scheduler Network Scheduler

negotiateTemplate

commit

prepareAgreement

prepareAgreement : EPR

prepareAgreement

prepareAgreement : EPR

Figure 4: Extended WS-Agreement SLA negotiation.

property terms, and the guarantee terms. These

changes must be done according to the creation

constraints deﬁned in the original template. Addi-

tionally, the negotiation initiator may also include

creation constraints within the new created tem-

plate. These constraints provide hints for the ne-

gotiation responder, within which limits the nego-

tiation initiator is willing to create an agreement.

For instance, the initial CPU scheduler template

can contain “any number of 2GHz x586 CPU be-

tween 5pm to 6pm”. And the initiator can request

“at least 5 1GHz x586 CPU anytime”. After the

initiator created the new agreement template ac-

cording to its requirements, the template is send

to respondersvia a negotiateTemplate message (as

shown in Fig. 4)

When the responder has received a negotiateTem-

plate message, it must ﬁrst check the validity of

the input document (reﬁned template). This step

includes (i) retrieving the original agreement tem-

plate that was used to create the input document,

(ii) validating the structure of the input document

with respect to the originating template, and (iii)

validating the changes of the content in the input

document with respect to the creation constraints

deﬁned in the originating template.

Once this is done, the agreement provider now

checks whether the service deﬁned in the request

could be provided or not. In our example, it’s only

then that the CPU scheduler decides that 5 1GHz

x586 CPUs can be provided. If the service can be

provided, it just returns the agreement template to

the client, indicating that an offer based on that

template will potentially be accepted. Otherwise,

the provider employs some strategy to create rea-

sonable counter offers. During this process the

agreement provider should take into account the

constraints of the negotiation initiator. Counter

offers are basically a set of new agreement tem-

DYNAMIC SLA NEGOTIATION BASED ON WS-AGREEMENT

plates that base on the template received from the

negotiation initiator. The relationship between dy-

namic created templates and original ones must

be reﬂected by updating the context of the new

templates accordingly. After creating the counter

offers the provider sends them back to the negoti-

ation initiator (negotiateTemplate response).

3. Post-processing of the templates

After the negotiation initiator received the counter

offers from the negotiation responder, it checks

whether one or more meets its requirements. If

there is no such template, the initiator can either

stop the negotiation process, or start again from

step 1. If there is an applicable template, the ini-

tiator validates whether there is need for an addi-

tional negotiation step or not. If yes, the initiator

uses the selected template and proceeds with step

2, otherwise the selected template is used to create

a new SLA.

4.2 SLA Creation

After the negotiation of an agreement template ac-

ceptable for both parties, the initiator needs to cre-

ate the agreement. At this point, a problem similar to

the transaction problem of distributed database sys-

tems arises. The goal of a Grid scheduler is to create

a set of SLAs with different resource providers in or-

der to provide co-allocation. Therefore, the scheduler

ﬁrst negotiates a set of templates with the providers,

which identify the possible provisioning times of the

required resources. However, we must not forget that

templates only provide hints of what SLAs an agree-

ment provider might accept. There is no guarantee

associated with a template. This means that we are in

need of a strategy to create all SLAs or none. In prin-

ciple there are two major strategies to achieve this:

1. to use transactions to create the SLAs, or

2. to create each SLA within one step, applying poli-

cies to the SLA.

The usage of transaction mechanisms to create

distributed SLAs, namely the usage of the two phase

commit protocol, was already discussed in this pa-

per. Since there is no support for two phase commit

in WS-Agreement today, we need to extend the pro-

posed standard to address this problem. This process

has been started recently in the OGF working group

that created WS-Agreement. A solution consists in

adding a type of agreement that must be created in

two phases: the ﬁrst phase is a creation of the agree-

ment triggered by a new prepareAgreement message

and the second with a new non-standard Commit mes-

sage as shown in Fig. 4.

The other approach is to create an SLA in one step

using today’s WS-Agreement functionalities, cancel-

lation mechanisms and incentives. In order to realise

this, we need to investigate the content of an SLA. On

one hand, an SLA describes the service and its proper-

ties. On the other hand, it speciﬁes the guarantees for

a speciﬁc service. In a co-allocation scenario, where

a Grid scheduler uses SLAs to co-ordinate e.g. net-

work and computational resources, it employs execu-

tion guaranteesin order to assure that the different ser-

vices are provided at the same time. These guarantees

may also include costs that are associated with the ser-

vice if it is provided successfully, as well as penalties

that arise when a guarantee is violated. However, an

SLA might be prematurely terminated by the agree-

ment initiator, before the service is actually provided.

In fact, this is a cancellation of an SLA. When a ser-

vice provider guarantees a certain execution time for

a service, this normally comprises resource reserva-

tions. Therefore, the resource provider wants to pre-

vent the termination of an existing SLA. This can

be achieved by including a basic payment within the

SLA. The basic payment is potentially a very small

amount of money that is even charged if the SLA is

terminated by the agreement initiator before the ser-

vice was actually provided. It is therefore a termi-

nation penalty and represents the costs for the over-

head produced by the resource reservation. In order

to enable the Grid scheduler to efﬁciently negotiate

and create SLAs, there could be a certain time period

in which the SLA can be terminated without penalty.

The duration of this period can dynamically be spec-

iﬁed during the negotiation process. The Agreement

provider could use a certain trust index in order to de-

termine the maximum length of this period. This of-

fers a feasible solution for the orchestration of multi-

ple resources using the current one-step SLA creation

of WS-Agreement.

5 CONCLUSIONS

In this paper we discussed basic functions for re-

source orchestration in Grids, namely mechanisms

to negotiate and create Service Level Agreements

using WS-Agreement. SLAs are a basic building

block for Grid resource orchestration and distributed

resource management. We have shown how a bi-

lateral WS-Agreement based negotiation process is

used to dynamically negotiate SLA templates. We

proposed an extension of the WS-Agreement proto-

col, NegotiateTemplate, in order to support a simple

offer/counter-offer model.

The second relevant part of the resource orchestra-

WEBIST 2008 - International Conference on Web Information Systems and Technologies

tion process is the creation of distributed SLAs. We

have discussed two different strategies to co-allocate

SLAs in Grids. One using a two phase commit with

a WS-Agreement Commit extension and one using a

single phase commit with SLA cancellation and in-

centives.

ACKNOWLEDGEMENTS

Some of the work reported in this paper is funded

by the German Federal Ministry of Education

and Research through the VIOLA project (grant

#01AK605L), by the European Commission’s IST

programme through the CoreGRID Network of Ex-

cellence (grant #004265), and by the French Ministry

of Industry through the CARRIOCAS project.

REFERENCES

Andrieux, A. et al. (2007). Web Services Agreement Spec-

iﬁcation (WS-Agreement). Grid Forum Document

GFD.107, Open Grid Forum.

Badia, R., Sirvent, R., Labarta, J., and Perez, J. M. (2006).

Programming the GRID: An Imperative Language-

based Approach. In Di Martino, B., Dongarra, J.,

Hoisie, A., Yang, L. T., and Zima, H., editors, Engi-

neering The Grid: Status and Perspective, chapter 12.

American Scientiﬁc Publishers.

Bhargava, B. (1987). Concurrency and Reliability in Dis-

tributed Database Systems. Van Nostrand Reinhold.

Briquet, C. and de Marneffe, P.-A. (2006). Grid resource

negotiation: survey with a machine learning perspec-

tive. In PDCN’06: Proceedings of the 24th IASTED

international conference on Parallel and distributed

computing and networks, pages 17–22, Anaheim, CA,

USA. ACTA Press.

Buyya, R. (2002). Economic-based Distributed Resource

Management and Scheduling for Grid Computing,

PhD Thesis. Monash University, Melbourne, Aus-

tralia.

Czajkowski, K., Foster, I., Kesselman, C., Sander, V., and

Tuecke, S. (2002). SNAP : A protocol for negotiation

of service level agreements and coordinated resource

management in distributed systems. In Proceedings

of the 8th Workshop on Job Scheduling Strategies for

Parallel Processing, pages 153–183, Edinburgh, Scot-

land.

Green, L. (2004). Service level negotiation in a heteroge-

neous telecommunication environment. In Proceeding

International Conference on Computing, Communi-

cations and Control Technologies (CCCT04), Austin,

TX, USA.

Jennings, N., Faratin, P., Lomuscio, A., Parsons, S., Sierra,

C., and Wooldridge, M. (2001). Automated negotia-

tion: Prospects, methods and challenges. Group De-

cision and Negotiation, 10(2):199–215.

Joita, L. and Rana, O. (2006). WS-Agreement Use in CAT-

NETS. Technical report, School of Computer Science

and Welsh eScience Centre, Cardiff, UK.

Keller, A. (2007). openCCS: Computing Center Software.

Technical report, Paderborn Center for Parallel Com-

puting, Paderborn, Germany.

Kohler, W. (1981). A Survey of Techniques for Synchro-

nization and Recovery in Decentralized Computer

Systems. ACM Computing Surveys, 13(2):148–183.

Kuo, D., Parkin, M., and Brooke, J. (2006a). A Framework

& Negotiation Protocol for Service Contracts. In Pro-

ceedings of the 2006 IEEE International Conference

on Services Computing (SCC 2006), pages 253–256.

Kuo, D., Parkin, M., and Brooke, J. (2006b). Negotiating

contracts on the grid. In Exploiting the Knowledge

Economy - Issues, Applications, Case Studies, Volume

3, Proceedings of the eChallenges 2006 (e-2006) Con-

ference, Amsterdam, The Netherlands. IOS Press.

MacLaren, J. (2007). Co-allocation of Compute and

Network resources using HARC. In Proceed-

ings of ”Lighting the Blue Touchpaper for UK e-

Science: closing conference of ESLEA Project”

(PoS(ESLEA)016).

Mobach, D., Overeinder, B., and Brazier, F. (2006). A WS-

Agreement Based Resource Negotiation Framework

for Mobile Agents. Scalable Computing: Practice

and Experience, 7 (1):23 – 36.

Oszu, M. and Valduriez, P. (1991). Principles of Distributed

Database Systems. Prentice Hall.

Shakun, M., editor (2002). Group Decision and Negotia-

tion. Springer Netherlands.

Shen, W., Ghenniwa, H. H., and Wang, C. (2002). Adap-

tive Negotiation for Agent-Based Grid Computing. In

Proceedings of AAMAS2002 workshop on agentcities:

Challenges in Open Agent Environments, pages 32–

36, Bologna, Italy.

Skeen, D. (1981). Nonblocking Commit Protocols. In Pro-

ceedings of ACM SIGMOD Int’l Conf. Management

of Data, pages 133–142.

Wieder, P., W¨aldrich, O., and Ziegler, W. (2005). A meta-

scheduling service for co-allocating arbitrary types of

resources. In Proceedings of the 6th International

Conference, Parallel Processing and Applied Math-

ematics, PPAM 2005, volume 3911 of LNCS, pages

782 – 791, Poznan, Poland. Springer.

DYNAMIC SLA NEGOTIATION BASED ON WS-AGREEMENT
