HEADER DETECTION OF DATA TABLES
Towards the Improvement of the Web Navigation for Impared Visual People
Juan Manuel Fernández
1
, Vicenç Soler
1,2
1
Dept. Microelectrònica i Sistemes Electrònics, Universitat Autònoma de Barcelona, Cerdanyola del Vallés, Spain
2
Ciber-BBN: Bioengineering, Biomaterials and Nanomedicine. Campus UAB, Bellaterra, Spain
Jordi Roig
Dept. Microelectrònica i Sistemes Electrònics, Universitat Autònoma de Barccelona, Cerdanyola del Vallés, Spain
Keywords: Web Accessibility, Table navigation, e-integration, Repairing Tools, Disability, WAI, HTML.
Abstract: The advantages of the new era of information are out of the capacities of the people with visual
impairments. This is due to by the lack of sensibility of the Web contents developers and the low use of the
accessibility guidelines. These situations can be solved with technology, and the result of the research
presented in this paper offers a new system of solving one of the most important problems: the data table
navigation. We present a solution that offers excellent results to make the natural complexity of these
elements easy. The system is based on the visualization of the table’s content, in the same manner that uses
a non-disabled person, but without the need made any image processing. The solution can help to us to
obtain the total e-integration.
1 INTRODUCTION
The correct design of a Web site is an unresolved
matter for the current developers. A correct use of
the Word Wide Web Consortium (W3C) standards
makes the navigation become easier and friendly.
The access to the information stored in the Web can
be done in a more efficiently way with the W3C
standards. This lack of use of these standards and
guidelines is a consequence of different causes,
which we will see in this paper. We will talk about
the observance of the specific normative of the
World Content Accessibility Guidelines (WCAG)
(W3C, 1999a) which was made by the World
Accessibility Initiative (W3C, 2007a). This group,
that is a part of the W3C, develops a set of standards
and guidelines to provide a more accessible Web.
The lack of use of the WAI’s proposals makes the
Web lose all its capacity to improve the labour and
social integration of all kind of people.
One of the more important problems that exist in
the field of Web accessibility is the navigation on
tables. HTML tables have a complex nature that
impedes to visual impaired people to obtain the
information contained in these elements. Moreover,
the use of stardards, like WCAG, is very low and
therefore the navigation on tables gets worse.
Thus, we propose a solution to the correct data
table’s navigation, taking into account the stardards
of the Web. Thanks to it, we avoid the use of new
languages or specific software to read the
information of a data table as the most of the
solutions proposed (Yesilada, 2004) (Pontelli and
Son, 2002) (Krüpl and Herzog, 2006) (K. Kottapally
et al., 2003) (Filepp et al., 2002). So, the solution
consists of a detection of header’s rows and
columns, that allows us to offer information
regarding the relationships between the headers and
cells of the table.
2 ACTUAL SITUATION
As we have already commented, the lack of
standard’s uses is a very important problem. The
HTML grammar is the base of the Web, but it is
ignored by the Web site’s developers (Shan et al,
2005). This fact is reinforced by two business facts.
On one hand, the design of Web sites thinking in a
241
Manuel Fernández J., Soler V. and Roig J. (2008).
HEADER DETECTION OF DATA TABLES - Towards the Improvement of the Web Navigation for Impared Visual People.
In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 241-246
DOI: 10.5220/0001529002410246
Copyright
c
SciTePress
specific Web browser. And, on the other hand, the
speed of the changes of the Web site’s content, that
is needed to be profitable. The latter, is well known
in the business world: time-to-market. But in the
Web that is more important because of its speed.
The former is the result of a design based on the
validation of the Web site with a browser but not
with a system like the one offered by the W3C
(Quality Assurance Activity, 2007).
One of the most important errors is the use of
HTML to offer visual information instead of CSS.
The use of both technologies allows us to offer, if
necessary, a different visualization of the
information without changing the structure of the
HTML document. A good example is the use of
tables to distribute the contents of the Web site. This
use is larger than the expected one when we started
the research. Figure 1 shows a comparison over a
randomly group of 487 Web pages. The search of
these Web documents has been done in an automatic
way, totally random. The only condition was that the
Web site had to use the table element.
Use of the HTML Tables
80,11%
19,89%
Data Tables
Layout tables

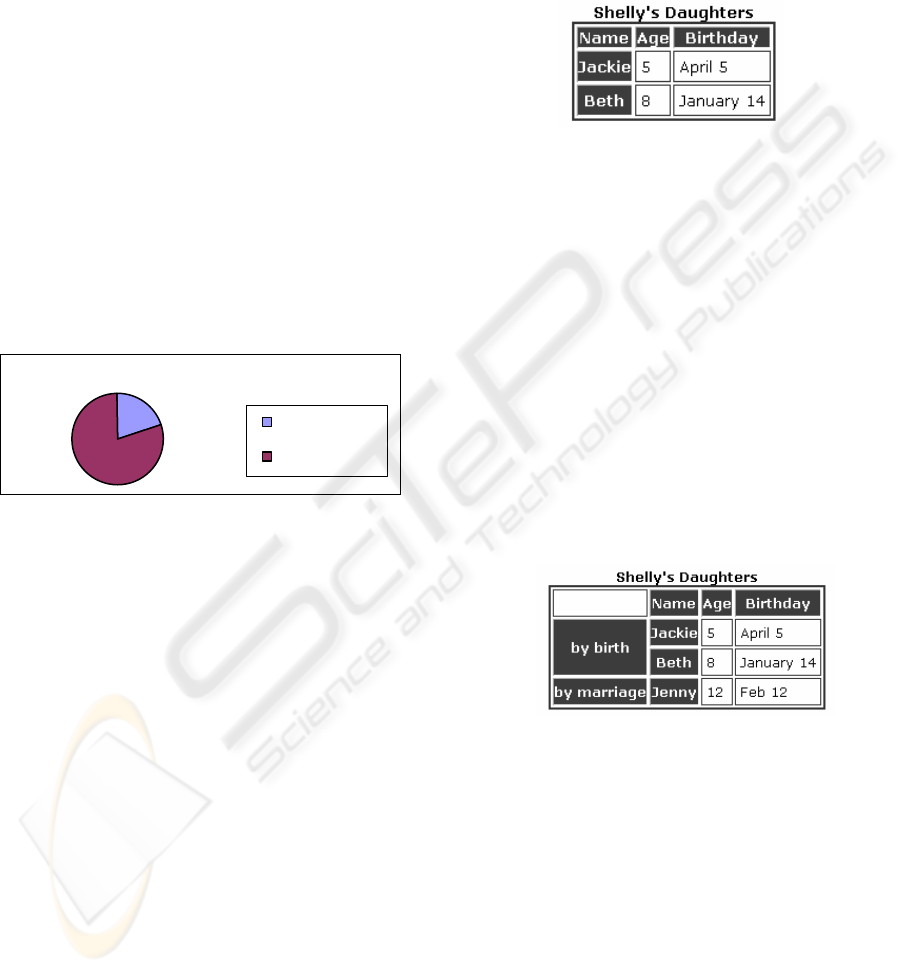

Figure 1: How the HTML tables are used.
Our research is not focused on this problem since
there are alternatives to this problem. For instance,
Chen (Chen and Shen, 2006) proposes an
application to substitute the tables for CSS styles.
3 DATA TABLES
The bi-dimensional nature of a table offers a lot of
information. But this nature makes necessary to
know the header of the row and the column of a cell
to obtain the maximum information. Moreover, this
search is only possible to be done visually and the
helping navigation tools cannot offer this
relationship, making the table to lose its bi-
dimensional structure to a linear list of elements. In
this list, usually the headers appear just at the
beginning and they are very difficult to remember if
the list has a great number of elements. For instance,
if we get row by row the information of the white
cells (not headers) from Table 1 (WebAIM, 2007),
for sure that we will not remember what means
“January 14” in the table. Visually it is clear that it is
Beth’s Birthday, but when read by a voice
synthesizer it is quite difficult to notice it. For this
reason a system that avoids the needing of
converting the tables into lists is necessary.
Table 1: Example of a simple data table.
We propose a system that offers the relationship
between the headers and the content of the cell. We
use HTML standard elements to indicate these
relationships. The HTML attribute scope (W3C,
2000) allows us to mark the relations of the header
with all the cells in a column or row. It is
recommended the use of this attribute in the TH
tags, which mark the header, and the TD tags, which
mark the cells, in simple tables.
In case of a complex table, like Table 2
(WebAIM, 2007), the use of the attributes id and
header is recommended. In this case, the id attribute
marks the headers, and the cells that have any
relation. So, they must contain the value of this
identifier in the value of the header attribute.
Table 2
shows how the header “by birth” affects two rows.
Table 2: Example of a complex data table.
4 PREVIOUS PROPOSED
SOLUTIONS
The solutions proposed nowadays can be classified
in three basic groups. First of all, the group where
the Web browsers adapted to offer correct
navigation in tables is included. The second one
contains proposals based on new languages. These
languages allow a new organization of the
information that marks the relationships among cells
in an unequivocal way. At last, the proposals which
try to modify the content of the document to mark
these relationships.
WEBIST 2008 - International Conference on Web Information Systems and Technologies
242
4.1 Adapted Browsers
In this section we are not going to discuss about
screen readers like JAWS (Freendom Scientific,
2007) or ZoomText (Ai Squared, 2007). With this
software we can use not adapted Web browsers but
the screen readers cannot access the structure of a
table to offer this kind of information.
We are talking about software like a table
browser called EVITA (Yesilada et al., 2004). This
kind of solution has a limited field of use and the
user has to learn how to use it. Our proposal is
totally independent of the Web browser and the user
does not need to learn to use new software.
4.2 New Languages
Enrico Pontelli and Tran Cao Son (2002) propose
the use of Domain Specific Language to express the
content of a table. This content is extracted thanks to
the semantics of the information inside the table.
On the other hand, there exist other languages
XML based that improve the interaction between the
screen reader and the Web site. TTPML (Filepp et
al., 2002) is a language of this kind that offers all the
information to the screen reader in an easy way.
Both of them have the same problem: they are not
standards and the user needs specific software to
obtain the information offered. Our proposal is
based on the W3C standard.
4.3 Header Detection by Means of
Visualization
The Web site developer offers information about the
relationship of the table’s content in a visual way.
We can use this difference between cells to obtain
the header of a table and to relate the different cells.
There exist two approximations to this solution.
The first one is by means of a visual recognition
after the Web page has been displayed by the Web
browser (Krüpl and Herzog, 2006). This system has
the inconvenient that it is strongly dependent of the
Web browser. A Web page designed for another
Web browser can cause problems to the system.
The second approximation, where we are, works
with the source of the Web page. The visualization
of the Web document is marked with HTML and
CSS code and we can access to it independently
from the browser. K. Kottapally et al. (2003)
presented a system that implements this proposal.
The application implements a logic system and a
Hidden Markov Model system. The proposal has
very good results but with a very poor test set which
produces that the systems based on rules, like this
one, can fell on a situation of memorization. On the
contrary, our approximation is not based on rules to
avoid this situation. It is based on a Bayes classifier
and it will be explained in the next section.
5 HEADER DETECTION
As we have commented, it is possible to use the
visualization of the different elements of a table to
establish the existing relationships. To offer this
visual information HTML has a group of tags and
attributes that are specific to offer the visual layout.
The tags structure the table, and they can offer
information on the layout. On the other hand, it is
important the use of the attributes of every tag. For
instance, if we take the tag TH, this tag has 19
different attributes. We can think that there are a
great number of possible combinations, but finally a
subset is only used as we will see later.
In current state of our research, we can only
work with simple data table, but the system can
evolve easily with the method proposed. In this
paper, we present the method for the detection of
columns headers because of space limitations, but
the system is portable to the rows headers.
The first step in the process was to reduce the
number of elements involved in the definition of the
tables. We have made a study to obtain the use of
the different elements of a table. This study was
made over a set of 107 random data tables and the
first point to observe is the difference of the quantity
Distribution of Data Tables
Tables with header
67,29%
Tables without headers 32,71%

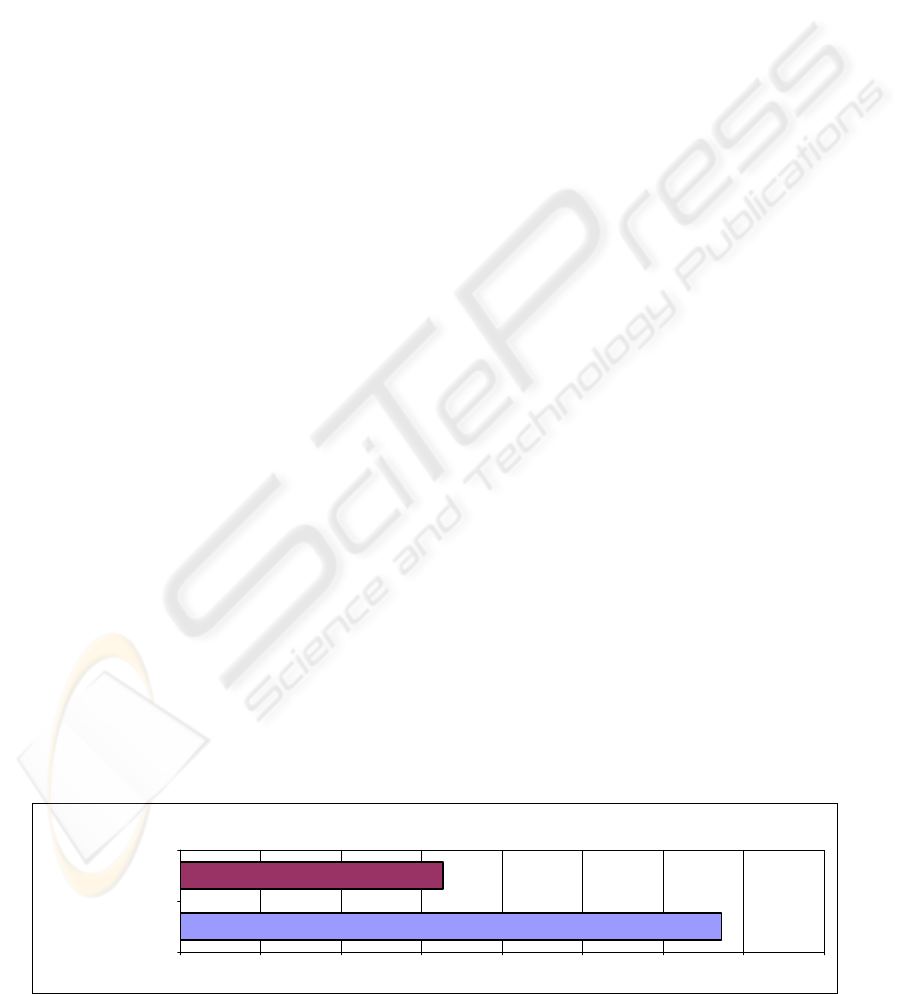

0% 10% 20% 30% 40% 50% 60% 70% 80%
Figure 2: Number of tables with headers.
HEADER DETECTION OF DATA TABLES - Towards the Improvement of the Web Navigation for Impared Visual
People
243
Use of t he TR at t rib ut es
-0,05
0,00
0,05
0,10
0,15
0,20
align bgcolor char charof f class dir id lang style title valign

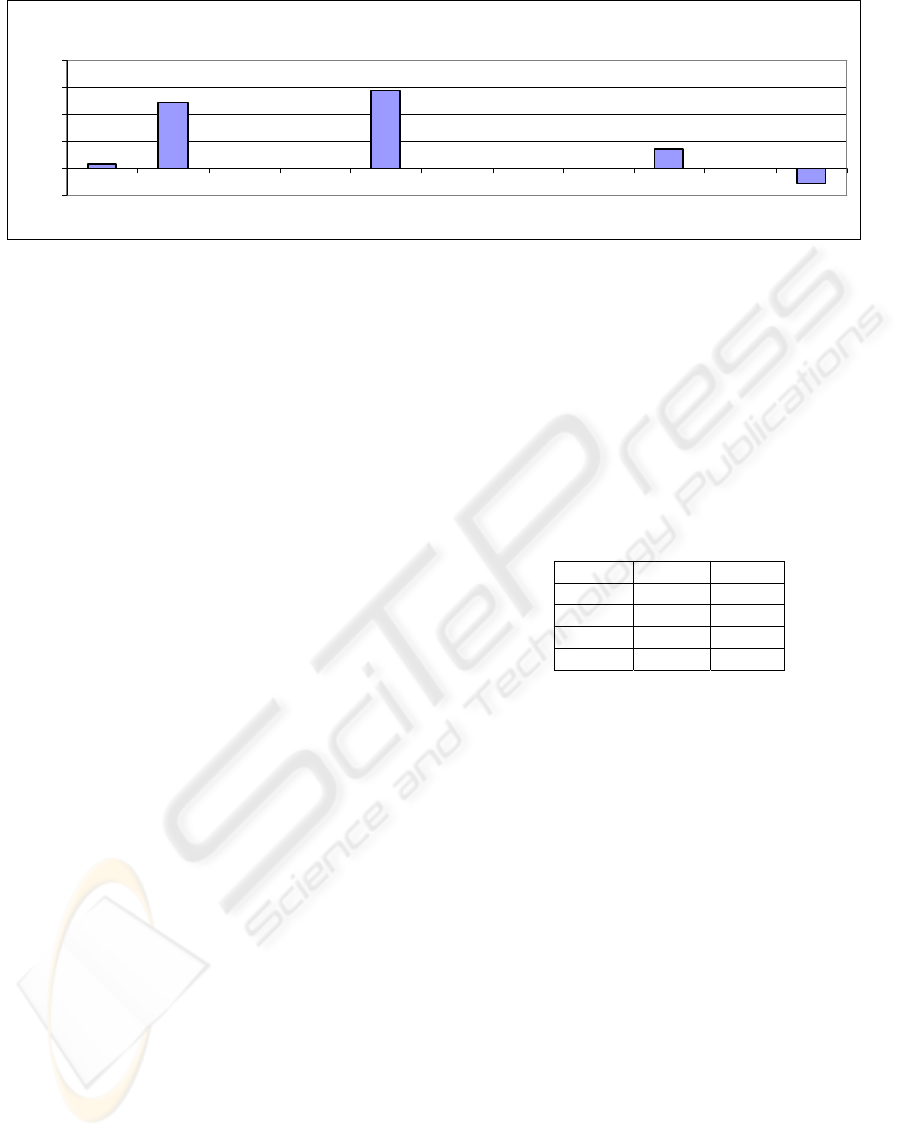

Figure 3: Distribution of the TR attributes.
of tables belonging to both classes. This effect is
shown in Figure 2. The tables without header are the
most of the part, and they are twice as the tables
with headers. This fact makes, that the dataset was
imbalanced and it is well known that it is a factor
that adds more difficulty to the learning process
(Kubat and Matwin, 1997).
If we continue with the study of the content of
the tables, we can see that all of them have the
header at the first row. This fact is produced because
we focus our study on simple data tables. This study
also offers interesting information like the very low
use of the tags THEAD and TFOOT. These tags are
the responsible ones for indicating the start and the
end of the table, and all the information inside these
tags is marked in an unequivocal way. Both
elements only appear in one of the tables studied but
the TBODY tag, which indicate the content of the
table, appears in 105 tables. In opposition of the use
of THEAD, we can work with the use of TH tag.
This tag marks the cell like a header of row, and it
appears in the 34% of the tables with header.
The study of the attributes has been made only
for the tags which play an important role in the
subset of the tables studied. These tags are TD,
which mark the cells, and TR, which mark the rows.
Figure 3 shows the use of the attributes of the TR
tag. The values are standardized, and a value of ‘1’
is assigned if the value of the first row is completely
different to the rest of values of the table. A value of
‘-1’ means that the value of the first row is the same
at the entire table. The values offered in the Figure 3
are the result of the difference between the average
of the tables with and without headers. That means
that a value far from the 0 is a good indicator
because it means that the attribute is used in this way
the most of the cases.
The same process applied to the rows can be
used with the cells. We compare the horizontally
adjacent cells. This result can be compared with the
rest of the rows and we can know if the row is
visually marked with every cell. We can see the
results in Figure 4.
At last, it is necessary to analyze two situations
really carefully: the use of scope and id/header. Both
situations mark the header of the column, but the use
of these elements is really low (W3C, 2007b) and
none of them is appropriate for the learning system.
Table 3 shows the attributes used in the classifier
system.
Table 3: Results of Studied Subset
TR TD Others
Bgcolor bgcolor TH tag
Class Class
valing
width
We have focused on the attributes of the tags to
obtain information about the visualization of the
table, but it is possible to make these effects inside
the cell. Moreover, this content can offer important
information that marks if the cell is a header. We
work with three elements:
Tables: Nested tables are not allowed.
List: If a cell has a list inside, it is a data cell,
not a header cell.
Headers: The text, inside a section marked with
the header HTML tag can possibly mark a
table header. It is true only if the whole text
inside the cell is also inside the section of the
header.
We rejected the idea of comparing all the content
of a cell to obtain differences between cells because
the same visual effect can be done with different
combinations of HTML elements. The lack of
improvement does not justify the growth of
complexity which would suppose the adding in the
system. Therefore, we only use the data of the
structure and visualization of the table.
Once discussed the attributes we are going to talk
about the system of learning used. We use Naive
WEBIST 2008 - International Conference on Web Information Systems and Technologies
244
Use of the TD attributes
-0,06
-0,04
-0,02
0,00
0,02
0,04
0,06
0,08
0,10
0,12
abbr
al
i
gn
axis
backgr
ound
bgcolor
char
charo
f
f
c
l
ass
c
o
lspan
di
r
h
e
a
d
er
s
h
e
ight
id
la ng
n
o
wr
ap
rowspan
scope
s
tyle
t
i
t
l
e
v
a
li
gn
width

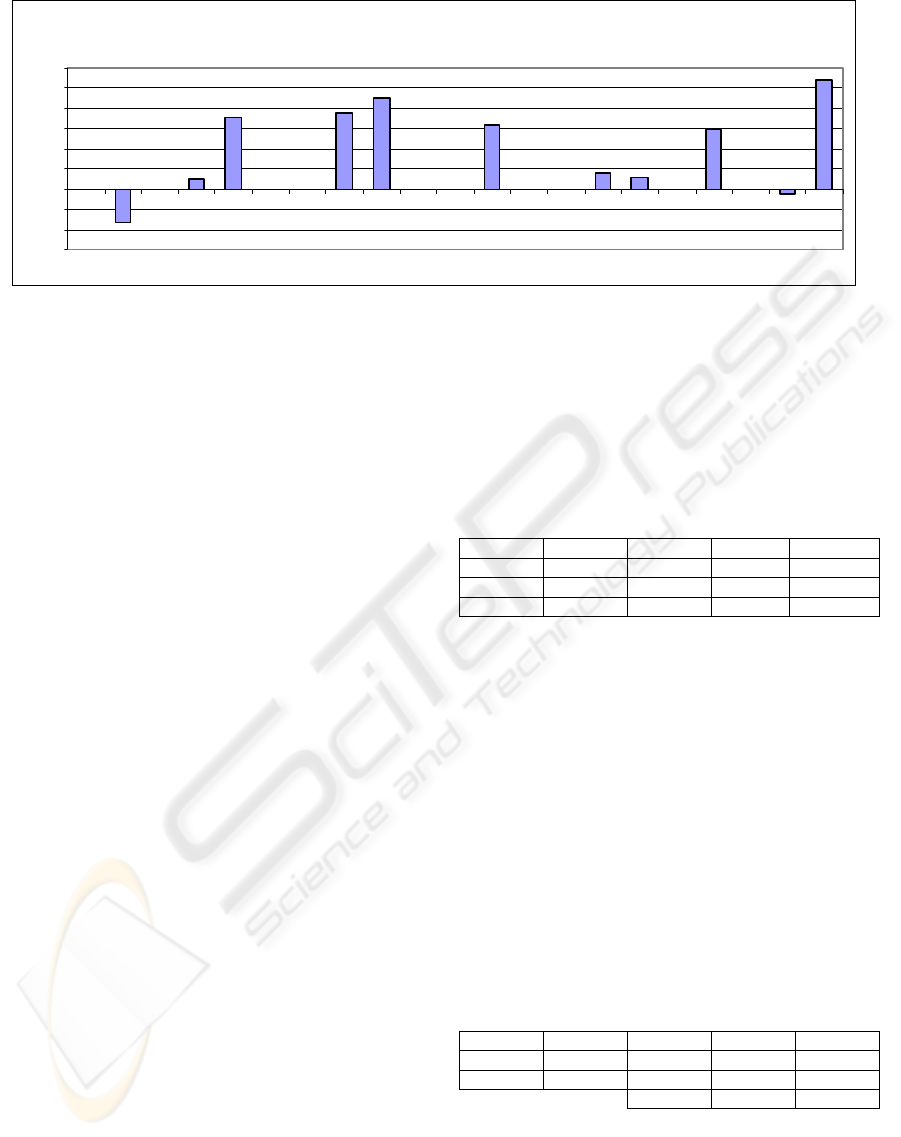

Figure 4: Distribution of the TD attributes.
Bayes, a method of supervised leaning, because it is
very powerful but at the same time it has a temporal
cost and the complexity is very low. Moreover, this
method offers the advantage of not being affected by
the unknown values of the elements (Witten and
Frank, 2005). It is a situation which appears in our
case, because is really difficult that all the attributes
appear in the table’s definition.
6 LEARNING PROCESS AND
RESULTS
The learning process and the tests have been done
using WEKA (Witten and Frank, 2005). This
application allows us to test our set of tables and
selection of attributes in an easy and quickly way.
Furthermore, it is developed in Java and licensed
under a General Public License (GPL) (Free
Software Foundation, 2007), fact allows us to use
the class, that implements the method Naive Bayes,
in the ACTAW platform (Fernández et al., 2007)
which is also GPL licensed. This repairing tool
allows us to obtain all the information contained in a
HTML document and modifies it in an easy way.
After analyzing the results offered by WEKA,
we saw the great number of noise that the set of
tables contain, caused by the tables belonging to the
subset of tables without headers. This fact made us
to decide to classify all the tables without
information, like tables without header. It also
complies with one of the premises of the WCAG,
which is not offer information that can confuse the
user, and this classification does not offer
information of this kind.
It is very important to avoid offering incorrect
information because it can disturb to the user. That
means that the header only will be marked in those
tables which contained them. On the contrary those
tables which were not clearly marked visually, will
be classified as if the would have not headers. With
the selected elements we obtain excellent results as
we can see in Table 4.
Table 4: Results of the studied Subset.
Class Positive Negative % OK % Wrong
Positive 37 3 92.5% 7.5%
Negative 1 10 90.91% 9.09%
Total 92.16% 7.84%
This classification was made with a set of
learning of 50 elements and a set of test composed
by 51 elements. This subset does not offer noise to
the system. And, in both of the subsets, the
percentage of tables with header respect to tables
without them is the same.
With this studied distribution, the number of
tables classified as tables with header when they
really are not, i.e. false positive, is very low. Only
the 7.84% was false positive, and the correct
classification is 92.15%, a very high result.
On the other hand, and to corroborate the good
results, the system has been tested by using Cross
Validation. We use 5 subsets for the validation, and
we can see the results in Table 5.
Table 5: Results of Cross Validation.
Class Positive Negative %Ok %Wrong
Positive 68 4 94.45% 5.55%
Negative 9 20 68.97% 31.03%
Total 87.13% 12.87%
The results are really good. The correct
classification is 87.12%, it is really high and the
false positive is so low enough. In Table 6 we can
see a comparative of the results offered by the cross
validation and the first test In both of them the
HEADER DETECTION OF DATA TABLES - Towards the Improvement of the Web Navigation for Impared Visual
People
245
values of g-means (Kubat and Matwin, 1997), which
is the most used measure to evaluate results in
imbalanced datasets, and the area under the ROC
curve are really good.
Table 6: Results of C. Validation and the studied Subset.
C.Validation Studied subset
G-means 0.8071 0.9170
Positive 0.869 0.941 ROC
Area
Negative 0.869 0.941
7 CONCLUSIONS
We have presented a system of learning that allows
detecting the headers of a table. We can offer the
relationship between the header and the cells under
its scope. This is an important improvement because
it means that the content of the table is not only a list
of elements. The table recovers the bi-dimensional
nature and allows the impaired user to obtain all the
information inside the table.
The proposed solution has been tested with a
heterogeneous set of real Web pages. The selection
of this set was completely random and with it we
can assure that the system does not offer good
results for only a concrete situation. The system
obtains excellent results and improves the results of
the systems developed up to now. Hence, the study
done in Section 4 regarding the previous work has
allowed us to improve some lacks detected in this
subject.
The next step to do will be to include this system
in the ACTAW platform. With this application the
feature can offer easily its help to all kind of people.
REFERENCES
World Wide Web Consortium (W3C) (1999a) Web
Content Accessibility Guidelines 1.0, http://www.
w3.org/TR/WCAG10/ (Retrieved on June 2007)
World Wide Web Consortium (W3C) (2007a) World
Accessibility Initiative (WAI). http://www.w3.org/ WAI/
(Retrieved on June 2007)
Chen Shan, Hong Dan, Vicent Shen. An experimental
study on Validation Problems with existing HTML
Webpages. In Proceeding of International Conference
on Internet Computing, pages 373-379, Las Vegas,
EUA, 2005.
Quality Assurance Activity (W3C) (2007) The W3C
Markup Validation Service. http://validator.w3.org/
(Retrieved on September 2007)
Benfeng Chen, Vicent Y. Shen. Transforming Web Pages
to Become Standard-Compliant through Reverse
Engineering. In Proceeding of Workshop Web for All
in International World Wide Web Conference, pages 14-
22, Edinburgh, UK, 2006.
World Wide Web Consortium (W3C) (2000) HTML
Techniques for Web Content Accessibility Guidelines
1.0, http://www.w3.org/TR/WCAG10-HTML-ECHS/
(Retrieved on June 2007)
Creating Accessible Tables – Data Tables (2007) Web
Accessibility in Mind (WebAIM)
http://www.webaim.org/techniques/tables/data.php
(Retrieved on September 2007)
Kubat, M, Matwin, S. Addressing the Curse of Imbalanced
Training Sets: One-Sided Selection. In Proceedings of
the 14th International Conference on Machine
Learning, 1997.
Freedom Scientific (2007). JAWS for Windows.
http://www.freedomscientific.com/fs_products/softwar
e_jaws.asp (Retrieved on June 2007)
Ai Squared (2007) Ai Squared site. http://www.aisquared
.com/index.cfm (Retrieved on June 2007)
Yeliz Yesilada, Robert Stevens, Carole Goble and Shazad
Hussein. Rendering Tables in Audio: The Interaction
of Structure and Reading Styles. In Proceeding
ASSETS’04, pages 16-23, Atlanta,Georgia, USA,
2004.
Juan Manuel Fernández, Vicenç Soler and Jordi Roig.
Automatic Conversion Tool for Accessible Web. In
Proceedings of the 3rd International Conference on
Web Information Systems and Technologies, pages
459-462. Barcelona, Spain, 2007.
Enrico Pontelli and Tran Cao Son. Planning, Reasoning,
and Agents for Non-visual Navigation of Tables and
Frames. In International ACM SIGCAPH Conference
on Assistive Technologies pages 73-80. Edinburgh,
UK, 2002.
Robet Filepp, James Challenger and Daniela Rosu.
Improving the accessibility of aurally rendered HTML
tables. In International ACM SIGCAPH Conference
on Assistive Technologies pages 9-16. Edinburgh, UK,
2002.
Bernhard Krüpl and Marcus Herzog. Visually Guided
Bottom-Up Table Detection and Segmentation in Web
Documents. In Proceeding of International World
Wide Web Conference, pages 933-934, Edinburgh,
UK, 2006.
K Kottapally, C. Ngo, R. Reddy, E. Pontelli, T.C.Son and
D.Gillan. Towards the Creation of Accessibility
Agents for Non-visual Navigation of the Web. In ACM
Conference Universal Usability, pages 134-141,
Vancouver, Canada, 2003.
World Wide Web Consortium (W3C) (2007b). www-
html@w3.org Mail Archives. http://lists.w3.org/
Archives/Public/www-html/2007May/0416.html
(Retrieved on June 2007)
Ian H. Witten and Eibe Frank. Data Mining: Practical
Machine Learnign Tools and Techniques 2
nd
Edition.
Elsevier, San Francisco, USA 2005.
Free Software Foundation (2007). GNU General Public
License Version 3. http://www.gnu.org/copyleft/
gpl.html (Retrieved on September 2007)
WEBIST 2008 - International Conference on Web Information Systems and Technologies
246
