EMBEDDING XPATH QUERIES INTO SPARQL QUERIES

Matthias Droop

, Markus Flarer

, Jinghua Groppe

, Sven Groppe

, Volker Linnemann

Jakob Pinggera

, Florian Santner

, Michael Schier

, Felix Schöpf

Hannes Staffler

and Stefan Zugal

University of Innsbruck, Technikerstrasse 21a, A-6020 Innsbruck, Austria

Institute of Information Systems, University of Lübeck, Ratzeburger Allee 160, D-23538 Lübeck, Germany

Keywords: XML, XPath, Semantic Web, SPARQL, RDF.

Abstract: While XPath is an established query language developed by the W3C for XML, SPARQL is a new query

language developed by the W3C for RDF data. Comparisons between the data models of XML and RDF

and between the query languages XPath and SPARQL are missing. Since XML and XPath are earlier

recommendations of the W3C than RDF and SPARQL, currently more XML data and XPath queries are

used in applications. However, recently available SPARQL query evaluators do not deal with XML data and

XPath queries. We have developed a prototype for translating XML data into RDF data and embedding

XPath queries into SPARQL queries for the following two reasons: 1) We want to compare the XPath and

XQuery data model with the RDF data model and the XPath query language with the SPARQL query

language in order to show similarities and differences. 2) We want to enable SPARQL query evaluators to

deal with XML data and XPath queries in order to support XPath processing and SPARQL processing in

parallel. We have developed a prototype for the source-to-source translations from XML data into RDF data

and from XPath queries into SPARQL queries. We have run experiments to measure the execution times of

the translations, of XPath queries and of their translated SPARQL queries.

1 INTRODUCTION

XML is a data format for exchanging data on the

web, between databases and elsewhere.

Furthermore, XML has become a widely used native

data format. The W3C has developed XPath (W3C,

2007) as a query language for XML data. XPath is

embedded in many other languages like the XQuery

query language and the XSLT language for

transforming XML data. The name of XPath derives

from its basic concept, the path expression, with

which the user can hierarchically address the nodes

of the XML data. The user of XPath may not only

use simple relationships like parent-child, but also

more complex relationships like the descendant

relationship, which is the transitive closure of the

parent-child relationship. Furthermore, complex

filter expressions are allowed in XPath queries.

The Resource Description Framework (RDF)

(Carroll and Klyne, 2004) is a language for

representing information about resources in the

World Wide Web. SPARQL (Prud’hommeaux and

Seaborne, 2008) is a query language for formulating

queries against RDF graphs. SPARQL supports

querying by triple patterns, conjunctions,

disjunctions, and optional patterns, and constraining

queries by a source RDF graph and extensible value

testing. Results of SPARQL queries can be ordered,

limited and offset in number. There are plans to

embed SPARQL in forthcoming languages similar

to XPath that is embedded in XQuery and XSLT.

In recent years, RDF storage systems, which

support or plan to support SPARQL, have occurred

like Jena (Wilkinson et al., 2003), Sesame

(Broekstra et al., 2003), rdfDB (Guha, 2006),

Redland (Beckett, 2002), Kowari (Northrop

Grumman Corporation, 2006), RDF Suite (Alexaki

et al., 2001) and Allegro (Franz Inc., 2006). These

RDF storage systems do not support XML data and

XPath queries, which are currently widely used in

applications. Integration of XML data into RDF data

and embedding of XPath queries into SPARQL

queries can make XML data and XPath available for

Droop M., Flarer M., Groppe J., Groppe S., Linnemann V., Pinggera J., Santner F., Schier M., Schöpf F., Stafﬂer H. and Zugal S. (2008).

EMBEDDING XPATH QUERIES INTO SPARQL QUERIES.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 5-14

DOI: 10.5220/0001672200050014

 SciTePress

these products. Furthermore, the proposed

embedding enables users to work in parallel with

XML data and RDF data, and with XPath queries

and SPARQL queries, i.e. XML data is integrated in

RDF data and the result of XPath subqueries can be

used in SPARQL for further processing. As many

SPARQL tools do not allow calling an external

XPath evaluator from SPARQL, we propose to

translate embedded XPath queries into SPARQL

subexpressions.

Tree-based queries can be easier expressed in the

tree query language XPath in comparison to the

graph query language SPARQL. For example,

SPARQL does not allow computing all descendant

nodes of a node like XPath does. Furthermore, the

formulation of joins in graphs is easier in SPARQL

than in XPath. An embedding of XPath into

SPARQL allows the easy formulation of tree queries

and graph queries in one query. Thus, the host

language SPARQL benefits from the embedded

language XPath and the embedded language XPath

benefits from its host language SPARQL.

In this paper, we first compare the different data

models of XML and RDF and the different query

languages XPath and SPARQL. Based on the

comparison, we propose a translation scheme for

XML data into RDF data and XPath queries into

SPARQL queries. Furthermore, we present the

results of an experimental evaluation of a prototype,

which shows that various different XPath queries

can be embedded into SPARQL.

2 FURTHER RELATED WORK

There are many contributions (see (Florescu and

Kossmann, 1999), (Georgiadis and Vassalos, 2006),

(Grust et al., 2004), (Tatarinov et al., 2002),

(Manolescu et al., 2001), (Shanmugasundaram et al.,

1999), (Subramanyam, and Kumar, 2005), (Fan et

al., 2005) and (Yoshikawa et al., 2001)) to source-

to-source translations for evaluating XPath

expressions on relational database management

systems. Many techniques described there can be

adapted for evaluating XPath expressions on

SPARQL evaluators like using a numbering scheme

for the XML data to support all XPath axes (Grust et

al., 2004), but some other techniques cannot be

adapted like the evaluation of positional predicates

(Tatarinov et al., 2002) as SQL supports more

language constructs than SPARQL like the rank

clause.

(Bettentrupp et al., 2006), (Fokoue et al., 2005),

(Klein et al., 2005) and (Lechner et al., 2001) focus

on the translations between XSLT and XQuery (and

vice versa), which embed the XPath language, where

the XSLT and XQuery languages are based on the

same data model.

Furthermore, some contributions deal with

bridging the gap between SPARQL/RDF and the

relational world (see (Chong et al., 2005), (Dokulil,

2006), (Harris and Shadbolt, 2005) and (de Laborda

and Conrad, 2006)).

(Groppe et al., 2008) describes a translation

scheme from SPARQL to XQuery/XSLT.

(Droop et al., 2007) deals with a translation from

XML data into RDF data and from XPath queries

into SPARQL queries, but it neither contains the

general translation algorithm nor an experimental

evaluation. In this work, we suggest a translation

algorithm and present the results of an experimental

evaluation, which demonstrates which kind of XPath

queries can be translated into SPARQL and which

kind of embedded XPath queries are fast processed

when using SPARQL evaluators. Furthermore,

(Droop et al., 2007) does not deal with an

embedding of XPath queries into SPARQL queries.

3 COMPARISON OF XML/RDF

AND XPATH/SPARQL

We describe the XML and RDF data models and

introduce the XPath and SPARQL query languages

in the following subsections (see Section 3.1 and

Section 3.2). Furthermore, we describe the

similarities of the data models and query languages

in Section 3.3 and the differences in Section 3.4.

3.1 XPath and XQuery Data Model

and XPath Query Language

The XPath and XQuery data model is defined as

follows:

Definition 1 (Data Model of XPath and XQuery).

An XML document is a tree of nodes. The kinds of

nodes are document, element, attribute, text,

namespace, processing-instruction, and comment.

Every node has a unique node identity that

distinguishes it from other nodes. In addition to

nodes, the data model allows atomic values, which

are single values that correspond to the simple types

defined in (W3C, 2001), such as strings, Booleans,

decimal, integers, floats, doubles, and dates. The

first node in any document is the document node,

which contains the entire document. Element nodes,

comment nodes, and processing instruction nodes

occur in the order in which they are found in the

textual representation of the XML document.

ICEIS 2008 - International Conference on Enterprise Information Systems

Element nodes occur before their children – the

element nodes, text nodes, comment nodes, and

processing instructions, which they contain.

Attribute nodes and namespace nodes are not

considered as children of an element.

See Figure 1 for an example of a textual XML

document representing a bookstore containing the

two books “Harry Potter” from J. K. Rowling and

“Learning XML” from Erik T. Ray. Figure 2 is a

graphical representation of the XML document of

Figure 1.

<title>Harry Potter</title>

<author>J. K. Rowling</author></book>

<title>Learning XML</title>

</bookstore>

Figure 1: An example XML document representing a

bookstore.

Document Node

bookstore

book book

category=

„CHILDREN“

category=

„WEB“

title author title author

Harry Potter J. K. Rowling Learning XML Erik T. Ray

Element with

name „X“

attribute with name „X“

assigned with value „V“

text node with content „T“

parent-child relationship

next-sibling relationship

parent-attribute relationship

„V“

Document Node

bookstore

book book

category=

„CHILDREN“

category=

„WEB“

title author title author

Harry Potter J. K. Rowling Learning XML Erik T. Ray

Element with

name „X“

attribute with name „X“

assigned with value „V“

text node with content „T“

parent-child relationship

next-sibling relationship

parent-attribute relationship

„V“

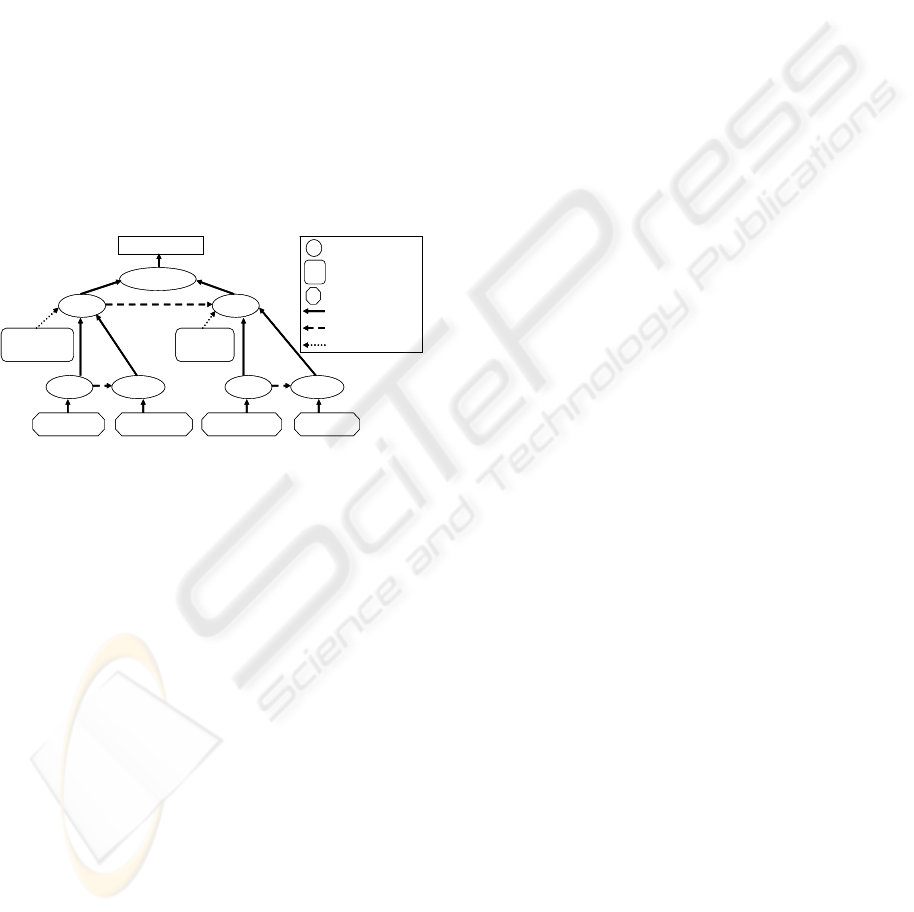

Figure 2: Graphical representation of the XML document

of Figure 1.

The W3C developed the XPath language as a

simple query language to describe node sets of XML

documents. The basic concept of XPath expressions

are location steps separated by a slash ("/"). Each

location step of the form a::nt[P1]…[Pn] contains

• an axis

a, which can be one of child, attribute, self,

parent, descendant, descendant-or-self, ancestor, ancestor-or-

self, following, following-sibling, preceding and preceding-

sibling

• a node test

nt. Among the possible node tests are a

name node test for a specific name

A (declared by

A itself), for an arbitrary name (declared by the

wildcard

*), for a text node (declared by text()), and

a node test node() for all node types.

• an arbitrary number of predicates

P1 to Pn. A

predicate is enclosed by the brackets

[ and ]. A

predicate contains a Boolean expression, e.g. a

comparison with a constant string or number.

Starting with the root node of an XML

document, each location step from left to right

describes, which XML nodes must be considered for

the next location step by following the axis for the

XML nodes of the previous location step, checking

the node test and the predicates. The whole XPath

expression describes the resultant XML nodes of the

last location step. For example, the resultant nodes

of the XPath query of Figure 3 with input XML

document of Figure 1 are presented in Figure 4.

/bookstore/parent::node()/descendant::title/text()

Figure 3: An example XPath query.

Harry Potter

Learning XML

Figure 4: Resultant text nodes when applying the XPath

query of Figure 3 to the input XML document of Figure 1.

3.2 RDF Data Model and SPARQL

In comparison to the XPath and XQuery data model,

the data model of RDF is defined as follows:

Definition 2 (Data Model of RDF). The underlying

structure of any expression in RDF is a collection of

triples, each consisting of a subject (a RDF URI

reference or a blank node), a predicate (a RDF URI

reference) and an object (a RDF URI reference, a

blank node or a literal, which can be plain literals

having optionally a language tag, or which can be a

typed literal having additionally a datatype URI

being a RDF URI reference). A set of such triples is

called an RDF graph. The nodes of an RDF graph

are its subjects and objects. The predicate holds a

directed relationship from a subject to an object.

There are different ways to represent RDF data,

e.g. RDF Triplets or RDF/XML documents, which

use XML to encode RDF data. Figure 5 contains an

example RDF/XML document, which actually

represents the generated RDF graph of the data

translation module of our prototype when using the

XML data of Figure 1 as input. Figure 6 is a

graphical representation of the RDF data of Figure 5.

SPARQL (see (Prud’hommeaux and Seaborne,

2008)) is a query language for retrieving information

from RDF graphs stored in semantic storage

systems. The outline query model is graph patterns

expressed by simple triple patterns. It does not use

rules and is not path based.

We briefly introduce SPARQL by a simple

example. Figure 7 presents a SPARQL query, which

actually is a query translated by our prototype with

the input XPath query of Figure 3. The query

consists of three parts, the PREFIX declarations, the

SELECT clause and the WHERE clause. The

PREFIX declarations specify prefixes for short name

usages (e.g. here

rel is declared as short name for

<http://uibk.ac.at/informatic/comdesign/relations:>). The

EMBEDDING XPATH QUERIES INTO SPARQL QUERIES

SELECT clause identifies the variables to appear in

the query results (here

?v9). The WHERE clause

contains triple patterns like “

?v0 rel:child ?v1.”. The

first position (

?v0) in the triple pattern represents the

constraints or bindings to variables for the subjects

in the RDF data. The second position (here it is the

relation

rel:child) contains the constraints or bindings

to variables for predicates of the triples of the RDF

data, and the third (here

?v1) contains the constraints

or bindings to variables for the objects of the triples

of the RDF data. A join between the first triple

pattern (

?v0 rel:child ?v1.) and the second triple pattern

(

?v1 rel:type "1".) of the query is expressed by using the

same variable

?v1 in both triple patterns.

Furthermore, SPARQL queries may contain filter

expressions (here e.g.

FILTER (xsd:long(?v6) >

xsd:long(?v4)).

), which contain boolean expressions to

constrain the input data (here the considered filter

expression contains a greater-than comparison (“

>”)

between the two variables

?v6 and ?v4, which are

first castet to the XML Schema datatype

long).

<rdf:RDF xmlns:rel=

"http://uibk.ac.at/informatic/comdesign/relations:"

xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#" >

<rdf:Description rdf:nodeID="A0">

<rel:end>10</rel:end><rel:child rdf:nodeID="A1"/>

<rel:start>7</rel:start><rel:type>1</rel:type>

<rel:name>author</rel:name>

</rdf:Description>

<rdf:Description rdf:nodeID="A2">

<rel:type>2</rel:type><rel:value>WEB</rel:value>

<rel:name>category</rel:name>

</rdf:Description>

<rdf:Description rdf:nodeID="A3">

<rel:end>6</rel:end><rel:child rdf:nodeID="A4"/>

<rel:start>3</rel:start><rel:type>1</rel:type>

<rel:name>title</rel:name>

</rdf:Description>

<rdf:Description rdf:nodeID="A5">

<rel:end>20</rel:end><rel:child rdf:nodeID="A6"/>

<rel:start>17</rel:start><rel:type>1</rel:type>

<rel:name>author</rel:name>

</rdf:Description>

<rdf:Description rdf:nodeID="A1">

<rel:end>9</rel:end><rel:type>3</rel:type>

<rel:value>J. K. Rowling</rel:value>

<rel:start>8</rel:start>

</rdf:Description>

<rdf:Description rdf:nodeID="A7">

<rel:end>16</rel:end><rel:child rdf:nodeID="A8"/>

<rel:start>13</rel:start><rel:type>1</rel:type>

<rel:name>title</rel:name>

</rdf:Description>

<rdf:Description rdf:nodeID="A9">

<rel:type>2</rel:type><rel:value>CHILDREN</rel:value>

<rel:name>category</rel:name>

</rdf:Description>

<rdf:Description rdf:about="file:///C:/bookstore.xml">

<rel:end>23</rel:end><rel:child rdf:nodeID="A10"/>

<rel:type>9</rel:type><rel:start>0</rel:start>

</rdf:Description>

<rdf:Description rdf:nodeID="A8">

<rel:end>15</rel:end><rel:type>3</rel:type>

<rel:value>Learning XML</rel:value>

<rel:start>14</rel:start>

</rdf:Description>

<rdf:Description rdf:nodeID="A11">

<rel:end>11</rel:end><rel:child rdf:nodeID="A0"/>

<rel:child rdf:nodeID="A3"/>

<rel:attribute rdf:nodeID="A9"/>

<rel:start>2</rel:start><rel:type>1</rel:type>

<rel:name>book</rel:name>

</rdf:Description>

<rdf:Description rdf:nodeID="A4">

<rel:end>5</rel:end><rel:type>3</rel:type>

<rel:value>Harry Potter</rel:value>

<rel:start>4</rel:start>

</rdf:Description>

<rdf:Description rdf:nodeID="A10">

<rel:end>22</rel:end><rel:child rdf:nodeID="A12"/>

<rel:child rdf:nodeID="A11"/>

<rel:start>1</rel:start><rel:type>1</rel:type>

<rel:name>bookstore</rel:name>

</rdf:Description>

<rdf:Description rdf:nodeID="A12">

<rel:end>21</rel:end><rel:child rdf:nodeID="A5"/>

<rel:child rdf:nodeID="A7"/>

<rel:attribute rdf:nodeID="A2"/>

<rel:start>12</rel:start><rel:type>1</rel:type>

<rel:name>book</rel:name>

</rdf:Description>

<rdf:Description rdf:nodeID="A6">

<rel:end>19</rel:end><rel:type>3</rel:type>

<rel:value>Erik T. Ray</rel:value>

<rel:start>18</rel:start>

</rdf:Description>

</rdf:RDF>

Figure 5: RDF/XML document representing the generated

RDF graph of the data translation module of our prototype

when using the XML data of Figure 1 as input.

bookstore

rel:

start

re l:c h ild

rel:

start

rel:

start

rel:

start

category

CHILDREN

rel:

attribute

rel:

name

category

WEB

rel:

name

rel:

start

rel:

start

title

rel:

start

rel:

start

rel:child

rel:

start

rel:

start

rel:

start

rel:

start

rel:ch ild

re l:ch ild

rel:ch ild

A12

bookbook

A7 A5

author

Erik T. Ray

Learning XMLJ. K. Rowling

A11

A3 A0

author

A1A4

Harry Potter

title

A10

file:///C:/bookstore.xml

Node with identity X or

literal with value X

relationship r

rel:

bookstore

rel:

start

re l:c h ild

rel:

start

rel:

start

rel:

start

category

CHILDREN

rel:

attribute

rel:

name

category

WEB

rel:

name

rel:

start

rel:

start

title

rel:

start

rel:

start

rel:child

rel:

start

rel:

start

rel:

start

rel:

start

rel:ch ild

re l:ch ild

rel:ch ild

A12

bookbook

A7 A5

author

Erik T. Ray

Learning XMLJ. K. Rowling

A11

A3 A0

author

A1A4

Harry Potter

title

A10

file:///C:/bookstore.xml

Node with identity X or

literal with value X

relationship r

rel:

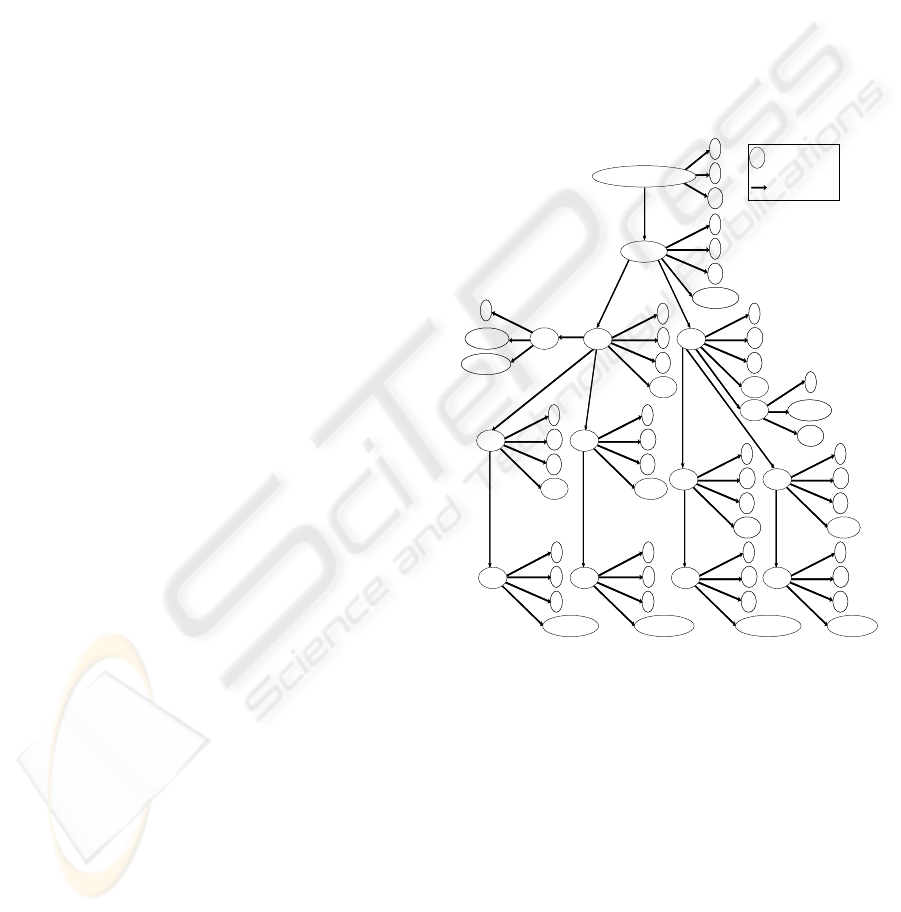

Figure 6: Graphical representation of the RDF data of

Figure 5.

Figure 8 presents the XML representation of the

resultant bindings of the SPARQL query of Figure 7

applied to the RDF data of Figure 5.

There are further constructs to e.g. use built-in

functions and set operations like the UNION

operator. We refer the interested reader to

(Prud’hommeaux and Seaborne, 2008) for a

complete list and description of the SPARQL

features.

PREFIX rel: <http://uibk.ac.at/relations/>

PREFIX xsd:<http://www.w3.org/2001/XMLSchema#>

SELECT ?v9 WHERE { ?v0 rel:type "9".

?v0 rel:child ?v1.

?v1 rel:name "bookstore".

?v2 rel:child ?v1.

?v7 rel:start ?v3.

ICEIS 2008 - International Conference on Enterprise Information Systems

?v2 rel:start ?v5.

?v7 rel:end ?v4.

?v2 rel:end ?v6.

?v7 rel:name "title".

?v7 rel:child ?v8.

?v8 rel:type "3".

?v8 rel:value ?v9.

FILTER(xsd:long(?v6)>xsd:long(?v4)).

FILTER(xsd:long(?v5)<xsd:long(?v3)).}

Figure 7: Translated SPARQL query when using the

XPath query of Figure 3 as input of our prototype.

<?xml version="1.0"?>

<sparql

xmlns:rdf="http://www.w3.org/1999/02/22-rdf-syntax-ns#"

xmlns:xs="http://www.w3.org/2001/XMLSchema#"

xmlns="http://www.w3.org/2005/sparql-results#" >

<literal>Harry Potter</literal>

</binding></result>

<literal>Learning XML</literal>

</binding></result>

</results>

</sparql>

Figure 8: Result of the SPARQL query of Figure 7 when

we use the RDF graph of Figure 5 as input.

3.3 Similarities

Both query languages, XPath and SPARQL, support

complex queries and support the usage of variables,

constraining the result of queries (see predicates

[…]

in XPath and

FILTER expressions in SPARQL) and

joins using variables. XPath and SPARQL support

iterating through an input data set (see

for clauses in

XPath and triple patterns in SPARQL). Furthermore,

XPath and SPARQL have a rich set of built-in

functions, some of which are equivalent (see e.g.

function

fn:matches in XPath and the equivalent

function

regex in SPARQL). Both, XPath and

SPARQL, do not support user-defined functions.

Both languages support conditional results (see e.g.

if-then-else expressions in XPath and OPTIONAL

patterns in SPARQL) and support nesting of their

expressions and statements. Our translation scheme

shows that many language constructs of XPath can

be embedded into SPARQL expressions in a

straightforward way. The supported datatypes in

XPath queries are the datatypes of XML Schema,

which are supported in SPARQL, too.

XML data represents a tree of information. RDF

data consists of triple data, which expresses a graph.

Nevertheless, XML data can contain information to

represent graphs and RDF data can express trees.

For our translation from XML to RDF, we translate

the tree structure into triples, such that no

information is lost of the content of each node and

the relationship between the nodes of the XML tree.

Furthermore, because of some differences between

the XPath and SPARQL languages (see Section 3.4),

we have to add a numbering scheme for the

representation of the XML data in RDF.

3.4 Differences

XPath supports mechanisms to determine transitive

closures by built-in mechanisms (e.g. using the

descendant axis), but SPARQL does not support the

determination of transitive closures. Furthermore,

XPath supports nesting of expressions with full

generality, but SPARQL does not support, e.g.

querying the result of a SPARQL subquery

formulated in one SPARQL query.

Both languages, XPath and SPARQL, define

built-in functions, which do not have a

corresponding built-in function in the other language

(see e.g.

fn:replace and simple aggregates like

fn:count and fn:max in XPath, and isIRI and

isBound in SPARQL). Some of these built-in

functions of XPath can be expressed by SPARQL

language constructs (e.g.

id in XPath); some other

might only be expressed in an external function

formulated in another programming language. Cast

operations in XPath queries of data of a not castable

datatype lead to an error, which stops the evaluation

of the XPath query, while casting in SPARQL

queries within filter expressions constraints the input

data.

XPath expressions return a single or a sequence

of atomic values, which are single values that

correspond to the simple types defined in (W3C,

2001), such as strings, Booleans, decimal, integers,

floats, doubles, and dates, or a non-nesting, un-typed

sequence of nodes, which are ordered according to

the document order. The evaluation of SPARQL

queries returns a set of bindings of variables. Thus,

we have to provide a mechanism to transform the set

of bindings of SPARQL results into typical XPath

results in the case that SPARQL results are returned

back from the SPARQL query.

The implicit type of each node of the XML tree

has to be stored explicitly by a special relationship

for translating XML data into RDF data. All implicit

relationships of nodes of the XML tree have to be

added as explicit relationships in the RDF data. This

includes parent-child relationships, attribute and

namespace relationships, and next-sibling

relationships. As SPARQL does not support the

determination of transitive closures, we have to add

a numbering scheme (see Section 4.1) to the RDF

data in order to support XPath axes, which require

the determination of the transitive closure of basic

relationships, like

descendant, ancestor,

following and preceding.

EMBEDDING XPATH QUERIES INTO SPARQL QUERIES

4 TRANSLATION OF XPATH

QUERIES

We propose to embed XPath subqueries in SPARQL

queries by binding a SPARQL variable to the result

of an XPath subquery by using a

BIND(S, E)

construct in the WHERE clause of the host

SPARQL query, which assigns the resultant nodes

of an embedded XPath expression

E to a SPARQL

variable

S. For example, we present a SPARQL

query with an embedded XPath subquery in Figure

9, where the titles of all available books in a

collection of books from a bookstore, the data of

which is stored in the input XML document, are

retrieved and represented by the SPARQL variable

?XPath (see lines (5) to (7)). Furthermore, the

retrieved result of the embedded XPath subquery is

compared with the titles in the book collection of the

user (see line (8)), which are stored in the input RDF

document, and the current places of the books are

determined (see line (9)). The title of the books

available in both, in the bookstore and in the book

collection of the user, is returned together with the

current place of the book (see line (4)).

(1) PREFIX myCollection:

(2) <http://uibk.ac.at/informatic/myCollection>

(3) PREFIX xsd: <http://www.w3.org/2001/XMLSchema#>

(4) SELECT ?XPath ?place WHERE

(5) { BIND(?XPath, /child::bookstore/

(6) parent::node()/

(7) descendant::title/child::text()).

(8) ?x myCollection:title ?XPath.

(9) ?x myCollection:place ?place. }

Figure 9: Host SPARQL query with embedded XPath

query.

We first explain how to translate an XPath query

into an equivalent SPARQL query. Afterwards, we

explain how to integrate the translation of an

embedded XPath subquery into its host SPARQL

query.

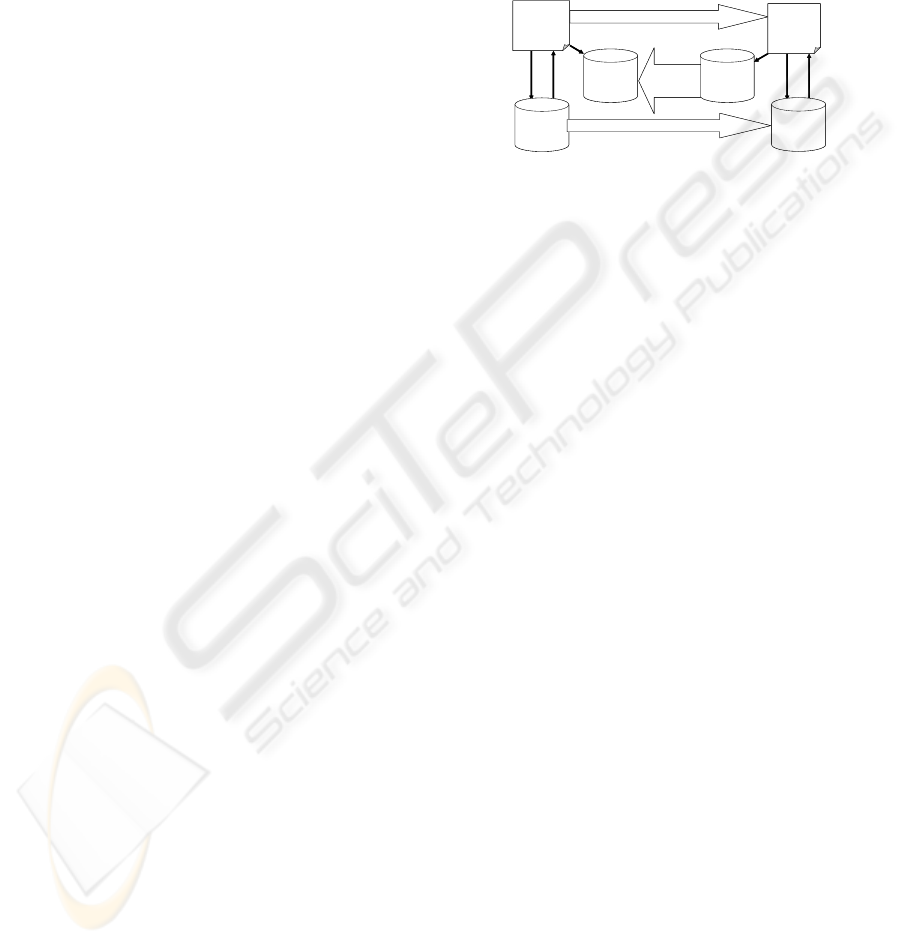

The translation process consists of three steps

(see Figure 10): (i) the translation of the input data

from XML into RDF, (ii) the source-to-source

translation from the XPath query into the translated

SPARQL query, and (iii) in the case that the host

SPARQL query returns the result of an embedded

XPath query the translation of the result from the

translated SPARQL query into the result according

to the XPath and XQuery data model, which is

equivalent to the result of the XPath query. We

explain each translation step in more detail in

Section 4.1 to Section 4.3.

4.1 Translation of Data

We translate the XML data into RDF data by a

depth-first traversal of the XML tree and annotate

each translated node of the XML data with the

relationships

rel:type, rel:child, rel:attribute,

rel:namespace, rel:name, rel:value, rel:start and

rel:end.

Result in

Data Model

XML

Result in

Data Model

SparQL

Source

Program

formulated

in XPath

Data in

Data Model

XML

Data in

Data Model

RDF

(ii) Source-To-Source Translation

(i) Translation of Data

(iii)

Translation

of Result

Source

Program

formulated

in SparQL

Result in

Data Model

XML

Result in

Data Model

SparQL

Source

Program

formulated

in XPath

Data in

Data Model

XML

Data in

Data Model

RDF

(ii) Source-To-Source Translation

(i) Translation of Data

(iii)

Translation

of Result

Source

Program

formulated

in SparQL

Figure 10: The translation process consists of three steps:

(i) the translation of data from XML into RDF, (ii) the

source-to-source translation from XPath into SPARQL,

and (iii) the translation of the result, which is returned by

the SPARQL query, from an embedded XPath query into

the result in the data model XML, which is equivalent to

the result of the XPath query.

As an example, see Figure 1 for the original

XML data and see Figure 2 for its graphical

representation, and see Figure 5 for the translated

RDF data and see Figure 6 for its graphical

representation.

We use a relationship

rel:type in the RDF data

in order to explicitly annotate the type of an XML

node. The explicit relationship

rel:child in the

translated RDF data expresses a parent-child

relationship in the XML tree,

rel:attribute an

attribute relationship, and

rel:namespace a

namespace relationship. The value associated over

the relationship

rel:name contains the name of the

XML node,

rel:value contains the value of the node.

The relationships

rel:start and rel:end are

computed by a numbering scheme for XML data and

their purpose are for the determination of the

descendant relationships in SPARQL queries, as

SPARQL does not support the determination of

transitive closures.

We use a numbering scheme based on the region

encoding on elements of the XML tree, which we

adapt from (Grust et al., 2004): For each element,

the values of

rel:start and rel:end can be assigned

by a depth-first traversal through the XML tree. The

value of

rel:start of the document tree is 1. The

value

rel:end of a node v with start value n can be

computed by

n+count(subtree(v))+1, where the

function

count returns the number of nodes of the

subtree rooted at

v. The value of rel:start of the

first child of a node

v is v.start+1. The value of

ICEIS 2008 - International Conference on Enterprise Information Systems

rel:start of a non-first child is the value of rel:end

of the previous sibling plus

Between any two elements

a and b of the XML

tree,

a is a descendant node of b, if a.start>b.start

and

a.end<b.end. Analogously, a is an ancestor node

b, if a.start<b.start and a.end>b.end. a is a

following-sibling (a preceding-sibling respectively)

b, if a.start>b.start (a.start<b.start

respectively) and there exists a subject

p such that p

rel:child a

and p rel:child b holds.

With these relationships, we can support all

XPath axes in our translation scheme, as we can

determine the nodes according to the basic

relationships. Note that the XPath location step

following::n is equivalent to ancestor-or-

self::node()/following-sibling::node()/descendant-

or-self::n

, and the XPath location step preceding::n

is equivalent to

ancestor-or-self::node()/preceding-

sibling::node()/descendant-or-self::n

4.2 Translation of Queries

We translate an XPath query into an equivalent

SPARQL query in the following way:

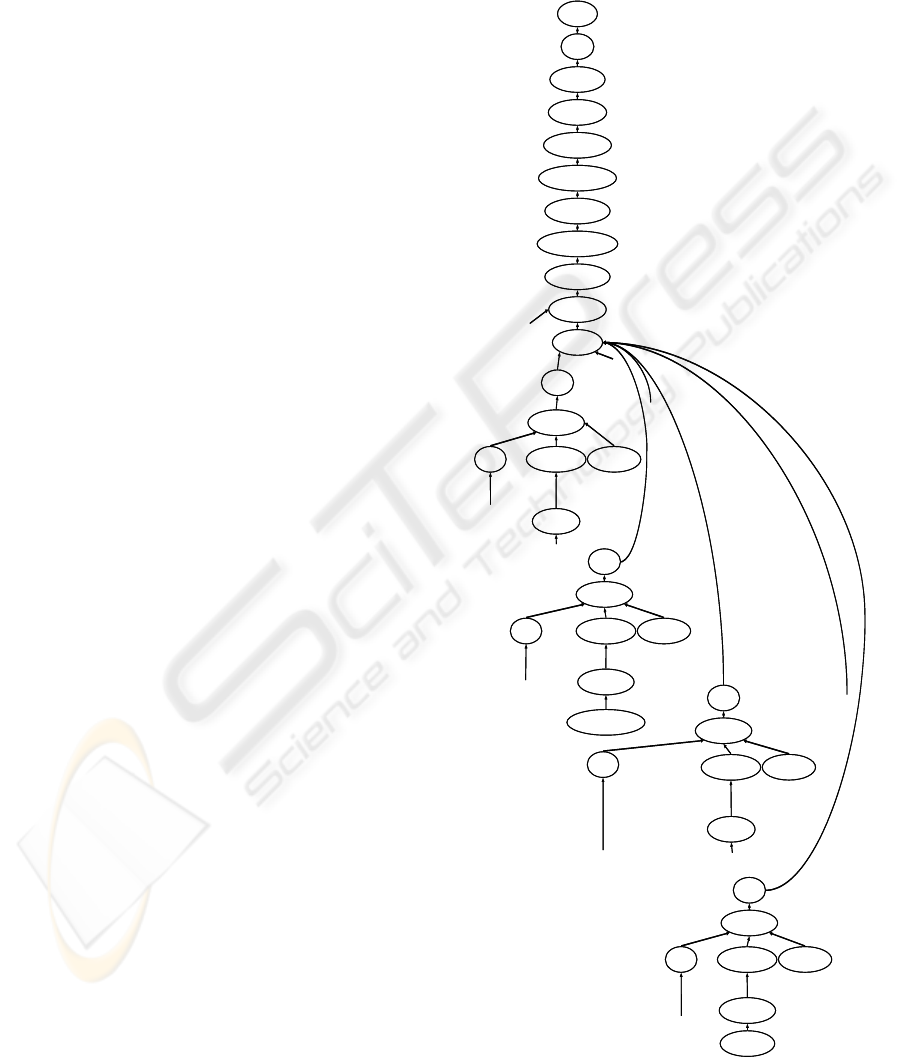

First, we determine the syntax tree of the XPath

query. See Figure 11, which contains the syntax tree

of the XPath query of Figure 3. This can be done by

using standard compiler techniques, the input of

which is the XPath grammar.

Second, we evaluate the attribute grammar,

which we do not present here due to space

limitations, on the syntax tree. This attribute

grammar defines computation rules for each possible

situation in the syntax tree. The computation rules

compute attributes of the nodes of the syntax tree.

Depending on the dependencies between the

attributes in the computation rules, a tree walking

algorithm defines the traversal of the syntax tree and

the evaluation order of the attributes. After applying

the tree walking algorithm, a special attribute

SPARQL of the root node XPATH of the syntax tree

contains the translated SPARQL query.

As an example of the query translation, see

Figure 3 for the original XPath query, Figure 11 for

its syntax tree with computed attributes according to

our attribute grammar and Figure 7 for the translated

SPARQL query.

The translation of embedded XPath subqueries

and the integration of their translations into the host

SPARQL query require that the resultant SPARQL

query containing the result of the XPath subquery is

renamed according to the bound variable of the

extended SPARQL expression for embedding XPath

queries. Furthermore, the declared prefixes must be

added to the declared prefixes of the host SPARQL

query and the WHERE clause of the translated

XPath query has to be added to the WHERE clause

of the host SPARQL query.

4.3 Translation of Result

XPath

Expr

AndExpr

CmpExpr

RangeExpr

AdditiveExpr

UnionExpr

IntersectExpr

UnaryExpr

PathExpr

RelPath

“/“

AxisStep

“/“

AxisStep

“/“

AxisStep

“/“

Axis

NodeTest

PredList

Axis

NodeTest

PredList

Axis

NodeTest

PredList

Axis

NodeTest

PredList

“child“

“parent“

“descendant“

“child“

QName

KindTest

AnyKindTest

QName

KindTest

TextTest

SPARQL="PREFIX rel: http://uibk.ac.at/informatic/comdesign/relations:\n"+

"PREFIX xsd: http://www.w3.org/2001/XMLSchema#\n"+

"SELECT DISTINCT ?v9 WHERE {"+Expr.SPARQL+"}";

SPARQL=AndExpr.SPARQL

SPARQL=CmpExpr.SPARQL

SPARQL=RangeExpr.SPARQL

SPARQL=AdditiveExpr.SPARQL

SPARQL=UnionExpr.SPARQL

SPARQL=IntersectExpr.SPARQL

SPARQL=UnaryExpr.SPARQL

SPARQL=PathExpr.SPARQL

SPARQL=“?v0 rel:type 9.“+RelPath.SPARQL

SPARQL=Step[1].SPARQL+Step[2].SPARQL+Step[3].SPARQL+Step[4].SPARQL

Step

SPARQL=AxisStep.SPARQL

SPARQL=

AxisStep.SPARQL

SPARQL=

AxisStep.SPARQL

SPARQL=

AxisStep.SPARQL

SPARQL=

Axis.SPARQL+

NodeTest.SPARQL+

PredList.SPARQL

SPARQL=Axis.SPARQL+

NodeTest.SPARQL+

PredList.SPARQL

SPARQL=Axis.SPARQL+

NodeTest.SPARQL+

PredList.SPARQL

SPARQL=Axis.SPARQL+

NodeTest.SPARQL+

PredList.SPARQL

SPARQL=““

SPARQL=

“?v0 rel:child ?v1.“

SPARQL=

“?v2 rel:child ?v1.“

SPARQL=

“?v1 rel:name“+

“ ‘bookstore‘.“

SPARQL=

KindTest.SPARQL

SPARQL=““

SPARQL=“?v8 rel:type 3.“+

“?v8 rel:value ?v9.“

SPARQL=

KindTest.SPARQL

SPARQL=

“?v7 rel:start ?v3.“+

“?v2 rel:start ?v5.“+

“Filter(xsd:integer(?v5)“+

“<xsd:integer(?v3))“+

“?v7 rel:end ?v4.“+

“?v2 rel:end ?v6.“+

“Filter(xsd:integer(?v6)“+

“>xsd:integer(?v4))“

SPARQL=

“?v7 rel:name“+

“ ‘title‘.“

SPARQL=

“?v7 rel:child ?v8.“

“title“

XPath

Expr

AndExpr

CmpExpr

RangeExpr

AdditiveExpr

UnionExpr

IntersectExpr

UnaryExpr

PathExpr

RelPath

“/“

AxisStep

“/“

AxisStep

“/“

AxisStep

“/“

Axis

NodeTest

PredList

Axis

NodeTest

PredList

Axis

NodeTest

PredList

Axis

NodeTest

PredList

“child“

“parent“

“descendant“

“child“

QName

KindTest

AnyKindTest

QName

KindTest

TextTest

SPARQL="PREFIX rel: http://uibk.ac.at/informatic/comdesign/relations:\n"+

"PREFIX xsd: http://www.w3.org/2001/XMLSchema#\n"+

"SELECT DISTINCT ?v9 WHERE {"+Expr.SPARQL+"}";

SPARQL=AndExpr.SPARQL

SPARQL=CmpExpr.SPARQL

SPARQL=RangeExpr.SPARQL

SPARQL=AdditiveExpr.SPARQL

SPARQL=UnionExpr.SPARQL

SPARQL=IntersectExpr.SPARQL

SPARQL=UnaryExpr.SPARQL

SPARQL=PathExpr.SPARQL

SPARQL=“?v0 rel:type 9.“+RelPath.SPARQL

SPARQL=Step[1].SPARQL+Step[2].SPARQL+Step[3].SPARQL+Step[4].SPARQL

Step

SPARQL=AxisStep.SPARQL

SPARQL=

AxisStep.SPARQL

SPARQL=

AxisStep.SPARQL

SPARQL=

AxisStep.SPARQL

SPARQL=

Axis.SPARQL+

NodeTest.SPARQL+

PredList.SPARQL

SPARQL=Axis.SPARQL+

NodeTest.SPARQL+

PredList.SPARQL

SPARQL=Axis.SPARQL+

NodeTest.SPARQL+

PredList.SPARQL

SPARQL=Axis.SPARQL+

NodeTest.SPARQL+

PredList.SPARQL

SPARQL=““

SPARQL=

“?v0 rel:child ?v1.“

SPARQL=

“?v2 rel:child ?v1.“

SPARQL=

“?v1 rel:name“+

“ ‘bookstore‘.“

SPARQL=

KindTest.SPARQL

SPARQL=““

SPARQL=“?v8 rel:type 3.“+

“?v8 rel:value ?v9.“

SPARQL=

KindTest.SPARQL

SPARQL=

“?v7 rel:start ?v3.“+

“?v2 rel:start ?v5.“+

“Filter(xsd:integer(?v5)“+

“<xsd:integer(?v3))“+

“?v7 rel:end ?v4.“+

“?v2 rel:end ?v6.“+

“Filter(xsd:integer(?v6)“+

“>xsd:integer(?v4))“

SPARQL=

“?v7 rel:name“+

“ ‘title‘.“

SPARQL=

“?v7 rel:child ?v8.“

“title“

Figure 11: Syntax tree of the XPath query of Figure 3 and

computed attributes according to our attribute grammar.

EMBEDDING XPATH QUERIES INTO SPARQL QUERIES

The result of an SPARQL query is a set of bindings

of variables in the SELECT clause of an SPARQL

query. We determine the translated XPath query in

such a way that the retrieved bindings of the XPath

query represent the resultant XML nodes of the

original query. In the module of the translation of

result and in the case that the result of an embedded

XPath query is returned by the SPARQL query, we

now rebuild the subtrees of these resultant XML

nodes by considering the information of the original

XML tree in the RDF data (especially the rel:type,

rel:child, rel:attribute, rel:namespace, rel:name, rel:value,

rel:start and rel:end relationships). Furthermore, we

sort the resultant XML trees according to the

document order of the original XML tree, as the

XPath language specifies the result of an XPath

query to be in document order of the queried XML

document. Note that the less-than order relation of

the computed values of rel:start correspond to the

document order relation, i.e. if a and b are the values

of the rel:start relationship of two nodes of the

translated RDF data and a<b, then the corresponding

node of a occurs before the corresponding node of b

in document order in the original XML document.

5 PERFORMANCE ANALYSIS

The test system for all experiments is a 2.66

Gigahertz Intel Pentium 4 processor with 1

Gigabytes main memory. The test system runs

Windows XP Professional Version 2002 Service

Pack 2 and Java version 1.5. We have used the Java

1.5 internal XPath evaluator. Furthermore, we have

used the XQuery evaluators Saxon (Kay, 2006), as

Saxon is widely used, and Qizx (Axyana software,

2006), as Qizx is a fast evaluator, to process the

original XPath queries. We have used Jena (Hewlett-

Packard Labs, 2003) to process the translated

SPARQL expressions, as Jena supports the current

version of SPARQL and as Jena is the most widely

used Semantic Web reasoning engine (see (Cardoso,

2007)). We present the average of 10 execution

times of evaluating the original XPath queries, of the

data translation, of the query translation, of

processing the translated SPARQL queries and of

the result translation.

For the original queries, we have used the queries

for the performance test of the XPathMark

(Franceschet, 2005) benchmark. The data is

generated by the data generation tool of the

benchmark, which allows scaling the size of the

input data.

We have excluded those queries of the XPathMark

benchmark, which are not supported by our

prototype for the following reasons:

• The queries contain an XPath built-in function,

which does not correspond to any built-in function

of SPARQL. Our prototype supports the not,

round, abs, floor, ceiling and

substring function. One possible way to

support other built-in functions is to use external

functions, which are especially implemented to

provide the same functionality as the corresponding

XPath built-in function. We did not implement

these external functions, as external functions are

not standardized and thus depend on the used

SPARQL engine.

0,001

0,010

0,100

1,000

10,000

100,000

1000,000

ime in seconds

/site/closed_auctions/closed_auction/annotation/desc

ription/text/keyword

//closed_auction//keyword

/site/closed_auctions/closed_auction//keyword

/site/closed_auctions/closed_auction[annotation/desc

ription/text/keyword]/date

/site/closed_auctions/closed_auction[descendant::ke

yword]/date

/site/people/person[phone or homepage]/name

/site/people/person[address and (phone or

homepage) and (creditcard or profile)]/name

/site/regions/*/item[parent::namerica or

parent::samerica]/name

//keyword/ancestor::listitem/text/keyword

Java 1.5 internal XPath Processor Saxon Qizx Data Translation Query Translation Jena Result Translation

Figure 12: Execution time of the first subset of original

XPath queries of the XPathMark Benchmark, of the data

translation, of the query translation, of the translated

SPARQL query and of the result translation when using an

input XML document of size 56.55 Kilobytes.

• The queries contain predicates of the form [x],

where x is a number, which restrict the current

node set of a location step to its x-th element. We

are currently not aware of a simple, but efficient

way to access the x-th element of a dynamically

determined set in SPARQL queries. Note that

techniques developed for SQL as described in

ICEIS 2008 - International Conference on Enterprise Information Systems

(Tatarinov et al., 2002) cannot be adapted to

SPARQL, as a RANK clause as in SQL or an

equivalent language construct is missing in the

SPARQL language.

0,001

0,010

0,100

1,000

10,000

100,000

1000,000

ime in seconds

/site/open_auctions/open_auction/bidder[following-

sibling::bidder]

/site/open_auctions/open_auction/bidder[preceding-

sibling::bidder]

/site/regions/*/item[following::item]/name

/site/regions/*/item[preceding::item]/name

//person[profile/@income]/name

/site/open_auctions/open_auction[(not(bidder/following::bidder)

or not(bidder/preceding::bidder)) and (bidder/following::bidder

and bidder/preceding::bidder)]/interval

/site/people/person[profile/age >= 18 and profile/@income <

10000 and address/city != 'Dallas']/name

/site/open_auctions/open_auction[bidder/increase =

current]/interval

/site/people/person[profile/@income =

/site/open_auctions/open_auction/current]/name

Average

Java 1.5 internal XPath Processor Saxon Qizx Data Translation Query Translation Jena Result Translation

Figure 13: Execution time of the second subset of original

XPath queries of the XPathMark Benchmark, of the data

translation, of the query translation, of the translated

SPARQL query and of the result translation when using an

input XML document of size 56.55 Kilobytes.

Figure 12 and Figure 13 present the execution times

of the original XPath queries of the XPathMark

benchmark, of the data translation, of the query

translation, of the translated SPARQL query and of

the result translation when using an input XML

document of size 56.55 Kilobytes. Furthermore,

Figure 13 presents the average execution times of all

these 18 queries of the XPathMark benchmark (most

right column). Figure 14 presents the average

execution times when varying the size of the input

file. Furthermore, it shows that the average

execution times for processing the translated

SPARQL queries is dominated by the execution time

of those translated queries, which are translated from

XPath queries containing a recursive axis like

descendant, descendant-or-self, ancestor, ancestor-

or-self, following, preceding, following-sibling and

preceding-sibling. The translated SPARQL queries

of XPath queries containing a recursive axes have

filter expressions like

FILTER (xsd:long(?v6) >

xsd:long(?v4)), the processing of which is time

consuming. Future versions of Jena or other

SPARQL engines may optimize these kinds of filter

expressions, such that the translations for recursive

axes are faster processed.

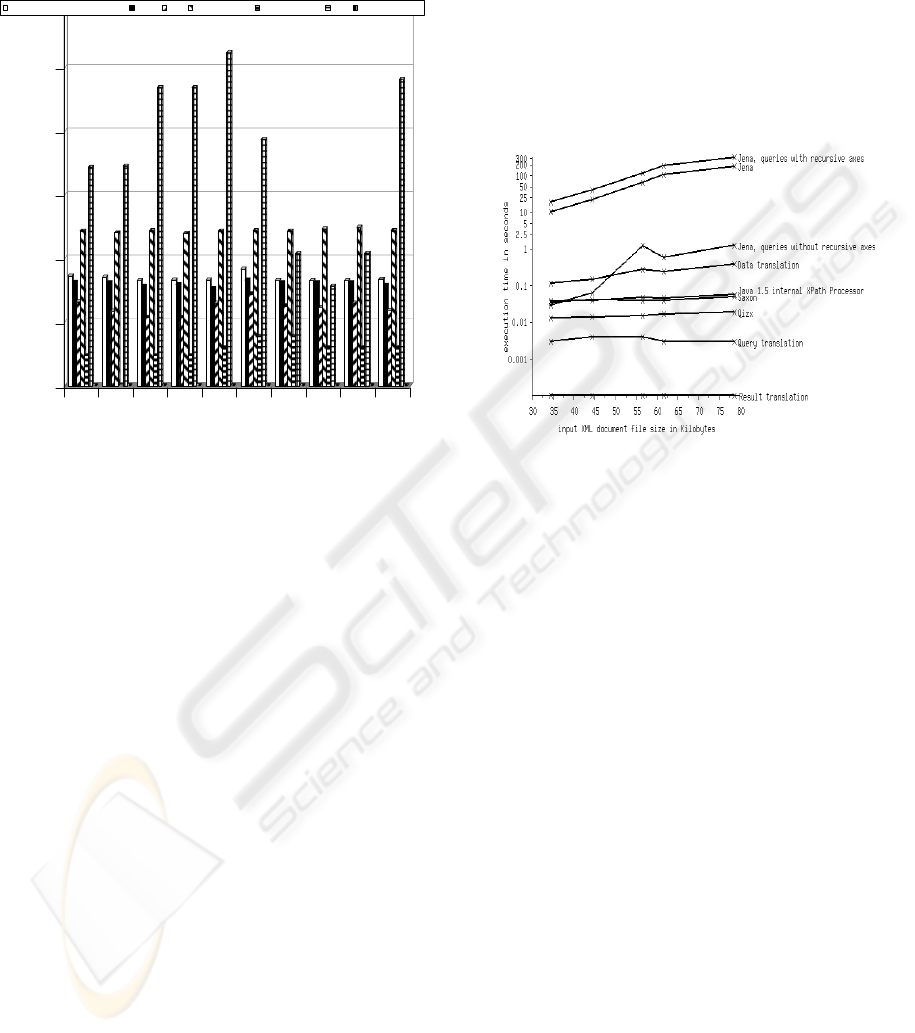

Figure 14: Average execution times of the original queries

of the XPathMark benchmark, of data translation, query

translation, result translation and the execution times of

the translated SPARQL queries (all, only those containing

recursive axes and those, which contain only non-

recursive queries) using Jena.

6 CONCLUSIONS

In this paper, we first compare the RDF and XPath

and XQuery data model and the XPath and

SPARQL query languages. Then we propose

translations from XML into RDF, from XPath into

SPARQL, and from the result of the translated

SPARQL query into the XPath and XQuery data

model, in order to integrate XML data into RDF data

and embed XPath subqueries into SPARQL queries.

A translation from XML into RDF and an

embedding from XPath into SPARQL enable

SPARQL query evaluators to deal with XML data

and to process XPath queries as subqueries.

We have developed a prototype to verify our

translations and to show the practical usability of

such a source-to-source translator. We have done a

performance analysis to measure the execution times

of the translations and the evaluations of the XPath

query and the translated SPARQL query. The

evaluation of translated SPARQL queries from

XPath queries not containing a recursive axis is

EMBEDDING XPATH QUERIES INTO SPARQL QUERIES

efficient and not significantly slower than processing

the original XPath queries. The translated SPARQL

queries of XPath queries containing a recursive axes

contain filter expressions like FILTER (xsd:long(?v6) >

xsd:long(?v4)), the processing of which is time

consuming. Future versions of Jena or other

SPARQL engines may optimize these kinds of filter

expressions, such that the translations for recursive

axes are faster processed.

REFERENCES

Alexaki, S., Christophides, V., Karvounarakis, G.,

Plexousakis, D., and Tolle, K.. 2001, The rdfsuite:

Managing voluminous rdf description bases.

SemWeb’01 in conjunction with WWW, Hongkong.

Axyana software, 2006, Qizx/open version 1.1,

http://www.axyana.com/qizxopen.

Beckett, D., 2002. The design and implementation of the

Redland RDF application framework. Computer

Networks, 39(5):577-588.

Bettentrupp, R., Groppe, S., Groppe, J., Böttcher, S., and

Gruenwald, L., 2006. A Prototype for Translating

XSLT into XQuery, ICEIS 2006, Paphos, Cyprus.

Broekstra, J., Kampman, A., van Harmelen, 2002.

Sesame: A Generic Architecture for Storing and

Querying RDF and RDF Schema. ISWC, Sardinia.

Cardoso, J., 2007, The Semantic Web Vision: Where are

We?, IEEE Intelligent Systems, pp.22-26.

Carroll J. J., Klyne G., 2004, Resource Description

Framework: Concepts and Abstract Syntax, W3C

Recommendation, 10th February 2004.

Chong E. I., Das S., Eadon G., Srinivasan J., 2005, An

Efficient SQL-based RDF Querying Scheme, VLDB,

Trondheim, Norway.

Dokulil, J., 2006, Evaluation of SPARQL Queries Using

Relational Databases. ISWC, Athens, GA, U.S.A..

Droop, M., Flarer, M., Groppe, J., Groppe, S., Linnemann,

V., Pinggera, J., Santner, F., Schier, M., Schöpf, F.,

Staffler, H., and Zugal, S., 2007, Translating XPath

Queries into SPARQL Queries, ODBASE 2007,

Vilamoura, Algarve, Portugal.

Florescu, D., Kossmann, D., 1999, Storing and Querying

XML Data Using an RDBMS. IEEE Data

Engineering Bulletin 22 (1999) 27–34

Fokoue, A., Rose, K., Siméon, J., and Villard, L., 2005,

Compiling XSLT 2.0 into XQuery 1.0, WWW 2005,

Chiba, Japan.

Franceschet, M., 2005, XPathMark – An XPath

Benchmark for the XMark Generated Data. XSym

2005, Trondheim, Norway.

Franz Inc., 2006. AllegroGraph 64-bit RDFStore,

http://www.franz.com/products/allegrograph.

Georgiadis, H., and Vassalos, V., 2006, Improving the

Efficiency of XPath Execution on Relational Systems,

EDBT, Vol. 3896, pp. 570-587, Springer.

Groppe, S., Groppe, J. Linnemann, V., Kukulenz, D.,

Höller, N., and Reinke, C., 2008, Embedding

SPARQL into XQuery / XSLT, ACM SAC 2008,

Fortaleza, Ceara, Brasilien

Grust, T., van Keulen, M., and Teubner, J., 2004,

Accelerating XPath evaluation in any RDBMS, ACM

Trans. Database Syst, Vol. 29, pp. 91-131.

Guha, R., 2006. rdfDB: An RDF Database,

http://www.guha.com/rdfdb.

Harris, S., and Shadbolt, N., 2005, SPARQL Query

Processing with Conventional Relational Database

Systems. WISE Workshops 2005.

Hewlett-Packard Labs, 2003, The Jena SemanticWeb

Toolkit. Technical report

, Hewlett-Packard Labs,

http://jena.sourceforge.net/.

Tatarinov, I., Viglas, S., Beyer, K. S.,

Shanmugasundaram, J., Shekita, E. J., Zhang, C.,

2002, Storing and querying ordered XML using a

relational database system. SIGMOD Conference

2002, Madison, Wisconsin, U.S.A..

Kay, M. H., 2006, Saxon - The XSLT and XQuery

Processor, http://saxon.sourceforge.net.

Klein, N., Groppe, S., Böttcher, S., and Gruenwald, L. ,

2005, A Prototype for Translating XQuery

Expressions into XSLT Stylesheets, ADBIS, Talinn.

de Laborda, C. P., Conrad, S., 2006, Bringing Relational

Data into the SemanticWeb using SPARQL and

Relational.OWL. SWDB’06 in conjunction with ICDE

2006, Atlanta, Georgia, U.S.A..

Lechner, S., Preuner, G., and Schrefl, M., 2001,

Translating XQuery into XSLT, In ER 2001

Workshops, Yokohama, Japan.

Manolescu, I., Florescu, D., Kossmann, D., 2001, Pushing

XML Queries inside Relational Databases. INRIA,

Rapport de recherche 4112 (2001).

Northrop Grumman Corporation, 2006. Kowari,

http://www.kowari.org.

Prud’hommeaux E., Seaborne A., 2008, SPARQL Query

Language for RDF, W3C Recommendation.

Shanmugasundaram, J., Tufte, K., Zhang, C., He, G.,

DeWitt, D.J., Naughton, J.F., 1999, Relational

Databases for Querying XML Documents: Limitations

and Opportunities. VLDB 1999, Edinburgh, Scotland.

Subramanyam, G. V., and Kumar, P. S., 2005, Efficient

Handling of Sibling Axis in XPath, COMAD 2005,

Goa, India.

Fan, W., Yu, J. X., Lu, H., Lu, J., and Rastogi, R., 2005,

Query Translation from XPath to SQL in the presence

of recursive DTDs, VLDB, Trondheim, Norway.

Wilkinson, K., Sayers, C., Kuno, H. A., Reynolds, D.,

2003. Efficient RDF Storage and Retrieval in Jena2.

SWDB’03 co-located with VLDB 2003, Berlin.

W3C, 2001, XML Schema Part 2: Datatypes, W3C

Recommendation, 2001.

W3C, 2007, XPath Version 2.0, W3C Recommendation.

Yoshikawa, M., Amagasa, T., Shimura, T., and Uemura,

S., 2001, XRel: A Path-Based Approach to Storage

and Retrieval of XML Documents Using Relational

Databases. ACM TOIT, 1 (2001) 110–141.

ICEIS 2008 - International Conference on Enterprise Information Systems
