IMPROVING PERFORMANCE OF BACKGROUND JOBS

IN DIGITAL LIBRARIES USING GRID COMPUTING

Marco Fernandes, Pedro Almeida, Joaquim A. Martins and Joaquim S. Pinto

Universidade de Aveiro, Campus Universitário de Santiago, Aveiro, Portugal

Keywords: Grid computing, Digital Libraries.

Abstract: Digital libraries are responsible for maintaining very large amounts of data, which must typically be

processed for storage and dissemination purposes. Since these background tasks are usually very demanding

regarding CPU and memory usage, especially when dealing with multimedia files, centralized architectures

may suffer from performance issues, affecting the responsiveness to users. In this paper, we propose a grid

service layer for the execution of background jobs in digital libraries. A case study is also presented, where

we evaluate the performance of a grid application.

1 INTRODUCTION

The amount of information available to the public

has increased steeply in the last years, with the

internet serving as a vehicle for its production and

dissemination. Information systems such as digital

libraries are responsible for not only storing very

large amounts of data but also processing that

information for storage and dissemination purposes.

During the process of content submission to a

digital library, as with many other systems, it may be

required to execute some complex and/or CPU-

intensive jobs in the background, such as format

conversion and information extraction, whose

complexity usually increases when dealing the

multimedia resources. Also, many applications

require some maintenance tasks to be periodically

performed. These jobs – initiated either by an

operator of the system or by other jobs –, while

important for the proper functioning of the system,

should not degrade the overall performance and

responsiveness to other, more frequent and

interactive, requests.

If the document submission rate to the digital

library is high or the maintenance executed at an

improper schedule, these background jobs may

severely limit the performance of the application,

especially if this is centralized in one server. One

promising solution is the usage of Grid computing

(Buyya, 2007)(CSSE, 2006) to minimize the load

placed on the server that deals with these tasks.

Grids are generally subdivided into computational

grids, data grids, and service grids (Taylor, 2005). In

this paper we focused on Computational Grids: a

distributed set of resources dedicated to aggregate

computational capacity.

With this work, we aim to build a reusable set of

complex and/or CPU-intensive services identified as

necessary for digital libraries. Due to the high

requirements set by these services, they should be

run using an available Grid middleware. By

distributing the work by several, possibly idle,

machines, the server will have more available

resources, thus becoming more effective on

responding requests to regular users.

This paper is outlined as follows. In section 2 the

objectives of the work are briefly discussed. In

section 3 we present the Grid framework used. In

section 4 we discuss related work. In section 5 a

generic architecture for the deployment of the

service layer is presented. In section 6 a case study is

presented and an evaluation of the Grid performance

shown. In section 7 conclusions and future work are

presented.

2 OBJECTIVES

The aim of this work is to build a service layer on

top of an existing Grid framework. This layer should

encapsulate a set of services required for the

execution of CPUintensive and time consuming jobs

in digital libraries. Also, services should be made

available through Web Services interfaces.

221

Fernandes M., Almeida P., A. Martins J. and S. Pinto J. (2008).

IMPROVING PERFORMANCE OF BACKGROUND JOBS IN DIGITAL LIBRARIES USING GRID COMPUTING.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - SAIC, pages 221-225

DOI: 10.5220/0001680402210225

 SciTePress

3 ALCHEMI

To implement the Grid network, the Alchemi

(Luther, 2005) framework was chosen. Since

Alchemi was developed with the .NET platform, it

allows the creation of Grid infrastructures which can

be used in Windows-class machines. However, by

providing a Web Service interface, Alchemi also

supports interaction with other custom middleware.

To run an Alchemi Grid application, the User

node connects to a Manager node and starts the

application. The Manager will then create the

threads to send to the Executor nodes which

registered in the Manager. Results are then collected

at the Manager and delivered to the User. Alchemi

supports two operation modes:

- Thread Model: the Thread Model (which we

will be using) is operated by using the Alchemi

API to create the Grid application. The

developer must create the “local code” – to be

executed in the Manager, responsible for

creating Grid threads and collecting the results

– and the “remote code” – the application core

operations to be executed in each Executor.

- Job Model: jobs and tasks are described by

specifying commands and I/O files in XML

conforming to Alchemi schemas. This model is

present to Grid-enable existing applications

and support interoperability with other Grid

middleware.

4 RELATED WORK

The use of Grid technology in digital libraries is

recommended and being subject of research from

work groups such as those from the DELOS

Network of Excellence on Digital Libraries (Agosti,

2006).

Although with different application scopes, Grid

computing is being applied by other digital library

projects such as BRICKS (Risse, 2005) and Diligent

(Candela, 2005), with the later being a project which

aims to integrate Grid and digital library

technologies.

In the context of document processing, Grid

technology has been applied Tier Technologies to

process high volumes of data. Ilkaev and Pearson

(Ilkaev, 2005) have created and evaluated a small

Alchemi Grid application developed to distribute the

OCR of scanned images, which is one of the slowest

document processing tasks.

5 ARCHITECTURE

Figure 1 shows a simplified architecture for the Grid

applications to be deployed on the service layer. At

the top, applications are developed in two classes:

Manager code and Executor code. The Executor

code is a standard serializable .NET class which

receives a number of arguments, executes a custom

code, and returns the produced output. The Manager

code is responsible for the Grid threads creation

(Initialization block) and any processing required

prior to dispatch or after the output is received. The

Manager code has two custom blocks encapsulated:

Requirements and Decision.

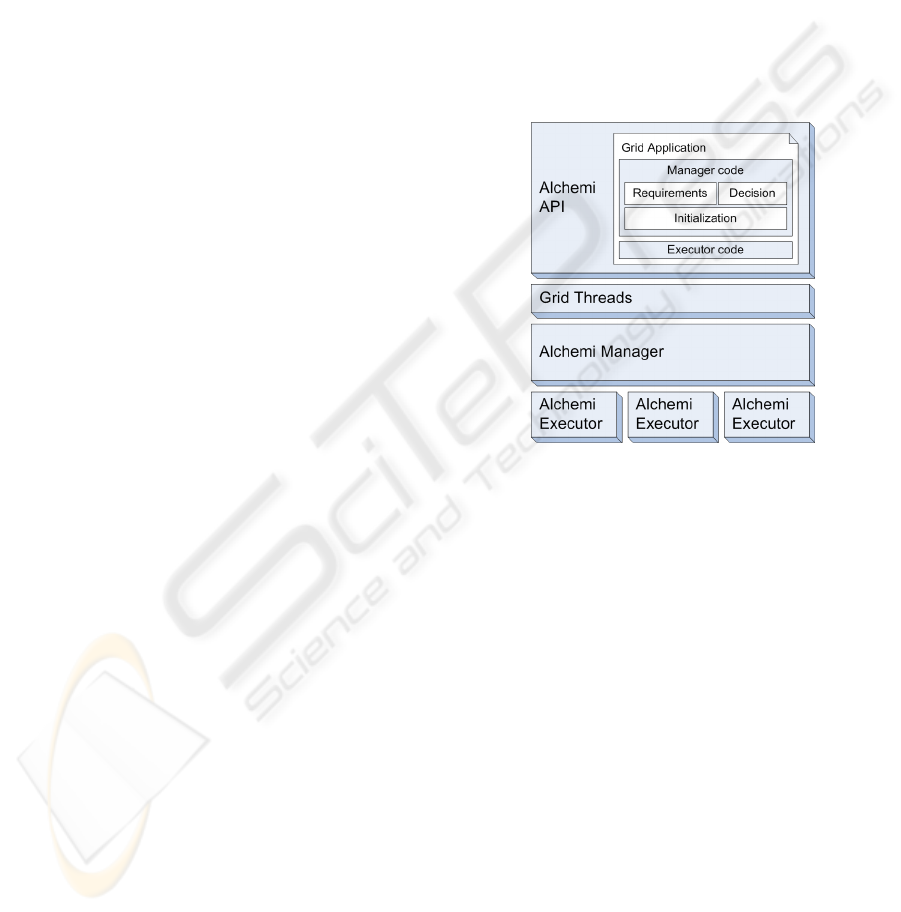

Figure 1: Alchemi Grid application architecture.

5.1 Requirements Block

Some tasks are self-contained, such as mathematical

functions which require only some embedded

libraries. Others, however, require the interaction

with external libraries, applications (such as Office,

Acrobat), platforms (.NET, JRE) or services.

These dependencies can be defined in a service

deployed in the framework so that upon execution

the Requirements block will retrieve the list of

available Executors which satisfy the criteria. This

operation can itself be implemented by using a small

Grid application which will run a number of tests

and store the results in a cache at the Manager.

Whenever a new dependency is created, a new test

must be added to the application.

A second group of requirements is hardware

related: even the smallest possible work unit of a

grid application may require an amount of free

memory or disk space which might not be available

in the Executor. Since these parameters vary with

ICEIS 2008 - International Conference on Enterprise Information Systems

222

time, the Manager must periodically retrieve

information from its Executors.

5.2 Decisions Block

Most standalone jobs cannot be directly migrated to

a Grid environment, since they were not designed

for parallel execution. Changing a job from

standalone execution to its Grid equivalent may

introduce large overheads and delays:

- it is usually required to pre-process and prepare

input data before distributing it;

- large amounts of data may have to be

transferred to and from Executors, making

bandwidth an important variable;

- output data from different Executors may have

to be processed in order to achieve the desired

output.

With this in consideration, we find it is important to

have a rule-based decision block on our service

middleware which functions on top of the Grid

framework.

For each service to be deployed, a set of rules

and conditions can be supplied to the Decisions

block. For instance, if it is expected to have a

performance gain only if the number of Executors is

larger than X, the decision block can dispatch the

task to only one machine if there are not X

Executors available. On the other hand, a service

may present a performance gain which decreases as

we add more Executors. For instance, some services

may present a poor performance gain when

increasing the number of Executors by one (for a

specific value). Since there is a trade-off of using

more resources, therefore decreasing availability for

other simultaneous requests, a gain threshold should

be defined.

Services can then be characterized by defining

minimum and maximum threshold values. These

thresholds are mainly affected by two variables:

- the computation to communication ratio –

due to the high latency of an internet

environment usually only applications with

a high ratio are suitable for Grid

deployment;

- the overhead involved in the creation of a

distributed application – modifying a

standalone application may require

additional processing of input and output

data.

6 CASE STUDY

In order to test the proposed architecture in a real

word scenario, we developed a Grid application for

an integrated digital library and archive (Almeida,

2006).

6.1 The Problem

The digital library in question has several distinct

collections, with documents ranging from books and

theses, posters and photographs, videos and music.

One of the most computationally demanding tasks

performed in the system is the submission of a new

digital manuscript (book, thesis or dissertation) in

the PDF format. Unlike many digital libraries, such

as DSpace (Tansley, 2003) this digital library

converts such documents into image and text files

upon submission. This approach has some

advantages:

- the viewer displays one image (page) at a time,

making it possible to define granular access

rules, constrain page views, and making it

harder for malicious agents to crawl and

retrieve entire collections of documents;

- users do not have to download the entire

documents, which may reach hundreds of

megabytes, in order to see them;

- it is easier to perform full-text searches on the

document with per-page results;

The disadvantage of this approach is the

increased complexity at the submission time. This

task alone involves a number of jobs which must be

executed sequentially:

- generation of a unique identifier (common to

all document submissions)

- conversion of the PDF into a high quality

image format;

- resizing of the images into lower resolution

files to display on the web

- text extraction from the PDF, either “directly”

or by using an OCR process (this can be

eventually executed in parallel with the second

job);

This task is specially suited for Grid computing,

not only because of its complexity but especially

because format and image conversions are very CPU

intensive. Also, this digital library in case is

currently using a single-threaded PDF conversion

library, which limits simultaneous PDF submissions

to one per CPU.

IMPROVING PERFORMANCE OF BACKGROUND JOBS IN DIGITAL LIBRARIES USING GRID COMPUTING

223

6.2 The Application

The migration of a standalone job to a Grid

environment can be rather complex. For instance,

the PDF to images conversion cannot be directly

transposed into a Grid application. In order for it to

work with more than one Executor, the PDF must

first be split into at least N smaller PDF files, where

N is the number of Executors and is larger than the

number of pages. This introduces an overhead which

did not exist in the single Executor scenario.

From the subtasks of the above submission

process, only one can be almost directly migrated to

our service layer: the image resizing/conversion.

This is the task we will evaluate with our grid

application. What the application will do is simply

divide the number of images to convert by the

number of Executors and dispatch them (a more

intelligent method could make an uneven

distribution according to the Executors processing

power, but for simplification purposes this was not

implemented).

The Executor code of the application is

extremely simple. Each agent receives the images as

byte arrays and the library needed for the

conversion. Then, the process performs the in-

memory conversion of the images and returns them

also as byte arrays. The Manager code performs the

dispatch of groups of images to the Executors and,

upon completion of each, saves the output files in a

local directory.

6.3 Evaluation

The application was tested using the images from

three different PDF files against a number of

Executors varying from one to eight. The application

was set to convert PNG images to the JPEG format.

Since we did not have eight similar desktop

computers, the test was conducted starting by adding

the best computers first and the worse later. Since

the test was ran with machines connected to the

University’s intranet, the network latency is small.

Table 1 shows the performance of the

application when run from standalone mode to eight

Executors. As can be seen, the smaller document

presents the least predictable behavior. This is an

expected result, since with so few images sent the

application is more vulnerable to network

fluctuations and variations of available memory and

processing power. As we move to the largest

document the performance gain becomes more

predictable.

Table 1: Time spent in the document conversion with

different number of Executors.

Executors

document 1

24 pages, 1.4

document 2

50 pages, 3.2

document 3

482 pages,

37.2 MB

1 28.73 s 64.81 s 402.65 s

2 14.99 s 34.94 s 210.55 s

3 11.99 s 26.76 s 152.66 s

4 9.74 s 21.45 s 146.83 s

5 11.07 s 18.71 s 122.35 s

6 8.20 s 17.91 s 104.08 s

7 9.21 s 13.27 s 91.71 s

8 5.93 s 14.32 s 81.30 s

Figure 2 shows perhaps the most interesting

result we can extract from the evaluation. If we

normalize the time spent in each stage as a fraction

of the time spent in the standalone scenario, we

realize the behavior is almost identical with all

documents.

Figure 2: Average task duration with different number of

Executors as a fraction of the single machine completion

time.

6.4 Analysis

This is one of the simplest application scenarios we

could have chosen for our first grid service, since

there is almost no processing needed at the manager.

There are also no requirements we need to set on the

Requirements block: the only library needed for the

image conversion is transferred to the Executors at

runtime, there is no need for hard disk space, and

memory usage will not exceed a few megabytes.

Regarding the Decision block configuration, we

must determine if, depending on the document to be

converted, there is an optimal number of executors

we should aim at. The average time required for the

conversion of N images using our grid application

with E Executors is the sum of the time spent

uploading the files, converting them at the slowest

Executor and downloading the output to the

Manager:

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

12345678

time spent

executors

do cument 1

do cument 2

do cument 3

ICEIS 2008 - International Conference on Enterprise Information Systems

224

N,E

= T

+ T

conv

+ T

down

N[(S

PNG

+ S

JPG

)/B + O

max

/E + K

(1)

where S

is the average size of an image with the

format X (for the dimensions used in the

conversion), B is the available bandwidth, O

max

the maximum time spent by the slowest Executor to

convert one image, and K

is an overhead factor

needed to create and consume the threads. This is

merely a simplification of the expected behavior,

and numerous variables fluctuate over time, mostly

due to the network latency.

If we consider the thread overhead to be

negligible for small values of E and N, the equation

becomes of the form:

N,E

= k

1,N

/E + k

2,N

(2)

which indicates that the optimal performance point

is reached when E is maximum, E=N. However, the

gain in performance becomes less apparent as we

add more Executors (in the case of document 3,

there is 48% gain when increasing E up to 2 and

only 11% for E=8).

From the above Decision block discussion, we

should define a minimum gain for this conversion

service. Since it is difficult to perform this

calculation with so many variables which fluctuate

in an unpredictable manner, we used our set of

results. Hence, for a minimum 15% performance

gain, we defined a maximum threshold (number of

executors) of 6 and no minimum.

7 CONCLUSIONS

We have presented a generic Grid based layer which

we will develop in order to offer generic and

stateless services to be executed in a parallel

manner. We also have shown a simple case study

and how the performance of a basic service has been

greatly improved has we fully used the Grid

capabilities, executing up to five times faster.

Analysis has been conducted for a very simple

application scenario. Some work is yet to be done to

create robust and intelligent blocks for the Manager.

As a future work we plan to define a minimum set of

simple application agnostic services required for

digital libraries. We will analyze their requirements

and define the rules for their Decision blocks. We all

these settings well established, we shall implement

the applications and create Web Services which will

serve as the interface to execute the services.

ACKNOWLEDGEMENTS

This work was funded in part by FCT – Portuguese

Foundation for Science and Technology – grant

number SFRH/BD/23976/2005.

REFERENCES

Agosti, M. et al, 2006. D1.1.1: Evaluation and comparison

of the service architecture, P2P, and Grid approaches

for DLs. Technical Report, DELOS – A Network of

Excellence on Digital Libraries.

Almeida, P. et al, 2006. SInBAD - A Digital Library to

Aggregate Multimedia Documents. In ICIW'06:

International Conference on Internet and Web

Applications and Services. Guadeloupe, France.

Buyya, R., 2007. Grid Computing Info Centre (GRID

Infoware). http://www.gridcomputing.com.

Candela, L., Castelli, D., Pagano, P., 2005. Moving Digital

Library Service Systems to the Grid. In Türker, C.,

Agosti, M., and Schek, H. (Ed.), Peer-to-Peer, Grid,

and Service-Orientation in Digital Library

Architectures (pp. 236-259). Springer, Berlin.

CSSE - Department of Computer Science and Software

Engineering of University of Melbourne, Australia,

2006. The GRIDS Lab and the Gridbus Project.

http://www.gridbus.org.

Ilkaev, D., Pearson, S., 2005. Analysis of Grid Computing

as it Applies to High Volume Document Processing

and OCR. Technical Report, Tier Technologies, USA.

Luther, A., Buyya, R., Ranjan, R., Venugopal, S., 2005.

High Performances Computing: Paradigm and

Infrastructure. Wiley Press. New Jersey, USA.

Risse, T. et al., 2005. The BRICKS infrastructure – an

overview. In Proc. of 75th Conference on Electronic

Imaging, the Visual Arts & Beyond (EVA 2005).

Taylor, I.J., 2005. From P2P to Web Services and Grids –

Peers in a Client/Server World. Springer-Verlag.

London.

Tansley, R. et al., 2003. The DSpace institutional digital

repository system: current functionality. In

Proceedings of the 2003 Joint Conference on Digital

Libraries (JCDL’03), IEEE Computer Society, 87-97.

IMPROVING PERFORMANCE OF BACKGROUND JOBS IN DIGITAL LIBRARIES USING GRID COMPUTING

225
