A GLOBAL MODEL OF SEQUENCES OF DISCRETE EVENT
CLASS OCCURRENCES
Philippe Bouché
1
, Marc Le Goc
2
and Jérome Coinu
3
1
LGECO - INSA de Strasbourg, 24 Bd de la Victoire, 67084 Strasbourg, France
2
LSIS, UMR CNRS 6168, Université Aix-Marseille, Domaine Universitaire St Jérôme,13397 Marseille cedex 20, France
3
2i, 9, Rue Gaston CASTEL, ZAC de Saumaty Séon B.P. 127, 13321 Marseille Cedex 16, France
Keywords: Monitored Control Systems, Knowledge Based Systems, Discrete Event Systems, Artificial Intelligence.
Abstract: This paper proposes a global model of a set of alarm sequences that are generated by knowledge based
system monitoring a dynamic process. The modelling approach is based on the Stochastic Approach to
discover timed relations between discrete event classes from the representation of a set of sequences under
the dual form of a homogeneous continuous time Markov chain and a superposition of Poisson processes.
An abductive reasoning on these representations allows discovering chronicle models that can be used as
diagnosis rules. Such rules subsume a temporal model called the average time sequence that sums up the
initial set of sequences. This paper presents this model and the role it play in the analysis of an industrial
process monitored with a network of industrial automata.
1 INTRODUCTION
A Knowledge Based System (KBS) for monitoring a
dynamic process aims at warning the operator(s)
about the occurrences of unsatisfactory behaviors
with a sequence of alarms. Such a situation is now
the standard framework in most industries and one
of the problems is the acquisition of knowledge
about alarm correlations in dynamic systems.
The purpose of our work
1
is to define a method
for discovering the timed relations between alarms
to predict undesirable alarms. The alarms we are
concerned with can be very high level alarms like
Sachem’s alarms, the generic KBS developed by the
Arcelor-Mittal Group for monitoring its production
tools (Le Goc, 2004), or low level alarms like PLC’s
alarms (Programmable Logic Controller or industrial
automaton) for example. Experts are convinced that
such timed relations exist but are not able to provide
them because this kind of knowledge is intimately
related to the dynamics of a monitored process: tools
must then be defined to facilitate the discovery and
quantification of the timed relations.
1
This work has been partly financed by the 2i company under
the contract n°120/06/04/2006.
To this aim, we develop the Stochastic Approach
for discovering temporal knowledge from a set of
sequences of discrete event class occurrences and
represent this knowledge with abstract chronicle
models. An abstract chronicle model is a set of
binary relations between discrete event classes. Such
a model is operational when it allows predicting an
alarm before it occurs with a minimal confidence. In
this case, such a model is called a signature of the
alarm. This paper shows that this model corresponds
to a global model of the set of sequences called the
Average Time Sequence that can be used to reason
about the couple made with the process and its
monitoring KBS. The Average Time Sequence is
then a new concept that fills one the mains problems
of the Timed Data Mining techniques (Mannila,
2002).
The next section presents the main works related
to the problem of discovering a predictive model of
alarms. Section 3 introduces the basis of the
Stochastic Approach framework we propose to
tackle this problem and defines the concept of
Average Time Sequence. The use of such a model is
illustrated with a real world industrial process in
section 4. The paper concludes on the operational
aspects of the proposed approach.
173
Bouché P., Le Goc M. and Coinu J. (2008).
A GLOBAL MODEL OF SEQUENCES OF DISCRETE EVENT CLASS OCCURRENCES.
In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 173-180
DOI: 10.5220/0001680701730180
Copyright
c
 SciTePress

2 RELATED WORKS
The problem of discovering a signature from a
sequence of alarms can be formulated in the
following way: given a sequence ω, what is the
abstract chronicle model that allows predicting the
occurrences of a given discrete event class?
This problem has been for example tackle in the
context of a telecommunication network (Cordier
and Dousson, 2000; Dousson and Vu Duong, 1999).
This approach is based on a frequency analysis of
alarm logs in order to discover some frequent
“patterns” of alarms that are represented under the
form of “chronicles”. This constitutes an application
of Frequency Approach of the Data Mining domain
to the content of timed data bases.
The Data Mining domain aims at defining tools
and methods to discover knowledge from large data
sets. The basic principle consists in identifying a
minimal set of relations that characterize a data set.
The different approaches are based on the “Apriori”
algorithm. For example, (Agrawal and Al, 1993)
propose a method to mine association rules from a
large sequence of purchasing transactions carried out
by a customer. A transaction is characterized by a
set of bought and buys item times. The problem
consists in finding a sequence of items called a
pattern that is frequently observed in the transaction
sequences. To this aim, the “Apriori” algorithm
computes the support of a pattern as the number of
times the pattern is observed in a given data base.
Only patterns with a support greater than a minimal
threshold are retained. This explains why this
approach is called the Frequential Approach. This
approach has been extended to sequential pattern
through a set of algorithms like AprioriAll,
AprioriSome and DynamicSome (Agrawal and Al,
1993).
(Manilla and al, 1997) propose another approach
to discover temporal patterns, called “episodes”, in a
discrete events sequence corresponding to the alarms
of a telecommunication network (Hatonen and Al,
1996). An episode is a collection of events that
appear relatively close to each other in a partial
order. The discovering process of temporal patterns
is based on the frequency of an episode
α in a
sequence s, which is the fraction of the number of
temporal windows in which the episode
α occurs
over the total number of temporal windows
contained in the sequence s. The episode
α having a
frequency over a minimal threshold is then
considered as a temporal pattern (Winepi and
Minepi algorithms).
On another hand, in the Temporal Logic domain,
Ghallab proposes the notion of chronicle model to
represent a set of timed binary relations between
events (Ghallab, 1996). A chronicle model is a kind
of temporal pattern specification where nodes are
events and links are timed binary constraints
represented with [min, max] intervals. A chronicle
model is a richer representation of temporal
knowledge than an episode because it allows the
adding of timed binary constraints between alarms.
Ghallab’s method for discovering chronicle models
consists in splitting a set of event sequences in
examples and counter examples and to order the
sequences with the time of the events. When
forgetting the times, the method determines the
longest patterns that are common to the examples
and that are not included in the counter examples.
The timed constraints between events are then added
by experts or computed with an ad’hoc algorithm.
Ghallab’s method is not general because it
supposes to be able to define what an example and a
counter example are. With the Face algorithm,
Dousson and Vu Duong (Dousson and Vu Duong,
1999) adapt the notion of chronicle models to the
“Apriori” algorithm to discover recurrent chronicle
models from a log of events but do not propose a
sound method to evaluate the timed constraints.
According to (Manilla, 2002), the problem of
discovering timed relations from a set of timed data
is still an open problem. One of the reasons is the
combination of logical relations and temporal
constraints (Cauvin et Al, 1998; Hanks and
McDermott, 1994). In particular, the relations
provided by the Frequency Approach are local
models of the studied sequences that are difficult to
generalize.
The Stochastic Approach has been developed to
tackle these difficulties and propose to discover
abstract chronicle models from a sequence of alarms
considered as occurrences of discrete event classes
(Le Goc, 2004), (Bouché and Le Goc, 2004). This
approach is based on the representation of a
sequence of discrete alarms generated by a couple
(Process, KBS) under the dual form of a
homogeneous Markov chain and its superposition of
Poisson processes. A set of tools have then been
designed according to the Stochastic Approach and
implemented in a Java environment called the “ELP
Lab” (Le Goc and Al, 2006).
ICEIS 2008 - International Conference on Enterprise Information Systems
174

3 BASIS OF THE STOCHASTIC
APPROACH
A sequence ω ={o
k
}
k=0,…,m-1
is an ordered set of m
occurrences o
k
≡(t
k
, x, i) of discrete event e
k
≡(x, i),
where x∈X is the name of a discrete variable,
i∈I
x
⊆ℵ is a discrete value of x and t
k
∈Γ={t
i
}, t
i
∈ℜ,
is the time of the assignation of the discrete value i
to the variable x so that: o
k
≡(t
k
, x, i) ⇔ x(t
k
)=i. The
occurrences are timed with a continuous clock
structure (i.e. t
k-2
-t
k-1
≠ t
k-1
-t
k
):
),()()(
,,
i x,
k
t
k
oi
k
txi
1-k
tx
,
k
t
1-k
ti
k
t
≡⇒=∧≠
<∃ℵ∈∀ℜ∈∀
(1)
A couple (o
k
, o
n
) of two successive occurrences
related to a variable x describes the modification of
the values of the variable x over the interval [t
k
, t
n
[:
[[ jtxitxtttoo
jx,,toix,,to
nnknk
nnkk
=∧=∈∀⇒
≡≡∀
)()(,,),(
),(),(
(2)
As a consequence, a sequence
ω ={o
k
} of discrete
event occurrences o
k
≡(t
k
, x, i) concerned with a
variable x describes the temporal evolution of a
discrete function x(t) defined on ℵ.
[
]
[]
kkkk
kn
i
k
o
n
kn
oi
todi) x,,(towhere
τ,τododC::oC::o
o,oτ,τ,C,CR
=∈≡∀
∈−∧∧
∈∃⇔
+−
+−
)(,
))()(()()(
,)(
ω
ω
(3)
A discrete event class is a set C
j
={e
i
} of discrete
events e
i
≡(x, i). The notation “e
i
::C
j
” (resp. “o
k
::C
j
”
or “C
j
k
”) denotes that the discrete event e
i
(resp. the
occurrence o
k
≡C
j
k
) belongs to the class C
j
. A timed
binary relation R(C
i
, C
o
, [ τ
-
, τ
+
]) describes an
oriented relation between two discrete event classes
that is timed constrained. “[
τ
-
, τ
+
]” is the time
interval for observing an occurrence of the output
class C
o
after the occurrence of the input class C
i
(equation (3)).
3.1 Abstract Chronicle Model
In this context, an abstract chronicle model is a set
of binary relations with timed constraints between
classes discrete events. Such a model is called an
“ELP” model (ELP is the acronym of Event
Language of Processing, (Le Goc and Al, 2006)).
For example, the ELP model M
123
= {R
12
(C
1
, C
2
, [ τ
12
-
, τ
12
+
]), R
23
(C
2
, C
3
, [ τ
23
-
, τ
23
+

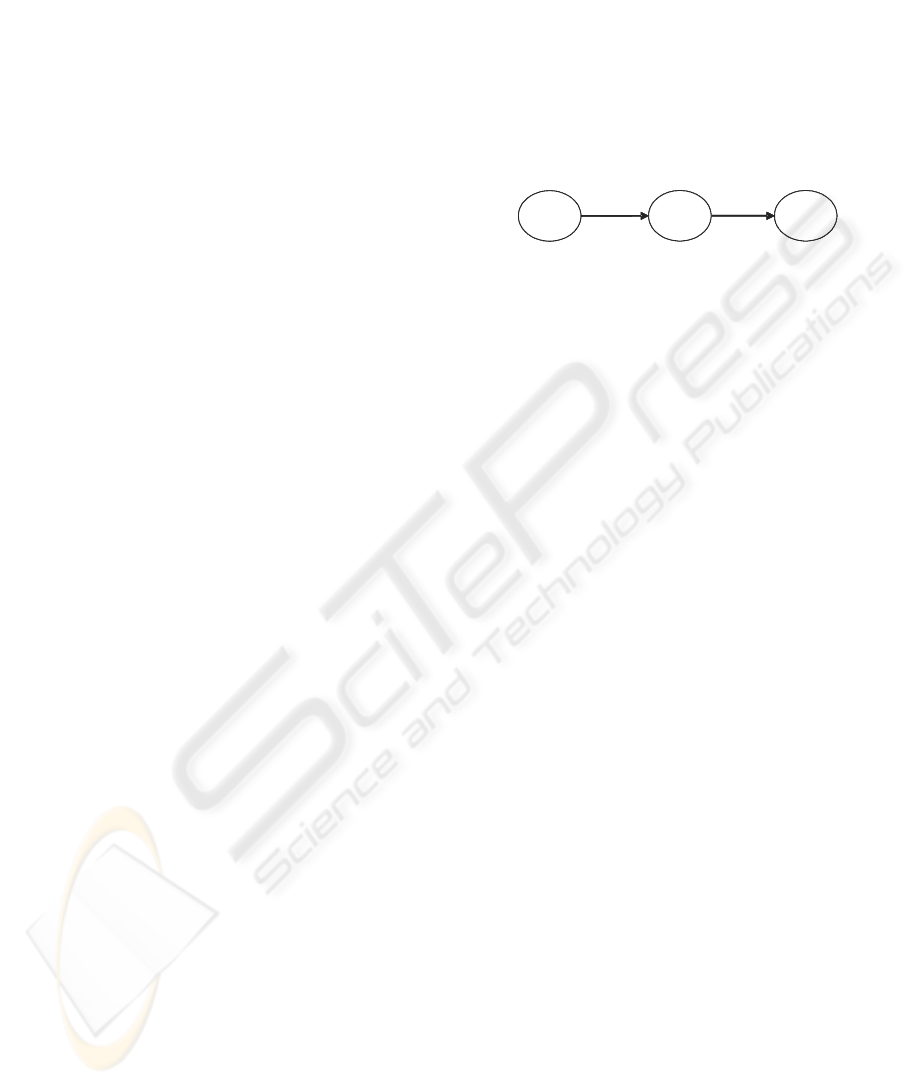

])} of Figure. 1 is made
of two binary relations between three discrete event
classes. A sequence
ω satisfies the M
123
ELP model
when:
[] []
)
)()(())()((
)::)::)::,,
321
++
∈−∧∈−∧
∧∧∈∃
23
-
23nm12
-
12kn
mnkmnk
τ,τododτ,τodod
C(oC(oC(ooo,o
ω
(4)
ELP models can be used to predict the
occurrences of discrete event classes (like C
3
in the
ELP model M
123
) in an unknown sequence ω ’.
[
]
+−
1212
, ττ
[
]
+−
2323
, ττ
1
C
2
C
3
C
[
]
+−
1212
, ττ
[
]
+−
2323
, ττ
1
C
1
C
2
C
2
C
3
C
3
C
Figure 1: ELP representation of the M
123
model
To this aim, rules of the equation (5) form can
be used in a diagnosis task. When such a rule
predicts an occurrence of a discrete event class with
a minimal confidence, the corresponding ELP model
is called a “signature” (Le Goc and Al, 2006).
[]
[]
),)()(()::(,'
),)()(()::()::(
,',,'
2323
3
1212
21
+−
+−
∈−∧∈∃⇒
∈−∧∧
∈
∀
∀
ττω
ττ
ω
ω
nmmm
knnk
nk
ododCoo
ododCoCo
oo
(5)
To measure the confidence of such rules, we
define the anticipating ratio of an abstract chronicle
model as the number of sub sequences of a sequence
ω that matches the complete abstract chronicle
model, divided by the number of the sub sequences
that matches the abstract chronicle model but
without the final binary relation (the class C
3
in
Figure 1). An abstract chronicle model is a signature
when its anticipating ratio is equal to or greater than
50%.
3.2 Stochastic Representation
When the discrete event classes are independent and
the distribution of the inter-occurrence times of a
discrete event class complies with a Poisson law of
the form f(t)=1-e
- λ t
( λ is the average number of
occurrence in a unit of time and is called the Poisson
rate(Cassandras and Lafortune, 2001)), the couple
made with the process and its monitoring KBS can
be considered as a stochastic discrete event
generator (Le goc et Al, 2006). Consequently, a
sequence of discrete event classes provided by such
a generator can be represented under the dual form
of a homogeneous Markov chain and its associated
superposition of Poisson processes: a chronicle
model is then connected with a specific path in the
state space of the Markov Chain, and the timed
A GLOBAL MODEL OF SEQUENCES OF DISCRETE EVENT CLASS OCCURRENCES
175

relations will be provided by the corresponding
superposition of Poisson processes.
To represent a sequence
ω =(C
i
k
)
k∈K={0,…, m}
as a
Markov chain X=(X(t
k
); k∈K), the set of discrete
event classes C
ω
={C
i
}
i=0…n-1
in ω is confused with
the state space Q={i}
i=0…n-1
of X. A binary sub
sequence
ω '=(C
i
k-1
, C
j
k
) of ω corresponds then to a
state transition in X: X(d(C
i
k-1
))=i→X(d(C
j
k
))=j,
where d is the function providing the time of a class
occurrence. A simple depth-first backward search
algorithm (i.e. from an output class to input classes)
is used to generate the tree of the most probable
paths that lead to an output class. (Le Goc and Al,
2006)
This tree, along with the associated matrix, is a
first representation of the sequence of alarms. This
result is interesting because, whatever the length of
the sequence of alarms, it is entirely contained in a
finite matrix. The tree of sequential relations can
then be used to produce a functional model of the
couple (process, KBS) (Bouché and Al, 2006), or to
find signatures of the form of the equation (5).
To constitute a timed binary relation of the form
R(C
i
, C
j
, [ τ
-
, τ
+
]), the timed constraint [ τ
-
, τ
+
] is
simply added to the sequential relation R
s
(C
i
, C
o
).
Such a timed constraint is related with the average
delay D
i-j
=E[d(C
j
k
)-d(C
i
k-1
)] between two successive
occurrences o
k-1
::C
i
and o
k
::C
j
in a specific ω
s
i-j
sequence that contains only the occurrences of the
two classes C
i
and C
j
of the sequence ω
s
. The
average delay D
ij
between the occurrences of two
classes C
i
and C
j
of ω is evaluated from two types of
Poisson processes:
• A Poisson process (N
i-j
(t-t
min
); t∈T) that counts
the number of sub sequences
ω ’=(C
i
k-1
, C
j
k
) in
each
ω
s
i-j
.
• A compound Poisson process (N
D
i-j
(t-t
min
); t∈T)
associated to each Poisson process (N
i-j
(t-t
min
);
t∈T)
The average delay D
ij
is then given by (Le Goc
and Al, 2006):
() ( )
[]
()
()
minmax
minmax
1
1
ttN
ttN
CdCdED
ji
D
ji
ji
i
k
j
kij
−
−
==−=
−
−
−
−
λ
(6)
In our applications, the timed constraints are
often intervals of the form [0, 2/
λ
i-j
] because experts
generally agree with this choice, which takes into
account 60% of the occurrences. The role of the
“BJT4T” algorithm (Backward Jump with Timed
constraints for Trees) is to compute the set of the
most probable timed binary relations R(C
i
, C
j
, [ τ
-
,
τ
+
]) in a set Ω of sequences ω
i
that leads to a specific
discrete event class C
j
. The “BJT4S” algorithm
evaluates the anticipating ratio of each branch of the
tree: the signatures are the branches of the tree
having an anticipating ratio greater that an arbitrary
threshold.
3.3 Average-Time Sequence
A signature subsumes a particular sequence called
the “Average-Time Sequence” (A-TS).
The average-time sequence ω
s
of a signature S
containing k classes C
i
is made with the occurrences
of the only k classes of S. For each C
i
class, the
number of occurrences is generated and temporally
distributed according to the Poisson rates
λ
i
of the C
i
class. The A-TS ω
s
is then the result of the ordering
of the occurrences of all the classes according to
their time.
The period of ω
s
is computed when finding the
real number T
S
so that:
∃T
S
∈ℜ, ∀i∈ℵ, ∃m
i
∈ℵ, λ
i
*T
S
= m
i
(7)
The natural number m
i
is the number of
occurrences of the class C
i
during the period T
S
. This
means that, C
i
k
being the k
th
occurrence of ω
s
, the
occurrence of time d(C
i
k
)+(j*T
S
) is also an
occurrence of the C
i
class:
∀j∈ℵ,C
i
k
∈ω
S
⇒∃C
i
m
∈ω
S
,
d(C
i
m
)=d(C
i
k
)+(j*T
S
) (8)
(8)
An average-time sequence of a signature S is
made with the following method. For each discrete
event classes C
i
of S, a standard Poisson number
generator is used to produce m
i
natural numbers
according to the Poisson rate
λ
i
of C
i
. To each of the
m
i
natural numbers corresponds a particular inter-
occurrence time. This time is provided when
superposing the natural number distribution with the
corresponding time distribution of the occurrences
of C
i
(figure 2).
0
0,05
0,1
0,15
0,2
0,25
0,3
0,35
0,4
timedistributionofthe
occurrencesofC
i
1/λ
i
0
10
20
30
40
50
60
70
80
Naturalnum ber distribution
λ
i

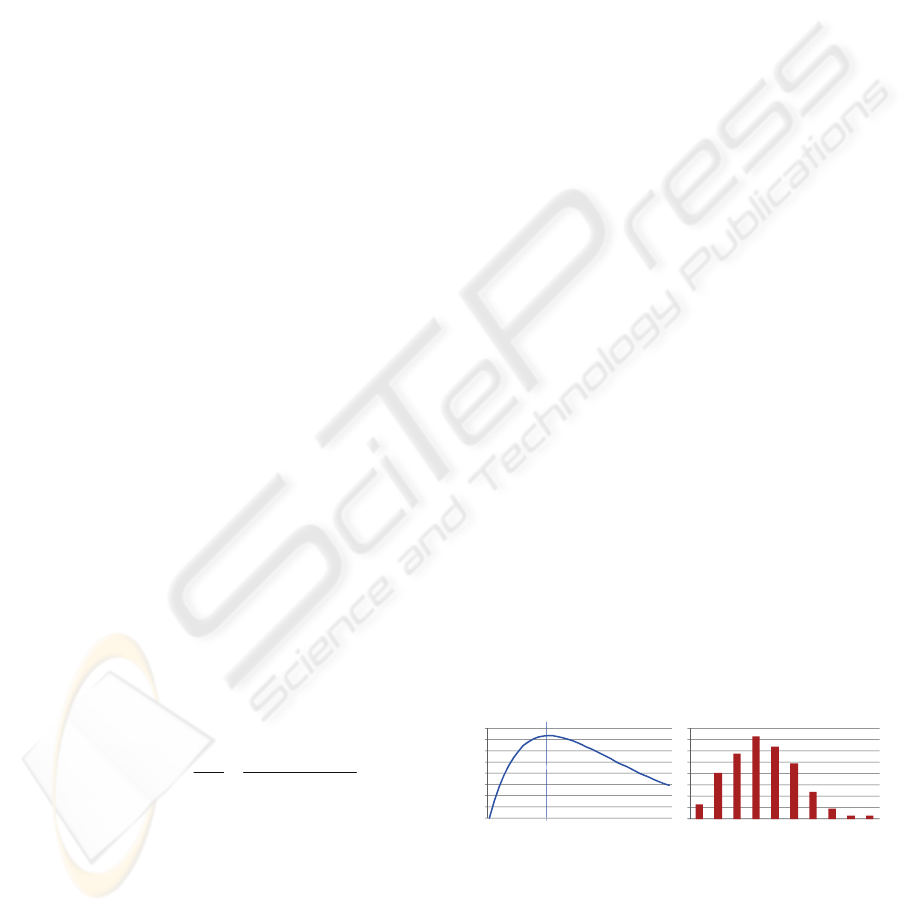

Figure 2: Times and Numbers Distributions.
The maximum of the two distributions match
together: the most frequent natural number
λ
i
corresponds to the most frequent inter-occurrence
time 1/
λ
i
. This means that the inter occurrence time
corresponding to the number
λ
i
is 1/ λ
i
. So the inter
ICEIS 2008 - International Conference on Enterprise Information Systems
176

occurrence time corresponding to the number 1 is
1/
λ
2
i
. This lead to the equation 9 providing the inter-
occurrence time for any number n>0:
2
,0,
i
n
nnn
λ
⇔>ℵ∈∀
(9)
When n=0, equation 9 leads to an inter-
occurrence time equal to 0 that means simultaneous
occurrences. To avoid this problem, an arbitrary
constant
τ
i
is associated with the number 0. This
constant corresponds to a shift of the time of the
occurrence series. In practice, we define the values
of the constants
τ
i
from the value of the Poisson rate
λ
i
:
• When
λ
i
≥1, then τ
i
= 1/2 λ
2
i
, (i.e. the half of the
inter occurrence time for n=1)
• When
λ
i
<1, τ
i
= 1/2 λ
i
. (i.e. the half of 1/ λ
i
)
This leads to the equation 10 that provides the
inter occurrence time corresponding to each natural
number of a series generated with a standard Poisson
number generator parameterized
λ
i
.
i
ii
i
ii
i
i
n
nn
λ
τλ
λ
τλ
λ
τ
⋅
=⇒<
⋅
=⇒≥
+⇔ℵ∈∀
2
1
1
2
1
1
,
2
2
(10)
The occurrence series of a C
i
class is made when
substituting each n of the natural number series with
an occurrence of the time: the time of the preceding
occurrence plus the inter-occurrence time given by
the equation 10 (cf. Table 1 for an example with
λ
i
=0,58). An instance of the A-TS ω
s
of a signature
S is then the superposition of the occurrences series
of each class C
i
of the signature S.
Table 1: Example of Occurrence Time Computation.
natural number inter-occurences time occurrences dates
0 0,29726516 0,29726516
3 9,21521999 9,51248515
1 3,26991677 12,78240192
0 0,29726516 13,07966708
0 0,29726516 13,37693224
Using this method, an instance of the average
time sequence ω
s
of a signature S can be used to
generate sequences whose stochastic and timed
properties are as close as necessary of the initial set
of sequences. The average time sequence ω
s
constitutes then a global model of a given set of
sequences according to a signature S.
The next section illustrates the interest of this
model when the process is a lime kiln production
unit supervised with an industrial automaton.
4 APPLICATION
The application is a lime kiln unit used to produce
quicklime by the calcination of limestone (calcium
carbonate). The main inputs of this process are
stones and energy flows. The main output is the
evacuated flow of quicklime. The supervision
system monitors 9 components of the Lime Kiln
process (Figure 2) and detects 174 types of alarms.
The diagram of Figure 2 are the relation of each of
the 174 types of alarms with one of the 9 component
of the lime kiln production unit are the only
elements provided to analyze the given sequence. In
other words, there is no a priori knowledge available
about the behavior and the functions of lime kiln
production unit.
Stones
Crushing Lime
Filing Bucket
Furnace
Evacuation
Stones
Crushing Lime
Filing Bucket
Furnace
Evacuation

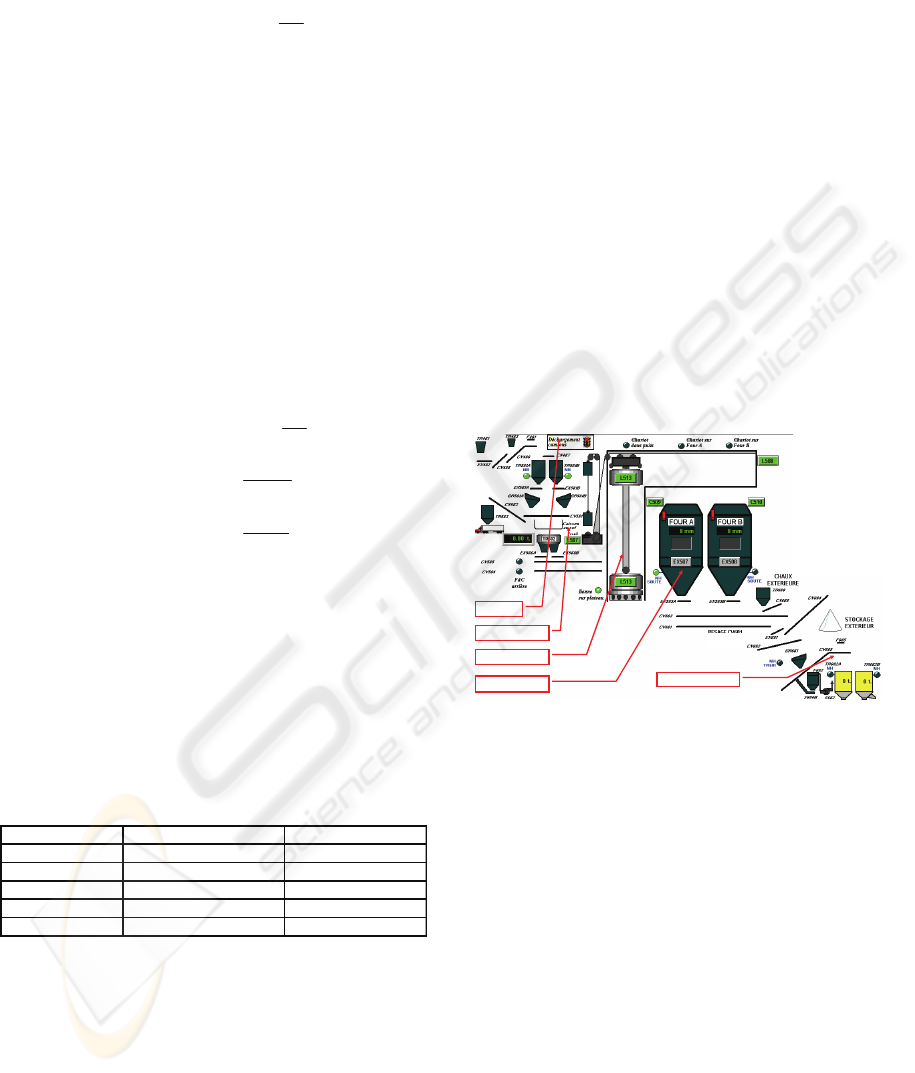

Figure 3: Structural Model of a Lime Kiln Process.
4.1 Stochastic Representation
To apply the Stochastic Approach, the 174 types of
alarms are considered as 174 classes of discrete
events and 9 variables are associated with one of the
9 components. A class is then constructed with a
variable and a set of 19 possible values in the
average. Alarms are designated with natural
numbers in the interval [2000, 2173].
The two conditions of the Stochastic Approach
must be verified: the independence of the classes
and the distribution of the occurrences according to
the Poisson law. The first condition is guaranteed by
the supervision system: an alarm occurrence does
not depend on a preceding occurrence of alarm. In
that case, the second condition is often verified (see
(Lang and Al, 1999) for a more general discussion

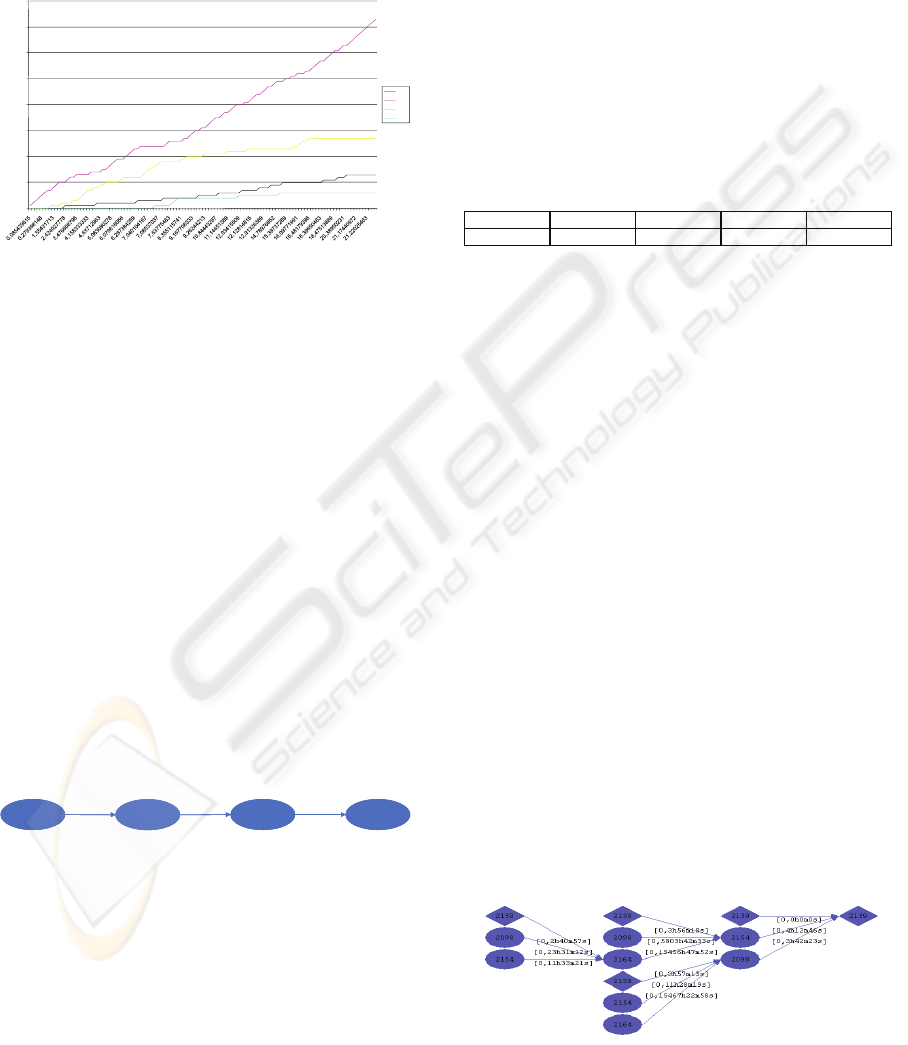

about these conditions). Figure 3 shows the counting
A GLOBAL MODEL OF SEQUENCES OF DISCRETE EVENT CLASS OCCURRENCES
177

processes of the occurrences of some of the classes:
the second condition is verified at least with
visualization: there is no anomaly in the global
growth of each curves. The Markov chain of the
Stochastic representation contains then 174 states
and 30276 potential transitions.
0
10
20
30
40
50
60
70
80
2098
2139
2154
2164
Figure 4: Part of Poisson Processes of ω.
The analyzed sequence ω contains 2852
occurrences and covers around 22 days. During this
period, the global occurrences counting process of ω
behaved like a Poisson process with a rate λ equal to
5,4 occurrences per hour, that is to say one
occurrence every 11’.
4.2 Signatures of the 2139 Class
The alarms corresponding to the 2139 class show a
problematic level of material on the evacuation of
the quicklime. This type of alarms is on of the most
problematic to manage the lime kiln production unit.
The BJT4T algorithm is used to build the tree of
the most probable sequential relations leading to the
2139 class. The algorithm is parameterized so that
the tree has a depth of 4 levels, each node having a
maximum of 4 children’s. The BJT4S extract from
this tree the 2139 class signature of Figure 4: this
branch is the only branch of the 2139 class tree
having an anticipating ratio greater than 50%.
213920982154
2164
[0s, 31h44m4s]
[0s, 4h56m15s][0s, 6h56m24s]
213920982154
2164
[0s, 31h44m4s]
[0s, 4h56m15s][0s, 6h56m24s]
Figure 5: 2139 Class Signature.
The anticipating ratio of the 2139 class signature
of Figure 4 is 150%: 3 sub sequences of ω satisfy the
constraints of the complete 2139 class signature and
2 sub sequences satisfy the constraints of the
signature without the final link (i.e. 2098→2139). In
other words, two occurrences of the 2139 class,
2139
648
and 2139
669
, satisfy the timed constraint of
the 2098→2139 relation while the corresponding
2098
640
occurrence belongs to only one triplet of
occurrences (2154
499
, 2164
625
, 2098
640
) that satisfy
the 2139 class signature without the final link.
This 2139 class signature means that there is a
strong probability that a problem with the evacuation
(2139) can occur when there is a problem on the
filling bucket (2154) which is correlated with a
problem on the furnace B (2164, 2098).
4.3 Average-Time Sequence
The 2139 class signature is made with 4 classes, the
Poisson rates of which are given in the table of
figure 6.
Table 2: Poisson rates of the 2139 class signature.
2098 2139 2154 2164
Lambda 0,58 3,28 1,03 0,4
Using equation (13), the period of the associated
A-TS
ω
s
is Ts=100 days long and contains 528
occurrences (58 occurrences of the 2098 class, 328
occurrences of the 2139 class, etc). The time of these
occurrences is given by the equation (14) for each of
these classes. The beginning of
ω
s
is the following:
{(0,3; 2139); (0,6; 2139); (0,9; 2139); (0,97; 2154);
(1,2; 2139); (1,5; 2139); (1,72; 2098); (1,8; 2139);
(1,94; 2154); (2,1; 2139); (2,4; 2139); (2,5; 2164);
(2,7; 2139);(2,91; 2154); (3; 2139); (3,3; 2139);
(3,44; 2098); (3,6; 2139); (3,88; 2154); (3,9; 2139);
(4,2; 2139); (4,5; 2139); (4,8; 2139); (4,85; 2154);
… }
Using the properties of the exponential
distribution,
ω
s
can be used to produce a new
sequence
ω
s
’ the stochastic properties of which are
as close as desired to the filtered sequence
ω
2139
⊂ω
containing the only occurrences of the 4 classes of
the 2139 class signature.
To this aim, a Poisson number generator using
the Poisson rates of Table 1 allows to define the time
of each occurrences of the
ω
s
’ sequence so that the
inter-occurrence time is not a constant but follows
the exponential law
λ te
- λ t
. ω
s
’ is then a particular
realization of the A-TS
ω
s
. Given such a sequence,
the BJT4T algorithm will produce the tree of Figure
5 for the 2139 class.

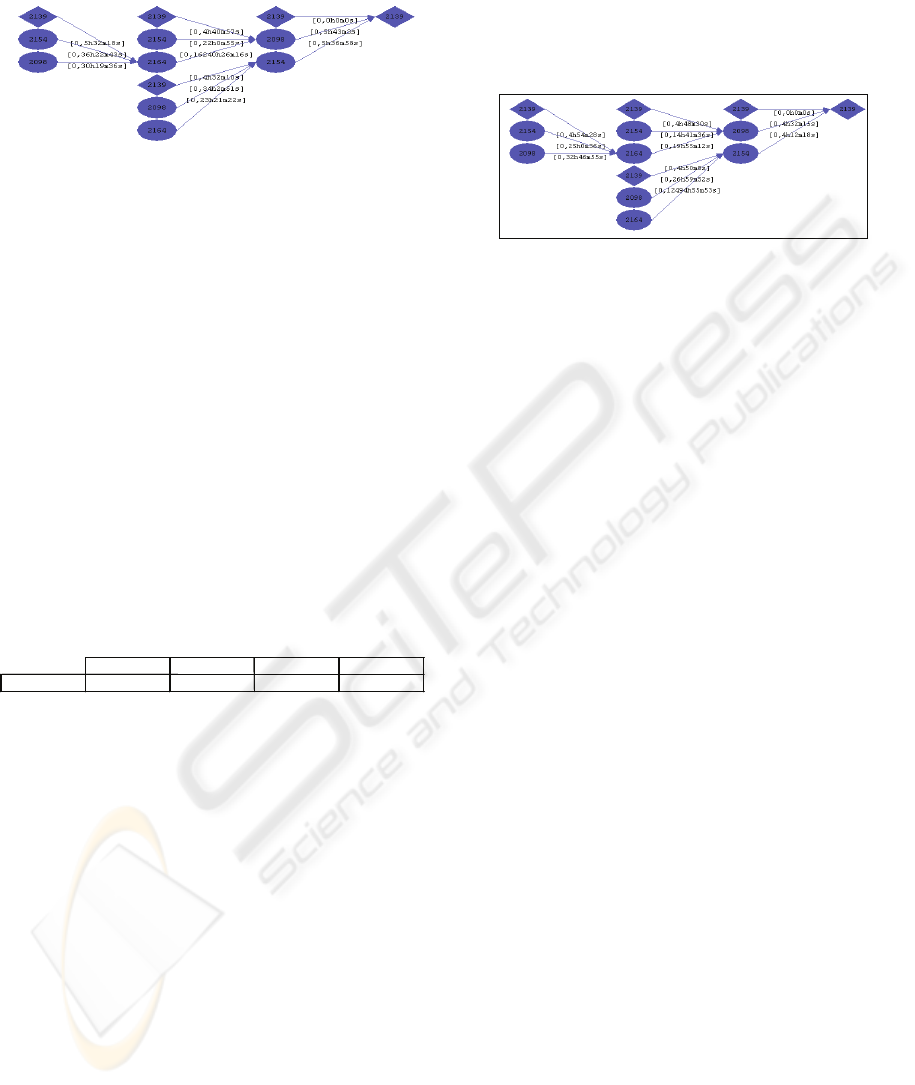

Figure 6: 2139 Class Tree according to
ω
s
’.
ICEIS 2008 - International Conference on Enterprise Information Systems
178

This tree can be compared with the 2139 class
tree of the filtered sequence
ω
2139
Figure 6.
Figure 7: 2139 Class Tree according to
ω
2139.
Figures 5 and 6 differ only with the position of
the 2098 and 2154 classes. This difference comes
from the fact that the 2154 class has a non-
homogenous behavior in
ω
2139
(and consequently in
ω ): during the seven first days, the Poisson rate of
the 2154 class is three times greater than during the
13.9 last days. The Poisson rate of the 2154 class of
the average time sequence
ω
s
(and consequently ω
s
’)
is closer to the Poisson rate of the 13.9 last days.
This means that the 2154 class defines two periods
where its Poisson differs but are constant. This leads
to cut up
ω
2139
in two periods.
It is to note that only the 2154 class Poisson rate
differs from the first period to the second period; the
Poisson rates of the other classes are not
significantly different.
Table 3: Poisson rates of the second part of ω
2139.
2098 2139 2154 2164
Lambda 0,64 3,37 0,64 0,35
Second Period 13,9 days
2098 2139 2154 2164
Lambda 0,64 3,37 0,64 0,35
Second Period 13,9 days
Containing only 48 occurrences, the first period
of the sequence ω is too short to provide a
significant tree, so no studies can be done.
Using the same method, a new realization
ω
s
” of
the A-TS is made with the Poisson rates of the
second part of the
ω
2139
sequence (Table 2). The
BJT4T algorithm produces the 2139 class tree of
Figure 7 with
ω
s
”:
The tree of Figure 7 is now very similar to the
tree of any realization of the A-TS
ω
s
(Figure 5): the
only difference is the relative position of the leaves
corresponding to the 2154 and the 2098 classes (at
the left side of the trees). We supposes that the cause
of this difference is the too short length of the
second part of the
ω
2139
sequence (14 days) to be
representative to the couple made with the process
and its monitoring system.
Nevertheless, we can consider that, for a given
class C
i
, the stochastic properties of the occurrences
of the class contained in any realization of the
corresponding A-TS
ω
s
are very close to those of the
filtered sequence
ω
Ci
⊂ ω , the temporal properties of
the occurrences being the same. This shows that,
according to a signature, the corresponding Average-
Time Sequence is a global model of a sequence.
This result is true with any signature.
Figure 8: 2139 Class Tree according to ω
s
”.
5 CONCLUSIONS
This paper presents the Average-Time Sequence
model of a log of alarms and shows that this model
is a global model of the relations between the
alarms.
The modeling process is based on the Stochastic
Approach for discovering temporal knowledge from
a set of sequences of discrete event class
occurrences. The Stochastic Approach represents
such a set in the dual forms of a homogeneous
Markov chain and a superposition of Poisson
processes. The advantage of this approach is that the
timed binary constraints are provided by the Poisson
process theory and are coherent with the probability
of the binary sequential relation between two
classes. The discovered knowledge is represented as
abstract chronicle models made with a set of binary
relations between discrete event classes that are
timed constraints.
The paper shows that an abstract chronicle
model usable to predict the occurrences of a discrete
event class subsumes a global model of the
sequence, the average time sequence. Such a model
can be used to produce a sequence the stochastic and
timed properties of which are as closed as desired of
those of the given set of sequences.
The Stochastic Approach has been used to study
the alarms or the messages generated by a wide
variety of monitored process like the blast furnace
and the Sachem monitoring system (Le Goc, 2004),
a galvanization bath and the Apache monitoring
system (Le Goc and Al, 2006) or the wafer
manufacturing production tools and its the
supervision system of the STMicroelectronics
company (Benayadi and Al, 2006). The application
described in this paper shows that the Stochastic
A GLOBAL MODEL OF SEQUENCES OF DISCRETE EVENT CLASS OCCURRENCES
179

Approach can also be applied to analyze the alarms
generated by an industrial automaton supervising a
production process.
Currently, we are working at introducing an
entropic criterion in the Stochastic Approach to
prune the trees produced with the BJT4T algorithm
(Benayadi and Le Goc, 2007) and at defining a
cognitive approach of modeling dynamic systems
that is compatible with the Stochastic Approach of
modeling (Masse and Le Goc, 2007).
REFERENCES
R. Agrawal, T. Imielinski and A. Swami (1993). Mining
Association Rules between sets of Items in Large
Databases. Proceeding of the 1993 ACM SIGMOD
International Conference on Management of Data,
pages 207-216.
R. Agrawal and R. Srikant (1995). Mining Sequential
Patterns. Proceedings of the International Conference
on Data Engineering (ICDE’95), Taipei, Taiwan.
N. Benayadi, M. Le Goc, and P. Bouché (2006).
Discovering Manufacturing Process from Timed Data:
the BJT4R Algorithm. 2
nd
international workshop on
Mining Complex Data (MCD'06) of the 2006 IEEE
International Conference on Data Mining (ICDM'06),
Hong Kong, China.
N. Benayadi and M. Le Goc (2007). Discovering Expert’s
Knowledge from Sequences of Discrete Event Class
Occurrences. To appear in the proceedings of the 10th
International Conference on Enterprise Information
Systems (ICEIS’08), Barcelona, Spain, 12-16 June
2007.
P. Bouché and Le Goc M (2004). Discovering Operational
Signatures with Time Constraints from a Discrete
Event Sequence. Proceedings of the 4th International
Conference on Hybrid Intelligent Systems (HIS’04),
Kitakyushu, Japan.
P. Bouché, M. Le Goc, and N. Giambiasi (2006). Building
a Functionnal Model from a Sequence of Alarms: the
Example of APACHE. IFAC Workshop on
Automation in Mining, Mineral and Metal Industry
(MMM’2006), Cracow, Poland.
C. G. Cassandras and Lafortune S. (2001). Introduction to
discrete event systems. Kluwer Academic Publishers.
S. Cauvin, M-O. Cordier, C. Dousson, P. Laborie, F.
Lévy, J. Montmain, M. Porcheron, I. Servet and L.
Travé (1998). Monitoring and Alarm Interpretation in
Industrial Environments. AI Communications, Vol. 11-
3-4, p. 139-173, IOS Press.
M.O. Cordier, and C. Dousson (2000). Alarm Driven
Monitoring Based on Chronicle. Proceedings of
SafeProcess 2000, pages 286-291, Budapest, Hungary.
C. Dousson and T. Vu Duong (1999). Discovering
Chronicles with Numerical Time Constraints from
Alarms Logs for Monitoring Dynamic Systems.
Proceedings of the 13
rd
International Join Conference
on Artificial Intelligence (IJCAI’99), pp. 620-626.
K. Hatonen, M. Klemettinen, H. Mannila, P. Ronkainen
and H. Toivonen (1996). Knowledge discovery from
telecommunication network alarm databases.
Proceedings of the 12
th
International Conference on
Data Engineering (ICDE ’96). New Orleans, LA, pp.
115–122.
K. Hatonen, M. Klemettinen, H. Mannila, P. Ronkainen
and H. Toivonen (1996). TASA: Telecommunication
alarm sequence analyzer, or how to enjoy faults in
your network. Proceedings of the 1996 IEEE Network
Operations and Management Symposium (NOMS ’96),
Kyoto, Japan, pp. 520–529.
M. Ghallab (1996). On Chronicles: Representation, On-
line Recognition and Learning. Principles of
Knowledge Representation and Reasoning, Aiello,
Doyle and Shapiro (Eds.), p. 597-606, Morgan-
Kauffman.
S. Hanks and McDermott D (1994). Modelling a dynamic
and uncertain world I: symbolic and probabilistic
reasoning about change. Artificial Intelligence, Vol.
n°66, pp 1-55.
M. Lang, T.B.M.J Ouarda and B. Bobée (1999). Towards
operational guidelines for over-threshold modeling.
Journal of Hydrology, Elsevier Edition, Vol. n°225, p.
103-117.
M. Le Goc (2004). SACHEM, a real Time Intelligent
Diagnosis System based on the Discrete Event
Paradigm. Simulation. The Society for Modeling and
Simulation International Ed., Vol. 80, n° 11, pp. 591-
617.
M. Le Goc, P. Bouché and N. Giambiasi (2006). Temporal
Abstraction of Timed Alarm Sequences for Diagnosis.
Proceedings of the International Conference on
COGnitive systems with Interactive Sensors
(COGIS'06), Paris, France.
H. Mannila, H. Toivonen and A. I. Verkamo (1997).
Discovery of frequent episodes in event sequences.
Data Mining and Knowledge Discovery. 1(3):259–
289, 1997.
H. Mannila (2002). Local and Global Methods in Data
Mining: Basic Techniques and Open Problems.
Proceedings of the 29
th
International Colloquium on
Automata, Languages and Programming, Vol. n°2380,
pages 57-68, Malaga, Spain.
E. Masse and M. Le Goc (2007). Modeling Dynamic
Systems from their Behavior for a Multi Model Based
Diagnosis Task. Proceedings of the 18
th
International
Workshop on Principles of Diagnosis (DX’07),
Nashville, USA, May 29-31 2007.
ICEIS 2008 - International Conference on Enterprise Information Systems
180
