A SOFTWARE ARCHITECTURE FOR KNOWLEDGE

DISCOVERY IN DATABASE

Maria Madalena Dias, Lúcio Gerônimo Valentim and José Rafael Carvalho

Departamento de Informática, Universidade Estadual de Maringá, Av. Colombo 5790, 870200-900 Maringá-PR, Brazil

Keywords: Reference Architecture, Software Architecture, KDD system, Data Warehouse, and Data Mining.

Abstract: Currently, most of the companies have computational systems to provide support to the operational routines.

Technologies of data warehousing and data mining have appeared to solve the problem of search for

necessary and trustworthy information for decision-making. However, the existing solutions do not enclose

those two technologies; some of them are directed to the construction of a data warehouse and others to the

application of data mining techniques. This paper presents a software architecture that defines the

components necessary for implementation of knowledge discovery systems in database. Some standards of

best practices in projects and in development were used since the definition until the implementation.

1 INTRODUCTION

With the evolution of computer science and its

increasing use in the diverse areas of knowledge, the

information systems are becoming bigger and more

complex. The faster development of hardware at

lower prices has been changing the methodologies

used for software development. There was, also, an

alteration in the organization of the world-wide

markets, which turned the information into a

precious item for a nation.

In this scene of increasing technological

evolution, the search for knowledge became a

necessity of governmental institutions and private

sectors. However, there is a certain difficulty in the

acquisition of information and knowledge since the

volume of data accumulated by institutions, during

much time, is enormous, and these data are not

integrated.

Researches have been developed in the area

concerning search of information and knowledge in

great databases, involving, mainly, Data

Warehousing and Data Mining (DM).

Data Warehousing technology defines activities

for search of great volume of data in heterogeneous

operational environments, collecting and organizing

the data in a more homogeneous and optimized

environment for queries. DM is the second stage in

the process of knowledge discovery in database

(KDD). In the first stage (pre-processing), a DW can

be constructed. In this case, it is necessary to

develop software to support this process.

In a software design, the definition of

architecture is an essential activity (Jacobson et al.,

1999). So, this paper presents a software architecture

specified for KDD systems. In order to facilitate the

definition of such architecture, it was necessary to

construct a reference model and reference

architecture. The reference model represents the

significant relationships between the entities of a

determined environment. The reference architecture

defines the common infrastructure for the systems

and the interfaces of the main structural components

that will be enclosed in those systems.

In the next section, some related works are

presented. Following up in Sections 2, 3 and 4,

respectively, the reference model, the reference

architecture and software architecture for KDD

systems are described. In Section 5, it is shown the

conclusions about the research presented in this

paper.

2 RELATED WORKS

As related works, the following ones can be listed:

Oracle Warehouse Builder (Oracle, 2005); I-MIN

(Gupta et al., 2004); GridMiner (Brezany et al.,

2003); KDB2000 (Appice et al., 2006).

433

Madalena Dias M., Gerônimo Valentim L. and Rafael Carvalho J. (2008).

A SOFTWARE ARCHITECTURE FOR KNOWLEDGE DISCOVERY IN DATABASE.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 433-436

DOI: 10.5220/0001686304330436

 SciTePress

Oracle Warehouse Builder is a tool that is part

of the set of solutions for database of Oracle

Company. That environment allows things such as,

the access to databases, definition of

transformations, creation of new databases and

multidimensional databases operation.

Gupta et al. (2004) present an architecture for

knowledge discovery and management called I-

MIN. For the execution of activities of KDD process

a language is used. That language is analyzed by a

specific compiler present in the proposed

architecture. All the architecture is divided into

small modules.

GridMiner tool was constructed on a framework

developed by the same group. That research team

includes works about parallel computation in the

development of systems for knowledge discovery.

KDB2000 integrates, in only one tool, the database

access, the preprocessing and transformation of data,

techniques, algorithms of data mining and tools for

visualization. However, that tool does not provide

support for the repetition of the same process

executed by the user.

3 REFERENCE MODEL

The reference model proposed in the present study

enables the integration of the necessary functions for

carrying out the construction of a DW, of OLAP

tools (On-line Analytical Processing) and of DM in

only one system. Such integration provides a high

degree of reuse of the system components and,

consequently, enables its construction, if compared

with proposals that isolate the construction of a DW

from other parts of KDD systems.

The functions of a KDD process are defined in

the reference model in modules: source definition,

ET processing, start definition, load processing, DW

definition, OLAP, DM, results definition, view tools.

OLAP and DM modules are essential for the

architecture proposed in the present study. They

integrate OLAP and DM processes in just one

environment, reusing operations, such as extraction,

transformation and load, and sharing data

repositories.

The reference model defines three different data

sources to be used in OLAP or DM processing:

Source bases, Staging Area and Data Warehouse.

Moreover, beyond those databases, the model

presents a storage space for the results obtained by

using OLAP or DM.

The reference model provided the base for both

definitions, the definition of the reference

architecture and the software architecture, as well.

4 THE REFERENCE

ARCHITECTURE

The reference architecture developed attends

requirements of KDD system. For the definition of

reference architecture it is necessary to choose and

adopt an architectural style. Among the architectural

styles presented by Shaw and Garlan (1996), the ‘in

layer’ style offers abstraction levels that allow

dividing a complex problem into a sequence of

incremental steps and permits reuse. Such

characteristics turn this type of style adequate to

complex and interactive systems, as it is the case of

KDD system.

The architecture is divided in four layers

(Figure 1). Managers were defined for each layer in

order to control both, the moment of creation of

objects that they represent and the access to the layer

components. The components of each layer have

access to its manager and through the access

reference other managers, thus making possible the

communication with the components located on

other layers. Thus, the communication between the

components occurs only through the manager

responsible for the layer they belong to.

The view layer is responsible for

accommodating the components that show the

graphical interfaces (screens) and control the

interaction between the user and the system.

The process layer has a manager that knows all

the processes instanced by users. Thus, to access any

process, the superior layer must ask the manager the

instance of the process desired. Two layer

iew

Layer

Process

Layer

Service

Layer

Support

Layer

Application

Manager

Process

Manager

Service

Manager

Gerenciadores

de apoio

Gerenciadores

de apoio

(Support

Managers)

Application

Views

Application

Processes

Application

Services

Application

Support Classes

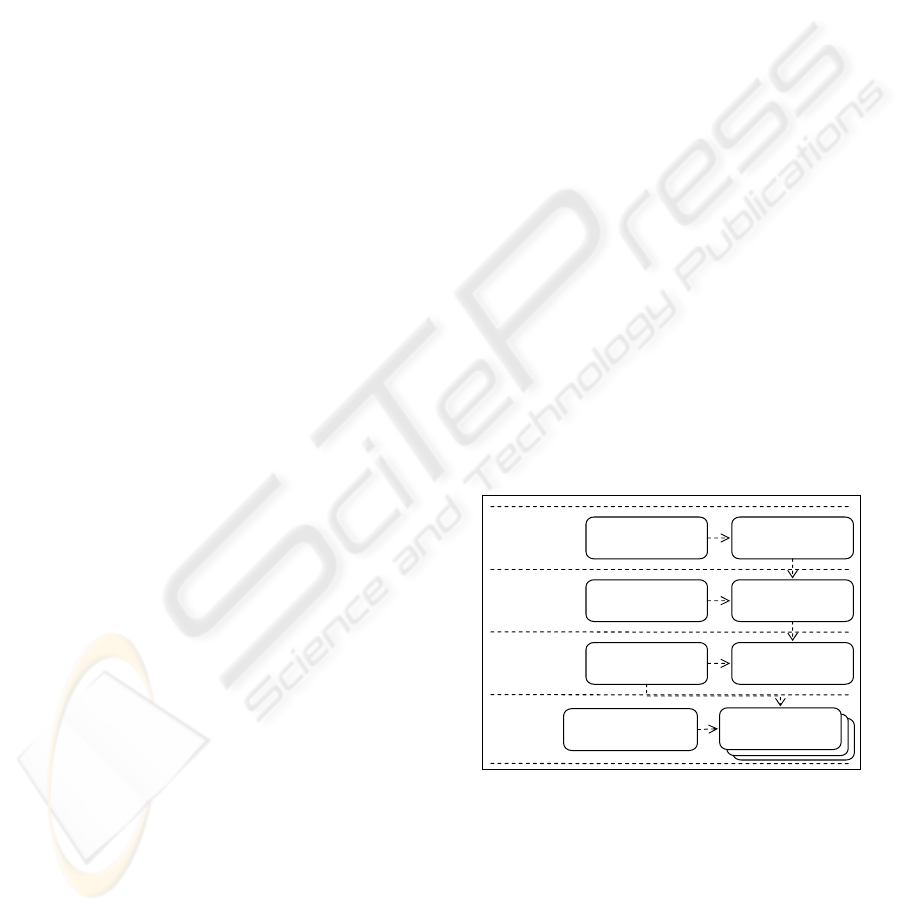

Figure 1: Layers that compose the reference architecture.

ICEIS 2008 - International Conference on Enterprise Information Systems

434

characteristics must be pointed out: 1) the processes

are authenticated by the layer and are available only

to the users with access rights for its; 2) one instance

of the process is created for each user.

The service layer also has a manager that

knows all the services that are instanced by the

architecture. There is an interface that allows the

upper layer to execute a service. That layer is not

authenticated and all the users share the same

instance of a service.

The support layer was defined to organize the

system functions, which give support to the upper

layers.

For the documentation regarding the reference

architecture, it was made an adaptation of

methodology presented by Merson (2006). Such

methodology defines the documentation of software

architecture in terms of views. Each view points out

either static or dynamic aspects of the architecture.

But, not all the views are necessary for all the

projects.

To illustrate the developed reference

architecture, the view of modules and its relationship

are shown (Figure 2). It is important to point out in

the figure that the view module can be extended to

other packages that implement diverse visualization

technologies, turning the business processes

completely independent from interface technologies.

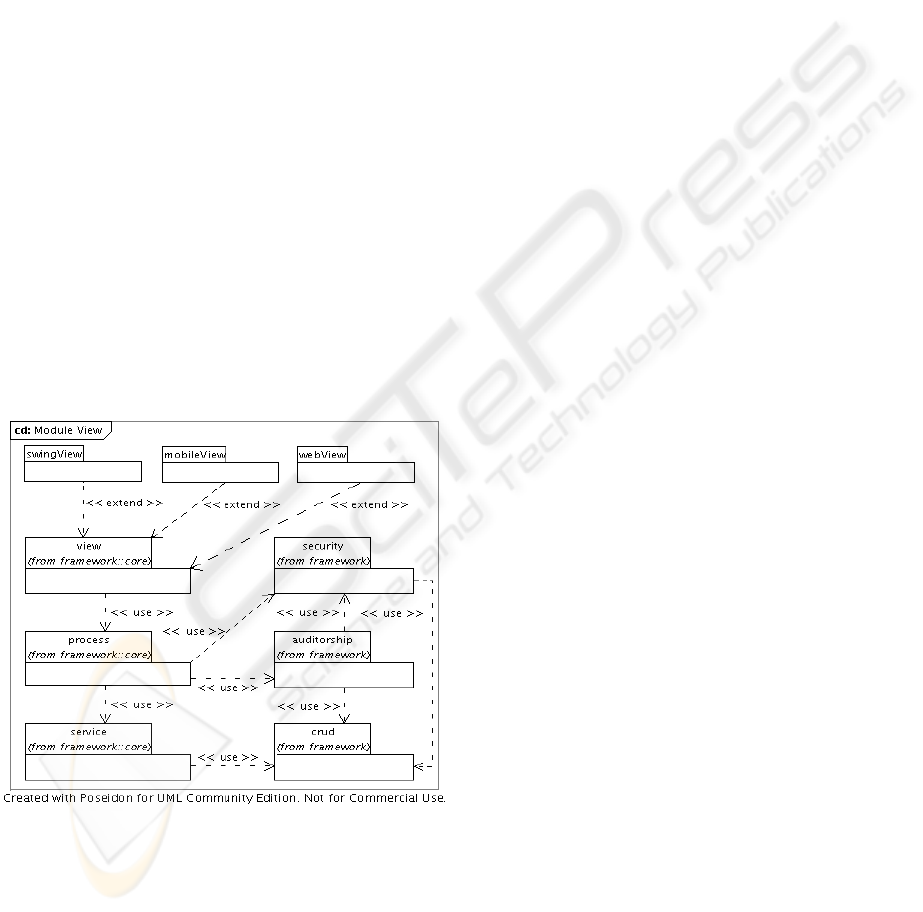

Figure 2: View of modules that shows the packages of

reference architecture.

The process module is authenticated, due to

that it uses the security and auditorship modules.

The information about the process executed is

registered in the auditorship. It depends on the

service module, because the processes use the

business services during the activities.

In the service module the services are executed

inside of a transactional environment. The services

can access and manipulate metadata (business entity/

persistent data) by using the crud module.

In the security module the security entities, as

users, groups and rights are included. It has services

and processes for user authentication, verification

and definition of rights to access.

On the other hand, the auditorship module

provides services to register the operations executed

in processes and entities.

The crud module comprises a manager of

entities, services and processes for the persistence of

objects. However, the main function of that module

is to provide an abstraction of business entity and

data persistence. Such abstraction consists of joining

the object instances with the metadata structures that

contains additional information about the entity.

Thus, when an entity is recovered from the object

repository, it comes with its basic data, and also,

with a set of additional information useful for

validation and exhibition of the entity data. The

crud module is an advanced mechanism to persist

and control the internal data entities of KDD system.

5 SOFTWARE ARCHITECTURE

The software architecture is defined extending the

functions found in the reference architecture, bearing

in mind that, in the reference architecture some basic

components, which serve as integration points

between external components and the internal

architecture, as well as its components have been

defined. Following the reference architecture, each

module in software architecture defines its own

views, processes, services and support components.

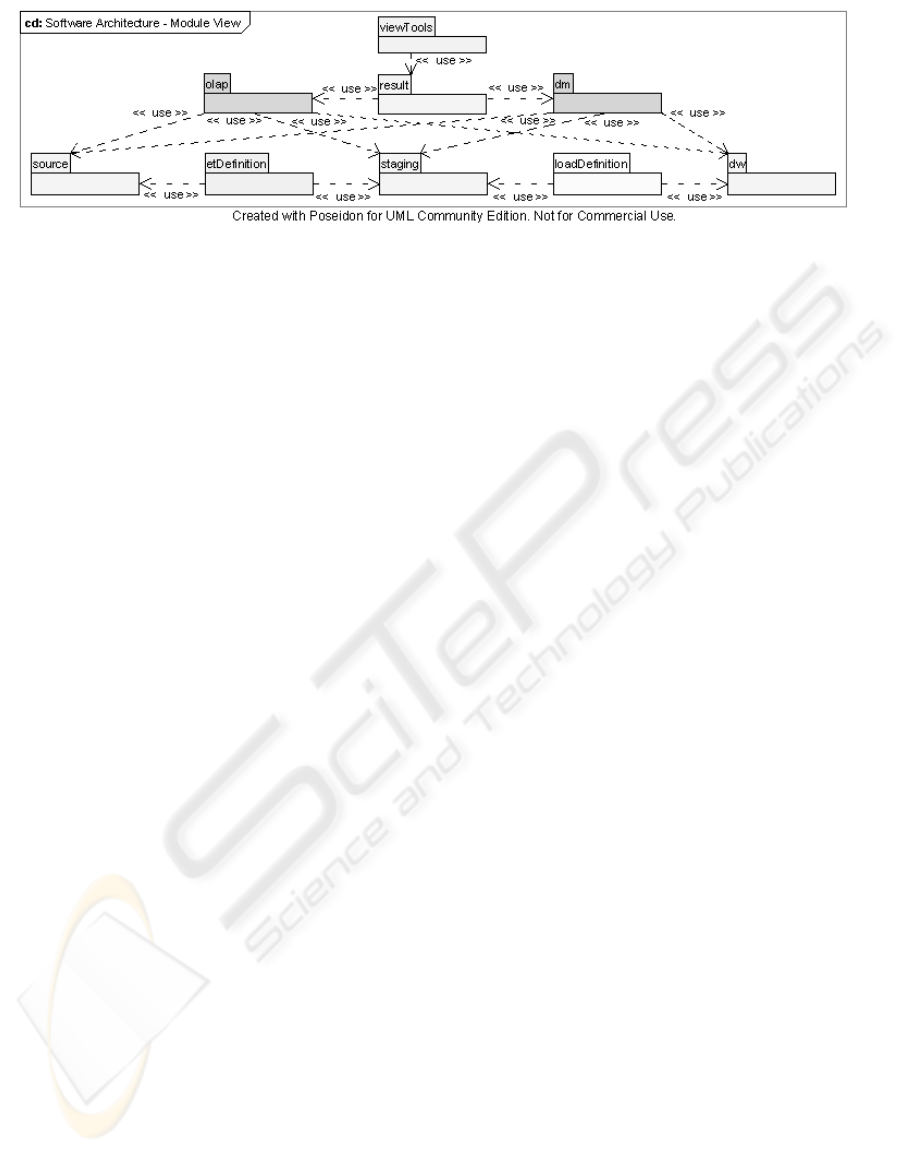

The software architecture is a specific

architecture for KDD domain (Figure 3). As the

reference architecture solves the majority of the

structural problems, the definition of software

architecture is facilitated and its components are

abstracted from the concepts and structures defined

by the reference architecture.

A diagram, regarding use cases, was constructed

to assist both, the learning of functional

requirements and the conception of software

architecture. The use cases are: Source Definition,

ET Definition, Run ET, Staging Definition, Load

Definition, Run Load, DW Definition, Run OLAP,

Run DM, Store Results, and View Results. More

details can be found in (Valentin, 2006).

A SOFTWARE ARCHITECTURE FOR KNOWLEDGE DISCOVERY IN DATABASE

435

Figure 3: View of Modules of the Software Architecture of KDD system.

5 CONCLUSIONS

Following the architecture construction standard

presented by Bass et al. (2003), it was defined a

reference model, and a reference architecture was

developed, in order to propose a software

architecture for KDD systems.

The software architecture proposed was based

on the reference model, and on use cases identified

for a KDD system, thus being validated through a

prototype, being its development facilitated by

reference architecture.

The documentation using views, defined by

Merson (2006), facilitate the learning and allow

presenting both, the architecture general

organization, as well as the internal functions.

As it could be seen, the definition of the

software architecture components was based on

concepts defined in reference architecture, having

as main focus the application domain. Questions

related to the communication between

components, security and other matters remain in

the definition of reference architecture, thus

making possible a better definition of both, the

application domain and the system functions in the

software architecture.

Finally, the reference model defined

represents the main functions found in the

construction of a DW, in OLAP tools and data

mining, integrated in a unique system. Thus, the

reuse and integration of components make possible

the cheaper construction of KDD systems.

The proposal architecture searched to

congregate the main characteristics of some related

works to the area of knowledge discovery in

database. A comparison between the architecture

proposed and related works was realized using the

following characteristics: 1) descriptive language;

2) interactive activities; 3) software architecture

reusable; 4) sources, targets and processes

metadata, 5) DW activities, and 6) DM activities.

The architecture proposed unsatisfied only the

characteristic 1, while the others architectures

unsatisfied two or more characteristics.

REFERENCES

Appice, A., Ceci, M., Malerba, D., 2007. KDB2000: An

integrated knowledge discovery tool. Dipartimento

di Informatica,University of Bari, Italy. Retrieved

November 30, 2007, from http:

//www.di.uniba.it/~malerba/software/kdb2000

Bass, L., Clements, P., Kazman, R., 2003. Software

Architecture in Practice. Second Edition. Boston,

MA: Addison-Wesley, 2003.

Brezany, P., Hofer, J., Tjoa, A., Wöhrer, A., 2003.

Gridminer: An Infrastructure for Data Mining on

Computational Grids. In: APAC’03 Conference,

Gold Coast, Australia.

Gupta, S. K.; Bhatnagar, V.; Wasan, S.K., 2004.

Architecture for knowledge discovery and

knowledge management. Knowledge and

Information Systems.

Jacobson, I.; Booch, G.; Rumbaugh, J., 1999. The

unified software development process. 2.ed.

Canadá: Addison-Wesley, 463p., (Object

Technology Series).

Merson, P., 2007. How to Represent the Architecture of

Your Enterprise Application Using UML 2.0 and

More. Retrieved November 30, 2007, from

http://developers.sun.com/learning/javaoneonline/20

06/coreenterprise/TS-4619.pdf.

Oracle Warehouse Builder Documentation, 2007.

Retrieved November 30, 2007, from http:

//www.oracle.com/technology/documentation/wareh

ouse.html.

Shaw, M.; Garlan, D., 1996. Software Architecture –

Perspectives on an Emerging Discipline. Prentice

Hall, Upper Saddle River, New Jersey.

Valentin, L. G., 2006. Uma arquitetura de software para

sistemas de descoberta de conhecimento m banco de

dados. Programa de Pós-Graduação em Ciência da

Computação. Dissertação de Mestrado.

Departamento de Informática. Universidade Estadual

de Maringá.

ICEIS 2008 - International Conference on Enterprise Information Systems

436
