K-SITE RULES
Integrating Business Rules in the Mainstream Software Engineering Practice
1
José L. Martínez-Fernández, José C. González and Pablo Suárez
DAEDALUS – Data, Decisions and Language, S.A., Avda. Albufera 321, Madrid, Spain
Keywords: Business rules, rule engine, rule language, software development lifecycle models.
Abstract: The technology for business rule based systems faces two important challenges: standardization and
integration within conventional software development lifecycle models and tools. Despite the
standardization effort carried out by international organizations, commercial tools incorporate their own
flavours in rule languages, making difficult the migration among tools. On the other hand, although some
business rules systems vendors incorporate interfaces to encapsulate decision models as web services, it is
still difficult integrating business rules in traditional object-oriented analysis and design methodologies.
This is the rationale behind the development of K-Site Rules, a tool that facilitates the cooperation of
business people and software designers in business applications.
1 INTRODUCTION
A
1
Business Rule (BR) can be seen as an expression
used to make explicit the knowledge about the
business present in an organization. According to the
Business Rules Group
2
two definitions can be given
for the term business rule, depending on the point of
view adopted: from the business point of view,
where a business rule is “a directive, intended to
influence or guide business behaviour, in support of
business policy that has been formulated in response
to an opportunity, threat, strength, or weakness”,
from the Information Technology (IT) point of view
a BR can be defined as “a statement that defines or
constrains an aspect of the business. It is intended to
assert business structure, or to control or influence
the behaviour of the business”.
A Business Rules Engine (BRE) or Business
Rules System (BRS) is a software system in charge
of executing IT business rules. These systems
usually include tools to support the definition,
verification, validation and management of business
rules.
In the last few years, the use of business rules
systems is being widely adopted by companies to
1
This work has been partially supported by the Spanish
Center for Industry Technological Development (CDTI
Ministry of Industry, Tourism and Trade), through the
project ITECBAN (Architecture for Core Banking
Information Systems), INGENIO 2010 Programme.
2
http://www.businessrulesgroup.org
encode business knowledge. But, why? What are the
benefits of using business rules? There are three
main reasons: First, the knowledge about the
business is stored in a somehow centralized, easily
accessible storage, and this knowledge can be
modified, updated and maintained in a quick and
simple way. Second, companies need ways to foster
their reaction to new business opportunities, and the
ability to adapt their IT systems to take benefit of
these opportunities becomes a definitive advantage.
Third, from the IT perspective, the use of business
rules allows a reduction of the effort needed to adapt
software systems to new requirements. The ideal
situation is one in which no code modifications are
needed to satisfy these new restrictions. Let’s try to
explain this fact with an example: suppose you are
managing a web site selling electronic devices and
you want to make a 10% special discount to
customers coming for their first time to the web site.
You can implement this restriction using an if-then
sentence in your code. Now, suppose you want to
extend the special discount to every customer for a
period of time. Then you should change your code
and recompile it to include this new restriction. On
the other hand, if you express the restriction as a
business rule, you only have to change the business
rule definition without changing the code of the
application, and with no need to recompile your
program.
Nowadays, there are a lot of commercial
products implementing business rules engines. Blaze
Advisor (Fair Isaac, 2007), ILOG JRules (ILOG
446
L. Martínez-Fernández J., C. González J. and Suárez P. (2008).
K-SITE RULES - Integrating Business Rules in the Mainstream Software Engineering Practice.
In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 446-449
DOI: 10.5220/0001687504460449
Copyright
c
 SciTePress

JRules, 2006) and JBoss Rules (Red Hat, 2007) are
some of the most important ones. Of course, you
have to make a decision about which product you
are going to include in your IT architecture. Each
product uses its own language to define business
rules, so a standardization problem arises. Although
there are several efforts to define a standard rules
language such as RuleML (Boley, 2005), SWRL
(Semantic Web Rule Language) (Horrocks, 2003) or
RIF (Rules Interchange Format) (Boley, 2005), these
languages are not implemented by commercial
products.
On the other hand, if business rules are going to
be used to implement software components in
companies, there should be a way to include them in
the software development lifecycle. For this
purpose, tools supporting the harvesting, definition
and implementation of business rules should be
provided, as well as their utilization in the
corresponding stages of the development lifecycle.
This work presents K-Site Rules, an industrial
effort to build a tool that covers these two main
problems. The first one, by helping in the
standardization of business rules representations by
providing automatic translations among SWRL and
the languages interpreted by commercial products.
The second one, providing a simple way to assure
configuration management in the business rules
development process and development tools, which
can be easily integrated within standard software
development lifecycle models.
The reminder of this paper is structured as
follows: Section 2 describes key issues relating the
integration of BRSs in the development cycle.
Section 3 describes the architecture of the K-Site
Rules solution, focused in assuring the independence
of the commercial BRS selected to implement
business rules. Section 4 includes some conclusions
extracted during the design and development of K-
Site Rules.
2 STAGES IN THE BUSINESS
RULES DEVELOPMENT
PROCESS
There exists a methodology to harvest and develop
rules called PROTEUS (Ross, 2006). The
development steps defined in K-Site Rules are a
simplification of the PROTEUS approach. Before
describing the methodology, some definitions must
be given according to the point of view considered
in K-Site Rules: a decision service is a set of atomic
business rules and actions (i.e.: operations included
in business objects); an atomic business rules is a
rule that can be expressed in one sentence.
Four basic steps are considered:
• Workflow definition
A flow must be defined among sets of atomic
rules, making easier to understand the
operations performed by the rule and
allowing the reuse of already defined atomic
rules and rulesets.
• Atomic rule definition
Definitions for atomic rules are supported in
different formats. In K-Site Rules an atomic
rule can be defined using natural language,
decision tables and decision trees. Concepts
and facts available to define rules are taken
from JAVA object models. Atomic business
rules are expressed in the standard SWRL
language.
• Decision service validation
Once atomic rules have been defined and
included in the decision service workflow
and this decision service is complete,
validation tasks must be done. The main goal
is to test if the functional behaviour of the
decision service is correct or not. In order to
perform this validation, a target rule engine
must be selected and K-Site Rules will
automatically translate the decision service to
the selected engine, performing predefined
validations. Mechanisms to provide data for
these validations are, of course, supported by
the tool.
• Decision service publication
A version control system is also integrated in
K-Site Rules, to manage different versions of
business rules and also to publish or
deploying rule definitions.
The PROTEUS methodology considers an initial
phase to build the business model for the
organization. In a first version of K-Site Rules, this
business model is inherited from the organization, so
valid concepts and facts are those already defined in
the target organization and included in some kind of
JAVA business objects repository. Nowadays,
organizations are taking the first steps to define
ontologies to act as some kind of dictionaries to
compile business knowledge. The ability to
represent this business knowledge using ontologies
is also being considered in the development of K-
Site Rules. This is the reason to choose SWRL as the
language to build standard representations of
business rules.
K-SITE RULES - Integrating Business Rules in the Mainstream Software Engineering Practice
447

3 A COMPREHENSIVE
ARCHITECTURE FOR BR
SYSTEMS DEVELOPMENT
AND INTEGRATION

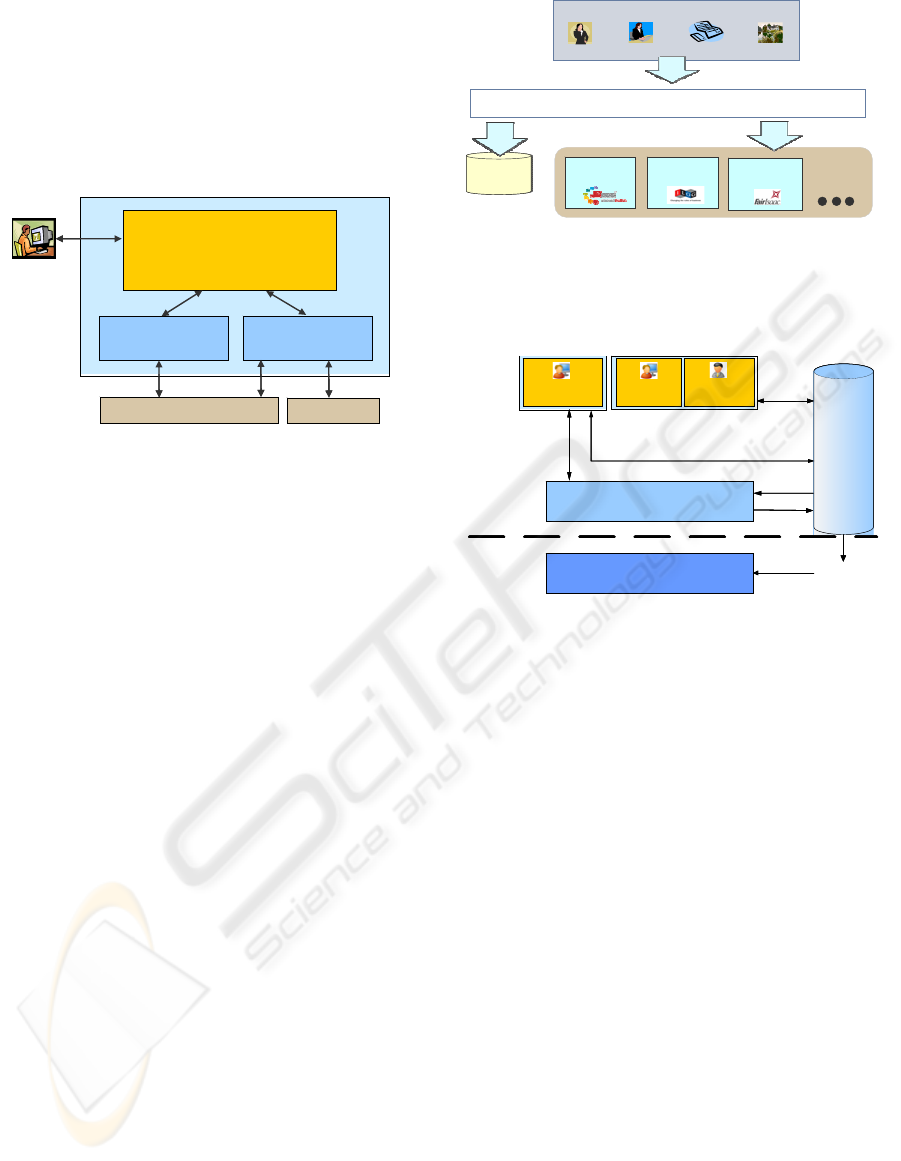

Most of Rule-Based Systems offer an architecture
similar to the one showed in Figure 1.
User
Interface
USER
Inference Engine
Knowledge Data
Specific Data
Knowledge Editor
DATA LAYER
User
Interface
User
Interface
User
Interface
USER
Inference EngineInference Engine
Knowledge DataKnowledge Data
Specific DataSpecific Data
Knowledge EditorKnowledge Editor
DATA LAYER
Figure 1: Rule-Based System general architecture.
The user interacts with the Rule-Based system
through a User Interface. It allows access to a
Knowledge Editor that supports the creation or
modification of new rules, possibly using natural
language. These rules are stored in a repository
which constitutes the Knowledge Data element in
Figure 1. Along this process, the Knowledge Editor
could make use of previous data stored in this
Knowledge Data repository. Rules stored in this
repository are typically structured in form of if-then-
else logical propositions. On the other hand, the
Inference Engine or Rules Engine obtains inferences
starting from the Knowledge Data and the Specific
Data. Obviously, the Inference Engine can use
intermediate data generated in successive steps
along the inference process.
K-Site Rules implements a layer allowing the
integration of Rule-Based Systems, and the
architecture of the tool was thought in accordance
with the following objectives:
• Make rules development independent from
rules engines, allowing the integration with
several different engines (view Figure 2).
• Develop and maintain rules in a simple and
intuitive way.
• Coordinate all the processes involved in
rules definition for making easier the reuse
of the rules.
• Control access to rules according to the
user profile.
Configuration
Manager
Configuration
Manager
BUSINESS CONCEPTS
Client Office
Product
Entity
Rules Engine
(JBoss Rules)
Rules Engine
(ILOG Rules)
Rules Engine
(Fair Isaac)
K-SITE RULES
Configuration
Manager
Configuration
Manager
BUSINESS CONCEPTS
Client Office
Product
Entity
Rules Engine
(JBoss Rules)
Rules Engine
(ILOG Rules)
Rules Engine
(Fair Isaac)
K-SITE RULES
Figure 2: A global vision of K-Site Rules Integration.
With the aim of reaching all these objectives, the
basic architecture of K-Site Rules is depicted in
Figure 3.
Rules Engine
Configuration
Manager
Rules Translator
Business Analyst
Editor
Developer
Editor
DEVELOPMENT
EXECUTION
.dae
SWRL
SWRL
.*rl
.*rl
Administrator
tool
Rules Engine
Configuration
Manager
Configuration
Manager
Rules Translator
Business Analyst
Editor
Business Analyst
Editor
Developer
Editor
Developer
Editor
Developer
Editor
Developer
Editor
DEVELOPMENT
EXECUTION
.dae
SWRL
SWRL
.*rl
.*rl
Administrator
tool
Administrator
tool
Administrator
tool
Administrator
tool
Figure 3: K-Site Rules Architecture.
K-Site Rules offers an editor for each different
role. In particular, we include in our architecture a
Business Analyst Editor and a Developer Editor.
The Developer Editor was developed as a plug-in in
an eclipse-based IDE. This plug-in allows the
integration of the editor in a modelling tool for the
definition of business rules. The Business Analyst
Editor was developed as a friendly web tool
allowing access to the system through a standard
browser. It can also be integrated with the corporate
access control system. Both editors allow the user to
create atomic if-then-else rules in three different
ways: through guided natural language, decision
tables or decision trees. The editors generate
Knowledge Data in an intermediate standard
language known as SWRL.
The Rules Translator component provides
independence among the rules under development
and the Rule Engines used to implement them. It
performs the translation of the intermediate SWRL
files to the specific Rule Engine files. These
languages are those provided by rule engines like
ILOG JRules (IRL) or JBoss Rules (DRL). The
Rules Translator is also integrated with the
Configuration Manager (Figure 3). The
methodology defined to develop business rules with
K-Site Rules includes a validation stage, where rules
ICEIS 2008 - International Conference on Enterprise Information Systems
448

functionality must be tested. For this purpose,
interaction with Rule Engines must be provided and
the standard interface JSR-94 (Toussaint, 2003) is
applied.
The Configuration Manager facilitates the reuse
of Business Rules, validates their deployment, audits
changes in Rules and controls and maintains historic
data about Business Rules versions. In addition to
these features, the Configuration Manager
communicates all involved user roles (business
analyst, developer and administrator) in a
transparent way, so that the changes carried out by a
role will be visible for the other. It controls the
access permissions to rules for each user too, and
makes it possible the integration with the corporate
configuration manager. K-Site Rules provides
support for different configuration servers, like
Subversion (Collins-Sussman et al., 2007) or Clear
Case (IBM, 2007).
Of course, administration tasks have also been
considered and a specific tool to manage the tool has
been developed.
Finally, the dashed line in Figure 3 represents the
separation between the development process and the
execution procedure. K-Site Rules only takes part in
the development stage and the execution or
production stage is out of the scope of the tool.
4 CONCLUSIONS
This paper presents K-Site Rules, a tool and a
methodology for business rules integration and
deployment. The main features of K-Site Rules are
summarized in this couple of definition equations:
Standard language for
representing rules
(SWRL)
Standard integration
of the rules engine
(JSR-94)
Independence
of rules managing
product
+
=
Simplest
Development
K-Site Rules
integrated in the life
cycle of applications
development
+
K-Site Rules
integrated in the
modelling tool
=
Standard language for
representing rules
(SWRL)
Standard integration
of the rules engine
(JSR-94)
Independence
of rules managing
product
+
=
Standard language for
representing rules
(SWRL)
Standard integration
of the rules engine
(JSR-94)
Independence
of rules managing
product
+
=
Simplest
Development
K-Site Rules
integrated in the life
cycle of applications
development
+
K-Site Rules
integrated in the
modelling tool
=
Simplest
Development
K-Site Rules
integrated in the life
cycle of applications
development
+
K-Site Rules
integrated in the
modelling tool
=
Figure 4: K-Site Rules definition equations.
The main issue addressed by K-Site Rules is the
effective cooperation of business people and
software engineers in the design of software
components, especially in the case of components
incorporating declarative business knowledge in the
form of business rules. In this sense, the main
contribution of this work to the state of the art is the
possibility of collaboration between business experts
and software developers in a typical Integrated
Development Environment (IDE), addressing key
issues as configuration management. Another
contribution of this work resides in the application
of a combination of Semantic Web and Rule-based
Knowledge technologies in an industrial
environment. K-Site Rules tries to shorten the time
gap between the moment when business decisions
are taken and the moment when those business
decisions get implemented.
K-Site Rules does not incorporate its own
inference engine. It relies on commercial or open
source software for the debugging and execution of
business rules. Instead, it permits the specification of
decision processes in the standard SWRL language,
translating business rules to the proprietary
languages of commercial rule engines.
REFERENCES
Boley, H., Grosof, B., Tabet, S. (2005) RuleML Tutorial,
Draft. Retrieved 3/12/2007 from
http://www.ruleml.org
Boley, H., Kifer, M., (2007). RIF Core Design. W3C
Working Draft 30 March 2007, W3C Consortium.
Retrieved 3/12/2007 from
http://www.w3.org/TR/2007/WD-rif-core-20070330/
Collins-Sussman, B., Fitzpatrick, B.W., Pilato, C.M.
(2007) Version Control with Subversion: For
Subversion 1.5, Retrieved 3/12/2007 from
http://svnbook.red-bean.com/nightly/en/
Fair Isaac, (2007) Blaze Advisor Business Rules
Management System: How it works. Fair Isaac
Corporation
Horrocks, P. F. Patel-Schneider, H. Boley, S. Tabet, B.
Grosof, M. Dean, (2003) SWRL: A Semantic Web Rule
Language Combining OWL and RuleML, draft 0.5.
Retrieved 3/12/2007 from
http://www.daml.org/2003/11/swrl/
IBM, (2007), IBM Rational ClearCase, Retrieved
3/12/2007 from
ftp://ftp.software.ibm.com/software/rational/web/datas
heets/clearcase.pdf
ILOG JRules, (2006). Business Rule Management (BRM)
with ILOG JRules 6. BRMS without compromise.
ILOG Inc.
Red Hat, (2007). JBoss Rules Fact Sheet. Red Hat Inc.
Ross G., Ronald, 2006, Business Rule Concepts. Getting
to the point of knowledge, Business Rules Solutions
LLC.
Toussaint, 2003. Java Rule Engine API Specification JSR-
94, Draft 1.0, Retrieved 3/12/2007 from
http://jcp.org/en/jsr/detail?id=94
K-SITE RULES - Integrating Business Rules in the Mainstream Software Engineering Practice
449
