REALIZING WEB APPLICATION VULNERABILITY ANALYSIS

VIA AVDL

Ha-Thanh Le and Peter Kok Keong Loh

School of Computer Engineering, Nanyang Technological University, Block N4

Nanyang Avenue, 639798, Singapore

Keywords: Web application vulnerability, vulnerability description, AVDL, vulnerability analysis.

Abstract: Several vulnerability analysis techniques in web-based applications detect and report on different types of

vulnerabilities. However, no single technique provides a generic technology-independent handling of web-

based vulnerabilities. In this paper we present our experience with and experimental exemplification of

using the Application Vulnerability Description Language (AVDL) to realize a unified data model for

technology-independent vulnerability analysis of web applications. We also introduce an overview of a new

web vulnerability analysis framework. This work is part of a project that is funded by the Centre for

Strategic Infocomm Technologies, Ministry of Defence Singapore.

1 INTRODUCTION

The rapid rise of corporate web applications offers

abundant opportunities for e-businesses to flourish.

However, this also raises many security issues and

exacerbates the demand for practical customer-

friendly solutions (Raina 2004; Grossman 2007;

IBM 2007). Most existing approaches are

technology-specific and concentrate on solutions

based on the application layer and program code

(Static analyzers e.g., Pixy (Jovanovic, Kruegel et al.

2006), WebSSARI (Huang, Yu et al. 2004) and

PHP’s intrablock and intra/inter procedural 3-tier

architecture (Xie and Aiken 2006) scan Web

application source code for vulnerabilities, whereas

dynamic tools such as WAVES (Huang, Huang et al.

2003) and PHP’s taintedness tracking (Nguyen-

Tuong, Guarnieri et al. 2005) try to detect attack

while executing applications).

In this paper, we investigate the effectiveness of

using the Application Vulnerability Description

Language (AVDL) (OASIS 2007) to develop a

unified data model used in a technology-

independent, rule-base solution for vulnerability

analysis of web-based applications.

We review other works that relate to web-based

vulnerability analysis in section 2. In Section 3, we

present an overview of our approach. In section 4,

we present vulnerability analysis case studies with

two web scanners and AVDL as a vulnerability

description format. The paper concludes with

Section 5.

2 RELATED WORKS

2.1 Web-based Vulnerability

Taxonomies

For web applications, which are usually developed

using high-level declarative languages, the

vulnerabilities occur frequently in places where the

script-based algorithms interact with other systems

or components, such as databases, file systems,

operating systems, or the network (Dowd,

McDonald et al. 2006; Stamp 2006). In other words,

systems can be compromised via web technologies,

e.g. exploitation via a web script may start a security

breach. Many web vulnerability classes have also

been detected, classified and documented via

technology-specific scanners (Nguyen-Tuong,

Guarnieri et al. 2005; Dowd, McDonald et al. 2006;

Siddharth and Doshi 2006; Cova, Felmetsger et al.

2007; Grossman 2007; IBM 2007). A model of

vulnerability taxonomy such as (Bishop 1999),

(Bazaz and Arthur 2007) and (Berghe, Riordan et al.

2005) has been proposed, on which new analytical

methodologies may be designed and implemented.

Others only concentrate research on potential classes

259

Le H. and Kok Keong Loh P. (2008).

REALIZING WEB APPLICATION VULNERABILITY ANALYSIS VIA AVDL.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 259-265

DOI: 10.5220/0001696802590265

 SciTePress

Table 1: Vulnerability Detection models and Analysis techniques.

Negative

approach

Match the models of known vulnerabilities against web-based applications to

identify instances of the modeled vulnerabilities

Detection

model

Positive

approach

Use model of expected behavior of application to analyze the application

behavior to identify abnormality caused by a security violation

Static

techniques

Provide set of pre-execution techniques for predicting dynamic properties of the

analyzed program

Analysis

technique

Dynamic

techniques

Use a series of checks to detect vulnerabilities and prevent attacks at run-time

of vulnerability: cross-site scripting (XSS)

(Jovanovic, Kruegel et al. 2006), SQL Injection

(Halfond, Viegas et al. 2006; Kals, Kirda et al. 2006;

Nguyen-Tuong, Guarnieri et al. 2005). Much

research work also focused on PHP or the web

scripting language (JSP, ASP).

2.2 Web-based Vulnerability Analysis

Several tools and techniques have been developed to

analyze vulnerabilities in web-based applications.

Cova et. al. (Cova, Felmetsger et al. 2007) classify

vulnerability analysis of web-based applications

according to detection models and analysis

techniques (Table 1).

More recent research proposed vulnerability

detection methods using static analysis schemes

(Huang, Yu et al. 2004; Livshits and Lam 2005;

Minamide 2005; Jovanovic, Kruegel et al. 2006; Xie

and Aiken 2006), Ghosh et. al. based on fault

injection (Ghosh, O'Connor et al. 1998) while

Halfond et. al. (Halfond, Orso et al. 2006) and

Nguyen-Tuong et. al. (Nguyen-Tuong, Guarnieri et

al. 2005) use tainting technique. Another positive

and dynamic methodology such as penetration

testing (Hurst 2007) forces anomalous program

states during application execution to observe

application behavior and infer the forensics of

potential vulnerabilities.

Several techniques are implemented in web

application scanners (Kals, Kirda et al. 2006; Fong

and Okun 2007). Scanner output can help to assess

the security of the web application. However, no

single scanner provides a technology-independent

coverage of possible vulnerabilities. An experiment

conducted by Suto (Suto 2007) on three commercial

scanners revealed that NTOSpider scans and covers

most of the vulnerabilities while other tools

AppScan (Watchfire) missed 88% while WebInspect

(SPIDynamics) missed 95% of the legitimate

vulnerabilities found by NTOSpider.

Several automatic tools are developed: Nguyen-

Tuong et. al. (Nguyen-Tuong, Guarnieri et al. 2005)

using precise tainting over information flow. On the

other hand, Woo et. al. (Woo, Alhazmi et al. 2006)

proposed a methodology that must work with web

browsers. In [29], the authors extended the VDM

model to AML vulnerability model for web

applications. Sets of vulnerability discovery data

were examined and fitted to a vulnerability

discovery model that will be used for projection of

both current and future vulnerabilities.

2.3 Web Vulnerability Description

Although there are many vulnerability analysis and

detection tools for web-based applications, none of

them provides a complete methodology to find more

vulnerabilities (Cova, Felmetsger et al. 2007).

Testers and QA team must rely on a combination of

tools and must understand different vulnerability

description formats consequently. However, tools

usually possess overlapping functionalities, raising

costs, lowering performance, incurring data surplus

and overheads in vulnerability analysis and

detection. While there are existing vulnerability

databases such as (SecurityFocus 2007), Bugtraq

(SecurityFocus 2007) and CVE (CVE 2007) focus

on the description of known vulnerabilities, J.

Steffan and M. Schumacher (Steffan and

Schumacher 2002) suggest a graph-based

collaborative attack modeling, which provides

meaningful knowledge sharing method with more

detail vulnerability description.

OASIS recommended using web Application

Vulnerability Description Language - AVDL

(OASIS 2004) "a standard XML format that allows

entities (such as applications, organizations, or

institutes) to communicate information regarding

web application vulnerabilities”. The other two are

Web Application Security standard – WAS and

VulnXML (OASIS 2007). Among these, AVDL is

expected to become the most common descriptive

ICEIS 2008 - International Conference on Enterprise Information Systems

260

Scanner

Out

Language-neutral Data framework

Generic Data Model

Reports

Scanner

Out

Scanner

Out

Scanner

Out

Scanner

Out

…

HTML

(

)

XML

(

)

PHP

(

)

AJAX

(

)

Web

lan

(

)

Front-end

Rule-based Inference/Diagnostic

Engine

Diagnostics

Figure 1: The framework for Web application vulnerability analysis.

notation which creates a secure web environment

that automates mundane security operations.

3 NEW VULNERABILITY

ANALYSIS MODEL

3.1 Analyzing Scanner Output

Many vulnerabilities are common among different

web technologies, the rest are particular for each of

them due to language characteristics, compile

process, executing methodology. The question is

how to detect vulnerabilities with least dependence

on development technologies and programming

languages. Our approach (Le and Loh 2007) is to

develop an analysis technique that would cover

vulnerabilities over multiple web-programming

technologies. We propose an approach comprising a

combination of vulnerability scanners to generate

output and categorization with a language-neutral

data model using appropriate mining techniques for

vulnerability data analysis and rule extraction and

classification. A functional layer with a rule-based

inference engine and diagnostics capability is

needed to generate reports for the users (Figure 1).

3.2 AVDL – Unified Vulnerability

Description

AVDL, VulnXML and WAS are XML-based

standards for describing web application security

properties and vulnerabilities in uniform way. In our

research, we use AVDL (OASIS 2004; OASIS

2004) as a vulnerability description format in the

data model. The report generated by the inference

engine will also be AVDL-compliant.

Many analysis techniques rely on the

input/output schema and process flow to detect the

abnormalities which is considered as potential

signatures of vulnerability. AVDL Traversal

Structure (TS) output provides information of user-

level transaction activity (Figure 2a). This structure

describes request/response pair for the round-trip

HTTP traversal to the server and contains sufficient

descriptive data (type of request, connection

methodology, targeted host, URI, protocol version of

request data, header structure) needed for

vulnerability analysis. The detected vulnerabilities

within the web application are described using

AVDL Vulnerability Probe Structure (VPS) (Figure

2b).

3.3 Front End

Commercially available static analysis tools and

utilities, shareware and freeware (Insecure.org 2007)

will be used here for extendability. These tools

enable detection coverage of a wider web

technology spectrum or even applications that are

cooperative. Outputs of these utilities/tools will be

mined to form a language-neutral data model that

serves as the data interface to a rule-based inference

engine. The design of the data model with this

approach is sufficiently generic to support future

rule-learning in an adaptive rule-based inference

engine. Code vulnerability and data integrity rules

based on standard vulnerability descriptions would

form the core of the prototype rule-base.

REALIZING WEB APPLICATION VULNERABILITY ANALYSIS VIA AVDL

261

3.4 Inference Engine

The design will incorporate a suitable combination

of forward and/or backward chaining techniques. As

a consideration for extension to support learning is

the incorporation of a fuzzy-neuro network to update

the rules after conductance of appropriate training.

This rule-based approach has the following

advantages:

a) It will have inherently lower execution

overheads compared to a run-time

monitor that is loaded together with the

suspect/compromised program.

b) It can also flexibly handle programs based

on an arbitrary programming language

and suspected malware/compromised

application(s).

c) It avoids the need to compress large

execution control traces and the use of

pattern matching techniques.

d) More tractable approach than defining a

high-level specification language.

4 CASE STUDIES

We conducted case study with Acunetix Cross Site

Scripting scanner (Free edition) (Acunetix 2007) and

IBM Rational AppScan evaluation version

(Watchfire 2007) to test whether web application

scanners can cover the same amount of

vulnerabilities and provide equivalent outputs. Then,

we used AVDL to provide a descriptive format to

specifying the architectural views of real

vulnerabilities. Because both scanners do not

support AVDL we make use of an AVDL schema to

describe the scanner outputs and evaluate if the

AVDL formatted outputs deliver the same effective

description as the original outputs.

The case study is performed on

http://demo.testfire.net/ website (Microsoft IIS 6.0

server, APS.NET) provided by IBM Rational

AppScan evaluation version. Acunetix Free edition

can only detect Cross Site Scripting vulnerabilities

on demo website.

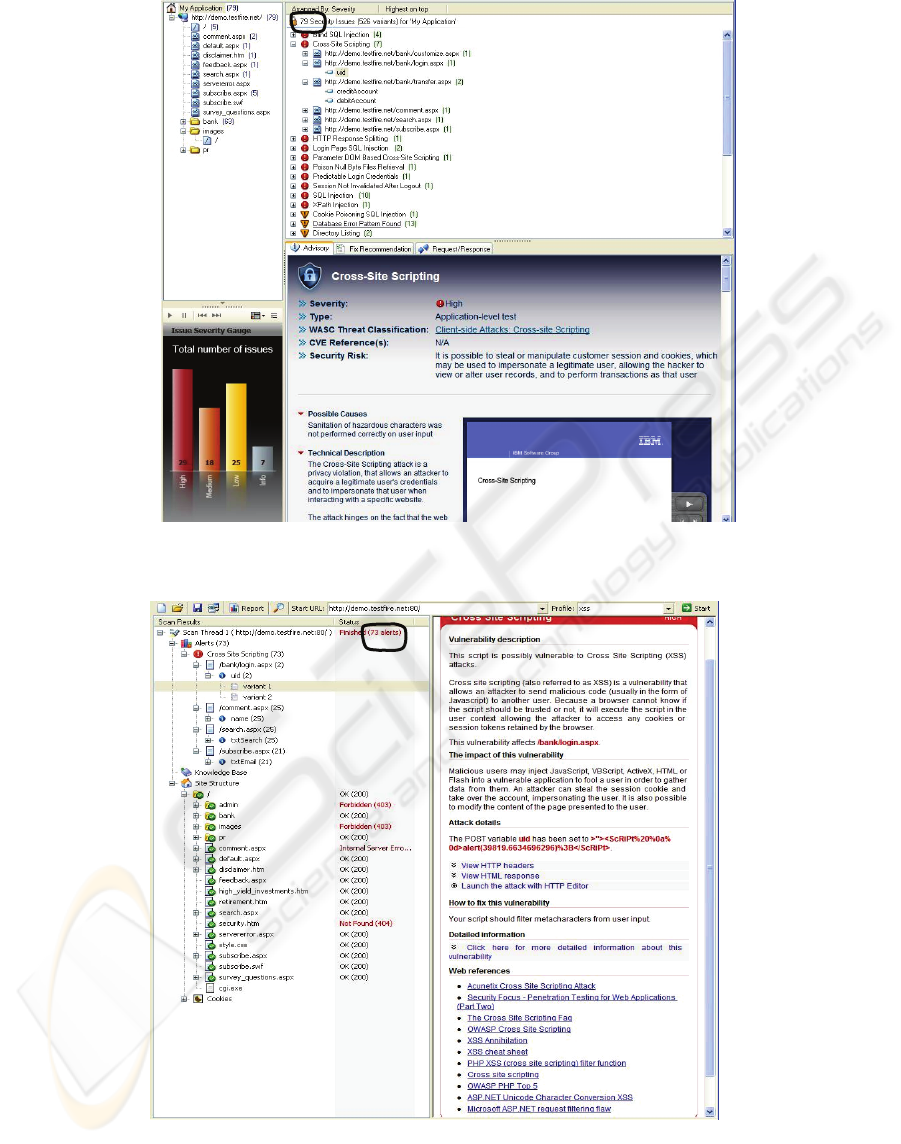

Results from test cases show that IBM Rational

AppScan detects 79 Security issues in which 7 are

XSS vulnerabilities (Figure 3 in Appendix) while

Acunetix discovered 73 XSS vulnerabilities (Figure

4 in Appendix). However, Acunetix counts the total

instance of vulnerabilities according to variants of

each exploit was tested while AppScan counts on the

vulnerable positions in file which was scanned. The

number of variants of same vulnerability is also

different in two scanners. AppScan found

vulnerabilities in more files than Acunetix did. This

result (Table 2) may indicate that different scanners

do not cover same vulnerabilities and they do not

provide complete scanning solution even within the

same application. Moreover, the vulnerability

outputs of each of the two scanners are specific to

itself and do not provide equivalent and relevant

information.

Users often have a vague idea on how to

approach a vulnerability description when

referencing the output of more than one scanner. In

this experiment, we use AVDL schema (OASIS

2003) to describe the XSS vulnerability extracted

from scanners output. First, we list all files which

contain XSS vulnerabilities. Then, we compare and

select exploit variants together with detail

description of vulnerability. The result is a generic

XSS vulnerability description of tested website.

AVDL

Session

Traversal

Request

Response

AVDL

Session

Vulnerability probe

uest

Res

onse

ulnerability

Description

Summary

Classification

Target

Test Script

Remediation

(a)

(b)

Figure 2: AVDL: (a) Traversal structure and (b) Vulnerability Probe structure.

ICEIS 2008 - International Conference on Enterprise Information Systems

262

Table 2: XSS vulnerabilities detected.

Vulnerable files Variants # vulnerabilities

Acunetix 4 73 73

AppScan 6 76 7

During the case study, we discovered that the use of

AVDL is highly effective in making the concept of

vulnerability concrete and tangible. With the aid of

AVDL, web application vulnerability is no longer an

abstract, overlapping and error-prone idea but a

tangible object of modeling and analytical

specification process.

5 CONCLUSIONS

Web applications having become popular, wide

spread and rapidly proliferated raises many security

issues and exacerbates the demand for practical

solutions. Manual security solutions targeted at these

vulnerabilities are language-dependent, type-

specific, labor-intensive, expensive and error-prone.

In this paper, we have evaluated the use of a

language-neutral data model as part of a new

framework for web application vulnerability

analysis. Our framework is extendible being based

on existing web application scanners and AVDL as a

uniform vulnerability description format.

At the current stage, we conduct case studies

with different web application scanners and

evaluating their outputs using AVDL. We continue

with the unified data model as a data interface for

the rule-based inference engine which incorporates

vulnerability analysis and prediction capability. In

due course, we hope to provide a commercializable

tool to web site administrators and web developers

to actively secure their applications.

ACKNOWLEDGEMENTS

This work is funded by Centre for Strategic

Infocomm Technologies, Ministry of Defence

Singapore.

REFERENCES

Acunetix. (2007). "Acunetix Cross Site Scripting

Scanner." from http://www.acunetix.com/cross-site-

scripting/scanner.htm.

Bazaz, A. and J. D. Arthur (2007). Towards A Taxonomy

of Vulnerabilities. Proceedings of the 40th Annual

Hawaii International Conference on System Sciences,

2007. HICSS 2007. Waikoloa, HI: 163a - 163a.

Berghe, C. V., J. Riordan, et al. (2005). A Vulnerability

Taxonomy Methodology applied to Web Services.

Bishop, M. (1999). Vulnerabilities Analysis. Web

proceedings of the 2nd International Workshop on

Recent Advances in Intrusion Detection (RAID'99),

West Lafayette, Indiana, USA.

Cova, M., V. Felmetsger, et al. (2007). Vulnerability

Analysis of Web-based Applications. Test and

Analysis of Web Services, Springer Berlin Heidelberg:

363-394.

CVE. (2007). "CVE - Common Vulnerabilities and

Exposures (CVE)." from http://cve.mitre.org/.

Dowd, M., J. McDonald, et al. (2006). Chapter

1,2,3,4,8,13,17,18. The Art of Software Security

Assessment: Identifying and Preventing Software

Vulnerabilities, Addison Wesley Professional.

Fong, E. and V. Okun (2007). Web Application Scanners:

Definitions and Functions. Proceedings of the 40th

Annual Hawaii International Conference on System

Sciences, 2007. HICSS'07, Waikoloa, HI, IEEE.

Ghosh, A. K., T. O'Connor, et al. (1998). An Automated

Approach for Identifying Potential Vulnerabilities in

Software. Proceeding of the 1998 IEEE Symposium on

Security and Privacy: 0104.

Grossman, J. (2007). WhiteHat Website Security Statistics

Report, WhiteHat Security.

Halfond, W. G. J., A. Orso, et al. (2006). Using positive

tainting and syntax-aware evaluation to counter SQL

injection attacks. Proceedings of the 14th ACM

SIGSOFT international symposium on Foundations of

software engineering SIGSOFT '06/FSE-14 Portland,

Oregon, USA, ACM Press: 175-185.

Halfond, W. G. J., J. Viegas, et al. (2006). A Classification

of SQL Injection Attacks and Countermeasures.

Proceedings of the IEEE International Symposium on

Secure Software Engineering (ISSSE 2006) Arlington,

VA, USA.

Huang, Y.-W., S.-K. Huang, et al. (2003). Web

application security assessment by fault injection and

behavior monitoring. Proceedings of the 12th

international conference on World Wide Web.

Budapest, Hungary, ACM Press: 148-159.

Huang, Y.-W., F. Yu, et al. (2004). Securing web

application code by static analysis and runtime

protection. Proceedings of the 13th international

conference on World Wide Web. New York, NY,

USA, ACM Press: 40-52.

Hurst, D. (2007, 09 Feb 2007). "Asking the Right

Question: Penetration Testing vs. Vulnerability

Analysis Tools, Which Is Best?" from http://

www.infosecwriters.com/texts.php?op=display&id=537.

IBM (2007). Cyber Attacks On The Rise: IBM 2007

Midyear Report, IBM Corporation. IBM Internet

Security Systems™ X-Force® Research and

Development.

Insecure.org. (2007). "Top 10 Web Vulnerability

Scanners." Retrieved September, 2007, from http://

sectools.org/web-scanners.html.

REALIZING WEB APPLICATION VULNERABILITY ANALYSIS VIA AVDL

263

Jovanovic, N., C. Kruegel, et al. (2006). Pixy: A Static

Analysis Tool for Detecting Web Application

Vulnerabilities (Short paper). Proceedings of the 2006

IEEE Symposium on Security and Privacy (S&P'06):

258-263.

Kals, S., E. Kirda, et al. (2006). SecuBat: A Web

Vulnerability Scanner. Proceedings of the 15th

international conference on World Wide Web (WWW

2006). Edinburgh, Scotland: 247 - 256.

Le, H. T. and P. K. K. Loh (2007). Unified Approach to

Vulnerability Analysis of Web Applications. The

International e-Conference on Computer Science 2007

(IeCCS 2007). T. E. Simos.

Livshits, B. and M. S. Lam (2005). Finding Security

Vulnerabilities in Java Applications with Static

Analysis. USENIX Security Symposium: 16.

Minamide, Y. (2005). Static approximation of

dynamically generated Web pages. Proceedings of the

14th International World Wide Web Conference.

Chiba, Japan ACM Press: 432 - 441.

Nguyen-Tuong, A., S. Guarnieri, et al. (2005).

Automatically Hardening Web Applications Using

Precise Tainting. Proceedings of the 20th IFIP

International Information Security Conference.

Makuhari-Messe, Chiba, Japan.

NT Objectives, I. (2007). "NTOSpider." Retrieved

October, 2007, from http://www.ntobjectives.com/

products/ntospider.php.

OASIS. (2003). "AVDL XML Schema." Retrieved

December, 2007, from http://www.oasis-

open.org/committees/download.php/5065/avdl.xsd.

OASIS (2004). Application Vulnerabilty Decription

Language v1.0.

OASIS (2004). Technical Overview of the Application

Vulnerability Description Language (AVDL) V1.0.

Version 1.0, 22 March 2004, OASIS Open.

OASIS. (2007). "Application Security Standards."

Retrieved November, 2007, from http://

xml.coverpages.org/appSecurity.html.

OASIS. (2007). "OASIS homepage." Retrieved 18

November 2007, from http://www.oasis-

open.org/home/index.php.

Raina, K. (2004). "Trends in Web Application Security."

Retrieved September, from http://

www.securityfocus.com/print/infocus/1809.

SecurityFocus. (2007). "Bugtraq Mailing list." Retrieved

31/10/2007, from http://www.securityfocus.com/archive/1.

SecurityFocus. (2007). "Vulnerabilities list." Retrieved

31/10/2007, from http://www.securityfocus.com/

vulnerabilities.

Siddharth, S. and P. Doshi. (2006, 1/11/2007). "Five

common Web application vulnerabilities." Retrieved

1/11/2007, from http://www.securityfocus.com/infocus/

1864.

SPIDynamics. (2007). "WebInspect." Retrieved

September, from http://www.spidynamics.com/

products/webinspect/.

Stamp, M. (2006). Information Security: Principles and

Practice, John Wiley & Sons.

Steffan, J. and M. Schumacher (2002). Collaborative

attack modeling. Proceedings of the 2002 ACM

symposium on Applied computing SAC 2002. Madrid,

Spain ACM: 253-259.

Suto, L. (2007, October, 2007). "Analyzing the

Effectiveness and Coverage of Web Application

Security Scanners." from http://ha.ckers.org/

blog/20071014/web-application-scanning-depth-statistics/.

Watchfire. (2007). "AppScan." Retrieved September 2007,

from http://www.watchfire.com/.

Woo, S.-W., O. H. Alhazmi, et al. (2006). An Analysis Of

The Vulnerability Disovery Process In Web Browsers.

10th IASTED International Conference SOFTWARE

ENGINEERING AND APPLICATIONS, Dallas, TX,

USA.

Xie, Y. and A. Aiken (2006). Static Detection of Security

Vulnerabilities in Scripting Languages. Proceedings of

the 15th USENIX Security Symposium (USENIX'06).

Vancouver, B.C., Canada: 179–192.

APPENDIX

Figure 3 and figure 4 are listed in this section due to

their over size.

ICEIS 2008 - International Conference on Enterprise Information Systems

264

Figure 3: AppScan result screen shot.

Figure 4: Acunetix Cross Site Scripting results screen shot.

REALIZING WEB APPLICATION VULNERABILITY ANALYSIS VIA AVDL

265
