PROTOCOL MODELS OF HUMAN-COMPUTER INTERACTION

Ashley McNeile, Ella Roubtsova and Gerrit van der Veer

Metamaxim Ltd, UK and Open University of the Netherlands, The Netherlands

Keywords:

Human-computer interaction, Protocol Models, separation of concerns, CSP composition, local reasoning.

Abstract:

Current approaches to modeling human-computer interaction do not always succeed in producing behaviorally

complete models of manageable size and complexity. We argue that the reason for this lies in lack of sup-

port for parallel composition of partial behavioral descriptions, and propose the recently developed Protocol

Modeling approach as a superior alternative. The semantics of Protocol Modeling support separation and

composition of concerns in models of human-computer interaction, and the production of executable models

to explore and reﬁne the desired behavior. Protocol Modeling supports a crucial property sought in modeling

methods if it is to scale to complex problems, namely the ability to reason about the modeled behavior of the

whole based on examination only of a part (sometimes called ”modular” or ”local” reasoning).

1 INTRODUCTION

Human Computer Interaction (HCI), perhaps more

than any other aspect of a system, calls for the need

to be able to capture complex behavior. A user in-

terface may have multiple simultaneous states associ-

ated with different concurrent aspects of a user’s task.

This is the kind of situation which, if modeled in an

inappropriate way, can lead to high complexity driven

by combinatorial explosion, with the result that model

becomes intellectually unmanageable when applied to

a large problem.

Modeling approaches commonly used to model

HCI behavior fail to handle complexity well because

they use an unsatisfactory approach to decomposition

of a large problem into smaller, simpler parts. For

instance two widely promoted approaches, User Vir-

tual Machine (UVM) (M.Tauber, 1988; A. Dix, G.

Abowd, R. Bealle, J. Finlaj, 1998; D. Hix, H. Hartson,

1998; S. Payne, T. Green, 2000) and Coloured Petri

Nets (P. Palanque, R. Bastide, L. Dourte, C. Sibertin-

Blanc, 1993), support two basic methods of combin-

ing parts and hence to restructure a large model into

parts: linear merging and hierarchical structuring.

The ﬁrst of these means concatenation of sub-models

such that some output states of one model become the

input states of another model. The second means re-

placing a node of a model by a sub-model which has

its own structure, a technique that can be applied re-

cursively to create a hierarchy of models.

While both of these techniques allow a problem

to be broken up, both result in parts that can only be

understood by reference to the rest of the model and

how all the parts work together. Moreover, neither

addresses the issue of multiple simultaneous states as-

sociated with different concurrent aspects of a user’s

task that is a common feature of HCI requirements,

for which a parallel (rather than linear or hierarchi-

cal) composition technique is essential. As a result

decomposition in these approaches does not gener-

ally support maintenance of intellectual control over

a model as complexity grows.

Our thesis is that the right way to achieve scalabil-

ity is through parallel composition of partial behav-

ioral descriptions in such a way that the parts can be

reasoned about independently of each other. In this

paper we examine the ability of the Protocol Model-

ing (PM) approach (A. McNeile, N. Simons, 2006) to

support this paradigm. Although the domain of HCI

is a novel application area for Protocol Modeling, it

appears well suited to it. This paper is structured as

follows:

• Section 2 presents a case study and shows it as

both a conventional HCI model and a PM model.

• Section 3 explains and illustrates the semantics of

the PM approach using the case study.

• Section 4 concludes the paper by showing the role

of the PM approach in HCI design.

367

McNeile A., Roubtsova E. and van der Veer G. (2008).

PROTOCOL MODELS OF HUMAN-COMPUTER INTERACTION.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - HCI, pages 367-370

DOI: 10.5220/0001701503670370

 SciTePress

2 CASE STUDY

We illustrate the UVM approach by modeling the

HCI of the search subsystem of the information

system BaMaS (BaMaS, 2007). BaMas collects

and provides information about links and bridge

programmes between Bachelor and Master degree

programmes in the Netherlands. After ﬁnishing a

Bachelor Programme at one university a student can

continue with a Masters Programme at the same or

another university, provided that his/her Bachelor

Programme is a recognized qualiﬁcation for the

chosen Masters degree. A user of the BaMaS system

can choose an Institution (University) and a Bachelor

Programme and investigate which programmes this

Bachelor degree qualiﬁes him or her to pursue. Alter-

natively, a user can choose an Institution or a Masters

Programme and ﬁnd which Bachelor Programmes

meet the requirements for admission into this Masters

Programme, with or without a bridge program.

UVM of Search in BaMaS. The UVM HCI

model of the search subsystem is shown in Figure 1.

• The states are depicted as ellipses. For example,

state AllB, AllM indicates that no selection of an

institute has been made by the user. State IB, AllM

means that an Institution for Bachelor has been

chosen.

• A transition is represented by an arc labelled by

the events that cause the transition. For exam-

ple, the transition from AllB, AllM to IB, AllM is

caused by event Select IB.

The human-computer interaction is modeled as a

whole, so the interaction during the selection of

an institute cannot be separated from the search of

information about the links and bridge programs

between Bachelor and Master courses. If the UVM

needs to be extended and redrawn, states and arcs

can be added but there is no guarantee that the

functionality of the initial UVM is preserved. Af-

ter extension or change the model must be fully

regression tested, and it is notoriously difﬁcult to

ensure that it has not been ”broken” by a modiﬁcation.

Protocol Model of Search in BaMaS. In order

to show the difference of UVM and PM models we

show the Protocol Model of the search functionality

in BaMaS without explanation of semantic details,

which are covered in the next section. The PM model

comprises (Figure 2) four small protocol machines:

• Machine Selection for Bachelor represents the

human-computer protocol for selection of an in-

stitute and a programme for a Bachelor pro-

gramme.

Select IM

Select PB

De-select PB

AllB

AllM

Select IM

De-select IM

AllM

Select IB

Select IB,

De-select IB

IBPB

AllM

AllB

IMPM

Select PM

De-select PM

Select PM,

De-select PM

Select PM,

De-select PM

Select IB,

De-select IB

Select PB,

De-select PB

Select BP,

De-select BP

Select IM,

De-select IM

Select IB,

Select PB

Select IB,

Select IM,

Select IB,

Select IM,

Select PM

Select IB,

Select PB,

Select IM,

Select PM

Select IB,

Select IM,

Select PM

Institution display screen

Show IM

Show IB

Show IB,

Show IM

Select IM,

Select PM

Show IB,

Show IM

[ Links exist ] Show Links

Dashed arcs are labeled by De-selectIB, De-selectIM

Open UI

Programme display screen

Select PB,

Select PM

Show PM

Show PB.

Show IB,

Show IM.

Show PB,

Show PM

Link display screen

Show PB

Select IM

De-select IM

Select IB,

De-select IB

Show IB,

Show IM

IBPB

IMPM

Show IB

IBPB

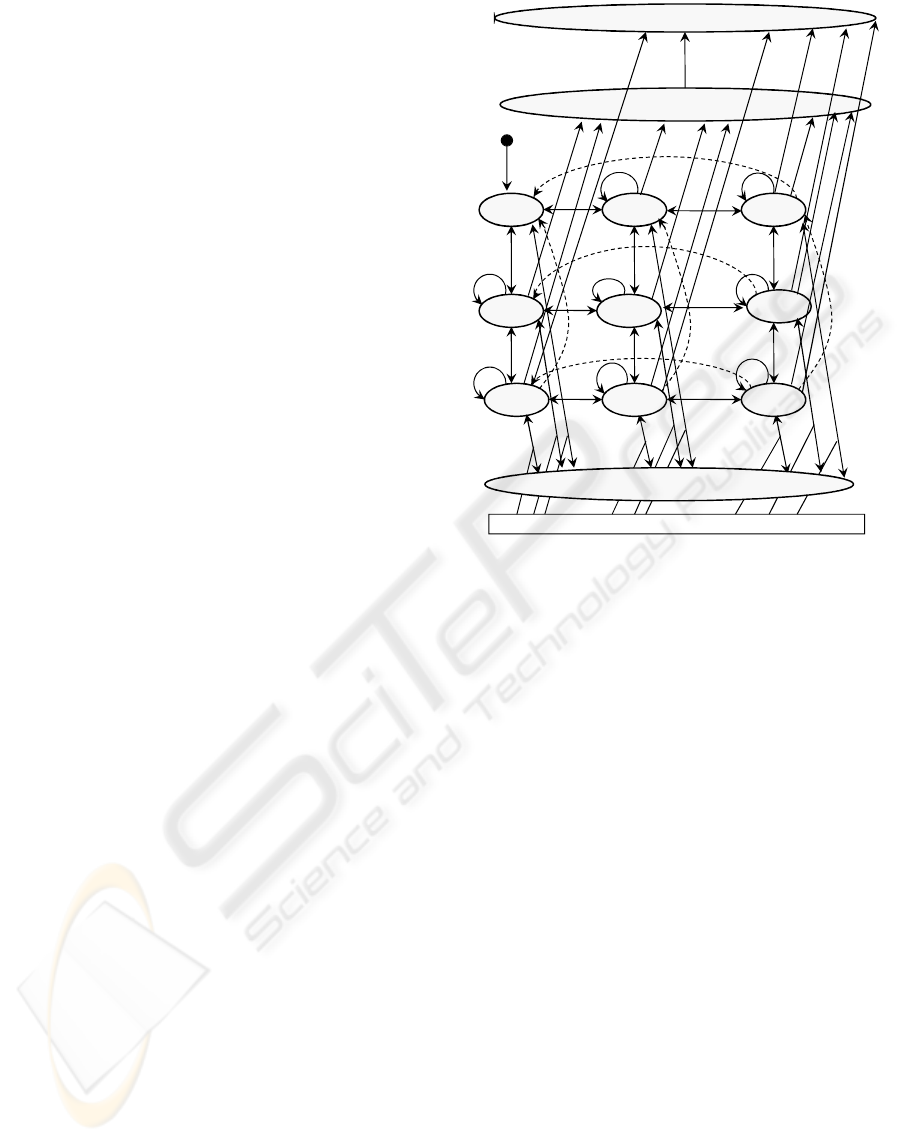

Figure 1: UVM model of the search in BaMaS.

• Machine Selection for Master similarly handles

the selection steps for a Masters programme.

• Machine Display Screens presents the screens that

can be seen: the choice screen, the screen about

the chosen Institution, the screen about the cho-

sen programme and the screen presenting links

between programmes.

• Machine Link Display presents the two possible

consequences of the choices of programmes: ”No

links” between programmes and ”Links exist”.

The composition of those protocol machines, as ex-

plained in the next section, models all the functional-

ity of the search subsystem.

3 PROTOCOL MACHINES

This section provides a brief summary of the seman-

tics of Protocol Modeling. A fuller description is

given in (A. McNeile, N. Simons, 2006).

Events. An ”event” in PM (more properly ”event

instance”) is the data representation of an occurrence

in the environment as a set of data attributes. Every

event is an instance of an event type, and the type of

an event determines its metadata or attribute schema.

ICEIS 2008 - International Conference on Enterprise Information Systems

368

Both IB and PB

unselected

IB selected

PB unselected

Open UI

Selection for Bachelor

IB selected

PB selected

Select IB

De-select IB

Select PB

De-select PB

Select PB

Select IB

De-select IB

Display Screens

Select PM

Show IB,

Show Links

Show PB,

Show Links

Show IB

Show IM

Open UI

Link

Display

Screen

Programme

Display

Screen

Show PB,

Show PM

Both IM and PM

unselected

IM selected

PM unselected

Open UI

Selection for Master

IM selected

PM selected

Select IM

De-select IM

Select PM

De-select PM

Select IM

De-select IM

Show IM,

Show Links

Show PM,

Show Links

Select PB

Select PM,

Link Display

No links

Show Links

Select from LINK table where

(Bachelor Institution = ((if one is selected “selected IB” else “All” )

and

Master Institution = (if one is selected “selected IM” else “All”)

and

Bachelor Programme =(if one is selected “selected PB” else “All” )

and

Master Programme =(if one is selected “selected PM” else “All”));

if (size of select table = 0)

return "No Links";

else return "Links Exist";

Choice

Screen

Institution

Display

Screen

Links

exist

State Function:

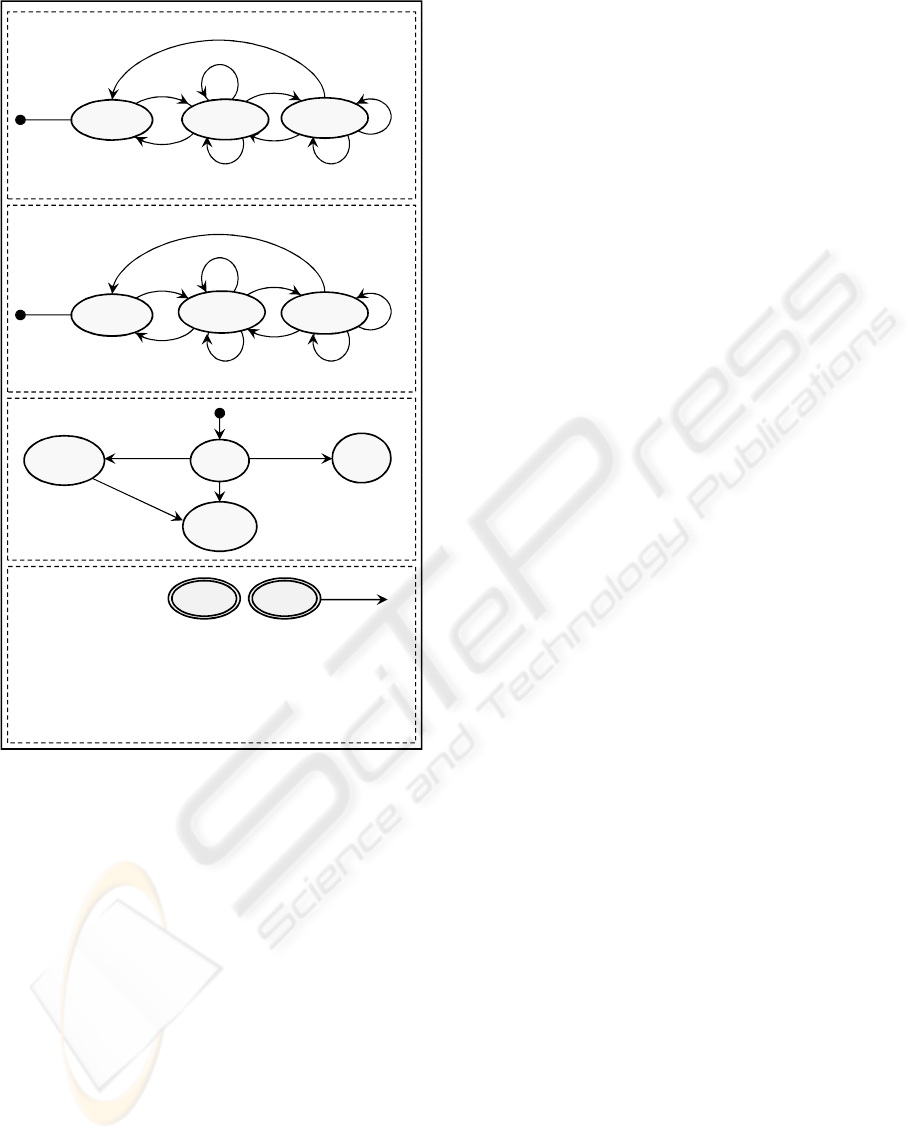

Figure 2: PM model of the search in BaMaS.

An attribute schema is being the set of data attributes

that completely deﬁne an instance of the event type.

A protocol machine has an ”alphabet” of event types

that it understands. For example, machine Selection

for Bachelor understands events {Open UI, Select

IB, Select PB, Show PB, Show Links, De-select PB,

De-select IB}

States and Variables. Between handling events, a

protocol machine rests in a well deﬁned quiescent

state, meaning that it can undergo no further change

of state unless and until presented with a new event.

A machine may only be presented with a new event

when in such a state.

A state of Protocol Machine is speciﬁed by its

name and by values of local variables. A protocol

machine can remember information from events

in local variables. For example, protocol machine

Selection for Bachelor has local variables presenting

the chosen institution IB and the chosen programme

PB. Protocol machines can read values of local

variables of other composed protocol machines, but

cannot change them.

Behavior of a PM. When a protocol machine is

presented with an event it will either ignore it, accept

it or refuse it as follows:

• When a machine is presented with an event that

is not represented in its alphabet, the machine

ignores it.

• When presented with an event that is represented

in its alphabet, it will either accept it or refuse it.

• Acceptance or refusal of an event by the machine

is determined by rules that the machine evaluates

based on the values of its accessible storage.

Note that ”refusal” means that the machine is unable

to handle the event at all, and this normally means

that some kind of error message is generated back

to the environment. How or where such an error is

generated is not of concern for modeling purposes.

Composition. Composing two protocol machines

yields another protocol machine. The alphabet of the

composed machines is the union of the alphabets of

the constituent machines; and the local storage of the

composed machine is the union of the local storages

of the constituent machines. The rules for whether

the composed machine accepts, refuses or ignores a

presented event are:

• If both constituent machines ignore the event, the

composed machine ignores it;

• If either constituent machine refuses the event, the

composed machine refuses it;

• Otherwise the composed machine accepts the

event.

These rules correspond to the parallel composition

operator (P k Q) of Hoare’s process algebra, Com-

municating Sequential Processes (C. Hoare, 1985).

The deﬁnition of a PM does not require that its

state is stored, and so it is possible to have the state

of a PM returned by a function (called the machine’s

State Function). This is exactly analogous to a

derived or calculated attribute, where the attribute’s

value is calculated on-the-ﬂy when it is required.

Derived states are represented diagrammatically

by a double outline around the state. The protocol

machine Link Display (Figure 2) has derived states:

No links and Links exist. Protocol machines with

derived states take part in composition exactly like

machines with stored states. Applying the compo-

sition rules, event Show Links is accepted iff it is

PROTOCOL MODELS OF HUMAN-COMPUTER INTERACTION

369

accepted by all machines: Display Screens, Link

Display, Selection for Bachelor and Selection for

Master. If, for example, machine Link Display is in

the derived state No links, the event Show Link is

refused (not possible).

Local Reasoning in Protocol Models. An im-

portant property of CSP composition is that it

guarantees the ability to reason about the behavior

of the whole (the result of composition) based on

examination of the parts in isolation. This property

is known as local (or modular) reasoning and is

based on the fact that CSP composition ensures Ob-

servational Consistency (J. Ebert, G. Engels, 1994)

between a composite machine and its constituents.

Formally: If we take a sequence, S, of events that

is accepted by the composition (M

k M

), then the

subsequence, S

′

, of S obtained by removing all events

in S that are not in the alphabet of M

would be

accepted by the machine M

by itself. In other words,

composing another machine with M

cannot ”break

its trace behavior”. For our BaMaS example the local

reasoning means that, based on examination Selec-

tion for Bachelor alone, we can determine that the

sequence hOpenUI, SelectPB, SelectIM, SelectPMi

is not a possible sequence for Selection for Bache-

lorkSelection for Master, as hOpenUI, SelectPBi is

not a trace of Selection for Bachelor.

Local reasoning of this kind is an important in fa-

cilitating separate modeling of the parts of a software

system, and in retaining intellectual control overcom-

plexity as the model grows. This property of CSP

composition was established by Hoare in his work on

CSP (C. Hoare, 1985). However, Hoare did not con-

sider events with data or machines with derived states,

as are used by Protocol Machines. The full proof of

support for local reasoning for Protocol Machines can

be found in (A. McNeile, E. Roubtsova, 2008).

4 CONCLUSIONS

The Protocol Modeling approach makes it possible

make separate representations of parallel concerns

within an HCI model and use CSP for composition

of the parts. The use of CSP composition ensures

that the behavior of the PM component models is pre-

served in the result.

HCI models built using the PM approach are di-

rectly executable using a suitable tool. The key fea-

tures of such a tool are support for automatic com-

position of PMs, according to the CSP composition

rules. Protocol Modeling support is implemented in

the ModelScope tool (Metamaxim, 2006).

ACKNOWLEDGEMENTS

We thank Ad Slootmaker (Educational Technology

Expertise Center) and Evert van de Vrie (OU) for

sharing information about BaMaS.

REFERENCES

A. Dix, G. Abowd, R. Bealle, J. Finlaj (1998). Human-

computer interaction. Prentice Hall Europe.

A. McNeile, E. Roubtsova (2008). CSP parallel composi-

tion of aspect models. To appear in the Proceedings of

the 12th International Workshop on Aspect-Oriented

Modelling, AOM 2008, Brussels, ACM DL.

A. McNeile, N. Simons (2006). Protocol Modelling.

A modelling approach that supports reusable behav-

ioural abstractions. Software and System Modeling,

5(1):91–107.

BaMaS (2007). BaMaS. http://www.bamas.nl.

C. Hoare (1985). Communicating Sequential Processes.

Prentice-Hall International.

D. Hix, H. Hartson (1998). Developing User Interfaces:

Ensuring Usability Through Product & Process. John

Wiley & Sons Inc.

J. Ebert, G. Engels (1994). Dynamic models and Behav-

ioural Views. LNCS 858.

Metamaxim (2006). http://www.metamaxim.com/.

M.Tauber (1988). On Mental Models and the User Inter-

face. G. Van der Veer et al. ed. ”Working with Com-

puters: Theory Versus Outcome”.

P. Palanque, R. Bastide, L. Dourte, C. Sibertin-Blanc

(1993). Design of User-Driven Interfaces Using Petri

Nets and Objects. LNCS 685.

S. Payne, T. Green (2000). Usability Patterns for Applica-

tions on the World Wide Web. In D. Diaper ed. ”Task

Analysis for Human-Computer Interaction, Ellis Hor-

wood, Cambridge MA”.

ICEIS 2008 - International Conference on Enterprise Information Systems

370
