BAYESIAN-NETWORKS-BASED MISUSE AND ANOMALY

PREVENTION SYSTEM

Pablo Garcia Bringas, Yoseba K. Penya

University of Deusto, Faculty of Engineering - ESIDE, 48007 Bilbao, Bizkaia, Spain

Stefano Paraboschi, Paolo Salvaneschi

University of Bergamo, Faculty of Engineering, 24044 Dalmine, Bergamo, Italy

Keywords: Intrusion Detection, Intrusion Prevention, Misuse Detection, Anomaly Detection, Data Mining, Machine

Learning, Bayesian Networks.

Abstract: Network Intrusion Detection Systems (NIDS) aim at preventing network attacks and unauthorised remote

use of computers. More accurately, depending on the kind of attack it targets, an NIDS can be oriented to

detect misuses (by defining all possible attacks) or anomalies (by modelling legitimate behaviour and

detecting those that do not fit on that model). Still, since their problem knowledge is restricted to possible

attacks, misuse detection fails to notice anomalies and vice versa. Against this, we present here ESIDE-

Depian, the first unified misuse and anomaly prevention system based on Bayesian Networks to analyse

completely network packets, and the strategy to create a consistent knowledge model that integrates misuse

and anomaly-based knowledge. Finally, we evaluate ESIDE-Depian against well-known and new attacks

showing how it outperforms a well-established industrial NIDS.

1 INTRODUCTION

The Internet System Consortium estimates that,

nowadays, more than 489 million computers are

connected to the biggest network in the world

(Internet System Consortium, 2007). Being part of

such a vast community brings amazing possibilities

but also worrying dangers. Against this record-

breaking growth (the same survey in July 2000

yielded only 93 million computers) traditional

passive measures for isolation and access control

have been proved inadequate to dam the current

flood of digital attacks and intrusion attempts.

In this way, the area of Computer Security and,

more accurately, Network Intrusion Detection

Systems (NIDS) have been lately subject of

increasing interest and research as suited answer

against the mentioned threat. Specifically, a NIDS is

a software in charge of distinguishing among

legitimate and malicious network users. Moreover,

due to the rising complexity and volume of the

attacks, NIDS are performed in an automated

manner, so the NIDS software monitors system

usage to identify behaviour breaking the security

policy.

Based on their scope, NIDS can be divided into

misuse or anomaly detectors. Initially, NIDS where

conceived as misuse detectors. This is, they had a

well-defined set of malicious behaviours and they

just supervised the system to find those. Misuse

Detection Systems are commonly characterized by a

high accuracy in their decisions, as well as by an

excellent throughput, since they are very good at

detecting well-known attacks. Nevertheless, they

also present an important flaw because they are not

able to response against unknown attacks and,

further, they require that an operator specifies the

expert knowledge. In order to overcome this

shortcoming, another strategy, known as anomaly

detection, has been developed during the last decade.

Anomaly Detection Systems model legitimate

system usage in order to obtain afterwards a

certainty measure of potential deviations from that

normal profile. Each deviation that is found

significant enough will be worth of being considered

anomalous and notified to a human operator. This

alarm can be analysed manually or processed

Garcia Bringas P., K. Penya Y., Paraboschi S. and Salvaneschi P. (2008).

BAYESIAN-NETWORKS-BASED MISUSE AND ANOMALY PREVENTION SYSTEM.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 62-69

DOI: 10.5220/0001702300620069

 SciTePress

automatically either to filter intruder actions (in line

with Intrusion Prevention paradigm), reconfigure the

environment or collect audit information. Anomaly

Detection Systems, however, cannot compete with

Misuse Detection ones when it comes to detect well-

known attacks; therefore, each approach fails when

it comes to the other’s area of expertise.

Now, several paradigms have been used to

develop diverse NIDS approaches (a detailed

analysis of related work in this area can be found for

instance in (Kabiri and Ghorbani, 2005)): Expert

Systems (Alipio et al., 2003), Finite Automatons

(Vigna et al., 2000), Rule Induction Systems

(Kantzavelou and Katsikas, 1997), Neural Networks

(Mukkamala et al., 2005), Intent Specification

Languages (Doyle et al., 2001), Genetic Algorithms

(Kim et al., 2005), Fuzzy Logic (Chavan et al.,

2004) Support Vector Machines (Mukkamala et al.,

2005), Intelligent Agent Systems (Helmer et al.,

2003) or Data-Mining-based approaches (Lazarevic

et al., 2003). Still, none of them tries to combine

anomaly and misuse detection and, fail when applied

to either well-known or zero-day attacks. There is

one exception in (Valdes and Skinner, 2000), but the

analysis of network packets is too superficial (only

headers) to yield any good results in real life.

Moreover, few proposed models such as (Singhal

and Jajodia, 2006; Brugger, 2004) add historical data

neither for analysis nor for sequential adaptation of

the knowledge representations models used for

detection, so this information about the essence and

the potential trends of the target system is not

commonly considered, so as to, e.g., obtain a

baseline profile of normal behaviour.

Against this background, this paper advances the

state of the art in two main ways. First, we present

ESIDE-Depian (Intelligent Security Environment for

Detection and Prevention of Network Intrusions),

the first inherently unified Misuse and Anomaly

Detector that analyses the whole network packet.

Second, we detail a new methodology and

knowledge representation model that allow the

adaptive reasoning engine of ESIDE-Depian infer

conclusions considering both Misuse and Anomaly

Detection characteristic knowledge in an unified and

homogeneous way.

The remainder of the paper is structured as

follows. Section 2 describes the general architecture

of ESIDE-Depian, including the creation process of

the knowledge model for each kind of Bayesian

Experts used for Misuse Detection and the

integration of all verdicts in one Naive Bayesian

Network to assure a coherent outcome. Section 3

presents the experiments carried out to evaluate

ESIDE-Depian with real network traffic. Finally,

Section 4 concludes and outlines the future work.

2 ARCHITECTURE AND

APPROACH

The internal design of ESIDE-Depian is principally

determined by its dual nature. Being both a misuse

and anomaly detection system requires answering to

sometimes clashing needs and demands. This is, it

must be able to simultaneously offer efficient

response against both well-known and zero-day

attacks. In order to ease the way to this goal, ESIDE-

Depian has been conceived and deployed in a

modular way that allows decomposing of the

problem into several smaller units. Thereby, Snort (a

rule-based state of the art Misuse Detection System

(Roesch, 1999)), has been integrated to improve the

training procedure to increase the accuracy of

ESIDE-Depian. Following a strategy proven

successful in this area (Alipio et al., 2003), the

reasoning engine we present here is composed of a

number of Bayesian experts working over a common

knowledge model.

The Bayesian experts must cover all possible

areas where a menace may rise. In this way, there

are 5 Bayesian experts in ESIDE-Depian, as follows:

3 of them deal with packet headers of TCP, UDP,

ICMP and IP network protocols, the so-called TCP-

IP, UDP-IP and ICMP-IP expert modules. A further

one, the Connection Tracking Expert, analyses

potential temporal dependencies between TCP

network events and, finally, the Protocol Payload

Expert in charge of the packet payload analysis. In

order to obtain the knowledge model, each expert

carries out separately a Snort-driven supervised

learning process on its expertise area. Therefore, the

final knowledge model is the sum of the individual

ones obtained by each expert. Fig. 1 shows the

general ESIDE-Depian architecture.

The rest of this section is devoted to detail the

creation and up-dating of the knowledge model for

each kind of Bayesian expert (including the exact

role of Snort in this process) and the way ESIDE-

Depian converges all experts’ verdicts.

2.1 ESIDE-Depian Knowledge Model

Generation Process

The obtaining of the knowledge model in an

automated manner can be achieved in an

unsupervised or supervised way.

BAYESIAN-NETWORKS-BASED MISUSE AND ANOMALY PREVENTION SYSTEM

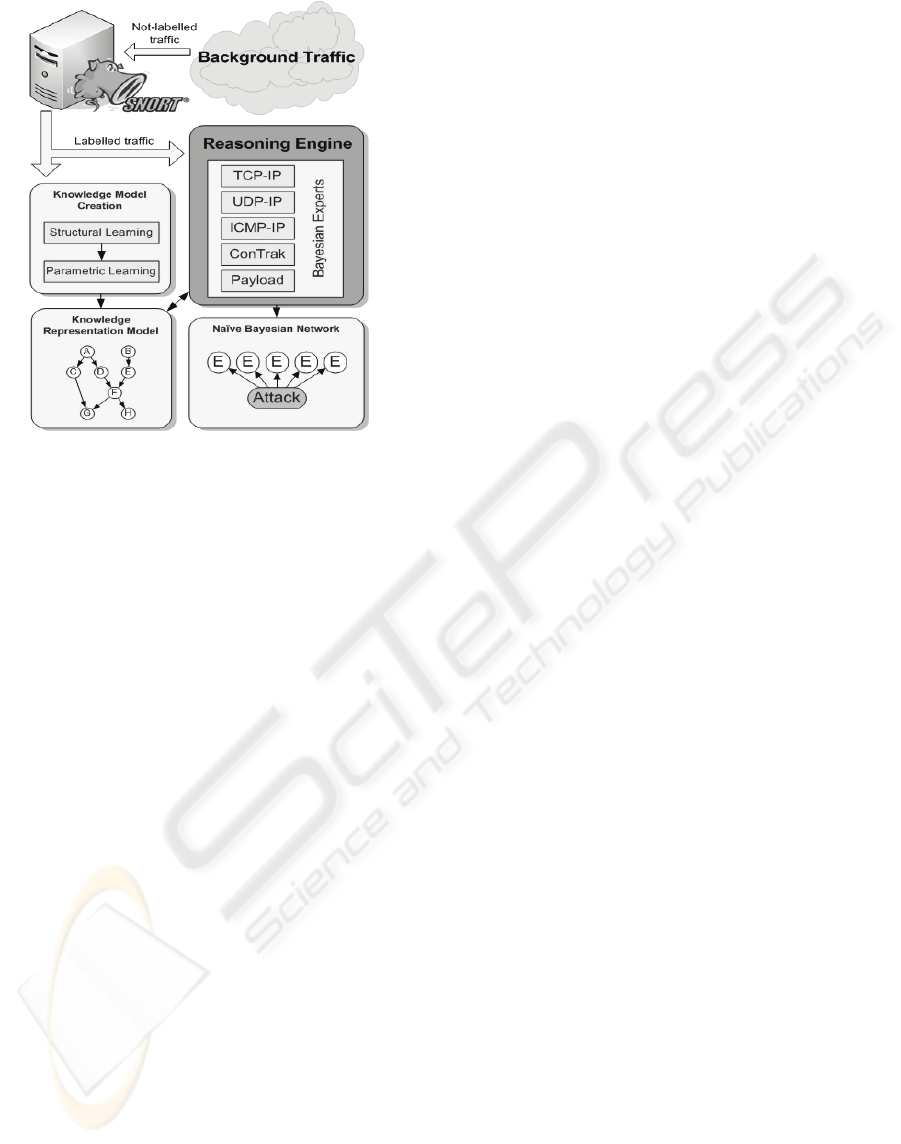

Figure 1: ESIDE-Depian General Architecture.

Typically, unsupervised learning approaches

don’t have into consideration expert knowledge

about well-known attacks. They achieve their own

decisions based on several mathematical

representations of distance between observations

from the target system, revealing themselves as ideal

for performing Anomaly Detection. On the other

hand, supervised learning models do use expert

knowledge in their making of decisions, in the line

of Misuse Detection paradigm, but usually present

high-cost administrative requirements. Thus, both

approaches present important advantages and several

shortcomings. Being both ESIDE-Depian, it is

necessary to set a balanced solution that enables to

manage in an uniform way both kinds of knowledge.

Therefore, ESIDE-Depian uses not only Snort

information gathering capabilities, but also Snort’s

decision-based labelling of network traffic. Thereby,

the learning processes inside ESIDE-Depian can be

considered as automatically-supervised Bayesian

learning, divided into the following phases. Please

note that this sequence only applies for the standard

generation process followed by the Packet Header

Parameter Analysis experts, (i.e. the TCP-IP, UDP-

IP and ICMP-IP expert modules):

 Traffic Sample Obtaining. First we need to

establish the information source in order to

gather the sample. This set usually includes

normal traffic (typically gathered from the

network by sniffing, arp poisoning or so), as

well as malicious traffic generated by the

well-known arsenal of hacking tools such as

(Metasploit, 2006), etc. Subsequently, the

Snort Intrusion Detection System embedded in

ESIDE-Depian adds labelling information

regarding the legitimacy or malice of the

network packets. Specifically, Snort’s main

decision about a packet is added to the set of

detection parameters, receiving the name of

attack variable. In this way, it is possible to

obtain a complete sample of evidences,

including, in the formal aspect of the sample,

both protocol fields and also Snort labelling

information. Therefore, it combines

knowledge about normal behaviour and also

knowledge about well-known attacks, or, in

other words, information necessary for Misuse

Detection and for Anomaly Detection.

 Structural Learning. The next step is devoted to

define the operational model ESIDE-Depian

should work within. With this goal in mind,

we have to provide logical support for

knowledge extracted from network traffic

information. Packet parameters need to be

related into a Bayesian structure of nodes and

edges, in order to ease the later conclusion

inference over this mentioned structure. In

particular, the PC-Algorithm (Spirtes et al.,

2001) is used here to achieve the structure of

causal and/or correlative relationships among

given variables from data. In other words, the

PC-Algorithm uses the traffic sample data to

define the Bayesian model, representing the

whole set of dependence and independence

relationships among detection parameters.

Due to its high requirements in terms of

computational and temporal resources, this

phase is usually performed in an off-line

manner.

 Parametric Learning. The knowledge model

fixed so far is a qualitative one. Therefore, the

following step is to apply parametric learning

in order to obtain the quantitative model

representing the strength of the collection of

previously learned relationships, before the

exploitation phase began. Specifically,

ESIDE-Depian implements maximum

likelihood estimate (Murphy, 2001) to achieve

this goal. This method completes the Bayesian

model obtained in the previous step by

defining the quantitative description of the set

of edges between parameters. This is,

structural learning finds the structure of

probability distribution functions among

detection parameters, and parametric learning

fills this structure with proper conditional

probability values.

ICEIS 2008 - International Conference on Enterprise Information Systems

 Bayesian Inference. Next, every packet capture

from the target communication infrastructure

needs one value for the posterior probability

of a badness variable, (i.e. the Snort label),

given the set of observable packet detection

parameters. So, we need an inference engine

based on Bayesian evidence propagation.

More accurately, we use the Lauritzen and

Spiegelhalter method for conclusion inference

over junction trees, provided it is slightly

more efficient than any other in terms of

response time (Castillo et al., 1997). Thereby,

already working in real time, incoming

packets are analysed by this method (with the

basis of observable detection parameters

obtained from each network packet) to define

the later probability of the attack variable. The

continuous probability value produced here

represents the certainty that an evidence is

good or bad. Generally, a threshold based

alarm mechanism can be added in order to get

a balance between false positive and negative

rates, depending on the context.

 Adaptation. Normally, the system operation

does not keep a static on-going way, but

usually presents more or less important

deviations as a result of service installation or

reconfiguration, deployment of new

equipment, and so on. In order to keep the

knowledge representation model updated with

potential variations in the normal behaviour of

the target system, ESIDE-Depian uses the

general sequential/incremental maximum

likelihood estimates (Murphy, 2001) (in a

continuous or periodical way) in order to

achieve continuous adaptation of the model to

potential changes in the normal behaviour of

traffic.

2.2 Connection Tracking and Payload

Analysis Bayesian Experts

Knowledge Model Generation

The Connection Tracking expert attends to potential

temporal influence among network events within

TCP-based protocols (Estevez-Tapiador et al.,

2003), and, therefore, it requires an structure that

allows to include the concept of time (predecessor,

successor) in its model. Similarly, the Payload

Analysis expert, devoted to packet payload analysis,

needs to model state transitions among symbols and

tokens in the payload (following the strategy

proposed in (Kruegel and Vigna, 2003)). Usually,

Markov models are used in such contexts due to

their capability to represent problems based on

stochastic state transitions. Nevertheless, the

Bayesian concept is even more suited since it not

only includes representation of time (in an inherent

manner), but also provides generalization of the

classical Markov models adding features for

complex characterization of states. Specifically, the

Dynamic Bayesian Network (DBN) concept is

commonly recognized as a superset of Hidden

Markov Models (Ghahramani, 1998), and, among

other capabilities, it can represent dependence and

independence relationships between parameters

within one common state (i.e. in the traditional static

Bayesian style), and also within different

chronological states.

Thus, ESIDE-Depian implements a fixed two-

node DBN structure to emulate the Markov-Chain

Model (with at least the same representational power

and also the possibility to be extended in the future

with further features) because full-exploded use of

Bayesian concepts can remove several restrictions of

Markov-based designs. For instance, it is not

necessary to establish the first-instance structural

learning process used by the packet header analysis

experts since the structure is clear in beforehand.

Moreover, according to (Estevez-Tapiador et al.,

2003; Kruegel and Vigna, 2003), the introduction of

an artificial parameter may ease this kind of

analysis. Respectively, the Connection Tracking

expert defines an artificial detection parameter,

named TCP-h-flags (which is based on an

arithmetical combination of TCP flags) and the

Payload Analysis expert uses the symbol and token

(in fact, there are two Payload Analysis experts: one

for token analysis and another for symbol analysis).

Finally, traffic behaviour (and so TCP flags

temporal transition patterns) as well as payload

protocol lexical and syntactical patterns may differ

substantially depending on the sort of service

provided from each specific equipment (i.e. from

each different IP address and from each specific

TCP destination port). To this end, ESIDE-Depian

uses a multi-instance schema, with several Dynamic

Bayesian Networks, one for each combination of

TCP destination address and port. Afterwards, in the

exploitation phase, Bayesian inference can be

performed from real-time incoming network

packets. In this case, the a-priori fixed structure

suggests the application of the expectation and

maximization algorithm (Murphy, 2001), in order to

calculate not the posterior probability of attack, but

the probability which a single packet fits the learned

model with.

BAYESIAN-NETWORKS-BASED MISUSE AND ANOMALY PREVENTION SYSTEM

2.3 Naive Bayesian Network of the

Expert Modules

Having different Bayesian modules is a two-fold

strategy. On the one hand, the more specific

expertise of each module allows them to deliver

more accurate verdicts but, on the other hand, there

must be a way to solve possible conflicting

decisions. In other words, a unique measure must

emerge from the diverse judgements.

To this end, ESIDE-Depian presents a two-tiered

schema where the first layer is composed of the

results from the expert modules and the second layer

includes only one class parameter: the most

conservative response among those provided by

Snort and the expert modules community (i.e. in

order to prioritize the absence of false negatives in

front of false positives). Thus, both layers form, in

fact, a Naive Bayesian Network (as shown in Fig. 1

and Fig. 2).

Such a Naive classifier (Castillo et al., 1997) has

been proposed sometimes in Network Intrusion

Detection, mostly for Anomaly Detection. This

approach provides a good balance between

representative power and performance, and also

affords interesting flexibility capabilities which

allow, for instance, ESIDE-Depian’s dynamical

enabling and disabling of expert modules, in order to

support heavy load conditions derived e.g. from

denial of service attacks.

Now, Naive Bayesian Network parameters

should have a discrete nature which, depending on

the expert, could not be the case. To remove this

problem, ESIDE-Depian allows the using of the

aforementioned set of administratively-configured

threshold conditioning functions.

Finally, the structure of the Naive Bayesian

Network model is fixed in beforehand, assuming the

existence of conditional independence hypothesis

among every possible cause and the standing of

dependency edges between these causes and the

effect or class. Therefore, here is also not necessary

to take into consideration any structural learning

process for it; only sequential parametric learning

must be performed, while the expert modules

produce their packet classifying verdicts during their

respective parametric learning stages.

Once this step is accomplished, the inference of

unified conclusions and the sequential adaptation of

knowledge can be provided in the same way

mentioned before. Fig. 2 details the individual

knowledge models and how do they fit to conform

the general one.

3 EVALUATION

In order to measure the performance of ESIDE-

Depian, we have designed two different kinds of

experiments. In the first group, the network suffers

well-known attacks (i.e. Misuse Detection) and in

the second group, zero-day attacks (i.e. Anomaly

Detection), putting each aspect of the double nature

of ESIDE-Depian to the test. In both cases, the

system was fed with a simulation of network traffic

comprising more than 700.000 network packets that

were sniffed during one-hour capture from a

University network. The first experiment

(corresponding to Misuse Detection) aimed to

compare Snort and the Packet Header Parameters

Analysis experts. To this end, Snort’s rule-set-based

knowledge was used as the main reference for the

labelling process, instantiated through Sneeze Snort-

stimulator (Snort, 2006). The sample analysed was a

mixture of normal and poisoned traffic. Table 1

details the results of this experiment.

Table 1: Bayesian expert modules for TCP, UDP and

ICMP header analysis results.

Indicator TCP UDP ICMP

Analyzed network packets 699.568 5.130 1.432

Snort’s hits 38 0 450

ESIDE-Depian’s hits 38 0 450

Anomalous network packets 600 2 45

False negatives 0 0 0

Potential false positives rates 0,08% 0,03% 3,14%

As it can be seen, the three experts achieved a

100% rate of hitting success. Anyway, such results

aren’t surprising, since ESIDE-Depian integrates

Snort’s knowledge and if Snort is able to detect an

attack, ESIDE-Depian should do so. Nevertheless,

not only the number of hits is important; the number

of anomalous packets detected reflects the level of

integration between the anomaly and the misuse

detection part of ESIDE-Depian. In fact, the latter

can be highlighted as the most important

achievement of ESIDE-Depian: detecting unusual

packets preserving the misuse detection advantages

at the same time. Concerning potential false rates, it

is possible to observe that very good rates are

reached for TCP and UDP protocols (according to

the values defined in (Crothers, 2002) to be not

human-operator-exhausting), but not so good for

ICMP. Table 1 shows, however, a significant bias in

the number of attacks introduced in the ICMP traffic

sample (above 30%), and labelled as so by Snort;

thus, it is not strange the slightly excessive rate of

anomalous packets detected here by ESIDE-Depian.

ICEIS 2008 - International Conference on Enterprise Information Systems

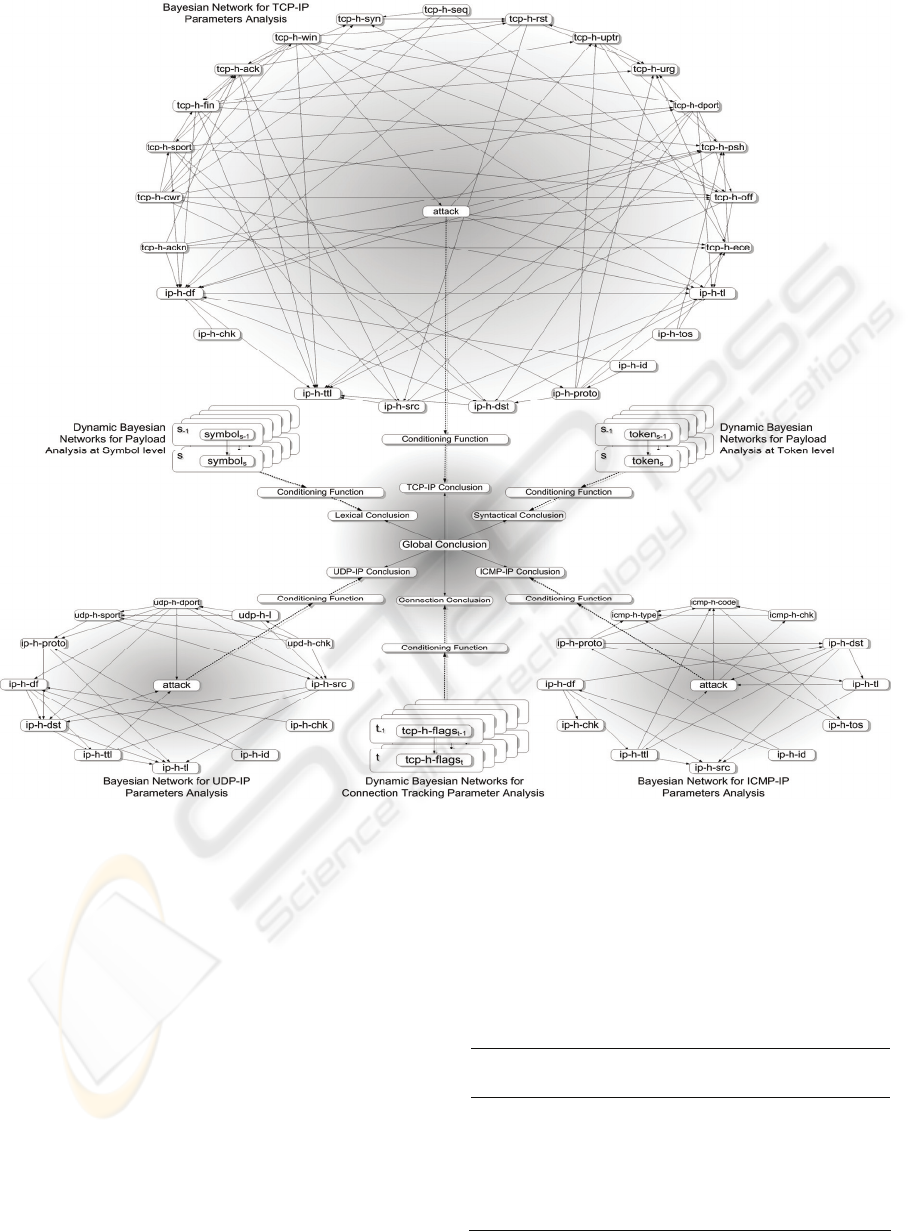

Figure 2: ESIDE-Depian Final Knowledge Representation Model.

In the second experiment (also corresponding to

misuse detection), the goal was to test the other

expert modules (Connection Tracking and Payload

Analysis). With this objective in mind, a set of

attacks against a representation of popular services

were fired through several hacking tools such as

(Metasploit, 2006). The outcome of this test is

summarized in Table 2.

As we see, ESIDE-Depian prevailed in all cases

with a 0% rate of false negatives and a 100% of

hitting rate success. Still, not only Snort’s

knowledge and normal traffic behaviour absorption

was tested; the third experiment intended to assess

ESIDE-Depian’s performance with zero-day attacks.

With this idea in mind, a sample of artificial

anomalies (Lee et al., 2001) was prepared with

Snort’s rule set as basis and crafted (by means of the

tool Packit) with slight variations aiming to avoid

Snort’s detection (i.e. Zero-day attacks unnoticeable

for misuse detection systems). Some of these attacks

are detailed next. Table 3 shows the results of this

experiment.

Table 2: Bayesian expert modules for connection tracking

and payload analysis results.

Indicator

Connection

Tracking

Symbol

Analysi

Token

Analysis

Analyzed network packets 226.428 2.676 2.676

Attacks in the sample 29 139 19

ESIDE-Depian’s hits 29 139 19

Anomalous network packets 0 0 3

False negatives 0 0 0

Potential false positives rates 0,00% 0,00% 0,11%

BAYESIAN-NETWORKS-BASED MISUSE AND ANOMALY PREVENTION SYSTEM

Table 3: Example of Zero-Day attacks detected by ESIDE-

Depian and not by Snort.

Protocol Artificial Network Anomaly Snort

ESIDE

Depian

TCP

packit -nnn -s 10.12.206.2 -F SFP

-d 10.10.10.100 -D 1023

TCP

packit –nnn -s 10.12.206.2 -F A

-d 10.10.10.100 -q 1958810375

TCP

packit –nnn -s 10.12.206.2

-d 10.10.10.100 –F SAF

UDP

packit -t udp -s 127.0.0.1 -o 0x10

-n 1 -T ttl -S 13352

-D 21763 -d 10.10.10.2

UDP

packit -t udp -s 127.0.0.1 -o 0x10

-n 0 -T ttl -S 13353

-D 21763 -d 10.10.10.2

UDP

packit -t udp -s 127.0.0.1 -o 0x50

-n 0 -T ttl -S 13352

-D 21763 -d 10.10.10.2

ICMP

packit -i eth0 -t icmp -n 666

-K 0 -s 3.3.3.3 -d 10.10.10.2

ICMP

packit -i eth0 -t icmp -K 18

-C 0 -d 10.10.10.2

ICMP

packit -i eth0 -t icmp -K 17

-C 0 -d 10.10.10.2

Note that overcoming of Snort’s expert

knowledge only has sense in those expert modules

using this knowledge. This is, in protocol header

specialized modules, because the semantics of

Snort’s labelling doesn’t fit the morphology of

payload and dynamic nature parameters.

4 CONCLUSIONS AND FUTURE

LINES

As the use of Internet grows beyond all boundaries,

the number of menaces rises to become subject of

concern and increasing research. Against this,

Network Intrusion Detection Systems monitor local

networks to separate legitimate from dangerous

behaviours. According to their capabilities and

goals, NIDS are divided into Misuse Detection

Systems (which aim to detect well-known attacks)

and Anomaly Detection Systems (which aim to

detect zero-day attacks). So far, no system to our

knowledge combines advantages of both without

any of their disadvantages. Moreover, the use of

historical data for analysis or sequential adaptation is

usually ignored, missing in this way the possibility

of anticipating the behaviour of the target system.

Our system addresses both needs. We present

here ESIDE-Depian, a Bayesian-networks-based

Misuse and Anomaly Detection system. Our

approach integrates Snort as Misuse detector trainer

so the Bayesian Network of five experts is able to

react against both Misuse and Anomalies. The

Bayesian Experts are devoted to the analysis of

different network protocol aspects and obtain the

common knowledge model by means of separated

Snort-driven automated learning process. A naive

Bayesian network integrates the results of the

experts, all the partial verdicts achieved by them.

Since ESIDE-Depian has passed the experiments

brilliantly, it is possible to conclude that ESIDE-

Depian using of Bayesian Networking concepts

allows to confirm an excellent basis for paradigm

unifying Network Intrusion Detection, providing not

only stable Misuse Detection but also effective

Anomaly Detection capabilities, with one only

flexible knowledge representation model and a well-

proofed inference and adaptation bunch of methods.

On the other hand, the Bayesian approach also

enables to implement powerful features over it, such

as Dynamic-Bayesian-Network-based intrinsic full

representation of time, in order to accomplish

totally-characterised connection tracking and low-

level chronological event correlation, or explanation

tracking of the inferred cause-effect reasoning

processes. Furthermore, contrary to other approaches

such as Neural Networks, Bayesian networks allow

administrative managing of inner information

structures, so specific relationships among packet

detection parameters and final conclusion can be

explained, in a white-box manner. Moreover, it is

not only possible to recover reasoning information,

but also to act on both Bayesian network structures

and conditional probability parameters, in order to

adjust the whole behaviour of the Network Intrusion

Detection System to special needs or configurations.

Further, dynamic regulation of knowledge

representation model can be accomplished by using

the sensibility analysis proposed in (Castillo et al.,

1997), so as to avoid denial of service attacks,

automatically enabling or disabling expert modules

by means of one combined heuristic measure which

considers specific throughputs and representative

power. In addition, it is also possible to perform

model optimization, to obtain the minimal set of

representative parameters, and also the minimal set

of edges among them, with the subsequent increase

of the general performance.

Approximate evidence propagation methods can

also be applied in order to improve inference and

adaptation time of response. Current expert models

only consider exact inference, but it is possible to

find methods which provide fast responses, with

only a small and affordable loss of accuracy.

Finally, Bayesian knowledge representation

models present one further interesting capability in

current Network Intrusion Detection state of art, the

possibility to provide an ad-hoc method for NIDS

evaluation. The Bayesian concept provides

simulation of learned knowledge corresponding

samples, so it is an ideal environment for artificial

anomaly generation.

ICEIS 2008 - International Conference on Enterprise Information Systems

Future work will focus on further research on

exploiting the aforementioned omni-directional

inference capability of Bayesian networks to the

prediction of the next event, as well as on comparing

ESIDE-Depian to other cutting-edge Intrusion

Detection Systems.

ACKNOWLEDGEMENTS

The authors would like to thank the Regional

Government of Biscay and the Basque Goverment

for their financial support.

REFERENCES

Alipio, P., Carvalho, P., Neves, J., 2003. Using CLIPS to

Detect Network Intrusion. Lecture Notes in Computer

Science, volume 2902/2003, pages 341-354, ISBN

0302-9743, Springer-Verlag.

Brugger, T., 2004. Data Mining Methods for Network

Intrusion Detection. PhD thesis. University of

California Davis.

Castillo, E., Gutierrez, J.M., Hadi, A. S., 1997. Expert

Systems and Probabilistic Network Models. ISBN: 0-

387-94858-9. Springer-Verlag.

Chavan, S., Shah, K., Dave, N., Mukherjee, S., Abraham,

A., Sanyal, S., 2004. Adaptative neuro-fuzzy intrusion

detection systems. Proceedings of the 2004

International Conference on Information Technology:

Coding and Computing, volume 1, pages 70-74.

Crothers, T., 2002. Implementing Intrusion Detection

Systems: A Hands-On Guide for Securing the

Network. ISBN 0764549499, John Whiley & Sons Inc.

Doyle, J., Kohane, I., Long, W., Shrobe, H., Szolovits, P.,

2001. Event recognition beyond signature and

anomaly. Proceedings of the 2001 IEEE Workshop on

Information Assurance and Security, pages 170-174.

Estevez-Tapiador, J., Garcia-Teodoro, P., Diaz-Verdejo,

J., 2003. Stochastic protocol modelling for anomaly

based network intrusion detection. Proceedings of the

first IEEE International Workshop on Information

Assurance, pages 3-12.

Ghahramani, Z., 1998. Learning Dynamic Bayesian

Networks. Lecture Notes in Computer Science,

volume 1387, page 168. Springer-Verlag.

Helmer, G., Wong, J., Honavar, V., Miller, L., Wang, Y.,

2003. Lightweight agents for intrusion detection.

Journal of Systems and Software, volume 67, pages

109-122.

Internet System Consortium, 2007. Internet Domain

Survey. July 2007. Available at http://www.isc.org/.

Kabiri, P., Ghorbani, A. A., 2005. Research on intrusion

detection and response: A survey. International

Journal on Information Security, volume 1(2), pages

84-102.

Kantzavelou, I., Katsikas, S., 1997. An attack detection

system for secure computer systems outline of the

solution. Proceedings of the IFIP TC11 13

International Conference on Information Security,

pages 123-135.

Kim, D., Nguyen, H., Park, J., 2005. Genetic algorithm to

improve svm-based network intrusion detection

system. Proceedings of the 19

International

Conference on Advanced Information Networking and

Applications (AINA), volume 2, pages 155-158.

Kruegel, C., Vigna, G., 2003. Anomaly detection of web-

based attacks. Proceedings of the 10

ACM

Conference on Computer and Communications

Security, pages 251-261.

Lazarevic, A., Ertoz, L., Kumar, V., Ozgur, A., Srivastava,

J., 2003. A comparative study of anomaly detection

schemes in network intrusion detection. Proceedings

of the SIAM International Conference on Data

Mining.

Lee, W., Stolfo, S., Chan, P., Eskin, E., Fan, W., Miller,

M., Hershkop, S., Zhang., J., 2001. Real time data

mining-based intrusion detection. Proceedings of the

second DARPA Information Survivability Conference

and Exposition, volume 1, pages 89-100.

Metasploit, 2006. Exploit research. Available at

http://www.metasploit.org/.

Mukkamala, S., Sung, A., Abraham, A., 2005. Intrusion

detection using an ensemble of intelligent paradigms.

Journal of Network and Computer Applications,

volume 28, pages 167-182.

Murphy, K., 2001. An introduction to graphical models.

Technical report. Intel Research, Intel Corporation.

Roesch, M. (1999). SNORT: Lightweight intrusion

detection for networks. Proceedings of LISA99: 13

Systems Administration Conference, pages 229-238.

Singhal, A., Jajodia, S., 2006. Data warehousing and data

mining techniques for intrusion detection systems.

International Journal on Information Security, volume

1(2), pages 149-166.

Snort, 2006. The facto standard for intrusion detection

and prevention. Available at http://www.snort.org/.

Spirtes, P., Glymour, C., Scheines, R., 2001. Causation,

Prediction, and Search, Second Edition. Adaptive

Computation and Machine Learning. The MIT Press.

Valdes, A., Skinner, K., 2000. Adaptive, model-based

monitoring for cyber attack detection. Proceedings of

RAID 2000, pages 80-92.

Vigna, G., Eckman, S., Kemmerer, R., 2000. The STAT

tool suite. Proceedings of the DARPA Information

Survivability Conference and Exposition 2000, volume

2, page 1046. IEEE Press.

BAYESIAN-NETWORKS-BASED MISUSE AND ANOMALY PREVENTION SYSTEM
