AN EFFICIENT HYBRID METHOD FOR CLUSTERING
PROBLEMS
H. Panahi and R. Tavakkoli-Moghaddam
Department of Industrial Engineering, Faculty of Engineering, University of Tehran
P.O. Box: 11365-4563, Tehran, Iran
Keywords: Clustering problems, Ant colony optimization, Genetic algorithms, Paired comparison test.
Abstract: This paper presents a hybrid efficient method based on ant colony optimization (ACO) and genetic
algorithms (GA) for clustering problems. This proposed method assumes that agents of ACO has life cycle
which is variable and changes by a special function. We also apply three local searches on the basis of
heuristic rules for the given clustering problem. This proposed method is implemented and tested on two
real datasets. Further, its performance is compared with other well-known meta-heuristics, such as ACO,
GA, simulated annealing (SA), and tabu search (TS). At last, paired comparison t-test is also applied to
proof the efficiency of our proposed method. The associated output gives very encouraging results;
however, the proposed method needs longer time to proceed.
1 INTRODUCTION
Clustering is implemented to group objects into
clusters so that the objects with similar attributes
bring together into a batch. Some applications of
cluster analysis are qualitative interpretation and
data compression, process monitoring, local model
development, toxicity testing, finding structure-
activity relations, classification of coals, pattern
recognition, and optimization.
The objective functions of clustering problems
are usually nonlinear and non-convex so some
clustering algorithms may fall into local optimum.
Moreover, they possess exponential complexity in
terms of number of clusters and become an NP-hard
problem when the number of clusters exceeds
(Shelokar et al., 2004). Several algorithms have been
proposed to solve clustering problems (Banfield and
Raftery, 1993; Jiang et al., 1997). Meta-heuristic
algorithms, such as ant colony optimization (ACO)
(Shelokar et al., 2004), tabu search (TS) (Al-Sultan,
1995), genetic algorithms (GA) (Jiang et al., 1997;
Murthy and Chowdhury, 1996), simulated annealing
(SA) (Selim and Al-Sultan, 1991; Sun et al., 1994),
and particle swarm optimization (PSO) (Paterlini
and Krink, 2006) have been used for clustering
problems.
In this paper, a new method by hybridizing two
algorithms, namely GA and ACO, is represented and
proposed for clustering problems. In Sections 2,
ACO algorithm and local searches are described. In
Section 3 the proposed GA-ACO method is
explained. Section 4 illustrates the computational
results to evaluate the performance of the proposed
method on two real datasets. Finally, the remarking
conclusion is derived.
2 ACO CLUSTERING METHOD
Ant colony optimization (ACO) was first introduced
by Dorigo et al. (1996) to solve discrete optimization
problems. This algorithm simulates the way that real
ants find the shortest way between a food source and
their nest. Ants communicate with each other by
pheromone and exchange information about
selecting the best path. The path chosen by more
ants gains more chance to be chosen by other ants
and if they choose that path, they increase the
probability of that path to be chosen by next ants.
The idea of ACO algorithm applied in this paper is
inspired from Shelokar et al. (2004).
Each agent represents a feasible solution. After
assigning such objects to clusters each agent gets a
fitness due to Equation (2). Information about each
agent is saved in to a matrix called pheromone trail
matrix. Indeed this matrix is built due to the value of
assigning objects to clusters by agents. In other
288
Panahi H. and Tavakkoli-Moghaddam R. (2008).
AN EFFICIENT HYBRID METHOD FOR CLUSTERING PROBLEMS.
In Proceedings of the Tenth International Conference on Enterprise Information Systems - AIDSS, pages 288-294
DOI: 10.5220/0001703002880294
Copyright
c
SciTePress
words, if assigning an object to a cluster makes a
good reduction in the objective function, it affects
the pheromone trail matrix in a way that other agents
will assign such object to such cluster with a high
probability but not certainly. Stopping criterion of
the proposed method is a number of iterations.
Following, we describe our proposed method.
Assume that we want to cluster N objects to a
predefined number of clusters, K. For this purpose,
we applied R agents. The proposed string
representation is depicted in Fig. 1. This figure is a
solution string for a problem with ten objects and
four clusters. The number of assigned clusters is
shown in its related cell.
Figure 1: String representation.
As mentioned before, agents find their way due
to pheromone trail matrix,
π
, with the size of KN
×
.
This size does not depend on the number of agents
so it means the information of agents is accumulated
in such a matrix and all of the agents use the same
matrix for assigning objects to clusters.
()
ji,
π
represents the concentration of assigning
object i to cluster j. The value of elements of a
pheromone trail matrix varies by two factors: (1)
Fitness of agents and (2) evaporation rate.
Evaporation rate is applied to lessen the effect of
past information. It helps to discover solution space.
If evaporation rate is set to a high value it means the
information gathered from the past is diminished fast
but the low value of evaporation rate implies that the
information obtained past iterations are diminished
slowly. Finally, three local search methods are
designed and applied with a predefined probability
in order to improve the solution quality.
2.1 Algorithm Details
At first iteration, agents assign objects to clusters
randomly. The pheromone trail matrix is fed by
equal values, the value is not important because we
use a normalized pheromone trail matrix for decision
making. At the end of each generation, the
pheromone trail matrix is updated by elitist agents.
Agents assign objects to clusters by one of the
following two procedures:
Procedure (I): Due to pheromone trail matrix,
for a given object, they choose the cluster with the
highest value. For example, if the agent decides to
assign a cluster to object i
by Procedure (I), then it
finds the maximum value in the i-th line of the
pheromone trail matrix, the associated cluster is
assigned to object i. Agents choose procedure (I) by
a predefined probability q
0
; known as exploitation.
Procedure (II): The cluster is chosen by a
stochastic probability. This procedure is chosen by a
probability of (1-q
0
) and known as biased
exploration.
Briefly, each agent generates a random number
for each object. If the random number is less than or
equal to q
0
, then it applies Procedure (I) else it uses
Procedure (II). Suppose that for object i, Procedure
(II) is taken. At first step, we must make a
probabilistic distribution as follows:
k
j

p
k
k
ik
ij
ij
,...,1,
1
==
=
π
π
(1)
By the use of Equation (1), a probabilistic
distribution is made and it is obvious that P
iK
=1. By
this way, K intervals are made with P
ij
's. Then
another random number is generated. Depending on
which interval contains the random number, the
associated cluster is assigned to object i.
After allocating all objects to clusters for each
agent, agents should be evaluated. In this paper, the
objective function is set to be the sum of squared
Euclidean distance between each object and its
associated cluster center. We assume that each
object has A attributes. Assume that
γ
i
m represents
the average of the
-th
γ
attribute of the i-th cluster
and w
ij
is an integer variable where if object i is
assigned to cluster j is equal to one else is set to zero
and
γ
i
x is the value of the
-th
γ
attribute of the i-th
object. The objective function is computed by
Equation (2). Moreover,
w
ij
must satisfy Equations
(3) and (4) and
γ
i
m
is computed by Equation (5).
2
111
min
KNA
ij i j
ji
Fwxm
γγ
γ
===
∑∑
N
iw
K
j
ij
,,...1,1
1
==
=
K
jw
N
i
ij
,,...1,1
1
=
=
,... ,Av,... ,K , j
N
i
ij
w
N
i
i
x
ij
w
j
m 11
1
1
==
=
=
=
γ
γ
(2)
(3)
(4)
(5)
2.2 Local Search
Usually local searches are performed on a few
percent of the population. After calculating fitness of
each agent, agents are sorted due their fitness value.
Three different local searches are designed in this
4 2 3 1 2 4 1 2 3 1
AN EFFICIENT HYBRID METHOD FOR CLUSTERING PROBLEMS
289
paper. Before describing our proposed local
searches, we need to define a matrix; eval_cluster.
This is a matrix of
NKR ×× . When we assign
cluster
j to object i it means we have added a value
to our objective function which is equal to
=
×
A
jiij
mxw
1
2
γ
γγ
; however, we do not know
that if this assignment is the best because we have
k-
1
options else. By this way, we make a matrix for
each agent in the following manner:
××
××
==
==
A
KNNK
A
NN
A
KK
A
mxwmxw
mxwmxw
1
2
1
2
11
1
2
11
1
2
1111
..
....
....
..
γ
γγ
γ
γγ
γ
γγ
γ
γγ
In other words, the element in the
i-th row and
the
j-th column is the value that is added to the
objective function if object j is assigned to cluster i.
In the next section, we describe how this matrix is
applied to optimize clustering problems and we
explain each local search.
2.2.1 Local Search A_1
This local search is designed for agent with rank
one. After sorting agents in ascending trend due to
fitness values, first agent is chosen for the local
search "A_1". A random vector is generated with the
length of
N. If any of vector values is less than or
equal to a predefined threshold, which is set to 0.02,
the local search will be applied. Assume that agent
with rank one assigned object
i to cluster j. Suppose
that the associated random vector of object
i is
suitable for the local search. As the first step, we
find the minimum value of Line 1 of the
eval_cluster
matrix.
(
)
(
)
{
}
:,,1_eminarg_ iclustervalclusteropt =
(6)
If
opt_cluster is equal to j, then we take no
action; however, if
opt_cluster is anything except j,
we assign object
i to cluster opt_cluster. Then we
calculate the fitness of the agent, if any improvement
is made, we accept the new assignment; however, if
the objective function is worse than before, we do
not accept the new assignment.
2.2.2 Local Search A_2
This local search works the same as local search
"A"; however, the threshold probability for this local
search is smaller. The reason of such parameter
tuning is computational time. This local search
performs on agents with rank 2,..,
L agents. These L
best agents also update the pheromone trail matrix as
will be described later.
L is a parameter which must
be the threshold probability value for this set to 0.01.
2.2.3 Local search B
In this local search, we intend to explore each cluster
in order to find distant objects and attempt to assign
them to another cluster. This local search is done on
agents with rank one and two with a probability
threshold of 0.03.
Again, we consider the
eval_cluster matrix. As
the first step, we try to sort values in each column.
Indeed, we sort objects in each cluster due to their
distance to the cluster center. Some values are equal
to zero because each object is assigned to just one
cluster. Assume that object
i is chosen. Then again
we utilize
opt_cluster. If opt_cluster is not equal to
the assigned cluster, we assign object i to opt_cluster
and calculate the fitness of the agent. If the fitness of
the agent is improved, we accept the new
assignment; else we do not accept it.
2.2.4 Local Search C
This local search builds a matrix list of size NL
×
.
The matrix
list is build as follows:
()
(
)
{
}
jiclusterevaljilist :,,_minarg),(
=
where
i=1,…L and j=1,…,N.
(7)
For each of the best
L agents, we generate a
random vector of size
N
×
1 . For each object, if the
associated random number is equal or less than a
threshold probability, which is set to 0.05, then we
assign the object to a cluster randomly else we
assign the object to the associated
list matrix
element. At last we calculate the objective function
of the agents and verify if any improvements
happened or not, if so changes are accepted else
changes are not accepted. The proposed local
searches are more likely to heuristic algorithms and
their concepts and basis are on heuristic rules that
we establish it.
2.3 Pheromone Matrix Update
At the end of each iteration, the pheromone matrix
should be updated. This updating is based on the L
best agents. This updating helps agents to correct
their way. The pheromone trail matrix at the
t-th
iteration is updated by Equation (8).
ICEIS 2008 - International Conference on Enterprise Information Systems
290
KjNitt
L
l
l
ijijij
,,...1,,...1)()1()1(
1
==Δ+=+
=
ππρπ
(8)
Where
ρ
is the steadfastness of trail and therefore
)1(
is the evaporation rate. Higher value of
ρ
means that the information achieved in the past is
forgotten faster and
l
ij
π
Δ
is computed as follows:
1
if cluster is assigned to object ,
0 elsewhere.
l
l
ij
ji
F
π
Δ=
(9)
Three main steps at iteration are as follows: (I)
Generation of new
R solutions via the last updated
pheromone trail matrix; (II) Executing local search
procedures; (III) Updating pheromone trail matrix.
The algorithm performs the above steps till a
predefined number of iterations happen.
3 HYBRID GA- ACO METHOD
The main idea of applying a hybrid method is to
benefit from two efficient algorithms, namely GA
and ACO. In the traditional ACO algorithm, all the
agents have one life and there is no concept of
reproduction of agents and one agent just corrects its
way by the means of the pheromone trail matrix.
Although diversity of the path of an agent is made
by the means of a threshold parameter,
q
0
; however,
we believe that we can search the solution space
more effectively by the means of the reproduction
operators of GA, such as crossover and mutation.
This usage of GA operators must be done
carefully so that the information is gathered by the
agents through iterations will not be lost. This means
that we must implement GA due to the ACO's
objective function. In this way, we must define a life
for each agent. This can happen in two ways: (1)
define a constant life cycle for each agent and (2)
define the life cycle due to a predefined function. In
this paper, we choose the second way. The reason of
such setting is that at the last generations most of the
agents are the same and agents will not change their
path because of high values of the accumulated
pheromone trail matrix. But, if we apply a method
i.e. genetic algorithm in order to explore the solution
space then we may obtain slight improvements by
the means of the objective function at the last
generation that is desirable. The life function can be
interpreted as cooling temperature in SA. The
proposed hybrid method can be divided to three
sections: (1) ACO algorithm; (2) implementing GA
in ACO; and (3) resuming ACO.
3.1 ACO Phase
The proposed hybrid method starts with ACO as
defined in Section 2. ACO continues till lives of the
agents are reached. The life function should have
high values in early generation and small values in
latter generations. We implement several functions
and analyze their behaviour, and we propose a
function illustrated in Equation (10).
×
==
N
Ai
i
T
T
N
AeTT
0
2
0
ln
1
,
2
(10)
3.2 Implementing GA in ACO
3.2.1 Ranking Agents
Agents are sorted due to their calculated objective
functions in ACO. This fitness is handy in GA's
selection phase and finds its elitist parents. Indeed
agents of ACO are taken as chromosomes of GA.
3.2.2 Selection
Selection is based on universal sampling method.
3.2.3 Recombination
We implement a uniform order-based crossover for
the given clustering problem. Suppose that we have
K clusters and N objects. So K clusters are assigned
where
)( NK p
cannot be done by the original
uniform order-based crossover. Then, we modify
this crossover for the clustering problem. In this
crossover, two parents (say
P
1
and P
2
) are randomly
selected and a random binary template is generated,
as shown in Fig. 2. Some of the genes for offspring
C
1
are filled by taking the genes from parent P
1
where there is a "1" in the template. At this point, we
have
C
1
partially filled; however, it has some
“gaps”. Genes of parent C
1
in the positions
corresponding to zeros in the template are taken and
filled by generating a random number between
1
,…,k. C
2
are filled in the same way.
3.2.4 Replacement
An elitist method is chosen in our algorithm in order
to provide convergence.
AN EFFICIENT HYBRID METHOD FOR CLUSTERING PROBLEMS
291

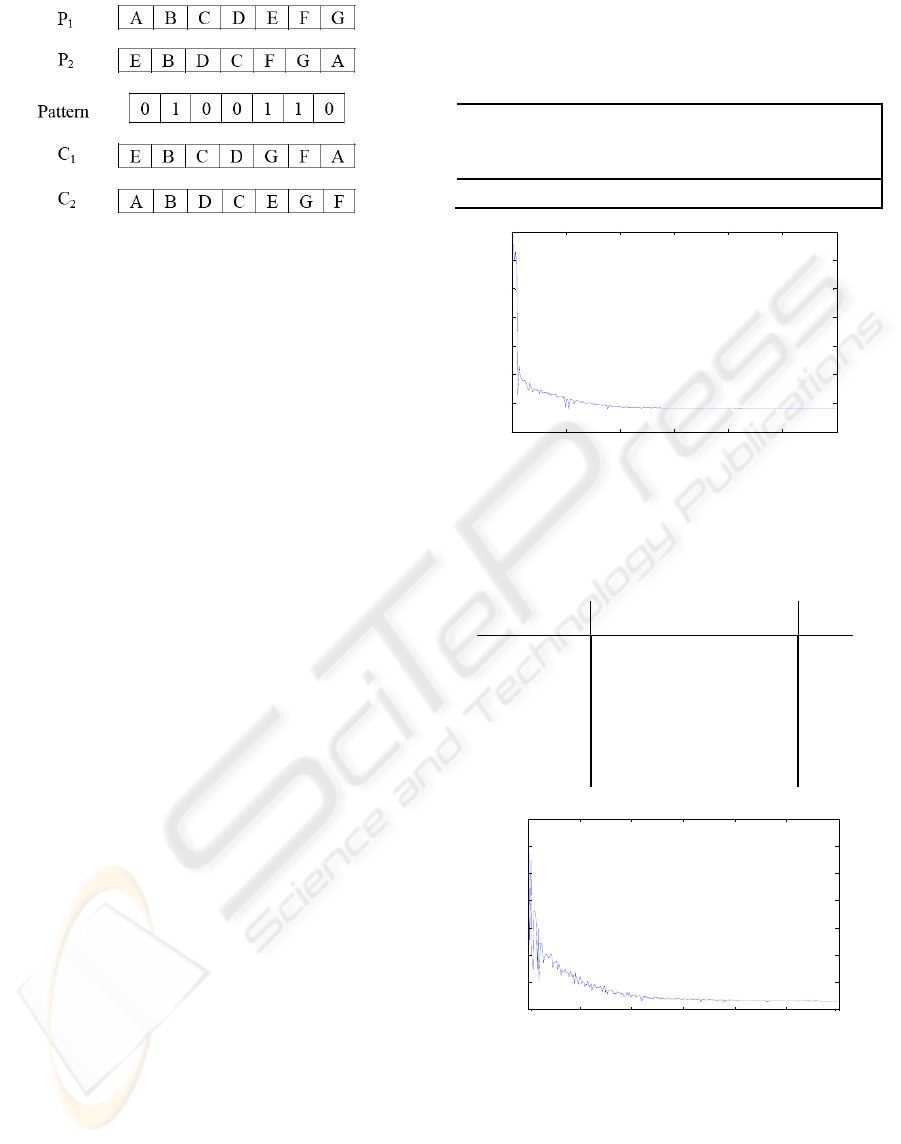

Figure 2: Modified uniform order-based crossover.
3.3 Resuming ACO
After performing GA, ACO must be resumed.
Chromosomes inherited to the next generation must
be treated as agents of ACO. At this point, we reach
to a decision making point about continuing with
current pheromone trail matrix or with a new one.
We executed the algorithm for both situations and
observed that resetting the matrix gives better
answers than resuming with older one.
3.4 Parameters Tuning
Several simulations were performed to tune
parameters of hybrid method. After several
simulations the best parameters for the given
clustering problem are gathered in Table 1.
4 RESULTS AND DISCUSSION
4.1 Introducing Datasets
Our proposed method is implemented on two well-
known datasets, namely
iris and wine in order to
compare with the previous proposed algorithms. The
data are obtained from the UCI repository of
machine learning databases (Newman et al., 1998).
All algorithms are executed in MATLAB and all
experiments are performed on a PIV 2.66MHz and
512 MB RAM.
To evaluate the performance of our hybrid
method, we compare it with several typical
stochastic algorithms including ACO and SA (Selim
and Al-Sultan, 1991), GA (Murthy and Chowdhury,
1996), and TS (Al-Sultan, 1995). The results from
ACO, GA, TS, and SA are taken from Shelokar et
al. (2004). The outputs for the
iris dataset are given
in Table 2. The objective function curve for the best
solution of our hybrid method is shown in Fig. (3).
The results obtained for the clustering problem
from the
wine dataset are given in Table 3. The
objective function curve for the best solution of our
hybrid method during iterations is shown in Fig. (4).
Table 1: Parameters of the proposed hybrid method.
R
(ants)
q
0
local search
probability
Evaporation rate
(
ρ
)
Iterations
50 0.98 0.01-0.05 0.07 300
0 50 100 150 200 250 300
0
100
200
300
400
500
600
700
Figure 3: Illustration of the best solution for the iris
dataset.
Table 2: Results of iris dataset.
Algorithm
Function value
Time
(sec)
F best F average F worst
Hybrid GA-ACO 78.9408 81.9469 91.2163 83.60
ACO 97.1007 97.1715 97.8084 33.72
GA 113.9865 125.1970 139.7782 105.53
TS 97.3659 97.8680 98.5694 72.86
SA 97.1007 97.1364 97.2638 95.92
0 50 100 150 200 250 300
1.5
2
2.5
3
3.5
4
4.5
5
x 10
4
Figure 4: Illustration of the best solution for the wine
dataset.
ICEIS 2008 - International Conference on Enterprise Information Systems
292
Table 3: Results of the wine dataset.
Algorithm
Function value
Time
(sec)
F best F average F worst
Hybrid GA-
ACO
16387.7595 16438.1623 16530.5338
216.
01
ACO 16530.5338 16530.5338 16530.5338
68.2
9
GA 16530.5338 16530.5338 16530.5338
226.
68
TS 16530.5338 16785.4592 16837.5356
161.
45
SA 16530.5338 16530.5338 16530.5338
57.2
8
4.2 Paired Comparison Results
As the ACO solution is better than SA, GA and TS
solutions, so our hybrid GA-ACO method is
compared with ACO. Considering the data in Tables
2 and 3, two paired comparison designs are carried
out on 10 pairs of the best solutions of ACO and
hybrid GA-ACO for each dataset to see whether if
any improvements achieved. The related results of
the paired comparison test are illustrated in Table 4.
Design of the comparison test is as follows:
i
X : The i-th best solution of the hybrid GA-ACO
method.
i
Y : The i-th best solution of the ACO method.
n
D
DniYXD
n
i
i
iii
=
===
1
,...,2,1
(11)
()
n
S
D
T
n
DD
S
D
n
i
i
D
=
=
=
1
1
2
(12)
0:
0:
1
0
=
D
D
H
H
μ
μ
If
],[
1,2/1,2/
nn
ttT
αα
,
0
H
is accepted.
Table 4: Results of Paired comparison test.
D S
D
n
Test
statistic
Acceptance
Interval
Resu
lt
iri
s
-20.016 7.834 10 -8.079 [-2.262,2.262]
Reje
ct H
0
wi
ne
-692.776 319.53 10 -6.856 [-2.262,2.262]
Reje
ct H
0
By considering the test statistic values from
Table 4, it is concluded that with
05.0=
α
(
α
:
Level of significance), the hybrid GA-ACO method
has a meaningful difference with the ACO algorithm
in 10 independent runs.
It is worthy noting that the results obtained by
the hybrid method are superior to that of the ACO,
SA, GA, and TS methods. The associated results
illustrate that our proposed hybrid approach can be
considered as a viable and an efficient method to
find optimal or near-optimal solutions for clustering
problems in order to allocate
N objects to K clusters.
5 CONCLUSIONS
In this paper, a hybrid GA-ACO method has been
developed to solve clustering problems. To evaluate
the performance of our hybrid GA-ACO method, the
associated results are compared with other results
obtained by other meta-heuristic algorithms, i.e.
ACO, GA, SA, and TS by means of the paired test
statistics. Our proposed hybrid method has been
implemented and tested on several real datasets;
preliminary computational experience is very
encouraging in terms of the solution quality found
and in all cases the best dominant solution is
obtained by our proposed hybrid method and even
the average and the worst solutions of this method is
better than or equal to best solutions of the other
algorithms. Although this method needs longer time
to find solutions but the difference between the
solutions of our hybrid GA-ACO method and other
algorithms is totally encouraging and glamorous.
REFERENCES
Al-Sultan, K.S., 1995. A Tabu search approach to the
clustering problem, Pattern Recogn. 28 (9) 1443-1451.
Banfield, J., Raftery, A., 1993. Model-based Gaussian and
non- Gaussian clustering, Biometrics, 49, 803-821.
Dorigo, M., Maniezzo, V. Colorni, A., 1996. The ant
system: Optimization by a colony of cooperating
agents. IEEE Transactions on Systems, Man, and
Cybernetics-Part B 26 (1) 29-41.
Jiang, J.-H., Wang, J.H., Chu, X., Yu, R.-Q., 1997.
Clustering data using a modified integer genetic
algorithm (IGA). Analytica Chimica Acta 354, 263-
274.
Lin, H-J., Yang, F-W., Kao, Y-T., 2005. An efficient GA-
based clustering technique, Tamkang Journal of
Science and Engineering 8 (2) 113-122.
Murthy, C.A., Chowdhury, N., 1996. In search of optimal
clusters using genetic algorithms. Pattern Recognition
Letters. 17 (8) 825- 832.
Newman, D.J., Hettich, S., Blake, C.L., Merz, C.J. 1998.
UCI Repository of machine learning databases,
AN EFFICIENT HYBRID METHOD FOR CLUSTERING PROBLEMS
293
Department of Information and Computer Science,
University of California, Irvine, CA,
http://www.ics.uci.edu/~mlearn/MLRepository.html.
Paterlini, S., Krink, T., 2006. Differential evolution and
particle swarm optimisation in partitional clustering,
Computational Statistics and Data Analysis 50 (5)
1220-1247.
Selim, S.Z., Al-Sultan, K.S., 1991. A simulated annealing
algorithm for the clustering problem. Pattern
Recognition 24 (10) 1003-1008.
Shelokar, P.S., Jayaraman, V.K., Kulkarni, B.D., 2004. An
ant colony approach for clustering, Analytica Chimica
Acta 509, 187-195.
Sun, L.-X., Xie, Y.-L., Song, X.-H., Wang, J.-H. Yu, R.-
Q., 1994. Cluster analysis by simulated annealing.
Computers & Chemistry 18 (2) 103-108.
ICEIS 2008 - International Conference on Enterprise Information Systems
294
