ATA MANAGEMENT AND INTEGRATION WITHIN

COLLABORATIVE WORKING ENVIRONMENTS

Assel Matthias and Kipp Alexander

High Performance Computing Center - HLRS, University of Stuttgart

Nobelstr. 19, Stuttgart, Germany

Keywords:

Distributed Data Management, Data Integration, Data Sharing, Collaborative Working Environments, Data

Exchange Security, Virtual Laboratory, ViroLab, CoSpaces.

Abstract:

With increasingly distributed and inhomogeneous resources, sharing knowledge, information, or data becomes

more and more difﬁcult and manageable for both, end-users and providers. To reduce administrative overheads

and ease complicated and time-consuming integration tasks of widely dispersed (data) resources, quite a few

solutions for collaborative data sharing and access have been designed and introduced in several European

research projects for example in CoSpaces and ViroLab. These two projects basically concentrate on the

development of collaborative working environments for different user communities such as engineering teams

as well as health professionals with a particular focus on the integration of heterogeneous and large data

resources into the system’s infrastructure.

In this paper, we present the two approaches realised within CoSpaces and ViroLab to overcome the difﬁculties

of integrating multiple data resources and making them accessible in a user-friendly but also secure way. We

start with an analysis on systems’ speciﬁcations describing user and provider requirements for appropriate

solutions. Finally, we conclude with an outlook and give some recommendations how those systems can be

further enhanced in order to guarantee a certain level of dynamicity, scalability, reliability, and last but not

least security and trustworthiness.

1 INTRODUCTION

Today’s B2B

relationships are not limited on local

or regional collaborations any longer but the interna-

tional orientation of enterprises in fact combines var-

ious organisations scattered all over the world to co-

operate with each other. Due to the necessity of ex-

changing information and/or conﬁdential data among

the business partners involved, easy, dynamic and

especially secure ways of sharing certain data sets

and information need to be considered and applied

before cross-organisational collaborations can take

place, and, in order to prevent any abuse by third

parties while communicating over untrusted networks

like the Internet.

From an eBusiness perspective, the concept of

Virtual Organisations (VO) is widely and often used

to approach similar issues, namely to make (data) re-

sources and products available dynamically and on-

demand. The main purpose pursuit in such a concept

Business-T

o-Business

consists in making ad-hoc collaborations (Schubert

et al., 2005) possible that meet speciﬁc business goals,

respectively address a (temporary) market niche. To

achieve this, VO frameworks (Wilson et al., 2005)

allow for identiﬁcation of resource providers accord-

ing to current business needs/goals, and integration of

these so as to enable collaborative workﬂow execu-

tion.

The CoSpaces

project elaborates a framework

to support world-wide distributed engineering teams

by developing an environment that supports dynamic,

ad-hoc collaborative working sessions. In particular,

this framework shall support on-demand selections of

participants, documents, and data for a collaboration

session as well as the easy integration of partners re-

garding both, the support to ease the access to and

from partners and their applications.

However, within ViroLab

, a virtual laboratory

http://www

.cospaces.org/

http://www.virolab.org

258

Matthias A. and Alexander K. (2008).

DATA MANAGEMENT AND INTEGRATION WITHIN COLLABORATIVE WORKING ENVIRONMENTS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 258-263

DOI: 10.5220/0001704302580263

 SciTePress

for HIV

research and medication support (Assel and

Krammer, 2007) is being developed that allows sev-

eral experts in this ﬁeld to share their knowledge and

results interactively while working together on the

same data and information sets, which are currently

widely dispersed over Europe and without cross-

national or even cross-institutional collaboration.

To face real end-users’ needs and requirements,

concrete scenarios in cooperation with industrial part-

ners in CoSpaces and respectively hospitals in Vi-

roLab have been developed and will be evaluated

against the deﬁned concepts. Sharing data or docu-

ments between partners stresses security issues to be

of the utmost priority and importance (Assel et al.,

2007) while developing such collaborative working

environments for business partners and/or academic

institutions. Those issues include several levels of se-

curity implying trustworthiness among participants to

meet appropriate collaboration goals without harming

legal issues as well as keeping the user’s privacy.

In the following, we come up with general sys-

tems’ speciﬁcations including requirements on both,

user and provider sites that need to be considered

while developing environments for dynamic (busi-

ness) collaborations, as well as two concrete exam-

ples demonstrating appropriate dynamic and secure

infrastructures realised within the CoSpaces and Vi-

roLab project.

2 SYSTEMS’ SPECIFICATIONS

Talking about distributed collaboration environments

between organisations across different countries, the

speciﬁc and even dynamic requirements for integrat-

ing and accessing services, applications, and data re-

sources in particularly regarding security issues differ

from ”normal” local collaboration federations.

The immense complexity of the different tech-

nologies involved as well as the heterogeneity of

present infrastructures and resources together with

their spatial distribution, requires lots of effort for the

design and development teams. Lots of progress has

been made in the recent past and quite a few solu-

tions have been developed in other project like Ako-

grimo

and TrustCoM

. The currently running In-

tegrated Project BREIN

extends the eBusiness ap-

proach by merging semantics, agents, and Grid tech-

nologies to provide an intelligent, self-manageable in-

frastructure. But all these approaches do not consider

Human Immunodeﬁciency Virus

http://www.mobilegrids.org

http://www.eu-trustcom.com.

http://www.gridsforbusiness.eu

the very speciﬁc needs in case of dynamic collabora-

tion sessions, respectively distributed data handling.

Basically, to ease and reduce management and

conﬁguration overheads during the setup phase but

also during the runtime of such sessions, several is-

sues including amongst others usability, performance,

scalability, reliability, ﬂexibility and especially secu-

rity need to be taken into account, and should be care-

fully evaluated before deciding on speciﬁc technolo-

gies, respectively designing and developing appropri-

ate systems and/or infrastructures.

The following list brieﬂy highlights the most im-

portant requirements for collaborative working envi-

ronments in general by taking the recent project re-

sults and extending them accordingly.

• The overall infrastructure shall be highly ﬂexible -

not limited to one speciﬁc operating system, mid-

dleware, and technology (Elmroth et al., 2007) but

rather interoperate with different widely-used so-

lutions including standard technologies and spec-

iﬁcations, as well as following the latest ap-

proaches of the so-called Software as a Service

(SaaS) paradigm;

• End-user friendliness including easy to deploy

and run components/services as well as applica-

tion and resource transparency;

• Virtualisation of services and corresponding com-

ponents to allow on-the-ﬂy modiﬁcations or ex-

tensions without affecting the current session(s);

• The easy usage of the collaboration platform

should be supported through a decentralized

authentication and authorisation model (Assel

and Kipp, 2007) based on a Single-Sign On

(SSO) procedure across and within organisational

boundaries;

• The dynamic setup of collaboration partners in-

cluding the on-demand modiﬁcations of ﬁrewalls

in order to guarantee that only trusted people are

allowed to execute corresponding operations;

• Dynamic management and control of attribute-

based access policies required to authorise users

before accessing services, applications, and re-

sources;

• Keeping the user’s privacy and protecting his/her

conﬁdentiality by impersonalising data or exclud-

ing irrelevant information;

• Satisfying requirements under the Data Protection

Act as well as explicit consent from all parties

concerned;

• Secure data transmission based on data encryption

on several levels (e.g. encrypted messages versus

DATA MANAGEMENT AND INTEGRATION WITHIN COLLABORATIVE WORKING ENVIRONMENTS

259

secure protocols) ensuring trustworthiness and in-

tegrity of exchanged information;

• Additional security mechanisms and policies for

storage of conﬁdential data sets;

• Recording of relevant user interactions for audit-

ing, accounting, and pricing;

• Monitoring of critical infrastructure components

as well as services/applications to react on sud-

denly intermittent failures;

• Flexible system(s) for distributing interesting

events or pre-deﬁned topics of interest to foreseen

users/components (notiﬁcation support);

• Methods for deﬁning and negotiating Ser-

vice Level Agreements (digital contracts) (Has-

selmeyer et al., 2006) based on QoS

parameters

in order to guarantee a certain level of reliability,

performance, and scalability to customers/users

and to facilitate the individual pricing of single

service capabilities.

3 COSPACES SHARED DATA

SPACE

Beside the dynamic setup of a collaboration session

the management of sensible data has to be considered

as a critical aspect. Within industrial collaborations

critical data has to be shared between all collaboration

partners. So the CoSpaces framework has to provide

an infrastructure to support the secure distribution of

this data to partners being foreseen for a speciﬁc col-

laboration. As one of the most important aspects for

industrial partners regarding the sharing of data, it has

been identiﬁed that the control of the corresponding

data, i.e. who is allowed to access or modify which

speciﬁc data sets, must remain by the corresponding

data owner. The following current practise has been

identiﬁed within current industrial collaborations:

• If companies want to share data, the data being

foreseen for a speciﬁc collaboration session is

stored in a dedicated shared data space within the

Demilitarised Zone (DMZ) of the corresponding

company;

• Access rights are just granted on data within that

shared data space;

• The DMZ is protected by another ﬁrewall and

secured with an authentication and authorisation

system;

Quality of Service

• Access to the corresponding data is realised en-

suring encryption of the entire data trafﬁc;

• The access rights are fully controlled by the cor-

responding data owner.

Since within such a collaboration different tools are

going to be used by the collaboration partners, the

framework shall also provide a data transformation

and integration support in order to allow the partici-

pating users to exchange and integrate their local data

sets with the ones being published by other collabo-

ration partners. As a result, the users involved beneﬁt

by additional knowledge resulting in the combination

and integration of the available data sources. Figure 1

reﬂects this entire CoSpaces Data Space approach.

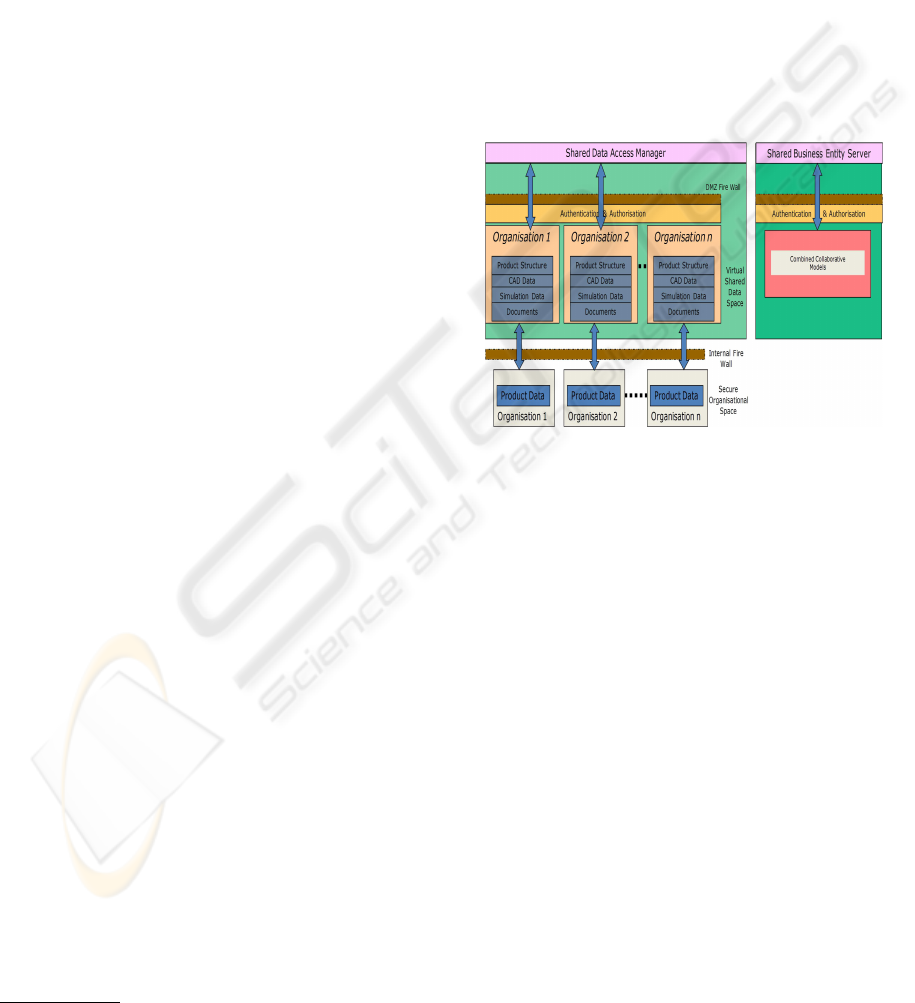

Figure 1: CoSpaces Data Space.

To face real user requirements as mentioned before,

the CoSpaces approach realises the data management

processing as follows:

Every collaboration partner willing to share data

with other partners has to provide a Virtual Shared

Data Space within their DMZ. Within this Virtual

Shared Data Space every partner is able to upload

data from the Secure Organisational Space and as-

signs access control policies for the corresponding

data sets and partners. Within CoSpaces, this Vir-

tual Data Space is going to be realised by providing

dedicated databases as well as a modiﬁed version of

the BSCW shared workspace system (Horstmann and

Bentley, 1997).

This modiﬁed version allows the usage of the

Shibboleth approach for authentication and authori-

sation tasks, since for the realisation of the entire

authentication and authorisation processing, Shibbo-

leth’s federated Single-SignOn and attribute exchange

framework has been selected (Assel and Kipp, 2007).

To allow for the need to combine and integrate

data artefacts to get additional knowledge, a Shared

Business Entity Server is mentioned in the CoSpaces

approach as well. This Shared Business Entity Server

ICEIS 2008 - International Conference on Enterprise Information Systems

260

provides functionality to convert data according to

speciﬁc formats and integrate these data sets to a new,

global one. It also provides the same security, authen-

tication and authorisation infrastructure as the Vir-

tual Shared Data Spaces and can so consequently be

hosted by one of the data providers or by an external

trusted third party. The access rights of the combined,

collaborative models are deﬁned by all data providers

themselves.

4 VIROLAB VIRTUAL

LABORATORY

The mission of the ViroLab project is to provide re-

searchers and medical doctors in Europe with a virtual

laboratory for infectious diseases for HIV drug resis-

tance.

The virtual laboratory integrates the biomedical

information from viruses (proteins and mutations),

patients (e.g. viral load) and literature (drug re-

sistance experiments) resulting in a rule-based de-

cision support system (Sloot et al., 2006) for drug

ranking. In addition, it includes advanced tools for

(bio)statistical analysis, visualisation, modelling and

simulation, enabling the prediction of temporal viro-

logical and immunological response of viruses with

complex mutation patterns for drug therapy.

The virtual laboratory is basically used by medi-

cal doctors to review previous results and rankings

of recent HIV drug resistance interpretations or by

scientists to conduct new experiments and simula-

tions starting from pre-deﬁned process ﬂow tem-

plates, which allow an interactive selection of avail-

able bioinformatics applications to be combined into

one explicit workﬂow for analysing individual HIV

drug resistance. Furthermore, the virtual environment

offers different capabilities such as on-demand re-

quests to people more involved or real-time data shar-

ing, in order to allow easy collaborations with other

medical professionals for studying and discussing

previous results and experiments.

To achieve a smooth integration of the distributed

and heterogeneous resources into the overall labo-

ratory infrastructure, a set of virtualisation services

that guarantees access to resources in a consistent,

resource-independent, and efﬁcient way is being de-

veloped to facilitate a direct and on-demand interac-

tion with all available biomedical databases, thus en-

abling collaborative research and workﬂow execution.

In order to meet the speciﬁc requirements for ex-

changing the conﬁdential biomedical data sets within

such a virtual environment, the solution introduced in

ViroLab is built on existing Grid technologies provid-

ing the core for the so-called Data Access Services

(DAS) (Assel et al., 2008).

These services implement standard user interfaces

realised as basic Web Service capabilities to guaran-

tee an easy interoperability with different end-user

systems, and to support various user groups such as

researchers, medical doctors, etc. for accessing the

distributed data in a user-friendly way. Furthermore,

the DAS also allow the integration of several data re-

source types to be exposed within the virtual infras-

tructure. With only one central entry point acting as

the only ”visible” and accessible system, users are un-

aware that they are dealing with a federation of differ-

ent data resources rather than a single one.

Thus, when answering requests for data, the ser-

vices need to transform and translate heterogeneous

data according to application-dependent formats, ac-

cess heterogeneous technologies, consolidate data

gained from several resources simultaneously, and as-

sure the availability of new/current data while observ-

ing data conﬁdentiality and ownership. The latter

ones are very crucial in an eHealth scenario and can

be seen as one of the most essential and extremely

important parts. Therefor, the DAS are equipped

with sophisticated security mechanisms based on es-

tablished technologies like Shibboleth and the Grid

Security Infrastructure (GSI) provided by the Globus

Toolkit (Barton et al., 2006) to protect the sensible

sources of data and to keep the privacy of single data

sets (patients). The following ﬁgure depicts the over-

all data access and integration architecture of Viro-

Lab’s virtual laboratory.

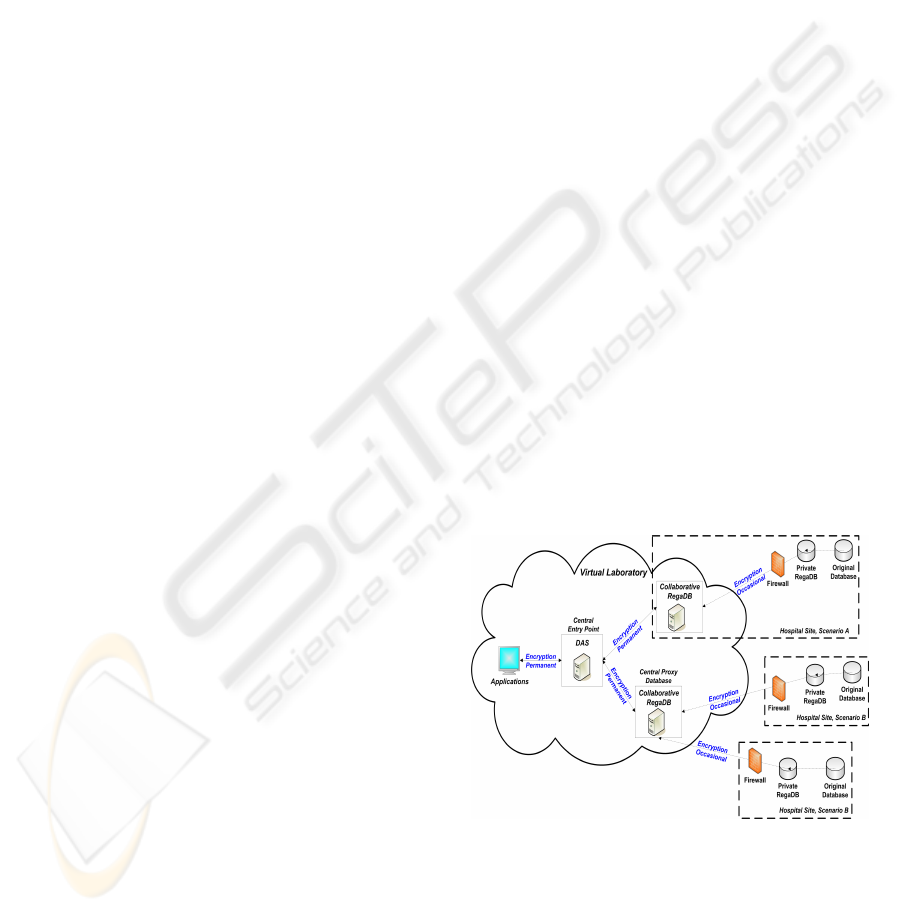

Figure 2: ViroLab’s Data Access and Integration Architec-

ture.

At every data provider site, within the hospitals’ se-

curity regions (behind their ﬁrewalls), data from the

original database(s) are transferred into a private Re-

gaDB installation. RegaDB is a speciﬁc HIV data and

analysis management environment (Libin et al., 2007)

developed by the Rega Institute of the Katholieke

DATA MANAGEMENT AND INTEGRATION WITHIN COLLABORATIVE WORKING ENVIRONMENTS

261

Universiteit Leuven that enables an easy storage and

management of biomedical data sets of HIV-treated

patients. The transfer is done by exporting data from

the original database and converting that data ex-

tract through a custom script into the latest RegaDB

schema. The transfer can be conducted repeatedly

over time at the discretion of the database adminis-

trator(s).

Data anonymisation can occur either while trans-

ferring data from an original database into a private

RegaDB or alternatively when transferring data from

a private RegaDB onto a collaborative one.

To contribute data to the ViroLab virtual labo-

ratory, there are two alternative scenarios, both in-

cluding the upload of data from a private RegaDB

into a collaborative RegaDB. The main difference

between both solutions is the physical location of

the collaborative RegaDBs. Data providers can ei-

ther host their own collaborative RegaDB installation

within a trusted region outside their institutional ﬁre-

wall (within their Demilitarised Zone or DMZ), or

they utilise one of the ”centrally managed” collabo-

rative RegaDBs hosted by some trusted third parties

via a secure connection.

Currently, both of the described scenarios are in

the scope of ViroLab. Since some hospital policies

basically prohibit an installation of additional server

machines and/or software components within their

administered networks, the only way to contribute

data to the project’s workspace is limited to the sec-

ond possibility as described above.

5 PRELIMINARY RESULTS

At present, both projects are in their implementation

phases developing and realising the mentioned ap-

proaches. While CoSpaces just ﬁnalised the concep-

tual design phase of the entire data management in-

frastructure and recently started working on a ﬁrst

prototype to be available until the end of this year,

ViroLab already released a ﬁrst version of the Vir-

tual Laboratory that supports data access and inte-

gration of the heterogeneous resources in a limited

way. One can deal with these resources as a federated

data space, which can be queried by submitting mul-

tiple and concurrent requests for gathering any kind

of biomedical data sets that still reside in an inho-

mogeneous state. Basic security features including

the encryption of transferred data messages as well

as the support for user authorisation based on Shibbo-

leth’s authentication and authorisation infrastructure

(AAI) are also in place. These data requesting ac-

tivities are applied within several pre-deﬁned exper-

iments that can be used by virologists but also clin-

icians to estimate the possible drug resistance for a

particular virus mutation. A more detailed descrip-

tion of corresponding experiments can be found in

(Gubala et al., 2008). Future releases of ViroLab’s

Data Access Services will enhance the services’ ca-

pabilities with respect to performance and scalability,

and facilitate the interaction with the services through

a speciﬁc query language based on natural language

terms instead of providing common SQL statements.

6 CONCLUSIONS

Dynamic (business) collaboration, as an exciting and

promising ﬁeld of an interdisciplinary cooperation,

will provide new working environments that ease

cross-organisational data exchange and communica-

tion. It has attracted worldwide attention and several

international research projects have already designed

and implemented ﬁrst prototypes for appropriate in-

frastructures.

Actually, today’s systems often stick to static en-

vironments instead of developing ﬂexible and dy-

namic solutions enabling ad-hoc collaborations with

on-demand application and data sharing.

Future developments need to take service and re-

source virtualisation more into account to hide the

complexity of the underlying technologies from the

users/customers but also to allow on-the-ﬂy modiﬁ-

cations of internal interfaces and/or enhancement of

existing functionalities while simultaneously keeping

and guaranteeing dynamicity, scalability, and perfor-

mance of the available services/resources. To develop

applicable environments for daily business processes,

current systems need to be enhanced with reliable

models and tools to monitor user activities including

data requests or service invocations, and in fact, with

sophisticated mechanisms to price and account corre-

sponding user interactions according to current mar-

ket variances or surprisedly changing user require-

ments.

In this paper, we have presented the approaches

of two running European research projects CoSpaces

and ViroLab, which are trying to overcome the com-

plex problem of building dynamic infrastructures for

secure data management and data integration. We

have identiﬁed some key features and requirements,

which should be considered during the design and

development phase of such environments and which

may lead to better and much easier to handle solutions

not limited to research but also for the next generation

of intercontinental business collaborations.

ICEIS 2008 - International Conference on Enterprise Information Systems

262

ACKNOWLEDGEMENTS

The results presented in this paper are partially funded

by the European Commission under contract IST-5-

034245 through the project CoSpaces and through the

support of the ViroLab Project Grant 027446. The au-

thors want to thank all who contributed to this paper,

especially the members of both consortiums.

REFERENCES

Assel, M. and Kipp, A. (2007). A secure infrastructure

for dynamic collaborative working environments. In

Proceedings of the 2007 International Conference on

Grid Computing & Applications, GCA 2007, June 25-

28 2007, Las Vegas, Nevada, USA. CSREA Press.

Assel, M. and Krammer, B. (2007). Towards innovative

healthcare grid solutions: Virolab - a virtual labora-

tory for infectious diseases. In Proceedings of the

German e-Science Conference 2007, May 02-04 2007,

Baden-Baden, Germany. Max Planck Digital Library.

Assel, M., Krammer, B., and Loehden, A. (2007). Data ac-

cess and virtualization within virolab. In Proceedings

of the 6th Cracow Grid Workshop 2006 (CGW06),

Oct. 15-18 2006, Krakow, Poland. ACC-Cyfronet

AGH.

Assel, M., Krammer, B., and Loehden, A. (2008). Man-

agement and access of biomedical data in a grid en-

vironment. In Proceedings of the 7th Cracow Grid

Workshop 2007 (CGW07), Oct. 16-18 2007, Krakow,

Poland. ACC-Cyfronet AGH.

Barton, T., Basney, J., Freeman, T., Scavo, T., Sieben-

list, F., Welch, V., Ananthakrishnan, R., Baker, B.,

Goode, M., and Keahey, K. (2006). Identity federation

and attribute-based authorization through the globus

toolkit, shibboleth, grid- shib, and myproxy. In Pro-

ceedings of 5th Annual PKI R&D Workshop, April 04-

06 2006, Gaithersburg, USA. NIST Interagency Re-

ports.

Elmroth, E., Gardfjll, P., Norberg, A., Tordsson, J., and

stberg, P.-O. (2007). Designing general, composable,

and middleware independent grid infrastructure tools

for multi-tiered job management. In Proceedings of

the CoreGrid Symposium, Aug. 28-31 2007, Rennes,

France. Springer-Verlag.

Gubala, T., Balis, B., Malawski, M., Kasztelnik, M.,

Nowakowski, P., Assel, M., Harezlak, D., Bartynski,

T., Kocot, J., Ciepiela, E., Krol, D., Wach, J., Pelczar,

M., Funika, W., and Bubak, M. (2008). Virolab vir-

tual laboratory. In Proceedings of the 7th Cracow Grid

Workshop 2007 (CGW07), Oct. 16-18 2007, Krakow,

Poland. ACC-Cyfronet AGH.

Hasselmeyer, P., Qu, C., Schubert, L., Koller, B., and

Wieder, P. (2006). Towards autonomous brokered sla

negotiation. In Proceedings of the eChallenges 2006

(e-2006) Conference, Oct. 25-27 2006, Barcelona,

Spain. IOS Press.

Horstmann, T. and Bentley, R. (1997). Distributed author-

ing on the web with the bscw shared workspace sys-

tem. StandardView, 5(1):9–16.

Libin, P., Deforche, K., Laethem, K. V., Camacho, R., and

Vandamme, A.-M. (2007). Regadb: An open source,

community-driven hiv data and analysis management

environment. In Proceedings of the Fifth European

HIV Drug Resistance Workshop, March 2007, Cas-

cais, Portugal. Reviews in Antiretroviral Therapy.

Schubert, L., Wesner, S., and Dimitrakos, T. (2005). Secure

and dynamic virtual organizations for business. In

Proceedings of the eChallenges 2005 (e-2005) Con-

ference, Oct. 19-21 2005, Ljubljana, Slovenia. IOS

Press.

Sloot, P., Boucher, C., Bubak, M., Hoekstra, A., Plaszczak,

P., Posthumus, A., van de Vijver, D., Wesner, S., and

Tirado-Ramos, A. (2006). Virolab - a virtual labora-

tory for decision support in viral diseases treatment. In

Proceedings of the 5th Cracow Grid Workshop 2005

(CGW05), Nov. 20-23 2005, Krakow, Poland. ACC-

Cyfronet AGH.

Wilson, M., Chadwick, D., Dimitrakos, T., Doser, J., Gi-

ambiagi, A. A. P., Golby, D., Geuer-Pollmann, C.,

Haller, J., Ketil, S., Mahler, T., Martino, L., Par-

ent, X., Ristol, S., Sairamesh, J., and Schubert, L.

(2005). The trustcom framework v0.5. In Proceed-

ings of the 6th IFIP Working Conference on Virtual

Enterprises (PRO-VE ’05), Sep. 26-28 2005, Valen-

cia, Spain. Springer-Verlag.

DATA MANAGEMENT AND INTEGRATION WITHIN COLLABORATIVE WORKING ENVIRONMENTS

263
