A FRAMEWORK FOR PROTECTING EJB APPLICATIONS

FROM MALICIOUS COMPONENTS

Hieu Dinh Vo and Masato Suzuki

School of Information Science, Japan Advanced Institute of Science and Technology, Ishikawa, Japan

Keywords: J2EE, EJB, component-based, security, business functions.

Abstract: Enterprise JavaBeans (EJB) components in an EJB application can be obtained from various sources. These

components may be in-house developed or bought from other vendors. In the latter case, the source code of

the components is usually not available to application developers. The result is that the application may

contain malicious components. We propose a framework called BFSec that protects EJB applications from

vicious components. The framework examines bean methods invoked by each thread in applications and

compares them with pre-defined business functions to check whether the latest calls of threads are proper.

Unexpected calls, which are considered to be made by malicious components, will be blocked.

1 INTRODUCTION

Recently, large-scale information systems are built

based mainly on software component technology.

Besides the benefits such as reducing complexity,

time, and the development cost of systems, using

components in developing information systems may

introduce new security risks. The main source of

security issues in component-based systems is that

components used in a particular system may come

from various sources and that their source code may

not be available. This leads to difficulties in

assessing the security aspect of the used

components. The consequence is the possible

introduction of malicious components, which can

cause the whole system to be insecure.

EJB (Sun, 2005) is one of the leading

technologies for developing component-based

applications. In the current EJB applications, the

protection of system resources such as files,

memory, and network from malicious components is

mainly based on the Java protection mechanism

(Gong, 2002). In addition, with the use of the role-

based access control mechanism, beans are protected

from unauthorized users (Sun, 2005). However, in

the context of component-based software, we also

need another kind of protection: that is the

protection of beans from malicious beans.

In this paper, we present our work on building a

framework for protecting EJB applications from the

malicious beans. We utilize the concept of business

function (Vo and Suzuki, 2007) along with the

Intercepting Filter pattern (Alur et al., 2003) to

ensure that methods of beans are invoked not only

by the right person but also from the right places.

In the following section, we describe an example

that is used for discussion in later sections. Then, in

Section 3, we show that the current mechanism is

not sufficient to protect applications from malicious

beans. Our framework is described in Section 4.

Section 5 presents experimental results and

discusses points related to the approach used in the

framework. Works related to our research are

summarized in Section 6.

2 MOTIVATING EXAMPLE

Our example is the business tier of a virtual online

banking system named eBank. The system is

developed based on the J2EE platform. Customers

of the bank use the system (via Web browsers) to

transfer money between accounts. EJB components

used for this functionality are shown in Figure 1.

The process of transferring money is initiated by

invoking method

transfer() of TxBean. This

method will first call

CheckBean.check() to

assess conditions of making the transaction. If there

is no problem,

TxBean.transfer() calls

DoTxBean.doTx(), in which the actual transaction

is done. Finally, method

doTx() invokes

264

Dinh Vo H. and Suzuki M. (2008).

A FRAMEWORK FOR PROTECTING EJB APPLICATIONS FROM MALICIOUS COMPONENTS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 264-269

DOI: 10.5220/0001704502640269

 SciTePress

LogBean.log() for recording information about

the transaction.

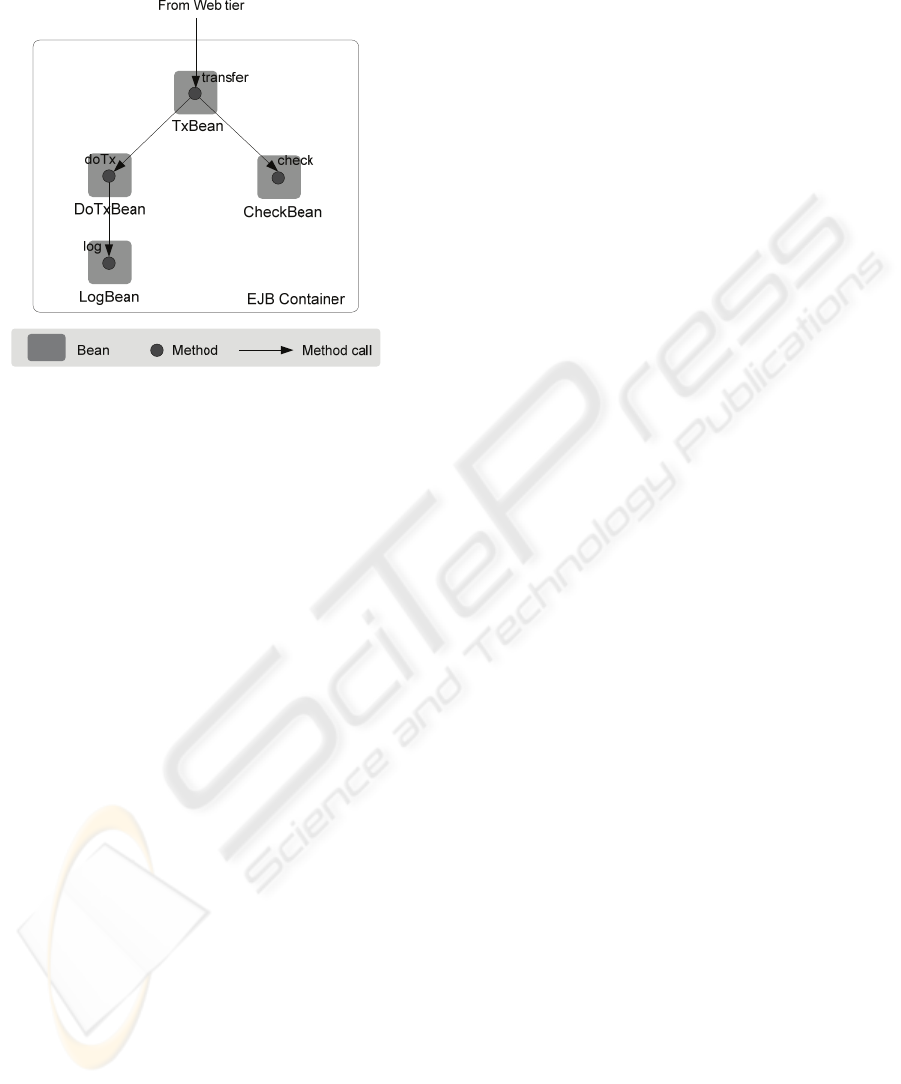

Figure 1: EJB components in the eBank system.

For the sake of simplicity, we only consider the

role customer of the system, and this role can

transfer money between accounts.

3 THE PROBLEMS

Current EJB applications use the configuration file

ejb-jar.xml to specify several aspects of the

applications, such as the dependencies between

beans, transactions, and security policy. The access

control policy of bean methods is declared within

the elements

<method-permission> in this file.

<method-permission>

<role-name>customer</role-name>

<ejb-name>DoTxBean</ejb-name>

<method-name>doTx</method-name>

</method>

</method-permission>

Listing 1: Access control policy for a method.

Listing 1 states that the role customer can

invoke method

DoTxBean.doTx(). Note that if we

allow a role to execute a method m, unless we use

principal delegation, we must allow that role to

invoke all methods called by m. If not, the

invocation of m will not be completed.

In the current EJB access control, we only state

which role can execute which method. There is no

constraint about where a method might be invoked.

This, together with the fact that the source code of

beans is not always available to the application

developers, may lead to security issues. For

example, in our eBank system, we assume that the

source code of bean

TxBean is not available. In

order to allow the role

customer to transfer money,

we must allow this role to execute

TxBean.transfer(), DoTxBean.doTx(),

CheckBean.check(), and LogBean.log().

However, the policy does not point out where these

methods can be invoked from. If the

TxBean is

malicious (e.g. the bean itself is malicious or it is

being controlled by a malicious person), it can

invoke

LogBean.log() directly (on behalf of the

customer role) without going through

DoTxBean.doTx(). This is unexpected.

In addition,

TxBean.transfer() is supposed

to execute

CheckBean.check() before invoking

DoTxBean.doTx(). At runtime, we cannot ensure

that, in every case,

TxBean will invoke

CheckBean.check() before invoking

DoTxBean.doTx().

The above analysis shows that, in the context of

component-based software development, we need a

stricter way of specifying and enforcing access

control policy than the current approach. In the next

sections, we describe our BFSec framework, which

aims at achieving this.

4 BFSEC FRAMEWORK

The core idea of the approach is, first, at design

time, to define call flows (i.e. series of interactions

between methods) that may happen in that

application. Then, at runtime, we check all method

invocations to ensure that they conform to the

defined call flows. A method invocation is allowed

only if the invocation belongs to at least one of the

defined call flows.

In our framework, we use the concept of

business functions (Vo and Suzuki, 2007) to define

the call flows (at design time). Meanwhile, at

runtime, a call flow is a series of methods invoked

by a thread. The framework ensures that, at any

point during the lifetime of a given thread, the thread

must conform to at least one of the defined business

functions. We enforce this policy by assigning a set

of potential business functions to each thread the

first time the thread invokes a method. This set is

then updated each time the thread invokes a method.

The framework blocks any thread having no

business function associated with it.

We equip beans with interceptors to update

business functions of threads. In addition, the

framework uses other modules for providing

information about defined business functions and

A FRAMEWORK FOR PROTECTING EJB APPLICATIONS FROM MALICIOUS COMPONENTS

265

call flow at runtime. Figure 2 shows the overall

architecture of the framework.

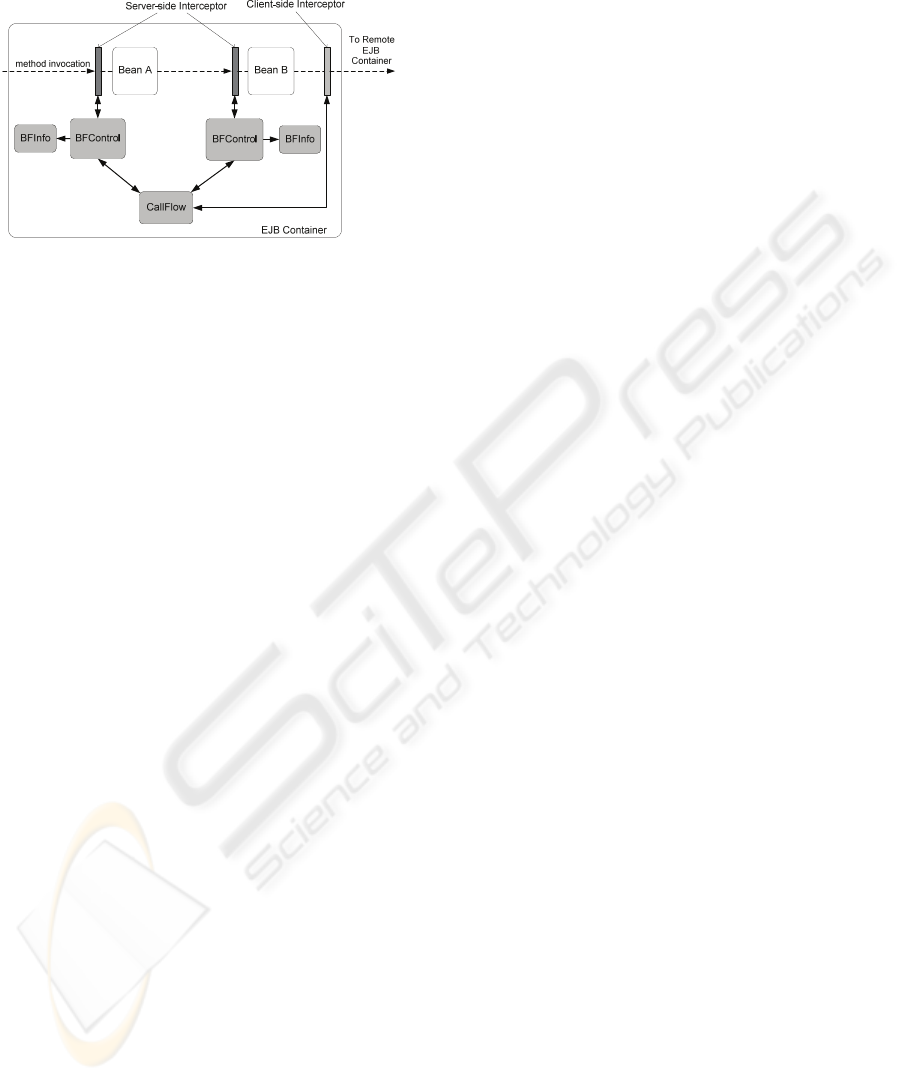

Figure 2: Architecture of BFSec framework.

The BFInfo module contains information of

business functions related to the corresponding bean.

This information is extracted from business

functions defined by application developers. The

CallFlow module manages information of all threads

in an EJB container. There are many threads in a

system, but the CallFlow module only concerns

threads that invoke at least one bean method. Only

one CallFlow module is used for an EJB container.

The BFControl modules are responsible for policy

enforcement. For each bean, we provide a

BFControl module. This module uses information

obtained from BFInfo (about business functions) and

from CallFlow (about threads) to update the set of

business functions associated with threads and to

decide whether calls are permitted or not. In our

system, we use two kinds of interceptor including

server-side interceptors and client-side interceptors.

The server-side interceptors are used by BFControl

to update business functions of threads. The client-

side interceptors are used when invoking methods

belonging to beans in different machines. In this

literature, if a stand-alone word “interceptors” is

used, we mean the server-side interceptors.

The next sections present the details of the

framework.

4.1 Business Functions

The concept of business function is introduced in the

work about a flexible approach for specifying access

control in EJB applications (Vo and Suzuki, 2007).

In this paper, we revise the description of business

function so that it is suitable for the BFSec

framework.

We use the XML format to describe business

functions. The Listing 2 is the Document Type

Definition (DTD) for a business function

description.

<?xml version= “1.0”?>

<!ELEMENT business-function (invoke)>

<!ALIST business-function name CDATA>

<!ELEMENT invoke (method, invoke*,

block*)>

<!ELEMENT method CDATA>

<!ELEMENT block (invoke*, block*)

<!ALIST block type (if | dowhile |

switch)

Listing 2: DTD of business function description

A description of a business function starts with

the element

<business-function> and the name

of that business function, then followed by a

description of interactions between methods. A

method invocation is described by element

<invoke>, which includes the name of the

invoking method. An

<invoke> element may

contain other

<invoke> elements to describe a

method which calls other methods. The method

invoked first in a business function is the entry

method of that business function. We also use the

element

<block> to group invocations and to

provide flow control. The execution of a block can

be modified by using the attribute

type of the

<block> element. The values of this attribute

include

“if”, “switch”, “dowhile”, whose

semantics are similar to that used in Java

programming language. In descriptions of business

functions, we do not consider the conditions that

control invocations. For example, if

type=“if”, we

do not care about when the methods inside the

<block> will be executed. The reason for this is

that the condition is a part of the internal state of the

bean, so we should not take it into account.

4.2 Information Extracted from

Business Functions

From business function descriptions, we can extract

information that is used for updating business

functions associated with each thread at runtime.

The following variables and functions describe what

kind of information we extract from defined

business functions.

• R: set of roles. B: set of business functions of

the application. M: set of methods involving at

least one of the business functions in B. r:

∈

is the role of the principal who is making the

call. caller, callee, and preMethod:

∈M; caller

is the method making the call, callee is the

called method. preMethod is the method (if it

exists) invoked by caller before invoking

callee. bfs:

⊂ B, a set of business functions

ICEIS 2008 - International Conference on Enterprise Information Systems

266

associated with a certain thread. bf:

∈

B, a

business function.

• allow(r,bf): returns true if users in role r are

allowed to invoke business function bf.

Otherwise, the function returns false.

• allow(caller, callee, bf): this function returns

true if in the business function bf, caller

invokes callee. Otherwise, the function returns

false.

• entry(bf): this function returns the entry method

of business function bf.

• preCall(caller, callee, bf): This function returns

a set of methods so that if m

is an element of

this set then caller calls m

before invoking

callee and the business function containing

these invocations is bf.

• initBf(r, callee): callee

∈ M is the called

method. This function returns a set of business

functions so that if bf is an element of this set

then entry(bf)==callee and allow(r,bf)==true.

• nextBf(bfs, caller, callee, preMethod): bfs

⊂ B,

is the set of business functions this thread may

involve. This function returns a subset of bfs so

that if bf is an element in this subset, then

allow(caller, caller, bf)==true and

preMethod

∈

preCall(caller, callee, bf).

In the BFSec framework, the above functions are

provided by the BFInfo module. The BFControl

module uses these functions to update the set of

business functions for each thread at runtime.

However, in order to use these functions, we need to

know callee, caller, and preMethod. The next

section describes how to obtain these values at

runtime.

4.3 Obtaining Runtime Information of

Threads

In this section we describe how to obtain

information that is used for updating sets of business

functions associated with threads. We also explain

the way in which this information is managed by the

CallFlow module.

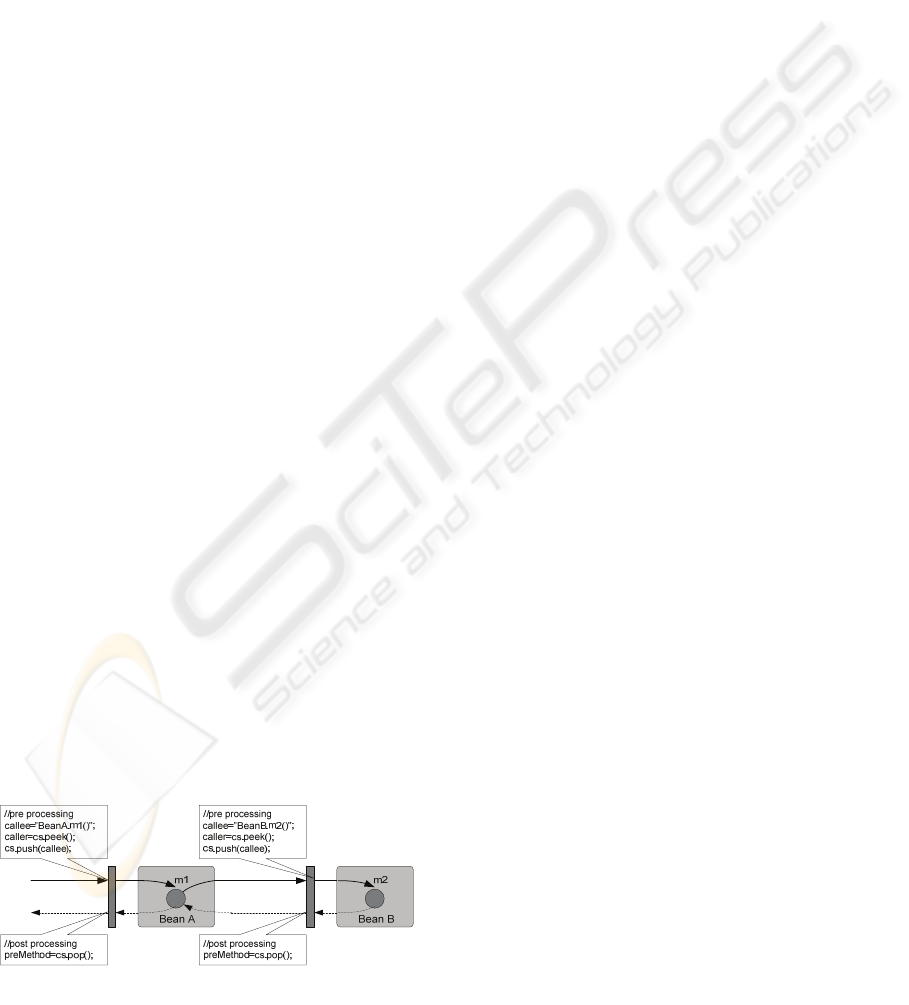

Figure 3: The solution for determining the callers.

The information about a thread that we need to

know is the callee, the caller, and the previous called

method of the caller. For the callee, we can easily

acquire because at interceptors we know which

method we are invoking. However, determining the

caller and the previous method called by the caller is

quite difficult. The solution to this problem is to

equip a stack for each thread. Figure 3 illustrates our

solution. In the figure, the stack used for the thread

cs. The operation on the stack includes peek():

returns the value on top of the stack;

push(m):

pushes m onto the top of the stack; pop():

removes and returns the top value of the stack.

For each thread in an application, we need to

maintain:

bfs: a set of business functions that is

associated with the thread,

cs: a stack containing

methods the thread has been invoking, and

preMethod: the method last called by the method

on the top of the

cs stack. In our framework, each

thread is provided an entry containing this

information and these entries are managed by the

CallFlow module.

In cases where the caller and the callee are

located in different machines that solution will not

work because we base it on threads. This is the

reason why we use client-side interceptors. The task

of these interceptors is to send information of

threads making the call (including the set of business

functions, the caller, and the previous called of the

caller) to the remote system. This means that when

checking permission of a remote call, instead of

obtaining information of threads from the CallFlow

module, the BFControl module will use information

sent by the client-side interceptors.

4.4 Business Function Enforcement

This section describes how the BFControl module

uses the BFInfor module and the CallFlow module

to update sets of business functions associated with

threads and to enforce call flows at runtime.

At the interceptors, the set of business functions

associated with a thread is updated as follows.

if(caller==null)

bfs=initBf(r,callee)

else

bfs=nextBf(bfs,caller,callee,

preMethod)

if(bfs==null)

return false;// invocation blocked

else

return true;// invocation allwed

Listing 3: The update of business functions associated

with a thread.

A FRAMEWORK FOR PROTECTING EJB APPLICATIONS FROM MALICIOUS COMPONENTS

267

Table 1: The overhead introduced by the BFSec framework.

Business Functions

Without

BFSec

(ms)

With BFSec

(ms)

No. inter-

bean

invocations

% of time

consumed by

BFSec

Average time

per check

(ms)

Account History 2.778 2.842 58 2.3 0.0011

ATM Withdraw 0.352 0.386 19 9.7 0.0018

Transfer 0.413 0.432 9 4.5 0.0021

Create Customer 0.201 0.207 3 2.9 0.0019

Create Account 0.255 0.260 4 2.3 0.0012

In the above code segment, we depend on the

caller to determine

bfs of a thread. caller==null

means that this is the first time the thread invokes a

method. In this case,

bfs is initiated by

initBf(r,callee). This function returns a non

null set only if

callee is the entry method of some

business functions and if role

r is allowed to execute

these business functions.

When the caller is not null this means that the

thread has invoked methods before and the thread is

associated with at least one business function

(contained in

bfs). bfs is updated by function

nextBf(bfs,caller,callee,preMethod).

In both cases (caller is null and not null),

bfs==null means that there is no business function

associated with the thread and the thread will then be

blocked.

5 EXPERIMENTAL RESULTS

We have implemented the BFSec framework for

JBoss AS 4.0. The application we used for testing is

Duke’s Bank application (Sun, 2006). The

application contains 7 EJB components. We defined

13 business functions such as ATM Withdraw,

Account History, and Create Customer. The test was

performed on a machine with 2 CPUs AMD

2.4GHz, 4 GB RAM, Fedora Linux 6.0 and Java 1.5.

The framework ensures that the security problems

described in section 3 cannot happen. In our

experiment with Duke’s Bank application, every

invocation that does not conform to any business

function was blocked.

However, the introduction of modules into the

original version of the application server should

cause overhead. Table 1 shows the results of our

experiment about overhead caused by BFSec

framework. The results show that the latency caused

by the framework is relatively minor and that the

time needed for each check is almost the same. This

means that for a given business function, the latency

caused by the framework increases linearly with the

number of inter-bean invocations.

500

1000

1500

2000

2500

3000

500 1000 1500 2000 2500

Number of t hreads

Processing time (ms)

wit h BFS ec

without BFSec

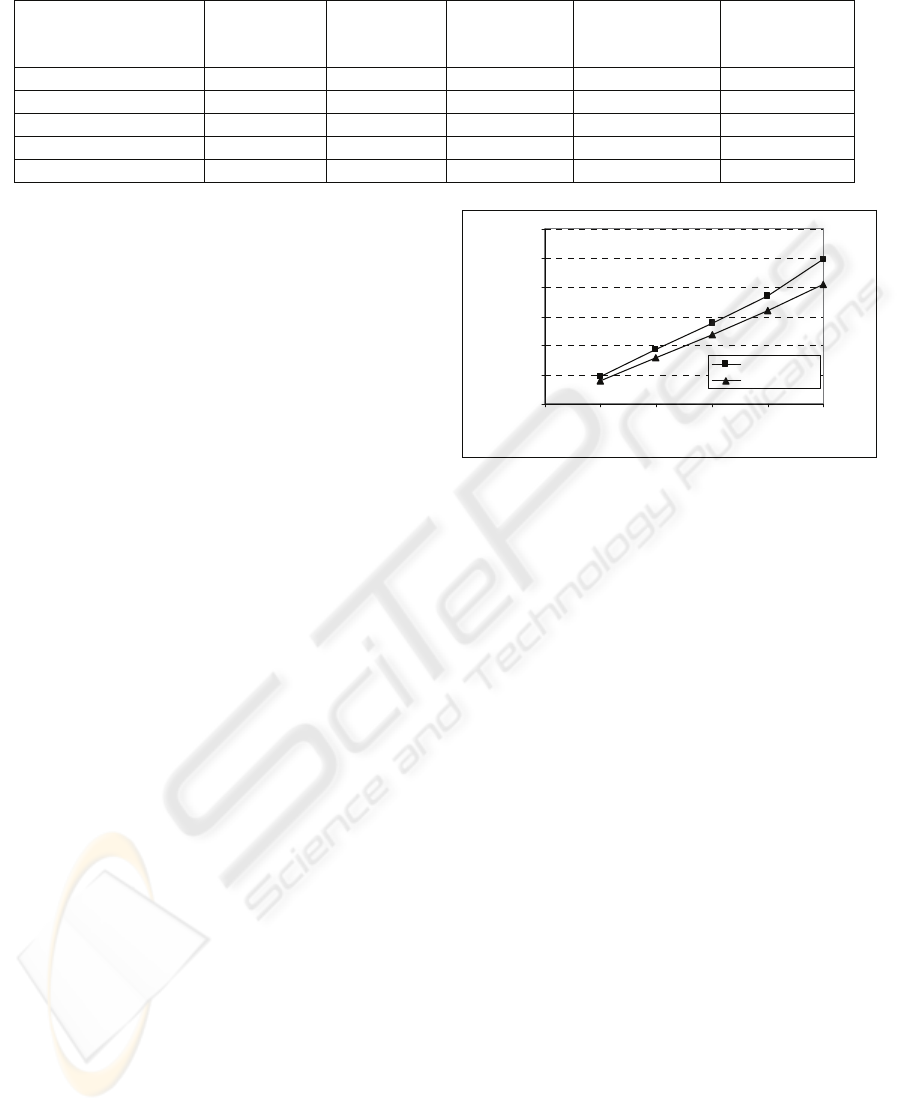

Figure 4: The latency caused by the framework in cases of

multi-threaded applications.

In our architecture, there is only one CallFlow

module in an EJB container. The consequence is that

the module becomes a bottleneck when there is more

than one thread in the system. However, because the

only operations that needed synchronizing are the

adding and deleting an entry to CallFlow (i.e. when

a new thread enters the EJB container and when a

thread goes out of the EJB container) the latency

caused by the synchronization is not significant

(Figure 4). In this experiment, we tested the business

function Account History with 500 to 2500 threads

initiated at once.

6 RELATED WORK

Regardind the protection of EJB components from

illegal access, several papers focus on the static

analysis of bean code and security policies

associated with the applications. This direction

includes works of Naumovich and Centonze

(Naumovich and Centonze, 2004), Sreedhar

(Sreedhar, 2006), and Pistoia et al. (Pistoia et al.,

2007) These works either require source code of

beans or rely on call graphs produced by byte code

analysis tools (but they are not always accurate).

In the current approach of EJB, if a role tries to

invoke a method without permission, an exception

will be thrown. Evered (Evered, 2003) proposes the

ICEIS 2008 - International Conference on Enterprise Information Systems

268

idea that if a role does not have permission to

execute a method it should not be aware of the

existence of that method.

The above approaches focus on protecting beans

from illegal access made by unauthorized people.

They cannot protect applications from security

issues presented in Section 3 of this paper.

Clarke et al. (Clarke et al., 2003) propose an

approach for checking beans at deployment time to

make sure that, at runtime, beans are totally

controlled by application servers. Their approach

can protect beans from access that bypasses the

application servers but not the access from beans

inside the application servers. Therefore, again, the

approach cannot solve the problem presented in the

previous section.

7 CONCLUSIONS

In this literature, we have shown that the current

approach for protecting EJB applications is not

secure enough. We have presented our approach, the

BFSec framework, for strengthening security of EJB

applications. The idea of the approach is to use the

business function concept to define call flows that

may happen in an application. After that, at runtime,

by collecting information of threads in the

application and comparing with the defined business

functions, we ensure that threads conform to defined

call flows.

One of our future works is to extend the

framework so that it can handle threads created by

components and by the EJB container. In addition,

when the number of EJB components in an

application grows, the task of defining business

functions should become complicated. We intend to

provide a tool that can extract business functions

from design documents such as UML diagrams. Our

further aim is to build a multi-layer framework for

securing EJB applications.

REFERENCES

Alur, D., Malks, D., Crupi, J., Booch, G. & Fowler, M.

(2003) Core J2EE Patterns (Core Design Series): Best

Practices and Design Strategies, Sun Microsystems,

Inc.

Clarke, D., Richmond, M. & Noble, J. (2003) Saving the

world from bad beans: deployment-time confinement

checking. SIGPLAN Not., 38, 374-387.

Evered, M. (2003) Flexible enterprise access control with

object-oriented view specification. Proceedings of the

Australasian information security workshop

conference on ACSW frontiers 2003 - Volume 21.

Adelaide, Australia, Australian Computer Society.

Gong, L. (2002) Java 2 Platform Security Architecture

[online]. [Accessed Dec. 2007]. Available from

WWW: http://java.sun.com/javase/6/docs/technotes/

guides/security/spec/security-spec.doc.html.

Naumovich, G. & Centonze, P. (2004) Static analysis of

role-based access control in J2EE applications.

SIGSOFT Softw. Eng. Notes, 29, 1-10.

Pistoia, M., Fink, S. J., Flynn, R. J. & Yahav, E. (2007)

When Role Models Have Flaws: Static Validation of

Enterprise Security Policies. Software Engineering,

2007. ICSE 2007. 29th International Conference on.

Sreedhar, V. C. (2006) Data-centric security: role analysis

and role typestates. Proceedings of the eleventh ACM

symposium on Access control models and

technologies. Lake Tahoe, California, USA, ACM.

Sun (2005) Enterprise JavaBeans version 3.0 [online].

[Accessed: Dec. 2007]. Available from WWW:

http://java.sun.com/products/ejb/.

Sun (2006) The J2EE 1.4 Tutorial [online]. [Accessed:

Dec. 2007]. Available from WWW:

http://java.sun.com/j2ee/1.4/docs/tutorial/doc/.

Vo, H. D. & Suzuki, M. (2007) An Approach for

Specifying Access Control Policy in J2EE

Applications. 14th Asia-Pacific Software Engineering

Conference. Japan, IEEE.

A FRAMEWORK FOR PROTECTING EJB APPLICATIONS FROM MALICIOUS COMPONENTS

269
