COMPLEX EVENT PROCESSING

FOR SENSOR BASED DATA AUDITING

Christian Lettner, Christian Hawel, Thomas Steinmaurer and Dirk Draheim

Software Competence Center Hagenberg (SCCH), Softwarepark 21, A-4232 Hagenberg, Austria

Keywords: Business Processes, Complex Event Processing, Data Auditing, Multi-tier Architecture.

Abstract: Current legislation demands organizations to responsibly manage sensitive data. To achieve compliance,

data auditing must be implemented in information systems. In this paper we propose a data auditing

architecture that creates data audit reports out of simple audit events at the technical level. We use complex

event processing (CEP) technology to obtain composed audit events out of simple audit events. In two

scenarios we show how complex audit events can be built for business processes and application users,

when one database user is shared between many application users, as found in multi-tier architectures.

1 INTRODUCTION

1.1 Data Auditing and Regulatory

Compliance

Data auditing aims to capture the activities that are

performed on data (Natan, R., 2005). Data can be

accessed, inserted, modified or deleted. According to

the requirements, data auditing can be implemented

on different levels of granularity. For data stored in

database systems an approach found very often is to

store the old value of a data field that has been

modified. In addition, the timestamp and the user

who performed the modification are stored. Starting

from this simple approach, data auditing can be

extended to be able to provide a snapshot of the data

for an arbitrary time in the past. Additionally, all

activities performed on the data are captured and

stored. Such a complete audit trail can lead to

massive data volume which is very hard to handle.

Therefore, each data auditing solution poses a trade-

off between granularity of audit data and available

of storage. Data auditing includes also read-only

operations. This is of particular importance, because

not all commercial database systems provide built-in

solutions for that.

In recent years, data auditing has gained wide

attention as new legislation demands organization to

carefully manage their sensitive data (Johnson, C.,

Agrawal, R., 2006). In the US, the Sarbanes-Oxley

Act (SOX) of 2002 regulates the requirements for

corporate financial data. Senior executives have to

take individual responsibility for the accuracy and

completeness of corporate financial reports. The

health care system in the US is regulated by the

Health Insurance Portability and Accountability Act

(HIPAA) of 1996. In the EU, the European Union

Privacy Directive of 1998 regulates the management

of sensitive privacy data in general.

To ensure regulatory compliance, organizations

must run appropriate information systems. One core

requirement for these systems is data auditing. The

systems must be able to keep track of read-only and

modification operations to sensitive data. Also, these

activities must be assigned to unambiguous business

users in charge. Most organizations use multiple

information systems to perform their daily business.

It’s very likely that sensitive data is scattered across

different applications and databases. Isolated data

audits on single databases are not sufficient for

compliance. To get a complete picture of all

activities on sensitive data, an enterprise-wide data

auditing solution across data management systems is

mandatory.

1.2 Data Auditing Requirements

Several requirements on data auditing solutions can

be derived based on these regulatory frameworks:

 Enterprise-wide solution. Organizations use

many different applications to operate their

business. An enterprise-wide solution for data

auditing is needed to get a complete overview

485

Lettner C., Hawel C., Steinmaurer T. and Draheim D. (2008).

COMPLEX EVENT PROCESSING FOR SENSOR BASED DATA AUDITING.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 485-491

DOI: 10.5220/0001707004850491

 SciTePress

of the activities performed on the data from

different applications and databases.

 Audit of data manipulation operations.

Especially for sensitive data, data audit

solutions must be able to keep track of any

data changes in a thorough change log.

 Audit of read-only operations. Another

common requirement is to provide an audit

trail of all business users who have accessed

certain data entities.

 Unambiguous application user identification.

For meaningful data audits, the application

user who performed an operation must be

identified unambiguously. This is especially

challenging for data audits performed within

the database management system, when

multiple application users share the same

database user.

 Audit of privileged user and separation of

duties. Privileged users are able to perform

more operations and may have different

access patterns on data entities than business

users, e.g. a system administrator is able to

connect to a database through a development

tool, actually bypassing the business

application used by business users and issue

ad hoc queries. The audit system must provide

a mechanism to audit such activities

performed by system administrators. Further,

the data audit system must not be run by the

system administrator, to achieve separation of

duties.

 Affected sensitive data entity. Some regulations

require it to identify the entities affected by

the activities performed on the data, e.g. the

customer, whose address has been updated

must be identified.

Other requirements basically stem from

organizational or technical needs:

 Platform independency. If an organization uses

different platforms for their applications, the

audit solution should be able to run on all of

them.

 Transparent to new application releases. New

application releases should not break the audit

solution. Only minor changes to the audit

solutions should be necessary.

 Audit at the level of business processes.

Significant data audit trails must be at the

business process level. The audit entry

‘Employee X has changed the address of

Customer Y’ is much more meaningful than a

series of Select and Update statements.

 No impact on application performance. The

influence on application performance should

be kept as low as possible.

 Tools to analyze and manage audit data. The

audit solution must provide appropriate tools

to analyze the audit data. If auditing is

performed at high granularity, tools that

manage the huge amount of audit data must be

provided as well.

 Selective data auditing. It should be possible to

enable/disable data audits on certain data

entities.

1.3 Complex Event Processing (CEP)

Compared to the every day usage of ‘event’ as

‘something that happens’, in CEP an event is an

object (Luckham, D., 2005). The event object

describes the activity and is possibly related to other

event objects. The three most common and

important relationships between events are:

 Time. Time is a relationship that orders events.

For example event A happened before event B.

 Cause. If event A had to happen in order for

event B to happen, then A caused B.

 Aggregation. If event A consists of events B

, B

, …, then A is an aggregation of all the

events B

. Conversely, the events B

, are

members of A. Aggregation is an abstraction

relationship.

Complex event processing employs techniques as

detection of complex event patterns for many

events, event correlation, event abstraction and

event hierarchies. Typical application domains of

CEP are financial trading systems where a lot of

events must be processed at very high speed.

1.4 Related Work

(Agrawal, R., Bayardo, R., Faloutsos, C., Kiernan,

J., Srikant, R., 2004) presents an auditing framework

for queries on sensitive data entities. The sensitive

data entities must be specified using audit

expressions. The queries and audit expressions are

combined and transformed to an audit query, which

will be executing against a backlog database

(represents the state of the database when the query

was executed). The audit query evaluates all data

rows processed by the original query and determines

whether the query has accessed sensitive data

specified by the audit expression. The advantage of

this approach is that queries are also audited if the

information disclosed by the query is not part of the

output. As the pool of suspicious queries identified

by the auditing framework can become very large, in

ICEIS 2008 - International Conference on Enterprise Information Systems

486

(Agrawal, R., Evfimievski, A., Velu, R., 2007) an

approach to rank suspicious queries is presented.

Three different measures are provided to measure

proximity there. (Motwani, R., Nabar, S., Thomas,

D.) extends this work and provides a formal

foundation to audit a batch of SQL queries.

(Chen, S., Jeng, J., Chang, H., 2006) uses CEP

for business performance management. The focus is

on an extension to the Zurich Correlation Engine to

allow structural events in XML format to be

processed as well. (Lee, W., Fan, W., 2001) employs

data mining algorithms for intrusion detection

systems. Data mining is used to react to different

attack patterns. For data auditing, the access pattern

is always the same, thus eliminating the need for

data mining algorithms.

The proposed data auditing architecture in this

paper is also suitable for the business activity

monitoring approach presented in (Mangisengi, O.,

Pichler, M., Auer, D., Draheim, D., Rumetshofer,

H., 2007).

The remainder of this paper is organized as

follows: Section 2 proposes an architecture for an

enterprise-wide audit solution. It presents a

categorization of locations – so called audit hotspots

– where audits can be performed. A technical

introduction to auditing based on complex event

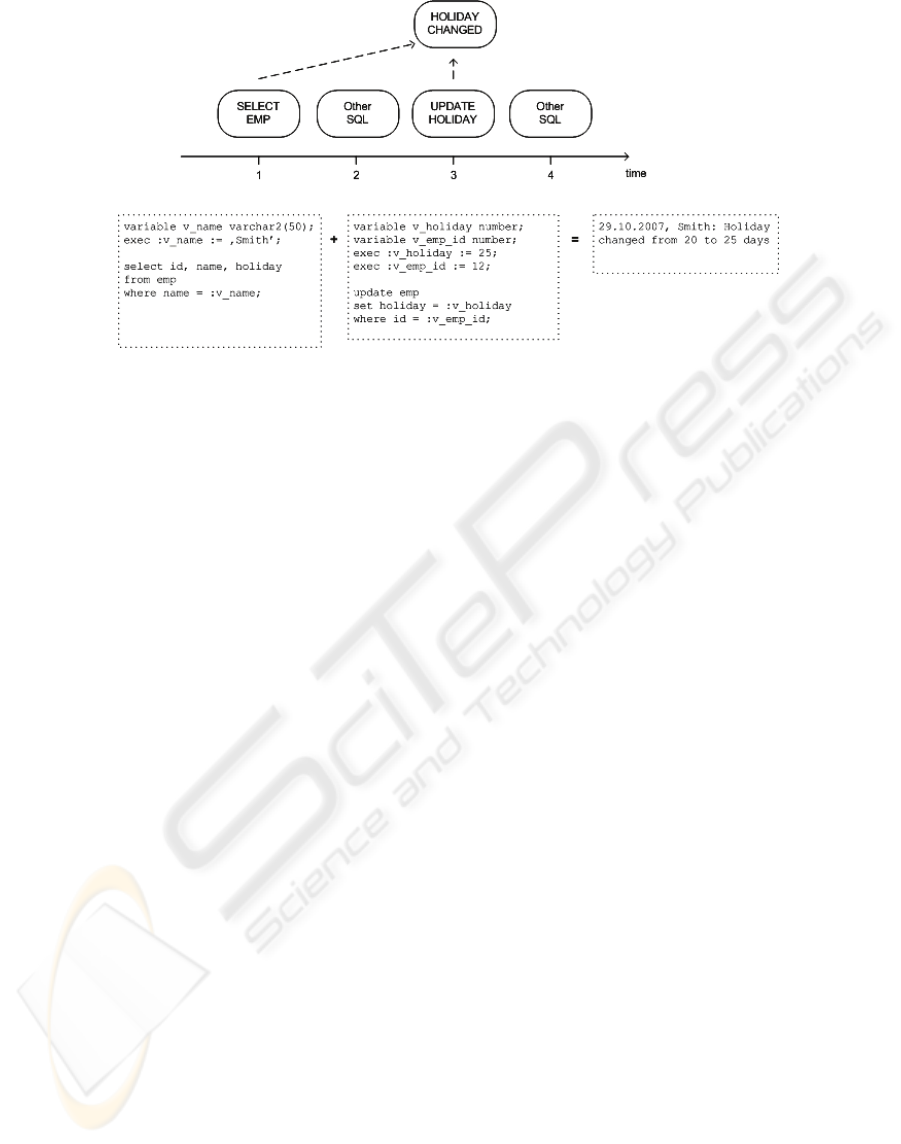

processing based on a simple example is provided in

Section 3. Section 4 describes two audit scenarios

for the proposed auditing architecture. Finally, a

conclusion and future work are presented in

Section 5.

2 DATA AUDITING

ARCHITECTURE

We use a sensor based data auditing architecture.

Sensors are lightweight agents whose task is to listen

on simple audit events, for example a query sent to a

database management system. The sensors are

scattered across the enterprise and communicate

detected audit events to one central audit event

processing system. After the events are processed,

the audit trail is forwarded to the central reporting

system.

Usually, it is very likely that different applications to

be audited require different types of sensors. For

example you could think of a sensor for the file

server to get access information to files that contain

sensitive information. We call the location at which,

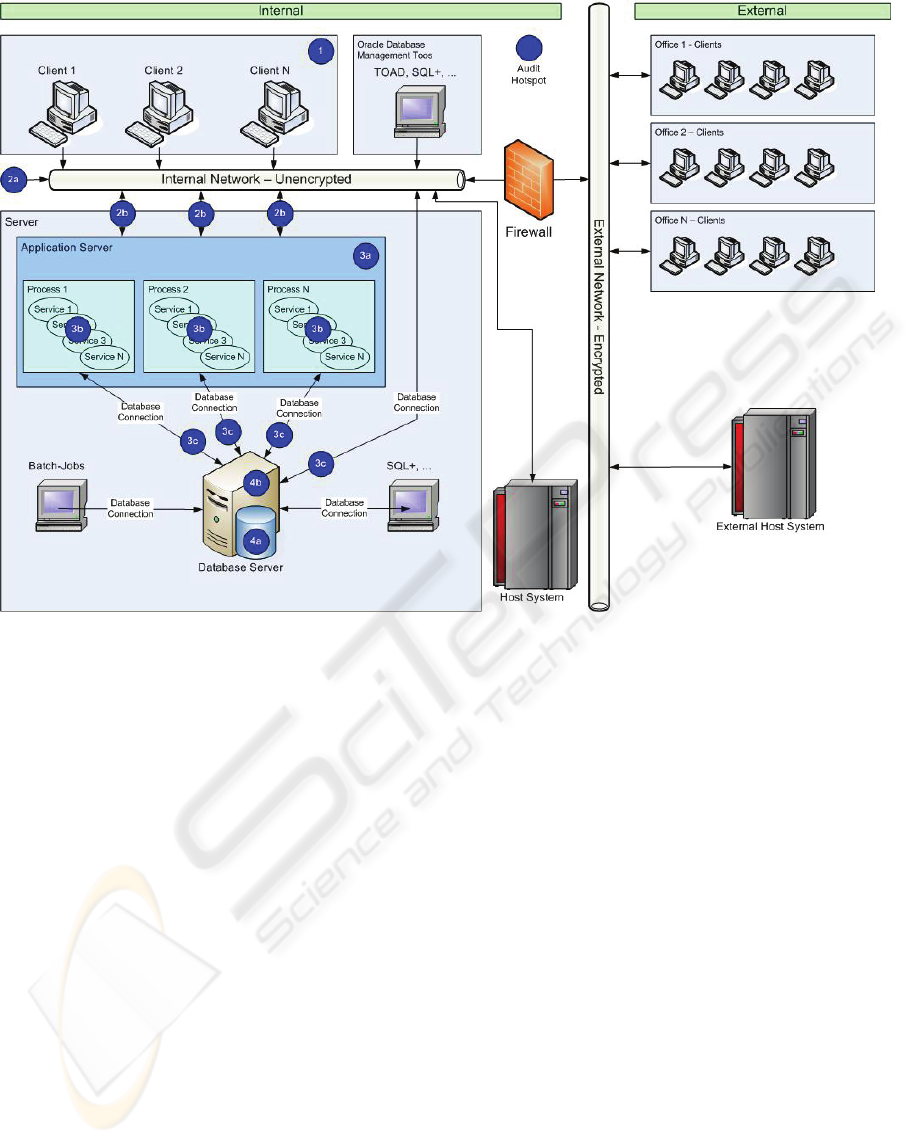

a sensor is installed an audit hotspot. Figure 1 shows

a categorization of possible audit hotspots for an

information system that implements a three-tier

architecture:

 Audit hotspot 1. Auditing is implemented

within the client application. This is the only

approach where the data can be audited that

actually has been seen by the user, e.g., in a

GUI driven application an audit event is only

created when the user actually switches to the

area containing sensitive information. The

main disadvantage of this approach is that it

requires to be implemented for each client

application type, so it is not a generic solution.

 Audit hotspot 1. Auditing is implemented

within the client application. This is the only

approach where the data can be audited that

actually has been seen by the user, e.g., in a

GUI driven application an audit event is only

created when the user actually switches to the

area containing sensitive information. The

main disadvantage of this approach is that it

requires to be implemented for each client

application type, so it is not a generic solution.

 Audit hotspot 2a. Traffic between the client and

the server is scanned at the network level. This

generic solution provides an audit solution for

all client applications communicating to the

application server. It is non-intrusive, which

means, there is no influence on application

performance. The challenge in this approach

comes with the analysis and interpretation of

the audit data. Direct access to data, bypassing

the application, will not be audited (for

example: privileged users that use a

development tool).

 Audit hotspot 2b. Communication between the

client and the server is intercepted by the

sensor that is implemented as a proxy

application. This approach is similar to the

previous one, except that the whole client

server communication runs through the

sensor. This allows the sensor to react on

malicious activities on data. It is much like a

data firewall for intrusion detection systems

and is able to enforce privacy policies.

 Audit hotspot 3a. Auditing is implemented

within the application server. Built-in features

of the application server are used. This

approach represents a generic solution for all

client applications using the application

server. On the other side, generic built-in

auditing features of the application server may

not provide the required audit granularity.

 Audit hotspot 3b. Services are extended to

perform the audit. This intrusive approach

requires that all services have the auditing

COMPLEX EVENT PROCESSING FOR SENSOR BASED DATA AUDITING

487

Figure 1: Audit-hotspot in a three-tier architecture.

functionality implemented. On the other side,

all data sent to and from the client is available.

 Audit hotspot 3c. Communication between the

server and the database is scanned at the

network level. This approach is very similar to

audit hotspot 2a which scans the

communication between the client and the

application server. The difference is in the

recorded audit event types. In this approach,

only the SQL statements issued by the

application server are audited. This makes it

even more difficult to interpret and analyze

the detected audit event. We utilize complex

event processing technology to perform this

task. A disadvantage of this approach is that

data cached by the application server that is

sent to the client will not be audited. On the

other hand, this approach is also non-intrusive

and provides a generic solution. It even audits

activities on data that bypasses the application

server. If there is the requirement to audit

privileged users that use development tools

and are able to issue ad hoc queries, then

performing auditing at this audit hotspot is one

way.

 Audit hotspot 4. Auditing is implemented

within the database management system. This

approach provides similar audit information as

audit hotspot 3c. Built-in database features can

be used to setup and maintain an audit

mechanism, with low additional costs. On the

other hand, it is an intrusive approach and

influences application performance at the

server. To implement audits of read-only

operations, this feature must be explicitly

supported by the database management

system.

Choosing the appropriate audit hotspot in a given

scenario mainly depends on the audit information

available at a particular audit hotspot. Sometimes it

is reasonable to extend the application in a way, to

make the required information available, e.g., in a

connection pooling environment, the data access

layer could be enriched with application user

information). Often, a combination of audit hotspots

will be necessary to leverage an enterprise-wide

ICEIS 2008 - International Conference on Enterprise Information Systems

488

auditing solution.

In our architecture, data audit events created at the

audit hotspots are communicated to one central

event processing system. The event processing

system must be able to detect patterns within the

audit event stream. The next section shows a simple

example on how this can be accomplished using

complex event processing technology. Then, the

results from the event processing system are stored

in a data warehouse for further analysis.

3 SIMPLE EXAMPLE FOR DATA

AUDITING USING CEP

In this section we present a simple example how

complex event processing can be used for data

auditing. Based on a sensor that scans the

communication between the application and

database server (audit hotspot 3c), simple Select and

Update statements are audited. Using complex event

processing, a change log for the attribute holiday of

the table emp will be generated. Every time the

attribute holiday of an employee is changed, a single

complex audit event will be generated. Figure 2

shows how the events are processed.

The first statement executes a Select on table emp

for the employee ‘Smith’. The tuple (12, Smith, 25)

will be returned. Two statements later, an Update on

the attribute holiday is performed for the same

employee (id = 12). All the statements make use of

parameterized queries. Due to the fact that this two

statements happen within a defined time span (here

at most 2 seconds), the statements will be correlated

by the event engine, which generates a new complex

event for the change. The change event is composed

of the attributes time, employee name, old/new value

of attribute holiday, where:

 the time equals the execution time of the

Update statement,

 the employee name and the old value of holiday

are received from the result tuple of the Select

statement, and

 the new value of holiday is received from the

Update statement.

The example has been implemented for an Oracle 9i

database using Esper (Esper, 2007) as the event

processing engine. A network based SQL sensor

(audit hotspot 3c) monitors the SQL statements

which are sent to the database server and forwards

them to the central event processing engine. The

sensor is able to decode the TNS protocol used by

Oracle clients to communicate with the database

server. The connection information, SQL statements,

bind variables and result sets are extracted by the

sensor. The event engine then correlates the

incoming events and displays the detected change

events. The correlation algorithm must be specified

using EQL (Event Query Language) in Esper. Figure

3 shows the used EQL statement.

insert into SEL(emp_id, emp_name,

emp_holiday)

select

rsRow[0].col[0] as emp_id,

rsRow[0].col[1] as emp_name,

rsRow[0].col[2] as emp_holiday

from SqlNetworkSensorEvent

where sqlType = 'SELECT'

and isObjectUsed('EMP')

insert into UPD(new_holiday, emp_id,

transactionTime)

Figure 2: Event processing for change log.

COMPLEX EVENT PROCESSING FOR SENSOR BASED DATA AUDITING

489

select

bindvariable[0] as new_holiday,

bindvariable[1] as emp_id,

transactionTime

from SqlNetworkSensorEvent

where sqlType = 'UPDATE'

and isObjectUsed('EMP')

select

B.transactionTime,

A.emp_name

||': Holiday changed from '

|| A.emp_holiday

||' to '

||B.new_holiday

||' days.'

from pattern [

every A=SEL -> B=UPD

(A.emp_id = B.emp_id)

where timer:within(2 sec)

]

Figure 3: EQL for change history log.

As the SQL statements processed by the event

engine must comply with some conventions (for

example, the Select clause must start with the

attributes id, name and holiday of the table emp),

this solution is most effective if the change is

performed through an application, which always

uses the same fragments of SQL statements.

Changes initiated via ad hoc queries, will probably

not be detected with this approach. But in this case it

is straight forward to generate an alert event that

notifies the data auditing officer that such an action

has been performed. The generated change events

can be seen in Figure 4.

4 DATA AUDIT SCENARIOS

USING CEP

In this section, two scenarios are presented how the

introduced auditing solution can be used in business

applications.

4.1 Business Process Recognition

The sensor introduced in Section 3 (audit hotspot 3c)

scans the communication between the application

server and the database. All SQL statements sent to

the database are audited. Very often, business

functions can cause a flood of SQL statements to be

sent to the database server. In general, these SQL

statements are meaningless to data audit officers. It

is desirable to map the flood of SQL statements to a

few meaningful business functions understood by all

groups of users.

Using an auditing solution with CEP, business

processes can be derived out of the meaningless

sequence of audited SQL statements. The event

engine is able to detect a pattern of SQL statements

that are unique for certain business processes.

Extending the event engine by new patterns of SQL

statements is required to detect new business

processes.

4.2 Application User Identification

In multi-tier architectures, application users

authentificate them self against the application

server and not against the database management

system. Different client transactions use the same

database user or connection. The latter is called

connection pooling. As a consequence, if the

communication between the application and the

database server is audited, the application user is not

available to the auditing solution. But unambiguous

application user identification is a core requirement

in many regulations.

Figure 5 shows an example architecture of such a

system. Clients logon to the application server with

the application user. Every time the client performs a

business task, the required authorization is verified

to a central security database. If the verification

succeeds, the client is allowed to perform its

business tasks. SQL statements forming a business

task are sent to the business database using the same

connection.

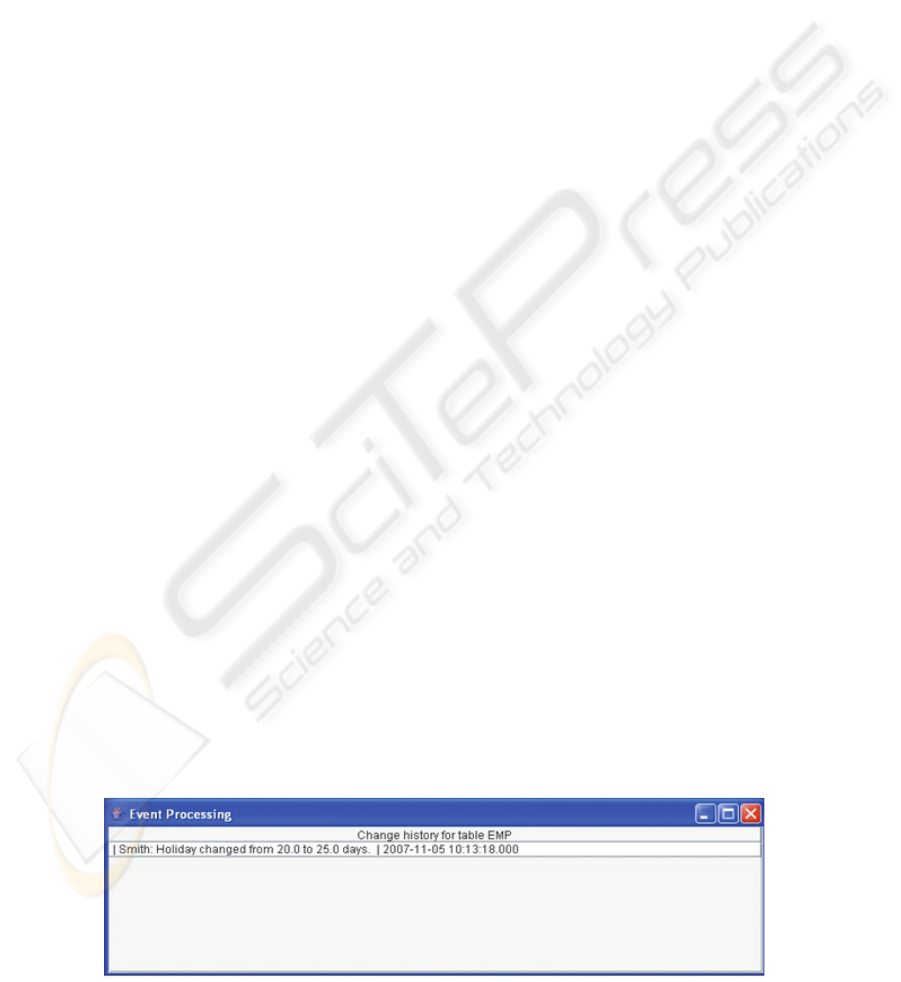

Figure 4: GUI for change event log.

ICEIS 2008 - International Conference on Enterprise Information Systems

490

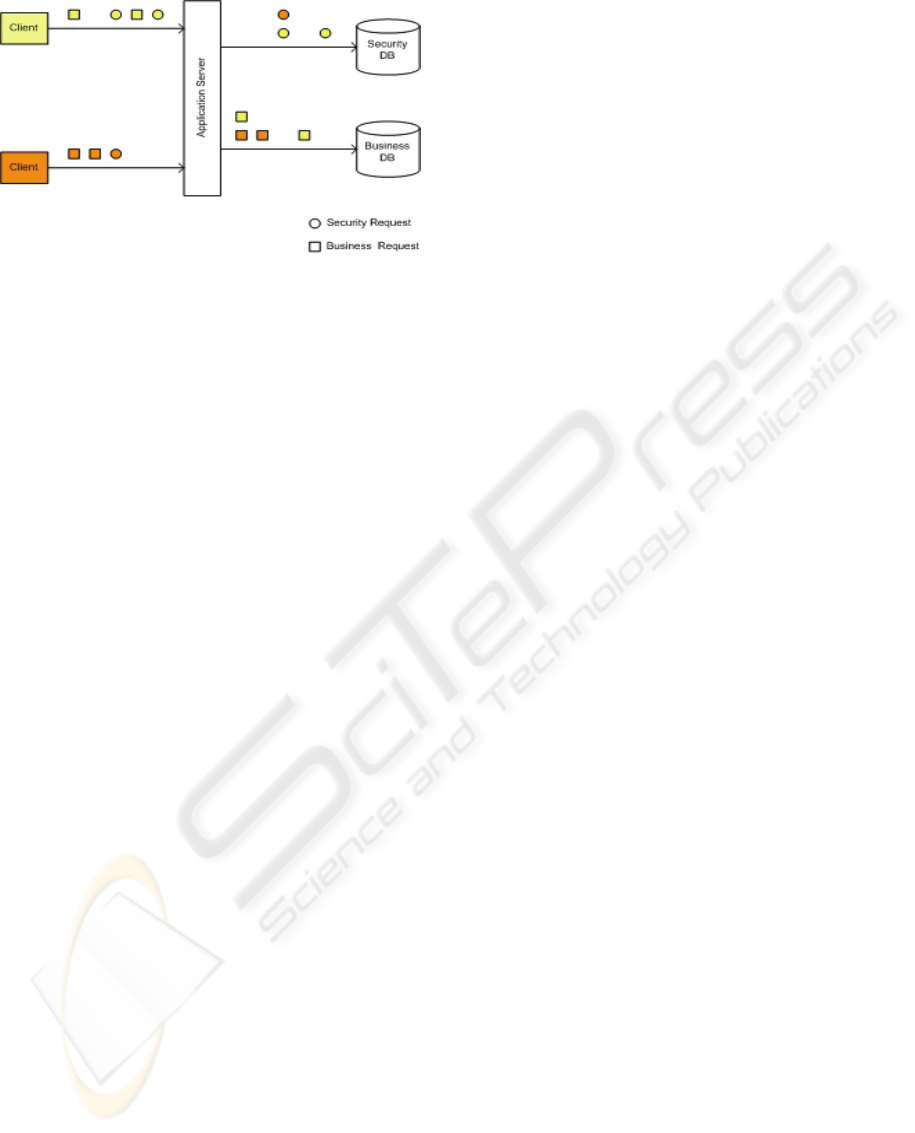

Figure 5: Connection pooling in a multi-tier environment.

To find the application user for a particular business

process, security and business requests to the

respective databases must be correlated. If there is

currently only one application user authorized to

perform a certain business task, the application user

can be uniquely assigned to this task. If there are

more application users authorized for the same task

at the same time, at least a pool of candidate

application users for this business task can be

identified. Of course, this approach is only feasible

if the pool of candidates is not getting too big for a

certain application. On the other hand it is a non-

intrusive approach to get application users in charge.

5 CONCLUSION AND FUTURE

WORK

Complex event processing technology is used to

support data auditing. In addition, a categorization of

audit hotspots is presented. Beside custom

applications, we will evaluate our approach on

systems running SAP or Oracle Applications as

well. Other interesting application areas beside data

auditing in this context are: data firewalls,

measuring quality of service and business process

reengineering. Especially, we believe that the area of

business process reengineering enables further

opportunities for very interesting research.

ACKNOWLEDGEMENTS

The authors gratefully acknowledge by the Austrian

government, the state of Upper Austria, and the

Johannes Kepler University Linz in the framework

of the Kplus Competence Center Program.

REFERENCES

Agrawal, R., Bayardo, R., Faloutsos, C., Kiernan, J.,

Srikant, R., 2004. Auditing Compliance with a

Hippocratic Database, in Proceedings of the 20

VLDB Conference, Toronto, Canada.

Agrawal, R., Evfimievski, A., Velu, R., 2007. Auditing

Disclosure by Relevance Ranking, SIGMOD’07, June

12-14, 2007, Beijing, China.

Chen, S., Jeng, J., Chang, H., 2006. Complex Event

Processing using Simple Rule-based Event

Correlation Engines for Business Performance

Management, in Proceedings of the 8

IEEE

International Conference on E-Commerce Technology

and the 3

IEEE International Conference on

Enterprise Computing, E-Commerce, and E-Services

(CEC/EEE’06), San Francisco, CA, USA.

Esper, 2007. http://esper.codehaus.org/index.html.

Johnson, C., Agrawal, R., 2006. Intersections of Law and

Technology in Balancing Privacy Rights with Free

Information Flow, 4

IASTED International

Conference on Law and Technology, Oct. 2006,

Cambridge, MA, USA.

Lee, W., Fan, W., 2001. Mining System Audit Data:

Opportunities and Challenges, in SIGMOD Record,

Vol. 30, No. 4.

Luckham, D., 2005. The Power of Events, Addison-

Wesley, Boston.

Mangisengi, O., Pichler, M., Auer, D., Draheim, D.,

Rumetshofer, H., 2007. Active warehouse: data

management for business activity monitoring, in

Proceedings of the 9

International conference on

Enterprise Information Systems (ICEIS 2007),

Funchal, Madeira, Portugal.

Motwani, R., Nabar, S., Thomas, D., 2007. Auditing a

Batch of SQL Queries, in Proceedings of the 21

International Conference on Data Engineering (ICDE),

Istanbul, Turkey.

Natan, R., 2005. Implementing Database Security and

Auditing, Elsevier Digital Press, Burlington, MA,

USA.

COMPLEX EVENT PROCESSING FOR SENSOR BASED DATA AUDITING

491
