IMPROVING THE UNDERSTANDABILITY OF I* MODELS

Fernanda Alencar

Departamento de Eletrônica e Sistemas, Universidade Federal de Pernambuco, R. Acad. Hélio Ramos S/N, Recife, Brazil

Carla Silva

, Márcia Lucena

1,2

, Jaelson Castro

, Emanuel Santos

, Ricardo Ramos

Centro de Informática, Universidade Federal de Pernambuco, Av. Prof. Luiz Freire S/N, Recife, Brazil

Departamento de Informática, Universidade Federal do Rio Grande do Norte, Campus Universitário, Natal, Brazil

Keywords: Requirements Engineering, Goal-Oriented Framework, Modelling Language, Structuring Mechanisms.

Abstract: Requirements engineering (RE) has been considered a key activity in almost all software engineering

process. i* is a goal-oriented approach widely adopted in the earlier phases of RE, as it offers a modelling

language that describes the system and its environment in terms of actors and dependencies among them.

However, often the models become cluttered even for small applications, compromising their

understanding, evolution and scalability. In large and complex applications, this problem increases

significantly. In this paper we investigate the use of structuring mechanisms to deal with the complexity

which may arise when i* is used to model complex domains.

1 INTRODUCTION

Requirements specification should include not only

software specifications but also business models and

other kinds of information describing the context in

which the intended system will operate. During the

early stages of requirements engineering, it is

necessary to identify and specify how the intended

system meets organizational goals, why the system

is needed, what alternatives were considered, what

the implications of the alternatives are for the

various stakeholders, and how the stakeholders’

interests and concerns might be addressed. The i*

framework provides expressive models to achieve

these, wherein motivations and rationale are

explicitly captured in a requirements model. Thus,

the i* framework (Yu, 1995) is becoming widely

used for organizational modelling, capturing social

and intentional characteristics of the system

organisation context (Giorgini et al., 2002).

In particular Tropos (Castro et al., 2002)

(Bresciani et al., 2004), an agent-oriented software

development framework, adopts i* to support the

initial phases of software development lifecycle.

Currently in post-doc position at Univ. Nova de Lisboa, PT

Indeed, actors in i* can be autonomous, as

advocated by agent-oriented software technologies

(Yu, 2001), as well as intentional, since it has

desires and beliefs. Nowadays, we are dealing with

complex systems, such as agent-based ones and,

consequently, the i* models can become very large,

hard to read and understand.

The framework i* is a rich ontology that has

many constructors and relationships. However, the

amount of relationships may increase even for small

examples (as show Figure 1). This occurs when the

analyst goes deeper into context understanding

analysis and applies this analysis introducing some

new internal and external relationships in the model.

Even with three or four actors, the understandability

may be damaged since it is very sensible to the

granularity of model details. This situation depends

on the analyst and how far the model is detailed. The

i* models are defined by the amount of internal

relationships in the actor’s boundary. Whenever the

analysis of a complex domain is deepened, through

the refinement of the several alternative solutions,

more complex models will arise. Those are

important points to deal with. Therefore, we need to

investigate approaches to reduce the i* models

complexity and to improve their reusability and

understandability. Although there are several

129

Alencar F., Silva C., Lucena M., Castro J., Santos E. and Ramos R. (2008).

IMPROVING THE UNDERSTANDABILITY OF I* MODELS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 129-136

DOI: 10.5220/0001709001290136

 SciTePress

variants of the original i* (Yu, 1995), tailored to

support many Tropos versions (Bresciani et al.,

2004), (Susi et al., 2005), (Bertolini et al., 2005),

they are not concerned with the reduction of

complexity in i* models. In this paper, we propose

to use two new structuring mechanisms: one to help

to hide details of alternatives (i.e. different means to

achieve an end) present in the model; and the other

to cope with the order of the operationalization of

actors’ intentions. Thus, we extend the i* metamodel

by adding new constructs tailored to increase the

structuring power of i* models. Our goal is to

introduce a new visualization mechanism to improve

the readability and understandability of i* models. In

doing so, we may help to reduce the size and

complexity of these diagrams, facilitating their

analysis. To illustrate our proposal, we use the

Health Care example presented in (Yu, 1995).

This paper is organized as follows. Section 2

overviews the i* framework. Section 3 presents our

proposal for extending the i* modelling language.

Section 4 discusses the benefits of using the

extended i* models, while Section 5 describes some

related works. Finally, Section 6 summarizes our

work and points out open issues.

2 THE i* FRAMEWORK

OVERVIEW

2.1 The Health Care Example

To illustrate our proposal throughout the paper, let

us consider the health insurance domain already

modelled using the i* notation in (Yu, 1995). In this

domain, medical costs are covered by an insurance

company in return for Premium payment. Treatment

by a physician must be pre-approved for a physician

to receive reimbursement. A claims manager issues

approval by verifying that the patient’s policy is

applicable to the medical condition, and by

confirming that the treatment plan is appropriate

according to medical opinion. Patients pay insurance

because they want their medical expenses to be

covered in case of sickness or injury. Physicians

submit treatment plans to insurance companies for

approval because they want to be reimbursed for

giving the treatment. Claims managers seek medical

assessment of treatment plans because they want to

prevent unnecessary treatments, in order to control

costs. This kind of deeper understanding about the

“whys” constitutes an important part of the

knowledge about a domain and can be captured by

using the concepts and models provided by the i*

framework, since it defines a richer ontology that

recognizes motivations, intentions and rationales

beneath the surface features of a process.

2.2 Main Concepts and Models of i*

The i* framework (Yu, 1995) captures

organizational requirements using the strategic

relationships among actors. Systems and their

environments are described in terms of intentional

relationships among strategic actors. Actors are

intentional since they have desires and needs, and

are strategic since they are concerned about

opportunities and vulnerabilities.

The i* framework offers two models: the

Strategic Dependency (SD) model and Strategic

Rationale (SR) model. The SD model includes a set

of nodes and links connecting them, where nodes

represent actors (depender and dependee) and each

link indicates a dependency between two actors

(dependum).

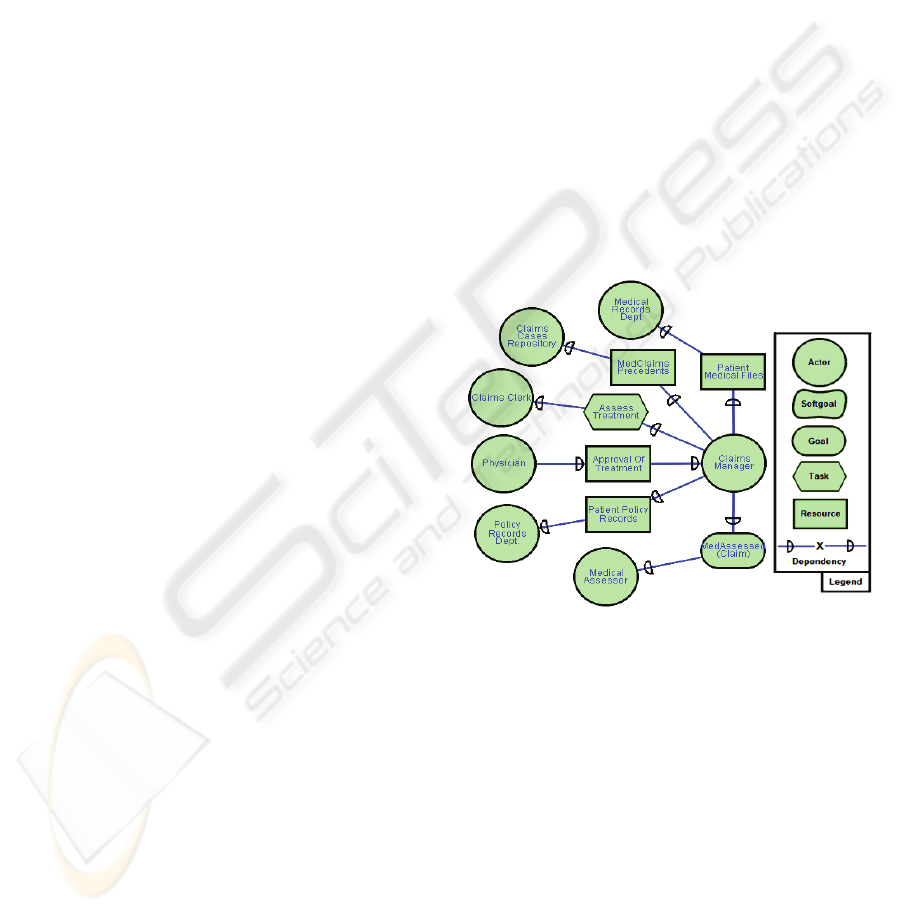

Figure 1: The Strategic Dependency Model for Claims

Manager Actor.

An example of a SD model for the health care

domain (Figure 1) focuses on the Claims Manager

actor and its strategic dependencies in the insurance

company. It shows (some of the) relationships

among Claims Managers, Claims Clerks, Claims

Repositories, Physicians, Departments and Medical

Assessors. Physicians depend on Claims Managers

to Get Approval Of Treatment (a task dependency),

while Claims Managers, in turn, depend (i) on

Medical Records Department to provide Patient

Medical Files (a resource dependency), (ii) on

Claims Clerk to Assess Treatment (a task

dependency), (iii) on Claims Cases Repository to get

Medical Claims Precedents (a resource dependency),

ICEIS 2008 - International Conference on Enterprise Information Systems

130

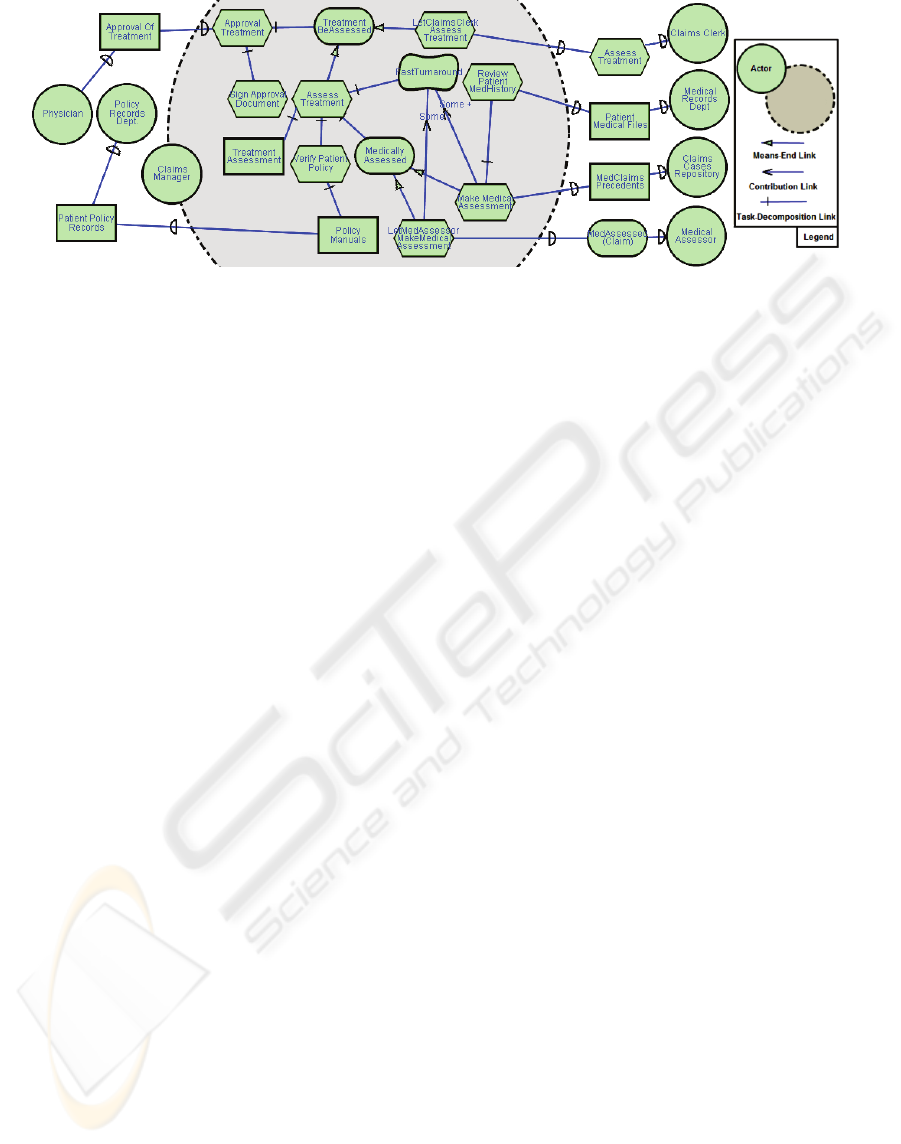

Figure 2: The Health Care Strategic Rationale Model.

(iv) on Policy Records Department to get Patient

Policy Records (a resource dependency) and, (v) on

Medical Assessors to have Medical Claim Assessed

(a goal dependency)

In this example we do not have a softgoal

dependency which can be associated to a non-

functional requirement.

The SR model is used to expand the description

of a given actor (e.g. Claims Manager actor in

Figure 1). Apart from the previous four types of

dependencies, three new types of relationships are

incorporated in the SR model: (i) task-

decomposition links describe what should be done to

perform a certain task (e.g. Approval Treatment

task); (ii) means-end links suggest that one model

element (e.g. Let Claims Clerk Assess Treatment

task) can be offered as a means to achieve another

model element (Treatment Be Assessed goal); (iii)

contributions links suggest how a task (e.g. Make

Medical Assessment) can contribute to satisfy a

softgoal (e.g. Fast Turnaround).

The SR model (Figure 2) captures some of the

rationales involved in an insurance claims setting. A

Physician must submit a treatment plan to the

Insurance Company for prior approval, or else the

treatment may not be reimbursed. The Insurance

Company verifies that the type of treatment is

covered by the policy, and that the proposed

treatment is reasonable according to medical

opinion.

The SR model shows that the Claims Manager is

able to produce Approval Of Treatment (a resource)

via the Approval Treatment task. This task is

decomposed into of two components – the subgoal

Treatment Be Assessed, and the subtask of Sign

Approval Document. Originally, the task-

decomposition link does not explicitly define the

order in which its components are required.

However, often this ordering information facilitates

its understandability.

One way to have the treatment plan assessed is

to let a claims clerk do it. Another way is for the

Claims Manager to do it herself. This alternative

requires the Claims Manager to verify the policy

(that the medical condition and the treatment plan

are covered under the patient’s policy, and that the

policy is in force) and also to have the treatment

plan assessed for its medical appropriateness,

producing the treatment assessment. Thus, the

Medically Assessed goal can be achieved by relying

on someone with special medical knowledge (a

medical assessor) to do it, or by doing it herself,

making use of case knowledge about previous

claims, from a repository. These alternatives are

explicated by the means-end link.

From this simple example, we can identify two

problems which can compromise the readability and

scalability of the model: the absence of ordering

information in the operationalization of the tasks as

well as the complexity which arises when several

alternatives (with different extent of intentional

elements) are taken in consideration. In fact,

empirical evaluation has indicated that there is a lack

of modularity in the i* framework (Estrada et al.,

2006). Moreover, currently, only two views are

supported, the Strategic Dependency (SD) Model

and the Strategic Rational (SR) Model. Therefore, as

systems models evolve and become larger, better

information hiding and structuring mechanisms are

needed.

Next section presents our proposal to extend the

i* modelling language by adding new concepts to

help us in the analysis of the models produced.

3 THE EXTENDED i*

MODELLING LANGUAGE

Metamodels are models that describe the structure of

models. They define the constructs of a modelling

IMPROVING THE UNDERSTANDABILITY OF I* MODELS

131

language and their relationships, as well as

constraints and modelling rules. Although a version

of the i* metamodel has been specified in (Yu,

1995) using Telos (Mylopoulos, 1990), we specify it

now using the Meta-Object Facility (OMG, 2002).

The idea is to incorporate new abstractions to hide

detailed information (in general related to

alternatives to reach a goal) and therefore, produce

simplified model, as well as to order the

operationalization of actors’ intentions.

According to the metamodel introduced in

Figure 3, i* models are composed of at least one

Node, which can be a Dependum or a

DependableNode. The DependableNode is

specialized in an Actor and an InternalElement. This

means that an Actor (or its internal InternalElement)

can depend on an InternalElement inside of another

Actor (or the Actor itself). An InternalElement can

be specialized into an Alternative or an

IntentionalElement, as well as can be related to

IntentionalElements through a MeansEndLink, a

ContributionLink or a TaskDecompositionLink.

Observe in the metamodel that the new i*

language constructs are the InternalElement, the

Alternative and two new attributes in the

TaskDecompositionLink. An InternalElement is any

element inside the boundaries of an Actor or

Alternative. An Alternative is a metaclass added to

allow the suppression of a subgragh composed of at

least one InternalElement and in charge of the

operationalization of an InternalElement through a

MeansEndLink relationship. A sub-element related

to a task through TaskDecompositionLink

relationships can be ordered by using the optional

priority attribute, which defines its order of

execution. Elements with the same priority number

can be executed in parallel. A redundant attribute

parallel is used to explicitly indicate this

parallelism. The other metaclasses in the metamodel

belongs to the original i* framework (Yu, 1995).

It is important to highlight the distinction

between abstract and concrete syntax of a language.

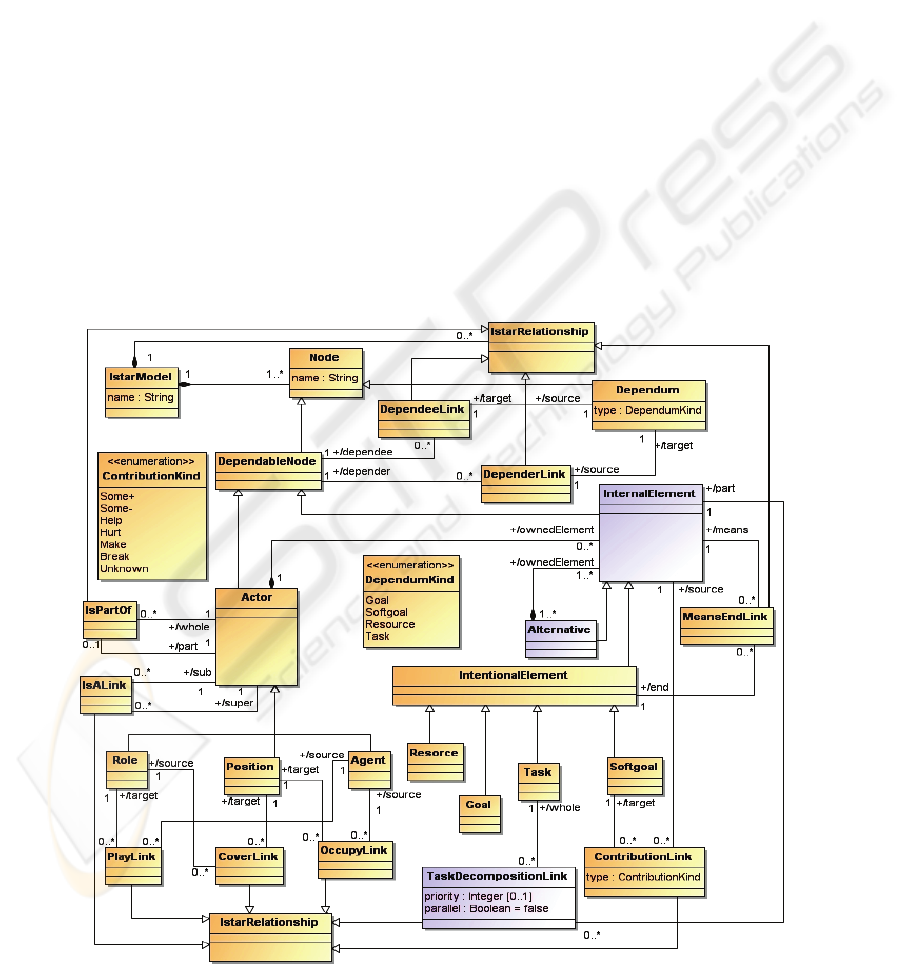

Figure 3: The Extended i* Metamodel.

ICEIS 2008 - International Conference on Enterprise Information Systems

132

The abstract syntax of a language is defined by

its metamodel, while the concrete syntax of a

language defines the concrete form of the textual or

graphical representation of the constructs and is not

defined in the metamodel. The concrete syntax of

the language define by the extended metamodel is

presented in Figure 4.

An Alternative is graphically represented by a

diamond (Figure 4), which can be expanded or

contracted to provide specific views of an actor’s

rationale and, consequently, produce simpler SR

models. In the concrete syntax, the parallelism is

represented by || symbol. We can have sibling

elements with and without priority labels. Those

without priority labels have the lowest priority.

Some restrictions apply to priorities: (i) the number

1 (one) has the highest priority; (ii) the priority

number must be continuous and sequential. (iii)

softgoals do not have priority labels, because they

are not directly operationalized. We emphasize

which for each new task to be decomposed, the

labels in the related task-decomposition links must

be re-initialized.

Note that the elements Treatment Be Assessed

goal and Sign Approval Document task have,

respectively, priority labels 1 and 2. Thus we initiate

the analysis by the left branch (priority 1). Going

down at the graph analysis we can see that the

elements Verify Patient Policy task, Medically

Assessed goal and Treatment Assessment resource

have, respectively, priority labels 1, 2|| and 2||. The

last labels indicate that these elements are in parallel.

Furthermore, as explained before, softgoals do not

have priority labels.

The use of priority labels enables us to visualize

and analyse, in a better way, the order of execution

of the elements. This adds a temporal behaviour to

elements in SR models facilitating the analysis of

the execution flow of a task.

4 DISCUSSION

An important concept defined in the context of SR

models is the notion of routine (Yu, 1995). A routine

is an interconnected collection of intentional

elements (subgoals, subtasks, resources and

softgoals) serving to some purpose for an actor.

Figure 4: The Extended i* Modelling Language.

IMPROVING THE UNDERSTANDABILITY OF I* MODELS

133

In other words, a routine is a subgraph in the SR

model with a single link to a “means” node from

each “end” node in a means-end relationship.

Therefore, it represents one particular course of

action among the multiple alternatives to accomplish

an intentional element (Yu, 1995). However, in the

case of softgoals, in which means-end relationships

represent partial contributions of tasks or softgoals

to achieve a specific softgoal, a routine will include

multiple means-ends links contributing to softgoals.

The SR model explicitly enumerates an actor’s

set of routines. An actor often has more than one

routine for accomplishing something, providing a

convenient unit for analysis when evaluating

alternatives. Thus, to simplify the visualization of i*

models, now we are able to focus on one routine (to

achieve a specific dependency) each time. A routine

refers to one process and its rationales. One example

of a routine is presented in Figure 5, in which the

view of the SR model suppresses the Alternative 2

and focuses on Alternative 1 to achieve the

Treatment Be Assessed goal. In this case, the routine

to accomplish the Approval Of Treatment task

dependency is the subgraph that includes Let Claims

Clerk Asses Treatment and Sign Approval Document

tasks.

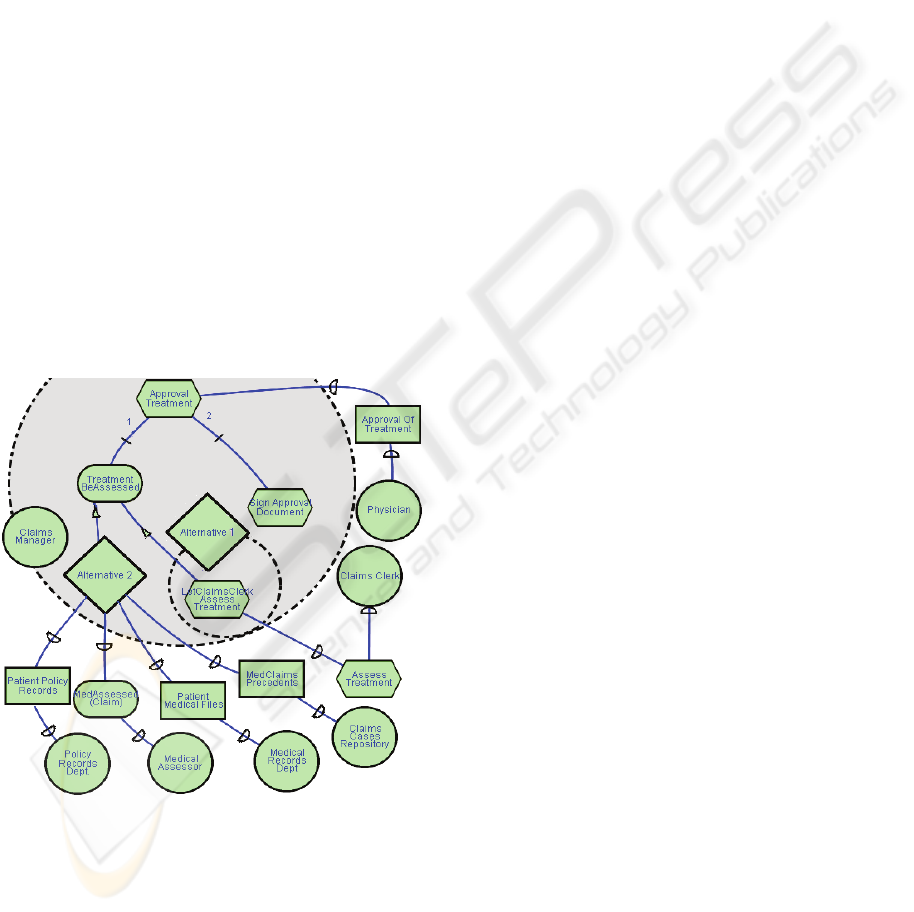

Figure 5: First view of the Claims Manager SR Model

Another routine to accomplish the Approval Of

Treatment task dependency is presented in Figure 6

(a), in which Alternative 1 and Alternative 4 are

suppressed and the attention is paid to Alternative 2

and Alternative 3. In this view, the routine

considered is the subgraph including

VerifyPatientPolicy, ReviewPatientMedHistory and

SignApprovalDocument tasks.

The last possible routine to accomplish the

Approval Of Treatment task dependency is shown in

Figure 6 (b). In this view, the Alternative 1 and

Alternative 3 are suppressed and the Alternative 2

and Alternative 4 are focused. Therefore, this routine

involves the subgraph including Verify Patient

Policy, Let Medical Assessor Make Medical

Assessment and Sign Approval Document tasks.

Notice also that the extended modelling language

now allows the ordering of the sequence of

execution of sub-elements in task decompositions.

An attribute in the task-decomposition link states the

priority of the operationalization of a sub-element to

accomplish the decomposed task. For example, in

Figure 5, the Treatment Be Assessed goal must be

operationalized before all sub-elements (priority 1),

while the Sign Approval Document task must be

executed latter (priority 2). If the priority property is

empty, then the order of the sub-element

operationalization does not matter. This is the case

of Fast Turnaround softgoal in Figure 6 (a).

Moreover, we can also specify sub-elements which

must be operationalized in parallel, such as

Medically Assessed goal and Treatment Assessment

resource. The sub-elements’ ordering in a task

decomposition is essential in the analysis of the

process being modelled to help decision making

among alternatives.

5 RELATED WORK

The proposal presented in (Alencar et al., 2007) uses

the principles of Aspect-Oriented Software

Development to simplify i* models. They propose

an approach to identify, modularise and compose

crosscutting concerns in i* models. In doing so, they

aim at reducing the graphical complexity of i*

models, especially large i* descriptions. However,

they do not deal with the different views of i*

models, neither with the sub-elements’ ordering in

task decompositions.

The approach proposed in (You, 2004)

introduces systematic methods to deal with

scalability issues of i* models. To accomplish it, he

used views (a projection over a model according to

some criteria) as a way to break down one baseline

model into self-contained segments in order to

increase human understandability.

In the approach four types of views where

introduced: Actor Class (AC), Strategic Dependency

(SD), Strategic Rationale (SR) and Evaluation

ICEIS 2008 - International Conference on Enterprise Information Systems

134

Results (EVLR). The AC focus on various forms of

actors and the associations among the different

forms of each actor. The SD model focuses on inter-

actor dependency relationships. SR view focus on

“the rationales that actors have about adopting one

configuration or another” (Yu, 1995). The EVLR

helps the decision-making process over alternative

system configurations. Each view is associated with

a formally defined selection rule so that the

projection of a specific view from a baseline model

can be automated.

Although that approach increases the number of

views produced in the i* framework, the complexity

of the SR model, as well as the ordering of sub-

elements in a task decomposition have not been

addressed.

On the other hand, in our proposal, the issue of

ordering the operationalization of the sub-elements

of a task is addressed by extending the i* modelling

language itself. In fact, we have extended the i*

metamodel to allow the addiction of two properties

in the task-decomposition link: one to represent the

order in which the sub-element must be

operationalized; and other to state if its

operationalization can be in parallel with another

sub-element.

In doing so, we did not need to use diagrams of

other modelling languages, such as UML (OMG,

2005), to improve the understandability of the i*

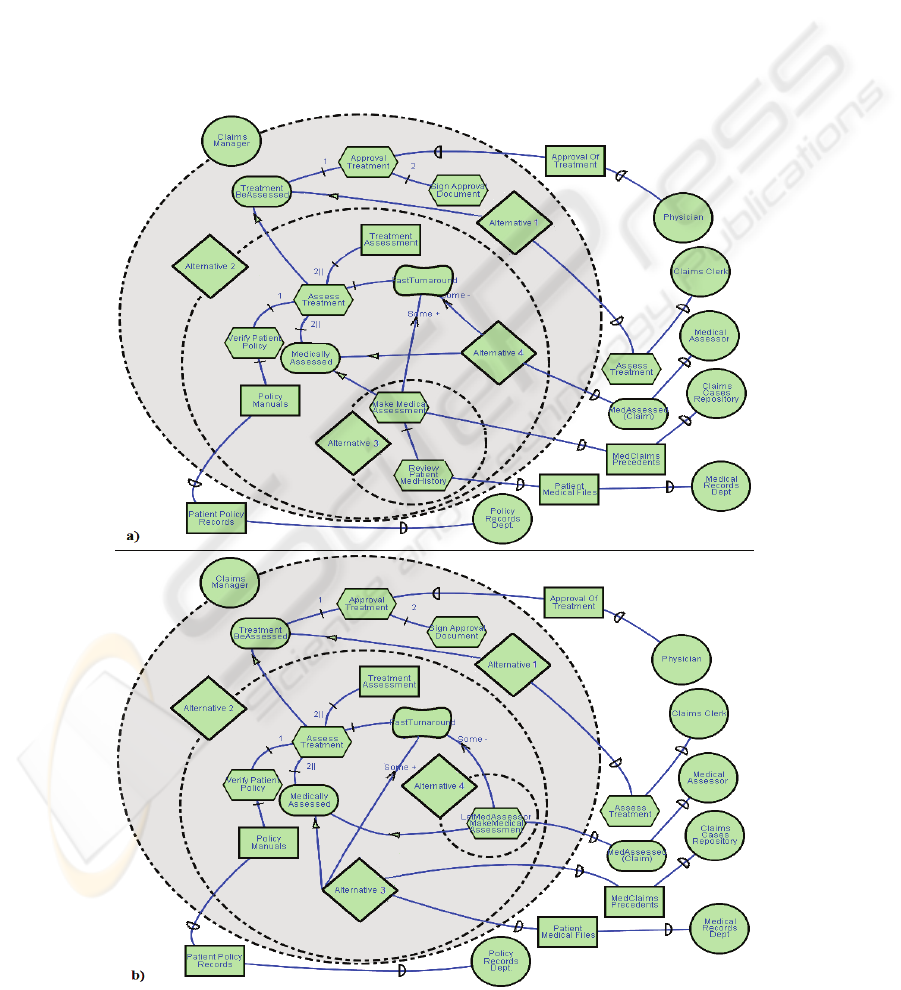

Figure 6: a) The Second View of Claims Manager SR Model; b) The Third View of the Claims Manager SR Model.

IMPROVING THE UNDERSTANDABILITY OF I* MODELS

135

models. Moreover, the extended i* metamodel also

defines a new abstraction (the alternative) to allow

the generation of several different views of the same

model. In particular, each view focuses in a

particular routine to accomplish something, reducing

the complexity of the model and, therefore,

improving its readability and understandability.

6 CONCLUSIONS

In this paper we propose an extension of the i*

modelling language by adding new constructs to the

i* metamodel to improve the understandability of

the i* models. By doing so, we have added two

attributes to the task-decomposition link to define

the order in which the components of a decomposed

task are required. Moreover, a new abstraction has

been added to the metamodel, called alternative, to

suppress specific sub graphs in the SR model and,

therefore, produce simpler views of the same SR

model. In fact, each view focuses on a specific

routine to achieve a dependency. These views may

reduce the complexity of i* models, increasing their

readability, maintainability and scalability. In fact, it

is now necessary to carry out experiments with some

available metrics (Ramos et al., 2008) (Franch,

2006) to estimate the degree of amount complexity

reduction using our approach.

Currently, we are working on the inclusion of

routines identification and their association with

viewpoints (Sommerville et al., 1998) in i* models.

Finally, we plan to evolve the current i* support tool

(Yu and Yu, 2000) to include the new constructs of

the extended metamodel. Moreover, the new

constructs requires the formal specification of

constraints to be considered when specifying i*

models. Currently, these constraints are being

specified in OCL (OMG, 2006) and will be

presented in future work.

ACKNOWLEDGEMENTS

This work was supported by CAPES/GRICES Proc.

129/05.

REFERENCES

Alencar, F., Castro, J., Moreira, A., Araújo, J., Monteiro,

C., Ramos, R., Mylopoulos, J., 2007. Simplifying i*

Models. In AOIS’07 in conjunction with CAiSE’07.

Tapir Academic Press, Norway. 635-649.

Bertolini, D., Perini, A., Susi, A., Mouratidis, H., 2005.

The Tropos Visual Language. A MOF 1.4 Compliant

Metamodel. Agentlink III AOSE TFG 2. Slovenia.

Bresciani, P., Giorgini, P., Giunchiglia, F., Mylopoulos, J.,

Perini, A., 2004. Tropos: An Agent-Oriented Software

Development Methodology. Journal of Autonomous

Agents and Multi-Agent Systems, 8(3): 203-236.

Castro, J., Kolp, M., Mylopoulos, J., 2002. Towards

Requirements-Driven Information Systems

Engineering: The Tropos Project. In Information

Systems News, Elsevier, 27: 365-89.

Estrada, H., Rebollar, A. M., Pastor, O., Mylopoulos, J.,

2006. An Empirical Evaluation of the i* Framework in

a Model-Based Software Generation Environment. In

CAiSE’06. LNCS 4001, Springer-Verlag , 513-527 .

Franch, X., 2006. On the Quantitative Analysis of Agent-

Oriented Models. In CAiSE’06, LNCS 4001 Springer-

Verlag: 495–509.

Giorgini, P., Mylopoulos, J., Nicchiarelli, E., Sebastiani,

R., 2002. Reasoning with Goal Models. In Proc. of the

21st Int. Conference on Conceptual Modelling. LNCS

2503. Springer-Verlag, London, 167-181.

Mylopoulos J., Borgida A., Jarke M., Koubarakis M.,

1990. Telos: Representing Knowledge About

Information Systems. ACM Transactions on

Information Systems, 8(4): 325–362

Object Management Group (OMG), 2002. Meta-Object

Facility (MOF) Specification, 1.4. Available at:

http://www.omg.org/cgi-bin/apps/doc?formal/02-04-

3.pdf. Last access: 11/2007.

Object Management Group (OMG), 2005. Unified

Modelling Language (UML) Superstructure, 2.0.

Available at: http://www.omg.org/docs/formal/05-07-

04.pdf. Last access: 09/2007.

Object Management Group (OMG), 2006. Object

Constraint Language (OCL) Specification, 2.0.

Available at: http://www.omg.org/cgi-bin/apps/doc?

formal/06-05-01.pdf. Last access: 11/2007.

Ramos, R., Castro, J., Araujo, J., Moreira, A., Alencar, F.,

Penteado, 2008. R. Early Aspects Refactoring. In

Proc. of the XI IDEAS’08. FASA: Recife-PE, 238-252.

Sommerville, I. Sawyer, P. Viller, S., 1998. Viewpoints

for requirements elicitation: a practical approach.

Proc. of RE’98, 74—81.

Susi, A., Perini, A., Mylopoulos, J., Giorgini, P., 2005.

The Tropos Metamodel and its Use. Informatica.

Slovenia, 29(4): 401-408.

You, Z., 2004. Using Meta-Model-Driven Views to

Address Scalability In i* Models. MSc thesis,

Department of Computer Science, University of

Toronto, Canada.

Yu, E., 1995. Modelling Strategic Relationships for

Process Reengineering. Ph.D. thesis. Department of

Computer Science, University of Toronto, Canada.

Yu, E., 2001. Agent-Oriented Modelling: Software Versus

the World. In AOSE’01, LNCS 2222, Canada, 206-225.

Yu, E., Yu, Y., 2000. Organization Modelling

Environment. At: http://www.cs.toronto.edu/km/ome/

Last access: 12/2007.

ICEIS 2008 - International Conference on Enterprise Information Systems

136
