BP-FAMA: BUSINESS PROCESS FRAMEWORK FOR AGILITY

OF MODELLING AND ANALYSIS

Mohamed Boukhebouze, Youssef Amghar and Aïcha-Nabila Benharkat

LIRIS, National Institute of Applied Sciences of Lyon, Lyon, France

Keywords: Business process modelling, modelling methodology, business rules, business agility, business process

verification.

Abstract: In this paper we present the BP-FAMA framework (Business Process Framework for Agility of Modelling

and Analysis), motivated by the need to have an abstraction level in which algorithmic preoccupation and

the management rules are separated for a better evolution of processes. Nowadays the approaches proposed

are based on a mixing of business rules and algorithmic structures making the process difficult to change.

The other motivation is the improvement of the quality of the translation of process specification to high-

level executable process. These objectives don’t go without the need for new agile modelling languages:

BPAMN (Business Process Agile Modelling Notation) and a new agile execution language: BPAEL

(Business Process Agile Execution Language).

1 INTRODUCTION

Efficient organizations working impose to refer to

robust business processes adapted to their activities.

The definition and execution of these processes

require respectively a model and tools for

collaboration, definition, deployment,

implementation, and process control. The business

process management (BPM) consists in managing

from beginning to end of company business

processes to get a better overview with their

interactions. The objective is to enable policy

deciders, business analysts, functional teams and

technical teams to collaborate in the definition and

evolution of business processes via a single tool

aggregating different visions. It is also designed to

optimize these processes, and try to automate them

as much as possible with the help of business

applications.

The process modelling is then an important step

in this management, because it allows specifying the

business knowledge of a company. For this reason, it

must be based on powerful languages in order to

give a full business process description. In this

context two standards are proposed: a common

graphical notation for modelling tools called BPMN,

and process execution language called BPEL, to

make processes portable on different platforms.

These two specifications are now stable and adapted

to business needs. Several editors have adopted and

included them in their tools. However, these

specifications have to be checked before their

implementation, unfortunately, these standards focus

more on the business description level, including

functional aspects of a process, without providing

mechanisms to support the specifications

verification. Indeed, both the reliability of the

process and maintenance costs drives us to give a

great attention to verification issues.

Business rules are a collective knowledge which

involve shared representations of behaviours or

business models (organizational rules), the common

representations on the environment for example (the

facts), and the language used to communicate and

interpret the rules and facts. By the dynamic nature

of the environment, the facts change, the rules

change because the organization can change. The

language can change as well because it corresponds

to successive interpretations made before.

Accordingly two major problems are identified:

(1) Mixing algorithmic preoccupation and

management rules at the abstraction level. This

mixing makes the process difficult to change:

agility. (2) Even if there are tools that allow the

transition from a process specification to a high-

level BPEL process, nothing guarantees the quality

of the process generated at the analysis level.

In this paper we describe the architecture of the

BP-FAMA framework (Business Process

Framework for Agility of Modelling and Analysis)

which is in progress within our laboratory and which

responds to those two problems. We introduce in

section 2 our motivations for proposing this

framework. In section 3 we describe the BP-FAMA

368

Boukhebouze M., Amghar Y. and Benharkat A. (2008).

BP-FAMA: BUSINESS PROCESS FRAMEWORK FOR AGILITY OF MODELLING AND ANALYSIS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 368-373

DOI: 10.5220/0001712703680373

 SciTePress

architecture. Section 4 specifies in more detail the

two new languages BPAMN and BPAEL. In the

remaining sections we describe an illustration

through a use case and discussion of our work.

2 MOTIVATIONS

To reach our goals, we have attempted to answer

two questionings: how to model a business process

in an agile way and how to analyse a business

process. First, the process modelling is then an

important step in this management, because it allows

specifying the business knowledge of a company.

For this reason, it must be based on powerful

languages in order to give a full business process

description. In this context, several process

description languages have been proposed, such as

UML (OMG, 2007) and BPMN (OMG, 2006)

YAWL (Van der Aalst, 2005). These languages are

generally intended to represent the definition of a

process using graphical notations that can intuitively

describe a business process. This convivial manner

increases mainly the comprehension and visibility of

these processes, makes possible the design

evaluation and allows then the generation of the

associated executable language. The latter specify

the fulfilment of the process activities. These

languages which are interpreted by execution engine

use XML syntax to describe the implementation of

the process. In the literature several languages

execution process have been proposed. BPEL4WS

(OASIS, 2007) are the most commonly known

language because it can represent a larger number of

business process basic elements compared to its

predecessors. For this reason, it becomes the most

used language in industry.

However, using these languages and reference

models, designers implement business rules in the

code of business process, this practice makes

business process rigid and difficult to maintain.

Indeed, the dynamic nature of organizations

environments makes the rules subject to

modification. Therefore, the integration of

algorithmic logic and business rules into the same

code processes compromises agility of modelling.

To solve this problem, business rules tracking and

identification in a business process modelling seems

necessary and important to allow the evolution and

maintenance of rules independently of the process

and make sharing these rules possible by other

processes.

Secondly, companies must be based on robust

business processes to achieve their objective. The

process reliability is a crucial issue because they

automate all or part of the company value chain and

at the same time capitalize on their information

system. An erroneous business process can have

economically grievous effect. Several studies have

been conducted to investigate the nature of the errors

and exceptions occurred in a business process like

(Russell, 2006). In general way, these exceptions

can be divided into two classes:

2 - The random exceptions relate to events which are

not be modelled by the designer and which are liable

to cause exceptions. In fact, these events are

infrequent and unexpected for example a hardware

failure in the computer system can destabilize the

business process operation or unavailability of one

or more resources when an activity instance in

process wants access. To assist the designer to find

errors in the process specifications, a number of

techniques are used:

1- The verification by formal models is viewed as

the most used technique to detect errors in

specifications during a business process modelling.

These models need to formalize the specification in

a formal model (e.g., the Petri net, process algebra…

etc.). The objective, of using these models in

specification process, is double: on the one hand,

they provide the complete process description

reliance on its requirement by eliminating the

contradictions and ambiguities (formal

specification). On the other hand, they minimize the

likelihood that a malfunction can occur while on

basing on the verification properties of models for

example deadlock or net vivacity...etc. In this way

we can detect errors by taking into account the

model properties. We have identified a number of

works that use this technique to verify the proper

functioning of business processes. In general way,

the Petri Net (PN) is the model mostly used

(Martens, 2003) and (Yang, 2005) because it

combines the advantages of graphical representation

with the semantics aspect attributed to the modelled

processes behaviour. However, the process algebra

also has imposed on the process verification

(Koshkina, 2004). It consists of a language based on

a mathematical formalism dedicated to the

description of concurrent systems. This model is

based principally on the competition theories and the

algebras techniques.

2- The design verification aims to find the elements

which can lead to errors or elements which represent

a potential source of errors in a business process

modelling. This technique offers a good modelling

style by requiring to the designers to respect

modelling rules in order to minimize the errors risk.

An example of these rules is proposed by (Gruhn,

2007) for the verification of EPC and Dongen’s

BP-FAMA : BUSINESS PROCESS FRAMEWORK FOR AGILITY OF MODELLING AND ANALYSIS

369

work (Van Dongen, 2005) which checks MySAP

reference models across ARIS AGL.

The design technique verification can’t replace

the verification by formal models, because it tries

only to limit the well-known error. The combination

of verification design technique and verification

formal models technique proves to be profitable to

analyze a business process modeling, because it

increases the certitude that failure will not occur.

However, the algorithms time consumption of these

technologies depends on the complexity of the

algorithms translation of the business processes

definition in formal models and the complexity of

algorithms for detecting properties to be checked.

This time is added to the effective time of business

process execution by an execution engine. What is

more, the change in a part of a process leads to its

re-verification in totality. On the other hand, these

techniques focus only on the coherence of the

processes and don’t guarantee that the implemented

process meets the requirements of designers. For this

reason, the need for a framework that helps us to

solve these problems is growing. For this way, we

propose BP-FAMA framework which allows:

- Favour flexibility of business processes modelling

and execution to take into account the dynamic

character of the different business processes

elements (business rules).

- React in an unstable situation and reach a more

stable situation i.e. respond to exceptions runtime in

order to avoid to call algorithms verification at each

change of a process element, as well as avoid

interrupting the business processes execution at each

random exception.

- Analyze the fulfilment of process executable to

verify that it agree with what has been modelled.

3 THE BP-FAMA

ARCHITECTURE

The objective of the FAMA is to improve the

functioning of BPMS (see Figure 1). In fact, this

platform can:

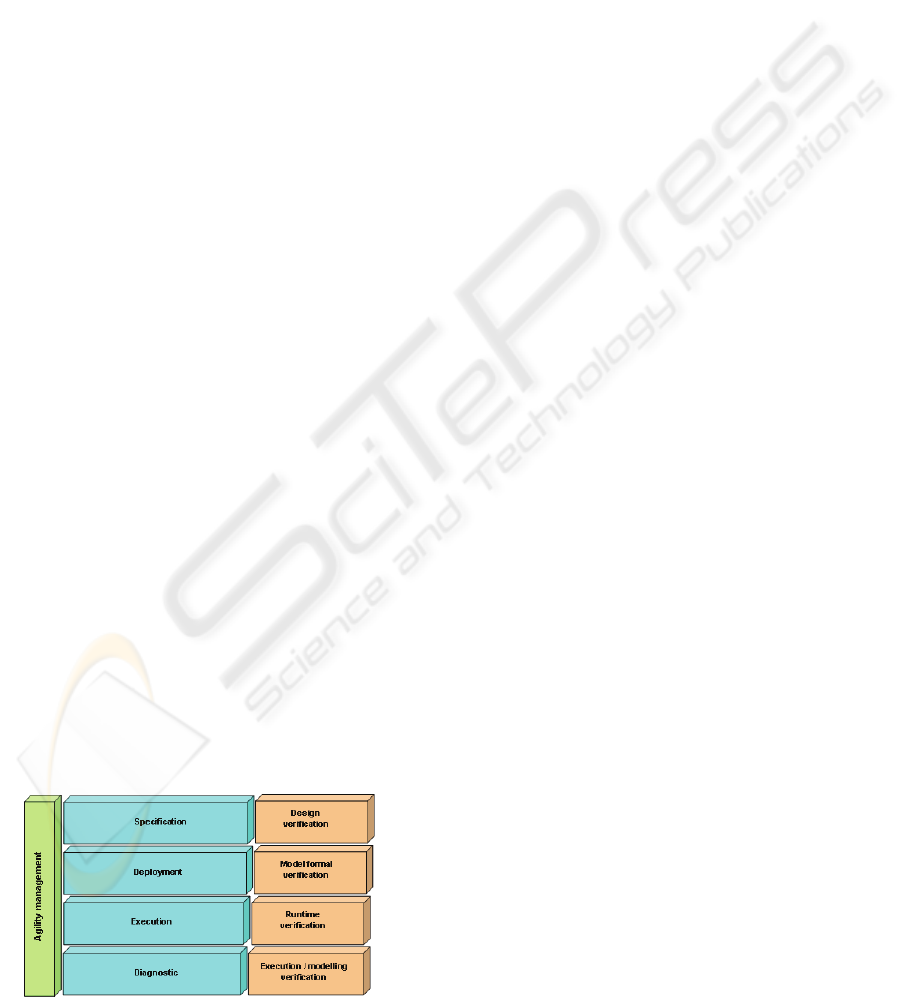

Figure 1: the BP-FAMA architecture.

- Favour the agility of the modelling business

processes. For this reason, we propose two new

modelling languages, the first language is called

BPAMN (Business Process Agile Modelling

Notation) is a graphical language very similar to its

ancestor BPMN. This new language allows the

identification of the business rules in modelling

level. In this manner, the monitoring of these rules is

possible from beginning to end of a business

process. The second language is called BPEDL

(Business Process Elements Description Language)

is a language describing the various elements of

business processes, this language allows to add

information to complete the definition graphics

process. This information will be used to ensure

consistency when we integrate updates of the

business rules automatically.

- Favour the agility of the process in running. For

this reason, we propose a new execution language

called BPAEL (Business Process Agile Execution

Language) which is based entirely on his ancestor

BPEL and extends with location and identification

of business rules in a process BPAEL. This is done

by adding a new activity structured called “RULE”.

- Integration of a verification step in each phase of a

business process life cycle. In the specification

phase, the designer is assisted to model the process

by detecting elements that can be a potential source

of errors. In the deployment phase, functional

coherence process modelling is verified by using a

formal model. In the execution phase, the

verification is launched in demon to intercept

possible exceptions and try to react in order to drive

the execution of the process towards a stable

situation. In the diagnostic phase, the process is

rebuilt from the information accumulated during the

execution of a large number of the process instance,

to ensure that what has been modelled corresponds

to what actually is running.

- Analyze the fulfilment of process executable to

verify that it agree with what has been modelled.

3.1 The Specification Phase

In the specification phase, the designers define the

elements constituting the business process or they

redefine the elements of a process in order to

improve it. This definition is a dialogue medium

between the processes responsible and operational

teams in charge of executing them. To this end,

graphical languages are used in this phase to

describe the process models because they provide a

convivial representation and an easier way to

understand the process. The new graphical language,

called BPAMN, is used in order to describe a

FAMA

ICEIS 2008 - International Conference on Enterprise Information Systems

370

business process (see Figure 2).

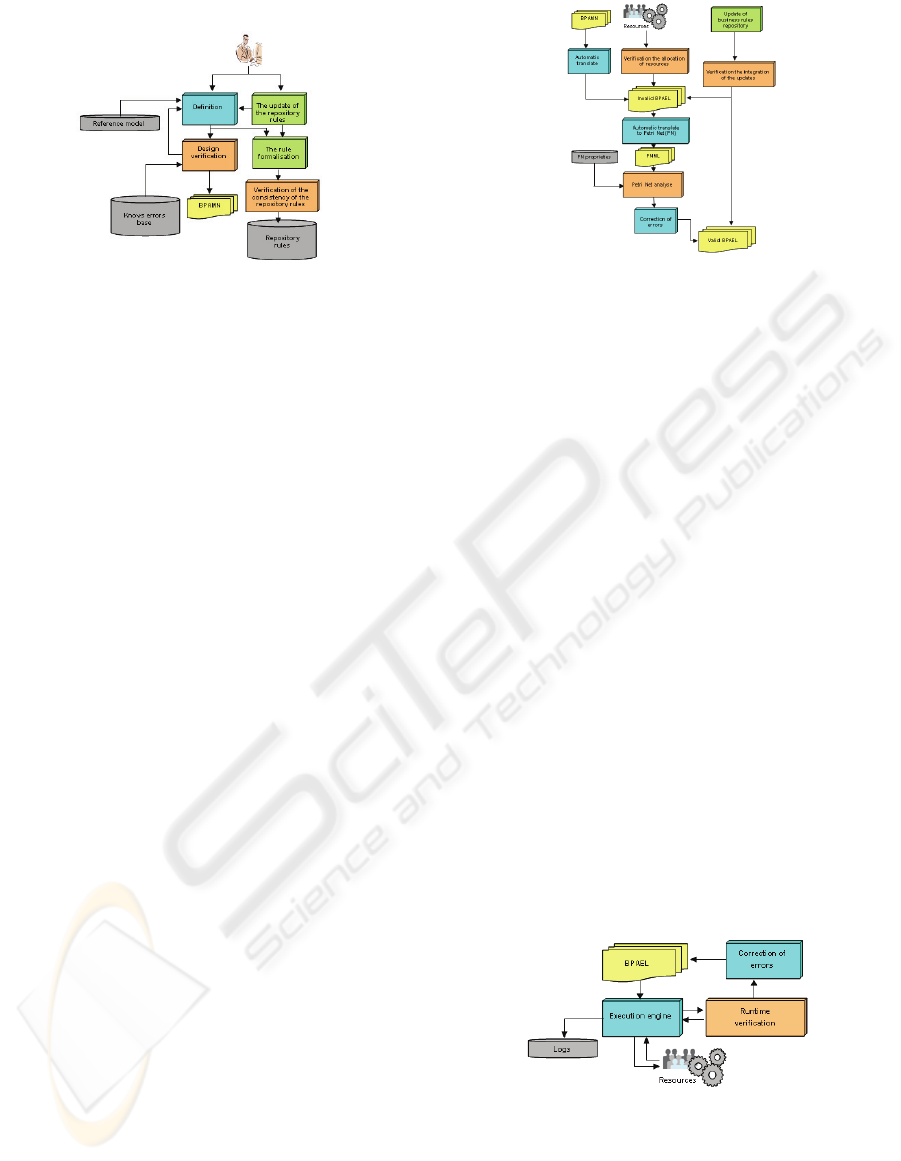

Figure 2: Architecture of the specification phase.

This language allows using a complete graphical

notation (graphics and charts) for the representation

of a business process. This graphical notation is

inherited from the standard BPMN. The advantage

of this new language is the separation of the business

rules definition from the algorithmic logic of a

business processes. This separation makes possible

to independently manage business rules using a rules

repository, and allows the sharing of rules by

multiple processes. The check of rules updating is

necessary to maintain the coherence of the rules

repository. This is why the formulation of business

rules must be rigorous, concise and precise to ensure

that those rules are unambiguous, coherent,

complete and enunciate with a common business

vocabulary. At the same time, an early verification is

performed to identify known errors in the modelling

process.

3.2 The Deployment Phase

In the deployment phase, the process model is

implemented by developing business applications

needed in the allocation of resources which carry out

different process activities. In this way, the process

becomes operational. The FAMA business process is

implemented by translating its modelling expressed

using the BPAMN in a new execution language

called BPAEL (see figure 3).

Indeed, this new

language is entirely based on the BPEL standard, at

which we add a new structured activity called

"Rule". Thelatter allows identifying the business

rules in a process BPAEL. In that way, updates rules

can be incorporated into the process automatically.

However, the language BPAEL, like its predecessor

BPEL, doesn’t provide mechanisms to support the

verification of process specifications. For this raison,

we have used formal models to identify possible

functional errors. Among the different models used

in the literature for this type of verification, we

opted for Petri Net (PN) due to their great ability to

model a wide variety of business processes.

Figure 3: Architecture of the deployment phase.

Moreover, the PN offer a wide range of

mathematical properties for analyzing the proper

functioning of the process. To this end, a tool for

rewriting the specification of the process in terms of

PN (translators) is proposed. The Petri Net obtained

are expressed in the language PNML (Petri Net

Markup Language) which is used by large PN

analysis tools (analyzers). The latter allow certain

properties to verify for instance, deadlock or net

vivacity...etc. They can detect errors by taking into

account the properties detected. Finally, the

allocation of resources can be checked using process

elements descriptions expressed in BPEDL.

3.3 The Execution Phase

In the execution phase, an execution engine

interprets the fulfilment specification of process

activities which are expressed by using the FAMA

execution language (BPAEL). This interpretation is

performed by automating interactions between

process participants (the documents, the information

and tasks) and allocating the different resources. A

verification demon is launched in parallel with the

execution of FAMA process in order to intercept

non modelled exceptions like a hardware failure or

an unavailability of a resource (see figure 4).

Figure 4: Architecture of the execution phase.

In this way, we try to reach from an unstable process

situation to more stable situation. We also avoid

calling verification by PN model, which is costly in

terms of execution time (time of performing the

translation algorithm plus analysis algorithm).

Finally, the different log files and traces

BP-FAMA : BUSINESS PROCESS FRAMEWORK FOR AGILITY OF MODELLING AND ANALYSIS

371

accumulated during the execution of a large number

of process instances are stored in a specific base to

be used in the next step.

3.4 The Diagnostic Phase

In the diagnostic phase, the executable process is

analyzed in order to measure the operational

performance basing on the log files. For this raison,

the FAMA executable process is analyzed in order

rebuilt the business processes based on information

accumulated in the previous phase (see Figure 5).

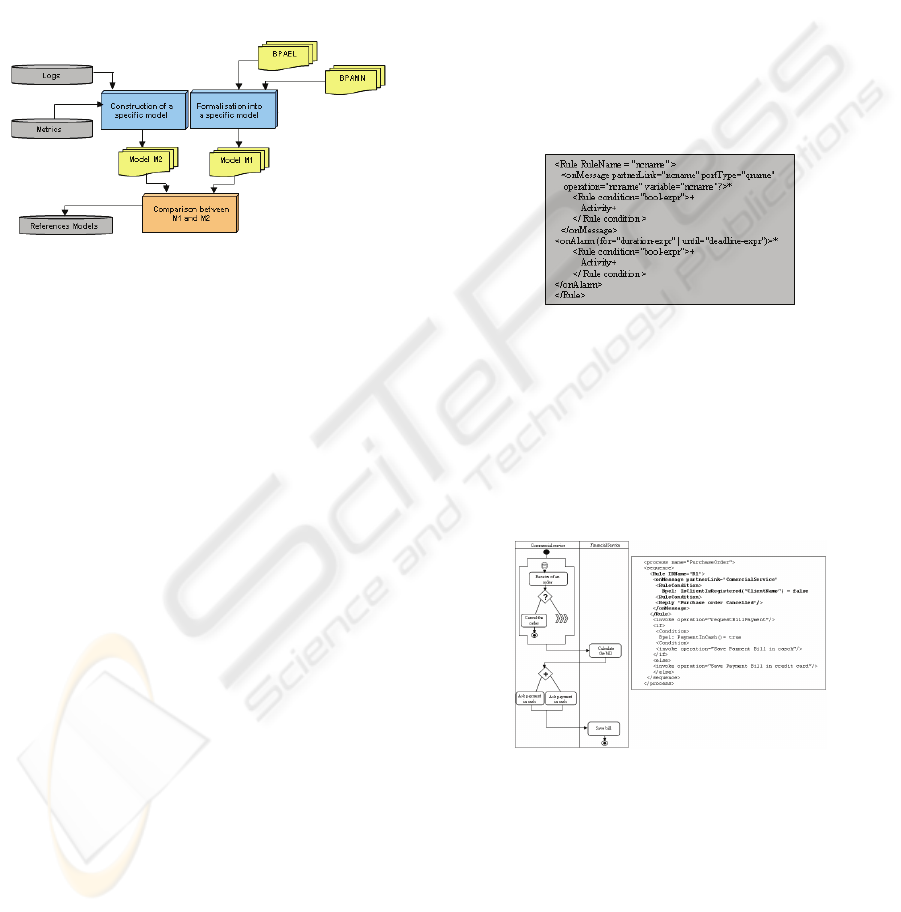

Figure 5: The architecture of the diagnostic phase.

The result will be compared with the modelled

process to check if this last correspond to the same

set of activities which are actually running.

In the following, we will describe the two new

FAMA languages: BPAMN and BPAEL.

4 THE FAMA LANGUAGES

4.1 The BPAMN Language

The specification of a business process consists in

formal description of the basic elements that

constitute the process by using a meta-model. The

latter allows the definition of the syntax and

semantics of a process respecting meta-model. For

this reason, graphical notations are used to help an

intuitive description of a business process. In this

way, the representation of the process becomes

understandable and enables evaluation of the design

phase as well as the generation of the associated

executable code. Whereas, a complete representation

of the business enterprise knowledge is necessary to

automate and analyze the process, this obviously

depends on the power of the meta-model used.

BPAMN comes to add an agility dimension into a

BPMN representation. Indeed, this new language

allows the identification of the business rules in

modelling level by using new symbols dedicated to

model the business rules elements separately from

the other business process elements. In this manner,

the location of these rules is possible from beginning

to end of a business process.

4.2 The BPAEL Language

In this section we describe a new process execution

language called BPAEL. It is proposed in order to

trace business rules in the process. Indeed, the

BPAEL is based entirely on the BPEL standard, at

which we add a new structured activity called Rule

for the location of the business rules in a process

BPAEL. Indeed, this new activity combines the

operation of the Pick activity which allows

intercepting events and If activity which allows

introducing conditions. A rule identifier is added

into this new activity in order to keep track of

business rule within rule repertory (see figure 6).

Figure 6: The declaration of the rule activity

5 USE CASE

In this section we introduce the famous example of

purchase order process to illustrate BPAMN

language (see Figure 7.A) and illustrate BPAEL

language (see Figure 7.B).

(A) (B)

Figure 7: Purchase order process.

On receipt of an order from a client, this process

calculates the final price and sends a bill to the

client, the latter has the option to pay in cash or by

credit card. The bill was finally registered. However,

this process must respect a constraint: requires that

the customer must be saved in the database in order

to satisfy his command. When we went to model this

business process, we have to identify and represent

its different elements using a modelling lanuage.

ICEIS 2008 - International Conference on Enterprise Information Systems

372

The Figure 7.A shows a graphic representation of

the purchase order process by using BPAMN. The

rectangles with rounded corners represent the

activities of the process as "Calculate the initial

price". In other hand, the designer of this business

process can predict the business rules which are

more susceptible to change. We assume that the

constraint which the process must respect has a good

chance to change. For this reason the designer will

need to separate its definition from the process. By

using BPAMN, this separation is possible. Indeed

this constraint (business rules) will be represented by

using a cross. As a result, the rule represented by the

first cross figure will trigger if the receipt of an order

(receipt event message is represented by the icon), if

the customer is registered (this condition is

expressed by the icon), then we continue to execute

the process. To express this mechanism we use the

symbol rule link. Otherwise (if the client is not

registered) stops the process by cancelling the order.

At the same time, the identification of business rules

within a BPAEL process is done by using the RULE

activity. The rule is implemented in the RULE

activity (see Figure 7.B), this last will trigger if the

receipt of an order (<onMessage>), if the customer

is registered (IsClientIsRegistered("ClientName") =

false), then we stops the process (<Reply "Purchase

order annulled"/>) .

6 DISCUSSION

The BPM come today to include the entire life cycle

process. Indeed, this cycle is beginning from

definition of processes, through deployment and

execution until the analysis of these processes. The

modelling phase is crucial for a company. Because it

helps to describe its value chain. Especially since it

is a means of dialogue between processes

responsible and operational teams in charge of

executing them. To be successful, it must be based

on methods and standards languages. In this context

two specifications have been proposed: the BPMN

and BPEL. Unfortunately by using these

specifications, the designers face up to two

problems: 1) the implementation of business rules in

the business process code makes the latter rigid and

difficult to maintain. 2) The lack of mechanisms to

support the verification process. For this raison, we

have proposed in this paper a framework called BP-

FAMA which tries to respond to these two

problems. Indeed we believe that business rules

must be identified by the designer during the

specification phase and the deployment phase of the

process. The lack of a rules identification

mechanism in both standard BPMN and BPEL

pushed us to propose extensions to these standards:

the BPAMN language graphical modelling agile

processes and BPAEL language implementing agile

processes. This identification rule in a business

process allows keeping track of rules in order to

manage them separated from the algorithmic logic of

the process and also to integrate its updated

automatically. We also believe that providing a

complete analysis to a business process, the

integration of a verification step in each phase of the

business process life cycle is necessary. In the

specification phase by detecting elements that can be

a potential source of errors. In the deployment phase

by using a formal model. In the execution phase by

trying to react in order to drive the execution of the

process towards a stable situation. In the diagnostic

phase rebuilding the process to ensure that what has

been modelled corresponds to what actually is

running.

REFERENCES

Cardoso, J., Sheth, A., 2006. The book: Semantic Web

Services, Processes and Applications, Springer 2006

Gruhn, Volker., Laue, Ralf., 2007 What business process

modelers can learn from programmers, In Science of

Computer Programming Journal 65 (2007) 4–13.

Koshkina, M., van Breugel, F., 2004. Modelling and

verifying web service orchestration by means of the

concurrency workbench. In ACM SIGSOFT Software

Engineering Notes.

Martens, A., 2003. On usability of web services. In 4th

International Conference on Web Information Systems

Engineering Workshops, Italy.

OASIS, 2007. Business Process Execution Language for

Web Services (BPEL4WS): Version 2.0. In

BPEL4WS specification report.

Object Management Group, 2007. Business. Unified

Modelling Language Superstructure version 2.1.1 In

final report of adopted specification 07-02-03.

Object Management Group, 2006. Business Process

Modelling Notation (BPMN) Specification. In final

report of adopted specification dtc/06-02-01

Russell, N., van der Aalst, W.M.P. ter Hofstede, A.H.M..,

2006. Exception Handling Patterns in Process-Aware

Information Systems. BPM Center Report BPM-06-04

Van der Aalst, W.M.P., ter Hofstede, A.H.M.,

2005, YAWL: Yet Another Workflow Language.

In Information Systems, 30(4):245-275.

Van Dongen, B.F., Jansen-Vullers, M.H., 2005.

Verification of SAP Reference Models. In BPM 2005,

3rd International Conference, France.

Yang, Y., Tan, Q. Yu, J., Liu, F. 2005. Transformation

BPEL to CP-nets for verifying web services

composition. In the International Conference on Next

Generation Web Services Practices, Korea.

BP-FAMA : BUSINESS PROCESS FRAMEWORK FOR AGILITY OF MODELLING AND ANALYSIS

373
