A PROTOCOL TO CONTROL REPLICATION IN DISTRIBUTED

REAL-TIME DATABASE SYSTEMS

∗

Anis Haj Said, Bruno Sadeg, Laurent Amanton

LITIS, UFR of Sciences and Techniques, 25 rue Philippe Lebon BP 540, 76 058, Le Havre Cedex, France

B´echir Ayeb

PRINCE, Faculty of Sciences, Boulevard de l’Environnement, 5000, Monastir, Tunisia

Keywords:

Real-time database, distributed system, transaction, replication , replication control protocol, data consistency.

Abstract:

Data replication is often used in distributed database systems to improve both fault tolerance and performance

purposes. However, such systems must ensure replicas consistency. In this paper, we discuss the contribu-

tions of data replication in distributed real-time database systems (DRTDBS) and we then present RT-RCP,

a replication control protocol we designed for DRTDBS. We introduce a new entity called List of available

copies (LAC) which is a list related to each data item in the database. A LAC of a data item contains all or a

part of references of its updated replicas. This allows the database to have a dynamic level of replication.

1 INTRODUCTION

Data replication has been studied in many research

areas, especially in distributed database systems for

both fault tolerance and performance purposes. The

main interest of data replication in DRTDBS is to

increase data availability in order to enhance the

chances of transactions to meet their deadines. How-

ever, allowing transactions to deal with different

copies of the same data can generate inconsistencies

(Gray et al., 1996) which brings us to be circumspect

about data consistency.

Several replication control protocols have been

proposed in order to manage replicas. We distinguish

two main models (Gray and Reuter, 1993) : eager up-

date model (Bernstein et al., 1987) in which a trans-

action synchronises with all copies before it commits,

and lazy update model (Pu and Leff, 1991) in which

changes introduced by a transaction are propagated to

other sites only after the transaction has committed.

In addition, we make out two architectures

which determine the transactions execution place-

ment (Wiesmann et al., 2000). The primary copy ar-

chitecture in which each data has a primary copy at a

speciﬁc site (server), and the update everywhere ar-

∗

This work is supported by the Haute-Normandie region

CPER project “Logistic Transport Network and Informa-

tion Technics“.

chitecture in which transactions can be executed at

any site and then updates are transmitted to all other

sites. Some studies are interested to replication in

DRTDBS. They take into account data and transac-

tions speciﬁcations. The replication approaches pro-

posed either use a primary copy to deterministically

apply updates to replicated data (Wei et al., 2004) or

use distributed concurrency control protocols and dis-

tributed commit protocols to order updates so that one

copy serializability (Xiong et al., 2002) or some simi-

lar correctness criterion such as epsilon-serializability

(Son and F.Zhang, 1995) can be fulﬁlled.

Most reaserches conducted on replication in DRT-

DBS have adressed replication control in update

transactions. Whearas user transactions are as impor-

tant as update transactions because both affects the

system performance measurment since they are both

real-time transactions. Our work focusses on replica-

tion control in user transactions processing.

The remainder of this paper is organized as fol-

lows: Section 2 describes our RTDBS model whereas

in section 3 we discuss about the use of existing repli-

cation protocols in DRTDBS. In section 4 we present

our proposed protocol RT-RCP. Finally, Section 5

concludes the paper.

501

Haj Said A., Sadeg B., Amanton L. and Ayeb B. (2008).

A PROTOCOL TO CONTROL REPLICATION IN DISTRIBUTED REAL-TIME DATABASE SYSTEMS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 501-504

DOI: 10.5220/0001712805010504

 SciTePress

2 MODELS AND ASSUMPTIONS

The database is modelled as a collection of data items

fully replicated at each node. It deals with variant

data (also called real-time data), with which are asso-

ciated validity intervals and invariant data (also called

non real-time data) which values will not change with

time, i.e. their validity intervals are inﬁnite.

Regarding transactions, we focus only on ﬁrm

real-time transactions. (Ramamritham et al., 2004).

We distinguish two types of real-time transactions:

- Update transactions : These transactions refresh

variant data before exceeding their validity interval.

- User transactions : Generally, they are launched by

users or triggered by system events. These trans-

actions can perform reads on variant data and/or

reads/writes on invariant data.

In the following, we present a data model based on

a data classiﬁcation according to their criticality and

characteristics (Shu et al., 2002). Let D denotes the

data set of the database. We denote by D

critical

the

set of critical data (handled only by real-time trans-

actions). This set can be devided into two subsets.

We denote by D

var

critical

, the subset of D

critical

including

variant data and by D

invar

critical

a subset of D

critical

includ-

ing invariant data. We call non-critical data, the data

items which are not invoked by real-time transactions.

non−critical

denotes this set of data.

In addition, we consider a DRTDBS which consists of

main memory real-time databases connected by high-

speed network. We assume that messages sent over

the network have predictable transmission and deliv-

ery time. Besides, messages issued from a single node

are delivered in the order they are sent.

3 REPLICATION IN DRTDBS

For DRTDBS, a replication control protocol should

ensure mainly the availability and the accessibility of

critical data in order to allow the system to resume

its main functionality, and thus improve its perfor-

mance which is the ratio of transactions which meet

their deadlines. In the same time, data consistency

must be guaranteed to avoid the use of stale data by

transactions. A simplest idea consists of adopting an

eager model for critical invariant data, which ensures

data copies consistency. However, using this model

can signiﬁcantly raise the probability of deadlocks,

and consequently failed transactions with transaction

size and with the number of nodes (Gray et al., 1996).

In fact, updating all critical invariant data copies be-

fore the transaction commit increases the transaction

size especially when the number of nodes in the net-

work is signiﬁcant. The lazy replication model, where

changes introduced by a transaction are propagated to

other sites only after the transaction has commited, is

often used in many classical database systems.

This results in minimal overhead but inconsisten-

cies among the copies often arise. It is well that incon-

sitencies created by lazy replication can be very dif-

ﬁcult and expensive. In order to solve this problem,

database systems use reconciliation protocols based

on timestamping technique. These reconciliation pro-

tocols generate the discard and then the restart of

transactions which have used stale data. Discarding

and restarting transactions can signiﬁcantly affect the

system performance. These two models seem to be

not suitable to control replication in DRTDBS.

The common drawback of these two techniques

is that sites do not have any particular information

about the state of the database at the other sites. In

fact, for lazy replication, transactions are executed lo-

cally without carriyng about the state of replicas of

the involved data. Inconsistencies are detected after

the completion of the transaction execution. Whereas

for eager replication, transactions are forced to up-

date copies of the involved data and then preclude in-

consistencies to occur. In the following, we present

RT-RCP (Real Time Replication Control Protocol) to

manage replicas of data in D

invar

critical

. RT-RCP allows

some inconsistencies to happen between copies but

prevents access to stale copies.

4 THE RT-RCP PROTOCOL

Fully replicating a database leads us to be vigilant

about inconsistencies that may arise between critical

data copies. In fact, when a transaction updates a data

item, its copies must be updated or locked until its up-

date. Otherwise, other transactions can use stale data.

Since the time needed to transmit a message is

predictable, a node can estimate the number of up-

dates which are possible to perform without exceed-

ing the transaction deadline. In fact, if the remainder

time before the transansaction deadline is greater than

the maximum time needed to transmit updates, then

data synchronisation is done immediately, otherwise

updates are differed after the commit. The main idea

of our protocol is to use a mixed strategy in order to

update replicas of critical invariant data. Indeed, in

RT-RCP, a node where the transaction executes up-

dates synchronously as many nodes in the network as

possible and differs the remainder updates after com-

mitting the transaction.

Figure 1 shows the use of RT-RCP in order to up-

date the copies of a data item which is involved in a

ICEIS 2008 - International Conference on Enterprise Information Systems

502

deadlineOK

site 2

site 3

site 4

site 5

site 1

transaction begin

synchronous

updates

{2}

Differed updatesCommit phase

sending lock

requests

{1,2,4}

{1,2,4,5}

{1,2,3,4,5}

release write lock

hold write lock

time

message

LAC updating

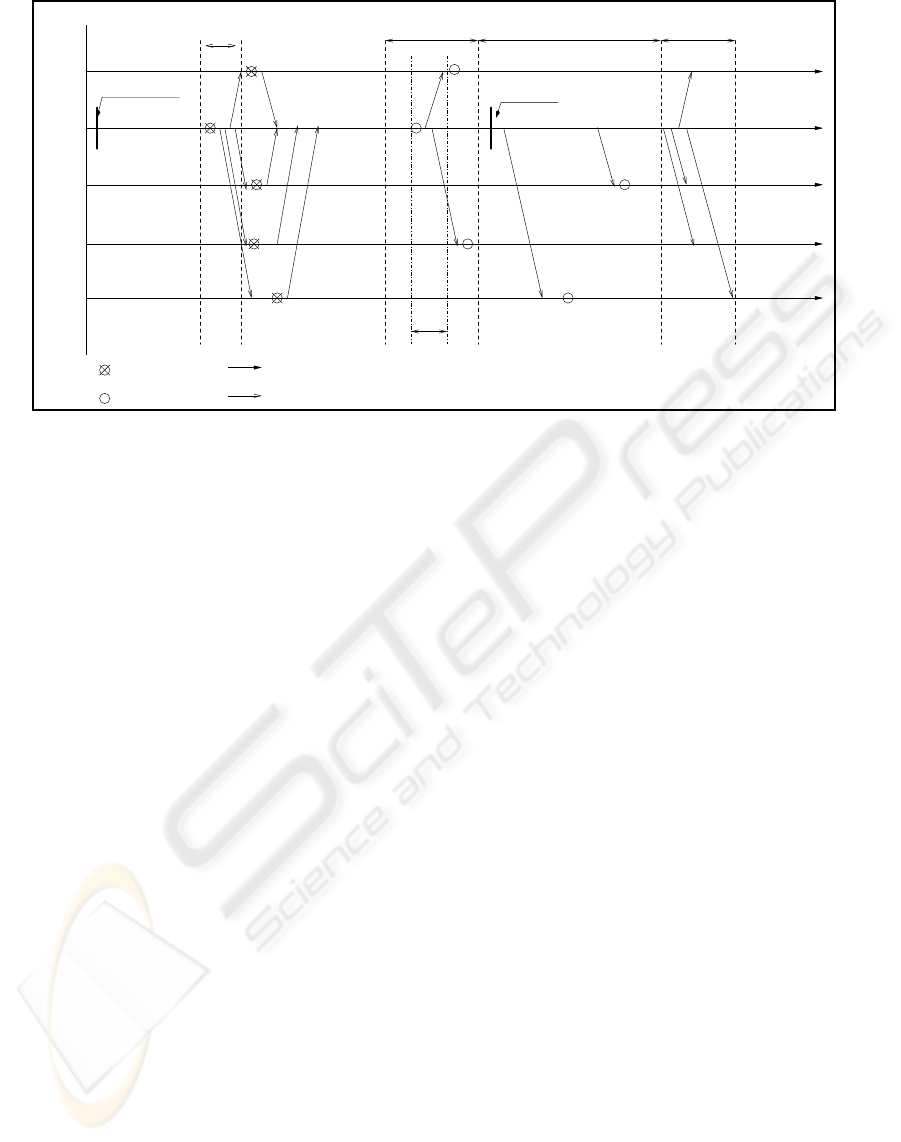

Figure 1: Processing of RT-RCP.

transaction. We consider a distributed system which

consists of ﬁve sites. Let d a data item in the database

involved by the transaction T which is performed on

site 2. When transaction T needs a write access to the

data item d, it requires write locks on the local data

item and its copies. In fact, we use a distributed lock-

ing approach. If the lock is granted by all sites, we

can proceed. If not, the transaction can be delayed

and the request is repeated some time afterwards.

During the commit phase, site 2 updates two

copies of d. It can not perform more updates due to

transaction deadline which could be exceeded. After

the transaction commit, site 2 propagates updates to

copies of d which are not updated yet. RT-RCP tries,

on the one hand, to respect the transaction temporal

constraint and to make available data copies on the

other hand.

However, this protocol has a drawback that can be

summarized by the following situation.

Let T

′

a transaction launched on site 4 after the

synchronous updates performed by the transaction T.

′

is split into subtransactions T

′

, .....,T

′

( 1 < n ≤

N,N is the number of sites). Since the database is

fully replicated and sites have no information about

the state of the database on the other sites, subtransac-

tions of T

′

are sent to the participating sites which are

choosed randomly. Let T

′

( 1 ≤ i ≤ n ) be a subtrans-

action which needs access to the data item d launched

on site k, with 1 < k ≤ n. Two cases can arise. - The

copy of d on site k is already updated and then the

subtransaction T

′

will be executed normally

- The copy of d on site k is not updated yet and then

subtransaction T

′

will be blocked until site k receives

the new value of d and releases the write lock.

In the latter case in which the subtransaction T

′

blocked, the transaction could miss its deadline and

as consequence it will be aborted. Whereas subtrans-

action T

′

could have more chances to meet its dead-

line if it was launched on a site in which the data item

d is updated. In order to prevent this situation, sites

must have knowledge about the state of the database

at the other sites of the distributed network. This help

sites to make a suitable decision when they choose

participant sites to the transaction execution. Associ-

ating a list of available copies (LAC) with each data

item, allows sites to make a suitable decision when

choosing participant sites in a transaction. Each site

which holds locks on a data item and its copies must

update LACs of this data item at the other sites of the

distributed network.

4.1 LACS Updating

LACs must be up-to-date, or at least should not con-

tain wrong informations. Updating LACs is a two step

process. The ﬁrst, consists of joining a new LAC with

each data update message. The second begins when

all replicas receive updates. We go back to our exam-

ple to show how LACs are built and updated (Figure

1).In RT-RCP, a LAC is joined with each update mes-

sage sent by site 2 to other sites. Since site 2 holds

write locks on the data item d and it is the site which

updates d replicas, then it is the only one which has

information about the state of each replica of the data

item d.

We assume that intially replicas of d are up-to-

date in all sites, thus each LAC related to a copy of

the data item d contains the ﬁve sites identiﬁers. Ob-

A PROTOCOL TO CONTROL REPLICATION IN DISTRIBUTED REAL-TIME DATABASE SYSTEMS

503

viously LACs can contain other information. When

the transaction T executed on site 2 needs a write ac-

cess to the data item d, it locks the local copy of d

and sends write lock requests to each replica. Once a

write lock is hold on a copy, its LAC is modiﬁed and

it contains only the write lock sender identiﬁer. Each

site sends to site 2 a conﬁrmation message when the

local copy of d is locked, and LACs are modiﬁed to

contain only site 2 Identiﬁer. From this stage, site 2

behaves as a primary copy of the data item d since

each transaction which needs an access to d is auto-

matically sent to site 2.

At the commit phase, site 2 updates syn-

chronously as many replicas of d as possible. Since

messages have predictable transmission and delivery

time, site 2 can estimate the number of updates that

it can perform without missing the deadline of trans-

action T. For the data item d, site 2 can update only

two copies, then it chooses two sites (site 1 and site 4)

for which it will send updates. A new LAC is joined

to the message in which appear the three identiﬁers

of the updated sites. The main goal of sending up-

dates before committing the transaction is to avoid

overloading site 2 by making available replicas of d.

After the committing phase, site which performs

the transaction sends updates and a new LAC to each

site in which copy of d is not updated yet. Thus, site 2

sends an update message to site 3 and site 5 and joins

to each message a new LAC. Each LAC contains, in

addition to the receiver identiﬁer, identiﬁers of sites

in which replicas of d are up-to-date when the mes-

sage is sent. At this stage of the protocol, all copies

of the data item d are updated. However, LACs con-

tains different informations according to the order of

receiving updates. Once site 2 has ﬁnished updating

sites, it brodcasts to all sites a new LAC which con-

tains all sites identiﬁers.

We note that RT-RCP introduces a new round of

messages exchange in order to update LACs. The aim

of this messages exchange is to inform sites that a data

item is already up-to-date everywhere in the network.

Without this messages, the database seems to be not

fully replicated. This means that the degree of repli-

cation for a data item viewed by each site is not the

same. Keeping the system at this state can be beniﬁcal

when the system is overloaded. Eliminating the dif-

fered updates and the ﬁnal LACs updating step in case

of system overload could not affect efﬁciency of RT-

RCP since updates may be done by a new transaction.

This can be an interesting issue for DRTDBS since

changing the behavior of RT-RCP according to the

system load and transactions requirements can greatly

improve the performance of DRTDBS.

5 CONCLUSIONS

RT-RCP ﬁnds a trade-off between respecting tempo-

ral constraints of real time transactions and updating

replicas. In fact, RT-RCP is not anxious to update all

replicas synchronously. We have a dynamic degree of

replication which changes with the system load and

the real time transactions requirements. RT-RCP en-

sures the use of fresh data by real time transactions.

Indeed, sites refer to the LAC of each data item in or-

der to make an adequate choice about participant sites

in the execution of a transaction. Since a LAC related

to a data item is delivred each time by the site which

holds write locks on this data item, sites which appear

in this LAC contain an updated copy of the data item.

REFERENCES

Bernstein, P. A., Hadzilacos, V., and Goodman, N. (1987).

Concurrency Control and Recovery in Database Sys-

tems. Addison-Wesley.

Gray, J. N., Holland, P., Shasha, D., and O’Neil, P. (1996).

The dangers of Replication and a Solution. In 1996

ACM SIGMOD on Management of Data, pages 173–

182, Montreal, Canada.

Gray, J. N. and Reuter, A. (1993). Transaction Process-

ing:Concepts and Techniques. Morgan Kaufmann

Publisher.

Pu, C. and Leff, A. (1991). Replica Control in Distributed

Systems: An Asynchronous Approach. In Clifford, J.

and King, R., editors, Proc. of the ACM SIGMOD on

Management of Data, pages 377–386.

Ramamritham, K., Son, S., and Dipippo, L. (2004). Real-

Time Databases and Data Services. Real-Time Sys-

tems, pages 179–215.

Shu, L., Stankovic, J., and Son, S. (2002). Real-Time Log-

ging and Failure Recovery. In In IEEE Real-Time

Technology and Applications Symposium.

Son, S. H. and F.Zhang (1995). Real-Time Replication Con-

trol for Distributed Database Systems: Algorithms

and Their Performance. In Proc. of the 4th Intl. Conf.

DASFAA’95, Singapore, pages 214–221.

Wei, Y., Aslinger, A. A., Son, S. H., and Stankovic, J. A.

(2004). ORDER : A Dynamic Replication Alogorithm

for Periodic Transactions in Distributed Real-Time

Databases. In 10

Int’l Conf. RTCSA 2004.

Wiesmann, M., Pedone, F., Schiper, A., Kemme, B., and

Alonso, G. (2000). Database Replication Techniques:

A Three Parameter Classiﬁcation. In Proceedings of

19th IEEE Symposium on Reliable Distributed Sys-

tems (SRDS2000), Germany.

Xiong, M., Ramamritham, K., Haritsa, J. R., and Stankovic,

J. A. (2002). Mirror: a State-Conscious Concurrency

Control Protocol for Replicated Real-Time Databases.

Inf. Syst., pages 277–297.

ICEIS 2008 - International Conference on Enterprise Information Systems

504
