LANGUAGE EXTENSIONS FOR THE AUTOMATION

OF DATABASE SCHEMA EVOLUTION

George Papastefanatos

, Panos Vassiliadis

, Alkis Simitsis

Konstantinos Aggistalis

, Fotini Pechlivani

and Yannis Vassiliou

Department of Electr. and Comp. Eng., National Technical University of Athens, Athens, Greece

Department of Computer Science, University of Ioannina, Ioannina, Greece

IBM Almaden Research Center, San Jose, California, U.S.A.

Keywords: Database schema evolution, SQL extension.

Abstract: The administrators and designers of modern Information Systems face the problem of maintaining their

systems in the presence of frequently occurring changes in any counterpart of it. In other words, when a

change occurs in any point of the system –e.g., source, schema, view, software construct– they should

propagate the change in all the involved parts of the system. Hence, it is imperative that the whole process

should be done correctly, i.e., the change should be propagated to all the appropriate points of the system,

with a limited overhead imposed on both the system and the humans, who design and maintain it. In this

paper, we are dealing with the problem of evolution in the context of databases. First, we present a coherent,

graph-based framework for capturing the effect of potential changes in the database software of an

Information System. Next, we describe a generic annotation policy for database evolution and we propose a

feasible and powerful extension to the SQL language specifically tailored for the management of evolution.

Finally, we demonstrate the efficiency and feasibility of our approach through a case study based on a real-

world situation occurred in the Greek public sector.

1 INTRODUCTION

In typical organizational Information Systems, the

designer/administrator is frequently faced with the

necessity to predict the impact of a small change or a

more sophisticated reorganization in the overall da-

tabase configuration. For instance, consider the sim-

plest configuration of a company’s database which

holds information about the employees and the pro-

jects they work for, shown in Figure 1. A view se-

lects the employees who work for a project along

with the project name. A query accesses this view,

selecting all employees who work for the Olympic

Games. Suppose the administrator decides that em-

ployees’ name should be split into last and first

name, by adding two new attributes in the underly-

ing relation and deleting the existing attribute name.

Should these changes be also reflected to the view

and the query, then these constructs must be rewrit-

ten. Even a small change like this, usually impacts a

large variety of applications and data stores related

to the system: queries and data entry forms can be

invalidated, application programs might crash (re-

sulting in the overall failure of more complex work-

flows), and several pages in the corporate Web

server may become invisible; i.e., they cannot be

generated any more. It is imperative that such

changes should be resolved and propagated to the

involved counterparts of the system.

Syntactic as well as semantic adaptation of

workload –mainly queries and views– to changes

occurring in the database schema is a time-consum-

ing task, treated in most situations manually by the

administrators or the application developers. Current

DBMS languages do not incorporate evolution se-

mantics, so that administrators / developers could

prescribe the behavior of the system when database

schema evolution changes occur. On the contrary,

to deal with the problems occurred by the evolution

in databases, several practical techniques are usually

used for this reason, like the use of variable names

placeholders for the real names of constructs like

attributes and tables. For example, Oracle’s

PL/SQL

uses the

%TYPE and %ROWTYPE constructs to define

Papastefanatos G., Vassiliadis P., Simitsis A., Aggistalis K., Pechlivani F. and Vassiliou Y. (2008).

LANGUAGE EXTENSIONS FOR THE AUTOMATION OF DATABASE SCHEMA EVOLUTION.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - DISI, pages 74-81

DOI: 10.5220/0001716400740081

 SciTePress

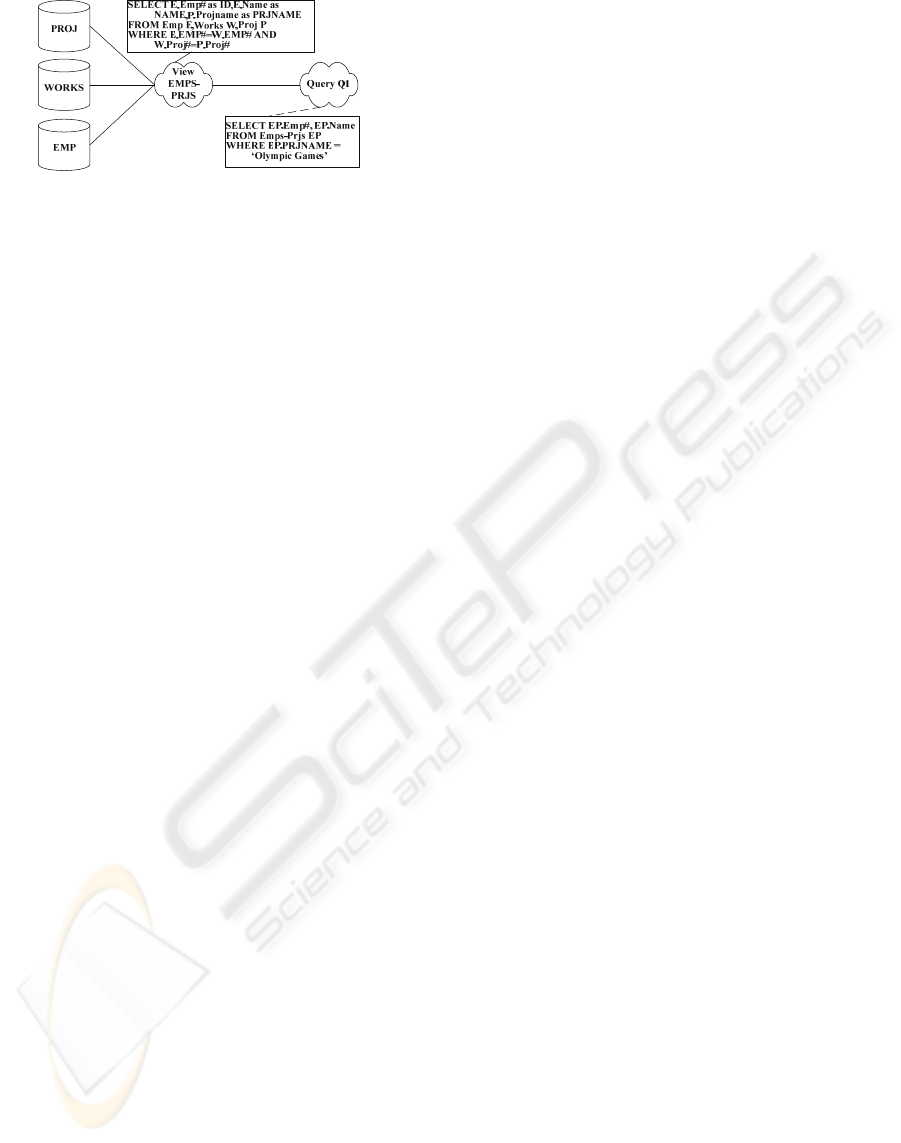

Figure 1: A simple configuration of a query over a view,

defined over three relations.

variables as they are defined within the database. If

the datatype or precision of a column changes, the

program automatically picks up the new definition

from the database without having to make any code

changes. Hence, the appropriate enrichment of the

procedural code with such constructs provides data

independence, reduces maintenance costs, and

allows programs to adapt as the database changes to

meet novel business requirements. However, such

techniques partially confront the problem, as they

are dealing with the simplest cases of evolution.

Database evolution is a more complicated issue;

we mention here an experience described by

(Sjoberg, 1993). In his report, a quantification of the

database schema evolution problem in large long-

lived application systems is presented. Over a period

of 18 months, which included both the development

and the operational phase of the examined system,

they recorded 140% increase in the number of

relations and over 200% increase in the number of

attributes, as well as several evolution changes in all

existing relations of the system.

Due to its great significance and practical im-

portance, the database evolution has already gained

research attention. Several works have identified this

problem as a great challenge for database research-

ers (Roddick, 2000) and various efforts have been

proposed so far (Bellahsene, 2002), (Gupta, 2001),

(Nica, 1998), (Velegrakis, 2004). In our work, we

extend previous results (Nica, 1998) by incorporat-

ing the addition of attributes and by appropriately

treating conditions. Also, we allow the restructuring

of the database, which is considered as a graph in

our framework, towards either the retention of the

original query semantics – a similar but quite re-

strictive approach has been proposed by (Velegrakis,

2004) – or their appropriate readjustment to the new

semantics. In addition, we complement our approach

by proposing an elegant extension to the SQL lan-

guage for the management of database evolution.

Compared with previous efforts (Roddick, 1992),

our work does not require either schema versioning

or integration of time within database schema evo-

lution. In fact, we provide rules for the transforma-

tion and adaptation of queries and views to the last

valid database schema without the assumption that

the transformed queries retain the same semantics.

Contributions. Briefly, the main contributions

of this work are as follows.

− We describe a graph-based model that uni-

formly covers database constructs, such as re-

lational tables, views, database constraints and

SQL queries, as first class citizens (Section 2.)

− We present a mechanism for the annotation of

the graph’s constructs with elements that fa-

cilitate what-if analysis and predetermine the

reaction to evolution events occurring in the

database schema (Section 3.)

− We propose feasible and powerful SQL exten-

sions that enable the implementation of our ap-

proach for evolution management (Section 4.)

− We demonstrate the efficiency and feasibility

of our approach through a real-world case study

occurred in the Greek public sector (Section 5.)

2 GRAPH-BASED MODELING

OF DATABASE SCHEMA

EVOLUTION

This section proposes a graph modeling technique

that uniformly covers relational tables, views, data-

base constraints, and SQL queries as first class citi-

zens. Our technique provides an overall picture not

only for the actual source database schema but also

for views and queries accessing the database, since

these constructs are incorporated in the model.

Formally, an evolving database schema along

with its workload (i.e., queries and views) is repre-

sented as a directed graph G=(V,E). The nodes of

the graph represent the entities of our model, where

the edges represent the relationships among these

entities. Moreover, we distinguish the following

essential components, which are included in our

model: relations, conditions (covering database con-

straints and query conditions), queries and views.

Relations, R. Each relation R(Ω

,Ω

,…,Ω

) in

the database schema, is represented as a directed

graph, which comprises: (a) a relation node, R,

representing the relation schema; (b) n attribute

nodes, Ω

∈Ω, i=1..n, one for each of the attributes;

and (c) n schema relationships, E

, directing from

the relation node towards the attribute nodes,

indicating that the attribute belongs to the relation.

LANGUAGE EXTENSIONS FOR THE AUTOMATION OF DATABASE SCHEMA EVOLUTION

Conditions, C. Conditions refer both to selection

conditions, of queries and views and constraints, of

the database schema. We consider three classes of

atomic conditions that are composed through the

appropriate usage of an operator op belonging to the

set Op, containing the usual binary operators, (e.g.,

<, >, =, ≤, ≥, !=, IN, EXISTS, ANY): (a) Ω op

constant; (b) Ω op Ω’; and (c) Ω op Q. (Ω, Ω’

are attributes of the underlying relations and Q is a

query). A condition node is used for the

representation of the condition. The node is tagged

with the respective operator and it is connected to

the operand nodes of the conjunct clause through the

respective operand relationships, O. Composite

conditions are easily constructed by tagging the

condition node with a Boolean operator (e.g., AND

or OR) and the respective edges, to the conditions

composing the composite condition.

Queries, Q. The graph representation of a Select

- Project - Join - Group By (SPJG) query involves a

new node representing the query, namely query

node, and attribute nodes corresponding to the

schema of the query. Thus, the query graph is a

directed graph connecting the query node with all its

schema attributes, through schema relationships

. In

order to represent the relationship between the query

graph and the underlying relations, the query is

resolved into its essential parts: SELECT, FROM,

WHERE, GROUP BY, HAVING, and ORDER BY, each

of which is eventually mapped to a subgraph.

Select part. Each query is assumed to own a

schema that comprises the attributes, either with

their original or alias names, appearing in the

SELECT clause. In this context, the SELECT part of

the query maps the respective attributes of the in-

volved relations to the attributes of the query schema

through map-select relationships, E

, directing from

the query attributes towards the relation attributes.

From part. The FROM clause of a query is con-

sidered as the relationship between the query and the

relations involved in this query. Thus, the relations

included in the FROM part are combined with the

query node through from relationships, E

, directing

from the query node towards the relation nodes.

Where and Having parts. We assume the WHERE

and/or HAVING clauses of a query in conjunctive

normal form. Thus, we introduce two directed edges,

namely where relationships, E

, and having

relationships, E

, both starting from a query node

towards an operator node corresponding to the

conjunction of the highest level.

Group and Order By part. For the representation

of aggregate queries, two special purpose nodes are

employed: (a) a new node denoted as GB∈GB, to

capture the set of attributes acting as the aggrega-

tors; and (b) one node per aggregate function labeled

with the name of the employed aggregate function;

e.g., COUNT, SUM, MIN. For the aggregators, we use

edges directing from the query node towards the GB

node that are labeled <group-by>, indicating

group-by relationships, E

. The GB node is con-

nected with each of the aggregators through an edge

tagged also as <group-by>, directing from the GB

node towards the respective attributes. These edges

are additionally tagged according to the order of the

aggregators; we use an identifier i to represent the i-

th aggregator. Moreover, for every aggregated at-

tribute in the query schema, there exists an edge

directing from this attribute towards the aggregate

function node as well as an edge from the function

node towards the respective relation attribute. Both

edges are labeled <map-select> and belong to

, as these relationships indicate the mapping of the

query attribute to the corresponding relation attribute

through the aggregate function node. The represen-

tation of the ORDER BY clause is performed

similarly, whereas nested queries and functions used

in queries are also incorporated in our model.

Views, V. Views are considered either as queries

or relations (materialized views), thus, V ⊆ R∪Q.

3 CONSTRUCTS ANNOTATION

WITH EVOLUTION POLICIES

Evolution changes may affect the software around

the database (mainly views and queries) in two

ways: (a) syntactically, a change may evoke a com-

pilation or execution failure during the execution of

a piece of code; and (b) semantically, a change may

have an effect on the semantics of the software used.

In the context of the proposed graph, changes in the

database schema are events, which transform spe-

cific parts of the graph (e.g., a relation graph sus-

taining a change) and eventually affect other de-

pendent graph constructs (e.g., a view graph de-

pending on the specific relation). The latter may

raise, in turn, new evolution changes, which have

impact on other graph constructs (such as a query

graph depending on the specific view.)

To handle schema evolution, the constructs of

the graph are annotated with elements that facilitate

what-if analysis and predetermine the reaction to

evolution events that may occur. Each construct is

ICEIS 2008 - International Conference on Enterprise Information Systems

enriched with policies that allow the designer to

specify the behavior of the annotated construct

whenever events occur. The combination of an event

with a policy determined by the designer triggers the

execution of the appropriate action that either blocks

the event or reshapes the graph to adapt to the pro-

posed change. The annotated graph is stored in a

metadata repository and it is accessed from a what-if

analysis module. This module notifies the designer

on the effect of a potential change and the extent to

which the modification to the existing code can be

fully automated for adapting to the change.

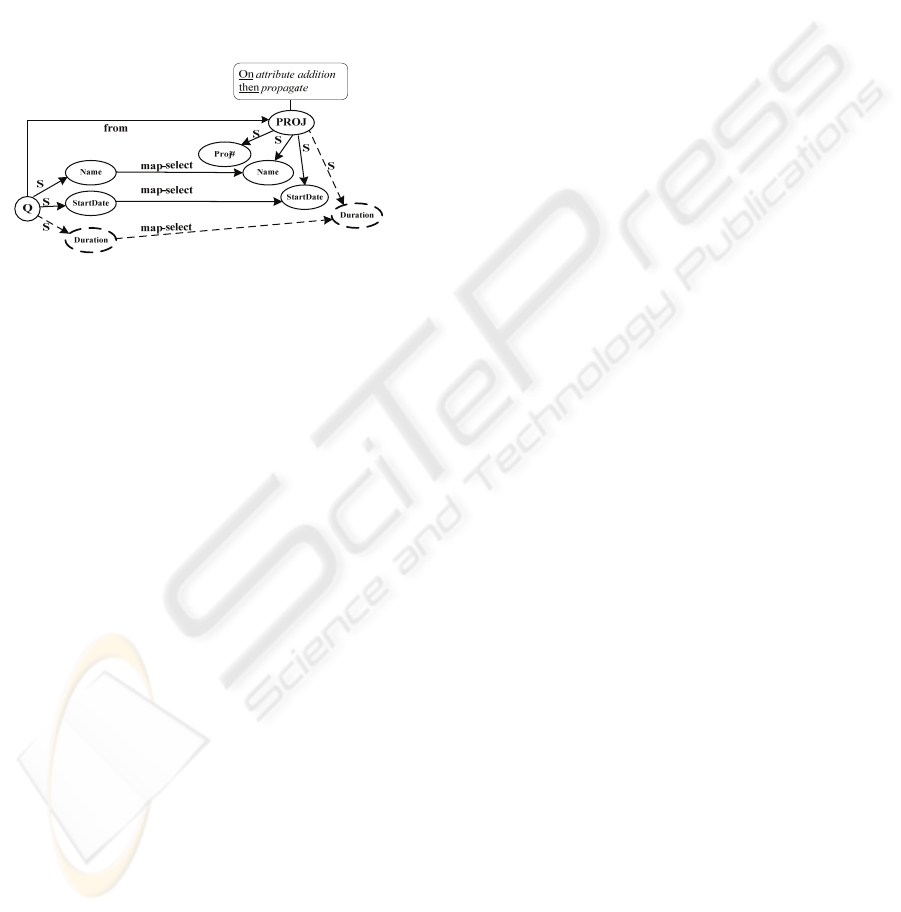

Figure 2: Annotating relation PROJ.

The space of potential events comprises the

Cartesian product of two subspaces. The space of

hypothetical actions (addition, deletion, and modifi-

cation) over graph constructs sustaining evolution

changes (e.g., relations, views, attributes, and condi-

tions). For each of the above events, the administra-

tor annotates graph constructs affected by the event

with policies that dictate the way they will regulate

the change. Three kinds of policies exist, as follows.

(a) Propagate the change, meaning that the

graph must be reshaped to adjust to the new

semantics incurred by the event.

(b) Block the change, meaning that we want to

retain the old semantics of the graph and the

hypothetical event must be blocked or, at least,

constrained, through some rewriting that preserves

the old semantics (Nica, 1998), (Velegrakis, 2004).

In this case, the specific method that may be used is

orthogonal to our approach.

decide what will eventually happen.

Consider the graph of the query

SELECT Name,

StartDate FROM PROJ

(Figure 2), which projects the

name and the start date of all projects stored in the

database. The annotation

of relation PROJ with policy

for propagating addition indicates that the addition

of a new attribute, namely

DURATION, to the PROJ

relation will be propagated to the query and will be

included in the

SELECT clause of the query.

The graph annotation of the database ecosystem with

policies for events occurs in a principled fashion:

1. First, we prescribe the default policies for all

kinds of constructs, in a database-wide context.

2. Next, we prescribe defaults policies for specific

relations, queries and views of the system, with

respect to any combination of the following: the

deletion of the construct per se, as well as the

addition, deletion or modification of a con-

struct’s descendants. The descendants can be ap-

propriately specified by their type, as applicable

(i.e., attributes, constraints or conditions).

3. Lastly, we annotate specific low-granularity con-

structs, i.e., attributes, constraints or conditions,

with policies for their deletion or modification.

The above arrangement is order-dependent and

exploits the fact that there is a partial order of policy

overriding. The order is straightforward: defaults are

overridden by specific annotations and high-level

construct annotations concerning their descendants

are overridden by any annotation of such descendant:

Default ≤{relation, query, view}

≤ {attribute, condition, constraint}

4 LANGUAGE EXTENSIONS

In this section, we present SQL extensions that en-

able the implementation of the previous techniques

for the management of evolution. For extending a

system catalog with extra information regarding

evolution purposes, we provide extensions to SQL

regarding both top level construct definitions, like

tables, views, and queries, as well as fine grain con-

structs such as attributes, conditions of views/ que-

ries, and database constraints. All extensions out-

lined are given in BNF and throughout the section

we refer to the configuration shown in Figure 1.

4.1 Database-Wide Default Values

Regarding the definition of database default policies,

we consider each assertion as a tuple (event, policy).

Syntactically, this is expressed as follows:

ON <event> THEN <policy>

An event refers to evolution events in the database

schema comprising an event type, such as

Delete,

Add, Modify, Rename

and a construct type, which

takes any of the following values in the partial order

presented:

i. NODE

ii. RELATION, QUERY, VIEW

iii. ATTRIBUTE, CONDITION, PK, FK, NNC, UC

Note that we annotate nodes with default values only

for changes applied to themselves and not to any of

LANGUAGE EXTENSIONS FOR THE AUTOMATION OF DATABASE SCHEMA EVOLUTION

their ancestors or descendants. For example, we can

have the following annotations:

ON DELETE NODE THEN PROPAGATE

ON DELETE ATTRIBUTE THEN PROMPT

The definitions of the default policies are

expressed in SQL as follows.



SQL Syntax

db-spec::= CREATE DATABASE <db-name> [policy-list]

policy-list::= policy-clause [,policy-clause]

policy-clause::= ON event THEN policy

event::= event-type construct-type

event-type::= Add | Delete | Modify | Rename

construct-type::= NODE | RELATION | QUERY | VIEW |

ATTRIBUTE | CONDITION | PK | FK | NNC | UC

policy::= propagate | block | prompt

 Example

CREATE DATABASE company

ON DELETE ATTRIBUTE THEN PROMPT

4.2 Top Level Constructs

We extend SQL syntax to include evolution-based

semantics both in DDL statements as well as in SQL

queries. The general syntax is:

ON <event> TO <construct> THEN <policy>

where event again refers to evolution events in the

database schema,

construct refers to the specific

database part suffering the event and policy can take

the values {propagate, block, prompt}.

4.2.1 Relations

Definition of policies on relations regarding their

behaviour on evolution changes is primarily en-

forced upon creation, and thus, we extend

CREATE

TABLE syntax with certain policy clauses. Policies

imposed in a relation-wide scope can be applied

both to the relation itself as well as to all schema

attributes and constraints. In that way, the adminis-

trator has the ability to annotate with a single clause

the entire relation schema instead of annotating each

constituent attribute or constraint separately.



SQL Syntax

table-spec::= CREATE TABLE <table-name>

(table-element-list [, policy-list])

policy-list::= policy-clause [,policy-clause]

policy-clause::= ON event TO construct THEN policy

event::= Add Attribute | Delete Attribute | Rename

Attribute | Delete Relation | Rename Relation | Add

Condition | Delete Condition | Modify Condition

policy::= propagate | block | prompt

construct::= <table-name>

 Example

CREATE TABLE works

(EMP# NUMBER(3), PROJ# NUMBER(3), HOURS NUMBER(5),

ON Add Attribute TO works THEN propagate

)

The above syntax corresponds to the annotation of

the respective relation node (i.e.,

works) with the

policy that allows the addition of attributes and

propagates this addition to all queries and views

accessing this relation. Similarly, policy clauses can

extend

ALTER TABLE statements, enabling the

administrator to define policies on existing relations.

4.2.2 Views

Views are inherent constructs of the database

schema that constitute queries over the database

schema –w.r.t. to views’ definition– and relations to

other queries –w.r.t. views’ functionality. Therefore,

views invoke evolution events when (a) their

definition is altered, affecting all queries defined

over them and (b) the relations over which they are

defined are affected by schema changes. We enrich

existing SQL syntax for views creation to capture

potential events on their definitions as follows.



SQL Syntax

view-spec::= CREATE VIEW <view-name> AS

query-expression [policy-list]

policy-list::= policy-clause [,policy-clause]

policy-clause::= ON event TO construct THEN policy

event::= Add Attribute | Delete Attribute | Rename

Attribute | Delete View | Rename View | Delete

Relation | Rename Relation | Add Condition |

Delete Condition | Modify Condition

policy::= propagate | block | prompt

construct::= <view-name> | <table-name>

The policies capture events occurring at the

source tables of views’ definition (i.e., the construct

is a table-name) or events occurring at the view

definition itself (i.e., the construct is a view-name).



Example

CREATE VIEW emps-prjs AS

SELECT E.Emp#, E.Name, P.Projname

FROM Emp E,Works W,Proj P

WHERE E.EMP#=W.EMP# AND W.Proj#=P.Proj#

ON Modify Condition TO emps-prjs THEN block

Such syntax corresponds to the annotation of the

view node

emps-prjs with a policy, which blocks

changes in the

WHERE clause of the view definition.

4.2.3 Queries

Queries are considered as top-level constructs in our

framework and they are the primary consumers of

evolution changes occurring at the database level.

Policies’ clauses enrich query syntax with evolution

semantics regarding the reaction of the query to such

changes and have a query-wide scope, i.e., prescribe

the behavior of the query itself and the query con-

stituents (query attributes, query conditions). In such

way, the developer may define a query-wide reac-

tion to an evolution change instead of assigning ex-

plicit policies to each query attribute and condition.

ICEIS 2008 - International Conference on Enterprise Information Systems



SQL Syntax

query-expression::=

SELECT [ALL|DISTINCT] scalar-expression-list

FROM table-expression

[WHERE search-condition]

[GROUP BY grouping-column-list]

[HAVING group-condition]

[ORDER BY sort-specification-list]

[policy-list]

policy-list::= policy-clause [,policy-clause]

policy-clause::= ON event TO construct THEN policy

event::= Add Attribute | Delete Attribute | Rename

Attribute | Delete View | Rename View | Delete

Relation | Rename Relation | Add Condition |

Delete Condition | Modify Condition

policy::= propagate | block | prompt

construct::= <view-name> | <table-name>

 Example

Q: SELECT EP.Emp#, EP.Name

FROM emps-prjs EP

WHERE EP.PRJNAME = ‘Olympic Games’

ON Add Attribute TO emps-prjs THEN block

The above syntax corresponds to the annotation

of the query node

Q with a policy, which blocks the

inclusion of added attributes in the underlying view

emps-prjs in the select clause of the query syntax.

4.3 Fine Grain Constructs

Policy annotation can be further specialized to fine

grain constructs such as attributes, database con-

straints and conditions of views/queries. Such an-

notations enable the administrator to define specific

policies on these constructs, which override policies

defined on their top-level containers.

4.3.1 Attributes

Policies are defined for relation attributes in table

definition and for view or query attributes in view or

query definitions, respectively. Policies’ clauses

refer to attribute constructs, which may be affected

by an evolution change, prescribing in that way the

specific behavior of that attribute.



SQL Syntax

policy-clause::= ON event TO construct THEN policy

event::= Delete Attribute | Rename Attribute |

Modify Domain

policy::= propagate | block | prompt

construct::= [<table-name> | <view-name>.]

<attribute-name>

 Example

CREATE TABLE emp

(EMP# NUMBER(3),

Name Varchar2(150),

... ,

ON Delete Attribute TO Name THEN block)

Such syntax corresponds to the annotation of the

attribute node

Name with the explicit policy that

blocks the node deletion from the container relation.

Q: SELECT E.Emp#, E.Name, P.Projname

FROM Emp E,Works W,Proj P

WHERE E.EMP#=W.EMP# AND W.Proj#=P.Proj#

ON Delete Attribute TO Name THEN propagate

Such syntax corresponds to the annotation of the

projected attribute node

Name of the query Q with the

explicit policy for allowing the node deletion from

the select clause of the query (i.e., the respective

attribute is removed from the underlying database.)

4.3.2 Constraints

Similarly, policies are defined on database con-

straints to override potential defined policies on their

top-level containers (i.e., relation) and thus to pre-

scribe their specific behavior to evolution changes.



SQL Syntax

policy-clause::= ON event TO construct THEN policy

event::= Delete Constraint|Modify Constraint

policy::= propagate | block | prompt

construct::=[<table-name>.]<constraint-name>

 Example

CREATE TABLE emp

(EMP# NUMBER(3),

Name Varchar2(150),

Constraint EMP.PK PRIMARY KEY (EMP#),

ON Modify Constraint TO EMP.PK THEN propagate)

The above syntax corresponds to the annotation

of the constraint node

Emp.PK with the explicit pol-

icy for allowing the modification of itself and

propagating this change to all dependent constructs.

4.3.3 Conditions

Policies are defined on condition clauses of queries

and views for prescribing their behavior to evolution

events too. The modification or deletion of a view or

a query condition semantically impacts dependents

parts of the system. Thus, policies imposed on

conditions override query- or view-wide policies and

handle semantic changes invoked by such events.



SQL Syntax

policy-clause::= ON event TO construct THEN policy

event::= Delete Condition|Modify Condition

policy::= propagate | block | prompt

construct::=[<view-name>.]<condition-name>

Moreover, we provide a facility for the man-

agement of conditions as first class citizens. We em-

ploy a specific name for each condition as follows.

CREATE CONDITION <condition> AS <expression>

For instance, we might have the following

statements, expressing (a) a simple condition em-

ployed in a query, (b) a foreign key constraint, and

CREATE CONDITION Emp_Age_Cond AS AGE>50

CREATE CONDITION Works_Emp_FK AS WORKS.EMP# IN

EMP.EMP#

CREATE CONDITION Works_Emp_J AS

WORKS.EMP#=EMP.EMP#

Traditional statements for the definition of foreign

keys or assertions for attribute domains are easily

LANGUAGE EXTENSIONS FOR THE AUTOMATION OF DATABASE SCHEMA EVOLUTION

refined to the above “normal form”, without

necessarily obliging the database designer or

administrator to abide by the above syntax.

Conditions may be employed in the

WHERE

clause. For example, a query

SELECT * FROM EMP

WHERE AGE_COND would simply use the condition as

a macro. Parametric conditions, to allow referring to

aliases in SQL queries are straightforward. One can

also deal with the problem of existing code in a

straightforward manner, since automatic condition

names can be assigned to all the queries.

5 EVALUATION

We evaluated the proposed framework and capabili-

ties of the approach presented via the reverse engi-

neering of a real-world evolution scenario extracted

from an application of the Greek public sector. Our

goal was to minimize the human effort required for

defining and setting the evolution metadata on the

system by using the proposed language extensions.

We extracted queries and views from applica-

tions and stored procedures, and we monitored the

events occurred on the database schema and the way

affected constructs had been manually adjusted by

the designers (e.g., through some rewriting) to each

evolution event. In doing so, we resolved the appro-

priate policies per event for all affected constructs.

Next, we used our approach for mapping constructs

to graphs and annotate them with policies. Our GUI,

namely

HECATAEUS, allows for the representation of

the database graph and its annotation with policies

regarding evolution semantics

and enables the user

to explicitly define policies on graph constructs and

perform what-if analysis for several evolution cases.

The configuration used comprises a total set of

52 queries over 18 relations. The evolution events

occurred in the database schema include renaming of

relations and attributes, modification of attribute

domain, deletion of attributes, and modification of

primary key constraints. Per event, we employed the

appropriate propagate or block policy on the

relations, queries or attributes affected by the event.

In the context of our graph model, our configu-

ration comprised approximately 2500 nodes

manually annotated with policies for each event that

were affected by. This was a rather time-consuming

task, as queries, query attributes, and relations had to

be explicitly annotated. Appropriate policies were

defined over different kinds of nodes (Table 1

Per query and relation, we counted the number

of nodes manually annotated with policies propa-

gate or block per event and the results are summa-

rized in Table 2. Each node may have been, anno-

tated with more than one policy when such annota-

tions address different events; e.g., an attribute node

may permit its renaming, whereas block its deletion.

Additionally, we employed the proposed SQL

extensions to impose the same policies on the graph.

We measured the number of the policy clauses,

which must enrich existing SQL and DDL

commands in order to annotate the same policies on

the graph as opposed to the number of manual

annotations on nodes. Hence, we evaluated 3

different cases: a) use of a default propagate policy

for a specific query and for the events Delete,

Rename and Modify Domains of attributes (query

scope) instead of manually annotating each query

attribute, b) use of default policies for all relations

(relation scope) for propagating the aforementioned

events, instead of annotating each query and c) use

of default propagate policy for database (database

scope) to allow the renaming of relations and the

addition of attributes instead of annotating each

relation. The results are shown in Table 3.

With the usage of the proposed SQL extensions,

the human effort for explicitly annotating these

nodes is minimized. Specifically, in the case study

previously described, the whole process of manually

identifying and adapting the changes lasted for 6

man-months, whereas by using our approach and

appropriately annotating the database constructs and

applying the respective policies, the same process

lasted for less than half a man-month.

Table 1: Kind of nodes annotated per event.

Event Annotated nodes

Rename relation Relation nodes

Add attributes Relation/Query nodes

Delete Attributes Attribute nodes

Rename Attributes Attribute nodes

Domain Modification Attribute nodes

Condition Modification Condition nodes

Table 2: Distribution of annotated nodes per kind of poli-

cies and events.

# of nodes

Event

Propagate Block

Rename relations 18 0

Add attributes 64 13

Delete Attributes 1608 92

Rename Attributes 1615 85

Domain Modification 1690 10

Condition Modification 0 21

Total Annotations

4995 221

Table 3: Operations with and without SQL extensions.

# of operations

Scope

Annotations Policy Clauses

Query scope 486 9

Relation Scope 5180 293

Database Scope 36 2

ICEIS 2008 - International Conference on Enterprise Information Systems

6 RELATED WORK

SQL Extensions. SQL/SE is a query language exten-

sion for databases supporting schema evolution

(Roddick, 1992). SQL/SE provides extensions for

querying evolvable database schemas in the context

of schema versioning and temporal databases. Our

proposed set of extensions does not require the ex-

istence of schema versioning or the integration of

time within database schema evolution. We provide

rules for the transformation and adaptation of que-

ries and views to the last valid database schema

without the assumption that the transformed queries

retain the same semantics. Another extension to

SQL, namely SchemaSQL supports multi database

querying (Lakshmanan, 2001). SchemaSQL focuses

on the problem of interoperability between different

schemas and their respective instances, enabling the

user to express queries over different schemas.

Evolution. A number of research works are re-

lated to the problems of database schema evolution.

Roddick surveys schema versioning and evolution

(Roddick, 1995) and presents a categorization of the

overall issues regarding evolution and change in data

management (Roddick, 2000). The problem of view

adaptation after redefinition is mainly investigated in

(Bellahsene, 2002; Gupta, 2001), where changes in

views definition are invoked by the user and rewrit-

ing is used to keep the view consistent with the da-

tabase schema. Bellahsene (2002) deals also with

warehouse adaptation, but only for SPJ views. Nica

(1998) deals with the view synchronization problem,

where the views become invalid after schema

changes in the underlying base relations. We extend

that work to incorporate attribute additions and the

treatment of conditions. In (Fan, 2004), AutoMed, a

framework for managing schema evolution in data

warehouse environments is presented. They

introduce a schema transformation-based approach

to handle evolution of the source and the warehouse

schema. Also, in (Velegrakis, 2004) they propose a

framework for the management of evolution, but

their model is more restrictive as it is retains the

original semantics of the queries. Our work is a

larger framework that allows the restructuring of the

database graph (i.e., model) either towards keeping

the original semantics or towards its readjustment to

the new semantics.

7 CONCLUSIONS

In this paper, we have dealt with the problem of da-

tabase evolution. We have provided a coherent

framework for propagating potential changes of the

database software to all the affected points of the

system, with a limited overhead imposed on both the

system and the humans, who design and maintain it.

We have proposed a feasible and powerful extension

to the SQL language specifically tailored for the

management of evolution. The applicability and

efficiency of our approach has been tested in a real-

world scenario occurred in the Greek public sector.

Regarding future work, we plan to pursue our re-

search toward the identification of patterns of evolu-

tion sequences.

ACKNOWLEDGEMENTS

Information dissemination of this work was

supported by the European Union in the framework

of the project “Support of Computer Science Studies

in the University of Ioannina” of the “Operational

Program for Education and Initial Vocational

Training” of the 3rd Community Support

Framework of the Hellenic Ministry of Education,

funded by national sources and by the European

Social Fund (ESF).

REFERENCES

Bellahsene, Z., 2002. Schema evolution in data ware-

houses. In Knowledge and Information Systems 4(2).

Fan, H., Poulovassilis, A., 2004. Schema Evolution in Data

Warehousing Environments - A Schema Transformation-

Based Approach. In ER‘04.

Gupta, A., et al., 2001. Adapting materialized views after

redefinitions: Techniques and a performance study. In

Information Systems (26).

Lakshmanan, L.V.S., Sadri, F., Subramanian, I.N., 2001.

SchemaSQL – An Extension to SQL for multi data-

base interoperability. In TODS, 26(4): 476-519.

Nica, A., Lee, A.J., Rundensteiner, E.A., 1998. The CSV

algorithm for view synchronization in evolvable large-

scale information systems. In EDBT.

Roddick, J.F., 1992. SQL/SE: A query language extension

for databases supporting schema evolution. In ACM

SIGMOD Record, 21(3): 10-16.

Roddick, J.F., 1995. A survey of schema versioning issues

for db systems. In Information Software Techn. 37(7).

Roddick, J.F., et al, 2000. Evolution and change in data

management. In SIGMOD Record 29(1).

Sjoberg, D., 1993. Quantifying Schema Evolution. In In-

formation and Software Technology, 35(1), 35-44.

Velegrakis, Y., et al., 2004. Preserving mapping consistency

under schema changes. In VLDB Journal, 13(3).

LANGUAGE EXTENSIONS FOR THE AUTOMATION OF DATABASE SCHEMA EVOLUTION
