An Executable Semantics of Object-oriented Models for

Simulation and Theorem Proving

Kenro Yatake and Takuya Katayama

Japan Advanced Institute of Science and Technology

1-1 Asahidai Nomi Ishikawa 923-1292, Japan

Abstract. This paper presents an executable semantics of OO models. We made

it possible to conduct both simulation and theorem proving on the semantics by

implementing its underlying heap memory structure within the expressive inter-

section of the functional language ML and the theorem prover HOL. This paper

also presents a veriﬁcation system ObjectLogic which supports simulation and

theorem proving of OO models based on the executable semantics. As an appli-

cation example, we show a veriﬁcation of a UML model of a practical ﬁrewall

system.

1 Introduction

As our society has become more dependent on the information systems, it has become

more important to ensure the correctness and validity of those systems. Especially, there

is a growing need for the veriﬁcation on the analysis level of the development since the

scale of systems is becoming large and the bugs found in the coding stage lead to a fatal

loss for constructors. Veriﬁcation on the analysis levels allows early detection of bugs

and, as a result, reduces the total cost of development.

Among many veriﬁcation methods, we focus on theorem proving which is recently

gathering attention in industrial areas. The prominent feature of theorem proving is

induction by which we can prove the correctness of system behavior exhaustively for

arbitrary inputs. In order to apply theorem proving to the analysis models such as UML

(Uniﬁed Modeling Language [1]), we need to implement a formal semantics of OO

models in theorem provers.

We consider that the semantics should be executable. This is because an executable

semantics allows us to conduct not only theorem proving but also simulation. Even

though theorem proving is quite a powerful veriﬁcation method, it is not efﬁcient when

it comes to thecost-effectivenessbecause it requires manual interventionof users through

proofs. But, simulation can, to some extent, compensate the disadvantage of theorem

proving. Simulation is efﬁcient in that it allows us to identify the result of system execu-

tion at a glance. Although it cannot ensure the 100% correctness, we can immediately

check if the result is apparently correct or not. This is especially useful in the early

stage of model construction where many trivial bugs are included. By simulation, we

can efﬁciently ﬁnd trivial bugs in advance of high-cost theorem proving, and as a result,

we can optimize the total cost of veriﬁcation.

Yatake K. and Katayama T. (2008).

An Executable Semantics of Object-oriented Models for Simulation and Theorem Proving.

In Proceedings of the 6th International Workshop on Modelling, Simulation, Veriﬁcation and Validation of Enterprise Information Systems, pages 71-80

DOI: 10.5220/0001732500710080

 SciTePress

So far, we have implemented a semantics of OO models as a theory in the theorem

prover HOL [2] and conducted veriﬁcation of a simple library system [16]. But, only

theorem proving was possible because the semantics was not executable. So this time,

for the purpose of simulation, we made the semantics executable by implementing it

in the functional language Moscow ML [3] (the meta-language of HOL). In HOL, the

semantics is implemented based on a heap memory structure, i.e. The types and opera-

tions in the semantics are represented by those of the heap memory, and all the axioms

are derived from their deﬁnition. We implemented the same data structure as actual op-

eration in ML and made the semantics directly executable. The trick is that this memory

structure is implemented within the intersection of the expressive power of HOL and

ML. This makes it possible to implement the semantically equivalent memory struc-

tures both in HOL and ML. To have an equivalent semantics is important to make the

result of simulation and theorem proving consistent with each other.

In this paper, we present the overview of the executable semantics and its implemen-

tation. We also present a veriﬁcation system ObjectLogic which supports simulation

and theorem proving of OO models based on the executable semantics. As an applica-

tion, we show a veriﬁcation of a ﬁrewall system where we proved that UML sequence

diagrams satisﬁes constraints written in OCL (Object Constraint Language [4]).

This paper is organized as follows. Section 2 explains the overviewof the executable

semantics. Section 3 explains its implementation. Section 4 explains how to execute the

semantics. Section 5 introduces ObjectLogic. Section 6 shows a veriﬁcation of a ﬁrewall

system. Section 7 cites related works. Section 8 gives conclusion and future work.

2 The OO Semantics

We implemented the OO semantics as a theory in HOL. The theory is not speciﬁc

to particular models, but implements general OO concepts so that it can be used as

a groundwork for various models. The OO concepts covered are classes, attributes,

inheritance (tree), object subtyping and method dynamic dispatching. Besides covering

general OO concepts, it has two characteristics. Firstly, it allows arbitrary types (without

type variables) to be embedded into the types of object attributes (ﬁelds). Compared to

the veriﬁcation on the program level, veriﬁcation on the analysis level requires high-

availability of types since the analysis models are abstracted by various types such as

set, stack and date. In fact, UML, the most major modeling language, does not limit

available types to particular ones. Therefore, we enabled attributes to have arbitrary

types. This feature is also beneﬁcial in that we can utilize various types and pre-proved

theorems in HOL libraries when constructing models and performing proofs. But it is

not so easy to realize this feature in the ﬁrst-order types of HOL. The problem lies

in the structure of objects, i.e. an object is a data which holds multiple attributes of

arbitrary types. So, we cannot represent objects by naively taking a product of type

variables like α ∗ β ∗ γ ∗ ... because we cannot predict how many variables we should

put in the product. To cope with this problem, we take the approach of automatically

constructing the semantics depending on the type information of the application. If

types are given in advance, an object is easily represented by a product of those types

like num ∗ string ∗ bool. The object referencing and inheritance are realized by putting

Theory generator

class fig {

attr x : int;

attr y : int;

}

class rect extends fig {

attr w : int;

attr h : int;

}

class crect extends rect {

attr c : color;

}

Class model

[types] store, fig, rect, crect

[constants & operators]

store_emp, fig_null, rect_null, crect_null

fig_new : store -> fig # store

fig_ex : fig -> store -> bool

fig_get_x : fig -> store -> int

fig_set_x : fig -> int -> store -> store

rect_cast_fig : rect -> store -> fig

fig_is_rect : fig -> store -> bool

...

[axioms]

|- !s. let (f,s1) = fig_new s in fig_ex f s1

|- !f x s. fig_ex f s ==>

(fig_get_x f (fig_set_x f x s) = x)

|- !r s. rect_is_rect r s ==>

fig_is_rect (rect_cast_fig r s) s

...

OO theory

Fig.1. The OO theory.

those products in a heap memory structure. The implementation details are explained in

the next section. Secondly, it is shallowly embedded, i.e. the concepts such as classes,

attributes, and inheritance are represented directly as types and constants in HOL. This

is because our veriﬁcation target is each instance of OO models. Shallow embedding

facilitates the proof of instance levels compared to deep embedding [5]. It also has

the effect of making the theory simple because all the typing information is directly

represented by the type system of HOL and there is no need to additionally include the

typing constraints into the theory.

The OO theory is deﬁned based on the class model of the target system. We im-

plemented the theory generator which inputs a class model and outputs its OO theory.

Fig.1 shows an example. The class model deﬁnes static structure of a system such as

classes, attributes and inheritance. The OO theory deﬁnes types, operators and axioms

representing basic OO concepts. The type playing central part in the theory is store.

It represents the environment which holds all alive objects in the system and has the

constant store_emp representing an empty store. The type fig represents the type of

object references for the class fig and has the constant fig_null representing NULL

reference. The operator fig_new is a function to create a new fig instance in the store.

The operator fig_ex is a predicate to test if a fig object exists in the store. The ﬁrst

axiom is a property about these operators saying “The newly created fig object is alive

in the store after the creation.” The operators fig_get_x and fig_set_x are func-

tions to read and write the attribute x of the class fig. The second axiom says “If the

fig object is alive in the store, the value of the attribute x of the object obtained just

after updating it to v equals to v.” The operator fig_cast_rect is a function to cast

a fig object downward from fig to rect. The operator fig_is_rect is a predicate

to test if a fig object is an instance of the class rect. After an object is created, its

apparent type can be changed by cast operators, but instance-of operators remember the

actual type of the object. The third axiom illustrates this. It says “If a rect object is an

instance of the rect class, it is still the instance of the rect class even if it is cast to

the fig class.” The instance-of operators are used to implement the dynamic method

dispatching.

(2,3,r0)

(-4,5,r1)

(1,-2,r2)

(10,0,r3)

(10,8,f2,c0)

(6,12,f3,c1)

(4,10,f4,c0)

(red,r2)

fig

rect

crect

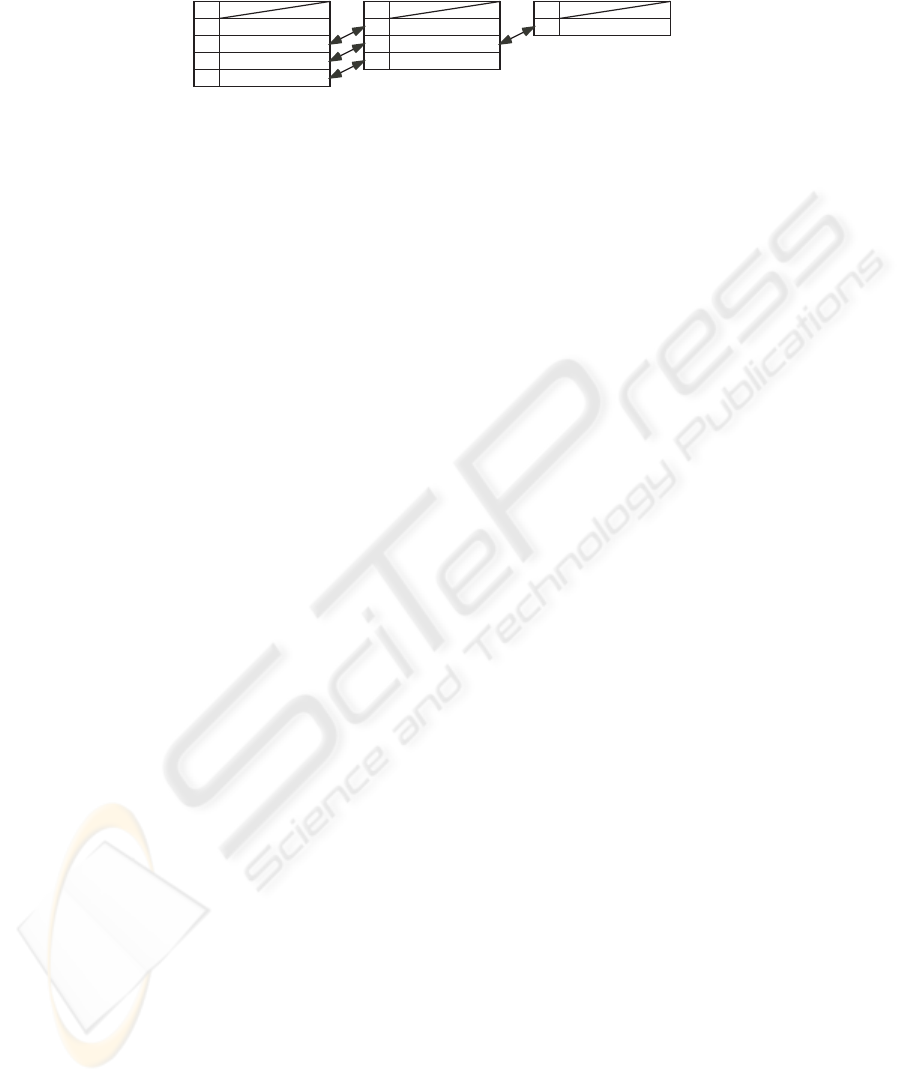

Fig.2. Snapshot of the heap memory.

3 Implementation in HOL

In order to guarantee the soundness of the theory, we implemented the theory conserva-

tively by deﬁnitional extension. This is a standard method to construct sound theories

in HOL, where new theories are derived from existing sound theories by only allowing

introduction of deﬁnition and derivation by sound inference rules. This can be com-

parable to axiomatical theory construction where axioms are directly introduced in the

theory, which often makes the theory inconsistent. The theory is derived from a heap

memory structure which is deﬁned by primitive theories already existing in HOL. The

types and constants in the theory are represented by those in the heap memory and the

axioms are derived from their deﬁnitions.

Fig.2 shows a snapshot of the heap memory for the example model. The heap mem-

ory consists of three sub-heaps which are introduced corresponding to the three classes.

Each sub-heap is represented by a list and the whole heap is represented by a tuple of

them. Object references are represented by indices of the memory. For example, the ref-

erences f0, f1, f2,... are represented by natural numbers 0,1,2, ... (f0 represents a null

reference fig_null). Object instances are represented by a tuple or multiple tuples

stored in the sub-heaps. For example, the tuple in f1 represents a fig instance whose

attribute are x=2 and y=3. Two tuples in f2 and r1 together represent a rect instance

whose attribute are x=-4, y=5, w=10, and h=8. The two tuples are linked by storing

the references r1 and f2 each other. Object subtyping is modeled by this linked-tuple

structure. For example, the three references f3, r2 and c1 all point at the same crect

instance. This means the crect instance can have three apparent types fig, rect and

crect. The operators in the theory are implemented as the functions to manipulate the

heap memory. Their deﬁnition is detailed in [16].

4 Executing the Semantics

In HOL, the theory is derived from the heap memory structure. By deﬁning the same

data structure in ML, the theory becomes executable. It is known that HOL and ML

have similar type systems and there exists an intersection of expressiveness between

them. Fig.3 illustrates this. The common concepts are inductive datatypes and recursive

functions (primitive recursion and well-founded recursion) [8][9]D The heap memory

structure in HOL is deﬁned within this intersection and the same data structure can be

deﬁned in ML in a straightforward way.

For example, the following HOL function write is the function on the sub-heap l

to update the data in the address n by data x:

inductive datatypes

recursive functions

(prim rec. w.f. rec.)

inductive relations,

undefined constants

quantifiers...

exception,

non-terminating functions,

modules...

HOL ML

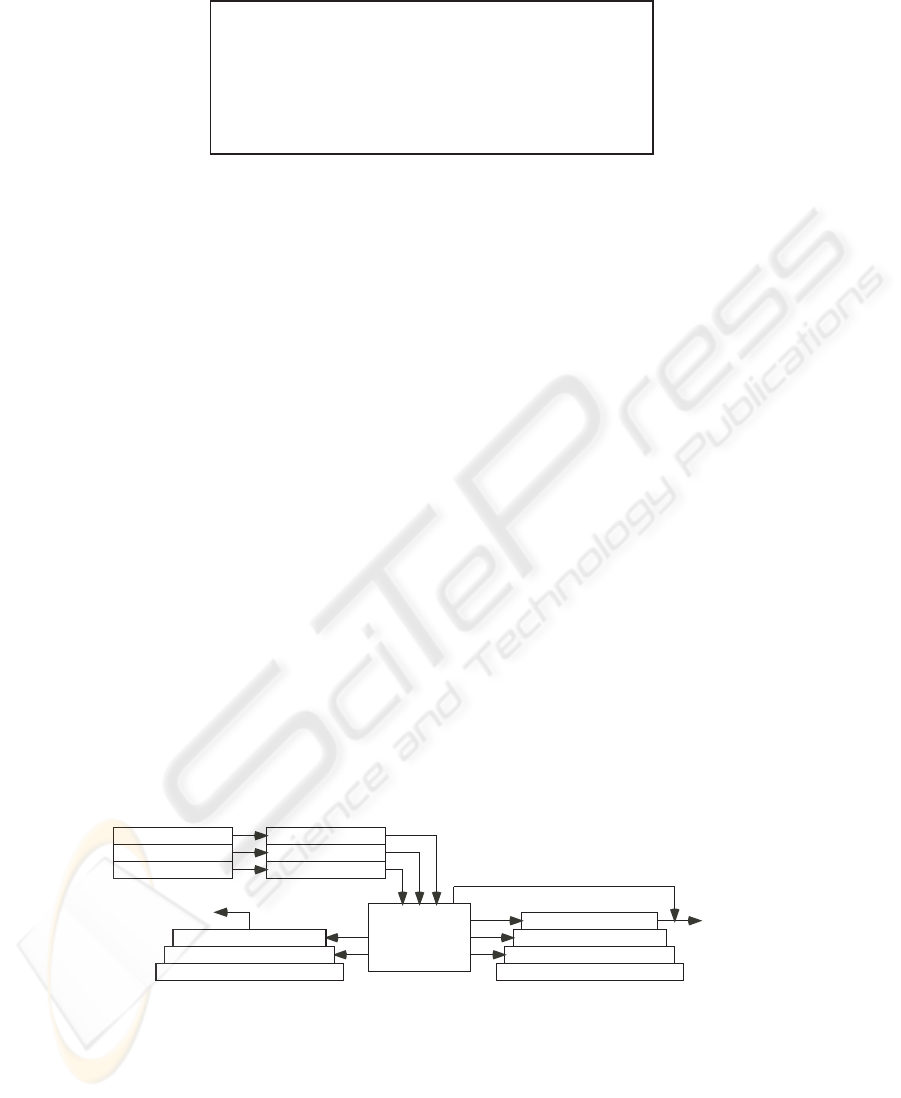

Fig.3. Expressiveness of HOL and ML.

write (n:num) (x:’a) (l:’a list) =

if 0 < n /\ n < LENGTH l then write1 n x l else l

(write1 0 x l = x::(TL l)) /\

(write1 (SUC n) x l) = (HD l)::(write1 n x (TL l))

This primitive recursive function can be also deﬁned in ML as follows:

fun write (n:int) (x:’a) (l:’a list) =

if 0 < n andalso n < length l then write1 n x l else l

fun write1 0 x l = x::(tl l)

| write1 n x l = (hd l)::(write1 (n-1) x (tl l))

We can see that the deﬁnition is directly correspondent except that we are using the

integer type int in ML instead of the natural number type num. This is because ML

does not have a type of natural numbers. This does not make any difference in their se-

mantics. As for exception, we cannot use ML exception because HOL does not have the

concept. In Java, exceptions are raised in the cases such as NULL reference accessing

and illegal down-casting. We handle such cases by returning appropriate values. This is

summarized by the following axioms:

|- !s. fig_get_x fig_null s = 0

|- !x s. fig_set_x fig_null x s = s

|- !f s. fig_is_fig f s ==> (fig_cast_rect f s = rect_null)

The ﬁrst axiom means “When an attribute of a NULL reference is referred, it returns

the default value for the attribute type.” The alternative approach could be to return

an undeﬁned constant like fig_unknown_x:int, but as it is not supported in ML,

we simply return the default value. The second axiom means “When an attribute of a

NULL reference is updated, it actually does not cause the effect to the state.” The third

axiom means “When illegal down-casting occurs, it returns the NULL reference of the

destination class.”

In this way, we can deﬁne a semantically equivalent heap memory structures both

in HOL and ML. To have an equivalent semantics is important to make the result of

simulation and theorem proving consistent with each other.

We extended the theory generator so that it outputs the ML structure which imple-

ments the heap memory structure. Its signature provides the types and operators corre-

sponding to those in the OO theory. Fig.4 shows the execution of those operators. The

internal structure of objects and stores are hidden by the opaque signature restriction.

- val (r,s1) = rect_new store_emp;

> val r = <rect> : rect

> val s1 = <store> : store

- val s2 = rect_set_x r 10 s1;

> val s2 = <store> : store

- val f = rect_cast_fig r s2;

> val f = <fig> : fig

- fig_get_x f s2;

> val it = 10 : int

Fig.4. Execution of the theory.

5 ObjectLogic

ObjectLogic is a veriﬁcation system for OO models. It supports both simulation and

theorem proving based on our executable semantics. It enables us to deﬁne models

in a high-level language called OML (ObjectLogic Meta-Language). It is a sequential

OO language whose syntax is closed to Java and is able to import arbitrary types and

functions from HOL. In OML, we can specify assertions such as method contracts (pre-

and post-conditions) and class invariants. From the assertions, ObjectLogic produces

target propositions (proof obligation) in the OO theory. It also provides tactics which

tries to prove the goal automatically by applying the axioms in the theory.

Fig.5 shows how it works. Firstly, ObjectLogic constructs the simulator and the the-

ory from the classes using the theory generator (1). Then, it translates methods into

functions both on the simulator and the theory (2). Finally, it translates assertions into

HOL propositions (3). We can conduct simulation using the ML executables and theo-

rem proving by proving the HOL propositions.

ObjectLogic can be used for veriﬁcation of UML models. As shown in Fig.5, all we

have to do is to translate UML class diagrams, sequence diagrams and OCL constraints

into classes, methods and assertions in OML (Currently, this translation is done by hand

and future version of ObjectLogic will support automatic translation). We can provethat

the internal behavior of the sequence diagrams satisﬁes the method contracts and class

invariants deﬁned as OCL constraints in the class diagram.

OO theory

HOL

Assertions

Classes

Methods

OML

Functions

Propositions

Q.E.D

Tactics

OCL

Class diag.

Seq. diag.

UML

ObjectLogic

Simulator

Functions

(1) (1)

(2)

(1)

(2)

(3)

Simulation

Fig.5. ObjectLogic.

+filterOut

(p:packet):string#packet

-active:bool

-srcIP:num

-dstIP:num

-srcPort:num

-dstPort:num

-protocol:num

packet

+check(p:packet):bool

frule

-srcIPTable:num list

-dstIPTable:num list

doscounter

-localAddr:num#num

-globalAddr:num#num

connection

+addConnection

(la:num#num,ga:num#num):void

-maxSize:num

contable

+srcnat(sa:num#num):num#num

-ipAddr:num

-ports:(num#bool)list

nattable

-localAddr:num#num

-globalAddr:num#num

natrule

0..maxSize 0..length(ports)

fw::filterOut(p:packet):string#packet

pre: not (p=null)

post: not(snd(result)=null) implies

(snd(result)).srcIP=nattable.ipAddr@pre

Connection table

NAT table

NAT rule

Filter rule

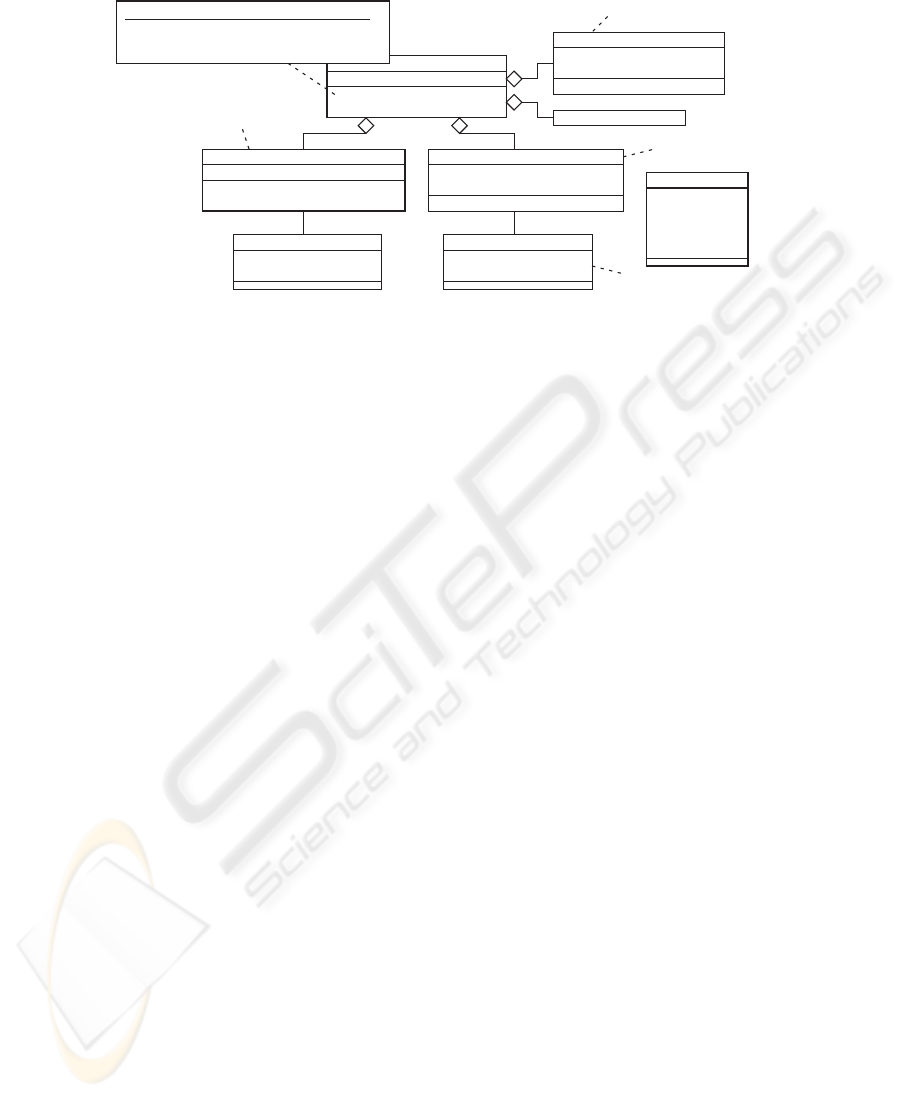

Fig.6. UML class diagram of the ﬁrewall system.

6 Veriﬁcation of a Firewall System

We applied ObjectLogic to veriﬁcation of a practical ﬁrewall system. The speciﬁcation

of the ﬁrewall system is our original one based on a real product of a company close

to Cisco



PIX Firewall. We conducted veriﬁcation as follows. Firstly, we translated

the speciﬁcation into UML models (structural part into class diagrams and behavioral

part into sequence diagrams) and the requirements into constraints in OCL. Then, we

translated the UML models and the OCL constraints into OML and input it to Object-

Logic obtaining the ML executables and the HOL propositions. Finally, we conducted

simulation using the executables and proved propositions in HOL. The OML code is

about 1200 lines containing 8 classes, 35 attributes and 102 methods.

The ﬁrewall system is a stateful packet ﬁlter with NAT (Network Address Transla-

tion) which is the mechanism to translate between a public IP address of the ﬁrewall

and multiple private IP addresses of local hosts. It has dual effects of sharing a single

IP address among multiple hosts and hiding private addresses of the local hosts. Fig.6

shows the class diagram of the ﬁrewall system. The model is abstracted with respect to

datatypes using HOL types. For example, IP addresses are represented by natural num-

bers and the ﬁlter rules are represented by lists of permissible address numbers. The key

function of the system is the packet ﬁltering function which is deﬁned as the method

filterOut() of the class fw. It inputs a packet and outputs a string message and the

ﬁltered packet. The internal behavior of this method is deﬁned as sequence diagrams,

which we omit to show due to space limitation.

For this ﬁrewall, we conducted simulation and theorem proving to verify the prop-

erties such as “The outbound packets which do not meet the ﬁlter rules are always

dropped unless they belong to existing connections” and “The source IP address of the

outbound packet is always updated by the public IP address of the ﬁrewall”. Both of

them are crucial for the security of the ﬁrewall. The ﬁrst property ensures that a local

host never connects to illegal hosts in the outside network. The second property (NAT

property) ensures that the private IP addresses of the local network never leak to the

- val (fw,s) = new_fw store_emp; (* Creat a FW *)

(* Set confuguration values *)

- val (_,s) = fw_setIpAddr pfm 200 s;

- val (_,s) = fw_setPorts pfm [1200,1210,1220] s;

- val (_,s) = fw_setFilterRules pfm SRCADDR [10,20,30] s;

...

- val (p,s) = new_packet 20 1070 250 80 TCP s; (* Create a packet *)

> val p = <packet> : packet

val s = <store> : store

- val (msg,p,s) = fw_filterOut fw p s; (* Apply outbound filtering *)

> val msg = "pass: new connection" : string

val p = <packet> : packet

val s = <store> : store

- packet_getInfo p s; (* Display packet information *)

> val it = ((200, 1200), (250, 80), 0) : (int * int) * (int * int) * int

...

Fig.7. Simulation of the ﬁrewall system.

outside network. The class diagram includes the OCL constraint representing the NAT

property which is deﬁned as the contract of the method filterOut().

Fig.7 shows simulation of the ﬁrewall. We ﬁrstly created a ﬁrewall object and set

the conﬁguration values such as the public IP address, the port numbers and the ﬁlter

rules. Then, we applied the ﬁltering function to an outbound packet and identiﬁed that

the ﬁrewall correctly passed the packet and updated the source IP address by the NAT

rule. By simulation, we were able to ﬁnd some trivial bugs. For example, we found the

lack of method invocation to add a connection by seeing the result where the connection

table remained unchanged. We also found that then- and else-parts of if statement

were reversed by seeing the result where an apparently correct packet was dropped. We

were able to ﬁnd these kinds of easy bugs efﬁciently by simulation and avoid the worst

case to ﬁnd them by high-cost theorem proving.

The NAT property is proved in HOL as the following theorem:

|- !(this:fw) (p:packet) (s:store).

let (msg,p’,s’) = fw_filterOut this p s in

packet_ex p s /\ invariants fw s ==>

packet_ex p’ s’ ==>

(packet_getSrcAddr p’ s’ = fw_getIpAddr this s)

The function fw_filterOut represents the ﬁltering method of the ﬁrewall. It means

“If the output packet p’ is not NULL (the packet is passed), the source IP address of

p’ is equal to the public IP address of the ﬁrewall.” By this theorem, we can ensure that

private addresses never leak outside. The proof took 8 hours and we proved 21 lemmas

in the course. The proof code length is about 450 lines (about one tactic per line). The

entire proof is done in the OO theory level using the tactics in ObjectLogic without

digging down to the heap memory level. To be able to conduct proof in the OO level,

which is close to human intuition, is the major advantage of ObjectLogic.

In this way, ObjectLogic enables both simulation and theorem proving in the equiv-

alent semantics in ML and HOL. By proving crucial properties of the ﬁrewall system,

we made sure that ObjectLogic can be applicable to practical systems of proper scale.

In order to make it applicable to general large systems, we need to make the proof

more efﬁcient. The key is how efﬁcient we can make the inference of loop statements.

We consider it effective to introduce high-level loop statements for manipulating object

collections and their inference rules because they freqently appear in application do-

mains: calculate the interest for all the accounts in a bank, calculate the total price of

all the items in the cart in online shopping sites. It is also effective to implement a ver-

iﬁcation condition generator for OML. To prove veriﬁcation conditions is much more

efﬁcient than to prove propositions directly in the OO theory because we can focus on

the proof of datatypes apart from the axioms in the OO theory.

7 Related Work

The semantic equivalence between simulation and theorem proving is a notable feature

of our executable semantics, which is realized by deﬁning it in the expressive intersec-

tion of ML and HOL. This is similar to ACL2 which combines a theorem prover and

a programming language based on the same language, an applicative subset of Com-

mon Lisp. ACL2 is often used as a semantics for both simulation and theorem proving.

The work by G. Al Sammane [14] presents a tool TheoSim which combines simulation

and theorem proving of VHDL designs. The work by M. Wilding et al. [15] deﬁnes

a formal model of a microprocessor to integrate simulation and formal analysis. Even

though ACL2 is successful in hardware veriﬁcation, we consider it has a limitation in

software veriﬁcation because the representation is low level and the types are limited

to numerals. On the other hand, our tool ObjectLogic is suited for software veriﬁcation

because it supports objects and allows arbitrary types. We consider that, in the ﬁrewall

veriﬁcation, the high-abstractness of the semantics saved a lot of modeling and proving

effort which would have been taken in the case of using ACL2.

There are a lot of work to implement OO semantics in theorem provers especially

for Java and UML. The work by G. Klein et al. [6] implements semantics of Java for

both source language level and bytecode level in Isabelle/HOL. The work by G. Barthe

et al. [7] implements an executable semantics of JavaCard platform (virtual machine

and bytecode veriﬁer) in Coq. Both of them adopt a deep embedding because their ver-

iﬁcation target is on the platform level such as type safety, soundness of Hoare calculi

and correctness of the bytecode veriﬁer. We adopted a shallow embedding because our

veriﬁcation target is on the instance level such as method contracts and class invariants.

A shallow embedding makes the proof on the instance level easier and the theory it-

self simpler than deep embedding. The work by J. Berg et al. [10] and C. March´e et

al. [11] implements Java semantics for reasoning Java programs annotated with JML

speciﬁcations as memory models in WHY and Isabelle/HOL, respectively. We deﬁned

a similar memory model, but it differs from them in that it allows arbitrary types for ob-

ject attributes, which is effective in the veriﬁcation on the analysis level. As for UML,

the work by [12] implements a semantics of UML sequence diagrams in PVS. The

work by A. D. Brucker et al. [13] implements a semantics of the speciﬁcation language

OCL as a conservative shallow embedding in Isabelle/HOL. Compare to these work,

our semantics is not speciﬁc to particular languages but implements basic typical OO

concepts. We are aiming at constructing a general-purpose semantics which can be used

as a groundwork for various languages.

8 Conclusions and Future Work

In this paper, we presented an executable semantics of OO models for the foundation of

both simulation and theorem proving. The semantics is implemented in two languages:

HOL for theorem proving and ML for simulation. We preserved the semantics equiv-

alence between them by implementing the underlying heap memory structure within

the expressive intersection of HOL and ML. We also presented a veriﬁcation system

ObjectLogic which supports simulation and theorem proving based on the executable

semantics. As an application, we showed a veriﬁcation of a UML model of a practical

ﬁrewall server system. Future work is to reinforce the veriﬁcation capability of Object-

Logic by implementing a test suite generator and a veriﬁcation condition generator.

References

1. OMG. Uniﬁed Modeling Language. URL: http://www.omg.org/.

2. The HOL system. URL: http://hol.sourceforge.net/.

3. Moscow ML. URL: http://www.dina.dk/ sestoft/mosml.html.

4. J. Warmer and A. Kleppe. The Object Constraint Language: precise modeling with UML.

Addison-Wesley, 1999.

5. Tobias Nipkow, David von Oheimb and Cornelia Pusch. µJava: Embedding a Programming

Language in a Theorem Prover. In Foundations of Secure Computation. IOS Press, 2000.

6. Gerwin Klein et al. Bali project, http://isabelle.in.tum.de/Bali/

7. G. Barthe, G. Dufay, L. Jakubiec, S. Melo de Sousa, and B. Serpette. A Formal Exe-

cutable Semantics of the JavaCard Platform. In D. Sands, editor, Proceedings of ESOP’01,

http://citeseer.ist.psu.edu/470034.html

8. P. S. Rajan. Executing HOL speciﬁcations: Towards an evaluation semantics for classical

higher order logic. In L. J. M. Claesen and M. J. C. Gordon, editors, Higher order Logic

Theorem Proving and its Applications, Leuven, Belgium, September 1992. Elsevier.

9. S. Berghofer and T. Nipkow. Executing Higher Order Logic. In P. Callaghan, Z. Luo, J.

McKinna, and R. Pollack, editors, Types for Proofs and Programs (TYPES 2000), volume

2277 of LNCS. Springer-Verlag, 2002.

10. J. van den Berg, M. Huisman, B. Jacobs, and E. Poll. A type-theoretic memory model for

veriﬁcation of sequential Java programs. Techn. Rep. CSI-R9924, Comput. Sci. Inst., Univ.

of Nijmegen, 1999.

11. Claude March´e and Christine Paulin-Mohring. Reasoning on Java programs with aliasing

and frame conditions. In 18th International Conference on Theorem Proving in Higher Order

Logics (TPHOLs 2005), LNCS, August 2005.

12. Demissie B. Aredo. A Framework for Semantics of UML Sequence Diagrams in PVS. Jour-

nal of Universal Computer Science (JUCS), 8(7), pp. 674-697, July 2002.

13. A. D. Brucker and B. Wolff. A proposal for a formal OCL semantics in Isabelle/HOL.

TPHOLs 2002, LNCS 2410, pp.99-114, 2002.

14. G. Al Sammane, J. Schmaltz, D. Toma, P. Ostier, D. Borrione. Theosim: Combining Sym-

bolic Simulation and Theorem Proving for Hardware Veriﬁcation. Proc. of the 17th Sympo-

sium on Integrated Circuits and System Design (SBCCI’04), 2004.

15. Matthew Wilding, David Greve, David Hardin, Efﬁcient Simulation of Formal Processor

Models, Formal Methods in Systems Design, 18(3), Kluwer Academic Publishers, May

2001.

16. Kenro Yatake, Toshiaki Aoki and Takuya Katayama. Implementing application-speciﬁc

Object-Oriented theories in HOL. In Proceedings of the 2nd International Conference on

Theoretical Aspects of Computing (ICTAC’05), pp.501-516, 2005.
