Ontology-driven Vaccination Information Extraction

Liliana Ferreira

, Ant

onio Teixeira

1,2

and Jo

ao Paulo Silva Cunha

1,2

Institute of Electronics and Telematics Engineering of Aveiro

Campus Universit

ario de Santiago

3810-193 Aveiro, Portugal

Department of Electronics, Telecommunications and Informatics

Campus Universit

ario de Santiago

3810-193 Aveiro, Portugal

Abstract. Increasingly, medical institutions have access to clinical information

through computers. The need to process and manage the large amount of data

is motivating the recent interest in semantic approaches. Data regarding vacci-

nation records is a common in such systems. Also, being vaccination is a ma-

jor area of concern in health policies, numerous information is available in the

form of clinical guidelines. However, the information in these guidelines may

be difﬁcult to access and apply to a speciﬁc patient during consultation. The cre-

ation of computer interpretable representations allows the development of clinical

decision support systems, improving patient care with the reduction of medical

errors, increased safety and satisfaction. This paper describes the method used

to model and populate a vaccination ontology and the system which recognizes

vaccination information on medical texts.The system identiﬁes relevant entities

on medical texts and populates an ontology with new instances of classes. An

approach to automatically extract information regarding inter-class relationships

using association rule mining is suggested.

1 Introduction

Electronic access to clinical information in healthcare institutions is becoming a gen-

eralized reality through numerous Electronic Patient Record (EPR) systems. The need

to manage the increasingly large amount of patient data is motivating the recent in-

terest in semantic approaches, whose main goals are reducing medical errors, improve

physician efﬁciency and improve patient safety and satisfaction in medical practice. Se-

mantic Web technology helps achieve these goals using multiple populated ontologies,

automatic semantic annotation of documents, and rule processing [15].

Terms in medical domain are controlled leading to strict usage and less ambiguity.

Being this a strong advantage for a precise natural language processing, many work has

been developed in the area of medical language understanding. Medical language un-

derstanding aims at extracting the information content of medical texts. The information

representation may take the appearance of information formats ﬁlled with expressions

of the text [6] [12], or of a conceptual representation [15] [14]. In the set of studies con-

ducted for ontology development some obtained practical results like UMLS [17] and

SNOMED [16] but rely mainly on hand-made approaches. On the other hand, many

Ferreira L., Teixeira A. and Paulo Silva Cunha J. (2008).

Ontology-driven Vaccination Information Extraction.

In Proceedings of the 5th International Workshop on Natural Language Processing and Cognitive Science, pages 94-103

DOI: 10.5220/0001739500940103

 SciTePress

studies concentrate on full/semi-automatical techniques for knowledge-base building.

Serban et al. present in [13] a method to extract linguistic patterns with the purpose of

modeling breast cancer treatment guidelines, to aid the human modelers in guideline

formalization and reduce the human modeling effort.

This paper focuses on the introduction of semantic web technologies on an EPR

system towards a comprehensive system able to process patient data. The study con-

centrates on the conceptual representation of the portuguese vaccination guideline texts.

Vaccination is a major area of concern in health policies for which a lot of information

is available in the form of clinical guidelines. However, the information in these guide-

lines may be difﬁcult to access and apply to a speciﬁc patient during consultation. The

creation of computer interpretable representations allows the development of clinical

decision support systems, improving patient care with the reduction of medical errors,

increased safety and satisfaction. The publicly availability of vaccination guidelines in

portuguese and the existence of a EPR system containing information about vaccination

records were the main motivation. An approach for creating a vaccine adverse event on-

tology has been reported by [7]. The concept modeling was carried out using Universal

Modeling Language (UML), from structured case deﬁnitions and the UMLS concept

table. However, as we intent to use the ontology in an EPR system in portuguese there

is need to model the Portuguese vaccination plan and so deﬁne a new knowledge base,

which, to our knowledge, has not been yet performed.

The work described in this paper concerns the development of populated ontologies

in the healthcare domain, speciﬁcally in the vaccination area and the development of

decision support algorithms that support rule and ontology based checking/validation

and evaluation.

The remainder of this paper is organized as follows. Section 2 introduces the EPR

system used in this study. The method used to model the vaccination guideline is pre-

sented on Section 3 and Section 4 describes the system developed to extract informa-

tions and populate the vaccination ontology. Section 5 highlights the main results and

innovation achieved with this approach and Section 6 concludes with futures work.

2 Motivating Scenario: RTS Project

In the last years a signiﬁcant effort was invested in systems for electronic access to

clinical information within hospitals. This kind of access to clinical information is be-

coming a generalized reality in Europe through numerous enterprise-wide Electronic

Patient Record (EPR) systems. However, little effort was invested in systems for clini-

cal electronic communication between different medical institutions [2].

The ”Rede Telem

atica da Sa

ude” (RTS) project

is developing a telematic infras-

tructure to progressively support multiple clinical communication services at a regional

level. The project aims at promoting the secure electronic access to clinical informa-

tion stored in the different health care providers to all credentialed professionals. The

RTS provides a summarized Regional Electronic Clinic File that combines the clini-

cal electronic ﬁles existing in all the institutions that compose the network, smoothing

www.rtsaude.org

the clinical communication between different health institutions. The RTS allows in-

formation, such as release forms, clinical tests bulletins and vaccination records to be

accessible to the professionals from other institutions.

At the same time, citizens can manage their health issues over the RTS telematic

platform. Registered users can interact with their family doctor, request appointments

and manage their health agenda through the restricted area MyRTS. A public area is

also available with general interest health related contents, such as health guidelines

and health issues.

At the present time, the RTS provides access to more than 11.000.000 clinical

episodes from more than 35.000 patients. Several beneﬁts have been experienced until

now, like avoiding duplication of diagnosis auxiliary exams or reducing unnecessary

patients’ visits.

However, most of the information available is in textual form and, even if elec-

tronically available, remains locked up within text. Enriching these systems with rich

domain knowledge and rules would greatly enhance their performance and ability to

support clinical decisions. The most important beneﬁt we seek with the use of domain

knowledge like ontologies and rules is the reduction of medical errors through the de-

velopment of a clinical decision support system and better patient care with increased

safety and satisfaction.

3 Knowledge and Rules Representation

To develop the vaccination ontology we used the Portuguese Vaccination Program

(PVP) [5] as guideline. This program is publicly available and contains an elaborate

and systematic vaccination plan with information about chronological schemes, with

minimal and maximal age for the administration of each vaccine, information about the

dosages recommended, the anatomic places and the way of administration. Information

about possible reactions and several physical and drug interactions is also included.

To develop a formal description of the area we analyzed the guideline and manually

identiﬁed some linguistic patterns based on regularities in the text, such as medical

speciﬁc categories (disease, body

part, interaction) and lexical terms corresponding to

semantic relationships between medical categories. For instance, in the sentence

(1) At birth, it is recommended the vaccine against tuberculosis (BCG) and the ﬁrst

dosage of the vaccine against hepatitis B (VHB), provided that the weight of the

new-born is greater than or equal to 2000 g.

the pattern

(2) AT [age] [vaccine] {against} [disease] ([acronym]) AND [dosage] [vaccine]

{against} [disease] ([acronym]), {restriction} [weight].

was identiﬁed.

Following this method we developed a formal description which models all the

concepts and relationships between concepts related with the vaccination area. This

description was used to create an ontology containing all of the vaccines and classes of

vaccines, vaccines interactions, and vaccines allergies.

Translation made by the author.

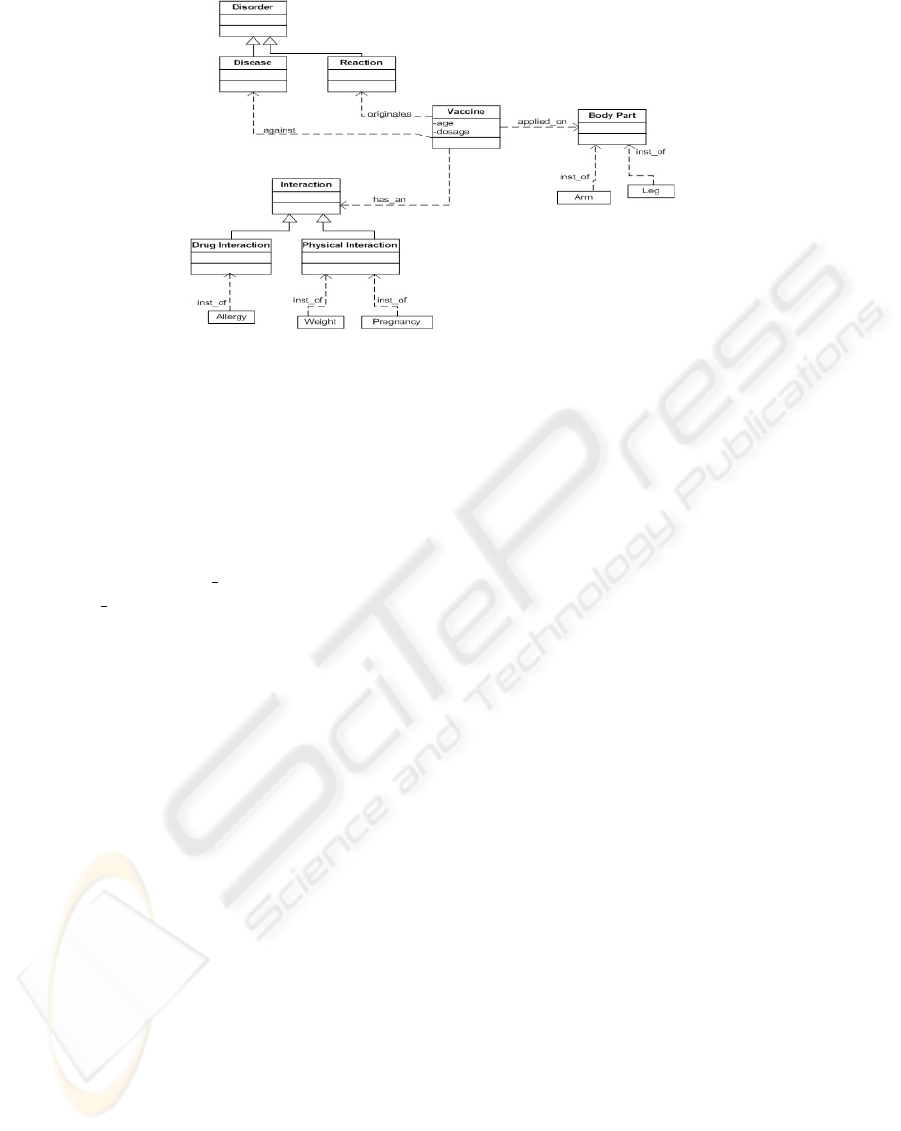

Fig. 1. Partial view of Vaccination Ontology.

A partial view of the ontology can be observed in Figure 1, which includes the

class Vaccine and it relationships with the classes Disease and Reaction, subclasses of

Disorder, with the class Interaction (subclasses Physical and Drug Interaction) and with

the class BodyPart.

In order to enrich the documents with domain knowledge we developed an OWL [11]

ontology. For each relationship between two class the inverse relation was also deﬁned.

For instance, for the classes Vaccine and Disease was deﬁned not only the relation-

ship Vaccine is against Disease but also the corresponding inverse relation Disease

is prevented Vaccine The ontology population was divided in two phases described in

Sections 4.1 and 4.2. The last step was to combine the OWL populated ontology with

SWRL [8] rules. Combining the use of ontology and rules, not only allows the system

to make decisions, but we can also extent the ontology with additional relationships and

facts without changing the code. Example rules include prevention of vaccine interac-

tion, for instance with a component of the vaccine (e.g., allergy interaction check) or

with a physical condition of the patient (e.g., pregnancy).Even though the rule speciﬁ-

cation is at the moment very simple and has a preliminary character, it already provides

additional knowledge, for instance, allowing for better and more efﬁcient patient care

introducing the possibility of offering suggestions when rules are broken or exceptions

made. Discussion of SWRL rules employment is not performed in the context of this

paper.

4 System Overview

The system developed to carry out the task of automatically extracting information from

the vaccination guidelines is derived from GATE [4] and has already been used with

the purpose of providing a formal description of Portuguese neurological reports [6].

GATE is an infrastructure for developing and deploying software components that pro-

cess human language, in development at the University of Shefﬁeld since 1995. The

architecture consists of a pipeline of processing resources which run in series. Many

of these processing resources are domain-independent and can be used for Portuguese

(e.g., Tokenizer and Sentence Splitter). However, POS tagging and the main process-

ing, carried out by a gazetteer and by a set of grammar rules, had to be changed and

enriched with language and domain-speciﬁc parameters. A more detailed description is

given in [6].

In this study an improvement was made in order to automatically extract the in-

formation existing in the PVP. Ontology population was divided in two phases. First,

information regarding concepts modeled in the ontology was automatically extracted

and added in the ontology as instances of the corresponding classes. Finally, the inter-

instance relationships were manually added as OWL properties. An experiment with the

purpose of automatically performing this last step using an approach based on frequent

pattern mining was also performed. Section 4.1 describes the process of automatically

extracting information from PVP and populating the ontology, while Section 4.2 fo-

cuses on adding knowledge to the ontology.

4.1 Information Extraction

In order to automatically extract information related with the concepts deﬁned on the

ontology a set of grammar rules were deﬁne. GATEs IE system is rule-based and re-

quires a developer to manually create rules, so it is not totally dynamic. The grammar

rules developed are written in JAPE (Java Annotations Pattern Language) [3]. The rules

do not just match instances from the gazetteer with their occurrences in the text, but

also ﬁnd new instances in the text which do not exist in the gazetteer, through use of

contextual patterns, part-of-speech tags and other indicators.

Table 1. NER Annotation Set.

Category Type

VACCINE VACCINE

DISEASE DISORDER

REACTION DISORDER

ALLERGY DRUG INTERACTION

BODYPART BODYPART

AGE VACCINE

DOSAGE VACCINE

WEIGHT PHYSICAL INTERACTION

The entities to be identiﬁed for this task are in Table 1 and include the concepts of

Vaccine, Disease and Reaction identiﬁed as belonging to type Disorder their superclass,

Allergy and Weight as examples of Drug and Physical Interactions, respectively, and

Body Part. Information regarding Age and Dosage, properties of the class Vaccine, was

also extracted.

Figure 2 presents Gate’s Graphical Interface with an excerpt of the PVP automat-

ically annotated with the entities described above. The evaluation of this task is per-

formed in Section 5.

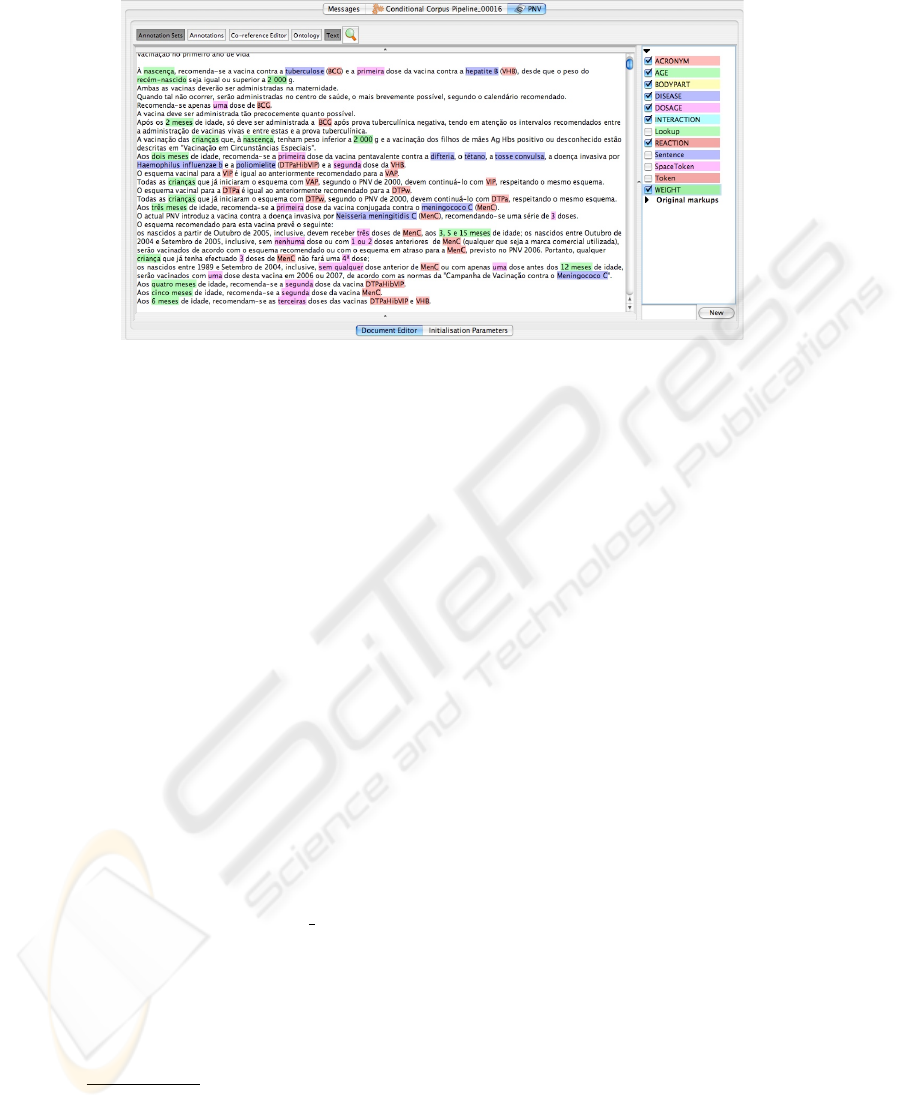

Fig. 2. Entities annotated on the Portuguese Vaccination Plan.

4.2 Populating the Ontology

The task of ontology population was divided in two steps. In the ﬁrst step the informa-

tion about the entities extracted was automatically added in the ontology. In the second

step, the inter-instances relationships were ﬁlled. An attempt to automatize this step is

described.

Individuals. In the current scenario we have already an ontology and information ex-

tracted automatically and we want to populate it with instances whenever entities be-

longing to classes in the ontology are mentioned in the input texts. For that purpose a set

of grammar rules were developed. These match each annotation of indicated types and

the annotation span is used to extract the text covered in the document. Once all these

pieces of information are available, the addition to the ontology is performed. First the

right class in the ontology is identiﬁed using the class name and then a new instance for

that class is created. Figure 3 presents class Disease of the ontology populated with the

instances extracted from the text.

Relationships between Individuals. On a ﬁrst approach inter-instance relationships

were manually added as OWL properties, using Prot

e 3.4

. For instance, for the

acronym BCG, automatically populated on the ontology as an individual of the class

Vaccine, the relationship is against Tuberculose (portuguese word for Tuberculosis),

individual of class Disease, was deﬁned. The same operation was done for the rest of

the individuals.

A ﬁrst attempt towards an automatization of this step, using an approach based on

frequent pattern mining, was performed. For that we mined the annotated text for fre-

quent entity patterns, using Association Rule Mining [1]. Association rules describe

how often entities are mentioned together. For example, if the rule ’disease ⇒ vaccine

http://protege.stanford.edu

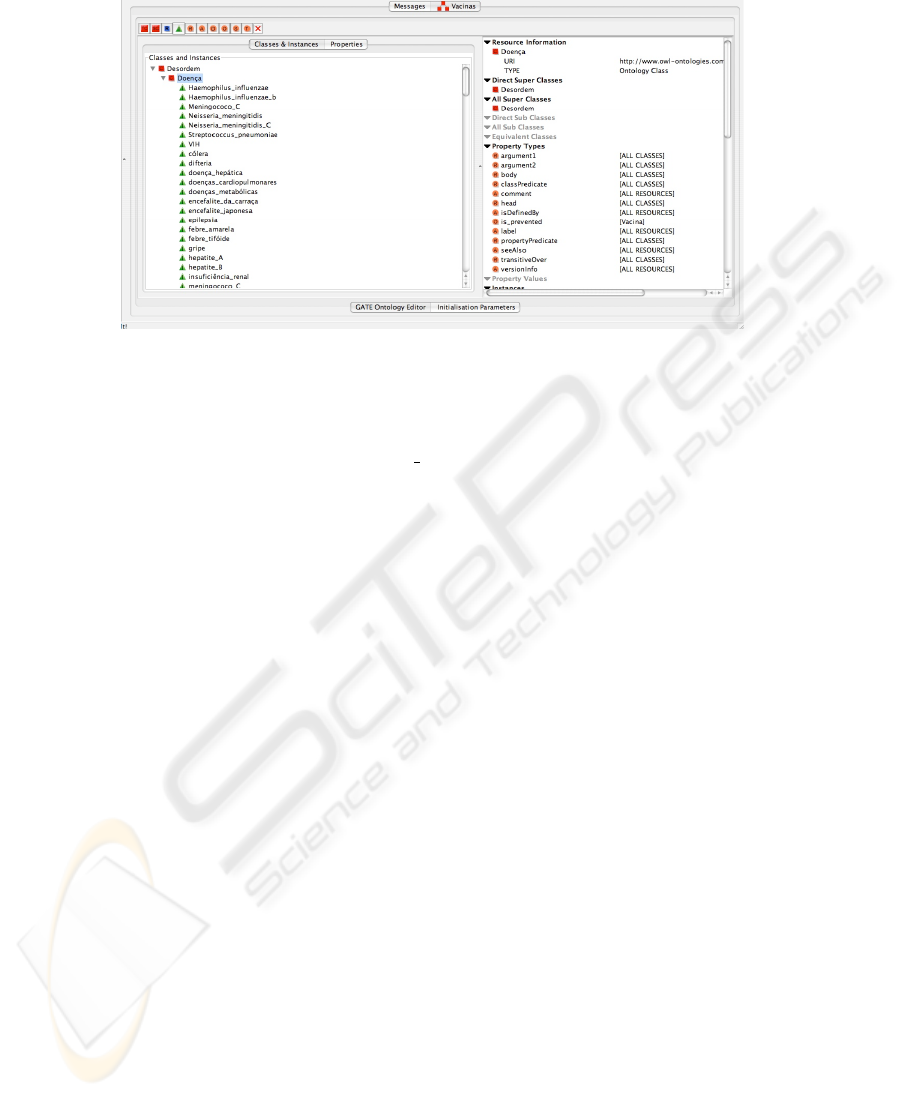

Fig. 3. Ontology Populated with vaccination information.

(80%)’ is found, it states that four out of ﬁve times that a disease individual (e.g. Tuber-

culosis) is mentioned it is followed by a vaccine individual (e.g. BCG). In this speciﬁc

case, this means the relationship BCG ’is against’ Tuberculosis can be inferred and the

RDF [9] triple can be automatically added.

The association mining algorithm algorithm [1] used to compute the association

rules can be stated as follows: Let I = {i

, ..., i

} be a set of items and D a set

of transactions (the entities). Each transaction consists of a subset of item in I. An

association rule is an implication of the form X → Y , where X ⊂ I, Y ⊂ I, and

X ∩ Y 6= ∅. The rule X → Y holds in D with conﬁdence c if c% of annotations in

D that support X also support Y. The rule has support s in D if s% if transaction in D

contain X ∪ Y . The problem of mining association rules is to generate all association

rules in D that have a support and conﬁdence greater than the user speciﬁed minimum

support and minimum conﬁdence.

To mine frequent occurring entities we considered I as the set of all entities identi-

ﬁed, I = {age, disease, acronym, bodypart, dosage, interaction, reaction, weight} and

D a list with the annotations made for each sentence of the PVP. An excerpt of the

database developed is in Table 2. Then we run the association rule miner, CBA [10],

which is based on the Apriori algorithm in [1]. This algorithm works in two steps. In

the ﬁrst step, it ﬁnds all frequent pattern from a set of transactions that satisfy a user-

speciﬁed minimum support. In the second step, it generates rules from the discovered

frequent patterns, being in our case possible relationships between the instances anno-

tated in the PVP. In our work we deﬁned a pattern as frequent if it appears in more than

20% (minimum support) of the annotated sentences.

100

Table 2. An excerpt of the database D, sentences 100 to 104.

Sentence Annotation vectors

100 {age, acronym}

101 {age, age, weight}

102 {age, dosage, disease, disease, acronym, dosage, acronym}

103 {acronym, acronym}

104 {age, acronym, acronym}

Table 3. Results for Information Extraction task.

DISEASE ACRONYM AGE BODYPART DOSAGE INTERACTION REACTION WEIGHT

Correct matches 225 294 181 14 90 10 156 8

Partially correct 0 0 1 0 3 0 0 0

Missing 0 0 6 0 0 0 0 0

Total 225 294 188 14 93 10 156 8

Recall 1,00 1,00 0,96 1,00 0,97 1,00 1,00 1,00

Precision 1,00 1,00 1,00 1,00 1,00 1,00 1,00 1,00

F - measure 1,00 1,00 0,98 1,00 0,98 1,00 1,00 1,00

Table 4. Overall Information Extraction Results.

Correct Matches 978

Partially Correct matches 4

Missing 6

Recall 0,991

Precision 1,000

F - measure 0,995

5 Results

5.1 Information Extraction

Information extraction results are summarized in Table 3. The lines show the number

of entities correctly matched by the system, the ones partially correct and the number

of entities the system was not able to identify. Results in terms of recall, precision and

F-measure are in the bottom lines of the table. Table 3 shows results for each annotation

type, while Table 4 presents the overall results.

Precision of 100% was obtained for all entities annotated. This means that every

individual added in the ontology was correctly associated with the corresponding class.

Recall values indicate that all the information existing on the PVP was also added in

the ontology, except information concerning Age and Dosage properties of Vaccine for

which, respectively, 7 and 3 individuals are missing.

5.2 Relationships between Individuals

Association rule mining algorithm identiﬁed three association rules with a support of

20% and conﬁdence of 80%. Figure 5.2 presents those rules. The ﬁrst rule indicates

that 79.38% of the times that a disease is mentioned it is followed by an acronym of

101

a vaccine. Considering the area and the concrete aim of the PVP, it is possible to infer

that approximately four out of ﬁve times that a disease name is followed by a vaccine

acronym in a sentence the information is referring to a speciﬁc disease and the vaccine

that prevents it. The same analysis can be done for the second rule. In this case, we can

infer information about the vaccine that should be applied at a speciﬁc age, while the

third rule states that approximately 20% of the times information regarding the dosage

recommended for each vaccine is mentioned after the vaccine acronym in a sentence.

Number of rules = 3

(1) {DISEASE} -> {ACRONYM} 79.68%

(2) {AGE} -> {ACRONYM} 69.73%

(3) {ACRONYM} -> {DOSAGE} 20.83%

Fig. 4. Association mining rules.

6 Conclusions and Future Work

A system which identiﬁes relevant entities on medical texts and automatically popu-

lates a vaccination ontology with new instances of classes is presented. The several

steps performed to model the vaccination ontology are described and a ﬁrst attempt

to automatically add inter-instances relationships was performed resulting on two as-

sociation rules with a high level of conﬁdence and suggests a third rule that could be

implemented after some further analysis.

The combination of the OWL populated ontology with SWRL rules provides clin-

ical decision support by introducing the possibility of offering suggestions when rules

are broken or exceptions made, or the suggestion of treatments based on patient con-

ditions. For instance, a children with two months has to be vaccinated against several

diseases. The system can suggest the appropriate vaccines to the physicians, reducing

consultation time and allowing increased safety and satisfaction.

The system can be extended to provide decision support on a deeper level. For in-

stance an active or a passive validation of medical reports can be done. The idea behind

the active validation of medical reports is to support an automatic and dynamic valida-

tion of decisions made over the content of the document by applying contextually rel-

evant rules to components of the documents during consultation. This is accomplished

by executing rules on semantic annotations and relationships to the ontology. A passive

validation can be done on documents referring to older consultations allowing the de-

tection of relationships between symptoms, patient details and treatments and enriching

the ontology with such information.

Even thought the ontology is already modeled and populated, the approach to au-

tomatize the inter-instance relationship population, needs further developed. Combining

the association rules and part-of-speech information to map between the inter-class re-

lationships describe in the guidelines and the ones deﬁned on the ontology would give

further knowledge. These relationships are most of the times described by verbs. Using

available knowledge sources like wiki dictionaries one could be able to ﬁnd relations

102

between the verbs used in the guidelines and the ones used in the relationship descrip-

tion, allowing an automatic mapping between concepts.

References

1. Agrawal, R., Srikant, R.: Fast algorithms for mining association rules. 20th International Con-

ference Very Large Data Bases, VLDB, 1215: 487-499, 1994

2. Cunha, J.P.C., Cruz, I., Oliveira, I., Pereira, A.S., Costa, C.T., Oliveira, A.M., Pereira, A.:

The RTS project: Promoting secure and effective clinical telematic communication within the

Aveiro region. In eHealth 2006 High Level Conference . Malaga, ES, Maio 2006 . p. 1-10

3. Cunningham, H., Maynard, D., Bontcheva, K. , Tablan, V., and Ursu, C.: The GATE User

Guide. 2002 http://gate.ac.uk/.

4. Cunningham, H., Maynard, D., Bontcheva, K. , Tablan, V.: GATE: A Framework and Graph-

ical Development Environment for Robust NLP Tools and Applications. Proceedings of

the 40th Anniversary Meeting of the Association for Computational Linguistics (ACL’02).

Philadelphia, July 2002

5. Direc

ao Geral da Sa

ude Programa Nacional de Vacina c

ao 2006, Orienta

oes T

ecnicas No 10

2006

6. Ferreira, L., Teixeira, A., Cunha, J.P.S.: Information Extraction from Medical Reports. In 3rd

International Workshop on Natural Language Understanding and Cognitive Science (NLUCS-

2006), Paphos, Cyprus, May 2006.

7. Herman, T.D., Liu, F., Sagaram, D., Raoul, K., Fontelo, P., Kohl, K., Payne, D.: Creating a

vaccine adverse event ontology for public health. AMIA Annu Symp Proc. 2005, 978

8. Horrocks, I, Patel-Schneider, P.F., Boley, H., Tabet, S, Grosof, B., Dean, M.: SWRL: A Se-

mantic Web Rule Language - Combining OWL and RuleML. W3C Member Submission,

http://www.w3.org/Submission/SWRL/, May 2004.

9. Lassila, O., Swick, R.R.: Resource Description Framework (RDF) Model and Syntax. W3C

Working Draft, World Wide Web Consortium, 1998; http://www.w3.org/TR/WD-rdf-syntax/.

10. Liu, B., Hsu, W., Ma, Y.: Integrating Classiﬁcation and Association Rule Mining. KDD-98,

1998

11. McGuinness, D. L., Harmelen, F. , eds. OWL Web Ontology Language Overview. W3C

Proposed Recommendation, December 2003, http://www.w3.org/TR/owl-features/.

12. Sager, N., Lyman, M., Bucknall, C., Nhan, L.J., Tick, L.J.: Natural language processing and

the representation of clinical data. J. Am. Med. Informatics Assoc. March, 1994, 1(2): 142-60.

13. Serban, R., Teije, A., Harmelen, F., Marcos, M., Polo-Conde, C.: Extraction and use of lin-

guistic patterns for modelling medical guidelines. Artif. Intell. Med Journal, 2007, 39:137-149

14. Schr

oder, M.: Knowledge-based processing of medical language: A language engineering

approach. Proceeding of GWAI’92, Bonn, September 1992

15. Sheth, A. P., Agrawal S., Lathem J., Oldham N., Wingate H., Yadav P., Gallagher K.: Active

Semantic Electronic Medical Record. International Semantic Web Conference 2006: 913–926

16. SNOMED Clinical Terms Guide. College of American Pathologists.

17. UMLS KNOWLEDGE SOURCES. 14th Edition. National Institutes of Health Department

of Health and Human Services. U.S. National Library of Medicine.

103
