Interaction Patterns for Refining Behaviour

Specifications of Context-Aware Mobile Services

Laura Daniele, Luís Ferreira Pires and Marten van Sinderen

Centre for Telematics and Information Technology

University of Twente, Enschede, The Netherlands

Abstract. In the context of Model-Driven Architecture (MDA), little attention

has been given to behavioural aspects of service design. This paper proposes a

MDA-based approach that considers these aspects in the development of

context-aware mobile services. Starting from the specification of the external

observable behaviour of a service, we gradually refine this behaviour

considering the internal structure of the service. Particularly, we present a

structure that is general enough to be used for several context-aware mobile

services. However, it may be configured based on the specific service to be

developed. An important step of our approach consists of identifying sequences

of interactions, which we call interaction patterns, which can be mapped into a

behaviour model of the components that execute the service. This model is

platform-independent and may be realized in terms of several specific target

technologies.

1 Introduction

Context-aware mobile services are capable to sense changes in the user’s environment

and consequently adjust their behaviour in order to provide relevant functionality to

their user anywhere and at anytime. The design of such services is a challenging task,

which has justified the development of novel methods, abstraction and infrastructures

[19, 20, 21, 22]. Moreover, the complexity, diversity and fast-changing nature of

enabling technology platforms require design approaches that shield designers from

platform-specific details in order to concentrate their efforts on the services to be

developed [3]. A valuable alternative to face the challenge of designing such services

consists of using the OMG’s Model Driven Architecture (MDA) [1], which aims at

facilitating service design through the separation of platform-independent (PIMs) and

platform-specific models (PSMs), and the use of model transformations.

Although considerable effort has been done in MDA to define technologies and

techniques for designing services, behavioural aspects of design are still neglected. In

order to address these behavioural aspects, we have developed within the A-MUSE

project [2] an MDA-based design process, which is described in [3, 10]. The process

defines three different levels of models with different degrees of abstraction and

This work is part of the Freeband A-MUSE Project (http://a-muse.freeband.nl). Freeband is sponsored by

the Dutch government under contract BSIK 03025.

Daniele L., Ferreira Pires L. and van Sinderen M. (2008).

Interaction Patterns for Reﬁning Behaviour Speciﬁcations of Context-Aware Mobile Services.

In Joint Proceedings of the 5th International Workshop on Ubiquitous Computing (IWUC 2008) 4th International Workshop on Model-Driven Enter prise

Information Systems (MDEIS 2008) 3rd International Workshop on Technologies for Context-Aware Business Process Management (TCoB 2008),

pages 64-76

DOI: 10.5220/0001739800640076

 SciTePress

platform-independence. The highest level of abstraction, which we call service

specification, specifies the external observable behaviour of a context-aware mobile

service. The intermediate level, which we call platform-independent service design,

describes the service in terms of its internal structure and the interactions between

components within this structure. The lowest level, which we call platform-specific

service design, describes the realization of the service in terms of specific target

technologies.

This paper focuses on model transformations between the behaviour specification

and the platform-independent design of context-aware mobile services, given a

specific structure for these services. This structure is general enough to be used for

several context-aware mobile services. However, it may be configured based on the

specific service to be developed. Particularly, we propose a systematic approach for

this model transformation that is based on refinements and interaction patterns. This

approach should allow us to guarantee correctness and consistency between the

behaviour service specification and the platform-independent design model that

reveals the service internal structure.

The structure of the paper is the following: Section 2 presents an overview of the

A-MUSE design process, Section 3 describes our approach to realize the model

transformation between service specification and platform-independent design levels,

Sections 4 and 5 discuss the service specification level and the platform-independent

service design level in further detail by using a case study, Section 6 discusses some

related work in the context of MDA, and Section 7 presents our conclusions and

identifies topics for future work.

2 A-MUSE Design Process

According to MDA principles, the A-MUSE design process divides the design of

context-aware mobile services in different levels of models with different degrees of

abstraction and platform-independence. Fig. 1 shows this process [3,10].

The service specification level describes the behaviour of a context-aware mobile

service from an external perspective. At this level, we specify the functionality that

our service offers to its user and we do not consider any structural detail of the

service, i.e., its internal components. Towards this aim, we use a language specially

developed in the A-MUSE project, which is called A-MUSE Domain-Specific

Language (DSL). The A-MUSE DSL supports the specification of context-aware

mobile services at a high abstraction level during the initial phase of the service

design process. This language allows us to specify the behavioural aspects of our

service in terms of user inputs, user outputs, data actions, and their causality relations.

The platform-independent service design level describes a context-aware mobile

service from an internal perspective. At this level, we refine the service specification

while considering a (given) internal structure for our service. Fig. 1 shows that this

structure consists of context sources, action providers, coordination component,

service trader and user components. Context sources sense events in the user’s

environment and provide these events to the coordination component, which as a

consequence triggers actions that are executed by action providers. Context sources

and action providers are registered in the service trader in order to be dynamically

available to the coordination component. Each user accesses the service through a

user component, which provides the user interface and forwards requests to the

coordination component [3]. The core of our structure consists of the coordination

component, since it orchestrates all the internal interactions. These interactions are: (i)

user requests from user components, (ii) context events from context sources, (iii)

actions to be executed by action providers, and (iv) resources registered in the service

trader. At the platform-independent service design level, we use the A-MUSE DSL

for the refinements, the Interaction System Design Language (ISDL) [4,5] for

specifying component behaviours and interactions between components, and UML

class diagrams for the data models.

The platform-specific service design level describes the realization of a context-

aware mobile service in terms of specific target technologies. Since the relation

between the platform-independent service design and the platform-specific service

design levels is flexible, it is in principle possible to use different middleware

technologies, such as, for example, web services or CORBA, as it is shown in Fig. 1.

patform-

specific

service design

service

specification

patform-

independent

service design

platform

selection

platform-

independent

design

platform-

specific

design

patform-

specific

service design

Web Services

(WSDL + UDDI)

CORBA

(OMG Trader)

action

providers

service

trader

context-aware

mobile service

service refinement

coordination

component

models

context

sources

model transformations

user

components

Fig. 1. Design process with different levels of abstraction and platform-independence.

The rest of this paper focuses on the first two levels of the design process shown in

Fig. 1, namely the service specification level and the platform-independent service

design level.

3 Approach

The aim of this work consists of defining a platform-independent model that specifies

the behaviour of the components that realize the service. This model, which preserves

the service behaviour specification, should be used as input to the platform-specific

service design in order to concretely realize these components in terms of specific

target technologies. Fig. 2 shows the approach we have taken towards this aim.

The starting step consists of the service specification, in which we define the

functionality offered to the user in terms of actions and causality relations between

these actions. The actions at this level are too abstract to be directly realized with

platform-specific technologies. Therefore, the second step consists of defining a

platform-independent service design model in which we refine these actions into

service specification

refinement refinement

refinement

Component 1

Component 2

Component 3

Component N

platform-independent

service design

mapping

mapping mapping

mapping

Fig. 2. Refinement of behaviour specifications by using interaction patterns: approach.

multiple actions that can be directly supported by the realization platform. While

doing these refinements, we consider the internal structure of our service in order to

create a correspondence between refined actions and components that performs these

actions. Fig. 2 shows the refinement of actions at the service specification level into

multiple actions at the platform-independent level.

A further step in our approach consists of comparing all the refinements in order to

identify sequences of actions, which we call interaction patterns, recurring in several

refinements. Since the concept of interaction pattern is extremely important in our

approach and this concept differs from the one is commonly used in the literature [6],

we give here the following definition:

“When designing a service and considering its internal perspective, we define an

interaction pattern as a recurring sequence of actions performed by two (or more)

components interacting to each other”. Fig. 2 shows two interaction patterns

represented with dash and dot lines.

Once we have identified interaction patterns in the refinements, the last step of the

platform-independent service design consists of mapping these patterns into the

behaviour of components. In our example, these components are the coordination

component, context sources and action providers, as presented in Section 2. Since an

interaction pattern involves two (or more) components, the mappings must create a

proper correspondence from refined actions of the pattern to components, and

guarantee the correct functioning of the interacting components.

4 Service Specification

This section introduces a more detailed view on the steps performed at the service

specification level and presents examples of the specification by using a case study.

This case study is called Live Contacts [7] and consists of a context-aware mobile

service running on Pocket PC phones, Smartphones, desktop PCs that allows its users

to contact the right person, at the right time, at the right place, via the right

communication channel. Further information about specific functionality that Live

Contacts offers to its user can be found in [8].

4.1 Models

In order to guarantee consistency between service specification and service design

levels, we have produced two models for the service specification. The first model has

been defined from a “pure” user perspective, in which we describe the functionality

that our service offers to the user in terms of user inputs and outputs. We consider the

service from an external view without any internal detail and the user is only aware of

what he/she can ask to the service and, eventually, get back from the service. Fig. 3

presents an example of this model within the Live Contacts case study. The Grizzle

tool [9] has been used for model editing and simulation of service specifications.

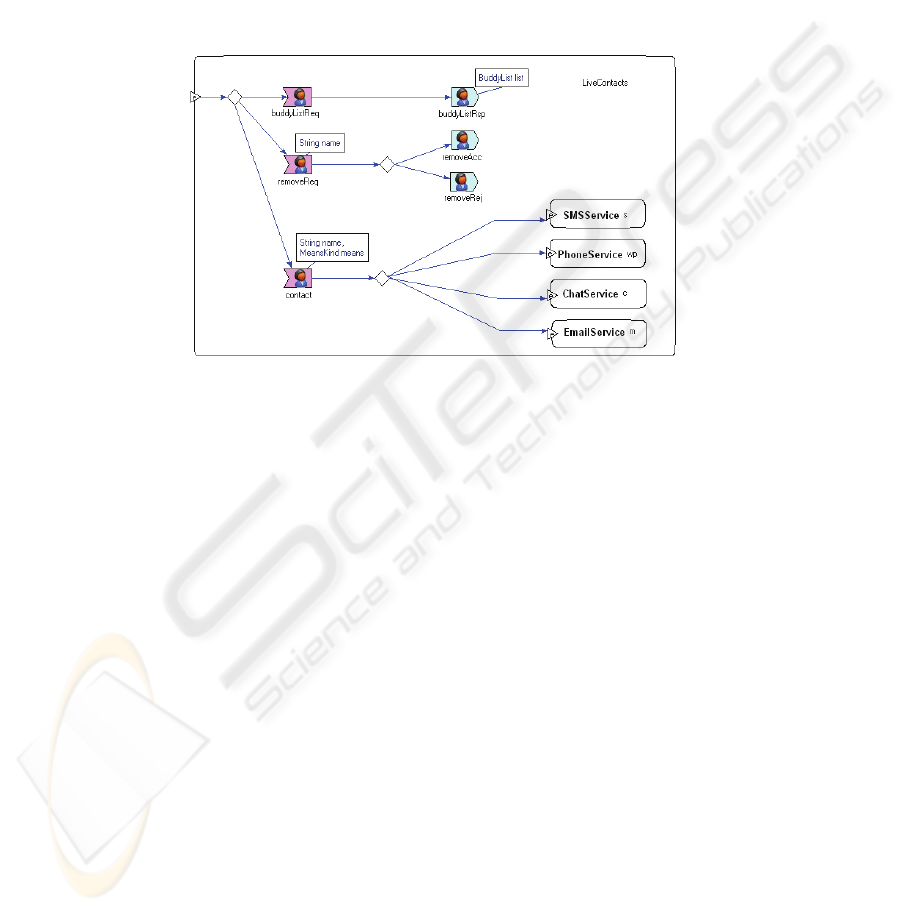

Fig. 3. Service specification: example of first model (exported from Grizzle [9]).

Fig. 3 shows that a user may ask information about all his/her contacts

(buddyListReq) and receive back a list containing this information (buddyListRsp).

The user may also remove a contact from his/her list (removeReq) and receive a

confirmation (removeAcc) or a rejection (removeRej) for this request. Moreover, the

user may contact one of his/her buddies by selecting a specific means of

communication, such as SMS, phone, chat or e-mail.

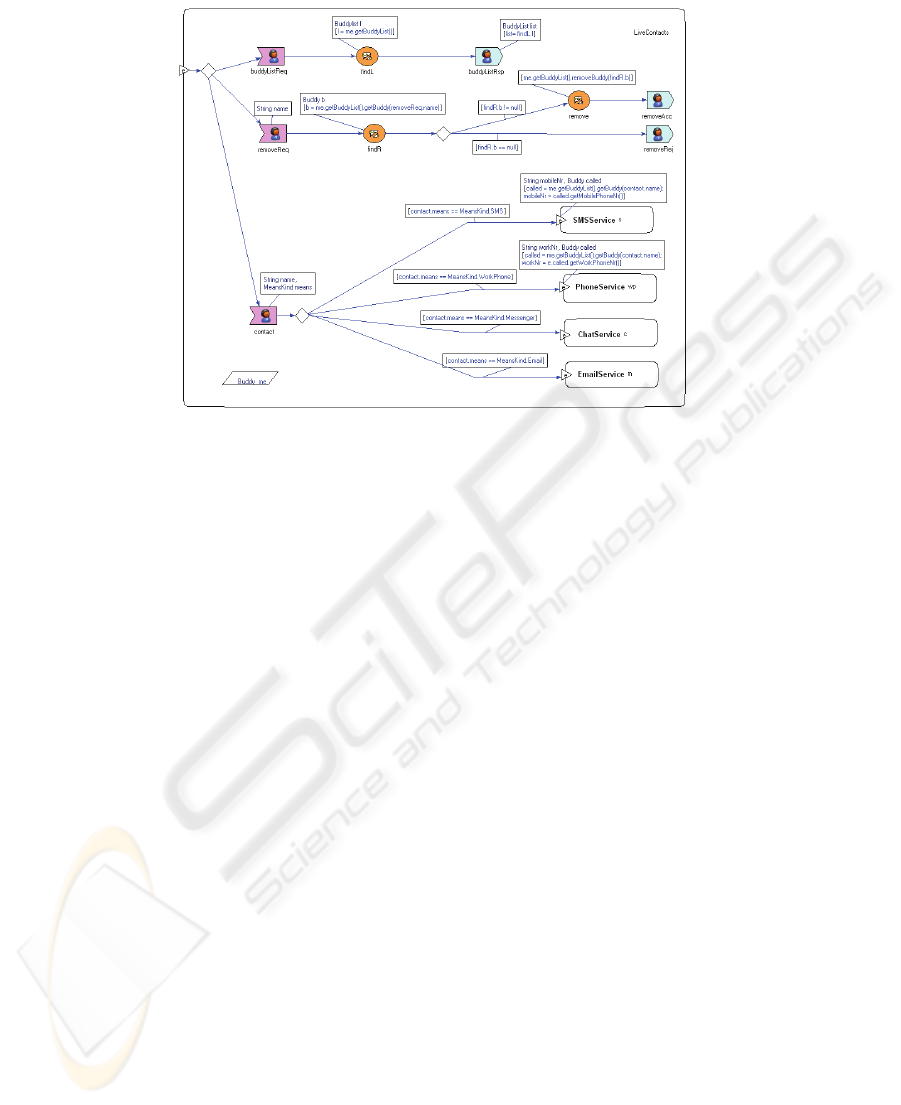

The second model we have produced for the service specification adds to the user

perspective a global view on the status information handled by the service to provide

the user with the functionality of the previous model. However, internal components

of the system are not introduced at this point. This second model, which is a

refinement of the previous model, consists of an intermediate step towards the

platform-independent design. Fig. 4 presents an example of this second model within

the Live Contacts case study.

Fig. 4 shows the status information that the Live Contacts service uses to handle

user requests. For example, when the user wants to remove a buddy from his/her list,

the Live Contacts service first selects this buddy from the user’s buddy list (findR).

Afterwards, if the buddy is in the user’s list (findR.b != null), the list is updated by

removing the buddy (remove), otherwise (findR.b == null) the user request is

rejected.

Fig. 4. Service specification: example of second model.

4.2 Interactions Classification

In the service specification we have defined the external behaviour of a context-aware

mobile service. This external behaviour presents some general-purpose characteristics

that are common to context-aware mobile service independent of the specific service

to be developed. We decided to classify these general-purpose characteristics based

on the kind of interaction that they imply. For example, all context-aware mobile

services are characterized by the capability to retrieve context information from the

user context and provide relevant functionality to their user based on this information.

This implies two kinds of interactions, namely an interaction with context sources in

order to retrieve context information, and an interaction with action providers in order

to provide the relevant functionality to the user. By identifying these interactions, we

can relate the total functionality provided by our service to a classification, which is

general enough to be (re)used with a wide range of context-aware mobile services

regardless of the specific service to be realized. Particularly, we have identified the

following set of basic interactions:

1. simple → it provides a way to receive input from the user and, eventually, present

output to the user;

2. search → it provides a way to retrieve information stored in some knowledge

source of the service;

3. update → it provides a way to update information stored in some knowledge

source of the service;

4. context → it provides a way to retrieve context information from the user context;

5. invocation → it provides a way to invoke external services;

6. discovery → it provides a way to discover external services that are available in a

certain place and at a certain moment.

We can combine these basic interactions to define more complex interactions and

mark the second model of our service specification as a preparation for the

transformation to the platform-independent service design model. For example,

considering the Live Contacts case study, we can mark the model of Fig. 4 as follows:

• buddyList → simple + search, since the user asks for his/her buddy list (simple)

and Live Contacts retrieves the list that is stored in some information source

(search).

• removeBuddy → simple + search + update, since the user asks to remove a buddy

from his/her buddy list (simple), Live Contacts retrieves this buddy from the

information source (search) and, eventually, removes this buddy from the list

(update).

• contactBuddy → simple + search + discovery + invocation, since the user asks to

contact a buddy (simple), Live Contacts retrieves this buddy’s number from the

information source (search) in case the means of communication is SMS or work

phone, discovers the proper service to open the communication (discovery) and,

finally, invokes this service (invocation).

5 Platform-Independent Service Design

This section introduces a more detailed view on the steps performed at the platform-

independent service design level and presents examples of refinements and mappings

from the Live Contacts case study. The Grizzle tool [9] has been used for model

editing and simulation of platform-independent service design.

5.1 Refinements

At the platform-independent service design level we refine the service specification

while considering the internal structure of the service that is depicted in Fig. 1.

Although this structure considers all the components typically involved in context-

aware mobile services, in order to realize correct refinements we need to define this

structure in more detail. Fig. 5 shows the specific structure that we use in the Live

Contacts case study. This structure has been defined within the A-MUSE project to

Fig. 5. Service structure.

realize the Live Contacts case. However, it can be reused for other context-aware

mobile services by simply redefining context sources and action providers that are

specific to that service.

The presentation component takes care of the interactions with the end-user. There

is one presentation component for each user. The user agent acts on behalf of the user

with the other components. There is one user agent for each user. Particularly, the

user agent interacts with the presentation component in order to obtain user input and

present user output, and provides the service coordinator with user input events. The

service coordinator takes care of orchestrating the other components, searching and

updating the database, which contains information about users (e.g., name, password,

preferred means of contacts and list of buddies), and login information. There is one

service coordinator and one database. The service coordinator also interacts with

context sources and action providers.

The context sources sense changes in the user context and provides the service

coordinator with context events. Particularly, Fig. 5 shows the (GPS) location service

that provides information about a user’s current location, the (MSN) presence service

that provides indications whether users registered in the Live Contacts application are

available online in the network, and the (Outlook) calendar service that provides

calendar information. There is one (GPS) location service, one (MSN) presence

service and one (Outlook) calendar service for each user agent. These services are

registered in the service trader.

The action providers are responsible for performing actions triggered by the service

coordinator. Actions represent application reactions to user input events and context

events. Particularly, Fig. 5 shows the SMS service, phone service, e-mail service and

chat service, which enable users to communicate with each other through,

respectively, sending messages, making a phone call, sending e-mails or chatting.

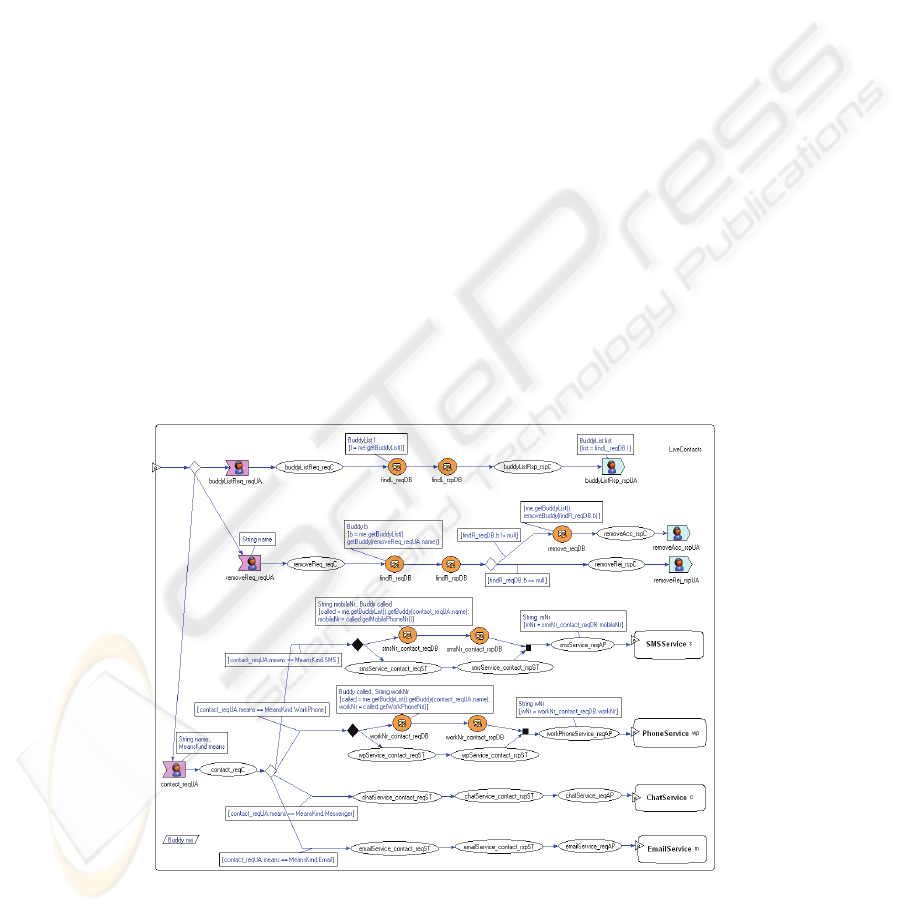

Fig. 6. Service design: example of refinements.

There is one SMS service, phone service, e-mail service and chat service for each

user agent. These services are registered in the service trader. The service trader

registers all the available context sources and action providers in order to allow the

coordinator to discover and invoke them.

Fig. 6 presents an example of refinements within the Live Contacts case study

revealing the structure mentioned above.

As depicted in Fig. 6, the user request to get the buddy list arrives to the user agent

(buddyListReq_reqUA), which forwards the request to the coordinator

(buddyListReq_reqC). The coordinator retrieves the list from the database

(findL_reqDB and findL_rspDB) and sends the list to the user agent

(buddyListRsp_rspC). Finally, the user agent sends the list to be presented to the user

(buddyListRsp_rspUA).

The user request to remove a buddy arrives to the user agent (removeReq_reqUA),

which forwards the request to the coordinator (removeReq_reqC). The coordinator

checks the buddy list of the user whether the buddy is in the contacts list

(findR_reqDB and findR_rspDB). If this is the case, the coordinator removes the

buddy from the list (remove_reqDB) and sends a positive response to the user agent

(removeAcc_rspC), which presents the result to the user (removeAcc_rspUA). If the

buddy is not in the list of the user, the coordinator sends a negative response to the

user agent (removeRej_rspC), which presents the result to the user

(removeRej_rspUA).

The user request to contact a buddy arrives to the user agent (contact_reqUA). The

user agent forwards the request to the coordinator (contact_reqC), which evaluates

the parameters of the contact request. Particularly, depending on the contact means

selected by the user, the coordinator selects one of the options depicted in Fig. 6. If

the contact means consists of SMS or work phone, the coordinator performs two

activities concurrently, namely, retrieving from the database the number to contact the

buddy (<numberType>_contact_reqDB and <numberType>_contact_rspDB) and

asking the service trader to discover the proper service to contact the buddy

(<serviceType>_contact_reqST and <serviceType>_contact_reqST). If the contact

means consists of chat service or e-mail service, the coordinator only asks the service

trader to discover the proper service to contact the buddy. For each option, the

coordinator is finally able to invoke the proper action provider (<serviceName>

_reqAP), which opens the communication with the user agent of the buddy to be

contacted.

5.2 Interaction Patterns and Mapping

We have identified interaction patterns that often recur in the refinements.

Particularly, we have created a correspondence between these interaction patterns and

the basic interactions that we have classified in Section 4.2. Table 1 shows this

correspondence for our case study.

The ultimate result of the transformation from service specification to platform-

independent service design consists of a model in which we map the interaction

patterns specified in the refinements into the behaviour of the specific components

responsible of realizing these patterns. This ultimate result is used as input to the last

level of our design process (see Fig. 1), namely the platform-specific service design,

in order to concretely realize components in terms of specific target technologies.

Since the refinements explicitly specify which component performs a certain action,

the mapping of interaction patterns to the behaviour model of a specific component is

straightforward. However, the interoperability between components interacting with

each other to provide certain functionality is not straightforwardly mapped into the

behavior model of individual components. Therefore, it is necessary to consistently

guarantee this interoperability in the mapping. Fig. 7 presents an example of mapping

within the Live Contacts case study.

Table 1. Interaction patterns for the Live Contacts service.

interaction pattern

SIMPLE

interaction pattern

UPDATE

interaction pattern

Fig. 7. Service design: example of mapping (exported from Grizzle [9]).

Consider the refinement in Fig. 6 that describes the Live Contacts functionality of

removing a buddy from the list of a user. This refinement involves three components,

which are the user agent, the service coordinator and the database where the list is

stored. Fig. 7 depicts the behaviour model of these components considering their

mutual interactions. Particularly, dashed lines show the mapping of interaction

patterns of Table 1 (RemoveBuddy column) into this model.

6 Related Work

We consider here some related work in the literature that deals with the design of

context-aware services and applications [3,10,11,12]. In [12], service-oriented

context-aware design is discussed, and a service-oriented structure that separates

context parameters from application data is proposed. Although this structure reflects

the need to distinguish components devoted to context management and application

core in the design of context-aware services, a design process that supports this

structure is not described. In contrast to [12], we here provide a MDA-based design

process that supports our structure.

In [13,14], a model-driven service-oriented approach for service development

closely related to our approach is presented. Although this approach relies on the

same MDA-based design process that we have described in Section 2, it focuses on a

different level of this process, namely the model transformation from platform-

independent design to platform-specific technologies. Therefore, this approach does

not consider the refinement of the service specification based on interactions

classification and corresponding interaction patterns for the platform-independent

service design.

In the context of MDA, much effort has been done on model transformations from

PIMs to PSMs in several application domains. However, traditional MDA

development practices [15,16,17] do not consider behavioural aspects of the design

and directly start the development by realizing the service design based on the

structure that implements the service. Therefore, much attention is given to PSMs and

generation of code to implement these PMSs, and less attention is given to the PIM

level and the behaviour of the service to be developed. In contrast, we focus on model

transformations at the PIM level in order to obtain models that can be implemented

with current technologies and that reflect the service structure we have defined.

Above all, these models are designed to be consistent and correct with respect to the

original behaviour of our service.

7 Conclusions and Future Work

We have defined an approach for the development of context-aware mobile services

that starts from the specification of its external behaviour and produces a platform-

independent model in terms of components that may execute the service. This

approach uses a model transformation based on refinements and interaction patterns.

Interaction patterns allow us to identify common pieces of behaviour of context-aware

mobile services that can be used to easily assemble new services instead of

developing them from scratch. Moreover, we have illustrated the application of our

approach by means of a case study, i.e., the Live Contacts service.

We have presented the steps to realize the model transformation from service

specification in A-MUSE DSL to a platform-independent service design in ISDL. We

have realized these steps by manually applying refinements, identifying interaction

patterns, and creating mappings. We have not discussed any transformation language

nor provided any transformation rules, and we have not considered yet the rules to

check whether certain combinations of interaction patterns are legal. These are topics

for future work. However, we have provided a starting point to define guidelines that

can be used to automatically realize our transformation. The automation of the

transformation is also subject of further study. Towards this aim, we are investigating

tool support for model transformations in the context of the A-MUSE project. We are

currently investigating how to specify and execute these transformations using medini

QVT [18], which is a tool that implements the Query/View/Model (QVT) Relations

specification defined by OMG for model-to-model transformations.

We have provided examples of refinements exported from the Grizzle tool, which

supports both A-MUSE DSL and ISDL, which are the languages we have used to

specify our models. These are simple examples that represent single instances of

behaviours. They have been introduced mainly to clarify how refinement interaction

patterns can be identified and mapped into components in our approach. Although

these refinements seem to grow as the examples become more complex, the A-MUSE

DSL and ISDL allow us to modularize single instances of behaviours in order to

reduce the complexity and facilitate the understanding of the resulting behaviour

diagrams. Scalability issues in case multiple instances of behaviour have to be

considered in further investigation.

We have used A-MUSE DSL and ISDL since these are general-purpose languages

that allow us to model behavioural aspects in terms of causality relations between

interactions without constraining the internal implementation of the services.

Particularly, A-MUSE DSL is a specialization of ISDL and both languages are based

on the COSMO framework [23], which is a framework used in the A-MUSE project

as a conceptual basis for modelling services. By using A-MUSE DSL and ISDL we

can support a broad spectrum of abstraction levels, from the highest level of

abstraction of our approach, namely the service specification level, to the lowest level

of platform-independence, namely the service design level.

References

1. Object Management Group: MDA-Guide, Version 1.0.1, omg/03-06-01 (2003)

2. Freeband A-MUSE Project; http://a-muse.freeband.nl

3. Almeida, J.P.A., Iacob, M.E., Jonkers, H., Quartel, D.: Model-Driven Development of

Context-Aware Services. In: 6

IFIP WG 6.1 International Conference on Distributed

Applications and Interoperable Systems (DAIS 2006). Lecture Notes in Computer Science,

Vol. 4025. Springer (2006) 213-227.

4. ISDL home; http://isdl.ctit.utwente.nl

5. Quartel, D., Ferreira Pires. L., van Sinderen, M.: On Architectural Support for Behaviour

Refinement. In: Journal of Integrated Design and Process Science. Vol. 6, No.1. IOS (2002)

6. Wikipedia page; http://en.wikipedia.org/wiki/Interaction_design_pattern

7. Live Contacts home; http://livecontacts.telin.nl

8. Ter Hofte, G.H., Otte, R.A.A., Kruse, H.C.J., Snijders, M.: Context-Aware Communication

with Live Contacts. In: Conference Supplement of Computer Supported Cooperative Work

(CSCW2004). November 2004, Chicago, USA.

9. Grizzle home; http://isdl.ctit.utwente.nl/tools/grizzle

10. Almeida, J.P.A.: Model-Driven Design of Distributed Applications. Ph.D. thesis,

University of Twente, Enschede, The Netherlands (2006)

11. Shishkov, B.B., van Sinderen, M.: Model-Driven Design of Context-Aware Applications.

In: Proceedings of the 9

International Conference on Enterprise Information Systems

(ICEIS 2007), June 2007, Funchal, Portugal. INSTICC Press (2007), Vol. 3, 105-113.

12. Chaari, T., Laforest, F., Celentano, A.: Service-Oriented Context-Aware Application

Design. In: First International Workshop on Managing Context Information in Mobile and

Pervasive Environments (MCMP 2005), Ayia Napa, Cyprus.

13. van Sinderen, M., Almeida, J.P.A., Ferreira Pires, L., Quartel, D.: Designing Enterprise

Applications Using Model-Driven Service-Oriented Architectures. In: Enterprise Service

Computing: from Concept to Deployment. Idea Group Publishing (2006), Hershey, 132-

155.

14. Almeida, J.P.A., Ferreira Pires, L., van Sinderen, M.J.: Abstract Platform and

Transformations for Model-Driven Service-Oriented Development. In: Proceedings of the

2nd International Workshop on Model-Driven Enterprise Information Systems (MDEIS

2006), 23 May 2006, Paphos, Cyprus. INSTICC Press (2006), 49-63.

15. Jones, V., Rensink, A., Ruys, T., Brinksma, E., van Halteren, A.: A Formal MDA

Approach for Mobile Health Systems. In: Proceedings of the Second European Workshop

on Model Driven Architecture (MDA) with an emphasis on Methodologies and

Transformations (EWMDA 2004). Computing Laboratory, University of Kent, Canterbury,

Kent CT2 7NF, UK, Canterbury, 28-35.

16. Fink, T., Koch, M., Pauls, K.: An MDA Approach to Access Control Specifications Using

MOF and UML Profiles. In: The First International Workshop on Views on Designing

Complex Architectures (VODCA 2004). Electronic Notes in Theoretical Computer Science

(2006), Vol. 142, 161-179.

17. Eissen, S. M., Stein, B.: An MDA Approach to Implement Personal IR Tools. In: 18

International Conference on Database and Expert Systems Applications (DEXA 2007).

IEEE Computer Society Press (2007), 259-263.

18. medini QVT: ikv++ technologies home; http://www.ikv.de

19. Dey, A.K., Salber, D., Abowd, G.D.: A Conceptual Framework and a Toolkit for

Supporting the Rapid Prototyping of Context-Aware Applications. Human-Computer

Interaction (2001), 16(2-4), 97-166.

20. Chen, H., Finin, T., Joshi, A.: An Ontology for Context-Aware Pervasive Computing

Environments, Knowledge Engineering Review, Special Issue on Ontologies for

Distributed Systems, Vol. 18, No. 3. Cambridge University Press (2003) 197-207.

21. Dockhorn Costa, P., Ferreira Pires, L., van Sinderen, M.: Designing a Configurable

Services Platform for Mobile Context-Aware Applications. In: International Journal of

Pervasive Computing and Communications (JPPC), Vol.1, No. 1. Troubador Publishing

(2005)

22. McFadden, T., Henricksen, K., Indulska, J., Mascaro, P.: Applying a Disciplined Approach

to the Development of a Context-Aware Communication Application. In: 3

IEEE

International Conference on Pervasive Computing and Communications (PerCom). IEEE

Computer Society Press (2005) 300-306.

23. Quartel, D.A.C., Steen, M.W.A., Pokraev, S.V., van Sinderen, M.J.: COSMO: a Conceptual

Framework for Service Modelling and Refinement. In: Information Systems Frontiers,

Vol.9, Springer Science and Business Media (2007), 225-244.
