Bernoulli HMMs for Off-line Handwriting Recognition

⋆

Adri`a Gim´enez-Pastor and Alfons Juan-C´ıscar

DSIC/ITI, Univ. Polit`ecnica de Val`encia, E-46022 Val`encia, Spain

Abstract. Hidden Markov models (HMMs) are widely used in off-line hand-

writing recognition to model the probability (density) of an observation sequence,

given its corresponding text transcription. Observation sequences typically con-

sist of ﬁxed-dimension feature vectors which are computed locally, using a slid-

ing window along the handwritten text image. However, there is no standard set

of local features being used by most of the systems proposed. In this paper we

explore the possibility of raw, binary pixels instead of “complicated” features. To

this purpose, we propose the use of Bernoulli HMMs, that is, HMMs in which

the state-conditional probability (density) function is not a conventional Gaus-

sian (mixture) density, but a multivariate Bernoulli (mixture) probability func-

tion. Promising empirical results are reported on two tasks of handwriting word

recognition.

1 Introduction

Hidden Markov models (HMMs) have received signiﬁcant attention in off-line hand-

writing recognition during the last years [1–4]. As in speech recognition [5], HMMs

are used to model the probability (density) of an observation sequence, given its corre-

sponding text transcription or simply its class label.

Observation sequences typically consist of ﬁxed-dimension feature vectors which

are computed locally, using a sliding window along the handwritten text image. How-

ever, there is no standard set of local features being used by most of the systems pro-

posed; on the contrary, it seems that each system proposed is tuned using a signiﬁcantly

different set of features. For instance, in [2], the preprocessed text image is transformed

into a sequence of 60-dimensional feature vectors, each comprising 20 normalised gray

levels plus 40 gray-level derivatives (20 horizontal and 20 vertical). In [3], however,

only 9 local features are computed: 3 characterising the sliding window globally, and

6 capturing additional information about the writing. Another example can be found

in [4], where both discrete and continuous features are combined.

In this paper, we explore the possibility of not using “complicated” local features

and using raw, binary pixels instead. This is done with two ideas in mind. On the one

hand, this guarantees that no discriminative information is ﬁltered out during feature

extraction, which now has to be somehow integrated into recognition. On the other

hand, this allows us to introduce probabilistic models that deal more directly with the

⋆

Work supported by the EC (FEDER) and the Spanish MEC under the MIPRCV ”Con-

solider Ingenio 2010” research programme (CSD2007-00018), the iTransDoc research project

(TIN2006-15694-CO2-01), and the FPU grant AP2005-1840.

Giménez-Pastor A. and Juan-Císcar A. (2008).

Bernoulli HMMs for Off-line Handwriting Recognition.

In Proceedings of the 8th International Workshop on Pattern Recognition in Information Systems, pages 86-92

 SciTePress

object to be recognised. To this purpose, we propose the use of Bernoulli HMMs, that

is, HMMs in which the state-conditional probability (density) function is not a con-

ventional Gaussian (mixture) density, but a multivariate Bernoulli (mixture) probability

function.

The paper is organised as follows. The deﬁnition of Bernoulli HMM and its EM-

based maximum likelihood estimation are given in Section 2. In Section 3, some em-

pirical results are reported on two tasks of handwriting word recognition. Finally, some

concluding remarks and future work are discussed in Section 4.

2 Bernoulli Hidden Markov Model

The deﬁnition of Bernoulli HMM and its Baum-Welch re-estimation formulae do not

differ signiﬁcantly from those of the conventional HMMs, based on either discrete

(multinomial) probability functions or continuous (Gaussian) densities. In this Section

we only describe the basic differences. Please see [5, 6] for more details.

Let O = (o

, . . . , o

) be a sequence of D-dimensional binary observation vectors

and let Q be a set of states. A Bernoulli HMM is an HMM in which the probability of

observing o

, given that the HMM is in state q at time t, is

b(o

| s

= q) =

d=1

(1 − p

)

1−x

, (1)

where p

is the probability for bit d to be 1 when the observation vector is generated

in state q. Note that (1) is just the product of conditionally independent unidimensional

Bernoulli variables given s

. Therefore it can not capture any kind of dependencies

or correlations between individual bits. The parameter vector associated with state q,

= (p

, . . . , p

)

, will be referred to as the prototype of the Bernoulli distribution

in state q.

Maximum likelihood estimation of the parameters governing an HMM can be car-

ried out using the EM algorithm for HMMs; i.e. using Baum-Welch (forward-backward)

re-estimation formulae. Assume that the likelihood is calculated with respect to N se-

quences O

, . . . , O

; with O

= (o

, . . . , o

) for all n = 1, . . . , N . At the end of

iteration k, the Bernoulli prototype corresponding to state q has to be updated as:

(k+1)

n=1

p(O

)

(k)

t=1

(k)

ntq

(k)

ntq

n=1

p(O

)

(k)

t=1

(k)

ntq

(k)

ntq

, (2)

where α

(k)

ntq

, β

(k)

ntq

and p(O

)

(k)

are derived in the E step, as usual, from the parameters

obtained in the previous iteration.

In order to avoid zero probabilities in Bernoulli prototypes, these are smoothed by

a linear interpolation with a ﬂat (uniform) prototype, 0.5,

p = (1 − λ) p + λ 0.5 , (3)

where typically λ = 10

−6

3 Experiments

In order to test the proposed model, experiments were carried out using two corpus

based on real tasks: recognition of handwritten Arabic cheques and recognition of hand-

written English text. The corpora, experiments and results obtained results are described

in what follows.

3.1 Corpora

The ﬁrst corpus that we used is a handwrittenArabic cheque database from CENPARMI

(Centre for Pattern Recognition and Machine Intelligence) [7]. Arabic script presents

several differences from Latin script. Arabic is written from right to left in cursive

script. Out of the 28 basic Arabic letters, 22 are cursive while 6 are non-cursive. Within

a word, cursive letters can be connected to succeeding letters, while non-cursive letters

can not. Therefore, an Arabic word can be separated into several subwords. The shape

of an Arabic letter may depend signiﬁcantly on its position within a subword. Because

of this, it is usual to use subwords instead of letters as basic recognition units.

The corpus was acquired from 3000 real cheques from a banking corporation in

Saudi Arabia. Images were preprocessed by binarisation and noise reduction. As a re-

sult, several databases were obtained and, for each database, a division into training and

testing sets was proposed. In this work we have used the non-touchingArabic subwords

database.

The non-touching Arabic subwords database has 96 different subwords and around

28000 samples. The amount of samples per subword is very variable, for example the

ﬁve most frequent subwords are above the 1000 for training, and the ﬁve less frequent

subwords haveonly one sample for training, furthermore,some subwords have not sam-

ples for testing. The width and height of samples between subwords are very variable

too, with aspect ratios between 0.3 and 4.8. Furthermore the aspect ratio of samples of

a subword could be very variable. In Figure 1 there are some examples.

The second corpus e used is the IAM-database [8],[9]. This corpus contains forms

of unconstrained handwritten English text. All texts were extracted from the LOB cor-

pus [10]. A total of 657 writers contributed. Several datasets were obtained by using

segmentations techniques, in particular we have used the handwritten words dataset. In

Figure 2 there are some examples.

This dataset contains approximately 115000 samples and approximately 13500 dif-

ferent words, but we only have considered those that are correctly segmented. There-

fore, the number of samples is approximately 96000 and the number of words approxi-

mately 12000. The amount of samples per word is very variable. For example, the most

frequent word has 4986 samples, and there are 6620 words with one sample and 11199

words with less than 10 samples. There is a great aspect ratio variability in corpus, with

values between 0.3 and 14.

In Table 1 some basic statistics are shown for both datasets.

3.2 Experiments

In order to test the Bernoulli HMMs without preprocess inﬂuence, a minimum (neces-

sary) preprocessing has to been done over the images. All images have been scaled in

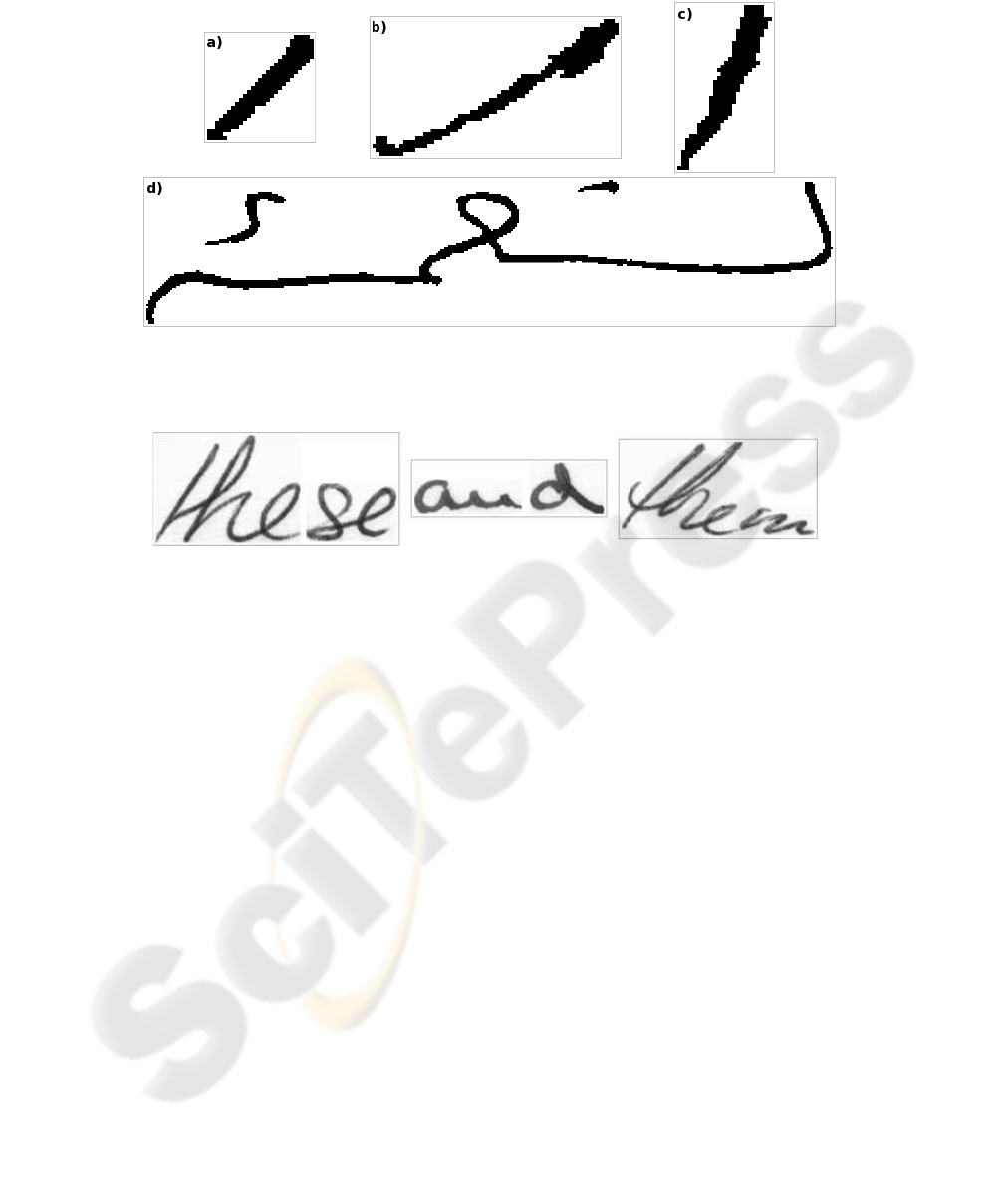

Fig.1. Four samples from Arabic subwords dataset. Three samples (a,b,c) from subword 1-08

with different aspect ratio and scaled ×4. The sample (d) of subword 6-01 scaled ×2.

Fig.2. Three samples from IAM words dataset. From left to right the words: these, and and them.

height to the same size while maintaining their original aspect ratio. Different heights

(D) have been considered: 10 and 20. In addition to this, an Otsu binarisation has been

carried out on the IAM words dataset.

Since both datasets have a great variability of the number of samples per class, we

have carried out the experiments with subsets from the original datasets. In the case of

Arabic subwords dataset, the ten most frequent subwords have been selected, and the

samples have been divided into training and testing sets respecting the original propor-

tion. For the IAM words dataset, the classes with at least 50 samples have been selected

(this includes samples from the 657 writers), and for each class, the 80% of samples are

intended for training and the others for testing. In Table 2 some characteristics of the

subsets are shown.

Experiments have been carried out for varying number of states, Q ∈ {10, 20,

40, 80, 160, 320}. The Bernoulli HMMs were initialised using a left-to-right topology

with skips as follows: ﬁrst we set up an order in hidden states, 1 being the ﬁrst and Q the

last, and for each parameter a counter is set to zero. Second, for each training sample

we distribute the binary vectors, at same distance each from other, over the states, and

the associated transition counters are increased. Bernoulli counters are increased in the

same way. Finally, initial parameter estimations are obtained by normalising counters.

After each Baum-Welch iteration, each Bernoulli prototype p is smoothed as explained

Table 1. Number of samples, average width, average height and average aspect ratio, for the three

most frequent classes from each dataset.

Arabic subwords

Class N.Samples Width Height A.Ratio

1-08 2920 37 25 1.58 ± 0.69

1-14 2677 42 28 1.52 ± 0.49

2-09 2450 72 59 1.25 ± 0.48

IAM words

Class N.Samples Width Height A.Ratio

the 4986 110 69 1.67 ± 0.54

, 4376 16 30 0.54 ± 0.24

. 4094 8 9 1.05 ± 0.35

Table 2. Number of classes, number of training samples, number of testing samples and average

ratio in both testing and training samples, for the Arabic subword dataset with the ten most

frequent subwords, and for the IAM words dataset with words that at least have 50 samples.

N.Classes N.S.training N.S.testing A.Ratio

Arabic subwords 10 13106 5456 1.26 ± 0.66

IAM words 180 44492 11122 1.63 ± 1.00

in (3). For each class-conditional Bernoulli HMM, 10 Baum-Welch iterations were ex-

ecuted.

For each experiment, several repetitions have been performed, by means of ran-

domly selected testing and training sets, respecting the original proportions for each

class. With the Arabic subwords dataset about 10 repetitions for Q = {320} and 30

repetitions for Q = {10, 20, 40, 80, 160} were carried out. With the IAM words dataset

about 2 repetitions for Q = {160, 320} were carried out, for Q = {10 , 20, 40, 80} 10

and 5 repetitions were carried out for D = 10 and D = 20, respectively.

3.3 Results

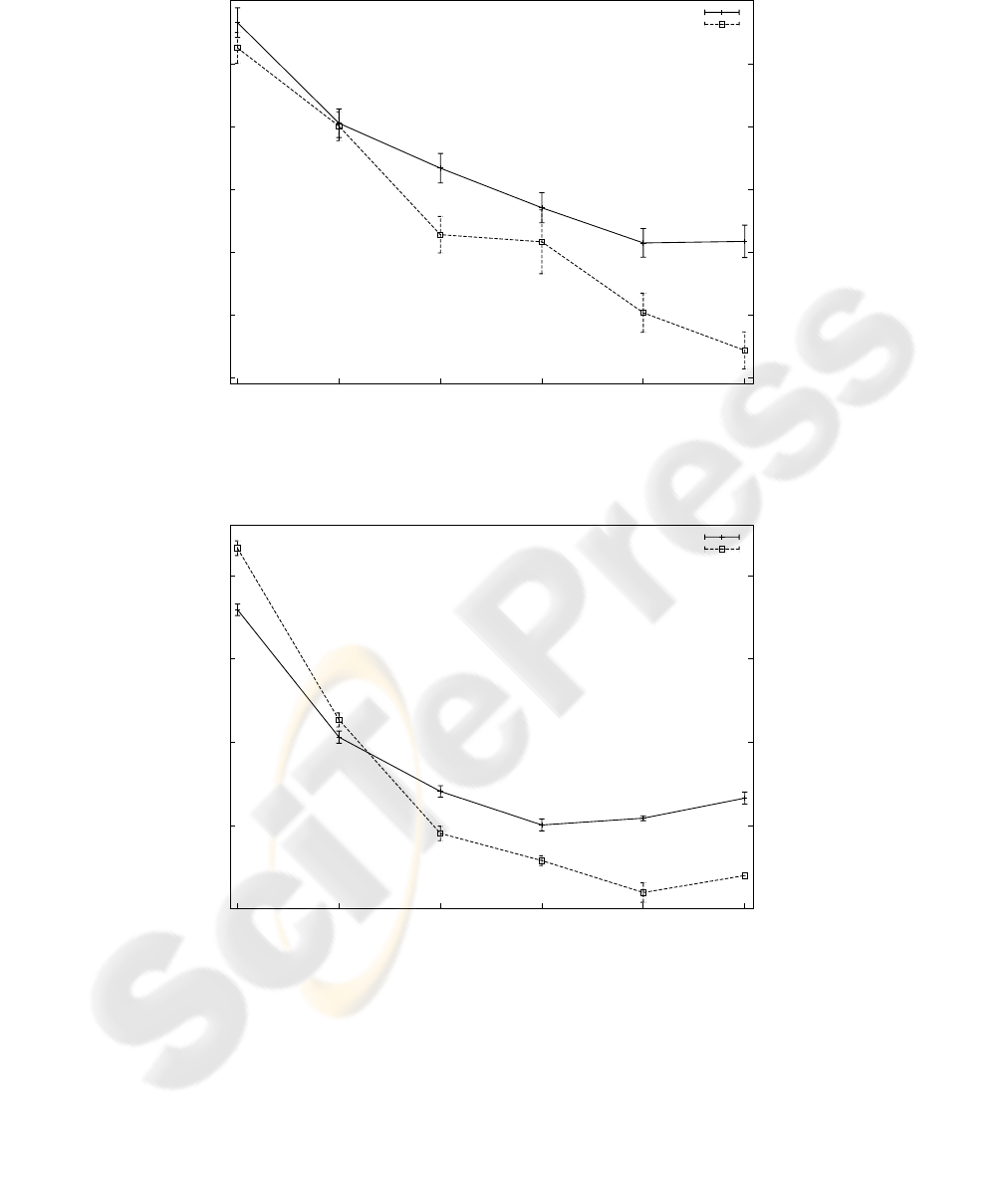

In Figure 3 the results for the Arabic subwords dataset are shown. The best result

(10.9%) is obtained with D = 20 and Q = 320. For D = 20 the results could

be improved by increasing the Q, however for D = 10 the best result is achieved

with Q = 160. The lowest classiﬁcation error (14.3%) is obtained with D = 20 and

Q = 160.

In Figure 4 the results for the IAM words dataset are shown. As in Arabic subwords,

the best results are obtained with D = 20, despite that better results are obtained with

D = 10 for low values of Q. The best result obtained, 31 .0%, is similar to the best

result in [3] using a single Gaussian density in each HMM state. It is worth noting,

however, that we use an independent Bernoulli HMM for each class while, in [3], each

class-conditional continuous HMM is built from more elementary HMMs at character

level.

320 160 80 40 20 10

D=10

D=20

Error %

Number of States (Q)

Fig.3. Error classiﬁcation with different number of states and heights (D) for the Arabic sub-

words dataset, with the ten most frequent subwords and several repetitions for each point.

320 160 80 40 20 10

D=10

D=20

Error %

Number of States (Q)

Fig.4. Error classiﬁcation with different number of states and heights (D) for the IAM words

dataset, with the words that have at least 50 samples and several repetitions for each point.

4 Concluding Remarks and Future Work

Bernoulli HMMs have been proposed for off-line handwriting recognition in order to

directly model text image data in binary form. Empirical results have reported on two

tasks of off-line handwritten word recognition: Arabic subwords from CENPARMI cor-

pus, and English words from IAM database. In both cases each word (subword) has

been modelled with one HMM, and only the required preprocess to obtain binary im-

ages of same height, has been done. Feature vectors of different sizes, as well as HMMs

with different number of states have been tested. The results on the Arabic subwords

task are promising. In the case of the IAM words, the results were very similar to those

obtained using HMMs with one Gaussian per state.

Ongoing work is focused on the use of Bernoulli HMMs at subword (character)

level and extend them by using Bernoulli mixtures instead of single Bernoulli probabil-

ity functions in each state. A ﬁrst step is to study the optimal number of states, training

iterations and Bernoulli components, as was done in [3] for the case of Gaussian com-

ponents. Then, we also plan to include explicit modelling of invariances in Bernoulli

components. In addition we plan to compare the results with other recognisers, mainly

with Gaussian HMMs recognisers.
