RANDOM VS. SCENARIO-BASED VS. FAULT-BASED TESTING

An Industrial Evaluation of Formal Black-Box Testing Methods

Martin Weiglhofer and Franz Wotawa

Institute for Software Technology, Graz University of Technology, Inffeldgasse 16b/II, 8010 Graz, Austria

Keywords:

Formal Methods, Evaluation, Input/Output Conformance (ioco), Random Testing, Test Purposes, Fault-based

Testing, TGV, TorX.

Abstract:

Given a formal model of a system under test there are different strategies for deriving test cases from such

a model systematically. These strategies are based on different underlying testing objectives and concepts.

Obviously, their usage has impact on the generated test cases. In this paper we evaluate random, scenario-

based and fault-based test case generation strategies in the context of an industrial application and assess

the advantages and disadvantages of these three strategies. The derived test cases are evaluated in terms of

coverage and in terms of the detected errors on a commercial and on an open source implementation of the

Voice-Over-IP Session Initiation Protocol.

1 INTRODUCTION

Due to the complexity of todays software systems,

testing becomes more and more important. Espe-

cially, for safety-critical systems and for high avail-

ability systems software testing is essential. However,

software testing is a tedious, time consuming, expen-

sive and error prone task. Assessing the correctness

of a software system with respect to a textual spec-

iﬁcation or at least getting a high conﬁdence of the

correctness requires systematic testing.

Model-based test case generation techniques

claim to address these issue, by deriving test cases

from a given formal model. There are different strate-

gies for generating the test cases. The simplest used

strategy is test generation based on randomness. The

test generation algorithm relies on random decisions

during test case synthesis. A second strategy is to

guide test case generation by user speciﬁed scenarios.

These scenarios tell the test generation tools for which

parts of the model they should generate test cases. A

third possible strategy is to use anticipated fault mod-

els in order to test for particular faults. Theoretically,

this allows to prevent a system from implementing

concrete faults at the speciﬁcation level.

Mature research prototypes (e.g. TGV (Jard and

eron, 2005), TORX (Tretmans and Brinksma, 2003),

. . . ) and a sound underlying theory (Tretmans, 1996)

suggest the application of such formal methods for

black box testing in industrial projects. Existing case

studies (Fernandez et al., 1997; Kahlouche et al.,

1998, 1999; Laurencot and Salva, 2005; Philipps

et al., 2003; Kov

acs et al., 2003), report on the appli-

cation of formal testing techniques to different sized

applications. Basically, they report on the applica-

tion of a particular test generation technique to cer-

tain problems. In difference to that du Bousquet et al.

(2000) report on comparing the two tools TORX and

TGV when detecting faulty versions of an conference

protocol implementation. Pretschner et al. (2005)

provides a comparison of hand-crafted and automati-

cally generated test cases (using a single strategy) in

terms of error detection, model coverage and imple-

mentation coverage on an automotive network con-

troller. In difference to that, we focus on the evalua-

tion of different test generation strategies.

However, applying random, scenario-based and

fault-based test case generation techniques in an in-

dustrial settings raises some open questions of impor-

tance: (1) Which of the three strategies work best?

Does one of these strategies outperform the others?

(2) What are the beneﬁts and drawbacks of these

strategies? (3) Given a formal speciﬁcation what is

the additional effort needed to apply these techniques

to concrete industrial applications? In this paper we

assess the mentioned methods in order to provide

some answers to these three questions.

Of course, there are other aspects, beside the men-

115

Weiglhofer M. and Wotawa F. (2008).

RANDOM VS. SCENARIO-BASED VS. FAULT-BASED TESTING - An Industrial Evaluation of Formal Black-Box Testing Methods.

In Proceedings of the Third International Conference on Evaluation of Novel Approaches to Software Engineering, pages 115-122

DOI: 10.5220/0001764501150122

 SciTePress

tioned questions, which prevent companies from us-

ing formal methods within their software engineering

processes. These aspects include educating students

in writing formal speciﬁcations and increasing the us-

ability of the available tools as well as proving their

applicability to real-world systems. Even these prob-

lems have been known in the past they are still valid

today and have to be tackled. However, we belief that

providing proof of concepts studies and results ob-

tained from real world examples like in this paper will

help to increase the use of formal methods in practice.

This paper continues as follows: in Section 2 we

brieﬂy introduce the underlying formal theory. The

used test case generation strategies and the available

tools are discussed in Section 3. Section 4 presents

the obtained ﬁgures and a discussion of our empiri-

cal evaluation. We draw our ﬁnal conclusions in Sec-

tion 5.

2 USING FORMAL METHODS

FOR TEST CASE GENERATION

There are various techniques for automatic test case

generation using formal models. Among others,

test cases can be derived from ﬁnite state machines

(FSM), i.e. the formal model is represented as a FSM.

An overview of FSM based testing techniques is

given by Lee and Yannakakis (1996). Other methods

use model-checkers to automatically derive test cases

from formal models. Fraser et al. (2007) presents a

survey on state of the art model-checker based test

case generation.

Another approach which has been used for the

evaluation presented in this paper, relies on input-

output labeled transition systems (IOLTS) for test

case generation.

Figure 1 illustrates an example IOLTS, represent-

ing a vending machine that gives tea (!tea) if one coin

(?1) is inserted or returns the inserted coin (!1). If it

gives tea the machine cleans the internal pipes and re-

sets itself to the initial state. This cleaning action is

unobservable (τ). If a user inserts successively two

coins (!1, !1) it either gets coffee or the machine re-

turns the two inserted coins (!2). Again, after dispens-

ing coffee the machine (invisibly) cleans its pipes in

order to get ready for new orders.

In general, an IOLTS consists of a ﬁnite set of

states and labeled edges connecting these states. La-

bels are either input-labels, denoted by ?, or output-

labels, expressed by !. The label τ represents an un-

observable action.

The input-output conformance testing theory of

Tretmans (1996) uses a conformance relation between

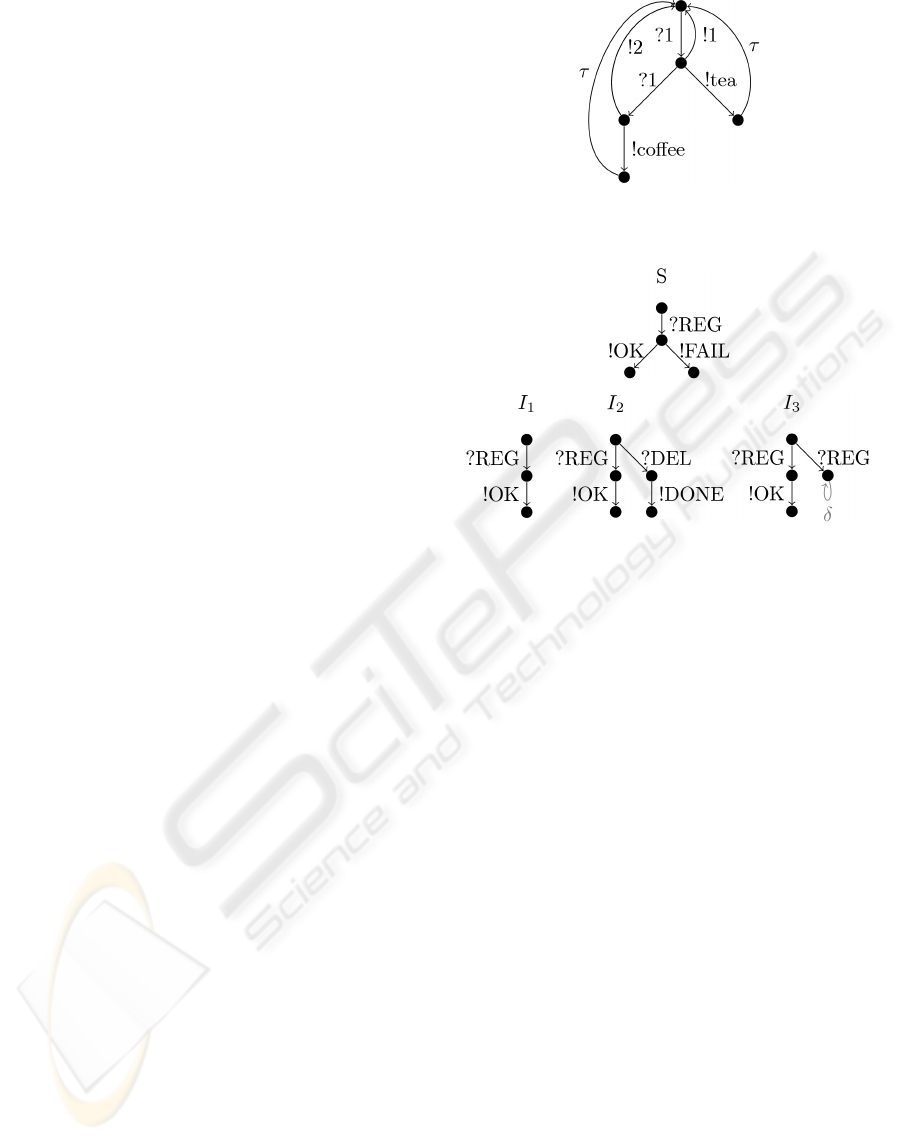

Figure 1: Example of a labeled transition system represent-

ing a vending machine.

Figure 2: Speciﬁcation and three different implementations

of a simple registration protocol.

IOLTSs in order to express the conformance between

implementations and their speciﬁcations. This the-

ory says that an implementation under test (IUT) con-

forms to a speciﬁcation (S), iff the outputs of the IUT

are outputs of S after an arbitrary suspension trace of

S. The examples of Figure 2 serve to illustrate this

conformance relation.

The ﬁrst implementation I

of Figure 2 is input-

output conform to the speciﬁcation S, since the def-

inition says, that outputs of I have to be allowed by

the speciﬁcation, which is obviously true for any pos-

sible trace of S. Also the second implementation I

an implementation of S. Since, the input-output con-

formance relation (ioco) only argues over all possible

traces of S an implementation may behave arbitrary

on traces that are unspeciﬁed in S. This reﬂects the

practical fact, that speciﬁcations may be incomplete.

non-deterministically answers with !OK or does not

answer at all (right branch after ?REG). In order to de-

tect such faulty behavior, ioco introduces quiescence.

A quiescent state is a state which either does not have

any output (!) edges nor any internal edges (τ). Such

states are marked with a special edge labeled with δ.

The suspension traces used by the ioco relation are

traces possibly containing δ actions. Thus, I

is not

conforming to the speciﬁcation S, because the out-

puts of I

after the trace ?REG are {!OK, δ} while the

speciﬁcation only allows {!OK, !FAIL}.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

116

In summary, the ioco relation seems to be appli-

cable to industrial sized problems because: (1) it is

suited to handle incomplete speciﬁcations, and (2)

it allows for using non-deterministic speciﬁcations.

Both issues are important because there are hardly

deterministic or complete speciﬁcations available in

practice. Non-determinism is typically introduced

by abstracting from unnecessary real-world details

within speciﬁcations. Nevertheless, the ioco relation

relies on two assumptions. First, it assumes that qui-

escence can be detected, which is usually done by us-

ing timeouts. Second, it requires that the application

accepts any input at any time, which is often true for

robust protocols, but may cause some problems for

other applications.

Based on this conformance relation we can gener-

ate test cases that examine whether an implementation

conforms to a given speciﬁcation or not.

3 THREE TECHNIQUES FOR

MODEL-BASED TESTING

There are several strategies for deriving test cases

from models with respect to input-output confor-

mance testing. Among others, commonly used strate-

gies are: (1) random testing, (2) scenario-based test-

ing using test purposes, and (3) fault based testing.

Thus, we focus on these three techniques.

3.1 TORX - Random

The TORX tool (Tretmans and Brinksma, 2003) ex-

amines an implementation under test by traversing

a speciﬁcation’s state space randomly. In each state

TORX randomly selects between sending an stimulus

to the system under test (SUT) or waiting for an re-

sponse from the SUT if both options are allowed by

the formal speciﬁcation. If only sending stimuli is al-

lowed TORX chooses randomly one of the possible

stimuli. Otherwise TORX waits for an response from

the system under test.

This procedure is continued until a difference be-

tween the implementation and the speciﬁcation is de-

tected or until a certain test sequence length has been

reached.

3.2 TGV - Scenario-based

The TGV tool (Jard and J

eron, 2005), which comes

with the CADP toolbox (Garavel et al., 2002), uses

test purposes for focusing the test generation process.

A test purpose allows to cut parts of the speciﬁcation

which are not relevant for a particular testing scenario.

By the use of a set of test purposes test generation

can be focused on relevant scenarios. Thus, we have

control over the generated test cases.

For a given test purpose TGV either derives one

test case equipped with Pass, Fail and Inconclusive

states or a complete test graph representing all test

cases corresponding to the given test purposes.

When the testing activity ends in an Inconclusive

state the implementation has not done anything

wrong, but the system’s response leads to a part of

the speciﬁcation that has been cut by the test purpose.

3.3 TGV - Fault-based

Aichernig and Delgado (2006) propose a technique

that allows to generate test purposes based on antici-

pated fault models. By the use of mutation operators

they generate faulty version, i.e. mutants, from the

original speciﬁcation. Then they construct the IOLTS

for the original speciﬁcation and minimize S

to S.

This minimization removes all unobservable τ actions

from S

. In addition, Aichernig and Delgado (2006)

construct a minimized IOLTS S

for every mutant

M. An equivalence check between an mutant’s IOLTS

and the speciﬁcation’s IOLTS gives a discriminating

sequence if there is an observable difference between

S and S

. This discriminating sequence is used as a

test purpose which leads to a test case that fails on

implementations that implement the mutant.

This procedure suffers from scalability issues, be-

cause it requires the construction of the complete state

spaces for the speciﬁcation and the mutant. Aichernig

et al. (2007a) overcome this issue by exhibiting the

knowledge of the position of the injected fault in or-

der to search for a discriminating sequence on the rel-

evant parts of the state spaces only.

4 COMPARING THESE THREE

TECHNIQUES IN PRACTISE

We use the session initiation protocol (SIP) for the

evaluation of the three discussed test case genera-

tion strategies. In order to assess the different test-

ing strategies we executed the generated test cases

against the open source implementation OpenSER

and against a commercial implementation of the SIP

Registrar. We conducted all our experiments on a PC

with an AMD Athlon(tm) 64 X2 Dual Core Processor

4200+ and 2GB RAM.

RANDOM VS. SCENARIO-BASED VS. FAULT-BASED TESTING - An Industrial Evaluation of Formal Black-Box

Testing Methods

117

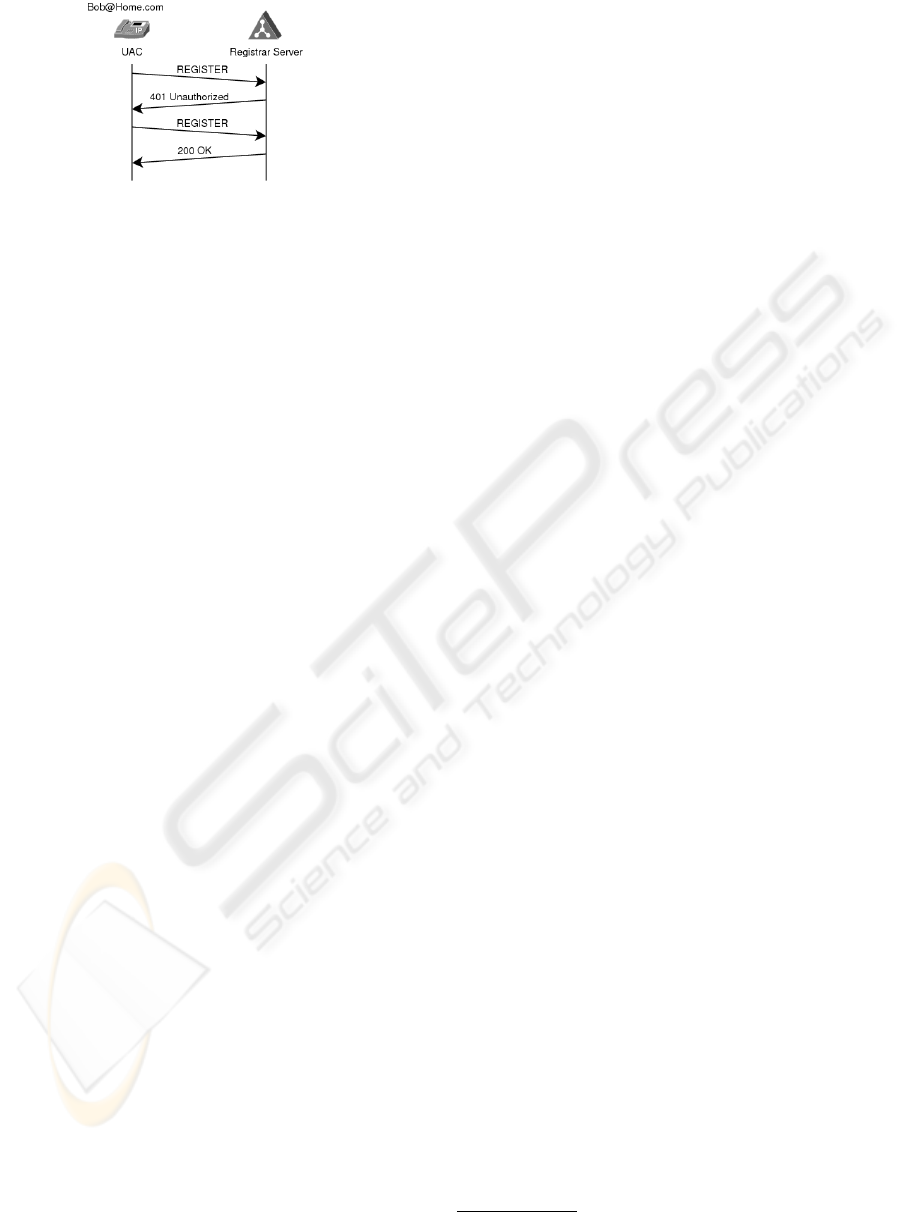

Figure 3: Simple Call-Flow of the registration process.

4.1 System under Test: Session

Initiation Protocol

The Session Initiation Protocol (SIP) handles commu-

nication sessions between two end points. The focus

of SIP is the signaling part of a communication ses-

sion independent of the used media type between two

end points. More precisely, SIP provides communica-

tion mechanisms for user management and for session

management. User management comprises the deter-

mination of the location of the end system and the

determination of the availability of the user. Session

management includes the establishment of sessions,

transfer of sessions, termination of sessions, and mod-

iﬁcation of session parameters.

SIP deﬁnes various entities that are used within a

SIP network. One of these entities is the so called

Registrar, which is responsible for maintaining loca-

tion information of users.

An example call ﬂow of the registration process

is shown in Figure 4.1. In this example, Bob tries to

Bob@home.com. Because the server needs authen-

tication, it returns “401 Unauthorized”. This mes-

sage contains a digest which must be used to re-send

the register request. The second request is encrypted

using the HTTP-Digest method described by Franks

et al. (1999). This request is accepted by the Registrar

and answered with “200 OK”. The full description of

SIP is given by Rosenberg et al. (2002).

In cooperation with our industry partner’s do-

main experts we developed a formal speciﬁcation

covering the full functionality of a SIP Registrar.

This obtained LOTOS speciﬁcation comprises approx.

3KLOC (net.), 20 data types (contributing to net.

2.5KLOC), and 10 processes. Note, that the Registrar

determines response messages through evaluation of

the request data ﬁelds rather than using different re-

quest messages. Thus, our speciﬁcation heavily uses

the concept of abstract data types. Details of our SIP

Registrar speciﬁcation can be found in (Weiglhofer,

2006).

4.2 Beneﬁts and Drawbacks of the

Three Techniques

Table 1 gives a general overview of using the differ-

ent techniques in a practical setting. This table shows

for each of the three techniques (1st column) whether,

given a speciﬁcation, the test generation can be fully

automated or if some additional manual work is nec-

essary (2nd column). The 3rd column shows the av-

erage length of the executed test sequences. The next

columns depict, the average time needed to generate

a single test case (4th column) and the overall number

of generated test cases (5th column). Note, that we

used different numbers of test runs for random test-

ing. While Table 1 only contains results for 5000

test runs, Section 4.3 lists detailed information on

the different experiments. In addition, Table 1 shows

the code coverage

on the open source implementa-

tion in terms of function coverage (6th column), con-

dition/decision coverage (7th column), and decision

coverage (8th column). Because of technical reasons

we are not able to provide coverage measurements for

the commercial implementation.

In addition, Table 1 illustrated the number of de-

tected faults within the open source implementation

(9th column) and within the commercial SIP Registrar

(10th column). Finally, the 11th column illustrates

whether all known faults of the implementations are

found by a particular technique.

As it can be seen from that table, the average

length of the executed test cases is approximately

twice as long for the random testing strategy as for

the other two techniques. Note, that we limited the

maximum length of test sequences to 25 steps for ran-

dom testing. However, the generation of fault-based

test cases requires much more time than random or

scenario based testing.

The code coverage shows some interesting prop-

erties of the generated test cases. First of all, ran-

dom testing covers less functions than the test cases

derived from our scenarios. This is because there

is a complex scenario which require a particular se-

quence of test messages in order to put the Registrar

into a certain state. If the Registrar is in this state it

uses additional functions for processing REGISTER

requests. Unfortunately, the random test generation

never selected this sequence from the formal speciﬁ-

cation.

The condition/decision (C/D) coverage achieved

by random testing is higher than the C/D coverage

from scenario-based testing. That means, that random

For coverage measurements we use the Bullseye Cov-

erage Tool: http://www.bullseye.com

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

118

Table 1: Overview of the main results using random, scenario-based and fault-based test case generation techniques.

Technique

auto-

mated

seq.

length

test

gen.time

test

cases

avg. coverage detected faults all

faultsF C/D D o.s. comm.

random 3 10.95 4s 5000 73% 38% 42% 4 5 7

scenarios 7 4.53 1s 5408 78% 36% 40% 4 9 7

fault-based 3 4.78 45m33s 72 70% 30% 32% 4 6 7

testing has inspected the covered functions more thor-

oughly. Our fault-based test cases achieve less code

coverage than the other two approaches. However,

we only need to execute 72 test cases which requires

less effort for the analysis of the test results.

All applied test cases together detected 11 differ-

ent faults in the commercial implementation and 5

different discrepancies between the open source im-

plementation and our speciﬁcation. The faults de-

tected by the fault-based test cases are also detected

by the scenario based approach. The random testing

approach revealed in both implementations one fault

that has not been detected by the other two techniques.

The detected faults occur on messages sequences that

have not been selected within the scenario based test-

ing. Also the fault-based test case generation ap-

proach did not come up with this sequences.

Overall, the results illustrated by this table are

disappointing, because there is no single technique

which found all known faults, i.e. the faults detected

by all three techniques together, on both implementa-

tions. Thus, each technique has its different strengths

and weaknesses when applied in an industrial project,

which will be analyzed in the following.

4.3 TORX- Random

In order to test a certain application using TORX and

a given speciﬁcation, a test driver needs to be imple-

mented. The aim of a test driver is to convert abstract

test messages to concrete stimuli for the system un-

der test (SUT) and to transform responses from the

SUT to abstract events that match within the speciﬁ-

cation. Because writing test drivers is a time consum-

ing task we implemented a more generic test driver

based on the rule-based rewriting system of Peischl

et al. (2007).

Random Testing based on the input-output con-

formance relation using TorX basically has following

advantages and disadvantages:

3 Testing may result into test sequences of arbitrary

length (up to a certain bound)

3 Given a speciﬁcation and a test driver, testing is

fully automated

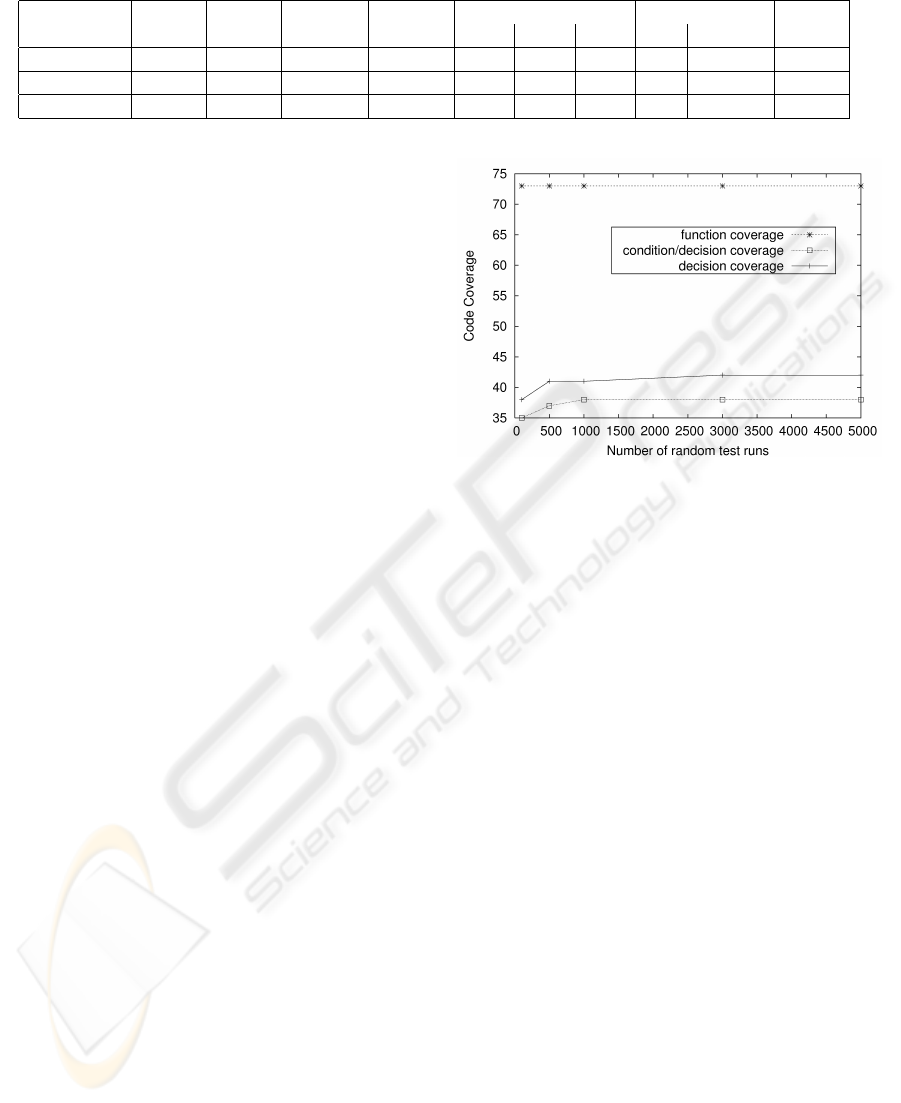

Figure 4: Code coverage on the source code when using

different numbers of random test runs on the open source

implementation.

3 Since, the relevant states of the speciﬁcation are

constructed during test execution, TORX is appli-

cable to huge speciﬁcations

7 There is no possibility for guiding the testing pro-

cess, e.g. in order to get good model coverage

Figure 4 illustrates the evolvement of different

coverage criteria when increasing the number of ran-

dom test runs on the source code of the OpenSER

Registrar. This diagram shows, that the function cov-

erage does not increase at all when increasing the

number of random test runs on the open source Regis-

trar. This is basically, because the called functions are

almost always the same for most of the REGISTER

message. However, the code coverage within these

functions (reﬂected by condition/decision and by de-

cision coverage) increases if we use more random test

sequences.

4.4 TGV - Scenario-based

For our speciﬁcation, we identiﬁed ﬁve relevant sce-

narios within the RFC (Rosenberg et al., 2002). For

each scenario we wrote a single test purpose for which

we generated all test cases using the algorithm of

Aichernig et al. (2007b).

During test execution, we reset the implementa-

tion under test before running a certain test case in

RANDOM VS. SCENARIO-BASED VS. FAULT-BASED TESTING - An Industrial Evaluation of Formal Black-Box

Testing Methods

119

Table 2: Test execution results of using test case derived

from ﬁve manually written test purposes on the two differ-

ent SIP Registrar implementations.

Test gen. OpenSER Comm.

Purpose time pass fail pass fail

notfound 12s 880 0 0 880

invalid req. 12s 1008 320 0 1328

unauth. 15s 130 302 260 172

ok 12s 1104 384 1104 384

delete 1h57m 1148 132 16 1264

Total 1h58m 4270 1138 1380 4028

order to ensure a particular system state.

A closer look on this technique leads to following

advantages and disadvantages:

3 Using test purposes gives the test engineer more

or less precise control over the generated test

cases

3 Due to an incremental test case generation TGV

does not require the complete speciﬁcation’s state

space, which makes this technique applicable to

large sized (inﬁnite) speciﬁcations.

7 Test purposes allow to specify refuse states, which

cut the search space and consequently decrese the

test generation time. If test purposes lack of such

states test generation may become slow.

7 Given a speciﬁcation, some additional time is

needed to develop a set of test purposes

7 To our best knowledge, there are currently no

techniques available to evaluate the quality of test

purposes

7 Depending on the test purposes this procedure

may lead to many test cases possibly failing be-

cause of the same root causes.

The results of executing the derived test cases

against the two different implementations are illus-

trated in Table 2. This table shows the test generation

time in seconds (2nd column), for each test purpose

(1st column). In addition, this table contains the num-

ber of passed (3rd and 5th column) and the number of

failed test cases (4th and 6th column) for the open

source implementation (3rd and 4th column) and the

commercial implementation (5th and 6th column).

As there can be seen, we have many failed test

cases. Analyzing this failed test cases leads to 9 dif-

ferent faults on the commercial implementation and

4 different faults on the open source Registrar. Thus,

many test cases fail because of the same errors, which

makes test result analysis a time consuming task.

Table 3: Test execution results of using fault-based test

cases on the two different SIP Registrar implementations.

Mutation OpenSER Commercial

Operator pass fail inc. pass fail inc.

EIO 0 7 18 3 20 2

EIO+ 1 7 27 9 23 3

ESO 0 4 1 0 4 1

MCO 0 5 2 0 2 5

EIO/a 8 0 17 6 0 19

EIO+/a 8 0 27 8 0 27

ESO/a 2 1 2 3 1 1

MCO/a 0 5 2 0 5 2

Total 19 29 96 29 55 60

4.5 TGV - Fault-based

We developed a mutation tool that takes a LOTOS

speciﬁcation and uses some mutation operators (as-

sociation shift operator [ASO], event drop operator

[EDO], event insert operator [EIO], event swap op-

erator [ESO], missing condition operator [MCO]) of

Black et al. (2000) and of Srivatanakul et al. (2003)

in order to generate faulty versions (mutants) of the

speciﬁcation for each possible mutation. In addition,

our mutation tool inserts markers such that we are

able to extract the speciﬁcation’s relevant part only

(see Section 3.3).

By the use of this mutation tool we generated 95

faulty versions of our speciﬁcation. 23 of this 95 mu-

tants do not exhibit an observable fault, thus we get

72 test purposes using the fault based test purpose

generation technique. For a fault-based test purpose

it is sufﬁcient to use a single test case derived from

this test purpose, since every test case of the test pur-

pose will fail if the faulty speciﬁcation has been im-

plemented.

The average time needed to derive a test case from

a faulty version of the speciﬁcation is approximately

40 minutes. This average is high because of some

complex mutants. Anyway, for the majority of mu-

tants (94%) the corresponding test case is generated

within 16 minutes.

All fault-based generated test cases follow the

same structure. They start with some preamble which

brings the implementation to a particular state that

possibly exhibits the faulty behavior. There they try

to observe whether or not the faulty speciﬁcation has

been implemented.

Table 3 show the obtained results when executing

the derived test cases on our two implementations of

the SIP Registrar. This table lists for each mutation

operator (1st column), the number of passed (2nd and

5th column), failed (3rd and 6th column) and incon-

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

120

clusive (4th and 7th column) test cases for the open

source (2nd, 3rd and 4th column) and the commercial

Registrar (5th, 6th and 7th column).

Note, that we executed the derived test cases

against the implementations using two different con-

ﬁgurations. The results from the 2nd to the 5th row

show the results when authentication was turned off,

while the results from the 6th to the 9th row show

the results for the Registrars when authentication was

turned on.

The used EIO+ operator is a derivative of the EIO

operator but inserts an output event instead of insert-

ing an event by duplicating a previous event. This

generates more observable faults, since the EIO op-

erator may duplicate τ events which results into an

unobservable difference between the mutant and the

speciﬁcation.

We identiﬁed following advantages and disadvan-

tages of the fault-based approach:

3 The fault-based test case generation strategy al-

lows to test for the absence of particular faults at

the level of the speciﬁcation.

3 Given a formal speciﬁcation the test generation

can be fully automated.

3 We need only one test case per mutant which re-

sults into manageable test suite sizes.

7 The overall test case generation process, espe-

cially the test purpose generation, is a time con-

suming task.

7 If the generated test cases fail to execute their

preambles, testing for a speciﬁc fault may be in-

feasible, i.e., test cases terminate with inconclu-

sive verdicts.

5 CONCLUSIONS

In this paper we have evaluated random, scenario-

based and fault-based test generation techniques, by

testing two implementations of an Session Initiation

Protocol Registrar. A closer look on the empirical re-

sults allows to answer the initially stated questions.

Which of the Three Strategies Work Best? Our

evaluation shows that no one of these three

methods outperforms the others. The fault-based

approach works worst and reveals no additional

failures. The random and the scenario-based ap-

proach perform almost equal and detect failures

that are not found by the other approaches.

What are the Beneﬁts and Drawbacks. Basically,

all of the evaluated testing strategies allow to

systematically derive test cases for industrial-

sized speciﬁcations. The quality and the number

of the derived test cases differ. Fault-based test

generation gives a low number of test cases with

a code coverage lower than that of the other

two techniques. Random testing may require a

long time to ﬁnd particular failures, but possibly

ﬁnds failures overseen by scenario-based testing.

Scenario-based testing uses user speciﬁed scenar-

ios to guide the test generation process. In that

case, the overall quality of the test cases depend

on the quality of the speciﬁed scenarios.

What are the Additional Efforts. The model-based

testing techniques start from a formal model. Typ-

ically, the industry refuses from writing such

models since they belief that this is a time con-

suming. Reasons for that are the complexity of

nowadays formal modelling languages and the

lack of good tool support. As concluded by

Pretschner et al. (2005), we also belief that the use

of models pay off in terms of failure detection. In

addition, to the formal model a test driver which

converts test messages to concrete system inputs

is needed in order to execute the derived test cases.

However, given a formal speciﬁcation and a test

driver, fault-based testing and random testing can

be completely automated. For scenario based test-

ing the user needs to specify test purposes manu-

ally. These test purposes allow to control the test

generation process, but require additional work.

Finally, we have to mention that we were able to

reveal several differences between the speciﬁcation

and its implementations. Since the implementations

are deployed in industrial Voice-over-IP networks this

case study shows the relevance of model-based testing

for industry.

ACKNOWLEDGEMENTS

The research herein is partially conducted within

the competence network Softnet Austria (www.soft-

net.at) and funded by the Austrian Federal Ministry

of Economics (bm:wa), the province of Styria, the

Steirische Wirtschaftsf

orderungsgesellschaft mbH.

(SFG), and the city of Vienna in terms of the center

for innovation and technology (ZIT).

We are grateful to Alexander Pilz for his help with

the implementation of the TORX adapter module.

RANDOM VS. SCENARIO-BASED VS. FAULT-BASED TESTING - An Industrial Evaluation of Formal Black-Box

Testing Methods

121

REFERENCES

Aichernig, B. K. and Delgado, C. C. (2006). From faults via

test purposes to test cases: On the fault-based testing

of concurrent systems. In Proceedings of the 9th Inter-

national Conference on Fundamental Approaches to

Software Engineering, volume 3922 of LNCS, pages

324–338. Springer.

Aichernig, B. K., Peischl, B., Weiglhofer, M., and Wotawa,

F. (2007a). Protocol conformance testing a SIP reg-

istrar: An industrial application of formal methods.

In Hinchey, M. and Margaria, T., editors, Proceed-

ings of the 5th IEEE International Conference on Soft-

ware Engineering and Formal Methods, pages 215–

224, London, UK. IEEE.

Aichernig, B. K., Peischl, B., Weiglhofer, M., and Wotawa,

F. (2007b). Test purpose generation in an industrial

application. In Proceedings of the 3rd International

Workshop on Advances in Model-Based Testing, pages

115–125, London, UK.

Black, P. E., Okun, V., and Yesha, Y. (2000). Mutation op-

erators for speciﬁcations. In Proceedings of the 15th

IEEE International Conference on Automated Soft-

ware Engineering, pages 81–88, Grenoble, France.

IEEE.

du Bousquet, L., Ramangalahy, S., Simon, S., Viho, C.,

Belinfante, A., and de Vries, R. G. (2000). Formal

test automation: The conference protocol with TGV/-

TORX. In Proceedings of 13th International Confer-

ence on Testing Communicating Systems: Tools and

Techniques, volume 176 of IFIP Conference Proceed-

ings, pages 221–228, Dordrecht. Kluwer Academic

Publishers.

Fernandez, J.-C., Jard, C., J

eron, T., and Viho, C. (1997).

An experiment in automatic generation of test suites

for protocols with veriﬁcation technology. Science of

Computer Programming, 29(1-2):123–146.

Franks, J., Hallam-Baker, P., Hostetler, J., Lawrence, S.,

Leach, P., Luotonen, A., and Stewart, L. (1999).

HTTP authentication: Basic and digest access authen-

tication. RCF 2617, IETF.

Fraser, G., Wotawa, F., and Ammann, P. (2007). Testing

with model checkers: A survey. Technical Report

SNA-TR-2007-P2-04, Competence Network Softnet

Austria.

Garavel, H., Lang, F., and Mateescu, R. (2002). An

overview of CADP 2001. European Association for

Software Science and Technology Newsletter, 4:13–

24.

Jard, C. and J

eron, T. (2005). TGV: theory, principles and

algorithms. International Journal on Software Tools

for Technology Transfer, 7(4):297–315.

Kahlouche, H., Viho, C., and Zendri, M. (1998). An indus-

trial experiment in automatic generation of executable

test suites for a cache coherency protocol. In 11th In-

ternational Workshop on Testing Communicating Sys-

tems, IFIP Conference Proceedings, pages 211–226.

Kluwer.

Kahlouche, H., Viho, C., and Zendri, M. (1999). Hard-

ware testing using a communication protocol confor-

mance testing tool. In Proceedings of the 5th Interna-

tional Conference Tools and Algorithms for Construc-

tion and Analysis of Systems, volume 1579 of LNCS,

pages 315–329. Springer.

Kov

acs, G., Pap, Z., Viet, D. L., Wu-Hen-Chang, A., and

Csopaki, G. (2003). Applying mutation analysis to

sdl speciﬁcations. In Proceedings of the 11th Interna-

tional SDL Forum, LNCS, pages 269–284, Stuttgart,

Germany. Springer.

Laurencot, P. and Salva, S. (2005). Testing mobile and dis-

tributed systems: Method and experimentation. In

Higashino, T., editor, Proceedings of the 8th Inter-

national Conference on Principles of Distributed Sys-

tems, volume 3544 of LNCS, pages 37–51. Springer.

Lee, D. and Yannakakis, M. (1996). Principles and methods

of testing ﬁnite state machines - a survey. Proceedings

of the IEEE, 84(8):1090–1123.

Peischl, B., Weiglhofer, M., and Wotawa, F. (2007). Execut-

ing abstract test cases. In Model-based Testing Work-

shop in conjunction with the 37th Annual Congress of

the Gesellschaft fuer Informatik, pages 421–426, Bre-

men, Germany. GI.

Philipps, J., Pretschner, A., Slotosch, O., Aiglstorfer, E.,

Kriebel, S., and Scholl, K. (2003). Model-based test

case generation for smart cards. Electronic Notes in

Theoretical Computer Science, 80:1–15.

Pretschner, A., Prenninger, W., Wagner, S., K

uhnel, C.,

Baumgartner, M., Sostawa, B., Z

olch, R., and Stauner,

T. (2005). One evaluation of model-based testing

and its automation. In Proceedings of the 27th Inter-

national Conference on Software Engineering, pages

392 – 401, St. Louis, Missouri, USA. ACM.

Rosenberg, J., Schulzrinne, H., Camarillo, G., Johnston, A.,

Peterson, J., Sparks, R., Handley, M., and Schooler, E.

(2002). SIP: Session initiation protocol. RFC 3261,

IETF.

Srivatanakul, T., Clark, J. A., Stepney, S., and Polack, F.

(2003). Challenging formal speciﬁcations by muta-

tion: a csp security example. In Proceedings of the

10th Asia-Paciﬁc Software Engineering Conference,

pages 340–350. IEEE.

Tretmans, J. (1996). Test generation with inputs, outputs

and repetitive quiescence. Software - Concepts and

Tools, 17(3):103–120.

Tretmans, J. and Brinksma, E. (2003). TorX: Automated

model based testing. In Hartman, A. and Dussa-

Zieger, K., editors, Proceedings of the 1st European

Conference on Model-Driven Software Engineering,

pages 13–25, Nurnburg, Germany.

Weiglhofer, M. (2006). A LOTOS formalization of SIP.

Technical Report SNA-TR-2006-1P1, Competence

Network Softnet Austria, Graz, Austria.

ENASE 2008 - International Conference on Evaluation of Novel Approaches to Software Engineering

122
