LANGUAGE-NEUTRAL SUPPORT OF DYNAMIC INHERITANCE

Jose Manuel Redondo, Francisco Ortin

University of Oviedo, Computer Science Department,Calvo Sotelo s/n, 33007, Oviedo, Spain

J. Baltasar Garcia Perez-Schoﬁeld

University of Vigo, Computer Science Department, As Lagoas s/n, 32004, Ourense, Spain

Keywords:

Dynamic inheritance, structural reﬂection, dynamic languages, JIT compilation, SSCLI, virtual machine,

prototype-based object-oriented model.

Abstract:

Virtual machines have been successfully applied in diverse scenarios to obtain several beneﬁts. Application

interoperability and distribution, code portability, and improving the runtime performance of programs are

examples of these beneﬁts. Techniques like JIT compilation have improved virtual machine runtime perfor-

mance, becoming an adequate alternative to develop different types of software products. We have extended a

production JIT-based virtual machine so they offer low-level support for structural reﬂection, in order to obtain

the aforementioned advantages in dynamic languages implementation.

As various dynamic languages offer support for dynamic inheritance, the next step in our research work is to

enable this support in the aforementioned JIT-based virtual machine. Our approach enables dynamic inheri-

tance in a language-neutral way, supporting both static and dynamic languages, so no language speciﬁcation

have to be modiﬁed to enable these features. It also enables static and dynamic languages to interoperate, since

both types are now low-level supported by our machine.

1 INTRODUCTION

Dynamic languages like Python (Rossum and Drake,

2003) or Ruby (Thomas et al., 2004) are frequently

used nowadays to develop different kinds of appli-

cations, such as adaptable and adaptive software,

Web development (the Ruby on Rails framework

(Thomas et al., 2005)), application frameworks (JSR

223 (Grogan, 2008)), persistence (Ortin et al., 2004)

or dynamic aspect-oriented programming (Ortin and

Cueva, 2004). These languages build on the Smalltalk

idea of supporting reasoning about (and customizing)

program structure, behavior and environment at run-

time. This is commonly referred to as the revival of

dynamic languages (Nierstrasz et al., 2005).

The main objective of dynamic languages is to

model the dynamicity that is sometimes required in

building high context-dependent software, due to the

mobility of both the software itself and its users. For

that reason, features like meta-programming, reﬂec-

tion, mobility or dynamic reconﬁguration and distri-

bution are supported by these languages. However,

supporting these features cause two main drawbacks:

the lack of static type checking and a considerable

runtime performance penalty.

Our past work (Ortin et al., 2005) (Redondo et al.,

2008) (Redondo et al., 2006a) (Redondo et al., 2006b)

has been focused on applying the same approach that

made virtual machines a valid alternative to develop

commercial software. Since many virtual machines of

dynamic languages are developed as interpreters, we

have used an efﬁcient virtual machine JIT compiler to

evaluate whether it is a suitable technique to achieve

advantages like improving their runtime performance.

The chosen virtual machine was the Microsoft Shared

Source implementation of the .Net platform (SSCLI).

Nowadays, there are initiatives to support dy-

namic languages modifying a production JIT-based

virtual machine, such as (Rose, 2008). Our approach

also adds new features to an existing virtual machine,

but we want to introduce full low-level support for the

whole set of reﬂective primitives that support the dy-

namicity of these languages, as part of the machine

services. The main advantages of our approach are:

1. Language processors of dynamic languages can

be implemented using the modiﬁed machine ser-

vices. Low-level support of structural reﬂection

Manuel Redondo J., Ortin F. and Baltasar Garcia Perez-Schoﬁeld J. (2008).

LANGUAGE-NEUTRAL SUPPORT OF DYNAMIC INHERITANCE.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 5-12

DOI: 10.5220/0001870400050012

 SciTePress

eases the implementation of its dynamic features.

2. Full backwards compatibility with legacy code.

Instead of modifying the syntax of the virtual ma-

chine intermediate language, we extended the se-

mantics of several instructions.

3. Reﬂective primitives are offered to any present or

future language (they are language-neutral).

4. Interoperability is now possible between static

and dynamic languages, since the machine sup-

ports both of them.

5. Obtain a performance advantage, since it is not

necessary to generate extra code to simulate dy-

namic functionalities –see section 2.2.

Existing implementations do not offer all the ad-

vantages and features of our approach. For exam-

ple, the Da Vinci virtual machine (OpenJDK, 2008)

(prototype implementation of the JSR292 speciﬁca-

tion (Rose, 2008)) will likely add new instructions to

its intermediate language. By doing this, its new fea-

tures will not be backward compatible, since compil-

ers must be aware of these instructions to beneﬁt from

the extended support they provide. Another example

is the Microsoft DLR (Chiles, 2008), which aims to

implement on top of the CLR several features to sup-

port dynamic languages. Languages must be designed

to target the DLR speciﬁcally to beneﬁt from its fea-

tures, so this implementation is not language-neutral.

In our past work we had successfully implemented

most of these primitives into the machine, enabling

low-level support to add, modify or delete any object

or class member. Prototype-based object-oriented se-

mantics (Borning, 1986) were also appropriately in-

troduced to solve those cases in which the existing

class-based model had not enough ﬂexibility to imple-

ment the desired functionality. The original machine

object model evolved into a hybrid model that support

both kinds of languages without breaking backwards

compatibility, also allowing direct interoperability be-

tween static and dynamic languages (Redondo et al.,

2008). The research prototype that incorporates all

these dynamic features is named Reﬂective Rotor or

zROTOR.

In this paper we will explain the next step of our

work, designing and implementing a new reﬂective

primitive into our system which will enable the users

to effectively use single dynamic inheritance over

the hybrid object model that zROTOR now supports.

Languages that support this feature (such as Python

(Rossum and Drake, 2003)) make possible, for exam-

ple, to change the inheritance hierarchy of a class at

run time (Lucas et al., 1995), allowing a greater de-

gree of ﬂexibility to its programs. With the addition of

this new primitive, the full set of structural reﬂective

primitives will be low-level supported by zROTOR.

The rest of this paper is structured as follows.

Section 2 describes the background of our work, ex-

plaining several concepts involved in its development

and the current state of our implementation prototype.

Section 3 details the design of the dynamic inheri-

tance support over the existing machine. Section 4

presents details about the implementation of our de-

sign and ﬁnally section 5 describe the ﬁnal conclu-

sions and future lines of work.

2 BACKGROUND

2.1 Type Systems of Dynamic

Languages

Dynamic languages use dynamic type systems to en-

able runtime adaptability of its programs. However,

a static type system offers the programmer the advan-

tage of early detection of type errors, making possible

to ﬁx them immediately rather than discovering them

at runtime or even after the program has been de-

ployed (Pierce, 2002). Another drawback of dynamic

type checking is low runtime performance, discussed

in the following section. There are some research

works that try to partially amend the disadvantages of

not being able to perform static type checking. These

include approaches like integrating unit testing facil-

ities and suites with dynamic languages (MetaSlash,

2008) or allowing static and dynamic typing in the

same language (Meijer and Drayton, 2004) (Ortin,

2008). This is the reason why we have focused our

efforts in improving runtime performance.

2.2 Runtime Performance of Dynamic

Languages

Looking for code mobility, portability, and distribu-

tion facilities, dynamic languages are usually com-

piled to the intermediate language of an abstract ma-

chine. Since its computational model offers dynamic

modiﬁcation of its structure and code generation at

runtime, existing virtual machines of dynamic lan-

guages are commonly implemented as interpreters.

This fact, plus the runtime type checking additional

cost, cause an important performance penalty when

compared to “static” languages.

Since the research in customized dynamic com-

pilation applied to the Self programming language

(Chambers and Ungar, 1989), virtual machine imple-

mentations have become faster by optimizing the bi-

ICSOFT 2008 - International Conference on Software and Data Technologies

nary code generated at run time using different tech-

niques. An example is the dynamic adaptive HotSpot

optimizer compilers. Speeding up the application ex-

ecution of dynamic languages by using JIT compila-

tion facilitates their inclusion in commercial develop-

ment environments.

Most works that use virtual machine JIT compil-

ers to improve runtime performance of dynamic lan-

guages are restricted to compilers that generate Java

or .Net bytecodes. These machines do not support

structural reﬂection, as they were created to support

static languages. Generating extra code is then needed

to simulate dynamic features over these machines,

leading to a poor runtime performance (Udell, 2003).

Examples of this approach are Python for .Net from

the Zope Community, IronPython from Microsoft or

Jython for the JVM platform.

Our approach uses a virtual machine with JIT

compilation to directly support any dynamic lan-

guage. Unlike existing implementations, we extended

the static computational model of an efﬁcient virtual

machine, adding the reﬂective services of dynamic

languages. This new computational model is then dy-

namically translated into the native code of a speciﬁc

platform using the JIT compiler. Instead of generat-

ing extra code to simulate the computational model

of dynamic languages, the virtual machine supports

these services directly. As a result, a signiﬁcant per-

formance improvement is achieved -see section 2.4.

2.3 Structural Reﬂection

Reﬂection is the capability of a computational system

to reason about and act upon itself, adjusting itself

to changing conditions (Maes, 1987). In a reﬂective

language, the computational domain is enhanced with

its own representation, offering its structure and se-

mantics as computable data at runtime. Reﬂection has

been recognized as a suitable tool to aid the dynamic

evolution of running systems, being the primary tech-

nique to obtain the meta-programming, adaptiveness,

and dynamic reconﬁguration features of dynamic lan-

guages (Cazzola et al., 2004).

The main criterion to categorize runtime reﬂec-

tive systems is taking into consideration what can

be reﬂected. According to that, three levels of re-

ﬂection can be identiﬁed: Introspection (read the

program structure), Structural Reﬂection (modify the

system structure, adding ﬁelds or methods to ob-

jects or classes, reﬂecting the changes at runtime)

and Computational (Behavioral) Reﬂection (System

semantics can be modiﬁed, changing runtime behav-

ior of programs).

2.4 zROTOR

Compiling languages to the intermediate code of a

virtual machine offers many beneﬁts, such as plat-

form neutrality or application interoperability (Diehl

et al., 2000). In addition, compiling languages to a

lower abstraction level virtual machine improves run-

time performance in comparison with direct interpre-

tation of programs.

Therefore, we have used the Microsoft .Net plat-

form as the targeted virtual machine to beneﬁt from

its design, focused on supporting a wide number of

languages (Meijer and Gough, 2000) (Singer, 2003).

The selection of an speciﬁc distribution was based

on the necessity of an open source implementation

to extend its semantics and an efﬁcient JIT compiler.

The SSCLI (Shared Source Common Language In-

frastructure, aka Rotor) implementation has been our

ﬁnal choice because it is nearer to the commercial

virtual machine implementation: the Common Lan-

guage Runtime (CLR) (Stutz et al., 2003).

To date, we have successfully extended the exe-

cution environment to adapt the semantics of the ab-

stract machine, obtaining a new reﬂective computa-

tional model that is backward compatible with exist-

ing programs. We have also extended the Base Class

Library (BCL) to add new structural reﬂection prim-

itives (add, remove and modify members of any ob-

ject or class in the system), instead of deﬁning new IL

statements. We refer to this new platform as Reﬂec-

tive Rotor or zROTOR.

The assessment of our current zROTOR implemen-

tation has shown us that our approach is the fastest if

compared to widely used dynamic languages such as

Python and Ruby (Redondo et al., 2008). When run-

ning reﬂective tests, our system is on average almost 3

times faster than the fastest commercial dynamic lan-

guages implementations. When running static code,

our system is 3 times faster than the rest of tested

implementations, needing a signiﬁcantly lower mem-

ory usage increment (at most 102% more). Finally,

we have also evaluated the cost of our enhancements.

When running real applications that do not use reﬂec-

tion at all, empirical results show that the performance

cost is generally below 50%, using 4% more memory.

2.5 The Object Model of zROTOR

The current object model of our machine is the re-

sult of the needed evolution of the original SSCLI

class-based model to give proper support to the re-

ﬂective primitives. There are some inconsistencies

between the class-based model and structural reﬂec-

tion. As stated in the MetaXa project (Kleinder and

LANGUAGE-NEUTRAL SUPPORT OF DYNAMIC INHERITANCE

Golm, 1996), a single object structure is very difﬁ-

cult to modify without altering the rest of its class

instances (a class must reﬂect the structure of all its

instances). This fact causes several problems (main-

taining the class data consistency, class identity, using

class objects in the code,...) involving a really com-

plex and difﬁcult to manage implementation (Golm

and Kleinder, 1997). This is why we introduced the

prototype-based object-oriented model into zROTOR.

In the prototype-based object-oriented computa-

tional model the main abstraction is the object, sup-

pressing the existence of classes (Borning, 1986). Al-

though this computational model is simpler than the

one based on classes, any class-based program can

be translated into the prototype-based model (Ungar

et al., 1991). In fact, this model has been considered

as a universal substrate for object-oriented languages

(Wolczko et al., 1996).

For our project, the most important feature of the

prototype-based object-oriented computational model

is that it models structural reﬂection primitives in a

consistent and coherent way. Dynamic languages use

this model for the same reason. Modifying the struc-

ture (ﬁelds and methods) of a single object is per-

formed directly, because any object maintains its own

structure and even its specialized behavior. Shared

behavior could be placed in the so called trait objects,

so its customization implies the adaptation of types.

Although the so called Common Language In-

frastructure (CLI) tries to support a wide set of lan-

guages, the .Net platform only offers a class-based

object-oriented model optimized to execute “static”

languages. In order to allow prototype-based dynamic

languages to be interoperable with any existing .Net

language or application, and to maintain backward

compatibility, we supported both models. This way

we can run static class-based .Net applications and

dynamic reﬂective programs. .Net compilers could

then select services of the appropriate model depend-

ing on the language being compiled. Consequently,

compilers for a wider range of languages could be

implemented. These compilers will generate the in-

termediate code of our machine, that is in fact syn-

tactically the same as the original machine (to main-

tain backward compatibility). Examples of these lan-

guages are:

• Class-based languages with static typing (C#).

• Prototype-based languages with dynamic typing

(e.g. Python (Rossum and Drake, 2003)).

• Class-based languages with static and dynamic

typing (e.g. Boo (CodeHaus, 2008) or StaDyn

(Ortin, 2008)).

• Prototype-based languages with static typing (e.g.

StrongTalk (Bracha and Griswold, 1993)).

2.6 Dynamic Inheritance

When passing messages to a particular object, con-

ventional class-based languages use a concatenation-

based inheritance strategy. This means that all mem-

bers (either derived or owned) of a particular class

must be included in the internal structure of this

class. Using this approach enables compile-time type

checking. This will prove that there can never be

an error derived from invoking a non existing mes-

sage (Ernst, 1999), but at the expense of ﬂexibil-

ity. In contrast, dynamic languages use delegation-

based inheritance mechanism, iterating over the hier-

archy of an object searching for the intended member.

Since our system introduced prototype-based seman-

tics, we also implemented a delegation-based inheri-

tance mechanism to be used together.

Delegation - based inheritance is complemented

with dynamic inheritance. In contrast with con-

ventional class-based languages, prototype-based lan-

guages allow a inheritance hierarchy to be changed at

run time (Lucas et al., 1995). More speciﬁcally, dy-

namic inheritance refers to the ability to add, change

or delete base classes from any class at run time.

It also includes the ability to dynamically change

the type of any instance. This results in a much

more ﬂexible approach, allowing objects and classes

of any program to better adapt to changing require-

ments. This type of inheritance is implemented by

languages such as Python (Rossum and Drake, 2003),

Self (Chambers and Ungar, 1989), Kevo (Taivalsaari,

1992), Slate (Project, 2008) or AmbientTalk (Cutsem

et al., 2007).

Therefore, it is necessary to create the means to

provide adequate support for dynamic inheritance to

give a complete support of the dynamic features of

dynamic languages.

3 DESIGN

In this section we will analyze the semantics of dy-

namic inheritance when applied over the object model

of zROTOR. Therefore, we must take into account

both class-based and prototype-based semantics. It

is important to state that, while either models are sup-

ported, they will not be both present at the same time.

Languages could be either class-based or prototype-

based, but they will not use both models together.

The implementation of dynamic inheritance will be

done creating a new setSuper primitive, which will be

ICSOFT 2008 - International Conference on Software and Data Technologies

added to the already existing ones. We consider two

main operations over each object model:

1. Instance Type Change (setSuper applied over an

object). Substituting the current type of an in-

stance with another one, performing the appropri-

ate changes on its structure to match the new type.

2. Class Inheritance Tree Change (setSuper ap-

plied over a class). Substituting the base type of a

class with another one, performing the necessary

changes over the class hierarchy and instances.

In order to give a precise description, we will for-

malize the behavior of the new setSuper primitive. We

assume that:

• C

is the attribute set of class C.

• C

is the method set of class C.

• C

is the member set of class C (C

= C

∪ C

)

• C

= C

∪ D

, ∀ D superclass of C. Represents

the full set of attributes (including inherited) of C.

• C

= C

∪ D

, ∀ D superclass of C. Represents

the full set of methods (including inherited) of C.

• C

= C

∪ C

The described formalizations have been designed

without breaking the restrictions of the object model

over which they are applied. This design also relies on

the reﬂective primitives that were implemented in our

previous work –see section 2.4. Each formalization is

given an example to clarify its functionality. All the

given examples will refer to the class diagram shown

in ﬁgure 1.

+ma()

-a

+mb()

-b

+mg()

-g

+md()

-d

+me()

-e

+mf()

-f

+mc()

-c

Figure 1: Example class diagram.

3.1 Class-based Model

The design of an instance type change is formalized

as follows. Figure 2 shows an example of this opera-

tion:

• Let X, Y be classes and o: X.

• The setSuper(o, Y) primitive call modiﬁes o struc-

ture this way:

– Delete from o the member set D (D = X

- (X

∩ Y

))

– Add to o the member set A (A = Y

- X

)

Figure 2: Type change (class-based model).

The design of an inheritance tree change of a

class is formalized as follows. Figure 3 shows an ex-

ample of this operation:

• Let X, Y be classes. Let Z be the base class of X.

• The setSuper(X, Y) primitive call modiﬁes class X

structure this way:

– Delete from X the member set D (D = Z

- (Z

∩ Y

))

– Add to X the member set A (A = Y

- Z

)

It should also be noted that instance members of

modiﬁed classes are dynamically updated when they

are about to be used (lazy mechanism). The exist-

ing primitives already use this mechanism (Redondo

et al., 2008), so we will take advantage of it. This

is much faster than actively modifying all instances

when a change is performed, specially if a large num-

ber of them are present.

Figure 3: Inheritance tree change (class-based model).

3.2 Prototype-based Model

The design of an instance type change is formalized

as follows. Figure 4 shows an example of this opera-

tion:

LANGUAGE-NEUTRAL SUPPORT OF DYNAMIC INHERITANCE

• Let X, Y be classes and o: X.

• The setSuper(o, Y) primitive call modiﬁes o struc-

ture this way:

– Delete from o the method set D (D = X

- (X

∩ Y

))

– Add to o the method set A (A = Y

- X

)

It should also be noted that existing attributes are

always maintained in the instances (no attribute is

added nor deleted).

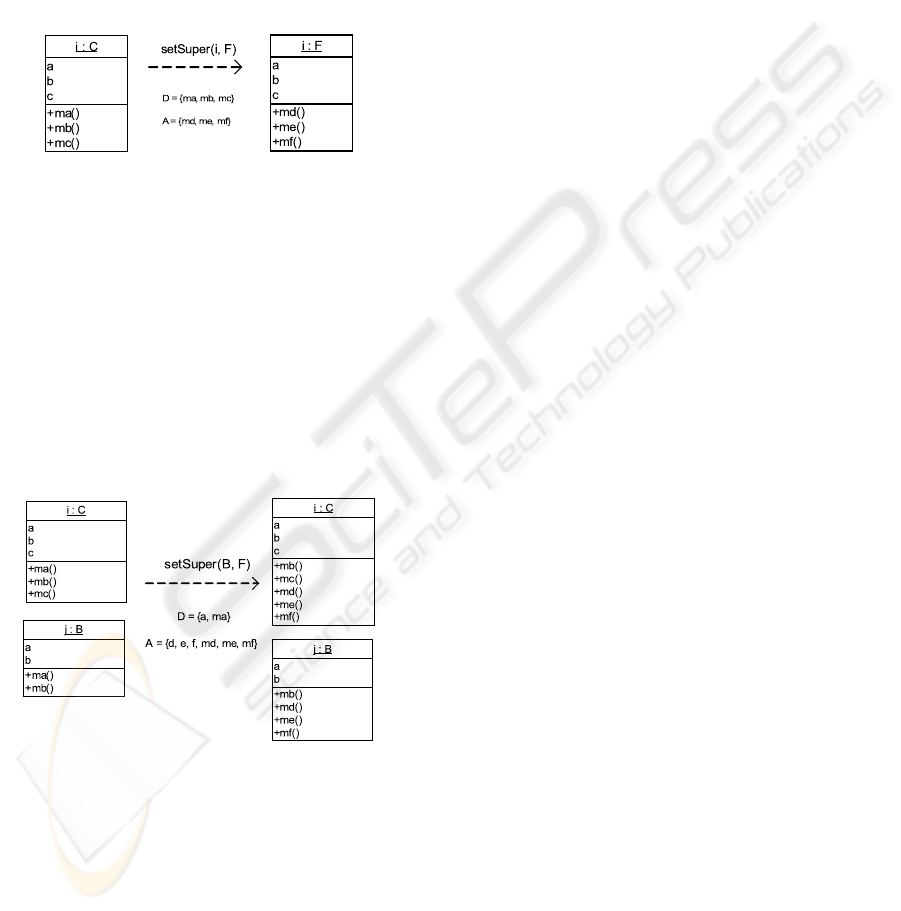

Figure 4: Type change (prototype-based model).

The design of an inheritance tree change of a

class is formalized as follows. Figure 5 shows an ex-

ample of this operation:

• Let X, Y be classes. Let Z be the base class of X.

• The setSuper(X, Y) primitive call modiﬁes class X

structure this way:

– Delete from X the method set D (D = Z

- (Z

∩ Y

))

– Add to X the method set A (A = Y

- Z

)

Figure 5: Inheritance tree change (prototype-based model).

The only difference between both models formal-

ization is that the prototype-based model maintain in-

stance attributes. Finally, it must be remarked that all

operations will comply the following assumptions:

• The computational complexity of any operation is

O(n), being n the number of classes present in the

involved classes (X, Y) hierarchies. The algorithm

goes through each class once to perform the re-

quested operation.

• In zROTOR, when we ask via introspection for the

type of an object or the base type of a class, it must

respond with the dynamically assigned type.

• Adding a member to a set that already contains it

has no semantics (no computation is performed).

• When new attributes are incorporated to instances

or classes as a consequence of any of the de-

scribed operations, default values are assigned ac-

cording to the value that was assigned to them in

its original declaration.

4 IMPLEMENTATION

The implementation could be divided in three impor-

tant aspects. We will describe the techniques followed

in each part to implement the described design.

4.1 The setSuper Primitive Interface

As we made with the primitives to add, modify and

remove members, we changed our NativeStructural

BCL class to allow access to the new setSuper primi-

tive. The virtual machine core is then extended to in-

corporate this new service, linking the primitive call

interface to its low-level implementation (Redondo

et al., 2008). Therefore, our new extension naturally

integrates with the already created infrastructure, be-

ing part of the virtual machine services. The simplest

way to distinguish what object model is going to be

used is adding a third boolean parameter to the prim-

itive. This way, a user can easily choose either model

and the system will select the appropriate behavior.

4.2 Instance Manipulation

One of the most challenging tasks in this work is how

to effectively translate the designed dynamic inheri-

tance model into the machine internals. The new set-

Super primitive will take advantage of the primitives

added in our previous work to successfully implement

its features. However, these primitives never needed

to modify parent-child or instance-class relationships,

so this concrete part of the system must be studied.

The capability to add or remove members to any ob-

ject or class in the system alone fell short to imple-

ment the desired functionality. Although the changed

entity could have the exact interface we pretend, its

internal type will not be correct.

So, in order to achieve an instance type change,

we have to carefully review the low-level infrastruc-

ture representation of instances (Stutz et al., 2003).

This way, we found that every instance is bound to its

ICSOFT 2008 - International Conference on Software and Data Technologies

class using a pointer to a unique class: the Method-

Table. We found that dynamically changing an in-

stance method table produces the desired effect, and

the system responds as expected when types of in-

stances are dynamically requested.

Therefore, by appropriately combining our exist-

ing structural reﬂection primitives with a Method-

Table substitution of the involved instance we can

achieve the desired type change functionality. Once

this is solved, it was easy to compute the A and D

member sets and apply them to implement the de-

scribed model design using the primitives of our pre-

vious work (Redondo et al., 2008).

4.3 Class Manipulation

Although in the internal structure of a class there ex-

ist a pointer to its base type, dynamically changing

this pointer to the desired class would not work. This

is because the original SSCLI virtual machine im-

plements introspection routines that interacts directly

with internal structures of classes to obtain members

and other requested data. It was found that this intro-

spection code uses several built-in integrity tests and

internal checking that produced wrong behavior if we

change the aforementioned pointer. These checks are

also invoked in several parts of the system to maintain

class integrity, so it is not possible to modify them.

The implementation of the reﬂective primitives in

our previous work forced us to use an auxiliary SS-

CLI class in order to store the information we need

(Redondo et al., 2008). This element is called the

SyncBlock, and every object and class in the system

have one attached to its internal structure. We use

this SyncBlock to our advantage in order to imple-

ment the desired functionality and solve the afore-

mentioned implementation problems.

By storing a pointer to the dynamically assigned

base class in this Syncblock, we can modify the im-

plementation of the desired introspection primitives

without modifying the “real” base type pointer. This

way, any introspection primitive implementation in

the system (Type.getMethods(), Type.getFields(), Ob-

ject.GetType(), ...) could be modiﬁed to produce cor-

rect results, taking into account the dynamically as-

signed base class only if it is present. By using this

approach we achieve two main beneﬁts:

1. If no new base type is assigned, the original code

will be executed, causing no performance loss.

2. The built-in integrity checks will continue work-

ing, since the static relationships between classes

established at compile time appear to be left un-

changed.

5 CONCLUSIONS

The major contribution of our work is the design and

implementation of language-neutral dynamic inher-

itance support over a production high-performance

JIT-based virtual machine. Nowadays, there is an ac-

tive research line whose aim is to give more support to

dynamic languages using JIT-based virtual machines

(OpenJDK, 2008) (Chiles, 2008). Our system can be

classiﬁed into this research line, trying a different ap-

proach to attain these objectives. Our dynamic inher-

itance support is combined with the already imple-

mented reﬂective primitives, to offer complete sup-

port to structural reﬂection fully integrated into the

machine internals. This enables the machine to offer

the following beneﬁts:

1. Any language (class or prototype-based) could

beneﬁt from structural reﬂection without altering

its speciﬁcations. Semantics of this primitive is

deﬁned for both object models.

2. Low-level support of all the structural reﬂection

primitives into the virtual machine, allowing any

dynamic language to be completely implemented

over its services, without adding any extra ab-

straction layer to simulate dynamic features.

3. Extend the interoperability present in the original

machine to include dynamic languages, enabling

them to interoperate with static ones.

4. Full backward compatibility with legacy code,

since the intermediate code of the machine is not

syntactically changed.

5. Due to the commercial character of the original

virtual machine, it is possible to directly offer

its new services to existing frameworks and lan-

guages designed to work with it.

Future work will incorporate meta-classes to the

machine, taking advantage of the existing dynamic

features. We are also developing a language that sup-

ports both dynamic and static typing, making the most

of our zROTOR implementation (Ortin, 2008).

ACKNOWLEDGEMENTS

This work is funded by Microsoft Research with the

project entitled Extending dynamic features of the SS-

CLI. It is part of a project who also deﬁne a program-

ming language capable of offering both static and dy-

namic typing (Ortin, 2008).

Our work is supported by the Computational Re-

ﬂection research group (http://www.reflection.

uniovi.es) of the University of Oviedo (Spain).

LANGUAGE-NEUTRAL SUPPORT OF DYNAMIC INHERITANCE

The materials presented in this paper are available in

http://www.reflection.uniovi.es/rrotor.

REFERENCES

Borning, A. H. (1986). Classes versus prototypes in object-

oriented languages. In ACM/IEEE Fall Joint Com-

puter Conference, pages 36–40.

Bracha, G. and Griswold, D. (1993). Strongtalk: Type-

checking Smalltalk in a production environment. In

OOPSLA 93, ACM SIGPLAN Notices, volume 28,

pages 215–230.

Cazzola, W., Chiba, S., and Saake, G. (2004). Evolv-

able pattern implementations need generic aspects. In

ECOOP’04 Workshop on Reﬂection, AOP, and Meta-

Data for Software Evolution, pages 111–126.

Chambers, C. and Ungar, D. (1989). Customization: Opti-

mizing compiler technology for Self, a dynamically-

typed object-oriented programming language. In ACM

PLDI Conference.

Chiles, B. (2008). CLR inside out: IronPython and the

Dynamic Lang. Runtime. http://msdn2.microsoft.com

/en-us/magazine/cc163344.aspx.

CodeHaus (2008). Boo. a wrist friendly language for the

CLI. http://boo.codehaus.org/.

Cutsem, T. V., Mostinckx, S., Boix, E. G., Dedecker, J.,

and Meuter, W. D. (2007). AmbientTalk: Object-

oriented event-driven programming in mobile ad hoc

networks. In XXVI International Conference of the

Chilean Computer Science Society, SCCC 2007.

Diehl, S., Hartel, P., and Sestoft, P. (2000). Abstract ma-

chines for programming language implementation. In

Future Generation Computer Systems, page 739.

Ernst, E. (1999). Dynamic inheritance in a statically typed

language. Nordic Journal of Computing, 6(1):72–92.

Golm, M. and Kleinder, J. (1997). MetaJava - a platform

for adaptable operating system mechanisms. In LNCS

1357, page 507.

Grogan, M. (2008). JSR 223. scripting for the Java plat-

form. http://www.jcp.org/en/jsr/detail?id=223.

Kleinder, J. and Golm, G. (1996). MetaJava: An efﬁcient

run-time meta architecture for Java. In International

Workshop on Object Orientation in Operating Sys-

tems, pages 420–427.

Lucas, C., Mens, K., and Steyaert, P. (1995). Typing dy-

namic inheritance: A trade-off between substitutabil-

ity and extensibility. Technical Report vub-prog-tr-95-

03, Vrije Universiteit Brussel.

Maes, P. (1987). Computational Reﬂection. PhD thesis,

Vrije Universiteit.

Meijer, E. and Drayton, P. (2004). Static typing where pos-

sible, dynamic typing when needed: The end of the

cold war between programming languages. In OOP-

SLA Workshop on Revival of Dynamic Languages.

Meijer, E. and Gough, J. (2000). Technical overview of the

CLR. Technical report, Microsoft.

MetaSlash (2008). PyChecker: a Python source code check-

ing tool. http://pychecker.sourceforge.net/.

Nierstrasz, O., Bergel, A., Denker, M., Ducasse, S., Gaelli,

M., and Wuyts, R. (2005). On the revival of dynamic

languages. In Software Composition 2005, LNCS.

OpenJDK (2008). The Da Vinci machine. http://openjdk.

java.net/projects/mlvm/.

Ortin, F. (2008). The StaDyn programming language.

http://www.reﬂection.uniovi.es/stadyn/.

Ortin, F. and Cueva, J. M. (2004). Dynamic adaptation of

application aspects. In Journal of Systems and Soft-

ware. Elsevier.

Ortin, F., Lopez, B., and Perez-Schoﬁeld, J. B. (2004). Sep-

arating adaptable persistence attributes through com-

putational reﬂection. In IEEE Soft., Vol. 21, Issue 6.

Ortin, F., Redondo, J. M., Vinuesa, L., and Cueva, J. M.

(2005). Adding structural reﬂection to the SSCLI. In

Journal of .Net Technologies, pages 151–162.

Pierce, B. P. (2002). Types and Programming Languages.

The MIT Press.

Project, T. (2008). The Tunes project. http://slate.tunes.org/.

Redondo, J. M., Ortin, F., and Cueva, J. M. (2006a). Dise

de primitivas de reﬂexi

on estructural eﬁcientes in-

tegradas en SSCLI. In Proceedings of the JISBD 06.

Redondo, J. M., Ortin, F., and Cueva, J. M. (2006b). Op-

timizaci

on de las primitivas de reﬂexi

on ofrecidas

por los lenguajes din

amicos. In Proceedings of the

PROLE 06, pages 53–64.

Redondo, J. M., Ortin, F., and Cueva, J. M. (2008). Opti-

mizing reﬂective primitives of dynamic languages. In

Int. Journal of Soft. Engineering and Knowledge En-

gineering. World Scientiﬁc.

Rose, J. (2008). JSR 292. supporting dynamically typed

languages on the Java platform. http://www.jcp.org/

en/jsr/detail?id=292.

Rossum, G. V. and Drake, F. L. (2003). The Python Lan-

guage Reference Manual. Network Theory.

Singer, J. (2003). JVM versus CLR: a comparative study. In

ACM Proceedings of the 2nd international conference

on principles and practice of programming in Java.

Stutz, D., Neward, T., and Shilling, G. (2003). Shared

Source CLI Essentials. O’Reilly.

Taivalsaari, A. (1992). Kevo: A prototype-based OO lan-

guage based on concatenation and module operations.

Technical report, U. of Victoria, British Columbia.

Thomas, D., Fowler, C., and Hunt, A. (2004). Programming

Ruby. Addison-Wesley Professional, 2nd edition.

Thomas, D., Hansson, D. H., Schwarz, A., Fuchs, T., Breed,

L., and Clark, M. (2005). Agile Web Development with

Rails. A Pragmatic Guide. Pragmatic Bookshelf.

Udell, J. (2003). D. languages and v. machines. Infoworld.

Ungar, D., Chambers, G., Chang, B. W., and Holzl, U.

(1991). Organizing programs without classes. In Lisp

and Symbolic Computation.

Wolczko, M., Agesen, O., and Ungar, D. (1996). Towards a

universal implementation substrate for object-oriented

languages. Sun Microsystems Laboratories.

ICSOFT 2008 - International Conference on Software and Data Technologies
