A COMPONENT-BASED SOFTWARE ARCHITECTURE

Reconfigurable Software for Ambient Intelligent Networked Services

Environments

Michael Berger, Lars Dittmann

COM·DTU, Technical University of Denmark, Oersteds Plads Bldg 343, DK-2800, Lyngby, Denmark

Michael Caragiozidis, Nikos Mouratidis

APEX AG, Bundesgasse 16, CH-3011, Bern, Switzerland

Christoforos Kavadias

TELETEL SA, 124, Kifissias Avenue, 115 26 Athens, Greece

Michael Loupis

SOLINET GmbH, Mittlerer Pfad 26, 70499 Stuttgart, Germany

Keywords: Component-based Software, Ambient Intelligence, Reconfigurable Software, SDL, UML, OSGi.

Abstract: This paper describes a component-based software architecture and design methodology, which will enable

efficient engineering, deployment, and run-time management of reconfigurable ambient intelligent services.

A specific application of a media player is taken as an example to show the development of software

bundles according to the proposed methodology. Furthermore, a software tool has been developed to

facilitate composition and graphical representation of component based services. The tool will provide a

model of a generic reusable component, and the user of the tool will be able to instantiate reusable

components using this model implementation. The work has been carried out within the European project

COMANCHE that will utilize component models to support Software Configuration Management.

1 INTRODUCTION

The main objective of COMANCHE

(COMANCHE, 2008) is to develop and validate a

generic framework for Software Configuration

Management (SCM), which will pave the way to the

realization of technically and commercially viable

private spaces incorporating ambient intelligence

features. For this purpose the project will specify

and develop the COMANCHE modular and scalable

architecture targeting the provision of consistent,

secure, low-cost (low-effort) SCM services across

today’s heterogeneous, and multi-vendor

environments. The realization of the COMANCHE

SCM services framework will be built on an

adequate software engineering and knowledge

management infrastructure that the project will

deliver. The main components of this infrastructure

will be the following:

i) The COMANCHE Knowledge Management

Framework, which will provide the means for

effectively conceptualizing, organizing, discovering,

and exploiting the tremendous amounts of attribute

information, pertaining to SCM

ii) A modular component-based software

architecture and an adequate design methodology

and tool, which will effectively address the

engineering and run-time management of

reconfigurable software for ambient intelligent

networked services environments.

iii) A formal modelling methodology and a

consistency validation framework for capturing and

analyzing the structure and run-time behavior of

distributed software systems.

174

Berger M., Dittmann L., Caragiozidis M., Mouratidis N., Kavadias C. and Loupis M. (2008).

A COMPONENT-BASED SOFTWARE ARCHITECTURE - Reconﬁgurable Software for Ambient Intelligent Networked Services Environments.

In Proceedings of the Third International Conference on Software and Data Technologies - SE/GSDCA/MUSE, pages 174-179

DOI: 10.5220/0001883901740179

 SciTePress

This paper will mainly focus on ii) Component

based software architecture and furthermore it will

present a methodology for a Model driven design

tool that will provide the means for efficiently

mapping target applications on the component-based

architecture. In this paper we adopt and apply in the

field of pervasive (ambient intelligent) services

techniques and practices on software

reconfigurability presently applied in the field of

industrial automation applications (Endsley, 2000),

(Wang, 2002), (Whisnant, 2003). The main

contribution here is the mapping to adopted

standards (OSGi, 2008), (SDL, 2008), (UML, 2008)

and the related tool. The organization of the paper is

as follows: In the following section 2, a sample

COMANCHE application is provided as an example

of an OSGi based Implementation of a composite

SW Component. Following this, section 3 presents

the component based architecture and section 4

describes the design of OSGi compatible SW

components on an OSGi Service Platform including

properties of the COMANCHE design tool. Finally,

section 5 is the conclusion.

2 SAMPLE COMANCHE

APPLICATION

We assume the existence of a media player device

equipped with the appropriate drives and interfaces

so that multimedia content can be acquired from

storage media as well as a network interface through

which all the communications are taking place. On

the device an OSGi Service Platform is deployed.

There is need for having the multimedia contents,

which are accessible by the device, streamed over

the network under various schemes (encoding,

broadcast or unicast, scaling, etc). Towards this

direction a special bundle that will become the

central part of the streaming service is installed and

activated.

1) By default, the bundle, when activated,

searches for services that provide access to

multimedia content (access to the disc drive(s), USB

stick or internal hard-disk). These services are

offered by other bundles already activated on the

platform. While this location of services is

attempted, filtering aspects can be enforced to lead

to the most appropriate selection. For example, there

must be a requirement for locating a service that

allows for concurrent sessions over the medium

under their control and/or on demand navigation in

the content.

2) Once the available multimedia sources have

been enumerated there is need for obtaining

information regarding the format of the content. This

might not be performed by the orchestrating code

but by services contained either in the central bundle

or being active on the platform.

3) Once the multimedia sources and the

corresponding information have been initialised,

media encoding/decoding services are located.

Again filtering parameters are enforced according to

the setup of the component.

4) Finally, services for providing the final

encapsulation and streaming of the encoded media

are “integrated”.

5) Thereafter, the SW component that has been

synthesized from the services deployed on the

platform under the control of the orchestrator is

ready to operate and provide the application for

which it is designed.

6) Throughout its operation, service

modifications may occur. These may regard

additions or removal of bundles that offer

functionality that can be or already utilised.

7) Similarly, the SW component may receive

configuration updates that can trigger the

reestablishment of its structure.

SW Component for Media Streaming

Bundle Listener

Service Listener

Framework Listener

FSM

Driver

Managed Services

com.apex.media.streaming.server.rtp.Unicast

Configuration

Platform Events

OSGi Platform Resources

Event

Handler

USB Access

Bundle

Services

HDisk Access BluRay Access

DVD Acce ss

Media Info

RTP

MPEG4

Encoder

H.263

Encoder

RTSP

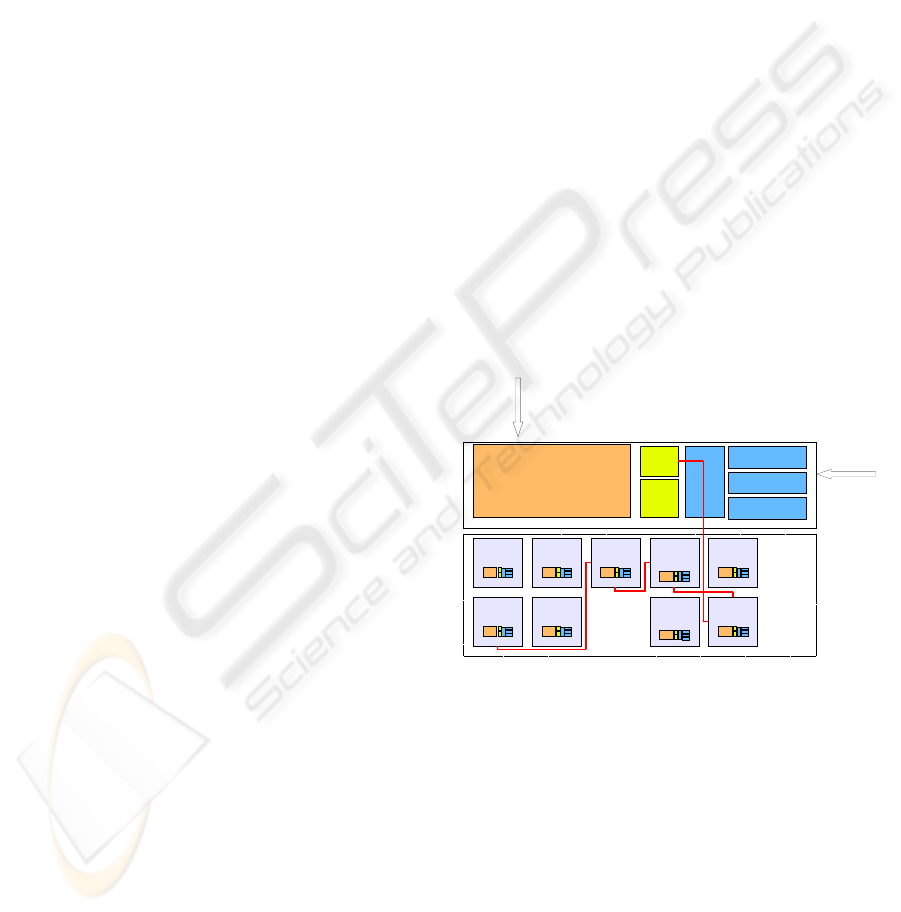

Figure 1: Example of an OSGi based Implementation of a

composite SW Component.

A graphical representation of such a synthesis

can be seen in Figure 1. The rectangle at the top

encloses the components of a management

(orchestrator) OSGi bundle (SW component) that is

capable of making use of the bundles (service

objects) enclosed by the rectangle at the bottom of

the Figure. The red line presents a setup that

provides an application that streams, via unicast

RTP, media stored on a USB stick encoded by an

MPEG4 encoder. In the chain presented below

additional decoders may be used to produce content

that can be used by the selected encoder.

A COMPONENT-BASED SOFTWARE ARCHITECTURE - Reconfigurable Software for Ambient Intelligent Networked

Services Environments

175

3 GENERIC

COMPONENT-BASED

ARCHITECTURE

Components are pre-implemented software modules

(or already instantiated but customizable objects

within an object-oriented model) and are used as

building blocks to construct the controller software.

Event-based external

interface

Event-mapping function

Configuration interface

Finite State

M achin e D river

(C on figu rable SW

behaviour)

Services

Objects

Services Interfaces

Platform

(operating system /network)

R eco nfigu rab le

SW Component

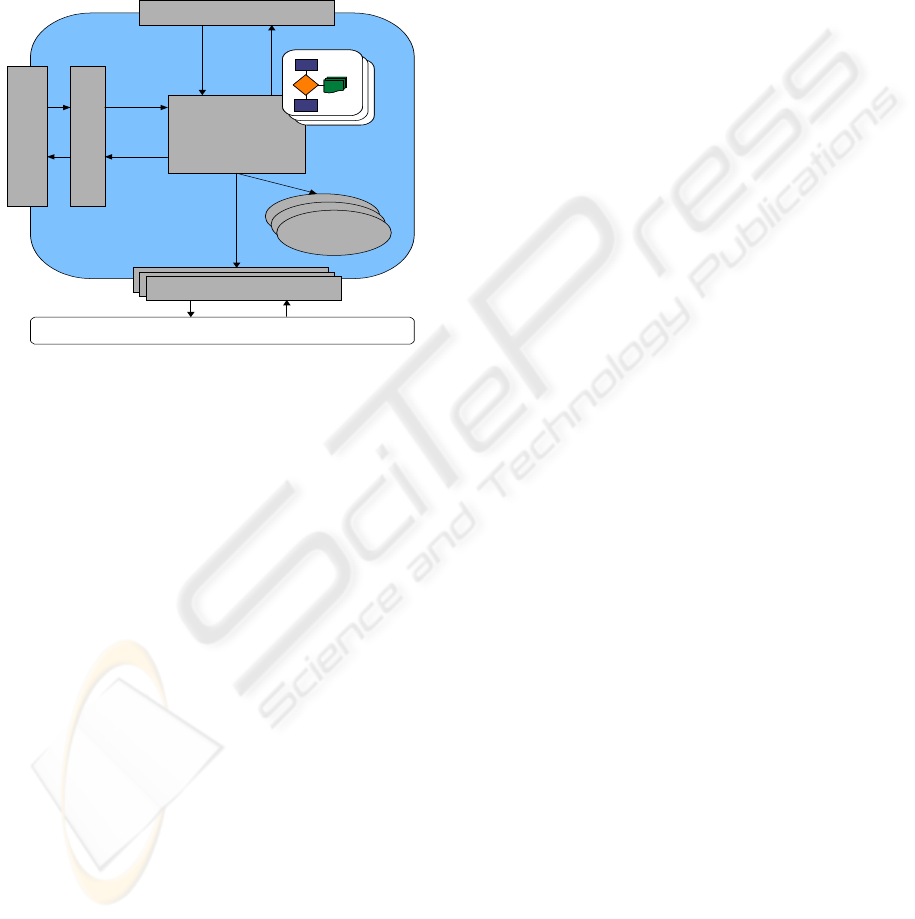

Figure 2: Component structure.

A component defines the functionality of a device

or subsystem, which can be as simple as an I/O

device like a position sensor, or a control algorithm

like proportional-integral-derivative (PID) control,

or as complex as a composed subsystem like

coordinated axes. The structure of a software

component includes a set of event-based external

interfaces with registration and mapping

mechanisms, communication ports, a control logic

driver, and service protocols, as shown in Figure 2.

3.1 Finite State Machine Driver &

Configuration Interface

The finite-state machine (FSM) driver, is designed

to separate function definitions from control logic

specifications and to support control logic

reconfiguration at executable code level. The finite-

state machine driver can be viewed as an interface to

access and modify the control logic inside a

component, which is traditionally hard coded in the

component implementation. Every component that

executes some control logic should have such a

driver inside itself. The control logic of a component

can then be fully specified as a state table for

execution. A finite-state machine driver will

generate commands to invoke operations of the

services objects at run time according to its state

table and received events. State tables can also be

packed as data and passed to another component to

reconfigure the receiver component’s behavior

remotely.

The finite-state machine driver of a component is

a center piece to enable post-implementation

reconfiguration of component behaviour. It invokes

the service object functions based on current

component state and incoming events to

communication ports, which are specified by state

table entries. Function calls are statically bound to

internal events at implementation time, and the

finite-state machine driver invokes the service object

functions by generating internal events for the

corresponding services objects. For each component,

multiple state tables can be designed to specify

different desired behaviors in different system

modes. However, only one state table for a

component can be active at a time.

Although the finite-state machine driver

introduces additional overhead to the system as a

component has to go through more steps to invoke

an operation, such processing and related bindings

are statically configured before normal execution.

Therefore, the overhead introduced by the finite-

state machine driver should be negligible to the

application-level performance; it may be significant

at low level due to frequent long jumps and pipeline

flushes caused by the sequence of function calls to

process state transitions. On the other hand, efforts

and costs for software reconfiguration when

application requirements change, overweigh

performance for resource-rich systems such as PC-

based controllers.

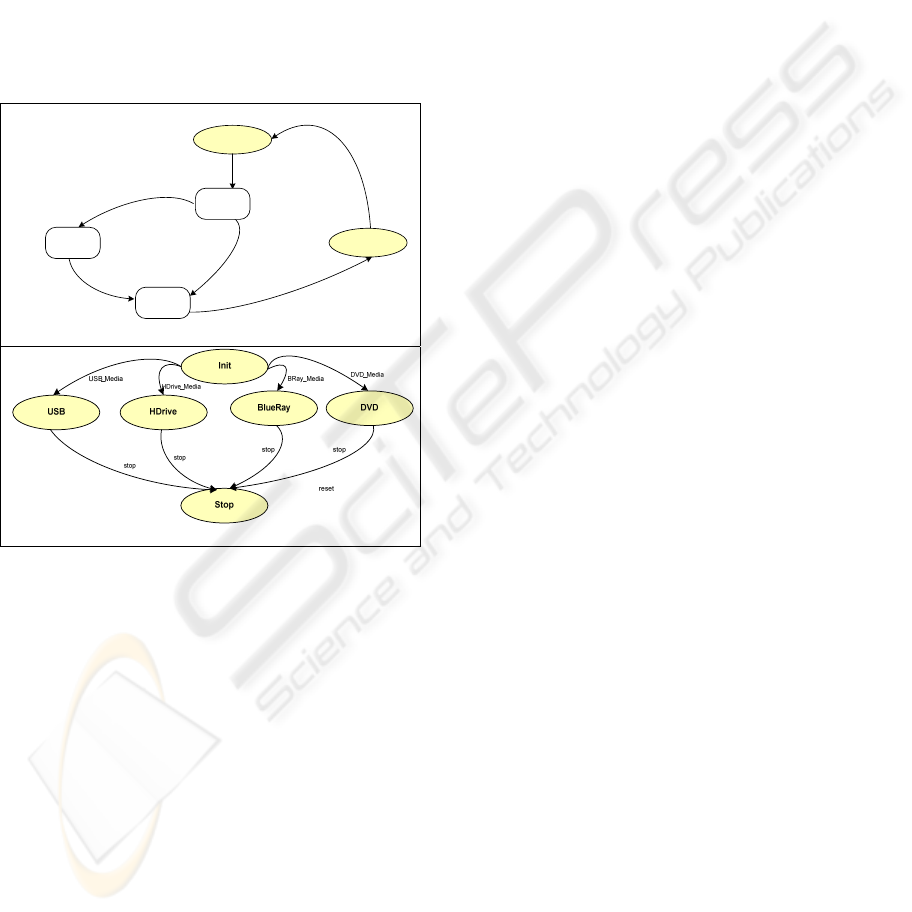

The component state table is configured

(changed) through the configuration interface. The

mechanism is detailed in section 4. If we consider

the case of the sample application described in

section 2, we may consider a system comprising the

following four components:

• An Orchestrator component that is able to

make use of the OSGi platform services, and its

FSM driver realises the media streaming

application logic. The Orchestrator software

component contains the following three

software components each of which makes use

of the service objects enclosed by the rectangle

at the bottom of Figure 3.

• A GetMedia component that is capable of

retrieving the media content from a variety of

interfaces (USB, HDrive, BlueRay, DVD, etc).

• An Encoding component that is capable of

encoding the retrieved media in different

ICSOFT 2008 - International Conference on Software and Data Technologies

176

formats (e.g. MPEG-4, H.263, etc) in

consistence with the application needs.

• A Streaming component that is responsible for

handling encoded media streaming.

The logic of the above-mentioned SW

components is illustrated in Figure 3. In this Figure,

the rectangles represent SW components, and the

ellipses represent service objects. For instance the

Orchestrator SW Component makes use of the

GetMedia, Encoding, and Streaming SW

Components, as well as of the Init and Stop Service

Objects. The arrows in Figure 3 represent function

calls invoked by the FSM Driver of the Orchestrator

SW component.

Init

Stop

stop

Encode_Media

Stream_Media

reset

Get_Media

GetMedia

Streaming

Encoding

Logic of Orchestrator SW component

Logic of GetMedia SW component

Figure 3: Logic of Orchestrator and GetMedia, SW

components.

3.2 Event-based External Interfaces &

Event Mapping Function

Event-Based External Interfaces are designed to

expose component functionalities to the external

world, i.e., define operations that can be invoked

from other components.

External interfaces in the COMANCHE

architecture are represented as a set of acceptable

global (external) events with designated parameters.

Event-based interfaces enable operations to be

scheduled and ordered adaptively in distributed and

parallel environments and allow components to be

integrated, at executable code level, into the system.

A customizable event-mapping mechanism is

present in each component to achieve the translation

between global events and the component’s internal

representations. Such a mapping separates a

component implementation from its interfaces, thus

making multiple implementations of one operation

possible. And so, it allows flexibility and code reuse

during component development. Since the mapping

is internal, it can be customized without having to

know interactions with other components.

The control software constructed with the

COMANCHE component model consumes less

computation resources and supports more

predictable execution.

3.3 Services Interfaces

Service Interfaces define execution environments of

a component and so make components adaptive to

different platforms. The Service Interfaces are used

to communicate with the service platform and

network (rather than other components). Thus,

COMANCHE components implementing network

drivers, user interfaces, etc, will use the service

interfaces. Examples of Service Interfaces include

scheduling policies, inter-process communication

mechanisms, and network protocols.

Service Interfaces are implemented as a set of

attributes of a component. Selection of services is

implemented by assigning the desired values for the

service attributes. Such selection is based on the

mechanisms available on a given platform and

performance (such as timing and resource)

constraints of a system. The selected services will be

bound to the corresponding function calls provided

by the infrastructures either statically or during the

software initialization.

4 DESIGN OF OSGI-BASED

CONFIGURABLE SW

FRAMEWORK

The implementation of a component based software

architecture compliant with OSGi implies the

deployment of a Service Platform (a Java VM in

which an OSGi Framework operates) on a Service

Platform Server (a device). In this configuration,

bundles can be installed and activated as well as

deactivated and removed within the execution

context of the Service Platform. From the OSGi

perspective the bundles and the services they

provide within one running Service Platform should

realise the software components in the

COMANCHE architecture by implementing the

following interfaces:

A COMPONENT-BASED SOFTWARE ARCHITECTURE - Reconfigurable Software for Ambient Intelligent Networked

Services Environments

177

1. An interface (configuration) through which

configuration can be achieved regarding both

the behaviour and structure

2. An interface (external) that makes available

the services implemented by the component

towards other entities inside the execution

environment

3. An interface (platform/device) through which

all the transactions with respect to utilisation

of the device hardware resources are

performed

4.1 Definition of Structural

Configuration and Generic Design

Principles

The structural definition of the component consists

of a sufficient orchestration of the available

resources so that the outcome of the assembly of the

software modules, when operating, provides the

envisaged functionality that is described in Figure 2.

This pattern of organisation should be maintained

from the simplest to the more complex form of

resource orchestration so that it can be inherently

supported at any level of component integration.

According to the above, the borders of the

elementary component can be defined as the

minimum integration of resources that can operate as

an entity that:

1. its behaviour can be configured,

2. provides an external interface through

which it can serve requests from other

resources, and

3. if possible interacts with physical resources

of the hosting platform.

This structural model may be applied to all Java

classes that are contained in a bundle, installed on a

Service Platform, so that each of them constitutes a

clearly defined software component or cumulatively

to any number of Java packages contained in a

bundle so that all together can be used as a single

software component. In the latter case the borders of

that component enclose all the required resources

and each of the characteristics of the software

component may be provided by different Java

classes. Increasing the complexity, a software

component may span the limits of a single bundle by

accumulating resources, through OSGi compliant

service registration and utilisation operations,

contained in several ones. In this case the need for

structural configuration arises, since the selection of

the proper services for usage should follow the

corresponding rules that in our case can constitute

the structural configuration of the software

component. Mapping, therefore, the COMANCHE

concepts on the OSGi principles we conclude that a

COMANCHE software component can be provided

as an OSGi Service Application that is “a set of

bundles that collectively implement a specific

function used within a Service Platform”.

According to the principles described above, a

Software Component being able to be reconfigured

with respect to both structure and behaviour and

function in the context of COMANCHE architecture

can be instantiated as a proper orchestration of OSGi

resources.

4.2 Control Structure of a Software

Component

For every synthesis of OSGi resources aiming at the

composition of a COMANCHE Software

Component a special bundle in the role of the

orchestrator is activated. This bundle contains a

package of Java Classes that will be responsible for

organising the service resources on the same OSGi

platform. The bundle registers a number of Managed

Services, following the above described PID

convention, with the Framework so that the proper

configuration can be submitted to the Software

Component. Upon receiving configuration

dictionaries, these services perform the proper

translation of the content in the following ways:

(a) assign values to parameters that regard

functionality and services contained in the same

bundle, (b) maintain filters to be used during service

resolution, (c) modify their own registered

parameters so that other services may utilise these

according to the matching achieved between

registered and filtering parameters.

Since the operation of a Software Component is

based on the loose coupling among available

services there is a constant need for maintaining the

references to the available service providers so that

new registrations of services that fit better specific

needs or de-registration of previously located ones

can be imminently detected and handled

accordingly. For this purpose the bundle in the role

of the orchestrator registers the corresponding

Service, Bundle and Framework Listeners so that all

the relevant events can be monitored and handled

according to the needs of the Software Component

that is synthesized under the control of this bundle.

Handling of events is related mainly with updating

the service references in case an event indicates any

changes in the synthesis of the Software Component.

The overall structure with respect to the

controlling part of a Software Component that has

been presented above is presented in Figure 4.

ICSOFT 2008 - International Conference on Software and Data Technologies

178

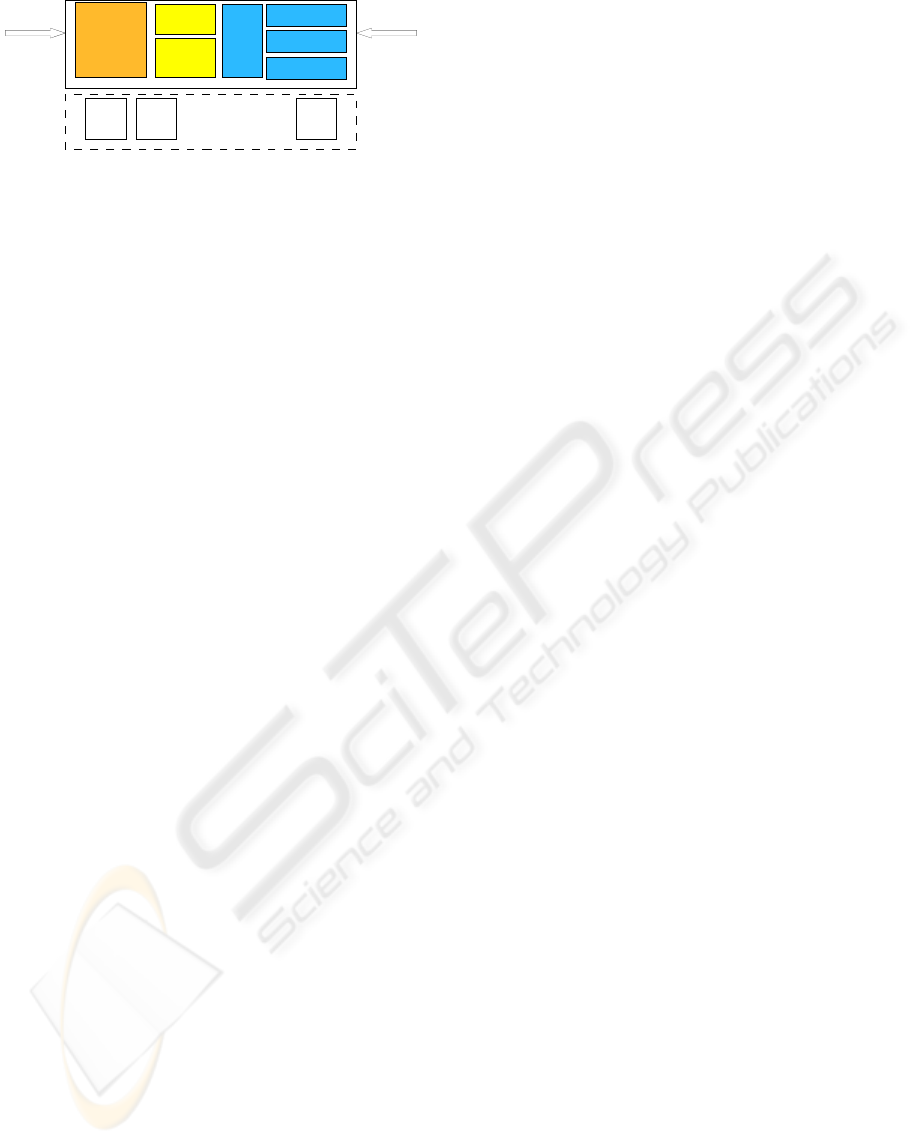

OSGi Compliant Structure of the control part of a SW Component

Bundle Listener

Service Listener

Framework Listener

FSM

Driver

Managed Services

PID#0

...

PID#N

Configuration

Platform Events

OSGi Platform Resources

Event

Handler

Service #0 Service #1 Service #N

...

Bundle

Services

Figure 4: SW Component Control Structure.

Once the orchestrator bundle has registered and

activated the listeners and the managed services, the

SW component can be configured with respect to

both its behaviour as this is reflected by the FSM

adjustments and its structure with respect to the

loose coupling with the potential service resources

residing on the same platform.

4.3 COMANCHE Design Tool

The COMANCHE Design tool has the following

properties:

1) Support the graphical representation of software

systems making use of widely adopted

standards as SDL (Simple Declarative

Language), UML (Unified Modeling

Language)

2) Support the composition of systems through the

use and customisation of available software

components.

3) provide a model (a template with no

implemented functionality) of the generic

reusable SW component.

4) Allow the creation and maintenance of a

repository of reusable SW components to be

used for the synthesis of services software. The

user of the tool is able to instantiate reusable

SW components using the above mentioned

model implementation

5) Enable the mapping of component-based

UML/SDL specifications to reconfigurable

object-oriented services implementations.

6) Enable the mapping of component-based

UML/SDL specifications to OWL

instantiations.

The development of the COMANCHE design

tool will not start from scratch, as it will exploit the

implementation mapping capabilities (generation of

C++/JAVA implementation code from UML/SDL

specifications) of the existing development

environment from the IST REMUNE project. The

existing features has been complemented with

innovative work on the development of techniques

for (a) mapping abstract UML/SDL application

specifications on component-based UML/SDL

specifications, (b) mapping component-based

UML/SDL specifications to efficient (in terms of

performance and security), reconfigurable object-

oriented (JAVA, C++) services implementations.

5 CONCLUSIONS

Based on the COMANCHE specification of a

reconfigurable component-based architecture, an

OSGi based configurable SW framework has been

designed. The FSM Driver is a centrepiece to enable

post-implementation reconfiguration of component

behaviour. It invokes the object functions based on

current component state and incoming events to

external interfaces. This is achieved through the

definition of customisable State Table entries that

will be used for controlling the logic of the services

exposed by the component. Development of the

COMANCHE tools included techniques for

mapping abstract UML/SDL application

specifications on component-based UML/SDL

specifications, and mapping component-based

UML/SDL specifications to efficient, reconfigurable

object-oriented services implementations.

ACKNOWLEDGEMENTS

This work has been performed in the framework of

the IST-034909 project COMANCHE, which is

partly funded by the European Commission.

REFERENCES

The COMANCHE project, www.ist-comanche.eu, 2008

E.W. Endsley, M. R. Lucas, and D. M. Tilbury. Software

tools for verification of modular FSM based logic

control for use in reconfigurable machining systems.

in Proc. 2000 Japan-USA Symp. Flexible Automation,

Ann Arbor, MI, July 23–26, 2000, pp. 565–568.

S. Wang, K.G Shin. Constructing reconfigurable software

for machine control systems. Robotics and

Automation, IEEE Transactions on Volume 18, Issue

4, Aug 2002 Page(s): 475 – 486

K. Whisnant, Z. T. Kalbarczyk, R. K. Iyer. A system

model for dynamically reconfigurable software. IBM

Systems Journal Volume 42 , Issue 1 (January 2003)

table of contents Pages: 45 - 59

The OSGi Alliance, www.osgi.org, 2008

Simple Declarative Language (SDL), sdl.ikayzo.org, 2008

Unified Modeling Language (UML), www.uml.org, 2008

A COMPONENT-BASED SOFTWARE ARCHITECTURE - Reconfigurable Software for Ambient Intelligent Networked

Services Environments

179
