AN APPROACH TO THE DEVELOPMENT OF PROGRAMMING

SOFTWARE FOR DISTRIBUTED COMPUTING AND

INFORMATION PROCESSING SYSTEMS

V. P. Kutepov, V. N. Malanin and N. A. Pankov

Moscow Power Engineering Institute (Technical Univerity), Krasnokazarmennaya 14, Moscow, Russia

Keywords: Flow-graph stream parallel programming language, distributed computing systems, data-flow programming,

scheduling.

Abstract: The problem of software development for distributed and parallel computing systems is considered in the

paper. Its original issue is in extending our projecting work on parallel programming languages and

operational tools for their realization on large scale computing systems.

1 INTRODUCTION

The problem of integration of distributed computing

and information processing resources in order to

achieve reasonable productivity and efficiency of

their usage in practice is very complicated as well as

far from satisfactory solution. Parallel computing

systems, distributed databases and information

systems are well known samples of the nontrivial

distributed systems; each of them has its own

problems and solutions. In this paper we are going to

discuss the main features of our approach to

development of software for distributed computing

and information processing systems (DCIPS) that

are of fundamental value when we look forward in

order to outline contours of the future global

distributed information systems in particular GRID.

Many of stated in the paper are resulted from our

experience of development of parallel programming

languages and operational tools for their

implementation on computer systems [2,3].

2 MAIN FEATURES AND

PROBLEMS OF DCIPS

In this paper we intentionally use notion of DCIPS

instead of GRID to focus on specific technical

features of such systems not going into details on

their social and economical matters. These features

are:

 Multi-component structure with geographically

distributed components and strictly specified

functions;

 Dynamic structure alteration issued by the

necessity for reconfiguration in order to

manage load or because of components’

failure;

 Parallelism referred to multiple asynchronous

interactions between components;

 Relentless evolution of hardware and software

base.

The main problems of DCIPS management and

software development are:

 Integration of heterogeneous computing and

communication hardware: computers,

communication channels, storages, etc.;

 Creation of new parallel programming

languages, instruments and operational tools

supporting high level program development;

 Effective resource management and processes

(jobs) scheduling as well as high reliability

and fast failure recovery.

The first problem is being addressed to

standardization and virtualization on different levels

of hardware and software stack of DCIPS. Great

contribution was made by the Grid community in the

development of OGSI and its famous

implementation Globus Toolkit (Foster I. et al,

2001). Actually the main Grid-tailored activities are

in the integration area.

The second problem is of many aspects and besides

development of high level programming languages

P. Kutepov V., N. Malanin V. and A. Pankov N. (2008).

AN APPROACH TO THE DEVELOPMENT OF PROGRAMMING SOFTWARE FOR DISTRIBUTED COMPUTING AND INFORMATION PROCESSING

SYSTEMS.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 83-90

DOI: 10.5220/0001889400830090

 SciTePress

supporting different types of parallelism of real tasks

and processes it suggests necessity of various

instruments for debugging, verification, evaluation

of complexity parameters and criteria for program’s

execution efficiency in distributed environment

(Kutepov V.P et al, 1996).

The third problem is the most far from satisfactory

solution for DCIPS such as GRID - large

heterogeneous computing and information systems.

Even for homogeneous computing systems, in

particular clusters, various heuristics and on a knife

edge solutions are used in order to get reasonable

effect in scheduling processes and managing

workload (Kutepov V.P., 2007).

In the following we summarize how approaches

which we apply to solve these last two problems for

clusters could be extended to DCIPS.

3 LANGUAGES AND

INSTRUMENTS FOR DCIPS

PROGRAMMING

The main purpose of a programming language is to

reduce conceptual gap that always exists between a

problem domain, ingenuous description of a problem

or task, program developed to solve the problem and

a computer system used for program execution. It’s

well known that the nearer programming language to

the computer system – the more effective programs

can be developed.

Next requirements are the most important for

language oriented to support high level program

development for DCIPS:

 Component-like style of program development;

 Well-defined forms of structural representation

of program making the process of program

development easy expressible; these structural

forms should simplify process of debugging

and analyzing of program as well as mapping

it to DCIPS structure;

 Ability to support various forms of parallelism

inherent in operation of DCIPS itself and

programs created for them;

 Wide and flexible mechanisms for defining

complex data structures and scaling structure

of a program with the change of complexity of

the data it should be applied to;

 Portability suggesting possibility of program

component development by using the most

suitable conventional programming languages.

None of currently existing DCIPS programming

models fully comply stated requirements: MPI

implementations lack well-defined structural

representation of the program as well as good

support for DCIPS parallelism; remote procedure

call (RPC) and remote methods invocation (RMI)

models including CORBA are rather low-level for

parallelism representation and become very tricky

when program reaches some level of complexity

providing very limited capabilities for debugging.

In (Kutepov V.P et al, 1996) we have considered

generalized architecture of programming

environment for large scale computing systems

which can be also retranslated to DCIPS.

Below we give short description of Flow-graph

Stream Parallel Programming Language (FSPPL)

that was developed for supporting high level

component-like parallel programming for parallel

computing systems (Kotlyarov D.V. et al, 2005) and

which can be easily embedded in object oriented

media of programming and adopted for the needs of

DCIPS programming.

4 FLOW-GRAPH STREAM

PARALLEL PROGRAMMING

LANGUAGE

Formally, flow-graph parallel program (FGPP) in

FSPPL is represented as a pair <FS, I>, where FS is

a flow-graph scheme and I – interpretation.

FS = <{M

| i=1, 2,...n, n∈N }, P

, P

OUT

C>, where

} is a set of modules, P

and P

OUT

are sets of all

input and output points of all modules respectively

and C is a connection function: P

x P

OUT

Æ {true,

false}.

Every module M

is defined as M

= <Name,

INi

}, {G

OUTi

}>, where m

∈N, Name is a

module name, {G

INi

}and {G

OUTi

} are sets of

named input and output groups of the module

respectively.

Input group G

IN i

(s=1,2..m

) of module M

can be

described as a pair

<Name, P

IN i

>, where Name is a

name of input group, P

IN i

⊆

– ordered set of

input points of this group. Output groups are defined

similarly with accuracy to the respective set of

output points.

Interpretation I of flow-graph parallel program is a

quadtuple I=<T, ℑ, C

, C

>, where T = {t

| i=1,2,...

n, n∈N } – set of data types, ℑ - set of methods or

subprograms (Kotlyarov D.V. et al, 2005) associated

with input groups of modules; C

: P

∪ P

OUT

Æ T is

a points typifying function and

ℑ→= }1..ni{P

is a function associating a

ICSOFT 2008 - International Conference on Software and Data Technologies

method in ℑ with every input group of every

module. It is supposed that method associated with

input group G

IN i

(s=1,2..m

) of module M

has

ordered set of formal parameters which types match

with types of relative points in

IN i

. If a set of input

points

IN i

of input group

IN i

is empty then

corresponding method should have no formal

parameters.

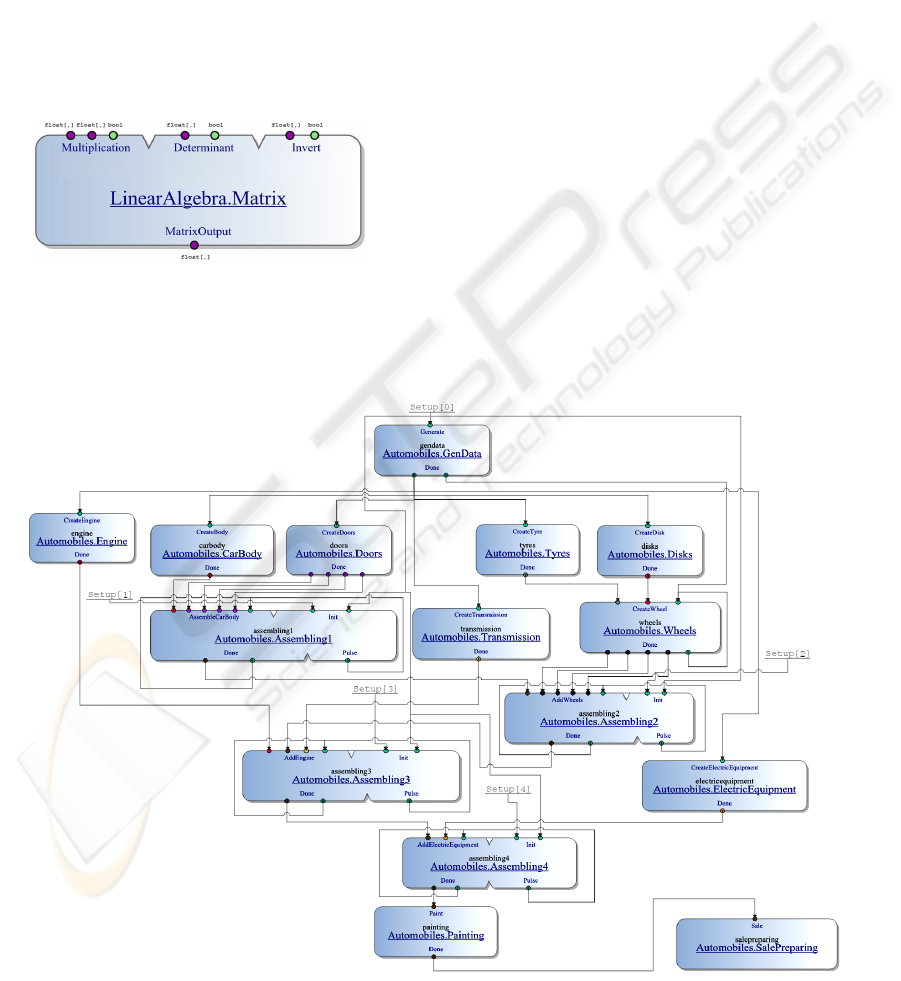

The representation of a module is given in figure 1

and it shows inputs and outputs of the module that

are divided by groups and typified. Connections

between outputs and inputs of modules of FS should

satisfy condition that connecting points should be of

the same type.

Figure 1: Visual representation of a module.

In figure 2 an example of flow-graph scheme is

given which represents a program of assembly line

for car manufacturing.

4.1 Operational Semantics of FGSPPL

Parallel execution process of FGPP is represented as

a sequence of alternating states, where each state is

characterized by a set of processes induced by

invocation of methods from ℑ (Kotlyarov D.V. et al,

2005).

The process of FGPP execution is a consequence

of the following rules:

• A FGPP module M

is assumed to be ready for

running by input group P

with the data tuple,

marked by tag t, if all its input points (in the

corresponding memory buffers) have data marked

by the same tag t.

• If module M

is ready for execution by P

with

data tuples, marked by tags

,…,t

k processes,

each of which is uniquely identified by the own

tag t

, can be simultaneously dispatched for

execution.

• Modules with input groups without input points

(which correspond to methods with an empty set

of formal parameters) are assumed to be ready for

execution by these input groups at the time of the

FGPP execution initialization; however the

processes induced by them can be generated only

once.

Figure 2: Flow-graph scheme for car assembly line.

AN APPROACH TO THE DEVELOPMENT OF PROGRAMMING SOFTWARE FOR DISTRIBUTED COMPUTING

AND INFORMATION PROCESSING SYSTEMS

• Process of FGPP execution is considered to be

finished, when any module is not ready for

execution and all the processes induced during

FGPP execution are completed (terminated).

• During the execution method can use special-

purpose functions WRITE, READ, and CHECK,

which provide an interface between modules.

a. WRITE function conducts write in the giving

output point of the giving output group, with

the specified value marked specified tag, and

has the format: WRITE (<name of output

group>, <output>, <tag>, <value>).

b. READ function allows the process to read data

with the indicated tag from buffers assigned to

the input groups of the module that initiated the

process. The data with indicated tag retrieved

from the listed inputs are assigned to variables

in the process - input value. Format of READ

function: < input value > = READ (<name of

input group>, <input>, <tag>). In the execution

of READ function, if the requested data have

not yet arrived to the buffer memory, the

execution is delayed until the data arrive. The

arrival time is controlled for any recording of

data into the buffer memory of the

corresponding input group. When READ

function returns, the requested data are deleted

from the buffer.

c. For more sophisticated operation with data

arriving to module input group (to be more

precise, with the assigned buffers), the function

<availability flag> = CHECK (<name of input

group>, < input>, <tag>) is provided, which

checks the availability of data with the

indicated tags at the specified input point, and

returns TRUE as result, if such data is present

at the buffer, and FA L S E – otherwise. This

function allows the process to make a decision

on its actions depending on the data

availability.

The following forms of parallelism that objectively

present in DCIPS and real-world tasks (Kutepov V.P

et al, 1996) are easily represented in FGSPPL:

 Parallelism of data-independent fragments;

 Data parallelism (SIMD parallelism by Flinn)

that is induced by simultaneous application of

method to several differently tagged data

tuples;

 Pipeline parallelism resulted from stream-like

processing of data.

FGSPPL naturally combines the opportunities of

gross-grain parallelism representation (that is

realized at the level of the modules’ methods) and

fine-grain parallelism that is represented in methods

of modules and can be implemented by

multithreading.

Our experience in FGPPL programming shows that

FGPPL allows to build adequate and often straight

structure models of mass-service networks,

distributed and many component systems, we have a

positive experience in describing on FSPPL the

distributed control processes of flexible automated

manufactures, airports, etc, as well as multi-

component program systems, where information

relations are structured and permanent.

5 EMBEDDING FSPPL INTO

OBJECT-ORIENTED

ENVIRONMENT

Embedding FSPPL into object oriented environment

is an important and apparent way to reach

comprehensive requirements stated in part 3 of the

paper, in particular to provide language support for

complex data modelling. On the other side this

embedding should enrich object-oriented language

with dataflow superstructure on top for more flexible

parallelism support. Such approach has already been

considered as an important extension of object

oriented systems (

J.Paul Morrison., 1994).

Reusability of program code in object-oriented

programming can be reached at different levels of

abstraction starting from procedures, data structures,

and classes and up to logically and physically

connected sets of classes. Using these systems of

classes in architecture of an application implies

using of built-in object interacting schemas in

runtime. These systems of classes delivering

services in some area are usually called integrated

libraries.

We’ve adopted the idea of integrated library to

embed FSPPL into object-oriented environment.

FGPP implemented with the library is called object-

oriented FGPP (OOFGPP).

To build the integrated library for flow-graph

stream parallel programming we have applied

methods of object-oriented analysis for abstract

FGPP, its syntax and parallel semantics. Using

object-oriented decomposition we constructed the

set of base classes that allows describing main

objects of FGPP: scheme, module, input group,

output group, input and output points and defined

mechanisms of their interaction as private methods.

Now to build the OOFGPP developer has to

implement a number of standardized abstract classes

exposed by the library.

The embedding of FSPPL into OO environment

enables developer to treat elements of parallel

ICSOFT 2008 - International Conference on Software and Data Technologies

program as objects that allows using OO

mechanisms such as polymorphism, encapsulation

and inheritance while designing the parallel

program. The largest impact this causes on the

structure of data flows between modules: that is now

the objects can be sent between modules as usual

data. This implies that developer can send objects of

different classes derived from one parent class from

one module to another and depending on class

different methods can be applied to this object inside

module procedure due to polymorphism.

While designing the library we used the most

general constructions that are available in any

modern object-oriented platform. In current

implementation we have chosen .NET CLR platform

to build it.

For effective usage of this library it’s important to

deliver a full range of instruments that covers the whole

process of OOFGPP design, implementation and

execution on a target computer system (DCIPS). In the

next part of the paper we will describe the developed

environment for parallel programming based on the

integrated library that includes all those instruments.

6 OBJECT-ORIENTED

ENVIRONMENT FOR

PARALLEL PROGRAMMING

The following requirements in implementation of

the described above concept and language tools of

object-oriented parallel programming were taken

into account:

 Architecture of the environment should be built

on component basis with strict division of the

functions between them. Specifically, the

following functions are strictly distinct in the

developed environment:

• Support of parallel program development

process;

• Remote access organization;

• Management of parallel program

execution process on DCIPS;

• Management of processes and threads on

DCIPS.

 The environment should use original algorithms

for management of the workload, which allow

supporting dynamically the effective usage of

resources and decreasing parallel program

execution time (see part 7 of this paper).

 The environment should be built as open

and expandable, in particular the development

of subsystem for fault tolerance ensuring

parallel cluster work is carried out now as a

new component of it.

 The software should have portability in its

software realization and make availability to

be applied on different computer platforms

with different OS.

Let’s briefly review the components of the

developed environment.

1. Client software: FSPPL Integration

Package.

This component is intended for managing interaction

between user and the system. The component is

integrated into popular integrated development

environment (IDE) Microsoft® Visual Studio® (VS)

2005/8 and covers the full lifecycle of parallel

program. It includes a VS project template that fully

complies with the developed principles of design

and realization of the parallel distributed programs

using FSPPL. The component also contains

specialized editor of the graph structures for creating

and editing parallel program schemes. Program code

on chosen programming language (VB, MC++, C#,

J#) is generated based on the created schemes.

Module of program configuration provides

services for setting the parameters of parallel

program execution on cluster, or other DCIPS

namely it allows developer to do initial mapping of

the parallel program’s scheme (its modules) to the

nodes of the DCIPS (the analogue of machine file

for MPI). Module of parallel program execution

control data on load of the remote nodes to user and

allows controlling the execution process of the

parallel program.

2. Web interaction.

This component is a layer between of all

distributed software components like client package

and software for DCIPS nodes. The component is a

Web-service performing two functions:

 Receiving user commands for the execution

software and initiating appropriate actions;

 Providing to the client software an access to the

data on nodes load and task completion status.

The component has access to the system

database, which contains data on registered users

and their tasks which were executed on the target

DCIPS.

3. Program execution management software.

General principle of management architecture is a

hierarchical decentralized organization when nodes

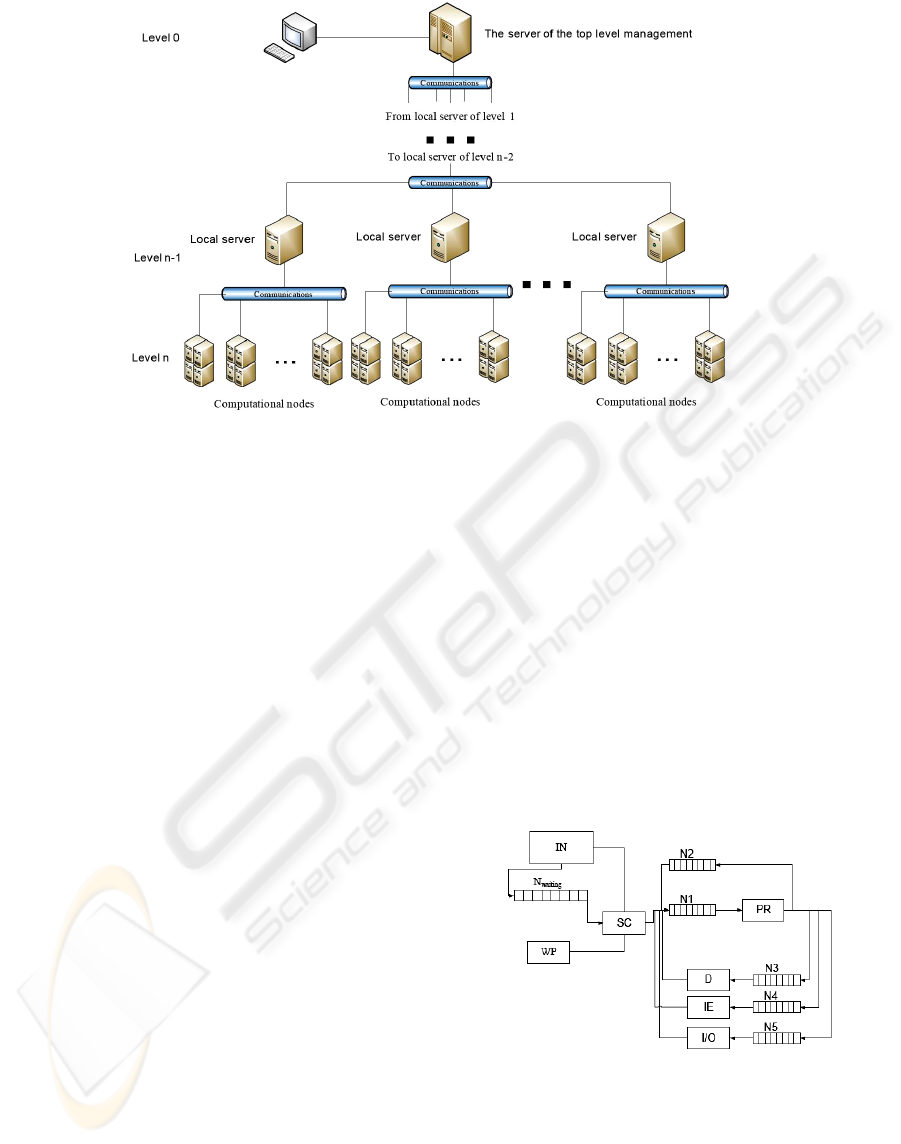

of DCIPS are divided into groups (see figure 3).

Group server performs the following functions:

 Periodically obtaining data on load of the

controlled nodes;



Management of the group workload by

relocation of the processes between nodes

AN APPROACH TO THE DEVELOPMENT OF PROGRAMMING SOFTWARE FOR DISTRIBUTED COMPUTING

AND INFORMATION PROCESSING SYSTEMS

Figure 3: Architecture of DCIPS management.

based on obtained load data;

 Reconfiguration issued by failures or new

systems discovery and administration.

Servers of higher levels perform the similar

functions for subordinated groups.

Node management performs the following functions:

 Control of processes generation and, interaction

with other processes, including those on other

computers;

 Processes planning;

 Parameters measurement of the node load,

processing of these parameters in order to

forecast their future values and transfer to the

server;

 Reaction to the server commands.

7 SCHEDULING PROCESSES IN

COMPUTER OF DCIPS

Let us consider in what way the processes

management at DCIPS nodes should be organized.

The contemporary operating systems provide multi-

tasking, using for this purpose the round-robin

servicing discipline, which gives the advantage in

the execution to short tasks or processes. It is the

essential, if the user along with the programs

execution carries out the debugging and other

procedures and would like to receive the quick reply.

In figure 4 the scheme of processes service

organization at node is shown, taking into account

embedded scheduling processes in OS. In figure 4

the program block of the measurement of the

workload parameters (WP) cooperating with the OS,

implements the functions of the periodic

measurement, averaging and forecasting of the

computer workload parameters:

 Li(t) – workload of the i-th computer at the

moment t, defined as the workload of its

processor (the part time of its useful work);

 λi′(t) – intensity of the pages exchange with the

disk memory;

 λi′′(t) – intensity of inter-computer exchanges;

 λi′′′(t) – intensity of the input-output commands

occurrence in the running processes;

 Vi(t) – free memory of the computer;

 N(i)waiting(t) – set of the waiting for the

execution processes.

Figure 4: The organization of processes management at

DCIPS node.

An interpreter (IN) of the parallel programs places

the processes in the queue N

waiting

induced during

execution of a program on processor (PR). A

scheduler (SC) removes a part of these processes to

the queue N

from which PR takes processes for

ICSOFT 2008 - International Conference on Software and Data Technologies

execution in the round-robin order. The processes in

the queues N

, N

are waiting for execution of

the exchange of pages with disk memory (D), the

inter-computer data exchange (IE) and input/output

(I/O) respectively. The SC can delay a part of being

executed processes and place them in the queue N

in a case if a number of active processes

active

∪N

is redundant and high

swapping (great value of λ

′) is provoked.

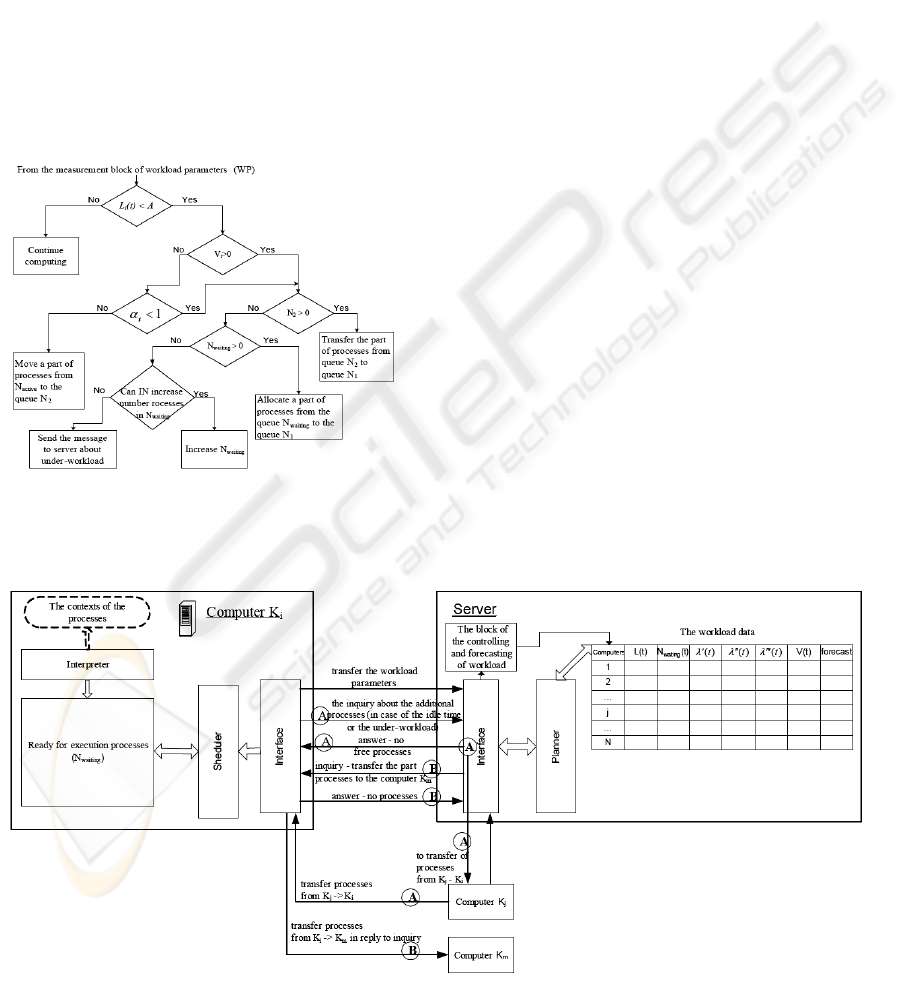

The developed algorithm of scheduling processes

on a node is given in figure 5. In this figure α

=λ

′/μ

- loading factor of the paging system (μ

– paging

system capacity). A – some experimentally derived

threshold constant, by which the level of the

computer workload is regulated.

Figure 5: Scheduling processes in the computer.

8 SERVER FUNCTIONS IN

MANAGING DCIPS

WORKLOAD

The server is intended for the regulation of the nodes

load, aiming to minimize the idle time of the

processors due to the dynamic relocation of the

processes and increasing the number of ready for

execution on processes.

The server periodically obtains the data about the

workload of its subordinated computers and

forecasts its change. The scheme and the logic of the

server interaction with the group computers are

shown in figure 6.

In figure 6 the designations A and B on the

arrows show the possible alternatives of the

corresponding decisions about the redistribution of

processes between computers during their dialogue

with the server. At figure 6 all parameters of the load

represent the averaged values on some interval and

the forecast is the predicted values change of the

same parameters.

The problem of the accurate measurement of the

workload parameters is very important factor in

scheduling processes and managing workload (Neil

Gunther, 2005) in DCIPS. We performed wide the

experimental investigation in order to better

understand stochastic nature and the most significant

parameters which characterize a behavior of the

processes in computer systems (Kutepov V.P.,

2007). As the result we developed the simple

measurement and prediction workload parameters

algorithms with small time consuming for their

operation.

Figure 6: Scheme of interaction between server and controlled nodes.

AN APPROACH TO THE DEVELOPMENT OF PROGRAMMING SOFTWARE FOR DISTRIBUTED COMPUTING

AND INFORMATION PROCESSING SYSTEMS

9 CONCLUSIONS

It is a great willing to conclude the paper with

optimistic wave bypassing many stones on the road

of the comprehensive solution of DCIPS

programming problem. The dream of deep

automation of programming process is immortal as

well as difficultly reachable as we now

acknowledge. Development of software for various

DCIPS is more difficult task inheriting the main

problems of previous one. Probably more intensive

cooperation of the researchers’ efforts is necessary

in order to yield general conceptual and theoretical

platform for DCIPS software development that

allows to say that they performed work successfully.

As for our project we are planning to integrate

operational tools with mentioned above globus

toolkit platform.

REFERENCES

Kutepov V. P., 1996 In. «On Intelligent Computers and

Large Scale New-Generation Computer Systems».

Journal of Computer and Systems Sciences

International, vol. 35, no. 5.

Kotlyarov D. V., Kutepov V. P., Osipov M. A., 2005. In

“Flowgraph Stream Parallel Programming and Its

Implementation on Cluster Systems”, Journal of

Computer and Systems Sciences International, Vol. 44,

No. 1, pp. 70-89.

Bazhanov S. E., Kutepov V. P., Shestakov D. A., 2005. In

«Functional Parallel Typified Language and Its

Implementation on Clusters». Programming and

Computer Software 31(5).

Kutepov V. P., 2007, In «Intelligent scheluding processes

and controlling workload in computing systems».

Journal of Computer and Systems Sciences

International, vol. 46, no. 5.

Dr. Neil Gunther, 2005. In Load, Average Part I: How It

Works. TeamQuest Corporation.

J.Paul Morrison., 1994. In Flow-based Programming: A

new Approach to Application Development, Van

Nostrand Reinhold.

Foster I., Kesselman C. And Tuecke S., 2001. In The

anatomy of the grid: enabling scalable virtual

organizations. International J. Of supercomputer

Applications, N15 P.200-222,

www.globus.org/research/papers/anatomy.pdf

ICSOFT 2008 - International Conference on Software and Data Technologies
