INCORPORATING SEMANTIC ALGEBRA IN THE MDA

FRAMEWORK

Paulo E. S. Barbosa, Franklin Ramalho, Jorge C. A. de Figueiredo and Antonio D. dos S. Junior

Universidade Federal de Campina Grande, Departamento de Sistemas e Computac¸˜ao

Campina Grande, Brazil

Keywords:

Metamodels, denotational semantics, formal methods and MDA.

Abstract:

Denotational semantics is commonly used to precisely deﬁne the meaning of a programming language. This

meaning is given by functions that map syntactic elements to mathematically well deﬁned sets called semantic

algebra. Models in semantic algebra need to be processed through reductions towards a normal-form in order

to allow the veriﬁcation of semantics properties. MDA is a current trend that shifts the focus and effort from

implementation to models, metamodels and transformations during the development process. In order to put

forward denotational semantics in the MDA vision, we turn semantic algebra into an useful domain-speciﬁc

language. In this context, this paper describes our proposed MOF metamodel and ATL reductions between

the generated models. The metamodel serves as abstract syntax for semantic algebra. It is useful for static

semantics veriﬁcations. The reductions enable processing towards a normal-form to compare semantics. This

process can be guided by using some rewrite system.

1 INTRODUCTION

Metamodels play an important role in the Model-

Driven Architecture (MDA) (OMG, 2007) providing

a way to unambiguously deﬁne languages. Each Do-

main Speciﬁc Language (DSL) can be associated to a

different metamodel. A metamodel deﬁnes the con-

structs of the DSL in the modeling process. Thus, a

model is an instance of these constructs. Metamod-

els are also used to deﬁne model transformation, a

technique to transform one source model into a tar-

get model. Transformations play a key role in the

MDA approach, allowing the transformation of the

constructed model into something executable.

The formal semantics of a programmingor model-

ing language is the assignment of meanings to the sen-

tences or components given by a mathematical model

that describes every possible computation in the lan-

guage. Denotational semantics is an useful approach

for precisely deﬁning the meaning of a programming

language (Schmidt, 1986). It is a mapping between a

program and its meaning, called denotation. The de-

notation is a mathematical value, such as a number or

a function. This mapping of the denotational style is

feasible only if the formal notation is algebraic. The

most used algebraic notation is named semantic al-

gebra. A semantic algebra is a formalism for intro-

ducing domains and operations, being considered an

abstract data type.

Simplifying or evaluating semantic models means

reducing its expressions until no more reduction rules

can be applied. A reduction rule receives as input a

semantic model and returns as output another seman-

tic model with some different feature. These reduc-

tions need to be applied in order to compare it with

the meaning of other programs or formalisms.

The MDA architecture does not provide formal in-

frastructure and primitives for the deﬁnition of arti-

facts able to represent the required semantic correct-

ness (Kleppe and Warmer, 2003). It deals only with

the deﬁnition and manipulationof structural elements,

related to the syntax deﬁned by metamodels. It is ex-

pected that transformations involving programming

and modeling languages as input and output models

should have a conformance relation between models.

The lack of formalization makes the production of

tools difﬁcult because semantics carries the meaning

that is essential to enable automation.

In this paper we propose introducing semantic al-

gebra in the MDA infrastructure. In order to achieve

this goal, a metamodel for semantic algebra and im-

plementation of reductions between the generated

models are suggested. Both are important in the MDA

vision because they: (i) give an abstract syntax to

330

E. S. Barbosa P., Ramalho F., C. A. de Figueiredo J. and D. dos S. Junior A. (2008).

INCORPORATING SEMANTIC ALGEBRA IN THE MDA FRAMEWORK.

In Proceedings of the Third International Conference on Software and Data Technologies, pages 330-336

DOI: 10.5220/0001899703300336

 SciTePress

apply semantic algebra as a DSL; (ii) provide inter-

operability between semantic speciﬁcations of many

languages, enabling processing of the denotations;

(iii) enable formal reﬁnement of the involved models,

which can be applied both in endogenous and exoge-

nous transformations (Czarnecki and Helsen, 2003);

and (iv) are important pieces in an ongoing frame-

work for semantic preserving in MDA transforma-

tions having as basis the well-founded theory of De-

notational Semantics.

The paper is structured as follows. Section 2

presents the semantic concepts necessary to under-

stand the proposed work. Section 3 describes the se-

mantic algebra metamodel. Section 4 analyzes the

implementation of reductions between models in this

formalism. Section 5 gives an example of the meta-

model instantiation. Section 6 discusses some similar

works. Section 7 concludes the paper.

2 DENOTATIONAL SEMANTICS

AND SEMANTIC ALGEBRA

The framework of denotational semantics, provided

by Scott and Strachey (Scott and Strachey, 1971), pro-

vides a proper mathematical foundation for reason-

ing about programs and programming languages. It

is based on denotations, that are typically a function

with arguments that represent expressions before and

after execution. They are deﬁned inductively, using

λ-Calculus (B¨ohm, 1975) to specify how the denota-

tions of components are combined.

To give the semantics of a language, a collection

of meanings is necessary. The most used framework

is Domain Theory, which employs structured sets,

called domains, and their operations as data structures

for semantics. Domains plus the operations constitute

a semantic algebra. According to Schmidt (Schmidt,

1986), the semantic algebra:

• clearly states the structure of a domain and how

elements are used by the functions.

• modularizes and provides reuse of semantic deﬁ-

nitions.

• makes analysis easier.

As an example, we chose a subset of the speci-

ﬁcation of an imperative programming language ex-

tracted from (Schmidt, 1986). It will also be dis-

cussed and instantiated in Section 5. This semantic al-

gebra has four domains: (I) the Truth Values domain,

corresponding to the boolean type and has true and

false as atomic values and not as operation; (II) the

known Natural Numbers domain, their uncountable

elements and the basic operations plus and equals;

(III) the Identiﬁers domain, commonly employed as

speciﬁc memory addresses, being a set with no op-

erations; and (IV) the Store domain, that models a

computer store as a mapping from identiﬁers of the

languages to their values. The operations over the

store include: (i) newstore for creating a new store;

(ii) access for accessing a store, and (iii) update for

placing a new value into a store. This is the model-

ing of the classical concept of memory manipulation,

always present in imperative languages.

I. Truth Values III. Identiﬁers

Domain t ∈ Tr = B Domain i ∈ Id = Identiﬁer

Operations IV. Store

true, false: Tr Domain s ∈ Store = Id → Nat

not: Tr → Tr Operations

II. Natural Numbers newstore: Store

Domain n ∈ Nat = N newstore = λi.zero

Operations access: Id → Store → Nat

zero, one,...:Nat access = λiλs.s(i)

plus: Nat × Nat → Nat update: Id → Nat → Store → Store

equals: Nat × Nat → Tr update = λiλnλs.[i7→n]s

3 THE SEMANTIC ALGEBRA

METAMODEL

We propose a metamodel as the abstract syntax for

the deﬁnition of a semantic algebra. Due to space

restrictions, aspects of the metamodel were summa-

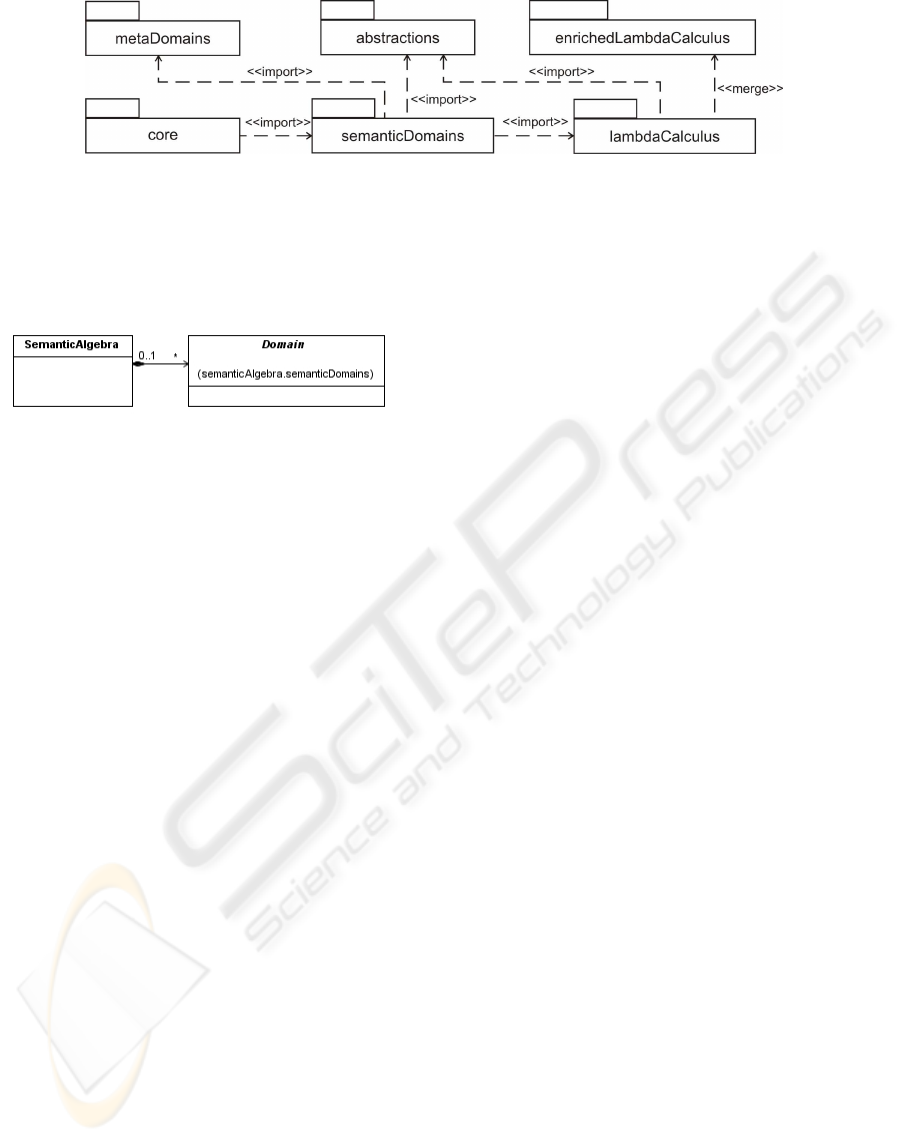

rized. The diagram in Fig. 1 shows six MOF packages

covering concepts and relationships in this domain.

The core package represents the identiﬁcation of

a semantic algebra, and how it is composed by sev-

eral domains. The metaDomains package represents

existing sets or structures which are used as basis

for deﬁning the semantic algebras. The semantic-

Domains package represents a set of elements shar-

ing common properties. Domains may be nothing

more than sets, lattices or topologies. Accompany-

ing a domain we have a set of operations that can

be considered functions. The lambdaCalculus pack-

age represents the λ-Calculus computational formal-

ism which is responsible for function speciﬁcations.

The enrichedLambdaCalculus package represents the

inclusion of extra constructs, such as a superset, orig-

inating the enriched lambda calculus. It is provided

through the merge operator because any expression in

the λ-Calculus is also an expression in the enriched λ-

Calculus syntax. The abstractions package contains

speciﬁc abstractions identiﬁed in several parts of the

metamodel.

The core package is responsible for capturing the

beginning of the denotational speciﬁcation. The se-

mantic algebra concept is represented by the meta-

INCORPORATING SEMANTIC ALGEBRA IN THE MDA FRAMEWORK

331

Figure 1: Semantic Algebra metamodel.

class SemanticAlgebra composed by zero or many

Domains as represented in Fig. 2. This metaclass

belongs to the semanticDomains package and is de-

scribed in the next subsection.

Figure 2: The core package.

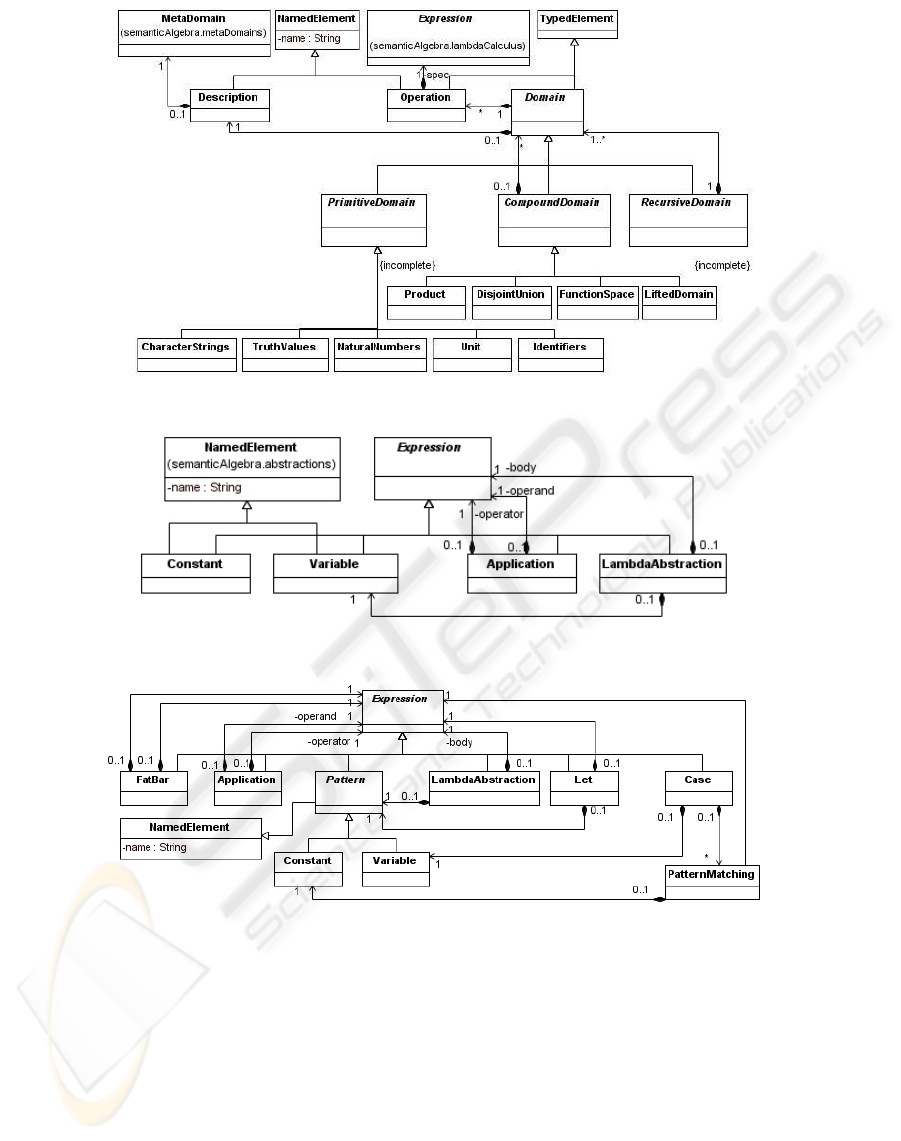

These domains (semantic domains) are sets that

are used as value spaces in programming language

semantics. They are presented in Fig. 3. They be-

long to the semanticDomains package where are de-

scribed with an underlying mathematical set (e.g. nat-

ural numbers, truth values or any other domain) which

provides the isomorphism to an existing well-deﬁned

theory. This information is stored in the Description

metaclass and in its relationship to a MetaDomain.

A semantic domain should be represented as a set

and they can be classiﬁed according to its composition

as:

• Primitive Domains: represented by the Primi-

tiveDomain metaclass. Its elements are atomic

and are used as answers or semantic outputs.

This kind of domain is specialized as Character-

Strings, TruthValues, NaturalNumbers, Identiﬁers

and Unit only. It is incomplete because according

to the described language and its paradigm, addi-

tional domains should be necessary.

• Compound Domains: represented by the Com-

poundDomain metaclass. It enables the cre-

ation of new domains from existing ones, using

some domain building constructions in the Do-

main Theory. There are a number of assem-

bling and disassembling operations of the com-

pound domain. The previously deﬁned domains

are products, disjoint unions, functions and lift, a

type of empty domain.

• Recursive Domains: represented by the Recur-

siveDomain metaclass. It occurs when certain

programming languages features require domains

whose structure is deﬁned in terms of themselves.

A recursive domain is composed by, at least, an-

other domain that can be considered the base case

of the recursion.

Since λ-Calculus is a language with a well-deﬁned

EBNF grammar, we mapped its rules to the lambda-

Calculus package represented in Fig. 4. It has four

kinds of expressions:

• Variables: represent the storage of some concept

to be manipulated in the program.

• Constants: represent an extension of a suit-

able collection of built-in functions, including

arithmetic functions, constants, logical functions,

character constants and more.

• Applications: represent the denotation: the func-

tion f applied to the argument x. It is used as f

x. In the metamodel those expressions are rep-

resented by the roles operator and operand. This

format is known as currying and allows us to think

of all functions as having a single argument.

• Lambda Abstractions: represent constructs to de-

note new functions. A λ-abstraction is a particular

sort of expression which denotes a function. It is

composed by a variable followed by the body of

the function.

These expressions are represented as metaclasses

and grammar constraints are, for instance, relation-

ships between metaclasses. It is enough to represent

compositionality demanded by recursive deﬁnitions.

In order to turn the operation speciﬁcation into a

more suitable task, the syntax of the λ-Calculus is

improved with operators closer to the functional con-

structs. These enriched constructors are metamodeled

in the enrichedLambdaCalculus package in Fig. 5. It

is a superset of the λ-Calculus so that any expression

in the λ-Calculus is also an expression in it.

In this case, Constant and Variable are now gen-

eralized into Pattern because of some inserted opera-

tions that treat both similarly. In addition, some ex-

tra constructs are provided, such as let, case and the

considered inﬁx operator fat bar. Now, a LambdaAb-

straction receives as parameter a pattern, allowing

the pattern matching concept, always present in func-

tional languages. The Let metaclass is composed by

ICSOFT 2008 - International Conference on Software and Data Technologies

332

Figure 3: The semanticDomains package.

Figure 4: The lambdaCalculus package.

Figure 5: The enrichedLambdaCalculus package.

a Pattern instance that is currently instantiated and an

Expression in which this instance will be employed.

The case expression consists of a variable in which

the test will happens and several PatternMatching in-

stances.

4 LAMBDA REDUCTIONS

Evaluating a λ-expression is called reduction. Reduc-

tions are useful for the processing of models towards

a normal-form in order to compare semantics. As λ-

Calculus is inserted in the semantic algebra format,

we followed the same deﬁnition. The basic idea in-

volves substituting expressions for free variables in a

similar way that parameters are passed as arguments

in a function call.

In the MDA framework, we employ these reduc-

tions as reﬁnement rules of the semantic models (in-

stances of the semantic algebra metamodel) associ-

ated with each input and output model. These rules

are applied until a normal-form is reached for each

model, on which semantic properties will be veri-

ﬁed. Therefore, these reductions will promote verify-

INCORPORATING SEMANTIC ALGEBRA IN THE MDA FRAMEWORK

333

ing if the MDA transformations are in fact semantic-

preserving. We have chosen to introduce reductions

in MDA by using model transformations. In partic-

ular, for each reduction, we have speciﬁed an ATL

module containing minor reductions speciﬁed as ATL

rules. In essence, they are rewrite rules that match

input models patterns, expressed as semantic algebra

elements on the input metamodel, and produce output

as semantic algebra patterns.

Our set of ATL transformation rules generates in-

termediate and ﬁnal representations of semantic alge-

bra speciﬁcations. We have implemented the main λ-

reductions described in (Schmidt, 1986): α, β and η.

The reductions were implemented as ATL rules, using

ATL helpers for auxiliary functions or attributes. Due

to the lack of space, we illustrate the β-reduction. It is

useful for simplifying an expression, deﬁning the idea

of evaluation of a function application (f x).

In the module BetaReduction, the formula in

which the β-transformation will be carried out is

(λv.E) e. The input expression needs to be an applica-

tion with the operator as an abstraction, as indicated

at lines 4-5 by the input match. This is necessary to

satisfy the β equation: (λv. E ) E1 ⇒β E[v → E1].

The rule (Abs2AbsFree) at lines 8-10 deals with the

input as a LambdaAbstraction. It invokes an auxiliary

function (line 10) to discover the free occurrences of

the formal parameter in the body of f which are to be

replaced for. The auxiliary function is implemented

with the ATL helper isFree at lines 11-15, which de-

clares that the parameter variable is free, considering

the body of the function as an expression, if: (i) it is

a variable with the same name of the parameter vari-

able; or (ii) it is an application and recursively the

variable is free for the operator or the operand, or (iii)

it is an abstraction with the same parameter and has a

free body.

1: module BetaReduction;

2: create OUT : LC from IN : LC;

...

3: rule Expression2Expression {

4: from

5: in:LC!Expression(in.isApp() and in.operator.isAbs())

6: to

7: out:LC!Expression

...

8: rule Abs2AbsFree {

9: from

10: in:LC!LambdaAbstraction(not(self.isFree(self.v,in)))

...

11: helper def: isFree (v:LC!Variable, e:LC!Expression):Boolean =

12: (e.isVar() and (v.name = e.name)) or

13: (e.isApp() and self.isFree(v,e.operator) or

14: self.isFree(v,e.operand)) or (e.isAbs() and

15: (not(v.name = e.parameter.name) and self.isFree(v,e.body)));

In order to build and validate our approach, we

have adopted the ATL-DT (AI0, 2004) framework.

It is an Eclipse plugin that allows in an integrated

way: (i) specifying and validating metamodels; (ii)

creating and validating models in conformance with

their provided metamodels; (iii) specifying and exe-

cuting model transformations based on metamodels

and applied to valid models. These transformations

are already being applied to several complex seman-

tic models. By adopting a framework that fully sup-

ports most of the OMG standards, we promote the in-

tegration of our work with other existing tools, such

as model or code editors.

5 AN INSTANTIATION EXAMPLE

In order to validate the proposed metamodel, we

reused several classical speciﬁcations from (Schmidt,

1986). In Fig. 6 we illustrate the speciﬁcation for

imperative languages given in Section 2. The intro-

duced labeled boxes represent instantiations of the

metaclasses and the dotted arrows represent instanti-

ations outgoing from the box and ingoing the meta-

classes. First of all, one instance of the metaclass

SemanticAlgebra is shown in the box 1 and four in-

stances of the associated metaclass Domain in the box

2, corresponding to the four existing domains.

In Fig. 7 we give a general view of the instantiated

elements. We deal with three existing primitive do-

mains: TruthValues, NaturalNumbers and Identiﬁers

instantiated in box 3. We also have one compound

domain: Store, in box 4. Its operations are shown in

the top of box 5, except for Identiﬁers which have no

operation. It was also necessary to add to the hierar-

chy of the CompoundDomain a new subclass to rep-

resent Store. It was instantiated as a map from Iden-

tiﬁer to a NaturalNumber (the two domains that to-

gether compose the store), implementing a Function-

Space. A domain is also composed by a Description

as shown in box 6. It applies the set of Natural num-

bers from mathematics into the NaturalNumbers do-

main, the commonly used Boolean values from pro-

gramming languages into TruthValues and a set of

identiﬁers composed by any character string into the

Identiﬁers domain.

The remaining expressions proposed in the Store

domain operations are instantiated as shown in Fig. 8.

In box 7 we have two nested λ-expressions delimited

by the λ symbol until the end. The ﬁrst lambda ab-

straction receives the variable i as parameter and has

the second lambda abstraction as expression. The sec-

ond lambda abstraction receives the variable s as pa-

rameter and makes the function application of s onto i

as its expression. The expression in box 8 follows the

same idea, but the expression of a lambda abstraction

is a constant, zero in this case. Box 9 presents the cre-

ation of an anonymous lambda abstraction, with the

variable i as parameter, the variable n as expression

and the anonymous function is applied to the variable

ICSOFT 2008 - International Conference on Software and Data Technologies

334

Figure 6: Instantiating the semantic algebra for imperative languages.

Figure 7: Instantiated elements in the semantic domains.

Figure 8: Three speciﬁcations built on the λ-calculus formalism.

s concluding the speciﬁcation.

6 RELATED WORKS

There exists some proposed semantic metamodels in

the context of formal semantics. However, no one fo-

cuses on the semantic algebra of the denotational for-

malism. Kent et al. (Kent et al., 1999) redeﬁnes meta-

models for UML/OCL in order to incorporate formal

semantics. In this case, the denotational approach is

realized by redeﬁning: (i) the semantic metamodel for

the language of models (classes, roles, models); (ii)

the semantic metamodel for the language of instances

(objects, links); and (iii) the mapping between these

two languages as semantic equations. However this

work differs from ours because it suffers of the lack

of formalization of the languages in the domain and

codomain. The mapping is not enough to ensure con-

formance between models and makes hard to consider

INCORPORATING SEMANTIC ALGEBRA IN THE MDA FRAMEWORK

335

extensions for dynamic aspects of behavior.

Concerning model transformations, Dominguez

et al. (Dominguez et al., ) investigate the explicit

correspondence between metamodels and ontologies

of different languages. They consider reﬁnement of

metamodels instead of models, as we do here. By

constructing a chain of metamodels, according to

some reﬁnement laws, they analyze reﬁnements in

both sides until that some convergence can be found

to compare meanings. The proposed idea can help to

delimit the difﬁculties in assuring that semantics are

preserved in some translation but has the limitation

of dealing with the language level, which requires a

high-level of expertise.

7 CONCLUSIONS AND FUTURE

WORK

We proposed a MOF metamodel for semantic alge-

bra and implementation of its corresponding reduc-

tions. The former formally introduces domains and

operations of programming languages, and the later

simplify models towards a normal-form. They play

an important role in the MDA framework because

they: (i) put forward semantic algebra in the MDA

vision, allowing speciﬁcations from or to this formal-

ism; (ii) put forward semantic algebra as a DSL al-

lowing formal semantic applications; (iii) enables rea-

soning about meaning and behavior in order to get a

formal conformance between models by using reduc-

tions after transformations; and (iv) have potential to

emerge as crucial elements in the MDA framework in

order to allow semantic preservation in model trans-

formations.

The proposed metamodel and reductions are part

of an ongoing project whose main goal is to guarantee

semantic preservation in model transformations in the

MDA infrastructure. To that effect, the widely rec-

ognized potential of semantic algebra as a semantic

notation for syntactic constructs of programming lan-

guages put its metamodel as a crucial element in the

puzzle of MDA artifacts.

Although QVT is the current OMG’s proposal for

specifying transformations in the MDA vision, we

have adopted ATL. The main reason for this choice

is that QVT tools still have low robustness and its use

is not widely disseminated. On the other hand, ATL is

employed by an increasing and enthusiast community,

with full support to model operations, where, in an

integrated way, one can specify and instantiate meta-

models as well as specifying and executing transfor-

mations on them.

As future work, we intend to propose an extension

on the MDA four-layer architecture in order to in-

clude the semantic algebra metamodel as required ele-

ment for guaranteeing semantic preservation in model

transformations. The reductions will be inferred and

performed automatically by the use of rewriting logic

in rewrite systems.

REFERENCES

(2004). ADT: Eclipse development tools for ATL.

B¨ohm, C., editor (1975). Lambda-Calculus and Computer

Science Theory, volume 37 of Lecture Notes in Com-

puter Science. Springer.

Czarnecki, K. and Helsen, S. (2003). Classiﬁcation of

model transformation approaches. In Proceedings

of the 2nd OOPSLA Workshop On Generative Tech-

niques in the Context of the Model Driven Architec-

ture.

Dominguez, E., Rubio, A., and Zapata, M. Mapping models

between different modeling languages. In Workshop

on Integration and. Transformation of UML Models,

2002, pages 18–22.

Kent, S., Gaito, S., and Ross, N. (1999). A meta-model se-

mantics for structural constraints in UML. In Kilov,

H., Rumpe, B., and Simmonds, I., editors, Behavioral

speciﬁcations for businesses and systems, chapter 9,

pages 123–141. Kluwer Academic Publishers, Nor-

well, MA.

Kleppe, A. and Warmer, J. (2003). Do mda transformations

preserve meaning? an investigation into preserving

semantics. In International Workshop on Metamod-

elling for MDA.

OMG (2007). Model driven architecture.

http://www.omg.org/mda/.

Schmidt, D. A. (1986). Denotational semantics: a method-

ology for language development. William C. Brown

Publishers, Dubuque, IA, USA.

Scott, D. and Strachey, C. (1971). Towards a mathemat-

ical semantics for computer languages. In Proceed-

ings of the Symposium on Computers and Automata,

volume 21 of Microwave Research Institute Symposia

Series.

ICSOFT 2008 - International Conference on Software and Data Technologies

336
