JAVA NIO FRAMEWORK

Introducing a High-performance I/O Framework for Java

Ronny Standtke and Ulrich Ultes-Nitsche

Telecommunications, Networks & Security Research Group, University of Fribourg

Boulevard de P

erolles 90, CH-1700 Fribourg, Switzerland

Keywords:

Java, NIO, high-performance, security, framework.

Abstract:

A new input/output (NIO) library that provides block-oriented I/O was introduced with Java v1.4. Because

of its complexity, creating network applications with the Java NIO library has been very difﬁcult and build-in

support for high-performance, distributed and parallel systems was missing. Parallel architectures are now

becoming the standard in computing and Java network application programmers need a framework to build

upon. In this paper, we introduce the Java NIO Framework, an extensible programming library that hides most

of the NIO library details and at the same time provides support for secure and high-performance network

applications. The Java NIO Framework is already used by well-known organizations, e.g. the U.S. National

Institute of Standards and Technology, and is running successfully in a distributed computing framework that

has more than 1000 nodes.

1 INTRODUCTION

Multicore and manycore processing units are now be-

coming the standard in computing architectures. The

expected growth in number of cores per unit is a chal-

lenge for software engineers in almost all ﬁelds.

Java network application programmers have two

basic choices:

• use the classical I/O API (Streams, blocking I/O)

• use the NIO API (ByteBuffers, non-blocking I/O)

The classical I/O API is very easy to use, even

for network connections secured with SSL. Because

it uses blocking I/O, the one thread per socket multi-

plexing strategy must be used to serve several network

connections. Even though this API scales with the

number of available cores, the runtime performance

of network applications using this API is very poor.

The NIO API provides mechanisms for non-

blocking I/O. With non-blocking I/O it becomes pos-

sible to use readiness selection as the multiplexing

strategy for serving several network connections. On

the other hand, programming with the NIO API is

very difﬁcult. A whole book has been written about it

(Hitchens, 2002). If attention is paid to all the neces-

sary NIO details, a programmer must write a lot of so-

called boilerplate code, even for the most simple net-

work application. The complexity is increased many

times if NIO is combined with SSL for secure net-

work connections or support for high-performance,

parallel systems. Many of these challenges and their

proposed solutions are described in (Pitt, 2005).

The Java NIO Framework presented here is an ex-

tensible programming library that solves many prob-

lems that Java network application programmers face

when using the original NIO library:

• In contrast to the original NIO library the Java

NIO Framework has a very simple API, hiding all

unnecessary details.

• Support for securing network connections with

SSL is an integral part of the library instead of

providing a separate, add-on engine.

• The I/O processing performance of network appli-

cations using the Java NIO Framework automati-

cally scales with the number of available cores.

We started the work on the Java NIO Frame-

work after Ron Hitchen’s presentation “How to Build

a Scalable Multiplexed Server With NIO” at the

JavaOne Conference 2006 (Hitchens, 2006). Al-

though there have been other frameworks available,

e.g. (Lee, 2006; Arcand, 2006; Roth, 2006; Shetty,

2006), none of them had the envisioned scalability

and ease of use. The Java NIO Framework has been

published in August 2007 and is available at http://

nioframework.sourceforge.net. It is Free Soft-

ware released under the GNU Lesser General Public

License version 3.

206

Standtke R. and Ultes-Nitsche U. (2008).

JAVA NIO FRAMEWORK - Introducing a High-performance I/O Framework for Java.

In Proceedings of the Third International Conference on Software and Data Technologies - PL/DPS/KE, pages 206-211

DOI: 10.5220/0001901502060211

 SciTePress

2 MULTIPLEXING STRATEGIES

Two multiplexing strategies were mentioned in the in-

troduction, one thread per socket and readiness selec-

tion. In the next sections both strategies are brieﬂy

introduced and analyzed.

2.1 One Thread Per Socket

Threads are a mechanism to split a process into sev-

eral simultaneously running tasks. Threads differ

from normal processes by sharing memory and other

resources. Therefore they are often called lightweight

processes. Switching between threads is typically

faster than switching between processes.

When a server uses the one thread per socket mul-

tiplexing strategy it creates one thread for every client

connection. When executing blocking I/O operations

the thread is also blocked until the operation com-

pletes its execution (e.g. when reading data from a

socket the thread blocks until new data is available

to read from the socket).

This strategy is very simple to implement because

every thread just continues its operation after return-

ing from a blocking operation and all internal states

of the thread are automatically restored. A program-

mer can implement the thread (more or less) as if the

server handles only one client connection.

The drawback of this multiplexing strategy is that

it does not scale well. Each blocked thread acts as a

socket monitor and the thread scheduler is the notiﬁ-

cation mechanism. Neither of them was designed for

such a purpose.

A remaining problem of this strategy is that a de-

sign with massive parallel threads naturally is prone to

typical threading problems, e.g. deadlocks, lifelocks

and starvation.

2.2 Readiness Selection

Readiness selection is a multiplexing strategy that en-

ables a server to handle many client connections si-

multaneously with a single thread. An overview of

readiness selection is given in (James O. Coplien,

1995) when presenting the reactor design pattern.

The reactor design pattern proposes the software

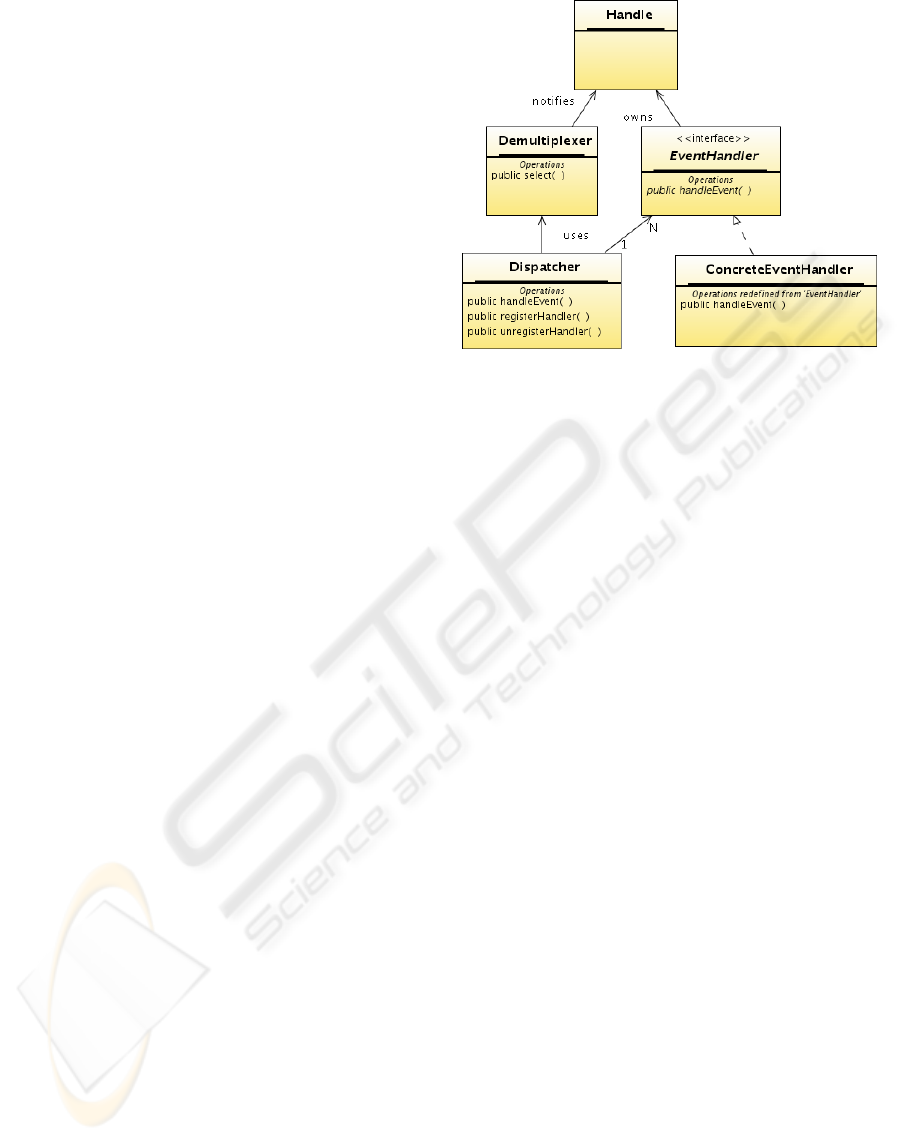

architecture presented in Figure 1.

• The class Handle identiﬁes resources that are

managed by an operating system, e.g. sockets.

• The class Demultiplexer blocks awaiting events

to occur on a set of Handles. It returns when it

is possible to initiate an operation on a Handle

without blocking. The method select() returns

which Handles can have operations invoked on

Figure 1: Reactor design pattern.

them synchronously without blocking the appli-

cation process.

• The class Dispatcher deﬁnes an interface for

registering, removing, and dispatching Event-

Handlers. Ultimately, the Demultiplexer is re-

sponsible for waiting until new events occur.

When it detects new events, it informs the Dis-

patcher to call back application-speciﬁc event

handlers.

• The interface EventHandler speciﬁes a hook

method that abstractly represents the dispatching

operation for service-speciﬁc events.

• The class ConcreteEventHandler implements the

hook method as well as the methods to pro-

cess these events in an application-speciﬁc man-

ner. Applications register ConcreteEventHandlers

with the Dispatcher to process certain types of

events. When these events arrive, the Dispatcher

calls back the hook method of the appropriate

ConcreteEventHandler.

Readiness selection scales much better but it is

not as easy to implement as the one thread per socket

strategy.

3 NIO FRAMEWORK DESIGN

Because the NIO Framework should be scalable to

handle thousands of network connections simultane-

ously, the decision was made to use readiness se-

lection as the multiplexing strategy, which is much

more appropriate for high-performance I/O than the

one thread per socket strategy.

JAVA NIO FRAMEWORK - Introducing a High-performance I/O Framework for Java

207

3.1 Mapping the Reactor Design

Pattern

If the reactor design pattern presented above had

been used for the NIO Framework without mod-

iﬁcation, every application-speciﬁc ConcreteEvent-

Handler would still have to take care of many NIO

speciﬁc details. These include buffers, queues, in-

complete write operations, encryption of data streams

and much more. To provide a simple API to Java net-

work application programmers, the NIO Framework

was complemented with several additional helper

classes and interfaces that will be introduced in the

following sections.

The concepts and techniques used to design and

implement a safe and scalable framework that effec-

tively exploits multiple processors are presented in

(Peierls et al., 2005).

A simpliﬁed model of the NIO Framework core is

shown in Figure 2.

The blue UML elements (Runnable, Thread, Se-

lector, SelectionKey and Executor) are part of the Java

Development Kit (JDK). The interface Runnable and

the class Thread were part of JDK from the very be-

ginning, Selector and SelectionKey have been added

to the JDK with the NIO package in JDK v1.4 and

the interface Executor was added with the concur-

rency package in JDK v1.5. The yellow UML el-

ements (ChannelHandler, HandlerAdapter and Dis-

patcher) are the essential core classes of the NIO

Framework.

The Dispatcher is a Thread that runs in an endless

loop, processes registrations of ChannelHandlers with

a channel (a nexus for I/O operations that represents

an open connection to an entity such as a network

socket) and uses an Executor to ofﬂoad the execution

of selected HandlerAdapters. The Executor interface

hides the mechanics of how each task will be exe-

cuted, including details of thread use, scheduling, etc.

This abstraction is necessary because the NIO Frame-

work may be used on a wide range of systems, from

low-cost embedded devices up to high-performance

multi-core servers.

The class Selector determines which registered

channels are ready.

The class SelectionKey associates a channel with

a Selector, tells the Selector which events to monitor

for the channel and holds a reference to an arbitrary

object, called “attachment”. In the current architec-

ture the attachment is a HandlerAdapter.

The EventHandler from the reactor design pattern

is split up into several components. The ﬁrst compo-

nent is the class HandlerAdapter. It manages all the

operations on a channel (connect, read, write, close)

and its queues, interacts with the Selector and Selec-

tionKey classes and, most importantly, hides and en-

capsulates most NIO details from higher level classes

and interfaces.

The second EventHandler component in the NIO

Framework is the interface ChannelHandler. It de-

ﬁnes the methods that any application-speciﬁc chan-

nel handler class has to implement so that it can be

used in the NIO framework. These include:

public void channelRegistered(

HandlerAdapter handlerAdapter)

This method gets called when a channel was regis-

tered at the Dispatcher. It is mostly used on server

type applications to send a welcome message to

clients that just connected.

public InputQueue getInputQueue()

This method returns the InputQueue that will be used

by the HandlerAdapter, if there is data to be read from

the channel.

public OutputQueue getOutputQueue()

This method returns the OutputQueue that will be

used by the HandlerAdapter, if there is data to be writ-

ten to the channel.

public void handleInput()

The HandlerAdapter calls this method, if the In-

putQueue has new data to be read from the channel.

public void inputClosed()

This method gets called by the HandlerAdapter, if no

more data can be read from the InputQueue.

public void channelException(

Exception exception)

The HandlerAdapter calls this method, if an exception

occurred while reading from or writing to the channel.

Not shown in Figure 2 are all the application-

speciﬁc channel handlers that implement the interface

ChannelHandler. They represent the ConcreteEvent-

Handler of the reactor design pattern. Because the

details of the method handleInput() may vary with

every speciﬁc handler they are outside the scope of

the NIO Framework.

Table 1 shows the mappings from the reactor de-

sign pattern to the NIO Framework.

3.2 Parallelization

Some parts of the Java NIO Framework are paral-

lelized by default, other parts can be customized to

be parallelized.

ICSOFT 2008 - International Conference on Software and Data Technologies

208

Figure 2: NIO Framework Core.

3.2.1 Execution

The execution of all HandlerAdapters is off-loaded

from the Dispatcher thread to an Executor. Because

I/O operations are typically short-lived asynchronous

tasks, the default Executor of the Java NIO Frame-

work uses a thread pool that creates new threads as

needed, but will reuse previously constructed threads

when they are available. Threads that have not been

used for a while are terminated and removed from the

pool. Therefore, if the Executor remains idle for long

enough, it will not consume any resources.

Not every I/O operation meets the typical crite-

JAVA NIO FRAMEWORK - Introducing a High-performance I/O Framework for Java

209

Table 1: Mappings from reactor design pattern to the Java

NIO Framework.

Reactor Design Pattern Java NIO Framework

Dispatcher Dispatcher

Demultiplexer Selector

Handle SelectionKey

EventHandler

HandlerAdapter

ChannelHandler

Executor

ConcreteEventHandler n.a.

ria, e.g. SSL operations are comparatively long-lived.

If the actual requirements (e.g. a certain thread usage

or scheduling) are not met by the default Java NIO

Framework Executor, it can be customized with the

method setExecutor() of the Dispatcher. Because

this method is thread-safe, the Executor can even be

hot-swapped at runtime.

3.2.2 Selection

There is only one Dispatcher running per default in

the Java NIO Framework, waiting until new events

occur on channels represented by SelectionKeys. If

the Dispatcher would ever become the bottleneck of

the framework it could simply be parallelized by start-

ing several Dispatcher instances.

Load-balancing could be done by distributing

channel registrations between the parallel Dispatcher

instances. Some of the most simple scheduling algo-

rithms that could be applied are round-robin distribu-

tion or random scheduling.

If connection lifetimes have a high degree of vari-

ation, both algorithms could lead to a very unequal

distribution of channels to Dispatchers. To prevent

this scenario, an active channel counter could be in-

tegrated into every Distributor and a lowest-channel-

counter-ﬁrst scheduling algorithm could be used.

If connections have a high degree of “activity”

variation, i.e. on some channels there is always some-

thing to read or write and other channels are mostly

idle, the scheduling algorithm should be based on a

select()-counter in the Dispatcher.

3.2.3 Accepting

Another thread, the Acceptor, is running on server

type applications. It is listening on a server socket

for incoming connection requests from clients over

the network. Every time a request comes in, the Ac-

ceptor creates a new channel and appropriate handler,

and registers them both at the Dispatcher of the server

type application (or Dispatchers, if selection was par-

allelized like mentioned in Section 3.2.2).

Figure 3: I/O Transformation example.

Currently the Java NIO Framework does not sup-

port parallelization of Acceptors.

3.3 I/O Transformations

When application data units (objects, messages, etc.)

have to be transmitted over a TCP network connec-

tion, they have to be transformed into a serialized rep-

resentation of bytes.

There are many ways to represent application data

and there are also many ways to serialize data into a

byte stream. Therefore, there are countless transfor-

mations between application space and network space

imaginable.

The ﬁrst approach to this problem in the NIO

Framework was to provide an extensible hierarchy of

classes, where every class dealt with a certain trans-

formation (e.g. string serialization, SSL encryption).

This architecture turned out to be very simple and ef-

ﬁcient. The downside of this approach was that every

combination of transformations required its own im-

plementing class. Changing the order or composition

of transformations was very difﬁcult and much too in-

ﬂexible for a generic framework.

The second and current approach to message

transformation is to implement a set of transformer

classes were each class offers just a certain transfor-

mation. An application programmer can put these

transformer classes together into a hierarchy of almost

arbitrary order. Almost no programming effort is re-

quired besides assembling the needed classes of the

transformation hierarchy in the desired order.

A diagrammatic example of the I/O transforma-

tion architecture is shown in Figure 3:

ICSOFT 2008 - International Conference on Software and Data Technologies

210

The shapes T

are the transformation classes.

When writing to a channel, the ChannelHandler hands

the application level data units to one of the input

transformation classes T

, T

or T

(depending on the

type of input it just accepted). Every transformation

class transforms the data and hands it over to its next

transformer until it reaches the Writer, which writes

the ﬁnal byte stream to the channel and handles many

channel speciﬁc problems, e.g. incomplete write op-

erations.

When reading from a channel, the Reader handles

the channel speciﬁc problems, e.g. connection clos-

ing and read buffer reallocations. After reading a byte

stream from the Channel, the Reader passes the data

to T

, which transforms the data. The ChannelHan-

dler can get the application level messages from T

There are four basic I/O models for the transfor-

mation classes T

. In ascending order of complexity

they are:

• 1:1 (one type of input, one type of output)

• 1:N (one type of input, different types of output)

• N:1 (different types of input, one kind of output)

• N:M (different types of input, different types of

output)

Every model is valid insofar as one can establish a

fully functional transformation hierarchy with any of

these I/O models. While the 1:1 model would be the

most simple one, transformation classes of the N:M

model would have the highest ﬂexibility. The interest-

ing thing to note here is that with respect to ﬂexibility

every transformation class of the more complex mod-

els can be replaced by chaining several transforma-

tion classes of the 1:1 model. While trying to imple-

ment prototypes for all models above it became clear

that the most simple API was provided by using Java

Generics and the 1:1 model. Another advantage of

the 1:1 model is the encouragement of code reuse, be-

cause every transformation should be implemented in

a separate class.

The elegance and simplicity comes at the small

price of an almost immeasurable performance loss.

Currently, Java Generics are implemented by type

erasure: generic type information is present only at

compile time, after which it is erased by the com-

piler. The compiler automatically inserts cast oper-

ations into the byte code at necessary places which

may cause a tiny performance loss. Using the 1:1

model results in slightly longer transformation chains,

more involved objects and more locking and unlock-

ing when passing data through a transformation hier-

archy.

4 CONCLUSIONS

We presented in this paper a framework for se-

cure high-performance Java network applications that

builds upon the NIO library. The framework com-

bines the ease of use of classical I/O operations with

the performance gain of NIO, hiding the inconve-

nient aspects of NIO from the developer. Develop-

ing the NIO framework was motivated by research

on an anonymity server, a system that requires high-

performance network operations over secure chan-

nels. First experiments with using the NIO framework

within this project show a tremendous performance

increase, making the system meet the requirements

for anonymity servers in productive environments.
