SECURING THE EMAIL SERVICES

New System for Secure Managing the Organization’s Mail Service

Raúl Herbosa

Computer Systems Director, Grupo Tecnológico e Industrial GMV S.A., C/Isaac Newton, 11

Parque Tecnológico de Madrid, 28760 Madrid, Spain

Gabriel Díaz and Manuel Castro

Electrical and Computing Engineering Department, UNED (Spanish University for Distance Eeducation)

c/Juan del Rosal, 12 – Ciudad Universitaria, 28040 Madrid, Spain

Keywords: Spam, email, virus, phishing, malware, GPL, open source, secure management, email services.

Abstract: In this paper new system is presented for securing the email service, minimizing the risks associated with

spam and malicious software associated with the email messages, valid for any organization. To build it,

several free software tools under GPL license are used, integrated over a generic hardware platform. The

approach has been the typical of an integration project. The concrete needs have been identified, related to

email threats, free software tools under GPL have been identified that meet our needs and the integration

tasks have been made, suggesting hardware and software architecture to support our objectives. One crucial

criterion for the selection has been that the tools must provide working information records, i.e. file logs and

tools to treat them for the different covered subsystems. Several tools have been developed also to complete

the original functionality of them. The resulting system, nowadays in use in a big company in Spain, is a

flexible and effective one, that filters quickly and exhaustively every incoming and outgoing message,

eliminating successfully more than 80% of the received messages, that result to be spam or malware.

1 INTRODUCTION

We live in a world in which it’s difficult to discuss

the outstanding importance of the electronic mail for

the business and the normal and usual way of doing

anything for any organization, from the small ones

to the big ones. However, we face a growing

quantity of threats to the correct functioning of this

critical service.

The attacks to this service have different

objectives: from denial of service attacks (mail

bombings) for avoiding the use of the service to the

ubiquitous spam, attacks through mails containing

virus and different kind of malware, etc.

Only speaking of spam, a MessageLab report

(MessageLabs, 2008) estimates that, in January

2008, more than 73 percent of email was spam. Also

you can find very different approaches (Kim et al,

2007) trying to repair the problem.

It is also remarkable, for example, to see how

anyone can get very rich and resourceful information

on how to spam in Internet (Graham, 2007), in

which you can obtain very easy and detailed

information on the plan to spam, step by step in a

variety of forms.

On the other hand, taking into account that the

perimeter firewalls can not block the SMTP mail

traffic, because this situation would stop the

legitimate mail, the mail server has become the ideal

target for the sending of virus and malware, like

spyware, hoaxes, phishing, etc., that must be taken

into account when you design the solution for a

secure email service.

2 CURRENT APPROACHES TO A

SOLUTION

It is possible to find nowadays different solutions,

commercial ones and also based on open source

software (Goodman et al, 2007) that, by different

techniques, suggest different improvements for the

problem’s solution. We can classify them in two

469

Herbosa R., Díaz G. and Castro M. (2008).

SECURING THE EMAIL SERVICES - New System for Secure Managing the Organization’s Mail Service.

In Proceedings of the International Conference on Security and Cryptography, pages 469-472

DOI: 10.5220/0001915804690472

 SciTePress

main groups: preventive strategies and corrective

strategies.

In the side of the preventive strategies we can

find several efforts for minimizing the threats and, as

consequence, the risks associated to be attacked.

One of them is to establish a corporative policy for

the use of email, another to protect the email

address, by not publishing it in non secure webs, or

by using obfuscators.

Some of the corrective strategies try to avoid

that, once the attack initiated, the spam or infected

mail, arrive its target, but allowing the valid

messages. We can find also two broad classes, one is

a technique based on the message content and the

other not based in the content.

The techniques based in the message content

analyze this and the subject header in search of a set

of words that reflect the kind of message, using

basic filters, , heuristic filters, or bayesian filters (Li

et al, 2006), that learn to distinguish the valid (ham)

mails and the spam.

The other techniques are based in other different

characteristics in the message content, as the name

of the source server or its IP address:

- Black lists, IP addresses lists that must be

blocked because they are known as spam

sources.

- White lists, lists with trusted sender IP

addresses.

- Distributed filters (DCC, Distributed

Checksum Clearinghouse). In this case the

user marks any message he considers to be

spam, then DCC program generates a

signature identifying the message and sends

it to the DCC servers, that are updated

daily, as the pay service referenced in

www.cloudmark.com.

- Grey Lists or challenge/response.

- Sender Policy Framework, an emerging

standard in which the domain owners

designate their email servers in DNS in a

predefined way (using SPF registers) that

let the email messages receivers to check if

it is a legitimate message sent by the email

server associated to the domain specified in

the sender.

But what it is not possible to find, at least in the

open source arena, is a complete and easy to manage

and effective system, and we thought a good idea

was to develop an exhaustive control of the problem

in a continuous, adaptive way, really a securely

managed service.

To face the problem we began studying a new

possible protection architecture.

3 PROTECTION

ARCHITECTURE FOR THE

EMAIL SERVICE

If it is assumed that it seems impossible to stop the

attacks and malware infections with a 100% of

success, and that the attackers are more dynamic

than the developers and builders of protection

products, it is crucial to understand that it must be

the infrastructure itself the responsible of the

constant and continuous protection against the

possible (very probable) unwanted effects.

It must be provided a multilevel architecture that

channels and minimizes the impact of a protection

level with respect to the next one, and such that the

possible vulnerabilities of a level doesn’t affect the

following one. In this way we can consider each

level an independent sub-service, which must be

protected.

One of the main pillars in this architecture is that

the mailboxes are not in the same server that

receives the messages from Internet. This allows an

easier protection of the stored user content, not being

affected in the case of having being attacked

successfully one of the front levels.

Other important consideration is to oblige any

message sent from within our organization to go

through the same levels that a received message. The

objective is to minimize the risk window associated

with the corporative electronic mails.

Taking all that into consideration we can define

the different protection levels, illustrated in Figure 1.

3.1 Multilevel Architecture

We can differentiate 5 different levels in the

architecture:

1- Front-end shell: The first line of defence,

exposed directly to Internet. We place here

the email server published in the DNS

server for our organization domain, the

server target of any world wide email server

for sending email messages to our

organization.

2- Corporate firewall: We can include a strict

filter in our firewall defining our front-end

email server as the only machine that can

introduce email messages in our internal

network. On the other hand, nobody from

the internal corporate network can send

email outside without using the front-end

email server (the firewall is instructed to).

SECRYPT 2008 - International Conference on Security and Cryptography

470

Internet

USER

SHELL

BACK-END

SHELL

FRONT-END

SHELL

FIREWALL

ANTI-VIRUS

SHELL

Incoming

messages

Outgoing

messages

Received

message

Sent

message

Mailboxes

FILTER:

ANTIVIRUS

ANTISPAM

ANTI-DOS

FILTER:

MAC

ANTI-DOS

FILTER:

ANTI-VIRUS

FILTER:

ANTISPAM

ANTI-VIRUS

FILTER:

ANTISPAM

ANTI-VIRUS

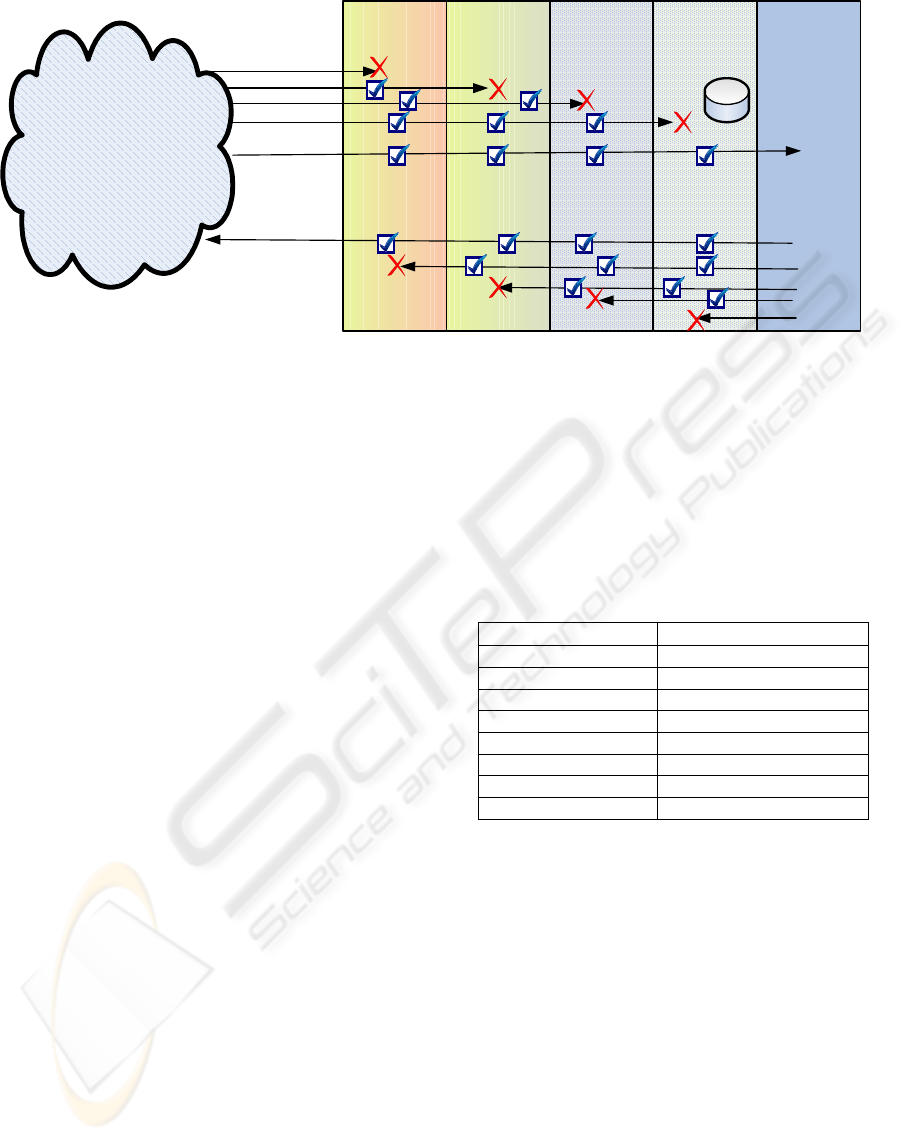

Figure 1: Security multilevel architecture for the e-mail services.

3- Corporative antivirus: We deliver here a

mechanism for minimizing the risk window

associated with antivirus protection.

4- Corporative back-end: This shell contains

all the users’ mailboxes, so it must be very

well protected from external attacks as from

internal attacks.

5- User shell: In this shell we do the last anti-

spam and antivirus control to the received

messages as well as to the sent messages,

generated by the user.

Also, for all the internal allowed

communications between the different level

machines, we use cryptographic protocols such as

ssl, Kerberos, etc, not allowing the communications

being in clear text through the internal network.

This multilevel architecture allows isolating the

consequences of a concrete problem and identifying

the grade of intrusion. We decided to implement a

solution for the most critical shell from the point of

view of security and protection, the most external

one.

4 OUR COMPLETE SOLUTION

FOR THE FRONT-END SHELL

Due to the asynchronous characteristics of the

reception of mail and of the latency produced by

Internet in the communication between servers, it is

not necessary to have an special platform, so we use

one of the typical PCs used by users in our

organization. We manage a volume of more than

20000 messages by day without provoking any kind

of additional latency in the correct reception,

filtering an resending of the corporative messages.

We have integrated the set of tools detailed in

Table 1, and some special considerations are:

- Sendmail can’t interact directly with

SpamAssasin and ClamAV and so it must

use the MILTER (Mail Filter) libraries.

- We provide some perl scripts and a web

page to make related administrative tasks.

Table 1: Details of each used tool in the system.

Used tool

Version

Operating system Fedora 7 x86_64 LINUX

MTA Sendmail.x86-64 8.14.2

AntiSpam Filter Spamassasin.x86-64 3.2.4

Antivirus clamav.x86-64 0.92.1

Filtering framework mimedefang.x86-64 2.64

O.S. securization tool Bastille-3.0.9-1.0

Logs analyzer Graphdefang-0.9

IDS tool Psad-2.1.1

The complete proposed software structure is

illustrated in figure 2. The sendmail program, in its

normal work, uses two different processes: one of

them listens in the port 25 and put every received

message in a specific queue, say queue 1. After this,

all the antispam and anti-DOS capabilities

configured in sendmail are applied. The second

process is permanently watching another queue, say

queue 2, and when a message appears in this queue

will be delivered to its destiny, local or remote.

The work done by MIMEDefang is precisely

taking the messages from queue 1, and send them to

the ClamAV and SpamAssassin processes to search

for the presence of virus or spam respectively and, if

it is determined that they are not malicious by the

two processes, MIMEDefang process write a log

line per message and send them to queue 2.

SECURING THE EMAIL SERVICES - New System for Secure Managing the Organization’s Mail Service

471

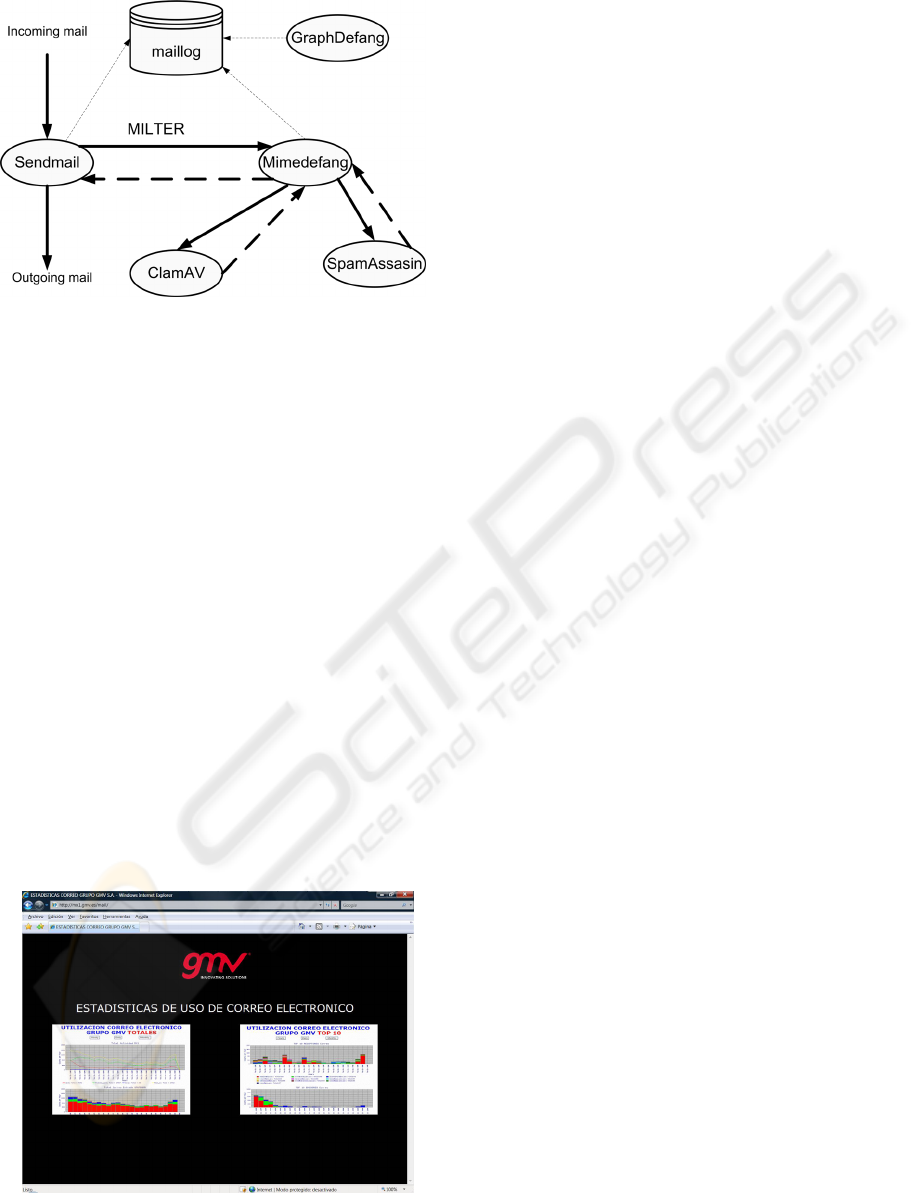

Figure 2: Structure proposed for the processes intervening

in the securized email front-end

For the hardening of the operating system we

use the BASTILLE program, configure the Linux

IPtables firewall in the way that just the needed ports

are open and use the PSAD (Port Scan Attack

Detector) program, a typical IDS (intrusion detection

system).

One of the most practical mechanisms we use to

control our system is the statistics of use to identify

the volume of information transmitted through our

system and the system’s efficacy. We represent by

graphs statistical data related to efficacy of the filters

and controls, time distribution of the attacks,

identified attackers and so on.

We enter through a typical web page (Figure 3)

where we see, first of all, two graphs with the total

use of email messages for our organization and the

Top 10 users.

If we decide to see in detail the “total” part of the

data we can see the statistics in a hourly, daily or

monthly period, always showing the ratio between

rejected and accepted mails.

Figure 3: Home-page for the statistics of use for the e-mail

services in GMV.

5 CONCLUSIONS

The proposed solution implements a complete

protection system for the electronic mail service

through the integration, configuration and

development of 100% free components under GPL

license. This system, now in production in a real

company environment (GMV International Business

Group, www.gmv.com), is obtaining very good

results that exceed the effectiveness of most part of

the commercial systems doing this function.

To develop the system we have followed an

structured process, identifying each of the available

software pieces in the GNU community with best

performance and capacity and we have also

configured and tuned them in a specific way to work

together.

The system is successful in avoiding external

attacks, sending alerts about the most persistent ones

and about the most dangerous. The system

eliminates more than 80% of the received messages

that, if we didn’t have this protection, should flood

the users’ mailboxes.

We follow trying to integrate new techniques

and, why not, developing our own enhancements to

the system.

ACKNOWLEDGEMENTS

The authors would like to acknowledge GMV

International Business Group for their permission to

publish private technical information and also to the

Spanish Science and Education Ministry and the

Spanish National Plan I+D+I 2004-2007 for the

partial support in the project TSI2005-08225-C07-03

“mosaicLearning: Aprendizaje electrónico móvil, de

código abierto, basado en estándares, seguro,

contextual, personalizado y colaborativo“

REFERENCES

Goodman J., Cormack G.V., Heckerman D.,2007. Spam

and the ongoing battle for the inbox, in

Communications of the ACM, February 2007.

Graham, Paul, http://paulgraham.com/howspam.html.

Kim J., Chung K., Choi K, 2007. Spam filtering with

dynamically update URL statistics, in IEEE Security

& Privacy July/August 2007.

MessageLabs, 2008. Spam: Business-Savvy Spammers

Tout Bargain Mortgages and Search Engine Spam

Revs Up, intelligence report;

http://www.messagelabs.com/mlireport/MLI_Report_J

anuary_2008.pdf.

SECRYPT 2008 - International Conference on Security and Cryptography

472
