ENSURING PRIVACY OF BIOMETRIC FACTORS IN

MULTI-FACTOR AUTHENTICATION SYSTEMS

Kikelomo Maria Apampa, Tian Zhang, Gary B. Wills and David Argles

School of Electronics and Computer Science, University of Southampton, U.K.

Keywords: Biometric privacy, Multi-factor authentication, Raw biometric.

Abstract: One of the inherent properties of biometrics is the ability to use unique features for identification and

verification of users. The usable biometric features in humans are limited in number and they must be kept

secret; if a biometric factor is compromised it presents a challenge that may defy solution. In this paper we

present a novel method to preserve privacy of users’ biometrics. Using an elastic matching algorithm, we

produce a digest that can be substituted for the raw biometric factor. This will ensure that the users’

biometric data is never exposed during the authentication phase.

1 INTRODUCTION

Identification and authentication are security

requirements that have steadily become more

important in private and public sectors.

Governments, military, financial communities,

medical industries, etc. continually seek effective

methods to identify and authenticate their users.

Traditionally, username-passwords have been

employed in almost all access-control systems;

however this method has proved unsatisfactory

especially when users insist on very short and easy

passwords to memorise (Argles et al, 2007). The

difficulty of remembering passwords arises from the

amount of entropy in the passwords. By allowing

passwords with less entropy, we are creating weak

passwords that would be easier for the attacker to

guess. The migration from single-authentication to

dual-factor authentication which provides stronger

and effective security schemes is well documented

(Jain et al, 2000; Bolle et al, 2004). Biometric

technology is a potential approach to authentication

which will create more secure systems since

biometric data is unchangeable and not forgettable.

A biometric authentication system generally consists

of two stages (see figure 1). During the enrolment

phase a users’ biometric image is acquired, a

biometric template is created and the templates are

stored in a database or on a portable storage device

like a smartcard (Davida et al, 1998). During the

authentication phase, the user presents a biometric

sample which is compared with the stored template.

The user is successfully authenticated if there is a

near match between the input and the stored

template. In this paper biometric raw data refers to

the unmodified image of a fingerprint which is

extracted and stored on the biometric server. The

template data refers to the stored features which

were extracted from the fingerprint image; they

contain information necessary for comparison.

Ironically one of the greatest benefits of biometric

factors also poses a challenge i.e., they are

unchangeable and easily forgeable. According to

Ratha et al, (2007) “if a biometric identifier is

compromised it is lost forever and possibly for every

application where the biometric is used”. This is

particularly significant as once a biometric factor is

exposed it loses its value as a factor and a user may

not immediately be aware that their biometric has

been compromised. A common concern in biometric

security is the privacy issues derived from storage

and misuses of the template data (Jain et al, 2007).

Figure 1: Biometric Architecture (Jain & Panakanti,

2000).

Maria Apampa K., Zhang T., B. Wills G. and Argles D. (2008).

ENSURING PRIVACY OF BIOMETRIC FACTORS IN MULTI-FACTOR AUTHENTICATION SYSTEMS.

In Proceedings of the International Conference on Security and Cryptography, pages 44-49

DOI: 10.5220/0001921600440049

 SciTePress

2 RELATED WORK

One potential means of safe-guarding stored

templates is encryption. In a review article, Jain et

al, (2007) suggest that multiple acquisitions of the

same biometric trait will not yield the same feature

set and as a result biometric templates cannot be

stored in an encrypted form. Furthermore, the

biometric templates would need to be decrypted

prior to matching; therefore they will be inevitably

exposed to potential hacker attacks (Braithwaite et

al, 2002). Ratha et al, (2001) proposed the concept

of cancellable transforms to overcome the problems

of compromised biometric templates. The technique

introduced unique distortions of raw biometric data

such that instead of storing the original biometric it

is transformed using a one-way function; the

transformed biometric and transformation are stored.

In their proposal they conclude that transforms are

noninvertible therefore it is computationally hard to

recover the original biometric identifier from a

transformed version thus preserving privacy.

Braithwaite et al, (2002) argues that it is necessary

in some cases to reverse the transformation prior to

matching which would expose the raw biometric

data and make it susceptible to hacking. To

eliminate the need to revert the templates to a non-

transformed state during the authentication,

Braithwaite et al, (2002) propose the use of

application-specific biometric templates. In this

approach the biometric template assumes a new

format that is unique for each application and the

transformations are such that the matching can be

performed on the transformed templates. Argles et

al, (2007) consider a similar problem of ensuring

privacy of the users’ biometric even if the biometric

database server is compromised. They suggest a split

and merge technique which is a hybrid scheme

incorporating an electronic token and biometric

verification. In this method the encrypted biometric

template and user key is split during storage. One

half of the encrypted template is stored on an

electronic media and the other is retained inside the

secure biometric database. Storing the encrypted

data in two separate locations makes it difficult for

an intruder to compromise the system. Without the

decryption key the attacker will first be required to

break the encryption algorithm. Once the key

generator is exposed the information leakage

becomes problematic, reducing the difficulty of

guessing the template by half.

Other approaches which address the issue of

ensuring privacy of biometric templates include the

use of steganography (Jain & Uludag, 2003) and the

secure sketch scheme (Sutcu et al, 2007).

3 ANALYSIS OF SPLIT AND

MERGE TECHNIQUE

The split and merge technique attempts to ensure

privacy of the biometric factor by splitting the factor

into multiple components (Argles et al, 2007). The

system uses a biometric (fingerprint) and physical

(USB drive) factor; where the removable storage

device is used to secure a user-selectable password

(user key). In figure 2 and figure 3 the enrolment

and matching processes of the method is shown. To

analyse the split and merge system we shall assume

that key generation, splitting, merging, encryption

and decryption functions have the following

properties:

Assumption 1: The key generation function is a

good pseudorandom function with a large period -

without knowing the seed, we cannot deduce the

next outcome of the generator irrespective of how

many previous outcomes we have collected

Assumption 2: The splitting function

),(: BbAaxS

∈

splits an input x into two

components containing equal amounts of

information:

() ()

biaiBA =⇔=

Assumption 3: The encryption function is

Shannon secure (Shannon, 1951) and leaks no

information. For a cryptosystem:

{

}

(

)()

cmHmHcmkDE |,,,,,

These simplifications are made so we can

analyse the system independently of any weaknesses

that maybe inherited from these functions in

implementation.

}),{,( utkE

Figure 2: Enrolment using the split and merge method.

ENSURING PRIVACY OF BIOMETRIC FACTORS IN MULTI-FACTOR AUTHENTICATION SYSTEMS

=}{

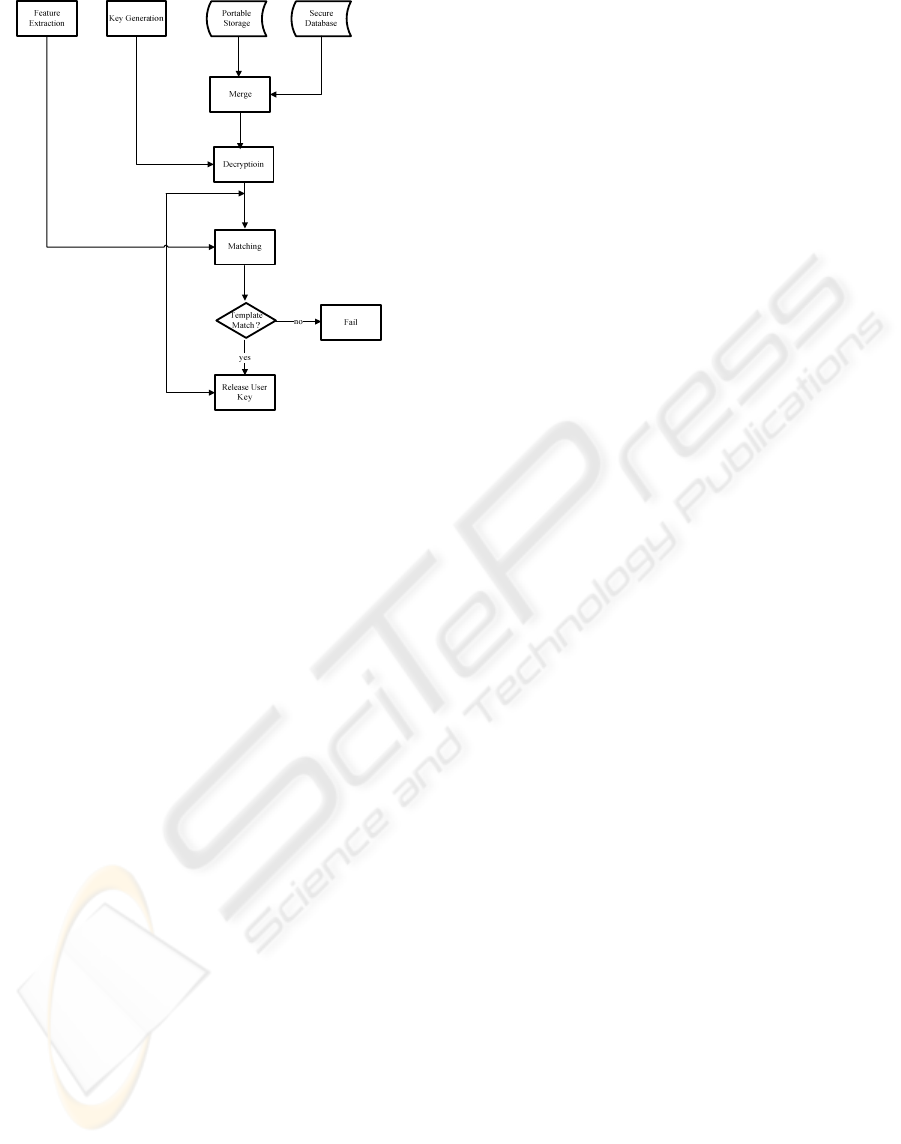

Figure 3: Authentication using the split and merge

method.

3.1 Security Dependant on Obscurity

In addressing the shortcomings in the design of the

split and merge technique, we shall consider a

scenario where an attacker has acquired the portable

storage device and attempts to recover the user key

from the authentication system. (The key generation

function must be deterministic; else the system will

be unable to recover the key). We shall assume the

attacker has access to the key generator and the

biometric database. Thus, from figure 3 we make the

following observations:

• It is possible to partition the system to only

require

and

c to recover the biometrics.

• The attacker can derive the biometrics of the

user by acquiring the storage device and having

access to the authentication system; it is possible to

recover the fingerprint template of the user.

For an authentication session consisting

{

}

ccki

(see figure 3), we define the

following operations:

Merge as M:

(

)

ccc

Decrypt as D:

()()

utck ,, a

Compares as C:

() { }

falsetrueti ,, a

(3.1.1)

Then figure 3 is summarised as:

()

(

)

(

)

ccMkDut ,,, =

(3.1.2)

Since the splitting and merging functions must

be bijective, they must also be deterministic;

extracting

t or

from

(

)

ut, should always be

possible. Deriving

(

)

ut,

in 3.1.2 does not employ the

capabilities of the compare function, thus the

biometric factor is not used. Exposing the biometric

template of the user is a bigger problem than

exposing a single biometric input of a single scan.

The template is often a better true representation of

the biometric feature than an average scan by

definition. It is important for the security of the spilt

and merge system to keep the key generator private.

3.2 Exposed Biometrics

During authentication the user’s biometric data is

briefly exposed to allow the matching of the input

biometric and the template. The matching phase

cannot be performed on the client as it requires both

the input biometric and the template, thus it needs to

be performed on the server. As an example, a

disgruntled employee with access to the server could

recover the complete biometric template by

compromising the privacy of the matching

component. This action defeats the purpose to

protect the user biometrics in the event that the

server is compromised.

4 PROPERTIES OF BIOMETRICS

Existing fingerprint algorithms do not attempt to

directly extract a unique invariant representation of

the fingerprints (Jain et al, 2000). In practice these

would require perfect equipment and conditions;

instead they use an approximation of the unique

invariant representation (template biometric). The

biometric factor is then compared to the template

which can be either accepted or rejected depending

on the amount of work required to transform one

into the other. The transformations may be complex

(Ma et al, 2004) and the end comparison is the result

of a number of probabilistic and heuristic operations.

Due to this, the matching will always have a non-

zero probability of false acceptances and rejections.

Common biometrics such as fingerprints provide a

high degree of reliability when identifying a user;

however they can also be forged with varying

degrees of success. For this reason, fingerprints

alone are insufficient for authentication. Biometric

factors are more suited as identification factors due

to being forgeable and immutable. Thus, the use of

biometrics as an authentication factor relies on the

SECRYPT 2008 - International Conference on Security and Cryptography

ability to keep the biometrics secret. Exposing the

users’ biometrics may have severe consequences; a

user will have only one set of fingerprints as

opposed to having different passwords for access.

We shall define failure of an authentication

system by:

• Positive failure: occurs when the system

incorrectly supports an identity

• Negative failure: occurs when the system fails

to support a correct identity

5 COMPONENTS OF THE NEW

SYSTEM

The proposed system aims to achieve strong

authentication by the use of a physical and a

biometric factor. We assign equal importance to

minimising positive failure and keeping biometrics

private, since every time the biometrics are exposed,

the task of minimising positive failure becomes

more difficult. By drawing on the characteristic

strengths of the different factor types, we aim to

build a system that is less likely to fail positively by

means of forgery. The system will still fail

negatively should the user forget or lose the physical

factor; unfortunately this must be the case as only

biometric factors are guaranteed to be always

available. The user presents a biometric factor (for

identification) and a physical factor (for verification)

during the authentication process. The biometric

factor consists of two components; i.e., the biometric

reader which in implementation could be a standard

“off the shelf” biometric device and the transformer

could be readily implemented in software on the

client. The physical factor also consists of a security

token and a small storage device. In implementation

the small storage device could be a smartcard or a

modified USB storage key.

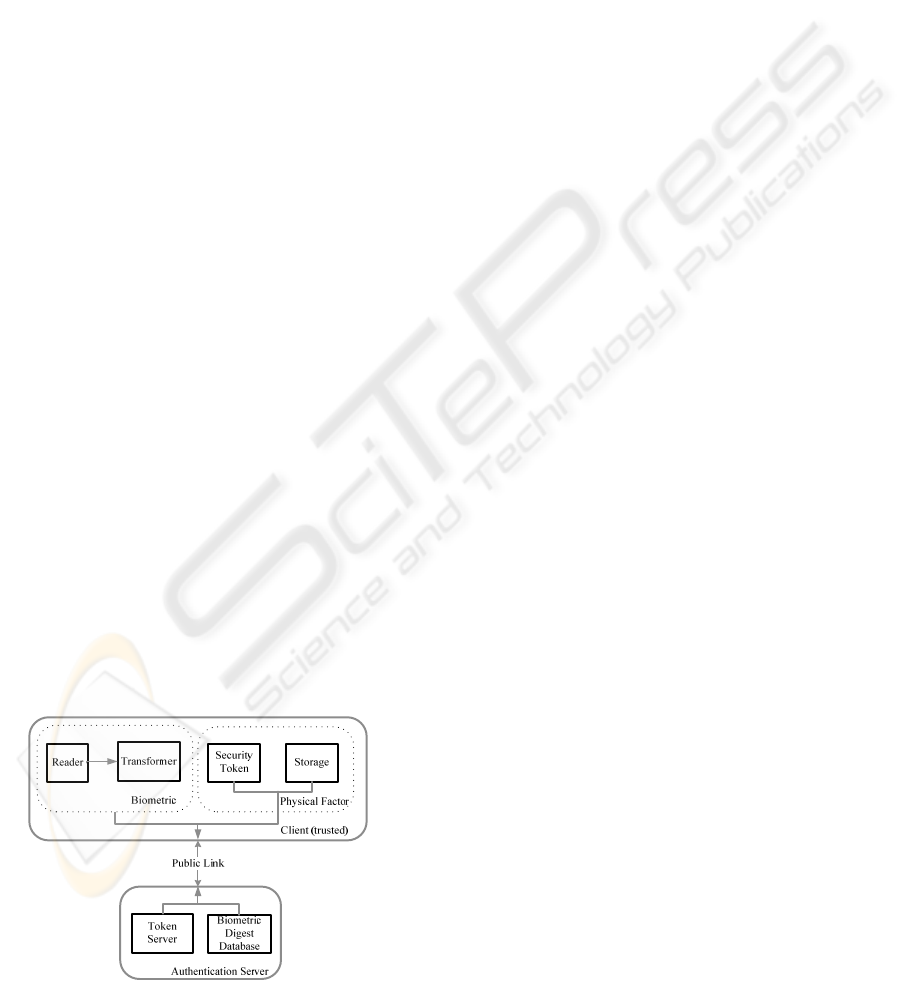

Figure 4: Components of the new system.

6 OBFUSCATION OF

BIOMETRICS

During authentication the server must perform an

operation of the following form (verification of an

identity):

(

)

{

}

falsetruetiC ,, →

(6.1)

In current biometric systems the two inputs

(input and template) are both elements from the

same space and the function is essentially a piece

wise function based on the matching distance

function

(

)

(, )

true m i t k

Cit

false m i t k

≤

⎧

⎨

⎩

(6.2)

In ArgleCs et al, (2007) the biometric system

was obfuscated by splitting, however the

authentication function

remains the same as (6.2).

The disadvantage of requiring

and t to be

elements from the space is that security of the

system depends on the ability to perform

private. If the privacy of

is not guaranteed the

attacker could cause positive failure by acquiring

either

i or t .

7 HASH FUNCTIONS

The solution for the username/password systems is

to use a hash function (or one-way function)

resulting in the following authentication function:

()

(, )

()

true h i t

Cit

alse h i t

⎧

⎨

≠

⎩

(7.1)

The properties of (7.1) would be ideal in

protection of user biometrics as the security of the

system will not depend on the privacy of the

biometric database. Therefore a biometric data can

be hashed and stored on the server. Hashing may

seem an appropriate solution for biometrics;

however the problem arises when matching an

incoming biometric against the stored hashed

template. A biometric data will produce a close

match and not an exact match. The inability to

match input template with the stored template will

lead to unacceptably high false rejection rates.

ENSURING PRIVACY OF BIOMETRIC FACTORS IN MULTI-FACTOR AUTHENTICATION SYSTEMS

8 SOLUTIONS USING

HEURISTICS

An approach for producing a biometric digest is

using elastic matching algorithms in place of hash

functions. The matching algorithms are ideal

candidates since they are already of the

form

()

⊂→ Djim ,:

. We can adapt the

matching algorithm to fit the form required by

generating an arbitrary biometric input

()

and then

comparing the input with the generated input:

() (, )dj mjK=

In effect we require an algorithm that

can identify close matches i.e. elastic matching

algorithm. We define the authentication function as

follows:

() ()()

() ()

⎩

⎨

⎧

>−

≤−

ftdidfalse

ftdidtrue

tdidC

(8.1)

Note that the authentication function’s range

does not expose the input biometric or the template

it is not possible to obtain

from

()

.id

8.1 Enrolment

Figure 6 depicts the sequence diagram for the

enrolment process.

1. The reader acquires the user’s raw

biometrics (B

)

2. The authentication server sends a server ID

that is unique to the system

3. The transformer (T) generates an arbitrary

template (S) from the server ID

4. The transformer then produces a

representation of the raw biometric with

respect to the arbitrary template. I.e. T (S,

) = O. where, O is the origin and T has

the properties of an elastic matching

function.

5. The new representation of the raw

biometric is sent to the server for storage

6. The origin (generated template) is then

stored on the physical storage device.

7. User password is acquired and encrypted.

The password is stored on the token and

sent to the server for storage.

8.2 Authentication

Figure 7 shows the authentication process as a

sequence diagram. The Diffe-Hellman (DifHel76)

exponent is used to establish an encrypted

conversation between the client and server.

1. The client produces the origin (generated

template) stored on the token

2. The client gets raw biometrics (B

) from

reader and produces a digest. i.e. T (O, B

)

= S

3. The client requests a one-time password

from the token. The client encapsulates the

digest (S

) and one-time passwords and

sends the package to the server

4. The server decrypts the package and

extracts the digest (S

) and one-time

password.

5. The server queries the digest database for

the most likely match

6. The servers checks the current password

against the stored password for the most

likely match

7. If the passwords match the use is

successfully authenticated, else

authentication fails.

9 CONCLUSIONS

In this paper we have shown that the resilience of a

multifactor authentication system could be improved

by combining the factors to preserve the privacy of

the user biometric. A novel approach is presented in

constructing a digest from the biometric and

physical factors. The digest is used in place of the

raw biometric in authentication; therefore the raw

biometric is never exposed which minimises the risk

of exposure. An elastic matching algorithm was used

for producing the digest. One of the benefits of using

the digest is its ability for trivial sorting and

indexing; thus making the system scalable. Further

work will be to examine the suitability of different

matching algorithms for constructing the digest.

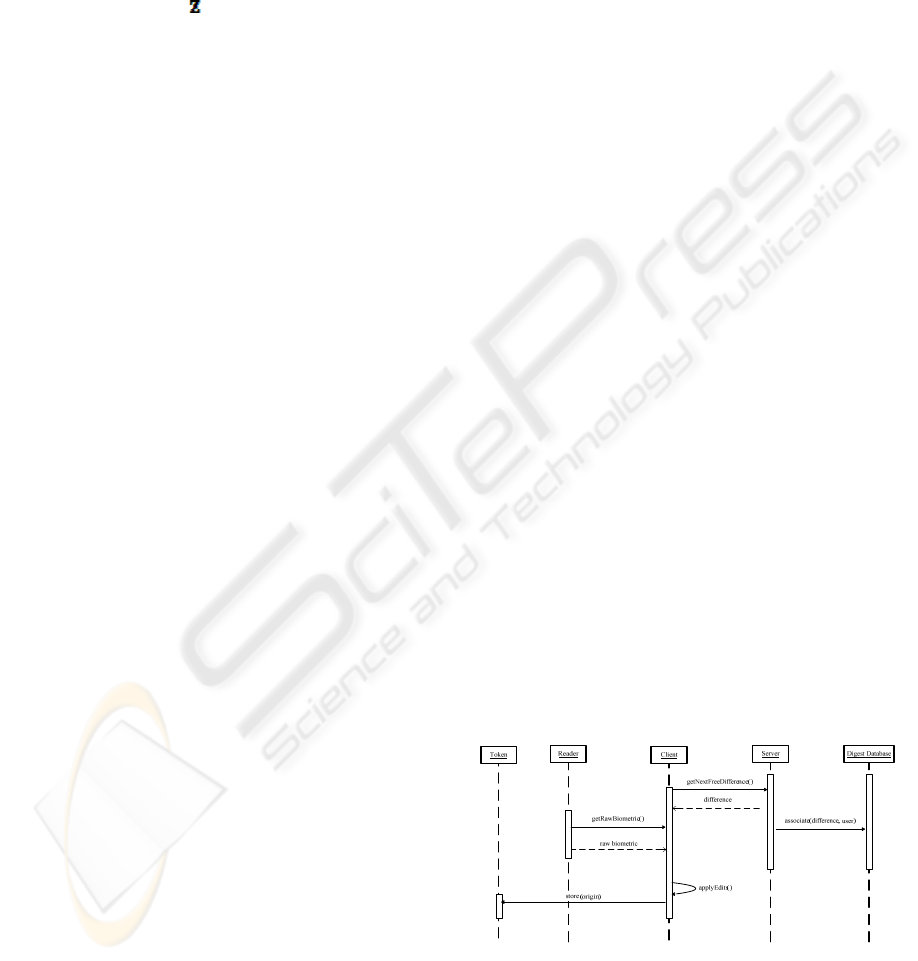

Figure 6: Enrolment in the proposed system.

SECRYPT 2008 - International Conference on Security and Cryptography

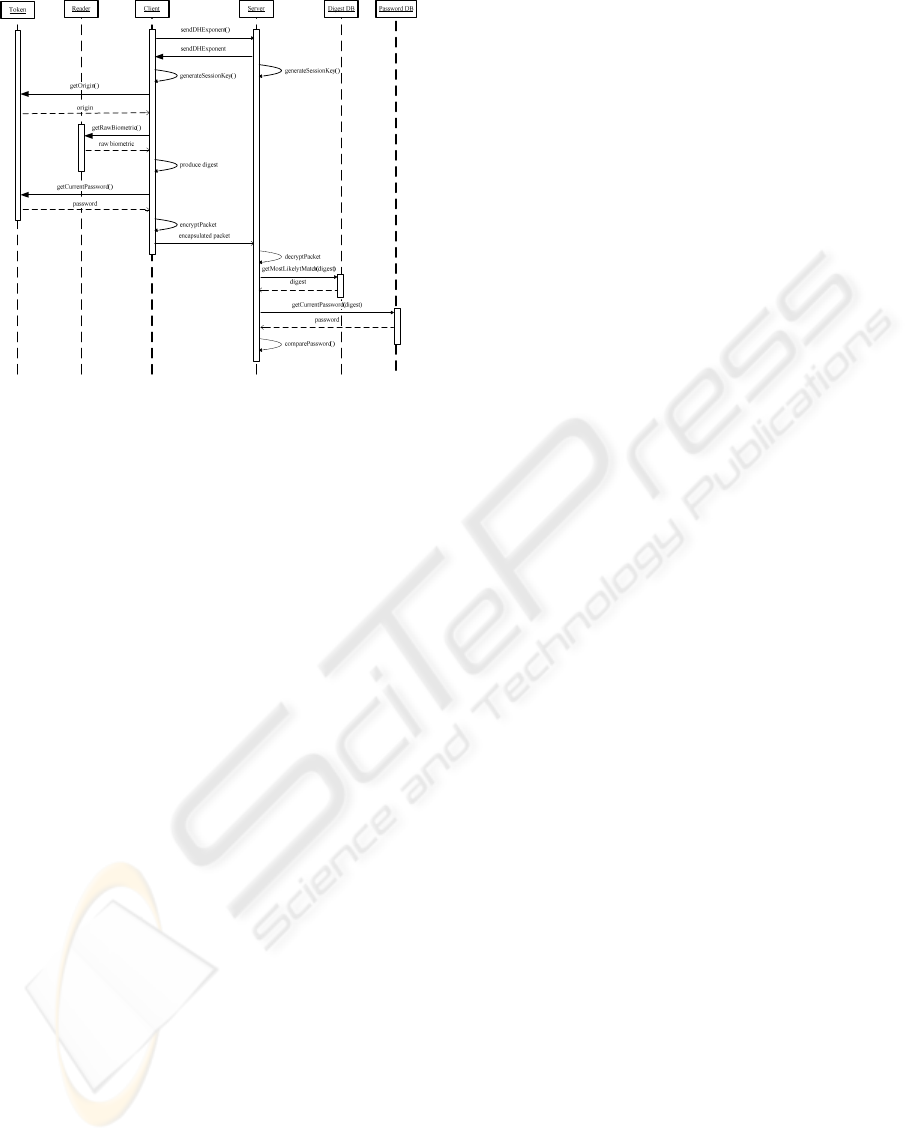

Figure 7: Authentication in the proposed system.

REFERENCES

Argles, D., A. Pease, R. Walters (2007). An Improved

Approach to Secure Authentication and Signing.

Advanced Information Networking and Applications

Workshops 2007. AINAW '07.

Bolle, R., J. Connell, S. Pankanti, N. Ratha, A. Senior

(2004). Guide to Biometrics. New York, Springer

Professional Computing.

Braithwaite, M., C. vonSeelen, J.Cambier, J. Daugman, R.

Glass, R. Moore, I. Scott (2002). Application-specific

biometrics templates. Proceedings IEEE Workshop on

Automatic Identification Advanced Technologies,

Tarrytown NY.

Davida, G. I., Y. Frankel, B. J. Matt (1998). On enabling

secure applications through off-line biometric

identification. Proceedings IEEE Symposium on

Security and Privacy, Oakland California U.S.A, IEEE

Computer Society.

Diffie, W. and M. E. Hellman (1976). "New Directions in

Cryptography." IEEE Transactions on Information

Theory IT-22: 644-654.

Jain, A. and S. Pankanti (2000). Fingerprint Classification

and Matching, Academic Press.

Jain, A. K., K. Nandakumar, A. Nagar (2007). Biometric

Template Security. EURASIP Journal on Advances in

Signal Processing, Hindawi Publishing Corporation.

Jain, A. K. and U. Uludag (2003). "Hiding biometric

data." IEEE Transactions on Pattern Aanalysis and

Machine Intelligence 25(11): 1493-1498.

Ma, H.-M. and R.-K. Huang (2004). A new fingerprint

translation finding algorithm. Proceedings of the 3rd

International Conference on Machine Learning and

Cybernetics.

Ratha, N. K., J. H. Connell, R. Bolle (2001). "Enhancing

security and privacy in biometrics-based

authentication systems." IBM systems Journal 40(3):

614-634

Ratha, N. K., S. Chikkerur, J. Connell, R. Bolle (2007).

"Generating Cancelable Fingerprint Templates." IEEE

Transactions on Pattern Analysis and Machine

Intelligence 29(4): 561-572.

Shannon, C. (1951). "Prediction and Entropy of Printed

English." The Bell Systems Technical Journal 30: 50-

Sutcu, Y., Q. Li, N. Memon (2007). How to protect

biometric templates. Society of Photo-Optical

Instrumentation Engineers (SPIE) Conference on

Security, Steganography and Watermarking of

Multimedia Contents, San Jose CA

ENSURING PRIVACY OF BIOMETRIC FACTORS IN MULTI-FACTOR AUTHENTICATION SYSTEMS
