INTERACTIVITY FOR REACTIVE ACCESS CONTROL

Yehia ElRakaiby, Frederic Cuppens and Nora Cuppens-Boulahia

Networks, Security and Multimedia Department, TELECOM Bretagne, 2 rue de la chataigneraie, Rennes, France

Keywords:

Access Control, Multi-way Control, Interactivity, Pervasive Environments.

Abstract:

Technological advances enhanced the computing and communication capabilities of electronic devices bring-

ing us new pervasive environments where information is present everywhere and can be accessed from any-

where. These environments made way to new intelligent and context-aware applications which have more

sophisticated access control requirements. So far, there have been two main categories of access control sys-

tems: passive security systems which evaluate access requests according to static predeﬁned permissions; and

dynamic security systems which integrate the context in the evaluation of access requests. These models can

thus be justly classiﬁed as anticipative models since all security rules have to be completely deﬁned before an

access request is made. In this paper, we present a formal access control model that extends context-based

models to allow just-in-time speciﬁcation of access control policies. The model relies on interactivity to sup-

port active participation of users in the evaluation of the security policy, thus enabling them to participate in

the deﬁnition of the access policy at the time of the request.

1 INTRODUCTION

Technological advances in computers and networks

have enabled new device and networking capabili-

ties bringing us new service models, applications and

lifestyles. These pervasive environments require so-

phisticated access control systems to fulﬁll the new

application and user requirements. In this paper, we

present a formal model that extends context-based ac-

cess control models by allowing the speciﬁcation of

some aspects of the access control policy at the time

of the request. So far, there have been two main

categories of access control systems: passive secu-

rity systems which evaluate access requests accord-

ing to static predeﬁned permissions e.g. the RBAC

model (R.S. et al., 1996); and dynamic security sys-

tems which integrate the context in the evaluation of

access requests e.g. GRBAC (Moyer, 2001) and Or-

BAC (Cuppens and Mi

ege, 2003). In these systems,

access request evaluation relies on the consultation of

predeﬁned rules. Therefore, they require that the ad-

ministrator foresee all possible access requests and

conﬁgure how each is to be evaluated in advance.

Thus, these systems can be justly characterized as an-

ticipative models since all security rules have to be

completely deﬁned before an access request is made.

However, since the future is inherently unpre-

dictable, it is often more effective to create more op-

tions for the policy designer. We argue that access

control systems can go one step further by allowing

the speciﬁcation of the access control policy at the

time of the request through interactivity with subjects.

This approach has many beneﬁts: Firstly, policy de-

signers do not have to fully deﬁne the access policy

and some aspects of the policy may be left unspeci-

ﬁed until subsequent access requests are made. Sec-

ondly, they permit subjects to be aware of access oper-

ations to sensitive objects which can be an important

requirement of a security system. Finally, it makes

possible to deal with unexpected access requests if

it is for any reason impossible to foresee all possi-

ble access requests. For example, a security rule may

specify that in the case of an emergency, access to a

patient’s ﬁle by one of the hospital’s doctors has to be

authorized online by one of the patient’s parents.

In this paper, we present an access control system

model that allows policy designers to fully deﬁne se-

curity policy in advance as in traditional models or

at the time of the request. This composite approach

makes the model capable of supporting requirements

that are difﬁcult to fulﬁll using traditional models.

We also show how our policy can be enforced using

event-condition-action (ECA) rules.

The article is organized as follows. In section 2,

ElRakaiby Y., Cuppens F. and Cuppens-Boulahia N. (2008).

INTERACTIVITY FOR REACTIVE ACCESS CONTROL.

In Proceedings of the International Conference on Security and Cryptography, pages 57-64

DOI: 10.5220/0001924900570064

 SciTePress

we discuss related work and motivate our approach.

Section 3 introduces informally the system architec-

ture and operation. In section 4, the language and

the concepts used for the formalization of the model

are introduced. Section 5 presents the model’s formal

representation. In section 6, we discuss the policy in-

terpretation and enforcement. Section 7 shows some

use cases. Section 8 brieﬂy discusses a prototype im-

plementation of the model. Finally, section 9 gives

our conclusions and discusses future work.

2 RELATED WORK &

MOTIVATION

Access control in pervasive environments has at-

tracted many researchers in the last few years. Most

works have focused on introducing RBAC extensions

to add context-awareness and dynamic activation of

permissions to the model (Moyer, 2001; Zhang and

Parashar, 2004). In accordance with the spirit of the

RBAC model, these extensions have introduced the

notion of contextual or environmental roles which are

roles that are activated/deactivated as a result of the

occurrence of events in the system. Consequently,

permissions given to subjects are updated whenever

relevant changes in the system are detected.

In this paper, we tackle a different problem which

is the active access control decision-making. Active

access control may be also considered as one possible

solution to the multi-way control problem. Multi-way

control refers to the situation where there are more

than one party that hold some rights over a resource

and therefore may request to exercise some control

over its use. To the best of our knowledge, this issue

has been rarely identiﬁed (Park and Sandhu, 2004) or

dealt with in access control systems. In most systems

today, control decision is one-way where the resource

provider solely determines the access requester’s ac-

cess rights. A patient ﬁle on some hospital’s database

is a typical example of situations where multi-way de-

cision may be necessary as it may be required that the

patient be an active party in the access control on-

line decision-making process to his/her personal ﬁles.

Today’s pervasive environments offer the necessary

mechanisms to support active multi-way control de-

cisions and the beneﬁts of having active access con-

trol are clear: awareness of important accesses, just-

in-time speciﬁcation of the access control policy and

dealing with some possibly unexpected accesses.

Requiring a subject’s consent before authorizing

access to his objects has been considered in the work

of Becker and Sewell (Becker and Sewell, 2004).

They have studied the speciﬁcation of access control

policy in an Electronic Health Record system based

on the requirements for the UK health Service pro-

curement exercise. Getting the patient’s consent for

accessing his/her personal information was one of the

requirements. They have proposed to solve the prob-

lem using role activation: to allow a clinician to be

e.g. a Treating-physician and thus enabling the clin-

ician to access his/her ﬁles, a patient has to activate

a consent role. In order for the patient to be allowed

to activate a consent role, the clinician has to have

ﬁrst asked the activation of the role which is repre-

sented by the activation of a consent-request role. In

our model, consent is just a subset of the control op-

erations that the patient is allowed to perform as the

patient can choose the set of operations to allow such

as “my clinician can view only my last medical record

and not my entire history” or “can only read but not

write” or specify a set of requirements of the access

such as the clinician can look at my ﬁle but “only at

the hospital”. The speciﬁcation of such requirements

using a role approach is more complex as it requires

the speciﬁcation of different roles corresponding to

the different possible sets of operations and the speci-

ﬁcation of a set of role activation constraints to model

the context in which the permission is to be granted.

We believe that our approach is more intuitive as it

is more direct and avoids an unnecessary indirection

created by the use of roles.

In (Goffee et al., 2004), a decentralized PKI-based

authorization for wireless LANs is presented. The au-

thors studied granting access to the wireless network

only after they are authorized by local users. They

have proposed a PKI-based authorization mechanism

allowing internal users to delegate access rights to

guests: ﬁrst, the guest uploads its public key on a web

server, the internal user searches for the guest’s key

and signs it. The guest uses the signed certiﬁcate to

access the wireless network. Their work shows the

relevance of our proposal to distributed network envi-

ronments as it is an example of situations where ac-

cess to the resource (the wireless network) needs to

be authorized by some subject (the local users) when

the access request is made (when the guest uploads its

certiﬁcate).

Stiemerling and Wulﬁn (Stiemerling and Wulf,

2004) investigated the necessary access control mech-

anisms for group interaction. They identiﬁed sev-

eral potential requirements namely: the role of a

trusted third person, awareness and negotiation. They

have developed and implemented six technical mech-

anisms to fulﬁll the aforementioned requirements.

What distinguishes our work with respect to theirs

is that our access control decision-making is context-

aware allowing better expressiveness of access con-

SECRYPT 2008 - International Conference on Security and Cryptography

trol requirements. Additionally, we have proposed a

formal model for our access control system and pro-

posed an appropriate enforcement mechanism of our

policy in the form of event-action-condition (ECA)

rules. Although our current model does not support

negotiation, it is one possible extension to this work

(Haidar et al., 2007).

PDL (Lobo et al., 1999) and Ponder (Damianou

et al., 2001) are two highly-cited policy speciﬁcation

languages. Policies in PDL and obligation policies

in PONDER are expressed in the form of ECA rules.

Our use of ECA rules is different since active rules in

our framework are domain independent rules which

are used to interpret and enforce the policy. In other

words, we separate between the policy expression and

the policy interpretation. In PDL and PONDER, ac-

tive rules are domain dependent rules that represent

the system policy.

3 SYSTEM DESCRIPTION &

OPERATION

The proposed system architecture is centered around

the access control system which communicates with

entities of its environment through messages. The

environment includes subjects and context providers.

Subjects are active entities in the environment capa-

ble of interaction with the system. Context providers

store contextual information relevant to the evaluation

of the access control policy e.g. presence servers, lo-

calization servers, etc.

The access control system evaluates its policy

when messages are received from the system sub-

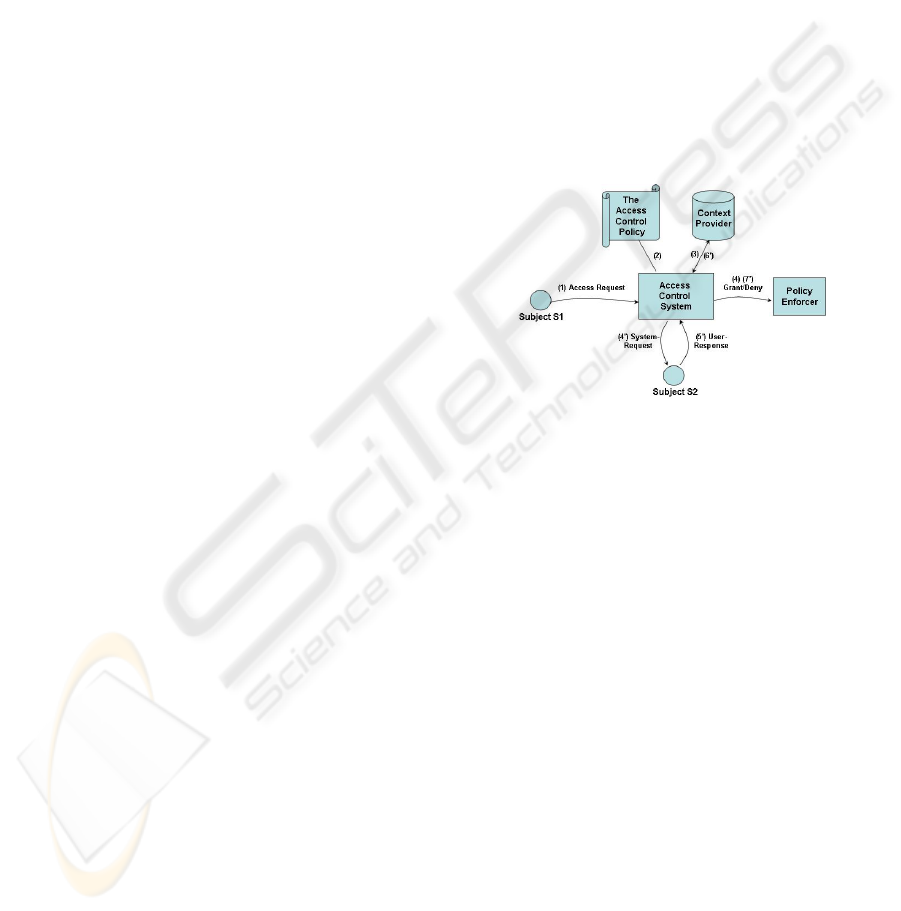

jects. The policy evaluation process is shown in ﬁg-

ure 1: when an access request is received (1), the pol-

icy is evaluated (2). We consider two different types

of permissions in the policy: contextual permissions

which are permissions that are associated with a set

of conditions that must be true for the permission to

be active (3); and in which case the access request is

granted (4). The other type of permissions are dy-

namic permissions. Dynamic permissions require in-

teraction with the subject who manages the resource.

Interaction with resource-managers is accomplished

using two messages namely the system-request mes-

sage that is sent to the resource manager (4’) and the

subject-response message which represents the sub-

ject response to the access control system (5’). In

the user response, the resource manager can autho-

rize or deny the access, limit the current access to a

subset of the operations deﬁned in the dynamic per-

mission or specify some extra conditions that are ver-

iﬁed by the system before access is granted (6’). If

the newly deﬁned conditions are true, a grant is is-

sued (7’). Consider the following example from an

intelligent home environment: suppose Jack wishes

to control access to his CD collection. Jack can set up

a dynamic-permission rule that states that he is to be

contacted when an access request is made to his CD

collection by a member of his family. Thus, when an

access request is made, Jack is contacted. Jack can

subsequently specify several access requirements that

dynamically apply on that particular access request:

for example, he can limit the access to only his rock

music collection or if the access requester is one of

his sons, Jack can specify some conditions such as

his son can access his CD collection but only if he has

done his homework; or Jack can control what oper-

ations are authorized during the access such as only

read operations are permitted.

Figure 1: System Architecture.

4 BASIC CONCEPTS

OrBAC Policies. Security policies in the OrBAC

model (Abou El Kalam et al., 2003) are tied to an

organization. An organization represents the author-

ity that has issued the policy and to which the pol-

icy pertains; thus the organization entity plays an im-

portant role in the administration of security policies

(Cuppens and Mi

ege, 2004). In a distributed envi-

ronment where every subject speciﬁes policies that

apply to his managed resources, the different subject

policies are easily modelled in the OrBAC model by

considering each subject as a separate organization.

However, since administration is not our primary ob-

jective, throughout the paper, we consider one policy

pertaining to one single organization; and therefore,

all references to the organization entity are omitted in

the following.

Policy Element Representation. System objects

are subjects, resources and actions. Objects are rep-

resented using constant symbols starting with lower-

case letters e.g. tom, newspaper and read. Variables

INTERACTIVITY FOR REACTIVE ACCESS CONTROL

are represented using capital letters identiﬁers. Vari-

ables and constants are terms of the language.

Relations between system objects are described

by relation symbols called predicate symbols e.g.

Permission(sub ject, operation) is a binary relation of

type Permission and is a relation linking the sub-

ject and operation. Relation symbols are rep-

resented by identiﬁers starting with capital let-

ters. Facts describe permissions in the sys-

tem and are expressed using atomic formulas e.g.

Permission(tom, O(read, newspaper)) is a permission

for Tom to perform the operation (read, newspaper).

Object attributes are represented using the pred-

icate symbol Attribute(AttrType, Ob ject,Value) which

states that the attribute AttrType of the object Ob ject

has the value Value. The variable symbol AttrType is

a variable over the set of attribute types, and Value is

a variable over the attributes of objects.

OrBAC Contexts. Contexts are requirements or

conditions on object attributes and on the current

state. The context modelling and evaluation follows

the context modelling of the Organization-based ac-

cess control model (Cuppens and Mi

ege, 2003). The

speciﬁcation of contexts in OrBAC is separated from

the permission which allows context reusability, con-

text composition and easier interpretation and spec-

iﬁcation of policy rules. OrBAC contexts are eval-

uated using the predicate Hold(S, A, R,Context) where

Context is an identiﬁer of the set of conditions on the

subject S requesting to perform the action A on the

resource R. The context deﬁnition may also specify

conditions on the system’s state. In order to spec-

ify conjunctive, disjunctive and negative conditions,

a simple context language with three operators AND,

OR and NOT operators is used:

• Hold(S, A,R,Ctx

&Ctx

) ←

Hold(S, A, R,Ctx

), Hold(S, A,R,Ctx

)

• Hold(S, A,R,Ctx

∨Ctx

) ←

Hold(S, A, R,Ctx

)∨ Hold(S, A,R,Ctx

)

• Hold(S, A,R, ¬Ctx

) ← ¬Hold(S, A,R,Ctx

)

For example: the set of requirements that the ac-

cess requester’s age be less than 10, that he/she be at

school and that the request be made during the morn-

ing can be speciﬁed using the following two contexts:

Hold(S, A, R, childAtSchool) ←

Attribute(age,S, X), X < 10, Attribute(location, S, school)

Hold(S, A, R, morning) ←

a f ter time(08 : 00), be f ore time(12 : 00)

The composed context Hold(S, A, R, childAtSchool

&morning) represents the desired set of requirements.

Organizational Entities. System objects are man-

aged using the organizational entities roles, views

and activities. Roles, views and activities are used

to group subjects, resources and operations, respec-

tively. Policies deﬁned over organizational entities

apply to all its members (Sloman and Twidle, 1994).

Roles, views and activities are hierarchical and a pol-

icy that applies to a role, view or an activity do-

main propagates to its sub-roles, sub-views and sub-

activities, respectively. The used base relations deﬁn-

ing roles are shown in table 1. Hierarchy over views

and activities is similarly deﬁned. Every resource has

a type. Every resource type supports a number of ac-

tions. A system operation is represented by the func-

tion symbol O(Action, Resource). To facilitate the orga-

nization of objects and the policy deﬁnition, we logi-

cally interconnect views and activities using the rela-

tions deﬁned in table 2.

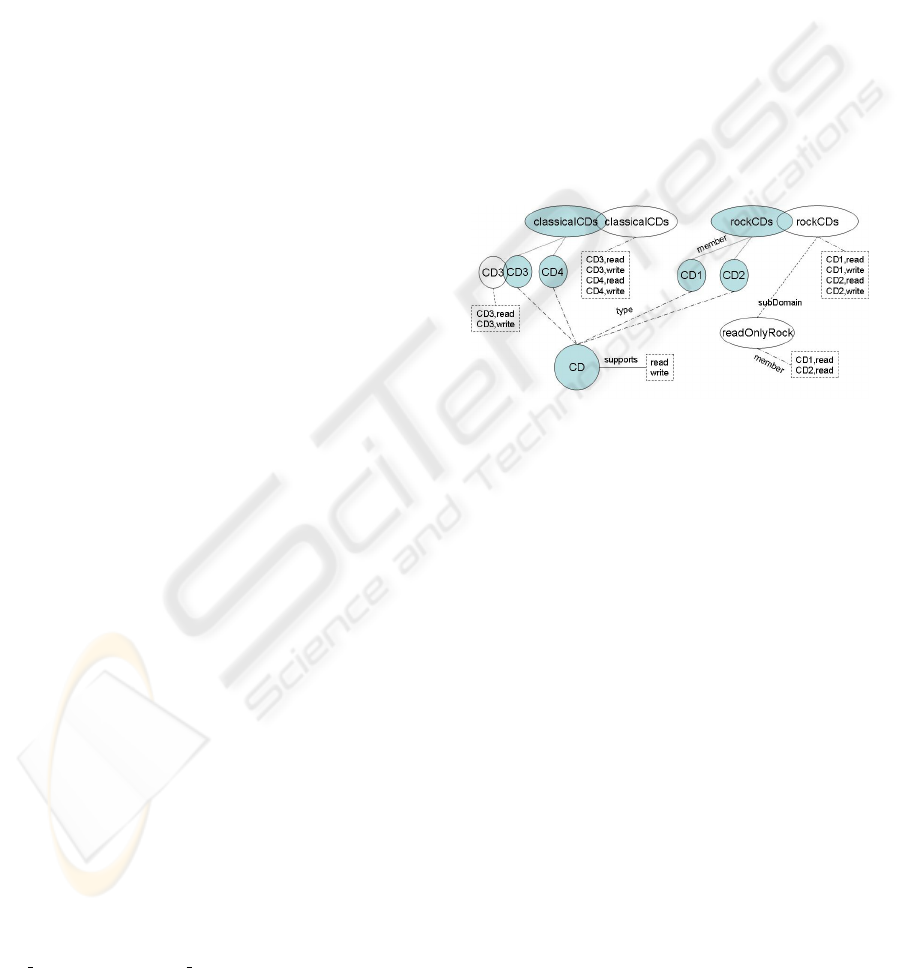

Figure 2: Object Organization Example.

Consider the example shown in ﬁgure 2: subject

Jack wants to organize his CD collection composed of

two rock CDs CD

and CD

; and two classical CDs

and CD

; and that a resource type CD supports

the operations read and write. Jack creates the two

views rockCDs and classicalCDs and adds the two

rock CDs and the two classical CDs to the rockCDs

and the classicalCDs views respectively. The logi-

cal consequences of the relations deﬁned in table 2

are: every resource represents an activity contain-

ing the operations supported by the resource; for ex-

ample, CD

is an activity containing the operations

{O(read, cd

), O(write, cd

)}; and every view is an ac-

tivity containing all the operations of its derived re-

source members; thus the activity rockCDs contains

{O(read, cd

), O(write, cd

), O(read, cd

), O(write, cd

)}.

To specify a restricted subset of the operations of

the activity rockCDs, Jack creates a sub-activity

readOnlyRockCDs from rockCDs to which he adds as

members the operations {O(read, cd

), O(read, cd

)}.

5 FORMAL MODEL

Formally, the model is represented as follows:

SECRYPT 2008 - International Conference on Security and Cryptography

Table 1: Organizational Entities.

Symbol Description

Sub ject(Sub) Speciﬁes that Sub is a subject of the system

Role(Role) Speciﬁes that Role is a role. Roles are considered also

subjects of the system. Therefore the following rule is

deﬁned: Sub ject(Role) ← Role(Role)

RoleMember(Sub, Role) Holds if the subject Sub, is assigned the role Role.

SubRole(Role1, Role2) ← Role(Role1), Role(Role2),

RoleMember(Role1, Role2), (Role1 6= Role2),

¬SubRole(Role2, Role1)

Holds if the role Role1 is a sub-role of Role2. The body

of the rule is used to ensure that there are no cyclic rela-

tionships in the role structure.

RoleDerivedMember(Sub, Role) ←

RoleMember(Sub, Role)

DerivedMember(Sub, Role) ← SubRole(SubR, Role),

RoleDerivedMember(Sub, SubR)

Determines the membership of a role across the entire

structure. The ﬁrst rule identiﬁes all direct members of

the role Role. The second rule recursively identiﬁes mem-

bers of sub-roles of the role Role.

• The System Basic Elements

– The sets: Subjects (S), Resources (R), resource-

Types (T ), Actions (A), Operations (O), At-

tributes (Att) and Contexts (C).

– Dynamic Context (C

) is of type boolean C

∈

{true, f alse}. If true, C

represents a require-

ment to contact the resource manager for access

authorization.

• The Organizational Entities

– Roles (R ), Views (V ), Activities (A) repre-

senting the sets of the system roles, views and

activities respectively. Membership of organi-

zational entities is determined using the predi-

cates Member and DerivedMember of table 1.

• The Policy consists of a set of contextual and dy-

namic permissions formally represented as fol-

lows:

– P ⊆ R × A ×C ×C

– Ex: P( f amily, rockCDs, atHome,true) is a dy-

namic permission which represents an active

authorization requirement when a member of

the role f amily requests to perform operations

of the activity rocksCDs if the subject request-

ing access is at home. The context atHome is

thus deﬁned as follows:

Hold(S, R, A, atHome) ←

Attribute(location, S, atHome)

• The System Messages

– Access-request (AR): represents a subject’s re-

quest to perform an activity: AR ⊆ S × A

– Grant(GR): represents the acceptance of the ac-

cess request: GR ⊆ S × O

– System-Request Messages (SR): represent the

possible messages sent by the system to sub-

jects: SR ⊆ S × S × A × ID

represents that the subject S is contacted to au-

thorize the access request S × A. ID is a unique

interaction identiﬁer.

– Manager-response Messages (MR): represent

the resource-manager response to a system-

request: MR ⊆ S × A ×C ×ID

6 POLICY INTERPRETATION &

ENFORCEMENT

The policy is enforced using domain independent

event-condition-action (ECA) rules. ECA rules have

well-deﬁned semantics and avoid having to resort to

custom-implementations for the interpretation and en-

forcement of security policies. The use of ECA rules

for the enforcement of RBAC and its different exten-

sions in a uniform manner has been investigated in

(Adaikkalavan and Chakravarthy, 2005). An ECA

rule is of the form:

on event if condition then action

The rule is read as: When event occurs and condition

is true, action is executed. Events in the system

are messages received from subjects namely access-

request and manager-response messages. Possible

actions are the output messages grant-access, deny-

access and system-request and the data management

operations add and delete. In the case of interaction,

the function create is used to generate a unique iden-

tiﬁer for every system initiated interaction. The sys-

tem’s policy is default-deny; in other words, if a per-

mission is not found for some access request, access

is denied. The system behavior is therefore modelled

and enforced by the following three active rules:

• The Access-Request/Grant Rule:

on AR(S

, A

)

if P(R

, A

,Context, f alse),

DerivedMember(S

, R

Compatible(A

, A

INTERACTIVITY FOR REACTIVE ACCESS CONTROL

Table 2: Resources and Operations.

Symbol Description

Resource(R) States that R is a system resource

ResourceType(R, T ) States that the type of R is T

ResourceManager(S,R) States that the subject S is the manager of resource R

Supports(T, A) States that the resource type T supports the action A

Operation(R, A) ← Resource(R), ResourceType(R, T ),

Supports(T, A)

Represents the different possible operations in the system

Activity(R) ← Resource(R) Speciﬁes that if R is a system resource identifer then it is also an activity

ActivityMember(operation(R, A), R) ←

Resource(R), ¬View(R), Operation(R, A)

ActivityMember(operation(R, A), Act) ← View(Act),

ResourceDerivedMember(R, Act),

¬View(R), Operation(R, A)

Holds if the operation Operation(R, A) is a member of the activity Act. When the

resource is not a view, the ﬁrst relation adds the operations supported by the resource

to the activity having the same identiﬁer as the resource. If the resource identiﬁer

represents a view, the second relation adds the operations supported by all the derived

resources from the view, which are not views, to the activity with the same identiﬁer

as the view

Compatible(A

, A

) ← SubActivity(A

, A

) ∨ (A

= A

) The Compatible predicate Holds if A

is a sub-activity of or equals to the activity A

Hold(S, A

,Context) ← DerivedMember(Operation(R, A),A),

Hold(S, R, A,Context)

The Hold(S, A

,Context) is true if the deﬁned context Holds for one of the operations

that are derived members of the activity.

DerivedMember(Operation(R, A), A

Hold(S

, R,A,Context)

then Grant(S

, Operation(R, A))

The rule states that when an access request to per-

form some activity occurs, if the request matches

one of the system contextual permissions, a grant

is issued to all operations that are derived mem-

bers of the requested activity and for which the

context holds.

• The Access-Request/System-Request Rule:

on AR(S

, A

)

if P(R

, A

,Context,true),

DerivedMember(S

, R

Compatible(A

, A

Hold(S

, A

,Context),

ResourceManager(M, R)

then create(id), add(Interaction(S

, A

, id)),

SR(M, S

, A

, id)

The rule states that when an access request to an

activity is made and the request matches one of

the system’s active dynamic permissions, and the

context holds for one of the operations speciﬁed

in the permission, the resource manager is to be

contacted to authorize the access. In the present

paper, we consider that every resource has exactly

one manager:

ResourceManager(M

, R),

ResourceManager(M

, R) → M

= M

To mark the start of an interaction with a resource

manager, a fact Interaction is added to the

system’s knowledge base.

• The Manager-Response/Grant rule:

on MR(S, A,Context, id)

if Interaction(S

, A

, id),

S = S

, Compatible(A, A

DerivedMember(Operation(R, A), A),

Hold(S, R, A,Context)

then Grant(S, R, A), delete(Interaction(S

, A

, id))

The rule states that when a manager-response

message is received and if the message corre-

sponds to an ongoing interaction, a grant is issued

to all operations that are derived members of the

activity speciﬁed in the new permission given by

the resource manager and for which the context

holds. To mark the end of the interaction with the

resource manager, the fact Interaction is removed

from the system.

6.1 Conﬂict Detection and Resolution

Several techniques have been proposed for conﬂict

resolution for policy-based systems (Cuppens et al.,

2007). In the model, only positive permissions are

considered. Thus, the only possible conﬂict is when a

contextual and a dynamic permission are activated at

the same time. The conﬂict is dynamically resolved

by prioritizing the dynamic permission active rule.

Assigning priorities to active rules is supported by al-

most all active databases and is one way to guarantee

the conﬂuence property. Prioritizing dynamic permis-

sions allows us to specify backup contextual permis-

sions when the interaction with the resource manager

does not end appropriately as discussed in the next

section.

6.2 Handling Timeout

It is important to plan for situations when the manager

of the resource does not reply to the system-request

message. These situations are managed using sim-

ple timers. When a resource-manager is contacted, a

SECRYPT 2008 - International Conference on Security and Cryptography

timer is set. If the timer elapses, a default system be-

havior is executed. For this purpose, our deﬁnition

of dynamic contexts is modiﬁed and two parameters,

namely a deadline and a default action, are added to

the deﬁnition of dynamic contexts:

⊆ D × DA

where D is an integer representing the delay after

which a timeout occurs and DA represents the sys-

tem’s default action when a timeout is reached and

can be any of the following: DA ∈ {accept, deny, other}.

When DA = accept, the access request is accepted

when the timeout is reached, when DA = deny, the ac-

cess is denied and when DA = other the system checks

if the access request is allowed by one of the pol-

icy’s contextual permissions. The default setting of

the de f ault parameter is deny. The above behavior is

modelled and enforced by the following active rules:

• The Create-Timer Rule:

on add(Interaction(S

, A

(D, DA), id))

then create(timer(id), D)

The rule initiates a timer that produces a timeout event

when the timer elapses.

• The Timeout Rule(1):

on timeOut(id)

if Interaction(S

, A

(D, DA), id), DA = deny

then Deny(S

, A

)

• The Timeout Rule(2):

on timeOut(id)

if Interaction(S

, A

(D, DA), id), DA = accept,

DerivedMember(opertion(R, A), A

)

then Grant(S

, operaion(R, A))

• The Timeout Rule(3):

on timeOut(id)

if Interaction(S

, A

(D, DA), id),

DA = other, P(R

, A

,Context, f alse),

DerivedMember(S

, R

), Compatible(A

, A

DerivedMember(Operation(R, A), A

Hold(S

, R,A,Context)

then Grant(S, operation(R, A))

7 APPLICATION EXAMPLE

In this section, we reconsider our example from an

intelligent home environment. Jack wishes to control

his family’s access to his CD collection. He deﬁnes

the following set of permissions:

• P

: P( f amily, classicalCDs, de f ault, f alse)

• P

: P( f amily, rockCDs, jackAvailable, dc(60, other))

The context jackAvailable is deﬁned as:

: Hold(S, R, A, jackAvailable) ←

Attribute(status, jack, available)

• P

: P( f amily, onlyReadRockCDs, atHome, f alse)

The context atHome is deﬁned as:

: Hold(S, R, A,atHome) ←

Attribute(location, S, home)

The ﬁrst is a contextual permission giving mem-

bers of the role f amily the right to perform operations

in the classical CDs activity in the de f ault context

which is a context that is always true. The second

is a dynamic permission stating that if Jack is avail-

able, the access control system should contact him to

authorize requests to perform operations on his rock

CDs. When an access request to the rock CDs is

made,

• AR(tom, rockCDs)

The system contacts Jack. Jack using his mobile,

PDA or laptop can specify any of the following:

• Limit the authorized operations to a subset of the

operations in the dynamic permission

MR(tom, readOnlyRockCDs, de f ault, id)

• Deny the access

MR(tom, rockCDs, f alse, id)

• Require the veriﬁcation of some context; for ex-

ample that his wife Mary is not at home

MR(tom, rockCDs, maryNotAtHome, id)

Hold(S, R, A, maryNotAtHome) ←

¬Attribute(location, mary, atHome)

If a timeout occurs after the delay speciﬁed in the

dynamic permission, the system enforces the default

action speciﬁed in the dynamic permission, in our

case, the speciﬁed action is other thus, the access is

checked against the system’s contextual permissions

and therefore the access is granted only to operations

that are members of the activity readOnlyRockCDs.

8 IMPLEMENTATION

We have developed the basic functionalities of the

model using the rule engine Jess: a java-based rule en-

gine combining declarative logic programming with

object-oriented programming. Jess supports both

The prototype uses a mixture of java code (for pro-

cedure calls and various interactions with the environ-

ment such as the sending and receiving of messages)

and jess code (to code the policy rules and logical

derivations). The prototype works as follows: the ac-

cess control system ﬁrst loads the policy rules coded

in jess. Then it loads the permissions from a simulated

database into the engine’s working memory. When

an access request is received, a fact representing the

request is injected into the policy engine’s working

memory. The engine evaluates the request accord-

ing to the access policy rules. When there are remote

conditions to evaluate, information is retrieved from

the appropriate context provider. At the end of the

INTERACTIVITY FOR REACTIVE ACCESS CONTROL

processing, the rule engine produces the policy deci-

sion reached which is then enforced by the appropri-

ate mechanisms.

9 CONCLUSIONS AND FUTURE

WORK

In this article, we have introduced an access control

model capable of supporting interactivity with users

to enable them to specify aspects of the access con-

trol policy at the time of the access request. We have

shown how it is possible to express clearly access re-

quirements difﬁcult or impossible to express in tradi-

tional models and how different contextual conditions

ﬁt into the model.

We are currently working to add support of ongo-

ing controls to the model (Park and Sandhu, 2004).

An important security requirement that we are also

looking into is to enable the user to add static rules

to the access control system e.g. to deny for always

or for a certain period of time requests from a par-

ticular subject as we recognize that the model is vul-

nerable to some social engineering attacks. We are

also considering integrating delegation with interac-

tivity to allow the users to delegate their capabilities

to others in a just-in-time manner (Ben Ghorbel-Talbi

et al., 2007). The ability to contact several contacts by

having more than one resource manager and handling

several user-responses for the same access request is

also studied.

Finally, we believe the model will prove to be an

interesting model for access control in pervasive and

collaborative environments and that it lays the foun-

dation to a new generation of access control systems

that integrate interactivity with users to add ﬂexibility

to traditional access control systems.

ACKNOWLEDGEMENTS

This research is partially sponsored by the Polux

project funded by the French “Agence Nationale de la

Recherche”. Yehia El Rakaiby’s PhD thesis is funded

by a grant from the Britany region.

REFERENCES

Abou El Kalam, A., Baida, R. E., Balbiani, P., Benferhat,

S., Cuppens, F., Deswarte, Y., Mi

ege, A., Saurel, C.,

and Trouessin, G. (2003). Organization Based Access

Control. In Policy’03.

Adaikkalavan, R. and Chakravarthy, S. (2005). Active au-

thorization rules for enforcing role-based access con-

trol and its extensions. In Proc. of The 21st IEEE In-

ternational Conference on Data Engineering (ICDE).

Becker, M. and Sewell, P. (2004). Cassandra: distributed

access control policies with tunable expressiveness. In

POLICY 2004, pages 159–168.

Ben Ghorbel-Talbi, M., Cuppens, F., Cuppens-Boulahia,

N., and Bouhoula, A. (2007). Managing delegation

in access control models. ADCOM 2007, pages 744–

751.

Cuppens, F., Cuppens-Boulahia, N., and Ghorbel, M. B.

(2007). High level conﬂict management strategies

in advanced access control models. Electron. Notes

Theor. Comput. Sci., 186:3–26.

Cuppens, F. and Mi

ege, A. (2003). Modelling contexts in

the or-bac model. In 19th Annual Computer Security

Applications Conference (ACSAC ’03).

Cuppens, F. and Mi

ege, A. (2004). Administration Model

for Or-BAC. In Computer Systems Science and Engi-

neering (CSSE’04).

Damianou, N., Dulay, N., Lupu, E., and Sloman, M. (2001).

The ponder policy speciﬁcation language. In POLICY

’01, pages 18–38, London, UK. Springer-Verlag.

Goffee, N., Kim, S., Smith, S., Taylor, P., Zhao, M., and

Marchesini, J. (2004). Greenpass: Decentralized, pki-

based authorization for wireless lans. 3rd Annual PKI

Research and Development Workshop Proceedings.

Haidar, D. A., Cuppens-Boulahia, N., Cuppens, F., and De-

bar, H. (2007). Access negotiation within xacml ar-

chitecture. SARSSI. Annecy, France.

Lobo, J., Bhatia, R., and Naqvi, S. (1999). A policy descrip-

tion language. In Sixteenth national conference on Ar-

tiﬁcial intelligence, pages 291–298, Orlando, Florida,

United States.

Moyer, M. J. (2001). Generalized role-based access con-

trol. In 21st International Conference on Distributed

Computing Systems.

Park, J. and Sandhu, R. (2004). The uconabc usage control

model. ACM Trans. Inf. Syst. Secur, pages 128–174.

R.S., S., Coyne E.J., F. H., and C.E., Y. (1996). Role-based

access control models. IEEE Computer.

Sloman, M. and Twidle, K. (1994). Domains: a framework

for structuring management policy. pages 433–453.

Stiemerling, O. and Wulf, V. (2004). Beyond ”yes or no”

- extending access control in groupware with aware-

ness and negotiation. Group Decision and Negotia-

tion, pages 221–235.

Zhang, G. and Parashar, M. (2004). Context-aware dynamic

access control for pervasive computing. In Commu-

nication Networks and Distributed Systems Modeling

and Simulation Conference.

SECRYPT 2008 - International Conference on Security and Cryptography
