A NEW PROBABILISTIC REKEYING METHOD FOR SECURE

DYNAMIC GROUPS

Shankar Joshi and Alwyn R. Pais

Department of Computer Engineering, National Institute of Technology Karnataka

Surathkal, Srinivasnagar, Mangalore - 574157, India

Keywords:

LKH optimization, key management, secure group communication.

Abstract:

Logical Key Hierarchy (LKH) is a basic method in secure multicast group rekeying. LKH maintains a balanced

tree which provide uniform cost of O(log N) for compromise recovery, where N is group size. However, it

does not distinguish the behavior of group members even though they have different probabilities of join or

leave. When members have diverse changing probability the gap between LKH and the optimal rekeying

algorithm will become bigger. The Probabilistic optimization of LKH (PLKH) scheme, optimized rekey cost

by organizing LKH tree with user rekey characteristic. In this paper, we concentrate on further reducing the

rekey cost by organizing LKH tree with respect to compromise probabilities of members using new join and

leave operations. Simulation results show that our scheme performs 18% to 29% better than PLKH and 32%

to 41% better than LKH.

1 INTRODUCTION

Multicast rekeying is one of the most visited areas in

network security. Many multicast based applications,

e.g., pay per view, online auction, multimedia confer-

encing, stock quote distribution, news dissemination

and networked gaming, require a secure communica-

tion model. The data in these applications need to be

secured from intruders as it is conﬁdential or it has

monetary value.

However, IP Multicast, the multicast service pro-

posed for the Internet does not provide any secu-

rity mechanisms. Indeed, anyone can join a multi-

cast group to receive data from the data sources or

send data to the group. In other words, IP multicast

protocol does not support “closed” groups. There-

fore, cryptographic techniques have to be employed

to achieve data conﬁdentiality.

One solution is to let all members in a group share

a key that is used for encrypting data. To provide

backward and forward conﬁdentiality(D. M. Wallner

and Agee, 1999), this shared key has to be updated

on every membership change and redistributed to all

authorized members securely. This is referred to as

“group rekeying”.

A simple approach for rekeying a group is one in

which the group key server encrypts and sends the up-

dated group key individually to each member. This

approach is not scalable because its cost increases lin-

early with the group size. Hence, group rekey scala-

bility is a challenging issue for large groups having

frequent membership changes.

In recent years, many approaches for scal-

able group rekeying have been proposed such as

LKH(C. K. Wong and Lam, 2000)(D. M. Wallner

and Agee, 1999), OFT(McGrew and Sherman, 2003),

ELK(A. Perrig, 2001), SDR(D. Naor and Lotspiech,

2001) and SHKD(Donggang Liu and Sun, 2003).

Among these LKH and its variants are widely used

schemes. Further, many optimization techniques

are proposed for LKH. The schemes proposed in

(R. Canetti and Pinkas, 1999)(Bezawada and Kulka-

rni, 2004) optimize network bandwidth; the schemes

in (S. Setia, 2000)(Y. Yang and Lam, 2001) opti-

mize rekey cost on membership changes; ﬁnally the

schemes in (Sencun Zhu and Jajodia, 2003)(Onen and

Molva, 2004)(Xu and Sun, 2005)(Selc¸uk and Sidhu,

2000) restructure the LKH tree to optimize either

rekey cost, bandwidth used or processing time.

In this paper, we present a method for reducing

rekey cost in secure multicast groups by organizing

LKH tree with respect to member’s rekey probabil-

ities using our new join and leave operations. The

contributions of our paper are as follows:

• We present our insert and delete operations on

LKH tree which will reduce the cost of rekeying

325

Joshi S. and R. Pais A. (2008).

A NEW PROBABILISTIC REKEYING METHOD FOR SECURE DYNAMIC GROUPS.

In Proceedings of the International Conference on Security and Cryptography, pages 325-330

DOI: 10.5220/0001928703250330

 SciTePress

on member compromise/leave.

• We propose new key identiﬁer assignment method

which generates unambiguous key identiﬁers for

nodes in the tree.

• We provide modiﬁed PUT operation which reduce

rekey cost on member join. Finally, we show that

our method reduces the rekey cost compared to

LKH and PLKH.

Organization of the Paper. The paper is organized

as follows. In Section 2, we describe various methods

available in literature to optimize LKH scheme. In

Section 3, we discuss various problems with PLKH.

In Section 4, we describe our scheme. In section 5,

we present the simulation results and analysis of the

results. Finally, in Section 6, we conclude our work.

2 RELATED WORK

There are many optimization schemes proposed in

literature for LKH. Some of them optimize network

bandwidth, some reduce rekeycost and others restruc-

ture LKH tree.

The OFC(R. Canetti and Pinkas, 1999) proposed

a variation of LKH which reduces the communication

overhead from LKH’s 2(log

N)– 1 to (log

N); but it

is limited to the binary key tree case. The Bezawada

scheme(Bezawada and Kulkarni, 2004) proposed a

key distribution algorithm for distributing keys to

only those users who need them. It proposes a com-

pact descendant tracking scheme to track the descen-

dants of the intermediate nodes in the multicast tree.

In the schemes (S. Setia, 2000)(Y. Yang and Lam,

2001), the groups are rekeyed periodically instead of

on every membership change which reduce both the

processing and communication overhead at the key

server.

The scheme in (Sencun Zhu and Jajodia, 2003),

proposed to partition the key tree using temporal pat-

terns of group members which reduce the overhead of

rekeying. The tree is partitioned into S–partition for

short duration members and L–partition for long du-

ration members. In (Onen and Molva, 2004) scheme,

the key server partitions members in different cate-

gories based on their membership duration.

In Reﬁned LKH scheme(Xu and Sun, 2005), on

member join the member behavior namely active and

non–active is used to partition the member. On leave

by a member, “dirty path” is set in the path from

leaving node to root and rekeying is delayed until a

join operation in the same path of leaving member.

This scheme tries to merge leave operation rekey cost

with next join operation in that sub tree. But the per-

formance of algorithm is not adequate in all circum-

stances.

Probabilistic optimization of LKH (Selc¸uk and

Sidhu, 2000), called PLKH, show that it could be ben-

eﬁcial to use an unbalanced key tree in some cases.

The idea in PLKH is to organize the key tree with re-

spect to the compromise probabilities of members, in

a spirit similar to data compression algorithms such

as Huffman and Shannon-Fano coding. Basically, the

key server places members who are is more likely to

be revoked closer to the root of the key tree. PLKH

ensures that the keys each member is holding after an

insert operation is same as those it was holding before

the insertion.

3 SHORTCOMINGS OF PLKH

Although the PLKH scheme reduces the rekeying

cost compared to LKH, it has some shortcomings

too. PLKH has three shortcomings which we are dis-

cussing below.

3.1 Strict Binary Tree Structure

On membership change, PLKH always ensures that

tree formed is strict binary tree. On member join,

PLKH balances the tree such that all the nodes will

have either two child or none. This increases the

depth of newly inserted member node which in turn

increases rekey cost. On deletion of a node, any node

with single child is also removed from tree. This ad-

versely affects the probability value of that deleted

node.

3.2 Probability Considered

PLKH considers cumulative probability i.e. X.p is

equal to the probability of the corresponding mem-

ber if X is a leaf node, and it is equal to X.left.p +

X.right.p, if X is an internal node. The insert oper-

ations proposed check this cumulative probability for

insert operation. This pushes new node down the tree,

even though new node may have higher rekey proba-

bility than some of the nodes on its path to tree root.

Another main problem with cumulative probabil-

ity is that it changes on every membership change

done in the subtree. On membership change, the key

held by nodes in the path from changed member node

to root are refreshed and their cumulative probability

ﬁeld gets updated to reﬂect the membership changes.

SECRYPT 2008 - International Conference on Security and Cryptography

326

3.3 Ambiguous Key Identiﬁers

PLKH does not discuss how the key identiﬁers are

assigned. The key identiﬁer generated using origi-

nal LKH identiﬁer scheme or by using special ﬂag

indicator for node created in PUT operation (Selc¸uk

and Sidhu, 2000) will end up in having some nodes

with ambiguous key identiﬁers. This problem arises

as PLKH does not affect existing nodes on member-

ship change; so when a change occurs only nodes in

the path from member node to root are updated. But

this information is not updated in descendants of af-

fected member node.

4 OUR SCHEME

In next sections, we describe our insert and delete op-

erations on LKH tree organized with respect to mem-

ber’s rekeying characteristic. We also describe our

new key identiﬁer assignment scheme which gener-

ates unambiguous identiﬁers for nodes in the tree.

4.1 Node Types

We ﬁrst deﬁne three types of nodes which are needed

by our scheme; namely physical, logical and replace-

able. A physical node is created when a member joins

the group. A physical node represents a member in

real world. A logical node is created when our modi-

ﬁed PUT (MPUT) is executed. Our scheme deletes a

physical node only if it’s a leaf node; otherwise we set

it as replaceable node. A replaceable node represents

node which is not deleted from the tree due to depen-

dent nodes. A replaceable node will be replaced back

as physical node with suitable member information

on future join operations.

4.2 MPUT Operation

We deﬁne new PUT operation called Modiﬁed

PUT (MPUT). In MPUT, we create a logical node

whereas PUT operation of PLKH (Selc¸uk and Sidhu,

2000) creates normal(physical) intermediate node.

To insert new node N into tree using MPUT, new

logical node L is created at certain location in

tree such that N will be its left child and P will

be its right child (see Figure 1). GP, the previ-

ous parent of node P, will now point to node L.

The initial probability of a logical node is set to

max(leftChild.initprob, rightChild.init prob) + 1.

Root

GP

P

L

N

Root

GP

P

MPUT (N, P)

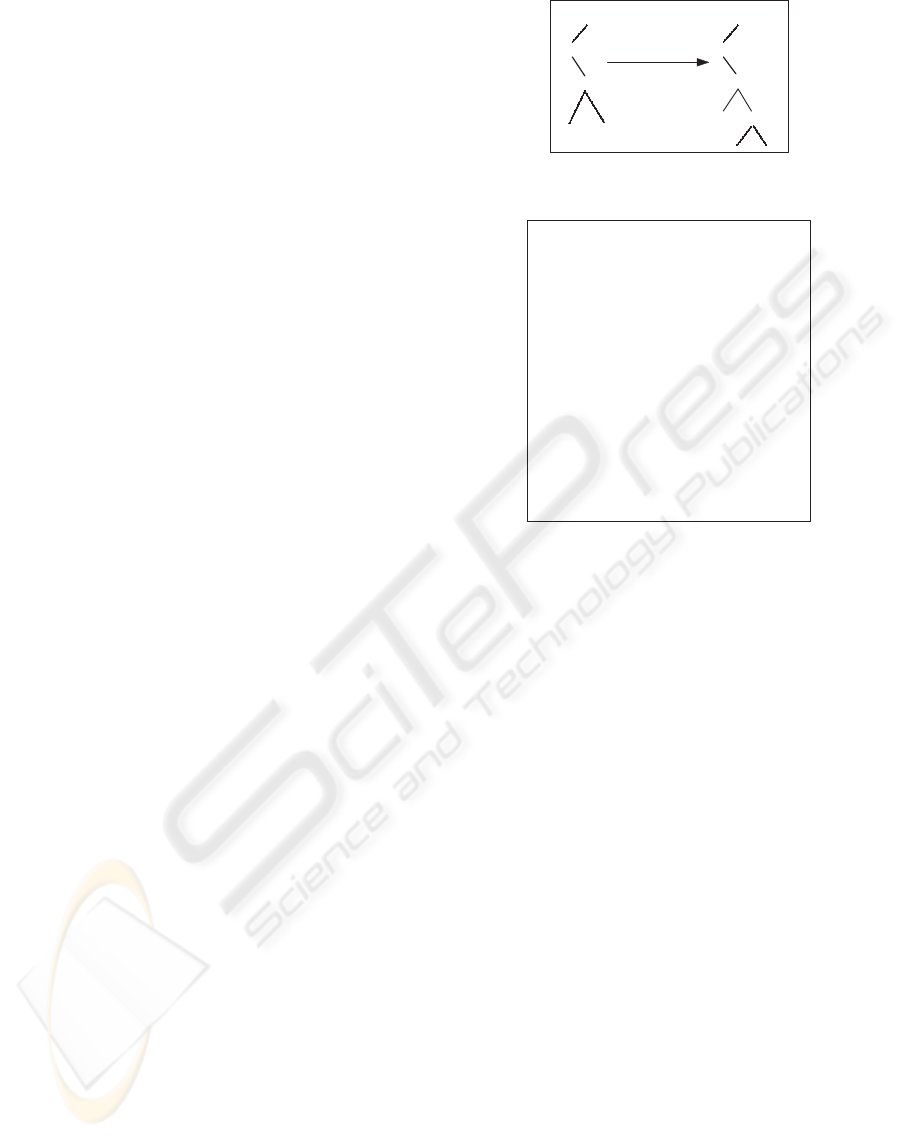

Figure 1: Our MPUT operation. It creates new logical node

L with P & N as its children.

insert(N, GP, P, direction)

if(P!=NULL){

if(P.initprob< N.initprob AND P!=TR){

if(P.type=replaceable)

replaceNode(P, N)

else if(isChildSlotFull(P)=False)

MPUT(N, P)

}

if(leftProb(P)>rightProb(P))

insert(N, P, P.right, right)

else

insert(N, P, P.left, left)

}

else{

if(direction = left)

insertNodeToLeft(GP, N)

else

insertNodeToRight(GP, N)

}

Figure 2: Our insert operation which considers the node’s

initial probability.

4.3 Insert Operation

Our insert operation inserts new node into suitable lo-

cation using one of the following functions MPUT,

insertNodeToLeft, insertNodeToRight and replaceN-

ode (see Figure 2). Here, instead of considering cu-

mulative probability which keeps on changing based

on join/leave in sub tree, we consider member’s rekey

probability called now onwards as initial probabil-

ity. Our insert algorithm takes no additional compu-

tational cost and has complexity of O(log d), where

d is depth of inserted member in the tree. If node’s

probability is greater than parent probability and node

is replaceable then we replace its details with new

member details and set it as physical node. This re-

duces possible PUT operation thus reducing mem-

ber’s depth by at least 1. The insertNodeToLeft and

insertNodeToRight are regular node insert operations

which insert new node at either left or right side of

given parent node. The isChildSlotFull returns True

if all the child slots are in use otherwise False. Con-

dition P 6= TR ensures that TreeRoot is not changed,

which represent group coordinator. Our insert algo-

rithm imitates Shannon-Fano Tree (Selc¸uk and Sidhu,

2000).

A NEW PROBABILISTIC REKEYING METHOD FOR SECURE DYNAMIC GROUPS

327

deleteNode(N)

P=getParent(N)

direction=getChildDirection(P, N)

if(isLeafNode(N)){

if(direction=Left)

deleteNodeFromLeft(P)

else

deleteNodeFromRight(P)

}

else{

if(N.type=physical)

setNodeAsReplacable(N)

}

if(isLeafNode(P) AND P.type !=physical)

deleteNode(P)

Figure 3: Our delete operation which removes non-physical

leaf nodes.

assignKeyID(P,C, direction)

keyid=P.keyid

if(direction=Left)

strcat keyid, “L”

else

strcat keyid, “R”

if C.type=logical

strcat keyid, ”x”

id=getFreeSlot(P, C.type)

strcat keyid, id

C.keyid=keyid

Figure 4: Our key identiﬁer assignment algorithm.

4.4 Delete Operation

Our delete operation deletes a physical node only if

it’s a leaf node; otherwise we set its type as replace-

able and refresh affected keys (see Figure 3). On dele-

tion of speciﬁed node if its parent node becomes leaf

and is of logical or replaceable type, then we remove

the parent also as it doesn’t represent any real world

member and has no dependent.

4.5 Key Identiﬁer Assignment

We provide a generic key identiﬁer assignment

scheme which avoids ambiguous key identiﬁer prob-

lem discussed earlier. On insertion of a new child C

whose parent is P, the assignment scheme will gener-

ate identiﬁer as shown in Figure 4.

Here, getFreeSlot recursively searches until a non-

logical parent is found. It then returns index to a free

child slot. The ‘L’ and ‘R’ indicate the child direc-

tion with respect to its parent. This scheme ensures

that key identiﬁers are unambiguous. Note that we

add ‘x’ ﬂag only for logical nodes. The ‘x’ ﬂag helps

in direction correction to trace descendants.

MPUT(N, P)

GP

P

..R3

..R3L1

..R3L1L1

..R3L1R2

..R3R2

GP

L

..R3'

..R3L1

..R3L1L1 ..R3Rx1L3

..R3Rx1

N

P

..R3L1R2 ..R3R2

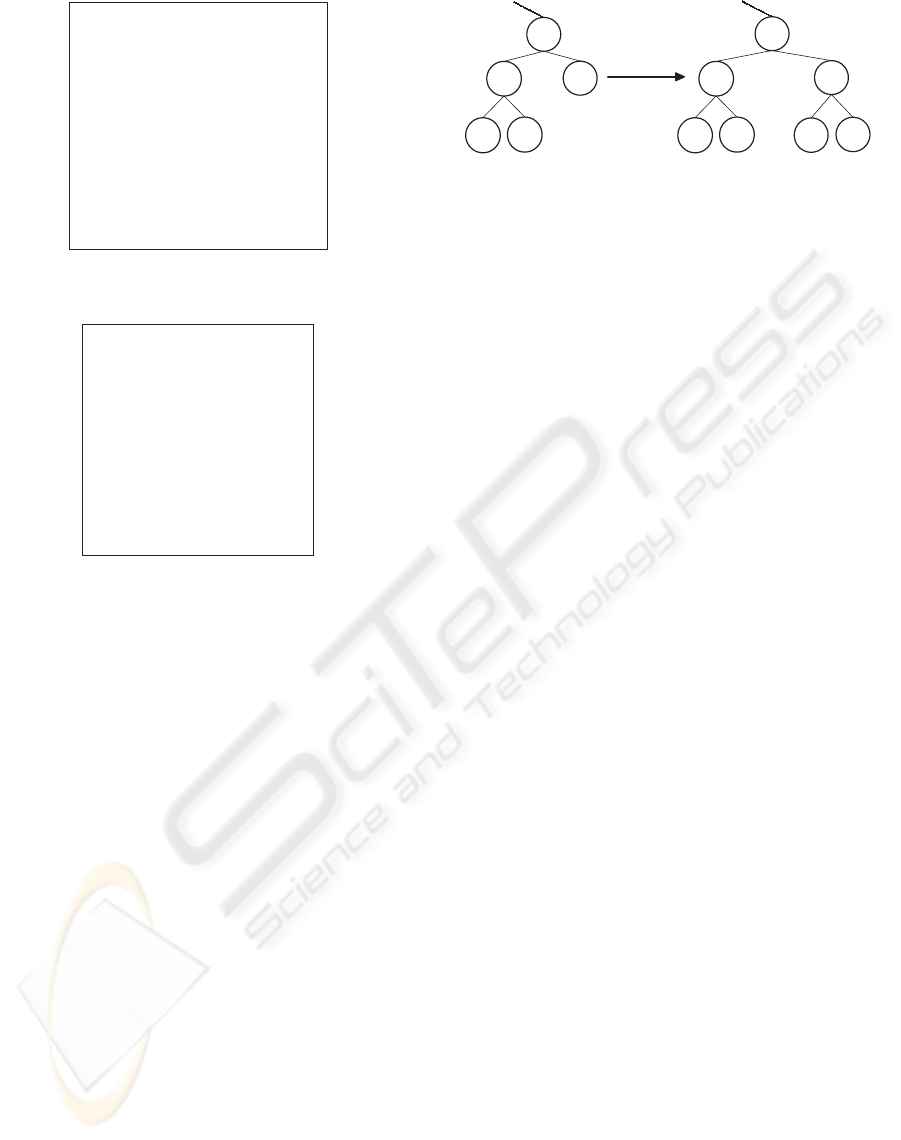

Figure 5: Example shows the working of our key identiﬁer

assignment algorithm.

4.6 Tracing Node using Key Identiﬁer

Tracing a node with our key identiﬁer takes d steps,

where d is node’s depth. An example is given in Fig-

ure 5 for understanding. On MPUT(N, P), keys of all

the nodes from GP to root are refreshed. Here, the key

R3 is refreshed as R3

′

Note here that after MPUT operation if we need

to trace node P with key identiﬁer ..R3R2, we ﬁrst

move up to node L using direction indicators ‘L’ &

‘R’ representing left and right directions. At node L,

we detect that it’s logical. Now we do direction cor-

rection. At any stage when we get a logical node, if

the remaining part of node to be traced does not have

‘x’ ﬂag indicator then we always move in right di-

rection irrespective of L or R of remaining part. This

is because the MPUT always inserts new node to left

and parent to right. The left sub tree will have nodes

with ‘x’ preﬁx in their remaining part. Since the P

node’s remaining part R2 does not have ‘x’ ﬂag in-

dicator, so we move in right direction to ﬁnd node at

next level.

4.7 Choosing Probability

To use the insertion algorithm as described above, it

is crucial to know the probability values of all mem-

bers in the tree at insertion time. This requirement

is not practical since computing the p

values would

require the knowledge of the rekey time probability

functions for all members in the tree. Moreover, even

if the rekey time probability functions are known for

all members, the p

values will change continuously

as members stay in the group. So, we use the weight

based scheme proposed in (Selc¸uk and Sidhu, 2000).

The weight assignment for the insertion algorithm

is the inverse of the mean inter-rekey time of mem-

bers; i.e.,

= 1/µ

(1)

where µ

is the average time between two rekeys by

member M

. There are two reasons for choice of 1/µ

as the weight measure among many other candidates:

SECRYPT 2008 - International Conference on Security and Cryptography

328

Static Group

0

2000

4000

6000

8000

10000

12000

14000

16000

18000

128 256 512 768 1024

Number of users

Number of rekeys generated

LKH 

PLKH 

OPLKH

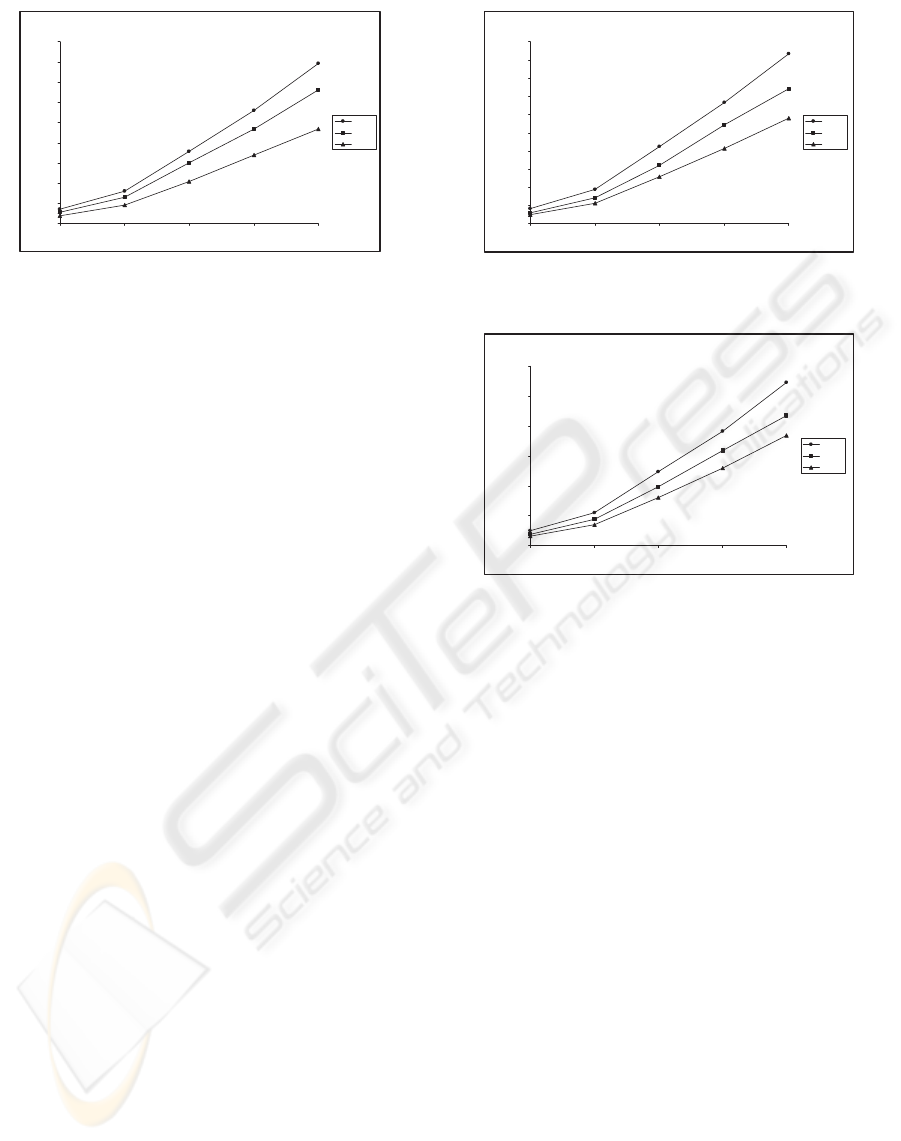

Figure 6: Simulation results for static group with various

group sizes.

1. Its simplicity and convenience.

2. In the special case where the members inter-rekey

time distributions are exponential, p

= w

/W gives

exactly the probability that M

will be the next

member to rekey.

5 SIMULATION RESULTS AND

ANALYSIS

We simulated LKH, PLKH and our method using the

ns2 network simulator (Simulator, 2008). We call our

scheme as OPLKH for simplicity. We performed ex-

periments on randomly generated network topologies

for groups of 128, 256, 512, 768 and 1024 members.

For each experiment, we selected a random set of

members join and leave the group and recorded num-

ber of rekey messages generated. We considered three

scenarios namely static, semi dynamic and dynamic

group.

5.1 Scenario 1 - Static Group

In this scenario, we assign relatively lesser rekey

probability to members. Most of the members in this

scenario stay in group till session is over. The mem-

bers are added at random intervals. In this scenario,

number of members to leave the group is chosen to

be roughly 25% of the group size. The members

leave the group at random times (chosen based on

their rekey probability) during the entire session of the

group. From the results got, we observe that for static

groups our scheme performs 41% better compared to

LKH and 29% better compared to PLKH (see Figure

6).

Semi-dynamic Group

0

2000

4000

6000

8000

10000

12000

14000

16000

18000

20000

128 256 512 768 1024

Number of users

Number of rekeys generated

LKH 

PLKH 

OPLKH

Figure 7: Simulation results for semi dynamic group with

various group sizes.

Dynamic Group

0

10000

20000

30000

40000

50000

60000

128 256 512 768 1024

Number of users

Number of rekeys generated

LKH 

PLKH 

OPLKH

Figure 8: Simulation results for dynamic group with various

group sizes.

5.2 Scenario 2 - Semi Dynamic Group

In this scenario, we assign relatively higher probabil-

ity to members compared to static group. Here also

the members are added at random intervals. In this

scenario, number of members to leave the group is

chosen to be roughly 50% of group size. The mem-

ber’s leave time is selected at random based on their

probabilities. From the results got, we observe that

for semi dynamic groups our scheme performs 38%

better compared to LKH and 21% better compared to

PLKH (see Figure 7).

5.3 Scenario 3 - Dynamic Group

In this scenario, we assign high probability to mem-

bers. The members are allowed to join and leave the

group at rapid rate. The group experiences lot of

join/leave operations in quick time which increases

the rekey messages generated. From the results got,

we observe that for dynamic groups our scheme per-

forms 32% better compared to LKH and 18% better

compared to PLKH (see Figure 8).

A NEW PROBABILISTIC REKEYING METHOD FOR SECURE DYNAMIC GROUPS

329

5.4 Analysis

The number of rekey messages generated for same

member join/leave operations in all scheme show that

our scheme, OPLKH, performs better than both LKH

and PLKH. OPLKH avoids strict binary tree struc-

ture, unwanted PUT operations and unnecessary logi-

cal nodes. The Table 1 shows rekey cost improvement

got by OPLKH over LKH & PLKH in different sce-

narios.

Table 1: Reduction in rekey cost of OPLKH compared to

LKH and PLKH.

over LKH (in %) over PLKH (in %)

Scenario 1 41 29

Scenario 2 38 21

Scenario 3 32 18

5.5 Limitations of Our Scheme

Some of the limitations of our scheme are discussed

here. Firstly, the key identiﬁer assignment requires

more memory to store key identiﬁers. Typical LKH

scheme needs only 1 bit for choosing left or right

child. Whereas our scheme needs 6 bits with 1 bit

for direction, 1 bit for ‘x’ ﬂag and 4 bits for index

to free child slot in parent. Second limitation is that,

though total nodes created are less than PLKH &

LKH schemes, our scheme treats some nodes harshly

in terms of depth assigned. Finally, our scheme only

ensures that tree structure is binary. It neither tries to

maintain strict binary tree as PLKH nor tries to bal-

ance all nodes at same level as LKH.

6 CONCLUSIONS

In this paper, we addressed the issue of reducing

rekey messages generated on member leave in se-

cure multicast groups. We presented new method to

form the LKH tree with member’s rekey characteris-

tics using our insert and delete operations. Also, we

gave generic key identiﬁer assignment scheme which

avoids ambiguous key identiﬁers. The simulation re-

sults show that our scheme achieves rekey reduction

of 18% compared to PLKH and 32% on original LKH

for dynamic group of 1024 members.

REFERENCES

A. Perrig, D. Song, D. T. (2001). Elk, a new protocol for

efﬁcient large group key distribution. In Proceedings

of the IEEE Security and Privacy Symposium 2001.

Bezawada, B. and Kulkarni, S. S. (2004). Distributing key

updates in secure dynamic groups. In International

Conference on Distributed Computing and Internet

Technology, ICDCIT 04.

C. K. Wong, M. G. and Lam, S. S. (2000). Secure group

communications using key graphs. In IEEE/ACM

Trans. Networking.

D. M. Wallner, E. J. H. and Agee, R. C. (1999). Key man-

agement for multicast: Issues and architectures. In

RFC 2627.

D. Naor, M. N. and Lotspiech, J. (2001). Revocation and

tracing schemes for stateless receivers. In Advances

in Cryptology -CRYPTO 2001, Springer-Verlag Inc.

LNCS 2139.

Donggang Liu, P. N. and Sun, K. (2003). Efﬁcient self-

healing group key distribution with revocation capa-

bility. In Proceedings of the 10

ACM conference on

Computer and Communications Security.

McGrew, D. A. and Sherman, A. T. (2003). Key establish-

ment in large dynamic groups using one-way function

trees. In IEEE Transactions on Software Engineering.

Onen, M. and Molva, R. (2004). Group rekeying with a

customer perspective. In Proceedings of Tenth Inter-

national Conference on Parallel and Distributed Sys-

tems.

R. Canetti, J. Garay, G. I. D. M. M. N. and Pinkas, B.

(1999). Multicast security: A taxonomy and some ef-

ﬁcient constructions. In Proc. IEEE INFOCOM ’99.

S. Setia, S. Koussih, S. J. (2000). Kronos: A scalable group

re-keying approach for secure multicast. In IEEE

Symp. on Security and Privacy.

Selc¸uk, A. A. and Sidhu, D. P. (2000). Probabilistic meth-

ods in multicast key management. In Proceedings of

the Third International Workshop on Information Se-

curity.

Sencun Zhu, S. S. and Jajodia, S. (2003). Performance opti-

mizations for group key management schemes for se-

cure multicast. In Proceedings of 23

International

Conference on Distributed Computing Systems.

Simulator (2008). ns-2, vesion 2.32. In

http://www.isi.edu/nsnam/ns/.

Xu, Y. and Sun, Y. (2005). A new group rekeying method

in secure multicast. In International conference on

Computational intelligence and security.

Y. Yang, X. Li, X. Z. and Lam, S. (2001). Reliable group

rekeying: Design and performance analysis. In Proc.

of ACM SIGCOMM 2001.

SECRYPT 2008 - International Conference on Security and Cryptography

330
