EXPERIMENTAL RESEARCH AND CAPABILITY VALUATION

ON SECURITY OF SOA-SCA BASED SDO

Peng Xu, Zhiyi Fang, Hang Su and Chuyi Wei

College of Computer Science and Technology, Jilin University, Changchun, P.R. China

Keywords: SOA, SCA, SDO, data confidentiality, data integrity, non-repudiation of data.

Abstract: By using technologies such as encryption, decryption, message digest, and digital signature and so on, this

paper designed respective solutions for some security problems of SDO (Service Data Objects) data model,

a concrete business processes based on SOA-SCA (Service Component Architecture) as well as security

solutions for data confidentiality, integrity and non-repudiation of SDO data model based on the business

processes. In addition, the design goals of security solution were analyzed in detail. Finally, the solution was

achieved by using development tools WID (WebSphere Integration Developer) and WPS (WebSphere

Process Server). The test and capability analysis for this realization was performed too.

1 INTRODUCTION

SOA (Service Oriented Architecture) is the new

phase of the construction methods and environment

for distributed software system. SOA includes a set

of new construction methods and environments for

distributed software system such as running

environments, programming model, structure style

and relevant methodology, which cover the whole

life cycle for service: Modeling - Development -

Integration - deployment - Operation - Management.

Compared with the traditional applications, SOA

mainly considers in which way and how to expose

services, as well as to expose what services. In this

way, we can combine the services provided by the

old system to construct a new application. If using

traditional methods, this may require

re-development, all from the beginning.

Disadvantages of traditional application

architecture lead to the existing application

architecture model's sluggish response on the

changing business needs and results in the increase

of our investment. SOA can help us to improve

business value better and faster, and in this way we

can get the ability of quick response and reuse.

Because of the inherent openness of SOA and a

number of standard protocols used by SCA (Ben,

2007), which makes SOA security issues, especial

for data security problem, very serious, researches

on security issue of SDO became a very helpful

thing. This paper focuses on the SDO data's

confidentiality, integrity and non-repudiation and

does research to address my solutions to these

issues.

2 REQUIREMENT ANALYSIS

2.1 Overview SOA Security

SOA security issues are result from using new open

standards instead of traditional security parameters.

There are two aspects make the security issues more

prominent. For one thing, these new standards are

completely open and no one holds them. For

another, it seems that nobody considered security

issues when designing these standards. Let's have a

look at what serious security problems the SOA

architecture may bring on.

2.2 Security of Authorization

and Authentication in SOA

Authentication is a process to verify the identity of

visitors. It is related with authority verification but

has some differences. Authority verification is to

verify whether a user is allowed to access the

services it calls, while authentication is to prove that

the identity of whom visiting your service now is the

same with that the user declared. In an unsafe SOA

337

Xu P., Fang Z., Su H. and Wei C. (2008).

EXPERIMENTAL RESEARCH AND CAPABILITY VALUATION ON SECURITY OF SOA-SCA BASED SDO.

In Proceedings of the International Conference on Security and Cryptography, pages 337-341

DOI: 10.5220/0001929203370341

 SciTePress

environment, it is difficult to achieve trusted

authentication. Because of the coarse-grain security

checking mechanism for interaction between

computers, a SOA services may be attacked by

illegal users. SOA services have neither

authentication nor authority verification. If a

mainframe's resources were used by illegal users, it

will be a serious security issue.

2.3 SOA may Lead to 'Denial of

Service Attacks'

Because the unsafe SOA open for all users, illegal

users can send a large number of service requests to

the server, which will result in service providers'

abnormal work. Therefore, a group of illegal users'

request may bring on denial of service attacks and

SOA may lose the ability to monitor the service level

it provides if serious. (The service level is the

qualitative measurement for SOA). If there is an

attack, unsafe SOA can't tell you whether it has been

overloaded and will make system administrator can

not react on the security issues in the first time.

2.4 SOA may Lead to Auditing

Problem

An audit log is a basic requirement for IT security.

In order to check the security performance and

analyze security problems, the system administrator

must have the accurate system behavior log in his

hand. Because unsafe SOA don't have message and

transaction log mechanism, there's no way to

determine who had used the service and where the

service originate from when a service was called,

which will result in no audit trail can be used to

investigate the security gap after the incident and no

way to determine who and damaged the system and

when it happened.

2.5 Data Security Problem of SDO

2.5.1 Analysis for Confidentiality of

SDO Data

Confidentiality is to make sure that there's no

eavesdropping in the transmission. Even if the data

is intercept by illegal user, he will not understand the

real meaning. If architecture can not guarantee a

high degree confidentiality, that is not fully secure.

In an unsafe SOA environment, illegal users can

eavesdrop and intercept the SDO data transmitting

on the net. If the SDO data manufacturers sent to

suppliers contains confidential information, for

example, something like a list of materials required,

the necessary quantity of each material, the very

arrival date, and didn't do additional processing,

illegal users could analyze the SDO data he has got

very easily and find these clear message he wants

after he intercepted the SDO data due to the

standards SDO based. What's worse, if illegal users

modified the SDO data and transmitted it to

suppliers, it will result in huge economic losses.

Therefore, the possibility of SDO data's being abuse

by illegal users is very high.

2.5.2 Analysis for Integrity and

Non-repudiation of SDO Data

When a service provider received a call from the

requesting party, it must be verified to ensure that

the data is sent from the requesting party and the

data has been neither changed in transmission nor

forged by illegal third-party. That is data integrity.

The requesting party can not deny that it had sent the

request of the services, namely, the non-repudiation

of data. Data integrity and non-repudiation is very

important for the service providers and petitioner

exchanging data on the net.

3 SOLUTIONS FOR DATA

SECURITY PROBLEM OF SDO

For most security problem in the SOA-SCA

environment there is a suit of solution. A big

solution also contains a number of small solutions,

and every solution resolves a security problem in a

specific area of SOA. Security solutions for SOA

will be hinged on its security architecture and the

needs of each application. I will provide specific

solutions for data security (data confidentiality,

integrity and non-repudiation) (Matt, 2004) of

SOA-SCA.

Security framework of Traditional application is

based on the interaction between human and

computer, while SOA allows interaction between

computers. However, the developers paid very little

attention to that interaction. I think this is because

SOA lacks of internal security. In SOA-SCA

environment, we should embed these functions that

ought to be achieved by the equipment into the

application program.

Since it is not so fast for public key encryption

and private key decryption as well as signing with

the private key and verifying with public key, they

are not suitable to operate on mass data. Owning to

this, my solution doesn’t sign or encrypt all the data.

SECRYPT 2008 - International Conference on Security and Cryptography

338

The SDO data to be processed is only the

confidential information. There are two advantages

by doing this way. Firstly, the solution will not run

slower because of increasing data. Secondly, after

being processed by the solution, the SDO data's

format is still based on open standards, so the

receiver can still treat it as SDO.

3.1 Solution for Confidentiality of

SDO Data

Take manufacturers for example, assume that the

supplier system want to send a SDO services call to

the manufacturer. First, manufacturer must send a

public key to CA (certificate authority) (Wenbo,

2003), and supplier request a certificate from CA.

The certificate supplier received contains a public

key which matches manufacturer's private key.

Second, the supplier encrypts its message with the

public key in the certificate, and sends the encrypted

message and its certificate to the manufacturer.

Then, SOA security solutions intercept the

information and check the validity of the certificate

through CA. Doing this can verify the identity of the

supplier. Once the authentication checked, the

encrypted SDO data can be sent to the manufacturer.

After received the SDO data, manufacturer can use

its private key to decrypt the data and process it.

As shown in Figure 1，if the supplier wants to

send SDO data to manufacturer, the process will be

as follows:

1. Manufacturer sends its public key to CA, and

holds private key on its own side.

2. Supplier requests the certificate that contains

manufacturer's public key from CA.

3. Supplier gets manufacturer's public key by

analyzing the certificate received in Step 2.

4. Supplier sends the SDO data encrypted with

the public key got in Step 3 and its certificate

together to manufacturer.

5. SOA security solutions send manufacturer's

certificate got in Step 4 to CA to validate its

authentication. If succeed, go to Step 6.

Otherwise, tell the supplier by send message

that certificate validation failed and

withdrawal.

6. SOA security solutions send manufacturer

the SDO data encrypted with its public key.

7. When received encrypted data from Step 6,

manufacturer decrypt the data by using its

private key to get clear data

When the message processed with encryption

keys by the security solutions for data

confidentiality, it will be converted to encrypted

SDO data. In other words, the message meets the

SDO format, but the content is encrypted. By doing

this, system could receive messages as SDO and

process it, rather than rely on custom or proprietary

messaging standards. At the same time, we realized

the SDO data confidentiality, and the system still

based on open standards.

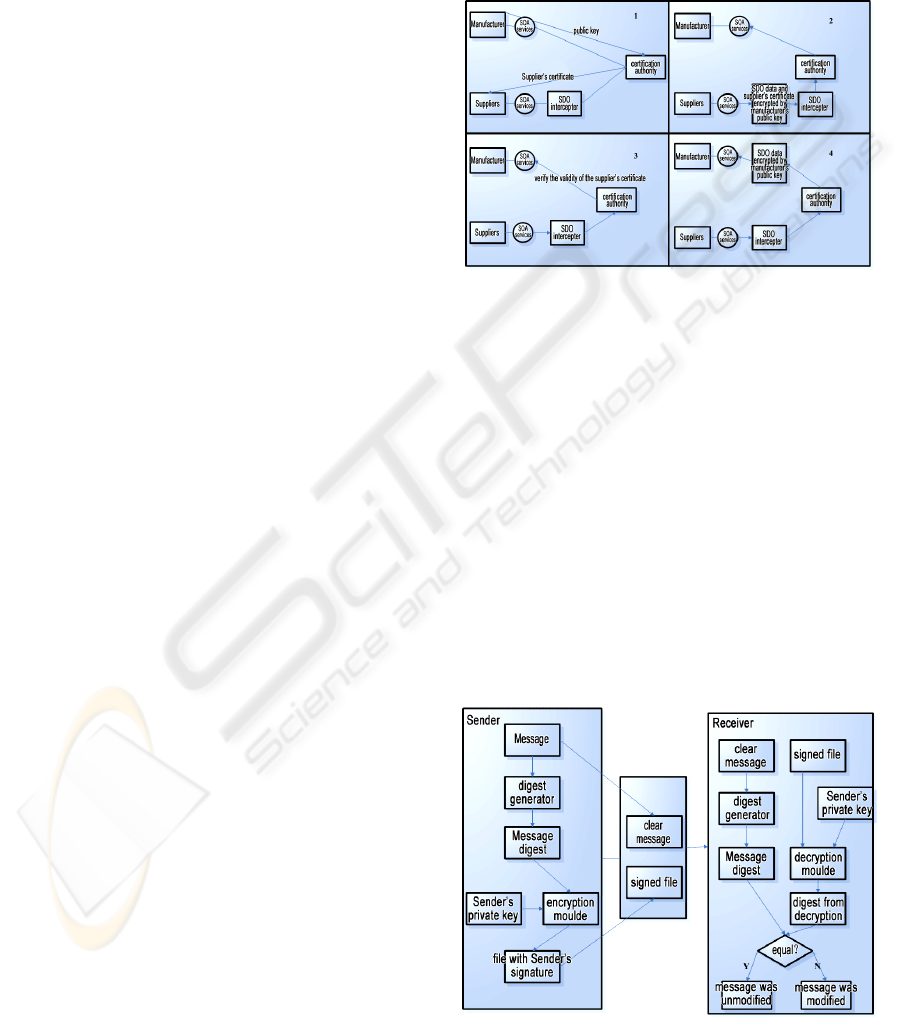

Figure 1: Process of use public/private key encryption and

certificate in unsafe SOA.

The solution involves only two systems. When

there are multiple systems, every interaction

between two systems should follow the solution

above to send and receive SDO data.

3.2 Solution for Integrity and

Non-repudiation of SDO Data

We will solve it by using digital signatures. As

shown in Figure 2. When sending message, sender

needs to append a message digest signed with its

private key. When received the information, receiver

need to decrypt the signed message digest with

sender's public key. If the message digest from

decryption is the same with that generated from

Figure 2: Principles for the realization of data integrity and

non-repudiation.

EXPERIMENTAL RESEARCH AND CAPABILITY VALUATION ON SECURITY OF SOA-SCA BASED SDO

339

received clear data, it means that the message has

not been modified by a third party when

transmitting, or it is likely that the message has been

modified and the data integrity was destroyed. There

is another situation that no signed digest is in the

message, which means that sender didn't confirm

this message and data non-repudiation destroyed.

Also take communications between supplier and

manufacturer as an example, assume that supplier

want to send SDO data to the manufacturer, the

process will be as follows:

1. Firstly, supplier and manufacturer need to

generate their own pair of public key and

private key, and then send public key to CA,

and CA will generate certificate for them.

2. Supplier generate message digest of SDO data.

3. Supplier makes a digital signature for message

digest from Step 2 with its private key.

4. When receive the message with supplier's

signatures, manufacturer will request the

supplier's certificate, which contains its public

key, from CA first.

5. Manufacturer decrypt the SDO data received in

Step 4 with its private key to get clear data,

and then generate message digest.

6. By using the public key in supplier's certificate

and the message digest from Step 5,

Manufacturer verifies SDO data signed by

supplier.

7. If succeed in Step 6, the SDO data was not

modified when transmitting in the net, and

includes the supplier's signature.

8. If the validation failed, there are two kinds

possibility. For one thing, SDO data was

modified in the transmission, which means the

data integrity was destroyed. For another,

there's no supplier's signature in the received

SDO data, or the signature information in the

SDO data is wrong, which means

non-repudiation of data was destroyed.

4 SYSTEM DESIGN

By using WID and WPS, the system realized such a

service that an intermediate agents ACME transfers

between bank accounts on behalf of customers. Fig.3

shows main functional modules.

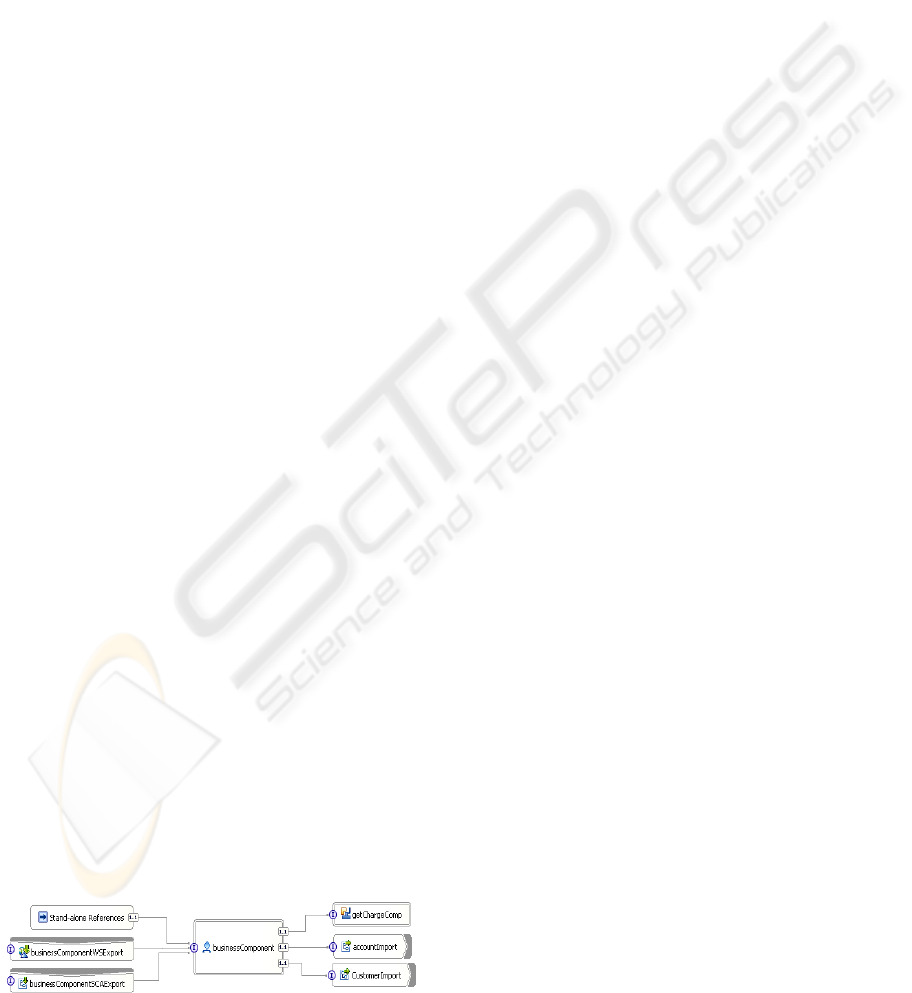

Figure 3: System Module.

According to Fig.3, the system mainly contains

the following modules: module for the account

services of the relative bank system, customer

service module of ACME, fees module of ACME, a

module in charge of the information exchange

between modules, and a CA module to provide

certificates to every customers. The modules

division, as well as the services provided by every

module is according to the SOMA (

Service-Oriented

Modeling and Architecture) method (Abdul, 2008).

5 SYSTEM TEST

5.1 Test Case

Assume that a customer of ACME, John, have

respectively account in two banks, Bank A and Bank

B. Now he wants to transfer $10,000 to Bank B

account from Bank A account, but he did not want to

go to bank. ACME has integrated account services

of the two banks, so he wanted to complete this

through ACME.

Since encryption, decryption or signature with

RSA (Murdoch, 2001) is not suitable for mass data,

the system will process the confidential information

of the SDO data only (choos transfer accounts here).

5.2 Test Result

Under the server WPS v6, a stand-alone reference

was exported by WID and we can design a JSP page

to call SCA services in the test.

Here is the data accrued when system running:

[2/24/08 16:32:30:047 CST] 000000bb SystemOut

Nn5yBtUN4Ntd+e8+h9tFnE3QikRYAPMeVRzWD

6V9yHrOqjkw2queTuWbuDHVkjqMusSf4XAxT6h

XbpbImVO86A==SDOXJ/8OfXCTbSK5PjT7aGft

MJmBtYQNCPbxHeDOmYYb353BSdMCz6ccldjd

a3tPNAXCwPk2mDHmMoS8rz3J6c8kA== --

ACME

[2/24/08 16:32:30:047 CST] 000000bb SystemOut

O customer signature verification success -- ACME

[2/24/08 16:32:30:094 CST] 000000bb SystemOut

WpLLkdB2iRjioDOmpksZC4jUPKT85j6r3iqx1pNb

T2MaaHIXHyz3whL/IBOhNUBSuq9nuHksYFzom

fX/BOdURQ==SDOXJ/8OfXCTbSK5PjT7aGftMJ

mBtYQNCPbxHeDOmYYb353BSdMCz6ccldjda3t

PNAXCwPk2mDHmMoS8rz3J6c8kA==SDOCSlV

Lg5gmNlFvCC1pNy6BtALDhddZJ20x/07nF+yf53s

0IblhNH4ErKCo6wiSW1GVXCjD+wkMHJKJVGi

1YnuyQ==--bank

SECRYPT 2008 - International Conference on Security and Cryptography

340

[2/24/08 16:32:30:109 CST] 000000bb SystemOut

O deduct amount: 10000 -- bank

[2/24/08 16:32:30:109 CST] 000000bb SystemOut

O ACME signature verification success -- bank

[2/24/08 16:32:30:109 CST] 000000bb SystemOut

O customer signature verification success -- bank

[2/24/08 16:32:30:109 CST] 000000bb SystemOut

O deduct money from bank

From line 2 to line 6, this is the encrypted data

and signature created when John processing amount

of account transfer. The data contains two parts, and

they are separated by the keyword “SDO”. First part

is the data encrypted with public key of ACME, and

the second part is the signature data obtained from

the digest of account transfer amount which signs

with John’s private key. The data is output data for

John and input data for ACME.

When ACME got the encrypted data and

signature in line 2 to line 6, it verifies John's

signature and data integrity. According to the system

log, verifying succeeded. After verified the signature

data (Raghavan, 2000) and integrity, ACME use its

private key to obtain the clear data in the first part,

and then use public key of the BANK to encrypt.

Finally, ACME appends its signature to the data

above.

In the line 10 to line 16, the data is the output of

ACME, and also input of BANK. The data contains

three parts, which also use the keyword "SDO" to

separate. The first part is the data encrypted with the

public key of BANK. The second part is the

signature data obtained from the digest of account

transfer amount which signs with John’s private key.

The third part is signature of ACME. Once gets the

data, the bank will decrypt it to clear data, “10000”.

According to the log, the decryption succeeded and

the clear data of amount was found. Then, the bank

will verify the signature of ACME and it of John.

According to the log, the two works are all

successful, too. After completion of these works,

BANK will treat with the account of John.

According to the operating data and analysis

above, we can conclude that, the SDO data in

SOA-SCA environment achieved the goal of data

confidentiality, integrity and non-repudiation on the

way from producer to consumer.

5.3 Analysis for System’s Performance

Although the system added some extra processing

and extra data which increased network traffic to

guarantee the secrecy, integrity and undeniably of

the SDO data, the hardware of the servers and the

bandwidth been has greatly enhanced. Also, we

processed only confidential data when carrying out

the system. So, comparing with not having these

extra operations and data, system's performance has

not large scale reduction.

6 CONCLUSIONS

SOA has greater openness, flexibility and scalability

than traditional applications. Meanwhile, security

issues of SOA bring about greater challenge. Any

person or computer in any time and any place can

visit the service as long as it follows the standards.

SCA is an application framework based on SOA.

SDO is the data model based on SCA. This paper

designed the solution to guarantee confidentiality,

integrity and non-repudiation of SDO data when

calling the SCA application, and then achieved it

using WID, WPS.

REFERENCES

Ben MargolisandJoseph Sharpe, 2007. SOA for the

Business Developer: Concepts, BPEL, and SCA, MC

Press, First Edition.

Matt Bishop, 2004. Introduction to Computer Security,

Addison-Wesley Professional

Wenbo Mao, 2003 .Modern Cryptography: Theory and

Practice, Prentice Hall PTR

Abdul Allam, Ali Arsanjani, 2008. “Service-Oriented

Modeling and Architecture”, Technical paper of IBM

Global Services. Version 2. 14-34.

Murdoch Mactaggart, 2001. Introduction to Encryption,

IBM developerworks, China

Raghavan Srinivas, 2000. Security’s Evolvement and Idea

of Java, IBM developerworks, China

EXPERIMENTAL RESEARCH AND CAPABILITY VALUATION ON SECURITY OF SOA-SCA BASED SDO

341
