KERBEROS IMPLEMENTATION IN MANETS

Atta-ur-Rahman, Mureed Hussain

SZAB Institute of Science and Technology, Islamabad, Pakistan

Kahina Kabri, Dominique Seret

Department of Mathematics et Informatics, University of Paris 5, France

Keywords: Kerberos, MANETs, Authentication, Ah-hoc networks.

Abstract: In this paper implementation of Kerberos is proposed for Mobile Ad-hoc Networks (MANETS) for user

authentication and authorization. Kerberos uses symmetric cryptography with a trusted server to enable

secure authentication and key exchange between client nodes. Kerberos protocol is designed to provide

reliable authentication over open and insecure networks where communications between the hosts

belonging to it may be intercepted. So simply Kerberos is an authentication protocol for trusted hosts on un-

trusted networks. There are two approaches used in MANETS: proactive approach & reactive approach. In

proactive approach protocols are also known as traditional distributed shortest-path protocols which are

used to maintain the routes at all times based on periodic updates with high routing overhead. We have

implemented Kerberos concept with proactive approach using Optimized Link State Routing Protocol

(OLSR).

1 INTRODUCTION

There are two basic wireless network topologies

such as infrastructure based networks and

infrastructure less networks also known as ad-hoc

networks. The combination of both networks is

called Heterogeneous Wireless Network or

Heterogeneous Mobile Ad-hoc Networks. Mobile

nodes move in cells in mobile and ad-hoc networks.

Structure of mobile ad-hoc networks is same as

general mobile networks, but difference lies in their

ability to self-configuring network of mobile nodes.

Ad-hoc networks do not need any backbone

infrastructure support and are easy to deploy.

MANETS are useful when infrastructure is absent,

destroyed or impractical. Ad hoc networks such as

Bluetooth are networks designed to dynamically

connect remote devices such as cell phones, laptops,

and PDAs which communicate over radio and do not

need any pre installed communication infrastructure.

Communication can be performed if two nodes are

close enough to exchange packets.(Security in

Adhoc Networks)

In context of security in MANETs, apart from

traditional to these classical threats, there are various

special threats in MANETS, e.g. denial of service

attacks against the energy resource can be performed

by using any of the services a node is

offering.(Karygiannis, 2002). In MANETS security

and user authentication are still an unresolved and

challenging research area. In case of disaster areas it

is especially important to restrain unauthorized

nodes accessing the networks by implementation of

an authorization scheme (Security in Adhoc

Networks).

2 REQUIREMENTS AND

ARCHITECTURE

To fulfil the authentication mechanisms of MANETs

there are various considerations which need to be

taken into account:

1. The MANETs topology is table driven and

dynamic.

2. MANETs may be globally connected with other

networks.

3. The MANETs has an addressing scheme with

Duplicate Addressing Detection (DAD)

mechanisms.

161

ur-Rahman A., Hussain M., Kabri K. and Seret D. (2008).

KERBEROS IMPLEMENTATION IN MANETS.

In Proceedings of the International Conference on Security and Cryptography, pages 161-166

DOI: 10.5220/0001930401610166

 SciTePress

4. In OLSR MPR may also function as KDC

server.

5. The mobile nodes support security protocols

like IPSec.

6. Access to network resources is restricted to

only for authorized nodes.

7. The mobile nodes are preconfigured with

security credentials to perform their

authentication procedures.

For a best viewing experience the used font should

be Times New Roman, on a Macintosh use the font

named times, except on special occasions, such as

program code (Section 2.3.7).

3 OLSR IN ADHOC NETWORKS

OLSR is a proactive routing protocol for MANETS.

This protocol inherits the stability of link state

algorithm and has the advantage of having routes

immediately available when needed due to its

proactive nature. OLSR is an optimization over the

classical link state protocol, tailored for mobile ad

hoc networks.

The OLSR is a table driven and proactive

protocol, as it is used to exchange topology

information with other nodes of the network

regularly and proactively. The nodes which are

selected as an intermediate nodes call multipoint

relay (MPR) (2-Level Authentication Mechanisms,

2006).

Neighbour nodes announce this information

periodically in their control messages. The protocol

uses the MPR to facilitate efficient flooding of

control messages in the network. The advantage of

this approach is that connections are established

quickly. Multipoint relays reduce the size of the

control messages. This technique signiﬁcantly

reduces the number of retransmissions of broadcast

control messages. OLSR is characterized by two

types of control messages: neighborhood messages

and topology messages, called respectively Hello

messages and Topology Control (TC) messages.

MPRs have been shown below in solid black circles:

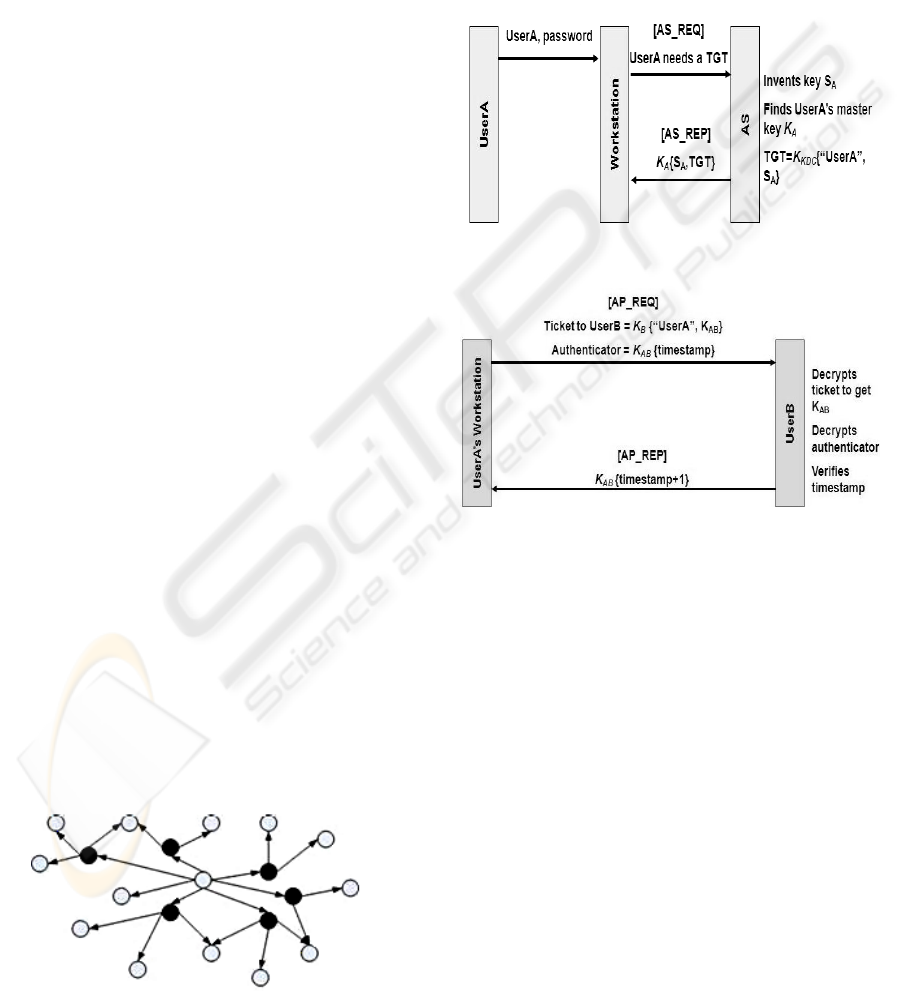

Figure 1: Multipoint Relays Selection (MPRs).

3.1 Neighbour Discovery

Each node must detect its neighbour nodes with

which it has a direct link. Due to the uncertainties in

radio propagation, a link between neighbouring

nodes may enable the transmission of data in either

one or both directions over the link. For this, each

node periodically broadcasts Hello messages,

containing the list of neighbours known to the node

and their link status, as shown in Fig 3.

Figure 2: Obtaining TGT.

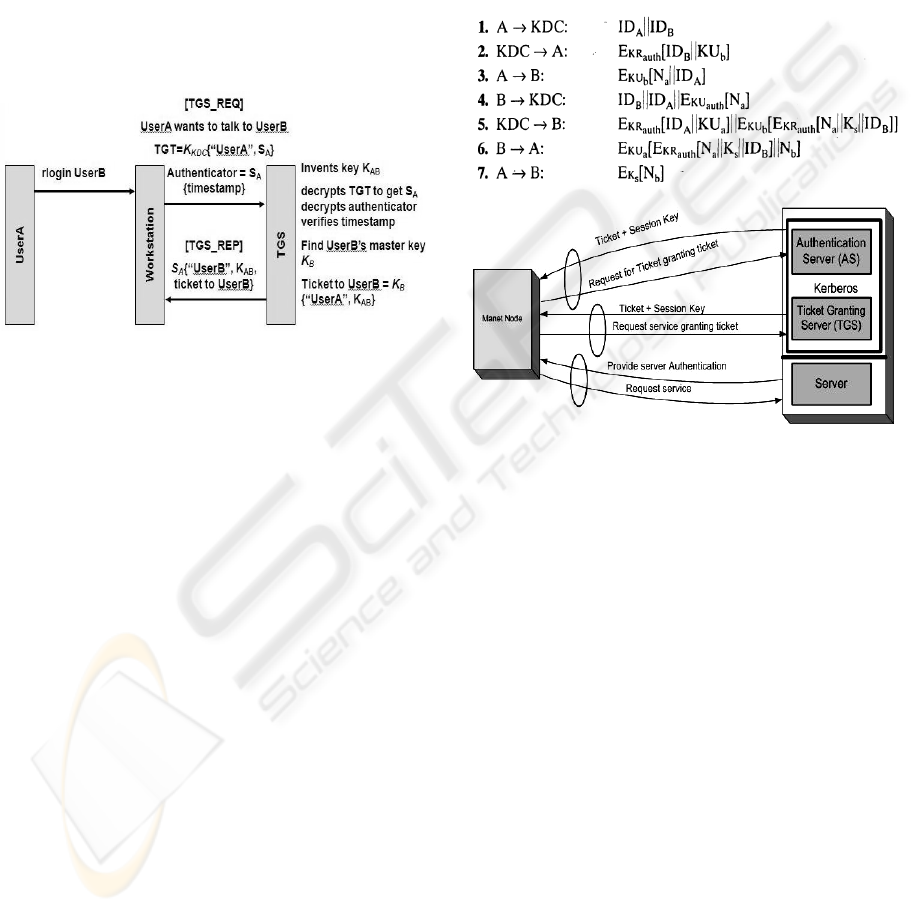

Figure 3: Ticket Granting Mechanisms.

The MPR set is chosen so that a minimum of

one-hop symmetric neighbors are able to reach all

the symmetric two-hop neighbors. In order to

calculate the MPR set, the node must have link state

information about all one-hop and two-hop

neighbors. This information is, as already

mentioned, gathered from HELLO messages

Thus, Hello messages enable each node to dis-

cover its one-hop neighbors, as well as its two-hop

neighbors (the neighbors of its neighbors). Each

node of the network independently selects its

multipoint relays (Karygiannis, 2002)

Each node keeps a table of routes to all known

destinations, through its MPR nodes. Every node

periodically broadcasts list of its MPR Selectors

(instead of the whole list of neighbors). Upon receipt

of MPR information each node recalculates and

updates routes to each known destination.

SECRYPT 2008 - International Conference on Security and Cryptography

162

4 RELATED WORK

In context of secure protocols for sensor networks,

Wireless Encryption Protocol (WEP) is playing a

vital role to secure link-level data during wireless

transmission between clients and intermediate

devices. WEP protocol is not designed for end to

end data. It only works from node to intermediate

device (Karygiannis, 2002).

There are two types of authentication systems;

open system authentication and shared key

authentication system based on cryptography. The

open system intermediate devices accept the nodes

without verifying the identity. So there is an only

one way authentication mechanism in which only

intermediate devices are authenticated by the nodes

(Karygiannis, 2002). In shared key scenario a node

is allowed to join network with WEP shared key.

So the open system is highly vulnerable to

attacks and openly invites unauthorized users and

nodes. But in case of shared key authentication

which is also known as cryptographic approach

based on the fact that client has knowledge about the

shared secret.

802.11 standard supports privacy through the use

of cryptographic techniques for the wireless

networks. The WEP (Karygiannis, 2002) also uses

the RC4 symmetric key stream cipher algorithms to

generate the pseudo-random data sequences, and this

key stream simply adds modulo 2 to the data to be

transmitted. WEP protocol is applicable all over the

802.11 layers to protect the traffic such as TCP/IP,

IPX and HTTP (Karygiannis, 2002).

There are various problems in WEP protocol

reported by various group of computer security

specialists. These includes the passive attacks based

on the statistical data analysis for which integrity

can be compromised because of static WEP Key

which is shared for long time of period with plain

text frame transmission in WEP (Karygiannis,

2002). There is no user authentication in the WEP

protocols mean only Service Set Identifier (SSID)

identification occurs and nodes authentication is

simple and based on shared key.

Another authentication technique proposed by

Zhangyan (Security in Adhoc Networks) with the

help of implementation of external Certificate

Authority (CA) and tamper-resistant chip to support

ubiquitous security in the MANETS. This technique

uses broadcast blacklist and shared password to

normal nodes using broadcast encryption.

The external CA used for this purpose which can

issue public key pair and its certificates to every

node and publish public key, so there is trust model

based on CA between nodes. In case some nodes are

compromised, the external CA joins network to

broadcast the blacklist (compromised node list) and

new password to the legitimate devices. Another key

is issued by the CA through broadcast called

encryption root key and child key issued to the

legitimated nodes broadcast encryption root key is

used for encryption and child key is used for

decryption.

Another technique which is being employed in

(Security in Adhoc Networks) is tamper resistant

adhoc chip which can be embedded into any adhoc

node or device to support the external CA based

security solutions.

In this technique there is a problem that existing

nodes cannot be used for adhoc network services

because they have not any chip which will recognize

by external CA. So this approach is not appropriate

for existing devices and there should be special

nodes with tamper resistance adhoc chips.

Another approach is proposed by Andreas

Hafslund and Jon (2-Level Authentication

Mechanisms, 2006). In this approach a 2-level

authentication mechanism in an internet connected

MANET was proposed. In this approach they

proposed in level-1 authentication all the nodes will

be authenticated to access the local MANET service

or MANET network resources and in level-2

authentication nodes will be authenticated by the

external gateway to access the global internet. So in

this approach there are two levels of authentication

and there is big overhead. Therefore there are

chances of DOS and DDOS attacks on gateway

nodes or other attacks like IP spoofing. It will also

create some problems related to QOS.

5 PROPOSED WORK

The proposed technical measures involve the use of

trust model for secure and authorized user access

over the networks. The proposed system is based on

Kerberos protocol for MANETS. Kerberos is widely

used in windows system and is very helpful for user

authentication for windows operating system. In an

open network environment, a workstation cannot be

trusted to identify its users correctly to network

services. Kerberos provides an alternative approach

whereby a trusted third-party authentication service

is used to verify users' identities.

Kerberos is based on secret key distribution

model developed by Needham & Schroeder at

Massachusetts Institute of Technology (MIT) based

on symmetric cryptography. It is based on trusted

KERBEROS IMPLEMENTATION IN MANETS

163

server model for secure authentication and Key

Exchange between the clients (Zhang).

It is possible to run Kerberos authentication

software on more than one machine. However, there

is always only one master copy of the Kerberos

database. The machine where database is hosted is

called master machine or just the master while other

machines may possess read-only copies of the

Kerberos database, and are called slaves.

In t In this approach basic idea is long lived

memorized passwords with short lived session keys

(dominate the WEP static key) (Karygiannis, 2002).

So it must be kept highly secure.

Figure 4: Logging operations.

6 BASICS OF KERBEROS

Kerberos keeps a database of its clients and their

private keys. The private key is a large number

known only to Kerberos and the client it belongs to.

In case that the client is a user, it is an encrypted

password. Network services requiring

authentication, register with Kerberos, as do clients

wishing to use those services. The private keys are

negotiated at registration.

Since Kerberos knows these private keys, it can

create messages which convince one client that the

other is really who it claims to be. Kerberos also

generates temporary private keys, called session

keys, which are given to two clients and no one else.

A session key can be used to encrypt messages

between two parties.

A→KDC: IDA || IDB || N1

KDC→A:EKa[Ks||IDB||N1||EKb[Ks||IDA]]

(1)

A→B: EKb[Ks||IDA]

B→A: EKs[N2]

A→B: EKs[f(N2)]

In the above scenario secure distribution of a

new session key for communications between A &

B is being taking place.

It becomes vulnerable to replay attack if an old

session key has been compromised “A→B:

EKb[Ks||IDA]” can be resent convincing B that it is

communicating with A. B→A: EKs[N2] & A→B:

EKs[f(N2)] is used for modification to addresses

(time stamps and using an extra nonce)

In ordered to avoid the requirements of

synchronization (Woo and Lam, 1992) proposed a

structure defined as under.

Figure 5: KDC Implementation.

To avoid impersonation, severs must be able to

confirm identities, so there should be authentication

approach for user authentication so Authentication

Server (AS) is used to store the passwords of all

users. Authentication Server shares unique secret

keys with each server.

Another approach which is used is known as

Ticket Granting Service. Kerberos Server shares a

secret key with each user which is knows as master

key. Kerberos server invents a session key KAB

which encrypts master keys of both communicating

parties, known as ticket. Therefore master keys

derived from the user’s passwords and session keys

will be used for single session. And the ticket

granting ticket is sent to KDC to acquire the session

key for communication between two parties, as

shown in figure 5.

7 KERBEROS IN MANETS

In MANET MPR or master node will act as

Kerberos node that is authentication server (AS) and

SECRYPT 2008 - International Conference on Security and Cryptography

164

will share unique key with each server and Ticket

Granting Server (TGS) as well, which will share a

secrete key with each user known as Master Key

(MK).

MPR or master node which is now working as

kerberos server invents a session key K

when a

user A informs to MPR it wants to talk B, then K

is encrypted with A’s Master Key(MK) & with B’s

Master Key (MK) as well known as ticket. User B

can decrypt the K

and user A’s name. Master Key

(MK) is derived from user’s password. Session Key

SA is used by user A for a single session, which will

be valid for a small time. Node on behalf of user A

asks the Authentication Server (AS) for a session

key SA. SA is transmitted & encrypted with user

A’s MK (Master Key). The MPR (AS) also sends

TGT, encrypted with Kerberos Server Master Key

(MK). SA use A’s name and TGT expiration time.

TGT is sent to KDC to acquire the session key for

communication between two parties. TGT Server

and AS are collocated, means both need to use the

same information. Generally Kerberos uses the DES

algorithms. Users passwords converts into DES Key

& decrypts the information. Once getting the key,

Master key (MK) is discarded and only retains the

TGT & Session Key (S). The scenario is discussed

as under. All ticket generating mechanisms are show

in figures 2, 3 and 4.

TGS decrypts the TGT and checks the expiration

time then generates KAB with name of user A and

expiration time and encrypts with user B’s master

key KB and all this will be encrypted with SA.

Ticket grating scenario is defined as under.

User B keeps track of the recent time stamps.

The following scenario shows the login operation of

user B.

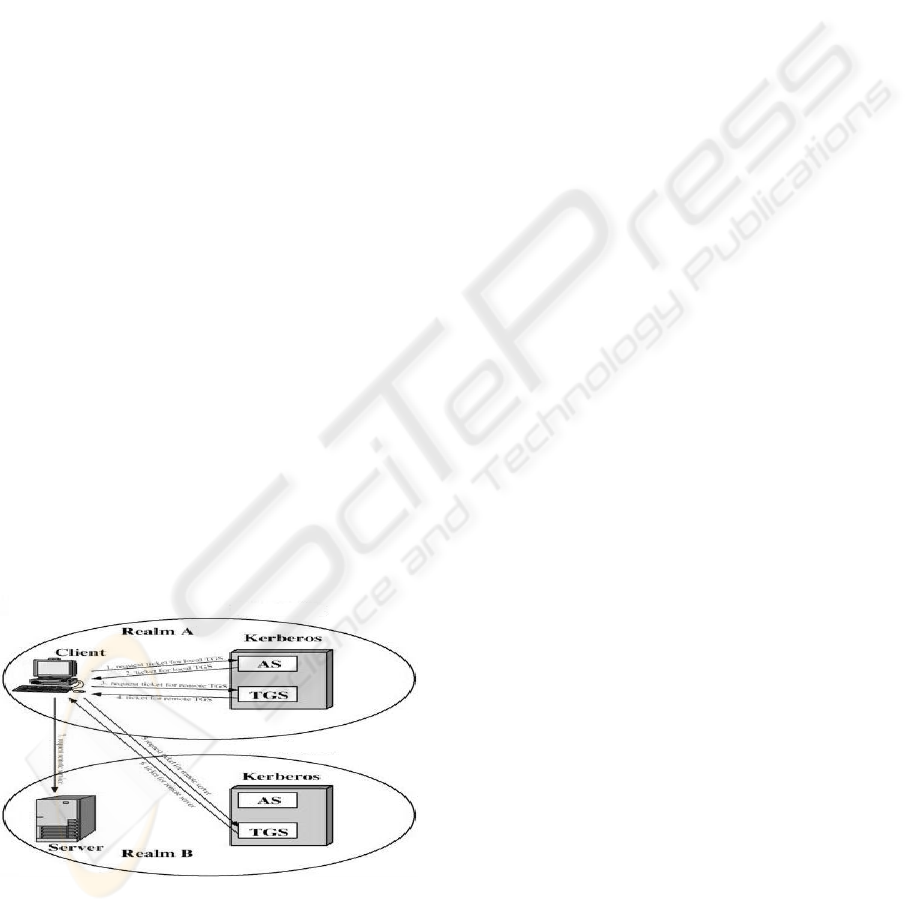

Figure 6: Realms replication.

7.1 Secure Authentication

TGS issues tickets to users who have been

authenticated to AS thus only the correct user with

the password can acquire ticket. Replication is

necessary to avoid a single point of failure in case of

single Kerberos Server so there is need of multiple

Kerberos Servers. Those will share same Master

Key and identical databases. Kerberos Server

maintains the master copy, and all other sites will be

updated periodically.

7.2 Concepts of Realms in MANETS

Each Kerberos realm has a master Kerberos

machine, which houses the master copy of the

authentication database. It is possible (although not

necessary) to have additional, read-only copies of

the database on slave machines elsewhere in the

network. The advantages of having multiple copies

of the database are those usually cited for

replication: higher availability and better

performance. If the master machine is down,

authentication can still be achieved on one of the

slave machines. The ability to perform

authentication on any one of several machines

reduces the probability of a bottleneck at the master

machine (CISCO).

Keeping multiple copies of the database

introduces the problem of data consistency. We have

found that very simple methods suffice for dealing

with inconsistency. The master database is dumped

every hour. The database is sent, in its entirety, to

the slave machines, which then update their own

databases. A program on the master host, called

kprop, sends the update to a peer program, called

kpropd, running on each of the slave machines. First

kprop sends a checksum of the new database it is

about to send. The checksum is encrypted in the

Kerberos master database key, which both the

master and slave Kerberos machines possess. The

data is then transferred over the network to the

kpropd on the slave machine, s shown in figure 6.

The slave propagation server calculates a checksum

of the data it has received, and if it matches the

checksum sent by the master, the new information is

used to update the slave's database (CISCO). All

passwords in the Kerberos database are encrypted in

the master database key Therefore, the information

passed from master to slave over the network is not

useful to an eavesdropper. However, it is essential

that only information from the master host be

accepted by the slaves, and that tampering of data be

detected, thus th checksum (CISCO).

Kerberos introduced RC4-HMAC support, which

is also present in Windows and is more secure than

DES. Among the supported encryptions (but not by

Windows) the triple DES (3DES) and newer

KERBEROS IMPLEMENTATION IN MANETS

165

AES128 and AES256 are worth mentioning. The

Kerberos protocol is to prevent the user's password

from being stored in its unencrypted form, even in

the authentication server database. Considering that

each encryption algorithm uses its own key length, it

is clear that, if the user is not to be forced to use a

different password of a fixed size for each

encryption method supported, the encryption keys

cannot be the passwords. For these reasons the

string2key function has been introduced, which

transforms an unencrypted password into an

encryption key suitable for the type of encryption to

be used. This function is called each time a user

changes password or enters it for authentication. The

string2key is called a hash function, meaning that it

is irreversible: given that an encryption key cannot

determine the password which generated it. Famous

hashing algorithms are MD5 and CRC32 is used.

8 CONCLUSIONS

We have proposed a trust model to solve the user

authentication problems in the MANET. This

mechanism is designed to provide reliable

authentication over open and insecure networks

where communications between the hosts belonging

to it may be intercepted in the MANET. Our idea

has the advantages of high security, flexibility and

practicality. It can be treated as base-bone to

implement secure authentication in the ad hoc

networks.

REFERENCES

Tom Karygiannis, Les Owens “CSD, NISTE

Gaithersburg”, MD 2098, 8930 (2002).

Security in Adhoc Networks by Zhang Yan, networking

laboratory Helsinki University of Technology.

2-Level Authentication Mechanisms in an Internet

Connected MANET 6

Scandinarian Workshop on

Wireless Adhoc Networks (2006).

Yanchoa Zhang, New Jersey Institute of Technology.

www.indengines.com Sunnyvale, California 94089

USA. J. Broch, D. Johnson,

Jennifer G. Steiner, Project Athena, Massachusetts

Institute of Technology, Cambridge, MA 02139

www.cisco.com/warp/public/106/1.html#intro

Z. J. Haas, M. R. Pearlman, P. Samar, “The Zone Routing

Protocol (ZRP) for Ad Hoc Networks,” draft-ietf-

manetzone-zrp-02.txt, IETF, (2000).

P. Jacquet, P. Muhletaler, A. Qayyum, A. Laouiti, T.

Clausen, L. Viennot, “Optimized Link Stat e Routing

Protocol”, in IEEE INMIC, Pakistan ( 2001).

A. Qayyum, L. Viennot, A. Laouiti, “Multipoint Relaying:

An Efﬁcient Technique for ﬂooding in Mobile Wireless

Networks” Tech. Rep. 3898, INRIA, http://

www.inria.fr, (2000).

Maltz, “The Dynamic Source Routing Protocol for Mobile

Ad Hoc Networks”, draft-ietfmanet-dsr-01.txt, IETF

1998.

J. Broch, D. A. Maltz, D. B. Johnson, “Supporting Hiear-

archy and Heterogeneous Interfaces in Multi-hop

Wireless Ad Hoc Networks”, Workshop on Mobile

Computing, IEEE International Symposium on

Parallel Architectures, algorithms and Networks,

Australia pp. 75–85, (1999).

Mounir Benzaid, Pascale Minet, Khaldoun AlAgha,

Cedric Adjih and Geraud Allard Integration of

Mobile-IP with OLSR for Universal Mobility.

T. Y. C. Woo and S. S. Lam. Authentication for

distributed Systems Computer, 25(1):39–52, January

1992.

SECRYPT 2008 - International Conference on Security and Cryptography

166
