ADAPTIVE REAL-TIME WATERMARKING USING BLOCK
CLASSIFICATION FOR H.264 COMPRESSED DOMAIN
Yin Zhang, Zengxiang Lu and Haiming Lu
Tsinghua National Laboratory for Information Science and Technology
Research Institute of Information Technology, Tsinghua University, Beijing 100084, China
Keywords: H.264 compressed video, adaptive watermarking, block classification, real-time, drift compensation.
Abstract: Focusing on the problem that watermark can cause visible image distortions in some plain areas, an adaptive
watermarking algorithm for H.264 is proposed. To embed watermark quickly, we directly operate in the
DCT domain. For high imperceptibility, we classify the blocks based on Human Visual System (HVS).
However, most current classification methods are not suitable for H.264 compressed domain because the
DCT coefficients residue cannot reflect the texture activity accurately due to the employment of intra-
prediction. A new block classification method is applied, in which we make restriction during the encoding
process so that the 4×4 blocks can be classified into plain, edge and texture blocks according to the intra-
prediction mode and quantized integer DCT coefficients in compressed domain. It is effective in block
classification and realizes good adaptive performance for watermarking. Drift compensation is also
accomplished in our watermarking algorithm. The experimental results demonstrate our watermarking
method can achieve both large capacity and good image imperceptibility. Additionally, the method is simple
and appropriate for real-time applications.
1 INTRODUCTION
Because of its high compression efficiency, H.264,
the next generation video coding standard
(Richardson, 2003), is expected to replace MPEG-2
and H.263 in many current applications. Therefore,
copyright protection and authentication of this kind
of video become an important issue. Digital
watermarking has been proposed to address these
needs. At present, there are many watermarking
schemes for current popular standards such as
MPEG-1 and MPEG-2, but only a few for H.264.
Besides, as many new features are introduced to
H.264, a large number of previous video
watermarking algorithms cannot be applied directly,
so development of new algorithms is required to fit
this new standard.
Video watermarking algorithms can be divided
according to the embedding domain, such as spatial
domain and compressed domain. If we choose
spatial domain, we should first decode the video and
then re-encode it. It is impractical as it takes a lot of
time. Thus, designing low complexity video
watermarking algorithms to embed the watermark in
the H.264 compressed domain is attractive.
Noorkami and Mersereau proposed a
compressed-domain video watermarking method for
H.264 (Noorkami and Mersereau, 2005). The
watermark is embedded in the quantized AC
coefficients of I frames. The embedding locations
within a macroblock are determined by a key
extracted from the macroblock itself. In (Sakazawa
et al., 2006), the authors directly embedded a
watermark into a bitstream generated by an H.264
video encoder and proposed a compensation method
to solve drift problem. These embedding methods
are compressed-domain based and have low
complexity. However, they do not adapt to local
image characteristics, so the watermark capacity is
limited.
A more image-dependent scheme could provide
high capacity as well as imperceptibility. In
(Noorkami and Mersereau, 2007), a framework for
robust watermarking of H.264-encoded video is
presented. The authors employ Watson’s human
visual model to increase the payload and add
robustness while limiting visual distortion. But the
watermarking algorithm embeds the watermark in
the H.264 encoder. The perceptual model finds the
location of coefficients using the original video
frame. So it cannot be performed in real time.
308
Zhang Y., Lu Z. and Lu H. (2008).
ADAPTIVE REAL-TIME WATERMARKING USING BLOCK CLASSIFICATION FOR H.264 COMPRESSED DOMAIN.
In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 308-313
DOI: 10.5220/0001935703080313
Copyright
c
SciTePress
Another kind of adaptive watermarking schemes
exploits the HVS characteristics to classify the
image into several classes based on several
parameters (texture, edge, luminance, chroma, etc.).
As human sensitivity to error is different in different
classes, different watermark strength is embedded.
So the classification rule is the key technique in
adaptive watermarking algorithms.
Some block classification methods in DCT
compressed domain have been proposed. The AC
energy of the DCT coefficients of a block is a
common measure of the local block texture activity.
By calculating the energy of AC coefficients, we can
determine whether the block is smooth or not. In
(Tong and Venetsanopoulos, 1998), a more
complicated model for JPEG application based on
block classification and texture masking is
presented. However, these methods cannot be
applied directly to H.264 video. With the
employment of intra-prediction, the DCT
coefficients residue cannot reflect the texture
activity accurately.
The goal of this paper is to present an adaptive
watermarking algorithm for H.264 compressed
domain. If a compressed video bitstream is to be
watermarked, it has to be decoded to some extent.
Our algorithm is designed to operate directly in the
DCT domain to make it suitable for real-time
application. Then how to achieve block
classification according to H.264 quantized DCT
residues becomes the first task.
The paper is organized as follows. In Section 2,
an improved block classification algorithm is
introduced. In Section 3, we propose a simple
watermarking method based on block classification.
Experimental results are provided in Section 4 to
show the performance of the proposed algorithm.
Finally, conclusions are drawn in Section 5.
2 PROPOSED BLOCK
CLASSIFICATION METHOD
In our prior work (Zhang et al., 2008), we have
noticed the limitation of previous block
classification methods encountered in H.264 and
proposed a new method. Here we extend this method
and further improve classification.
Our target is to get better block classification
result from the DCT coefficients in H.264 bitstream.
Because of the employment of intra-prediction, the
DCT coefficients in the H.264 bitstream is in fact
the prediction residue signal, which cannot reflect
the texture activity accurately. However, for DC
prediction mode, all samples of the current 4×4
block are predicted by the mean of the adjacent
samples, and this will not affect the distribution of
AC coefficients. The DCT coefficients residue is
still available for the classification rules. So we
propose a prediction mode restriction method to
overcome this drawback.
The experiments shows that the texture of a
block is uniform when its variance is very small, and
the encoder will most probably choose mode 0~2 as
the best prediction mode for blocks with a uniform
texture; on the contrary, mode 3~8 will be selected
as the best when the block has a complex texture
(Wang et al., 2007). Based on this result, we give
our approach as follows.
1) Restriction during the encoding process
a. Transform every 4×4 block into integer DCT
domain
b. Calculate AC coefficients energy E
AC
33
22
,0,0
00
AC i j
ij
E
XX
==
=−
∑∑
(1)
c. Set the prediction mode
determine the best mode using RDO 1
use DC mode only 1
AC
AC
if E T
if E T
>
If the energy value is larger than the threshold
T1, the encoder determines the best mode using
RDO (Rate Distortion Optimization) as usual. If the
energy value is small, which means the predicted
blocks with different prediction modes are almost
the same, we then force the encoder to use DC
mode. This restriction will neither degrade the
picture quality nor increase the bit rate markedly like
restriction of DC mode only, and is convenient for
block classification in the next step.
2) Block classification
a. Obtain the intra prediction mode and the DCT
coefficients residue of current block
b. If mode is DC, calculate AC coefficients
residue energy E
R
c. The block is classified by
non-smooth area mode DC or
(mode=DC and 2)
smooth area mode=DC and 2
R
R
if
ET
if E T
>
where T2 is another threshold and usually much
smaller than T1.
For H.264 video encoded with our restriction, we
can detect the block type directly in compressed
domain. If the prediction mode is not DC mode,
obviously the preceding AC energy value is large;
we consider it as non-smooth block. If the prediction
mode is DC mode, we cannot conclude whether the
preceding AC energy value is large or not, and then
ADAPTIVE REAL-TIME WATERMARKING USING BLOCK CLASSIFICATION FOR H.264 COMPRESSED
DOMAIN
309
we calculate the AC residues energy for further
classification because the distribution of AC
coefficients are not destroyed in DC mode.
3) Improved block classification
In this way we can find non-smooth area with
prediction mode and the AC coefficients energy
calculation. With a little change of the method above,
we can differentiate between the edge and texture
blocks. We discover that directional prediction fits
the edge areas nicely but for texture blocks
prediction blocks are not so similar. That’s to say,
texture blocks will have a high AC energy even after
intra prediction. So step b) and c) can be modified as:
b. Calculate AC coefficients residue energy E
R
for all blocks
c. The block is classified by
3 texture;
mode=DC flat;
edge.
R
if E T
else if
else
>
where T3 is another threshold and maybe not
equal to T2.
With only AC energy we cannot tell texture from
edge. But here we utilize the information provided
by H.264 intra coding, i.e. the encoder typically
selects the prediction mode for each block that
minimizes the residues. So after intra prediction
edge blocks probably have lower AC residues
energy. Then if E
R is large, no matter whether the
prediction mode is DC or not, it is identified as a
texture block; otherwise we should consider the
prediction mode.
3 H.264 WATERMARKING
ALGORITHM
When H.264 bitstream is to be watermarked, it is
required to be decoded backwards to some extent.
Considering the real-time requirement of video
watermarking, the processes of the watermarking
embedding and detecting are directly performed in
the DCT domain to avoid some computationally
expensive operations (i.e. DCT, inverse DCT). Thus
only inverse entropy coding and run-level decoding
must be executed. A block diagram of our method is
illustrated in Fig. 1.
During the watermarking process, first, H.264
compressed data are analyzed to distinguish a
picture frame, and the blocks in I-frames are
extracted from the bitstream by entropy decoding
(CALVC or CABAC). Then the masking matrix is
generated based on block classification, and the
DCT coefficients in the selected blocks are modified
according to the embedding information. After the
modification, DCT coefficients are entropy encoded
to form an H.264 compliant bitstream. The details of
embedding process are described as follows.

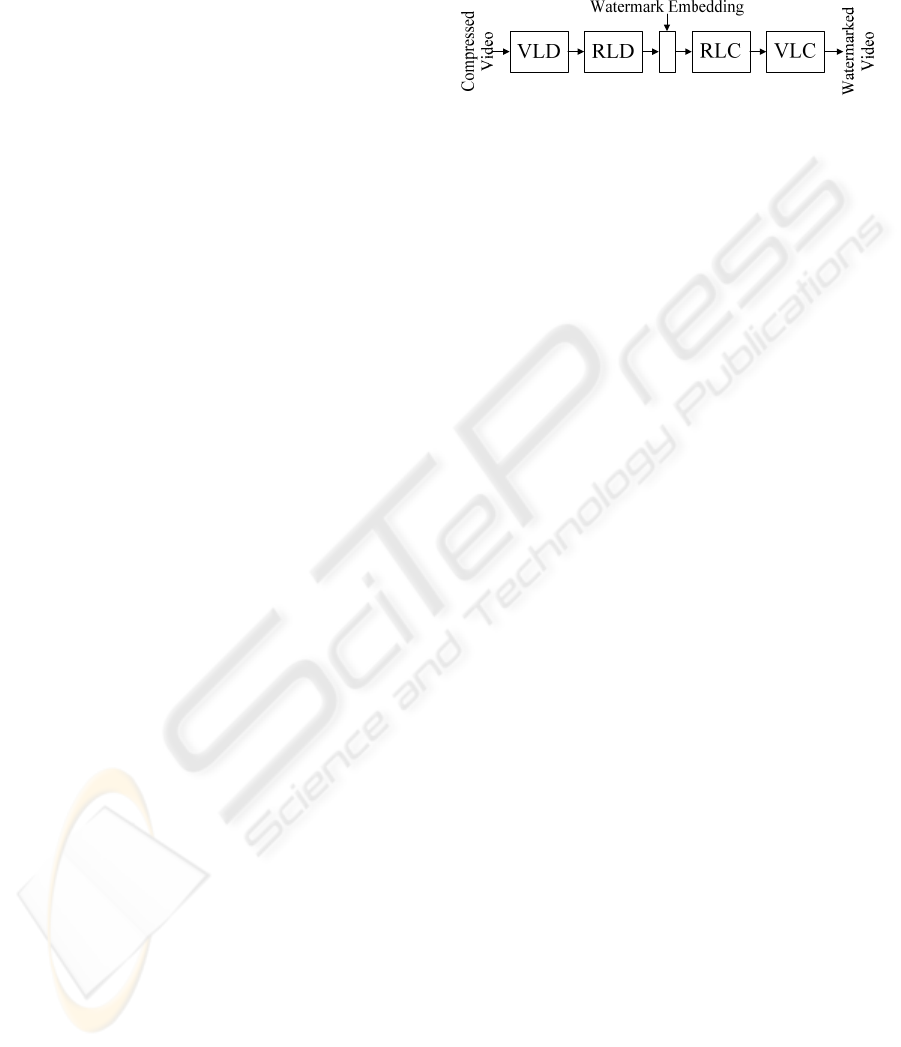

Figure 1: The block diagram of the proposed
watermarking embedding procedure.
3.1 Watermark Embedding
At first, the binary sequence is mapped into a bipolar
sequence and then modulated by the Spread-
Spectrum technology to obtain the watermark
sequence for embedding, denoted by Ws.
We use the masking matrix to choose the blocks
that are suitable for embedding watermark. The
masking matrix is obtained by block classification.
If the (i,j) block is classified as a smooth area, then
M
ij=0; otherwise Mij=1, where Mij denotes the
masking value of the (i,j) block. Only Mij=1 is a
candidate for embedding the watermark.
We insert watermark bits by altering the
quantized DC coefficients of luminance blocks
within I-frames. We choose DC coefficient because
it is more stable than ACs; moreover, as altering DC
do not change AC energy, the block classification
will not be affected. The X(0,0) is replaced by the
watermarked coefficient X*(0,0),
*
*
1
mod 2 1
0,
mod 2 0
mod 2 1
1,
mod 2 0
*( 1), { 1,1}
ii i
ii
ii
ii
ii
ii i
ii i
Xwm ifX
if Ws X
XifX
XifX
if Ws X
Xwm ifX
wm wm wm
+
=
==
=
=
==
+
=
=−
(2)
Where X
i and Xi* respectively denote the DC
coefficient of original and watermarked image in
block Bi, and Bi refer to blocks with M
ij=1.
For H.264 low bit-rates video stream, the
quantization step size is large, so 1 quantization
level will affect the image quality a lot. We only
alter DC coefficient by 1 to change the parity.
We notice that the DC coefficients are added and
subtracted alternately, but there is only subtracting
in (Noorkami and Mersereau, 2005). As the intra-
prediction scheme in H.264 may cause the error
propagation due to the embedding, our method can
make compensation for the drift and will not
introduce significant degradation.
SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications
310
3.2 Watermark Detection
Blind watermark extraction is performed after
entropy decoding without the original video. The
major steps are described as follows.
1. Block classification is used to select all the
possible blocks from all 4*4 blocks.
2. The watermark bit is determined by
*
*
*
1 if mod 2 1
0 if mod 2 0
i
i
i
X
Ws
X
=
=
=
(3)
4 EXPERIMENTAL RESULTS
In our experiments, the proposed method is
implemented in H.264 reference software version
JM11.0. The standard video sequence Foreman
(QCIF, 176×144) is used for simulation. All
experiments are running on Core Duo 2 2.2GHz.
4.1 Block Classification
We have tested the proposed encoding restriction
method with RD performance (Zhang et al., 2008).
The result demonstrates our algorithm is effective in
block classification without affecting compression
efficiency too much. The block classification result
based on the energy of AC coefficients after 4×4
Integer DCT transform without intra-prediction is
used as the reference result. The results of our
method are compared with it to measure the
performance. The experiment shows that our method
can make good judgement and our results are almost
the same as the reference.
However, those results are only the classification
of smooth and non-smooth areas. Results of the
further classification are given in Fig. 2, where black
represents texture, grey represents edge and white
represents flat.
Figure 2: Further block classification result.
Intuitively, it can be seen that the classification
result is correct, although may not be very accurate.
In fact, accurate division of edge and texture is
difficult since they are often mixed together.
However, here the classification is appropriate for
adaptive watermarking even if it is not accurate.
Because in adaptive watermarking, the scaling factor
varies according to the classification and usually has
a relationship as below:
texture edge flat
α
αα
>>
By using our method, the texture block has a
high AC energy, i.e. the DCT coefficients have a
large value, thus the effect of watermark embedding
is smaller and we can embed a high strength. That’s
to say, even though an edge block is classified as
texture by mistake and uses a large scaling factor
accordingly, the watermark embedding will not
affect the perceptual quality as the block has large
coefficients.
The thresholds are determined according to real
applications. Concerning adaptive watermarking, the
reference block classification is performed in
advance and a threshold T is chosen to fulfil the
need for watermark capacity. The optimum T1
should be identical with T used for reference
classification, in order that not only good judgement
is made but also the number of non-plain blocks
classified is larger than the watermark capacity. T2
can be set to be 5 based on our experiments, and T3
should be larger than T2 to find stronger texture, e.g.
10 in our experiments.
4.2 Watermarking
Our watermarking algorithm embeds the watermark
in JM11.0 decoder, according to block classification
result. As the algorithm used here is based on parity,
the scaling factor is of no effect, so we only classify
each 4×4 block into plain and non-plain blocks.
4.2.1 Image quality
First, the effect of watermark is evaluated both
subjectively and objectively. Fig. 3 shows one frame
of this sequence with and without the watermark,
along with PSNR (dB). As shown in Fig. 3c, the
watermark is invisible after embedding, and the
quality of watermarked video is as well as the
original video even though PSNR is not high. For
comparison, Fig. 3d gives the result for non-adaptive
watermarking, in which we embed 1 bit watermark
every 3 blocks. Although the watermark bits are
fewer, we can see visible artifacts in the “hat” area.
ADAPTIVE REAL-TIME WATERMARKING USING BLOCK CLASSIFICATION FOR H.264 COMPRESSED
DOMAIN
311

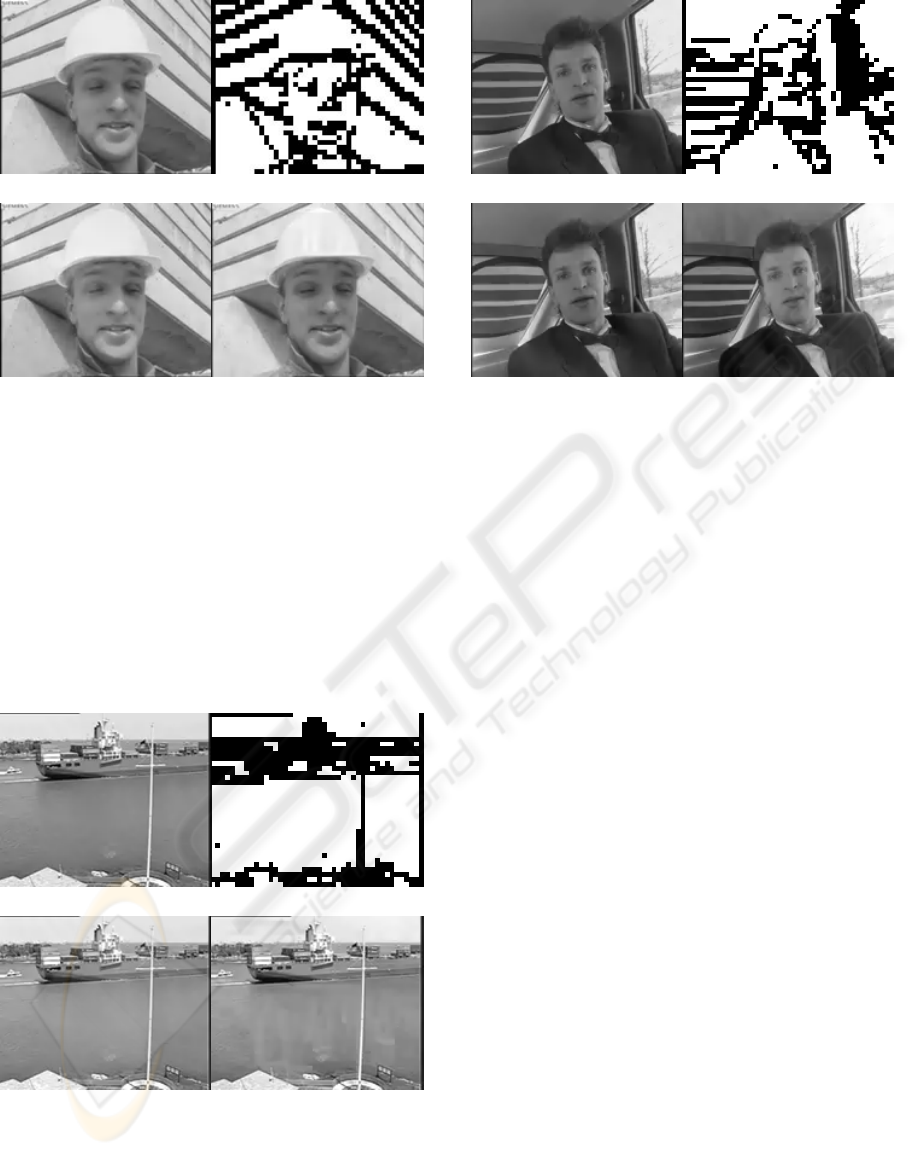

(a) Original (b) Embedding position
(c) Adaptive watermarked (d) Non-adaptive watermarked
(627 bits, 29.77dB) (528 bits, 30.15dB)
Figure 3: Adaptive and non-adaptive watermarking of
Foreman.
We notice that the watermarked frame in Fig. 3c
is of better quality but with a lower PSNR. The
PSNR metric does not take into account image
properties such as flat and textured regions.
According to our method, the watermark is
embedded into textured regions and into edges, so
the PSNR is inadequate to measure image quality in
this case. In other examples, we only compare the
perceived visual quality.
(a) Original (b) Embedding position
(c) Adaptive watermarked (d) Non-adaptive watermarked
(548 bits) (528 bits)
Figure 4: Adaptive and non-adaptive watermarking of
Container.
(a) Original (b) Embedding position
(c) Adaptive watermarked (d) Non-adaptive watermarked
(615 bits) (528 bits)
Figure 5: Adaptive and non-adaptive watermarking of
Carphone.
Watermarking of another two standard video
sequences is also simulated. Fig. 4 and 5 shows the
original frames, the block classification results, the
watermarked frames with adaptive and non-adaptive
watermarking. In the experiments, no visible
artifacts can be observed for adaptive watermarking,
but for non-adaptive watermarking, we can tell
distortions both in the “sea” and in the “ceiling”.
4.2.2 Capacity
Watermark capacity is compared to some other
compression-domain methods (Noorkami and
Mersereau, 2005; Sakazawa et al., 2006). The latter
embeds 16 bits per frame, and the number varies
from 22 to 81 in the former method. However, our
method embeds several hundred watermark bits in
one I frame, with good imperceptibility. We can
change T1 and T2 in block classification method and
accordingly adjust the total number of watermark
bits.
4.2.3 Computational Complexity
Most previous embedding algorithm is integrated in
H.264 encoder. That’s to say, for a compressed
H.264 bitstream, these methods should first decode
the video sequence, then insert the watermark during
encoding process. Obviously this make the
computation complicated. The time cost is at least
the sum of video decoding time and re-encoding
time. However, the proposed method needs only
entropy decoding and DCT coefficient alteration, so
performs much faster.
SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications
312
The processing time is recorded in Table 1. In
the simulation, Foreman (176×144, comprised of 50
I-frames) is tested as experimental samples. For
simplicity, we only give the processing time of JM
encoder and decoder.
Table 1: Comparison of processing time.
Proposed JM decoder JM encoder
Time(s) 0.562 0.515 7.234
It is observed that the proposed method only
consumes a little more CPU time than JM decoder,
thus can satisfy the real-time requirement.
4.2.4 Drift Compensation
Our embedding strategy brings a drift compensation
in order to weaken the error propagation. The results
show that there is almost no degradation. On the
other hand, in the case of no compensation, the drift
accumulation incurs a visible degradation especially
for a large capacity. First let wm
i always be -1 in
Equation 2 (Noorkami and Mersereau, 2005), the
image turns darker and darker in the right bottom
corner, as shown in Fig. 6b. In another comparison,
add 1 to DC coefficient when Ws
i=1 and subtract 1
from it when Ws
i=0. The image gets either brighter
or darker according to different random sequences,
as shown in Fig. 6c and 6d.
(a) Original (b) Watermarked
(c) Watermarked (d) Watermarked
Figure 6: Examples of no compensation.
5 CONCLUSIONS
In this paper, we improved the block classification
algorithm by restricting intra prediction mode in
H.264 video coding. Our experiments verify that the
proposed method can attain accurate block
classification result based on DCT coefficients
residue without sacrificing compression ratio too
much. It is further used in an adaptive real-time
watermarking scheme. The algorithm is fast and
appropriate for real-time applications, also
accomplishes the compensation for error
propagation. Simulation results show that the
proposed method has a large capacity and preserves
the perceptual quality of the video.
However, the proposed watermark embedding
and detection procedures are very simple. It is robust
against modifications in the H.264 bitstream domain,
but cannot resist against signal processing attacks.
Because any operation including re-encoding may
change the prediction modes and subsequently the
residuals in the blocks, the watermark will be
destroyed. In future work, a new algorithm will be
designed to improve robustness, especially against
re-encoding attacks.
REFERENCES
Richardson, I.E.G., 2003. H.264 and MPEG-4 video
compression. John Wiley & Sons Ltd., West Sussex,
England.
Noorkami, M. and Mersereau, R.M., 2005. Compressed-
domain video watermarking for H.264. In Proc. of
International Conference on Image Processing
(ICIP’05), pp. 890~893.
Sakazawa, S., Takishima, Y., and Nakajima, Y., 2006.
H.264 native video watermarking method. In IEEE
International Symposium on Circuits and Systems
(ISCAS 2006), pp. 1439-1442.
Noorkami, M. and Mersereau, R.M., 2007. A framework
for robust watermarking of H.264-encoded video with
controllable detection performance. In IEEE
Transactions on Information Forensics and Security,
Vol. 2, No. 1, pp. 14-23.
Tong, H.H.Y. and Venetsanopoulos, A.N., 1998. A
perceptual model for JPEG applications based on
block classification, texture masking, and luminance
masking. In Proc. of International Conference on
Image Processing (ICIP’98), pp. 428-432.
Zhang, Y., Lu, Z.X., and Lu, H.M., 2008. A novel block
classification method for H.264 compressed video. To
appear in Proc. of 16th International Conference on
Computer Communications and Networks
(ICCCN’08).
Wang, Z.N., Yang, J., Peng, Q., Ma, Z., and Zhu, C.Q.,
2007. A fast transform domain based algorithm for
H.264/AVC intra prediction. In IEEE International
Conference on Multimedia and Expo 2007 (ICME’07),
pp. 1563-1566.
ADAPTIVE REAL-TIME WATERMARKING USING BLOCK CLASSIFICATION FOR H.264 COMPRESSED
DOMAIN
313
