BUILDING MODULAR SURVEILLANCE SYSTEMS BASED ON

MULTIPLE SOURCES OF INFORMATION

Architecture and Requirements

Daniel Dur

aes, Lu

ıs F. Teixeira and Lu

ıs Corte-Real

INESC Porto, Faculdade de Engenharia, Universidade do Porto

Campus da FEUP, Rua Dr. Roberto Frias, no. 378 4200-465 Porto, Portugal

Keywords:

Intelligent Surveillance Systems, Modular Architecture, Multi-sensor surveillance, Data Analysis.

Abstract:

Intelligent surveillance is becoming increasingly important for the enhanced protection of facilities such as

airports and power stations from various types of threats. We propose a surveillance system architecture based

on multiple sources of information to apply on large scale surveillance networks. The main contribution of

this paper is the deﬁnition of the requirements for a ﬂexible and scalable architecture that supports intelligent

surveillance using, alongside video, different sources of information, such as audio or other sensors.

1 INTRODUCTION

Visual surveillance systems are widely applied in

transport scenarios, such as airports, railways, un-

derground, and motorways as well as other public

spaces, such as banks and shopping malls. Typically

these systems are manually handled by a human op-

erator and do not rely on content-based automation

processes. The captured content is stored for a lim-

ited period of time, due to storage limitations. Also,

searching for a speciﬁc event can be a very time con-

suming task. Recent advances in this area are opening

new possibilities for the next generation surveillance

systems (Valera and Velastin, 2005). The main focus

of research is on improving image processing tasks

by generating more accurate and robust algorithms for

object detection and recognition, tracking and human

activity recognition.

A new generation of systems for surveillance are

also starting to be commercialised. The common pro-

cessing tasks that commercial systems perform are

intrusion, motion detection and packages detection.

Typical examples of commercial surveillance systems

are DETEC

and Gotcha

. They are usually based

on what is commonly called motion detectors, with

the option of digital storage of the detected events.

These events are usually triggered by objects appear-

ing in the scene. Another example of a commercial

http://www.detec.no

http://www.gotchanow.com

system intended for outdoor applications is DETER

(Pavlidis et al., 2001), which reports unusual move-

ment patterns of pedestrians and vehicles in outdoor

environments such as car parks. A broader goal is de-

ﬁned by the PRISMATICA project (Lo et al., 2003).

The developed system is a wide-area multisensor dis-

tributed system, receiving inputs from CCTV, local

wireless camera networks, smart cards, and audio sen-

sors. Also, the project ADVISOR (Siebel and May-

bank, 2004) aims to assist human operators by auto-

matically selecting, recording, and annotating images

containing events of interest. ADVISOR interprets

shapes and movements in scenes being viewed by the

CCTV to build up a picture of the behavior of people

in the scene.

In summary, intelligent surveillance systems are

not restricted to cameras but can also contain dif-

ferent types of information sources, to better inter-

pret the danger. Monitoring surveillance networks

by human inspection is expensive and ineffective.

Consequently, surveillance users are choosing soft-

ware for automated video surveillance. The archi-

tecture presented, proposes a solution to integrate

speciﬁc surveillance algorithms, acquire information

from various sources and interact with external sys-

tems. The solution presented, speciﬁes architecture

organized in a hierarchical structure and divided into

different modules, including both support for commu-

nication and for computation.

314

Durães D., F. Teixeira L. and Corte-Real L. (2008).

BUILDING MODULAR SURVEILLANCE SYSTEMS BASED ON MULTIPLE SOURCES OF INFORMATION - Architecture and Requirements.

In Proceedings of the International Conference on Signal Processing and Multimedia Applications, pages 314-319

DOI: 10.5220/0001936803140319

 SciTePress

2 SYSTEM REQUIREMENTS

Our objective is to devise a software architecture

for surveillance systems composed of a sensor net-

work of different sources. The architecture should al-

low adding new and improved surveillance techniques

while the network continues operating. The require-

ments are divided in non-functional, functional and

hardware categories. The ﬁrst two categories of re-

quirements are based on (Detmold et al., 2006) and

(Valera and Velastin, 2008).

2.1 Non-Functional Requirements

The non-functional requirements for video surveil-

lance networks include scalability, availability, evolv-

ability, integration, security and manageability.

• Scalability: We should consider different scopes

for scalability. Processing the data generated in a

large-scale surveillance system in a centralized ar-

chitecture is unfeasible and a scalable distributed

processing is required. Also, storing the relevant

data, even if a small fraction of all captured data,

requires a scalable storage distributed system. Fi-

nally, in some cases a scalable network needs to

be considered, mainly if the number of sources of

information are expected to increase.

• Availability: A larger number of components in-

creases the probability that some component will

eventually fail. However, the architecture must

support acceptable levels of operation. A conﬁgu-

ration of redundant systems should be considered

if high level of availability is required.

• Evolvability: Within some limits, the surveillance

network should be able to accommodate changes,

including alterations to the hardware and changes

to the software.

• Integration: Nowadays surveillance systems usu-

ally operate in independently of other systems.

However, there is a growing need to integrate dif-

ferent systems, especially for intelligent manage-

ment of buildings. It is therefore required a per-

spective of integration with external systems.

• Security: The integration with external systems

however intensiﬁes the need for security. A crit-

ical requirement is that the system should be ro-

bust to attacks with malicious intents. The con-

sequences of such attacks include compromising

conﬁdential information or shutting down the sys-

tem through denial of service attacks.

2.2 Functional Requirements

The functional requirements of intelligent surveil-

lance systems include modules that perform: (1) sig-

nal processing, including audio and visual process-

ing, (2) data aggregation and higher-level semantic

analysis, (3) command, control and inspection of all

network elements, and (4) storage with browsing and

forensic analysis capabilities.

We ﬁrst consider a low-level signal processing

module that receives data from sensors and gener-

ates a sparser representation of data when compared

to the raw data. For example, for the visual sen-

sors, i.e. cameras, the signal processing module in-

cludes: object detection, object classiﬁcation accord-

ing to shape, color, and other properties, and object

tracking along time within individual cameras views.

In this case, the signal processing module accepts im-

ages from individual cameras as input, and produces

as output a compact representation of the content –

for example, the object trajectories. These modules

are closely related to each sensor and can be seen as a

layer just above the sensors. Depending on the hard-

ware capabilities of the sensors, the modules’ imple-

mentation could be embedded in the sensors.

The data processed for individual sensors is col-

lected by a data aggregation module that relies on the

multiple sources of data in the network to get a more

complete representation. Using the same example, for

visual sensors the data aggregation module includes:

multicamera tracking of objects across time and mul-

tiple cameras views. Also, a higher-level analysis is

performed to extract semantic knowledge, which usu-

ally requires a priori information and training. One

objective could be behavioral analysis, or in other

words, to recognize and understand the activities of

the tracked objects. The output of these modules is

typically auxiliary data (or metadata) that is stored

alongside the raw data or events to alert the human

operator.

The events triggered by the system warn about sit-

uations that eventually require close attention by the

operators. When needed, the operators use command

control, and inspection functionalities to interact with

system – e.g. examine the status of an element (e.g.

a sensor) in the network and take corrective actions.

Other examples of interactions include remote sensor

control of individual sensors in real-time, target fol-

lowing by selecting an object to follow and making a

report, and external system control namely, control-

ling the elevators system or locking the doors.

Finally, storage with browsing and forensic anal-

ysis capabilities allow an operator to efﬁciently ﬁnd

a given event or object. Browsing or querying the

BUILDING MODULAR SURVEILLANCE SYSTEMS BASED ON MULTIPLE SOURCES OF INFORMATION -

Architecture and Requirements

315

historical archive, the operator can look for detected

events and know the details of possible threats. The

auxiliary data mentioned previously is used to aid

browsing and provide forensic analysis. Exploring

large amounts of data without such capabilities can

be extremely time consuming and inefﬁcient.

2.3 Hardware Requirements

This architecture proposes the sharing of data though

different interfaces. The interfaces depend on the

needs of the system but typically the whole hardware

is connected by a local area network (LAN).

The system is composed of computers or smart

sensors (mostly cameras) connected by the LAN. A

human-computer interface and a storage farm are also

plugged in this system. The type of sensors that are

possible connect besides cameras and microphones

are smoke sensors, biometric sensors among others.

The storage module needs to allow 24 hours/day

of data. Since only relevant data is stored, the amount

of data produced in a day may vary. If we use MPEG-

4 technology at 25 fps and 160 Kbit/s, in 3 days the

total amount of raw data for a camera is 40 GB. How-

ever only a much smaller fraction of this needs to be

stored (∼ 5%).

A distributed system implies an efﬁcient use of

the available bandwidth that satisﬁes quality of ser-

vice (QoS).

3 ARCHITECTURE

The concept of the architecture is based on a hier-

archical relation between elements, respecting func-

tional and hardware requirements and allowing inter-

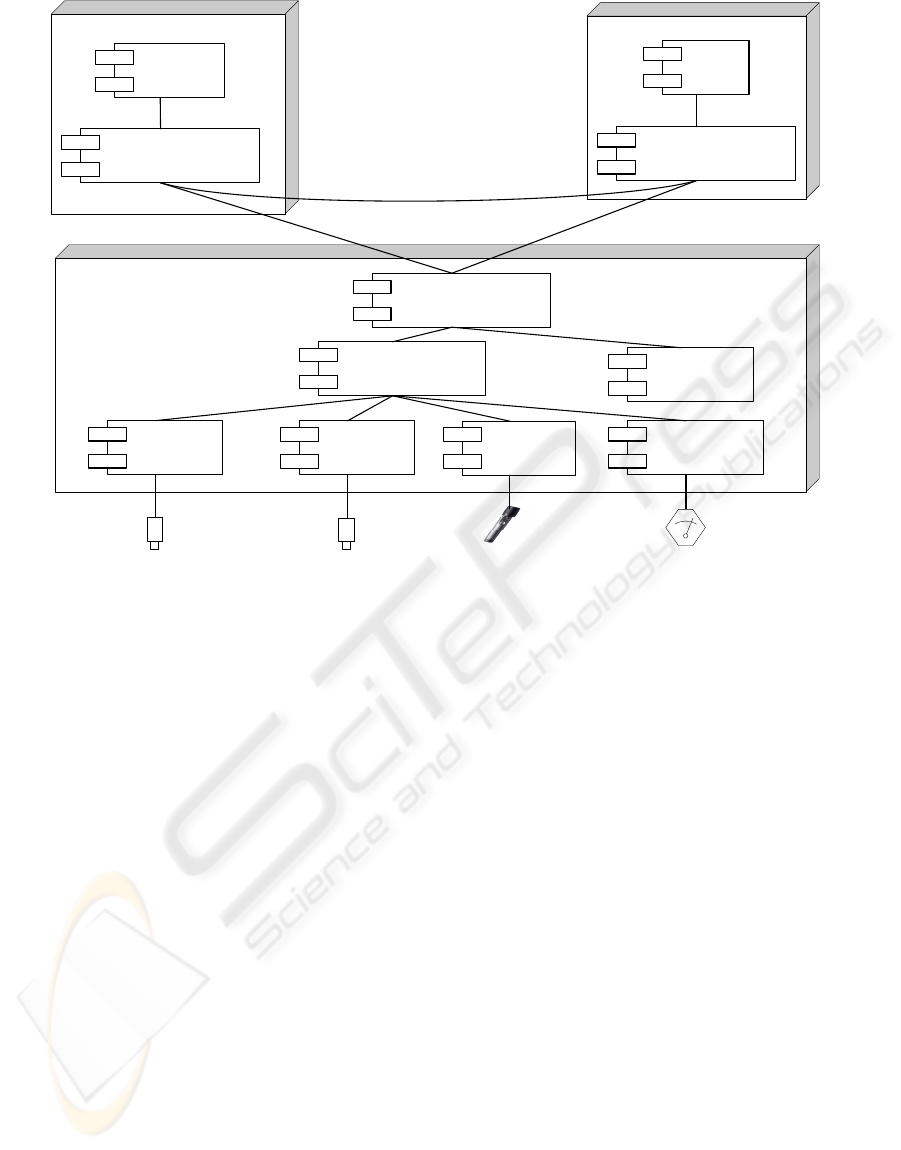

action with external systems. Figure 1 shows a physi-

cal view of the surveillance system architecture using

the standard UML model representation.

The main modules in the architecture are control

and command, database centre and monitoring. All

these modules contain a component called communi-

cations manager. Its goal is to manage the communi-

cations between different modules.

3.1 Control and Command

With the control and command module, human oper-

ators can visualize the outputs of the system and even-

tually take an action. The interaction between opera-

tors and the system is done through a graphical user

interface (GUI) is possible interact with system.

A possible implementation solution is to use a

web-based GUI, implemented in PHP or Java (server-

side) and HTML with Javascript (client-side).

3.2 Database Centre

The database centre module is a physically indepen-

dent module, where storage all data produced by sys-

tem. This architecture is both ﬂexible, because the

database centre module is independent of other mod-

ules, and scalable, because many database centres

may operate together or separately. The redundancy

provided by multiple database centres is also essential

to maintain high availability of operation.

In (Black et al., 2004), the authors present a solu-

tion that propose a creation of a database with four

layers, ordered hierarchically, supporting high and

low level queries. The data is stored selectively by

the different layers. The system provides a mecha-

nism to generate video content summaries of objects

detected by the system across the entire surveillance

region in terms of the semantic scene model. The lay-

ers of abstraction are: (1) raw data layer, (2) object

motion layer, (3) semantic description layer, and (4)

metadata layer. At the lowest level the system user

can manually browse a stored video to observe some

object activity recorded by the system. At the highest

level, queries could be executed to automatically ﬁnd

that same object activity.

3.3 Monitoring

This is the system module closer to the hardware.

Monitoring is performed independently for each

surveillance sensor and afterwards aggregated by a

multimodal data analysis system. The monitoring

module contains the following components:

• Signal processing, including visual and audio

analysis: Processes the data captured by the dis-

tributed network of sensors. For the visual sen-

sors it typically includes object detection, classi-

ﬁcation and tracking. A similar ﬂow is done for

audio processing, including audio source separa-

tion and classiﬁcation to detects dangerous situa-

tions, such as screams or explosions. If an array of

microphones is available, localization and track-

ing of audio sources is also possible. Each of the

components (visual analysis and audio analysis)

is associated to a single sensor.

• Analysis of data from other sources: Analyses

the information obtained by other sources, such

as emergency door sensors, ﬁre detection alarms,

etc.

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

316











































































Figure 1: Component diagram of the system architecture.

• Multimodal data analysis: Receives data from the

signal processing and the analysis of data from

other sources components. Performs data aggre-

gation and fusion, such as multicamera tracking

and behavioral analysis. The processed data and

generated events are sent to the storage module.

If a give event is conﬁgured to generate an alarm,

the human operator is notiﬁed by the control and

command module.

• Integration with external systems: Interfaces with

external systems and executes the orders given by

human operator, for example building access.

With this architecture based in modules and com-

ponents it is possible to capture different types of in-

formation and analyse them to produce better results

when compared to the results obtained by a separate

analysis of sensor information. The ultimate goal is

to minimize the errors generated by the system.

The components performing data analysis (includ-

ing visual, audio, other sources and multimodal anal-

ysis) are typically computationally intensive and re-

quire a low-level implementation in C or C++. The

integration of individual components can be imple-

mented using higher-level programming languages,

such as Perl and Python.

4 IMPLEMENTATION

The system is currently being developed and not all

speciﬁed modules are fully functioning. In this sec-

tion we give an overview of the current status of im-

plementation.

4.1 Algorithms

Object detection is done using cascade algorithm

(Teixeira et al., 2007) essentially based on mixture

of Gaussians for background modelling (Lee, 2005).

Taking in consideration that background changes are

caused by phenomena of different nature, a cas-

caded evaluation of typical dynamic elements is per-

formed. These elements include acquisition noise, il-

lumination variation and slow or repetitive structural

changes. The latter type of changes is classiﬁed using

the methods that estimate a p.d.f. to model the back-

ground. Also, a statistical test and a simple collinear-

ity test are used to classify changes originated by

noise and illumination changes, respectively. Some

results are shown in Figure 2.

Tracking of objects is done using an implementa-

tion based on (Zhao and Nevatia, 2004). This track-

BUILDING MODULAR SURVEILLANCE SYSTEMS BASED ON MULTIPLE SOURCES OF INFORMATION -

Architecture and Requirements

317

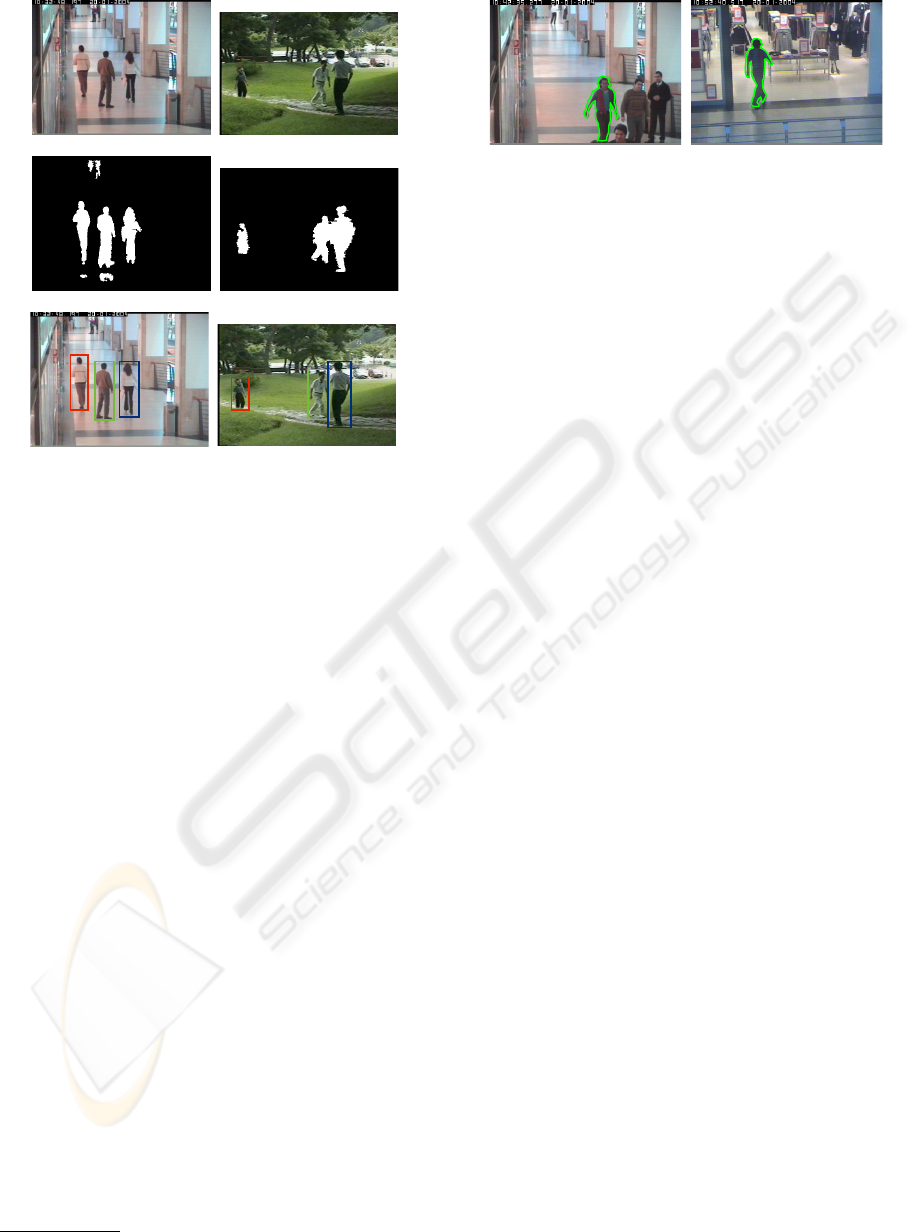

Figure 2: Segmentation results (second row) using the

cascaded change detection algorithm and tracking results

(third row) using the Kalman ﬁltering with appearance con-

straints.

ing method relies on Kalman ﬁltering for hypothesis

tracking, and on the objects appearance constrained

by its shape.

Tracks from different objects are matched to ﬁnd

multiple appearances of an object as in Figure 3.

This is accomplished with a combined representa-

tion scheme and incremental object model to ﬁnd

matches between visual object tracks (Teixeira and

Corte-Real, 2008). The description scheme relies on

SIFT local descriptors and a text-like bag-of-words

representation. Results show that this object represen-

tation scheme can be used to aid tracking of generic

objects in visual surveillance systems, since it can

discriminate a large quantity of different visual ob-

jects very well, and can be adapted to reﬂect object

changes. It also presented a good resilience to incor-

rect segmentations when extracting the visual objects

from complex scenes. The object model is updated

through incremental learning, avoiding excessive data

storage while maintaining performance and allowing

new objects to be learnt by the system.

Other analysis algorithms, namely audio content

analysis, will be added in the future.

4.2 Prototype

The current prototype of the proposed architecture

is based on ZoneMinder

. This choice is due to

http://www.zoneminder.com

Figure 3: Same visual object captured at different instants,

by different cameras.

the fact that ZoneMinder is an open-source surveil-

lance framework that includes functionalities of typ-

ical surveillance systems – supports capture, analy-

sis, recording, and monitoring of multiple video cam-

eras. Given a state-of-the-art surveillance framework,

which closely follows the architecture deﬁned in Sec-

tion 3, our goal is to instantiate the requirements

stated in Section 2.

The ZoneMinder framework comprises different

components written in C++ (core), PHP (GUI) and

Perl (scripts). A motion analysis module detects ac-

tivity in the captured areas, allowing selective record-

ing deﬁned by the user. The user can also deﬁne

alarms, such as intrusion in protected areas, which are

stored in a MySQL database as events. These events

are associated with the corresponding video for fu-

ture visualization. These management and visualiza-

tion functions are accomplished through a web-based

GUI.

The analysis functionalities provided by typical

surveillance systems, such as ZoneMinder, are lim-

ited to activity detection based on motion analysis and

alarm generation based on the deﬁnition of protected

areas. In the prototype we extended these functionali-

ties with advanced detection such as object segmenta-

tion, tracking and matching (see Section 4.1). In sum-

mary, and considering the database model proposed

in (Black et al., 2004), our prototype populates auto-

matically the semantic layer, in contrast to the typical

systems that generate information for the image and

motion layers.

5 CONCLUSIONS

This paper introduces a modular surveillance sys-

tems architecture supporting the requirements of au-

tomated video surveillance networks, which are an in-

creasingly important tool for preventing and counter-

ing security threats. The architecture can be adapted

to different scenarios. Also, unlike typical surveil-

lance systems, multiple sources of information are

considered. A prototype based on open-source frame-

work for visual surveillance was implemented. The

SIGMAP 2008 - International Conference on Signal Processing and Multimedia Applications

318

prototype includes algorithms for the segmentation

and tracking of visual objects. Another module that

detects multiple appearances of the detected visual

objects was also devised and integrated in the sys-

tem. Future work includes integrating of audio analy-

sis modules and the support for evolvability and avail-

ability.

REFERENCES

Black, J., Ellis, T., and Makris, D. (2004). A hierarchical

database for visual surveillance applications. In Pro-

ceedings of IEEE International Conference on Multi-

media and Expo, pages 1571–1574.

Detmold, H., Dick, A., Falkner, K., Munro, D. S., van den

Hengel, A., and Morrison, R. (2006). Scalable surveil-

lance software architecture. In Proceedings of IEEE

International Conference on Video and Signal Based

Surveillance, pages 103–106.

Lee, D.-S. (2005). Effective Gaussian mixture learning

for video background subtraction. IEEE Transac-

tions on Pattern Analysis and Machine Intelligence,

27(5):827–832.

Lo, B., Sun, J., and Velastin, S. (2003). Fusing visual and

audio information in a distributed intelligent surveil-

lance system for public transport systems. Acta Auto-

matica Sinica, 29(3):393–407.

Pavlidis, I., Morellas, V., Tsiamyrtzis, P., and Harp, S.

(2001). Urban surveillance systems: from the labo-

ratory to the commercial world. Proceedings of the

IEEE, 89(10):1478–1497.

Siebel, N. T. and Maybank, S. J. (2004). The ADVISOR vi-

sual surveillance system. In Proceedings of the ECCV

Workshop on Applications of Computer Vision, pages

103–111.

Teixeira, L. F., Cardoso, J. S., and Corte-Real, L. (2007).

Object segmentation using background modelling and

cascaded change detection. Journal of Multimedia,

2(5):55–64.

Teixeira, L. F. and Corte-Real, L. (2008). Video object

matching across multiple independent views using lo-

cal descriptors and adaptive learning. Pattern Recog-

nition Letters. (in press).

Valera, M. and Velastin, S. A. (2005). Intelligent distributed

surveillance systems: A review. IEE Proceedings: Vi-

sion, Image and Signal Processing, 152(2):192–204.

Valera, M. and Velastin, S. A. (2008). Middleware for dis-

tributed video surveillance. IEEE Distributed Systems

Online, 9(2).

Zhao, T. and Nevatia, R. (2004). Tracking multiple humans

in complex situations. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 26(9):1208–1221.

BUILDING MODULAR SURVEILLANCE SYSTEMS BASED ON MULTIPLE SOURCES OF INFORMATION -

Architecture and Requirements

319
