Travel Blog Assistant System (TBAS) - An Example

Scenario of How to Enrich Text with Images and Images

with Text using Online Multimedia Repositories

Marco Bressan, Gabriela Csurka, Yves Hoppenot and Jean-Michel Renders

Xerox Research Centre Europe, 6, ch. de Maupertuis, 38240 Meylan, France

Abstract. In this paper we present a Travel Blog Assistant System that facilitates

the travel blog writing by automatically selecting for each blog paragraph writ-

ten by the user the most relevant images from an uploaded image set. In order

to do this, the system ﬁrst automatically adds metadata to the traveler’s photos

based both on a Generic Visual Categorizer (visual keywords) and by exploit-

ing cross-content web repositories (textual keywords). For a given paragraph,

the system ranks the uploaded images according to the similarity between the

extracted metadata and the paragraph. The technology developed and presented

here has potential beyond travel blogs, which served just as an illustrative exam-

ple. Clearly, the same methodology can be used by professional users in the ﬁelds

of multimedia document generation and automatic illustration and captioning.

1 Introduction

In only a few years, the blogging phenomenon on the web is becoming one of the

most popular publishing media for a wide-range of audiences. Blogs allow users to

interact and to reﬂect individual opinions, philosophies, experiences and emotions. As

of September 2007, blog search engine [1] has tracked more than 106 million blogs.

Many of those blogs focus on particular genres such as politics, travel, fashion,

projects, niche markets, legal topics, etc. In this paper, we are particularly interested in

travel blogs. Often, these blogs can be understood as the digital version of the classical

travel/road journals carried by a traveler for the purpose of documenting a journey. Due

to the nature of online digital content, travel blogs also enable travelers to share any

type of digital content, e.g. photos, and to update their readers on their location as the

trip is taking place. Travel blogs are often composed and published while their authors

are still traveling, using public Internet stations and laptops. This means that the traveler

does not necessarily want to spend a long time editing it during his travel. One of the

most time consuming parts of the blog editing is to select the right images from a non-

organized set of recently uploaded images. Further, the traveler might want to add some

speciﬁc information about the place or the monument he has just visited, the height of

the mountain he had just climbed, etc. He could browse the web, but again, this would

take time and he would either abandon or let this for later.

Consequently, in this paper, we propose a Travel Blog Assistant System (TBAS)

that facilitates these tasks for the user (detailed in section 2). Its main purpose is to

Bressan M., Csurka G., Hoppenot Y. and Renders J. (2008).

Travel Blog Assistant System (TBAS) - An Example Scenario of How to Enrich Text with Images and Images with Text using Online Multimedia

Repositories.

In Metadata Mining for Image Understanding, pages 90-104

DOI: 10.5220/0002338200900104

 SciTePress

automatically select the most relevant images from the uploaded set for each of the

written paragraphs of the blog. Technically, this is done in two steps. First the system

automatically adds metadata to the traveler’s photos exploiting web repositories (shared

and tagged photo repositories, other travel blogs, wikipedia, etc). Metadata have some

textual form or, at least, features that make it comparable to textual data. Then, it uses

these metadata to measure the similarity between the images and the given text.

In the ﬁrst step, the system adds predeﬁned keywords – related to a given set of

visual categories (people, car, animal, ...) – to the metadata using a Generic Visual

Categorizer (section 3.1). Secondly, based on the image features obtained by the cate-

gorizer, it uses a CBIR (Content Based Image Retrieval) technique to retrieve images

similar (section 3.1) to the image to which it wants to add further metadata. Processing

the aggregate of textual parts corresponding to the retrieved images allows the extrac-

tion of relevant concepts and topics (section 3.3). These emerging concepts and topics

will be the “textual” keywords enriching the image metadata.

In the second step, we measure the similarity between the enriched metadata and

a particular piece of text (section 3.2), which in our case is the written paragraph of

the blog. According to this similarity measure, the images are ranked and the system

is able to propose the most relevant images for a given paragraph, so that the traveler

can choose what he thinks is the more appropriate for the ﬁnal version. Furthermore,

as it is the most costly part, the metadata extraction and indexation can be done ofﬂine;

the computation of the image relevance scores with respect to the paragraphs (which

has almost no cost with pre-prepared, indexed data) will be done on-line. So the system

can propose the set of images for selection as soon as a paragraph is ﬁnished, which is

very user friendly. Finally, another advantage of the system is obviously the metadata

information added to each image. Indeed, the traveler can keep them and use them for

further organization and retrieval in his private repository of pictures.

In order to illustrate the different steps and the performance of the TBAS system, we

designed a prototype using a relatively small database (compared to the data we can get

on the Web). We used as multi-media data repository the [2] as it contains travel images

with additional textual information such as title, location and description. To obtain re-

alistic traveler data, we downloaded a large set of images from the online photo sharing

site Flickr [3]. For the travel text we collected blog paragraphs from two travel blog

sites [4,5]. In order to ensure the semantic correlation between images and blog texts,

we used city names of two different travel destination (Peru and Brasil) as search tags

to gather the images and blog texts.

The technology developed and presented here has potential beyond travel blogs. We

used the Travel Blog Assistant System just as an illustrative example of a more general

problem, which is complementing text with images, or vice-versa. Clearly, the same

methodology can be used by professional users in the ﬁelds of multimedia document

generation and automatic illustration and captioning, such as e.g. graphical designers,

illustrators, journalists, pedagogical writers, etc.

9191

2 The System Overview

The Travel Blog Assistant System (TBAS) is a plug-in system that can be integrated

with any travelogue websites such as [6, 5,7–9,4, 10]. Its role is not to replace them,

but to complement them and it can be integrated with other services these sites already

propose, such as:

– publishing articles and guides focusing on travel related issues, comparing prices;

– providing the user with advices to plan a trip (trip planner);

– mapping functionalities that outline a trip and offer a graphic visualization of how

the trip was undertaken [4,9,5].

– plotting automatically the trip steps across the globe, e.g using [11] which allows

family and friends to see exactly where the traveler is [8].

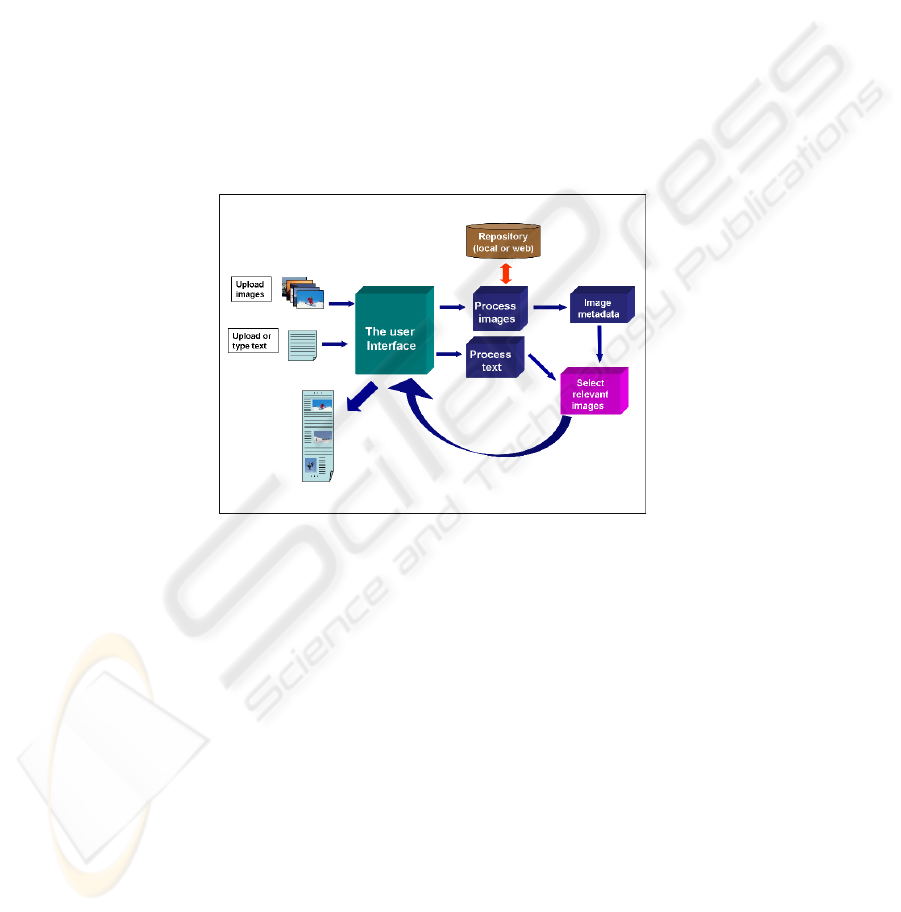

Fig.1. The schema of a TBAS system.

Figure 1 shows the overall schema of the TBAS system. Its main steps are:

1. The user uploads a set of images to be considered. If he edits his blog during his

travel he simply plugs his camera and uploads the images captured that day and the

previous days. The images are then pre-processed and image metadata are added

to each image. The metadata ﬁle can contain different type of information and is

typically a structured xml ﬁle. First, information such as date, time, location (GPS)

can be providedby the camera (exif ﬁle). Secondly, a pre-trained Visual Categorizer

can provide annotations (short textual keywords) related to some generic visual

aspects and objects of the image (see section 3.1). Finally, textual information (tags)

are obtained using a Cross-content InformationRetrieval System (CCIRS described

in section 3.3) using a repository of multi-media objects (e.g. the database of the

travelogue site itself).

9292

2. The typed or uploaded blog text is pre-processed at a paragraph level and “text”

similarities (section 3.2) are computed between the paragraphs and image meta-

data. These similarities allow the system to rank the images according to a given

paragraph. The top N ranked images (thumbnails) are shown to the user as illus-

trative examples of the paragraph. The user has naturally the possibility to select

them, to reject them, to ask for the next N images or to re-initiate a new search

based on this relevance feedback.

3. When all paragraphs are processed and the illustrative images selected, the system

shows a preview of the composed “blog”. The page layout can be computed auto-

matically or selected from a set of template layouts. When the user is satisﬁed with

the result, he can simply publish the blog.

The components described above are the main components of the TBAS. However

optional services/tools can be combined with them such as:

– Photo ﬁltering, by uploading the user’s planning/diary. Having an electronic diary

containing dates and main places (the planning of the trip) allows improving both

the speed and the accuracy of the system. Indeed, combining this information with

the dates of the image capture can limit the set of the photos to be ranked for a given

paragraph. This can be useful for users who have the habit to take lots of photos at

the same place.

– Include links such as Wikipedia pages to images or words. First, named entities

are extracted and identiﬁed as being person names, events, geographic locations,

organizations or monuments, etc. In our context, we are mainly focusing on geo-

graphic locations, organization or monument names, etc. In order to disambiguate

the named entities we can use the context (group of named entities present in the

text or metadata), ”image” similarities between images of the traveler and images

of the page we want to link, ”textual” similarities between the paragraph (or meta-

data) and the page we want to link, or ”trans-media” similarities based on the web

data repository .

– Include further content. This goes a step forward with respect to the ﬁrst option

(item 1), where we are not only seeking for a link, but we want to extract further in-

formation such as the height of a mountain, a short history of a monument, etc. from

the relevant page. To do this, the candidate pages are decomposed in paragraphs and

the similarities are computed for each paragraph. The selected paragraphs are pro-

posed for further consideration. For example, if the user wants to include the height

of Huayna Picchu, he types the text ”the height of the Huayna Picchu is” in the

paragraph.

– Include maps and draw trajectories. Tools exist that allow the Automatic Assis-

tant to include maps and drawings in the blog, assuming the GPS information is

available (GeoMicro’s [12] is such a tool). If the camera has no GPS available, the

system can still provide such information based on disambiguated named entities

(see section 3.4).

9393

3 Enabling Technologies

3.1 Image Similarity and GVC

As image signature (image representation), we use the Fisher kernel as proposed in

[13]. This is an extension to the bag-of-visual-words (BOV) and the main idea is to

characterize the image with the gradient vector derived from the generative probabil-

ity model (visual vocabulary). This representation can then be subsequently fed to a

discriminative classiﬁer for categorization, or used to compute the similarities between

images for retrieval.

The generativeprobability model in our case is the Gaussian mixture model (GMM)

which approximates the distribution of the low-level features in images. It can be seen

as a Visual Vocabulary where each Gaussian component N (µ

, Σ

) models a visual

word.

If we denote the set of parameters of the GMM by Φ = {w

, µ

, Σ

, i = 1...N }

, being the mixture’s weight), we can compute the gradient vector of the likelihood

that the image was generated by the model Φ:

∇

log p(I|Φ) . (1)

This gradient of the log-likelihood describes the direction in which parameters

should be modiﬁed to best ﬁt the data (image features). One of its advantages is that

it transforms a variable length sample (number of local patches in the image) into a

ﬁxed length representation (which we will call Fisher Vector) whose size is only de-

pendent on the number of parameters in the model (|Φ|). Before feeding these vectors

in a classiﬁer or before computing similarities, each vector is ﬁrst normalized using the

Fisher Information matrix F

, as suggested in [13] (see the paper for the computational

details):

= F

−1/2

∇

log p(I|Φ) (2)

with

= E



∇

log p(I|Φ)∇

log p(I|Φ)



This Fisher Vector is the basis of both our image categorizer and our CBIR system.

In the ﬁrst case, the classiﬁer is learnt ofﬂine using pre-labeled training images. Due to

the high dimensionality of the Fisher Vector, a set of linear one-against-all classiﬁers

provides already good categorization results (see examples in [13]).

In the case of image retrieval, we deﬁne the similarity measure between two images

as the the L1-normof the difference between the normalized Fisher Vectors (each vector

is itself re-normalized to have an L1-norm equal to 1):

sim


(I, J) = sim


, f

)

= norm

MAX

− ||

−

= norm

MAX

−

(3)

where

are the elements of the re-normalized Fisher Vector

f . The corresponding

dissimilarity (distance) can be interpreted as the angle between the two Fisher Vectors.

9494

We haveto mention here that actually in both cases (categorizationand retrieval), we

build not one but two visual vocabularies: one for grey-level texture features (gradient

histograms) and one for color features (local mean and variances in RGB). Both types

of features are computed for image patches extracted on regular grids at 5 different

scales. Hence, we obtain two Fisher Vectors for each image. In the case of classiﬁcation

the two vectors are fed into separate classiﬁers to estimate the probability that the image

contains the object of the given class and a late fusion (simple mean) is used to estimate

the ﬁnal probability. In the case of retrieval, the two Fisher Vectors (color and texture)

are simply concatenated before computing the similarity between two images.

The strength of such techniques was already demonstrated in image categorization

and [13] and content based image retrieval [14].

3.2 Text Similarity

First the text is pre-processed including tokenization, lemmatization, word decompound-

ing and standard stop-word removal. Then starting from a traditional bag-of-word rep-

resentation (assuming independence between words), we adopt the language modeling

approach to information retrieval. The core idea is to model a document d by a multino-

mial distribution over the words denoted by the parameter vector θ

. A simple language

model (LM) could be obtained by considering the frequency of words in d (correspond-

ing to the Maximum Likelihood estimator):

(w|d) =

#(w, d)

|d|

The probabilities could be further smoothed by the corpus language model:

(w|C) =

#(w, d)

|C|

using the Jelinek-Mercer interpolation :

d,w

= λ P

(w|d) + (1 − λ) P

(w|C) . (4)

Using this language model, we can deﬁne the similarity between two documents using

the cross-entropy function:

sim

T XT

, d

) =

(w|d

) log(θ

))

(5)

Using this model we can rank the image metadata q(I) according to the similarity

between their language model θ

q(I)

and the language model of a given paragraph in the

blog.

3.3 Cross-Media Similarity

We want to use a cross-media retrieval approach in order to extract the image metadata

(or enrich them if some are already present). In this context, we choose the so-called

9595

”inter-media” fusion of image and text content through blind feedback approach. The

main idea is to use the images (each image being a query) to rank multi-media docu-

ments (text+image) in a given repository. Denoting the textual and visual components

of d by T (d) and V (d) respectively, the ranking of the documents is based on the visual

similarity between the query image I and the image part V (d) of d, using as features

the corresponding Fisher Vectors (2).

If d

, d

,· · · , d

are the top N relevant documents (according to the mentioned

ranking) corresponding to image I, we denote by N

T X T

(I) = {T (d

), T (d

), · · · T (d

)}

the set of their textual parts. Assuming that there is some underlying ”relevance concept

F” in this set, we derive for it a corresponding language model θ

as proposed in [14]:

P (F|θ

) =

∈N

T X T

(I)

ψ(d

, w) (6)

with

ψ(d

, w) = (λP (w|θ

)) + (1 − λ)P (w|θ

))

#(w,d

)

Here P (w|θ

)) is the word probability built upon the corpus (repository), λ (=0.5) is a

ﬁxed parameter, which can be understood as a noise parameter for the distribution of

terms and #(w, d) is the number of occurrence of term w in document d. The model

can be learnt by maximum likelihood with an Expectation Maximization algorithm

Finally, to choose the set of keywords to be added in the image metadata, it is

sufﬁcient to search for the components with the highest values in θ

(or considering all

values which are above a threshold).

The strength of such inter-media fusion techniques was already demonstrated in

cross-contentinformation retrieval,especially in the ImageCLEF Competition (see [14–

16]).

3.4 Extraction of Named Geo-entities

First, named entities are identiﬁed and extracted in both the textual part of the doc-

uments of the multi-media reference repository and the user’s paragraphs. Here, we

are mainly interested in named entities related to places. They can be names of natu-

ral points of interest, like rivers, beaches, mountains, monuments (map types) or busi-

nesses, like hotels, restaurants, hospitals (yellow page types). In this step all the other

words are simply ignored and each document will be represented as the set of extracted

named entities (locations). Then, we can compute the textual and cross-media similar-

ities as described in section 3.3 and 3.2, but limiting the vocabulary (support of the

distribution for the Language Models of each textual object) to this set of named enti-

ties. In particular, for extracting the metadata to be associated with an uploaded image,

we can deduce a set of location names as the “peaks” of the “relevance language model”

deduced from the top relevant documents with respect to this image.

Note that the extraction of named entities is also the key for linking paragraphs

/ image metadata to speciﬁc Knowkedge Bases. Still, this requires an additional step

to disambiguate the named entities (in general, named entities could be associate to

9696

multiple entries of the Knowledge Base if their are only matched using the surface

form). This disambiguation step will exploit the context information given by the whole

paragraph (on the source side), by the whole text associated to the Knowledge Base

entry (on the target size), or by the associated images. The knowledge bases could be

external geographic knowledge databases such as [17], [18], [19] and/or [20]. Some

of these databases ([19] for instance) give further information about the latitude and

longitude of the place. This information can further be used to add indication on a map

(e.g. using tools such as [12]) or adding a pointer to the geographic location on [11],

etc.

4 Experiments

In order to illustrate the different steps and the performance of the TBAS system, we

designed a prototype and tested it on a relatively small database (compared to the data

we can get on the web). Actually, our multi-media data repository was the [2] database

which contains travel images with a corresponding semi-structured caption consisting

of a title, a free-text description of the semantic and visual contents of the image (e.g.

“a man is playing a pan pipe and another one a ﬂute in front of a market sand with

clothes; a woman on the left doesn’t seem to enjoy the music”) and a location (city or

region and country). In our experiments we restricted ourselves to the title and location

ﬁelds.

To simulate the traveler’s image data, we downloaded a large set of images from the

online photo sharing site [3]. For the travel blog text we collected real blog paragraphs

from two travel blog sites [4] and [5]. In all cases, in order to ensure the semantic cor-

relation between images and blog texts, we focused on two main destinations, Peru and

Brasil, and used a few touristic names (cities, etc.) associated with them as keywords or

tags for focusing our search in gathering the images and the blog paragraphs.

Firstly, we applied a pre-trained Visual Categorizer (section 3.1). The categorizer

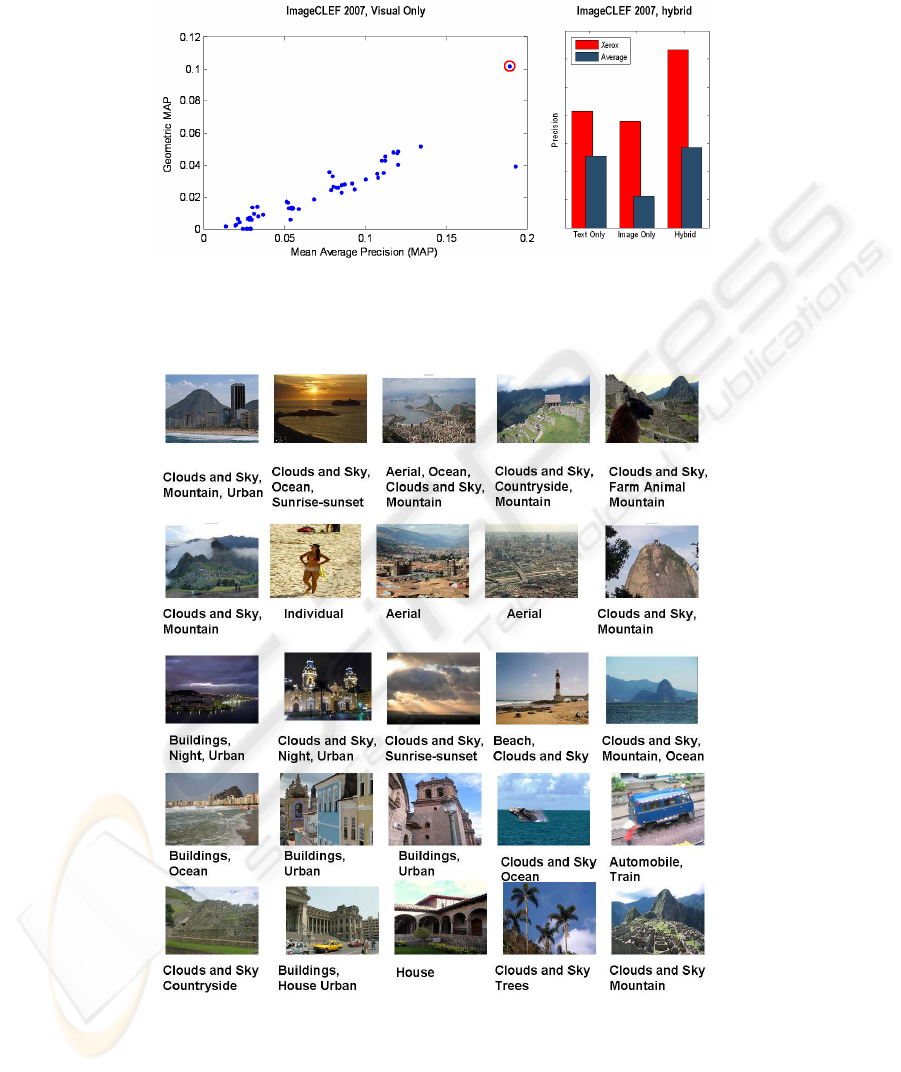

was trained on 44 classes and Figure 4 shows some of the example images with the

obtained labels. The strength of this Visual Categorizer was already demonstrated at

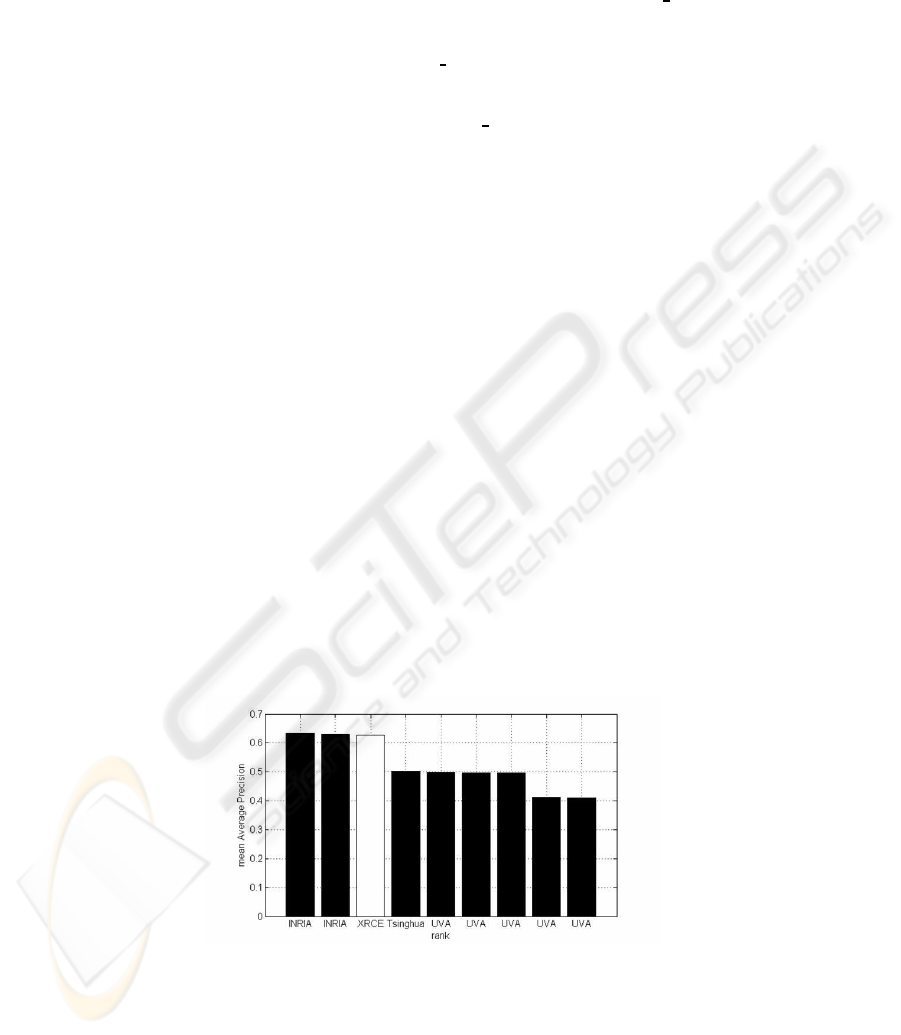

Pascal Visual Object Classes Challenge 2007 [21] (see Figure 2) and on several other

databases (see [13]).

Secondly, we used our image similarity measure (see section 3.1) to retrieve the top

N ranked images in our repository [2]. The strength of this image retrieval system was

clearly showed at the ImageCLEFphoto 2007 Evaluation Forum [14], where it got far

better retrieval results than all the other competing systems (see Figure3, left part). In

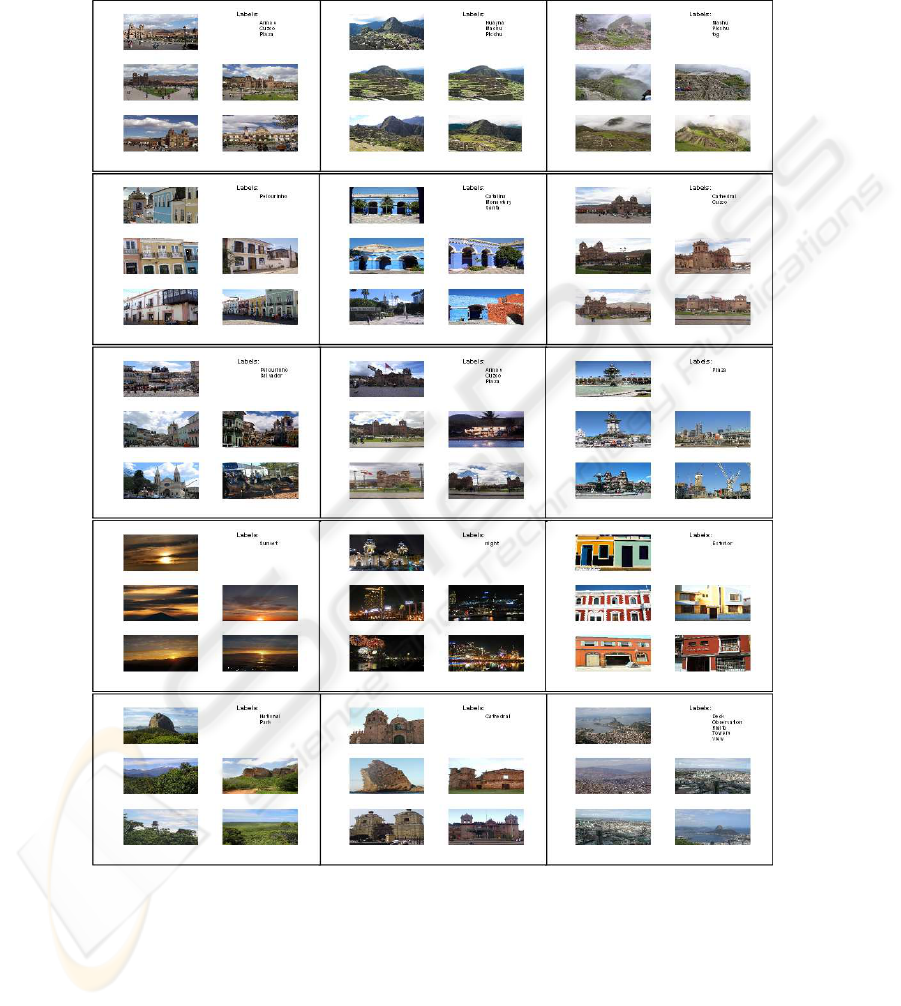

Figure 5 we show retrieval results in our particular case. The query is the Flickr image

(top left) and the most similar four images retrieved in the IAPR repository.

We further extracted and aggregated the text corresponding to the top N images

and kept the most frequent words to enrich the metadata (see textual labels in Figure

5). In this example we didn’t used the relevant topic search with the Language Model

described in section 3.3, because of the poorness of our textual data. However, in a real

situation when the textual data is much richer (e.g travel blogs, wikipedia, etc), this

would be a more reasonable option.

9797

The label examples in Figure 5 show that in some cases, the obtained annotations

are general keywords, while in others they are more speciﬁc (to the location, not to the

repository site). Indeed, when in the database several images of the same place (e.g.

Machu Picchu) or the same building (Cuzco’s cathedral) were found, the system is able

to get the speciﬁc concept. Otherwise, it will average the information in the images and

obtain more general concepts (such as sunset, cathedral). The bigger the repository is,

the higher the probability is to get speciﬁc labels; it is also clear that the performance

of the system increases when domain-speciﬁc knowledge bases are used.

Furthermore, additional information such as traveler’s diary and GPS data can be

further used to pre-ﬁlter the multi-media documents in the repository. For example, we

can ﬁrst restrict our database to the documents which contain either Peru or Brasil as

location information. However, since we did not use this option here, incorrect labels

can also be obtained (see last line in Figure 5).

Finally, the last step was to rank the images according to their similarities with

respect to each blog paragraphs. To compute the textual similarity, we have combined

the visual indexes (more precisely, the classes of our generic categorizer, used as a set

of textual words) and the extracted keywords.

However, to associate images with paragraphs, it is not at all mandatory to explicitly

extract textual metada. Indeed, as explained in the section 3.3, we can use a cross-

content similarity measure to directly rank the uploaded images with respect to a given

paragraph T

. One effective way of computing this trans-media similarity measure is

(see [14]):

sim

IMGT XT

, T

) =

d∈N

T XT

)

sim

T XT

(T (d

), T

) (7)

where T

is the blog paragraph, sim

T XT

is deﬁned by (5) and N

T XT

) = {T (d

), T

), · · · T (d

)} is the the set of texts corresponding to the N retrieved images in the

repository. Note that this deﬁnition of trans-media similarity is an alternative to the one

explained in section 3.3, that offers the advantage to be simpler to implement and faster,

while providing equivalent performance.

This was shown at the ImageCLEFphoto 2007 Evaluation Forum [14], where our

best Transmedia Reranking system given by (7) leads to slightly lower performance

(M AP = 0.302) than the best variant of the method presented in 3.3 (M AP = 0.3168)

and both were better than other hybrid competing systems at the Evaluation Forum (see

also [15] and Figure 3 right).

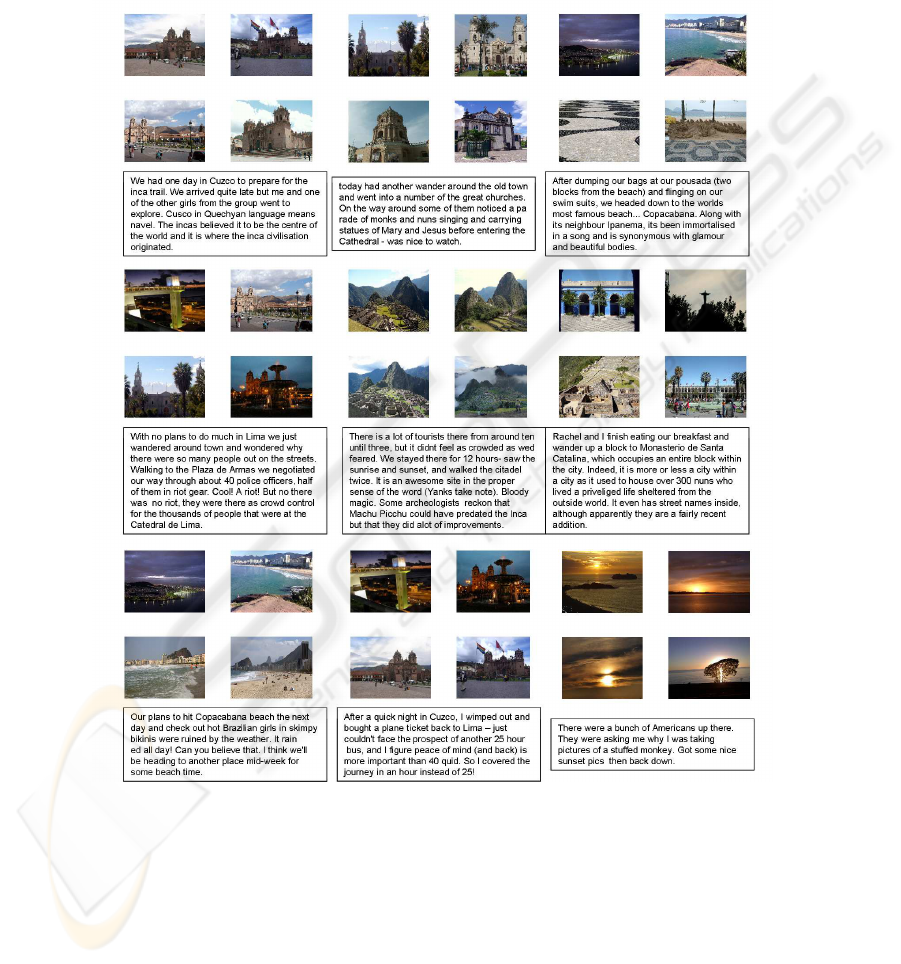

In Figure 6 we show how this system was used in our TBAS example. The ﬁgure

shows blog paragraphexamples and the 4 top ranked Flickr images, where the similarity

between an unlabeled Flickr image and a given blog was obtained using the similarity

given by (7).

5 Discussion

In this paper we have shown an example scenario, the travel blogs assistant system, as

an illustrative example of a more general problem, which is complementing text with

images, or vice-versa.

9898

The aim is to enrich an object (an image, a text) by auxiliary data of other types,

thanks to a repository of multi-facet objects. An image could be enriched by text, named

entities, GPS position (even if not given initially by the photo device), ratings. The idea

is quite similar to unsupervised auto annotation e.g. [22–25] and more specially to the

AnnoSearch system proposed by [26] which is an automatic annotation based on image

search and the News image Annotation proposed by Jeon and Manmantha [27].

However, unlike our method, the system in [26] assumes that an accurate keyword

of the image to annotate is available, the keyword being used to retrievea set of semanti-

cally relevant images. [27] uses Normalized Continuous Relevance Models to compute

joint probabilities between words and images, which is more an early fusion of the

modalities. Our approach is an intermediate level of trans-media (or trans-type) enrich-

ment which is based on a blind relevance feedback to the image query using a repository

of multi-facet (multi-type, multi-media) objects similarly to [28,29].

In our example, we enriched the text (paragraph) with related images using simple

cross-media similarities between the text and a set of images through the medium of an

external repository. However, the same methodology can be applied in a dual way too,

where the repository is interrogated directly by the text (blog paragraph) and seeked

for relevant texts or images without image query. In this case the text can be directly

enriched by images from the repository (automatic illustration) or geographical infor-

mation (height of a mountain, etc).

Acknowledgements

The authors want to thank Florent Perronin for his greatly appreciated help in apply-

ing some of the Generic Visual Categorizer (GVC) components and to thank Stephane

Clinchant for his help in preprocessing the IAPR repository.

We would like also to acknowledge the following Flickr users whose photographs

we reproduced here under Creative Common licences:

Tatiana Sapateiro */tatianasapateiro

Pedro Paulo Silva de Souza */pedrop

Leonardo Pallotta */groundzero

Laszlo Ilyes */laszlo-photo

Jorge Wagner */jorgewagner

UminDaGuma */umindaguma

Scott Robinson */clearlyambiguous

Gabriel Flores Romero */gabofr

Jenny Mealing */jennifrog

Roney */roney

David Katarina */davidkatarina

T. Chu */spyderball

Bill Wilcox */billwilcox

S2RD2 */stuardo

Fred Hsu */fhsu

Abel Pardo L´opez */sancho panza

9999

Cat */clspeace

Thowra uk */thowra

Elena Heredero */elenaheredero

Rick McCharles */rickmccharles

Mar´ılia Almeida */68306118@N00

Gustavo Madico */desdegus

Douglas Fernandes */thejourney1972

James Preston */jamespreston

Rodrigo Della F´avera */rodrigofavera

Dinesh Rao */dinrao

Marina Campos Vinhal */marinacvinhal

Jorge Gobbi */morrissey

Steve Taylor */st

With * meaning http://www.ﬂickr.com/photos and st=theboywiththethorninhisside.

Finally would like also to acknowledge the users who wrote the blog pharagraphs

were used and reproduced here. These texts can be found at the folloing adresses:

*/cuzco-journals-j1879736.html

*/machu picchu-journals-j5181463.html

*/rio-journals-j4669810.html

**/sarah s america/south america/1140114720/tpod.html

**/rachel john/roundtheworld/1146006300/tpod.html

**/eatdessertﬁrst/world tour 05/1160411340/tpod.html

**/idarich/rtw 2005/1140476400/tpod.html

**/twittg/rtw/1132765860/tpod.html

**/emanddave/worldtrip2006/1155492420/tpod.html

With * meaning http://realtravel.com and ** http://www.travelpod.com/travel-

blog-entries.

References

1. Technorati: http://technorati.com/pop/blogs/ (2007)

2. IAPR-TC12-Benchmark: http://eureka.vu.edu.au/ grubinger/iapr/tc12 benchmark.html

(2006)

3. Flickr: http://www.ﬂickr.com (2007)

4. Realtravel: http://realtravel.com/ (2007)

5. Travelpod: http://www.travelpod.com/ (2007)

6. Travelblog: http://www.travelblog.org/ (2007)

7. Trippert: http://trippert.com/ (2007)

8. Footstops: http://footstops.com/ (2007)

9. Travbuddy: http://www.travbuddy.com/ (2007)

10. Travellerspoint: http://www.travellerspoint.com (2007)

11. Google-Earth: http://earth.google.com (2007)

12. AltaMap: http://www.geomicro.com/gis/ (2007)

13. Perronnin, F., Dance, C.: Fisher kernels on visual vocabularies for image categorization. In:

CVPR. (2007)

14. Clinchant, S., Renders, J.M., Csurka, G.: Xrce’s participation to imageclefphoto 2007. In:

Working Notes of the 2007 CLEF Workshop. (2007)

100100

15. Clough, P., Grubinger, M., Deselaers, T., Hanbury, A., M¨uller, H.: Overview of the Image-

CLEF 2006 photographic retrieval and object annotation tasks. In: Working Notes of the

2006 CLEF Workshop. (2006) http://www.clef-campaign.org/2006/working notes/.

16. Grubinger, M., Clough, P., Hanbury, A., M¨uller, H.: Overview of the ImageCLEFphoto

2007 photographic retrieval task. In: Working Notes of the 2007 CLEF Workshop. (2007)

http://www.clef-campaign.org/2007/working notes/.

17. World-Gazetteer: http://www.world-gazetteer.com (2007)

18. GNS: http://eart-hinfo.nga.mil/gns/html (2007) GEOnet Names Server.

19. Getty: http://www.getty.edu/research/conducting research/ vocabularies/tgn (2007) The-

saurus of Geographical Names.

20. Wikipedia: http://www.wikipedia.org (2007)

21. Everingham, M., Zisserman, A., Williams, C., Gool, L.V.: The pascal visual object classes

challenges (2007) http://www.pascal-network.org/challenges/VOC/.

22. Barnard, K., Duygulu, P., de Freitas, N., Forsyth, D., Blei, D., Jordan, M.I.: Matching words

and pictures. Journal of Machine Learning Research 3 (2003)

23. Monay, F., Gatica-Perez, D.: Plsa-based image auto-annotation: Constraining the latent

space. In: ACM MM. (2004)

24. Pan, J., Yang, H., Faloutsos, C., Duygulu, P.: Gcap: Graph-based automatic image caption-

ing. In: CVPR Workshop on Multimedia Data and Document Engineering. (2004)

25. Feng, S., Lavrenko, V., Manmatha, R.: Multiple bernoulli relevance models for image and

video annotation. In: CVPR. (2004)

26. Wang, X., Zhang, L., F. Jing, W.Y.M.: Annosearch: Image auto-annotation by search. In:

CVPR. (2006)

27. Jeon, J., Manmatha, R.: Automatic image annotation of news images with large vocabularies

and low quality training data. In: ACM MM. (2004)

28. Maillot, N., Chevallet, J.P., Valea, V., Lim, J.H.: Ipal inter-media pseudo-relevance feedback

approach to imageclef 2006 photo retrieval. In: CLEF 2006 Working Notes. (2006)

29. Chang, Y.C., Chen, H.H.: Approaches of using a word-image ontology and an annotated

image corpus as intermedia for cross-language image retrieval. In: CLEF 2006 Working

Notes. (2006)

Figures

Fig.2. Results of the Pascal Visual Object Classes Challenge 2007.

101101

Fig.3. Results of our system at ImageCLEFphoto 2007 Evaluation Forum.

Fig.4. Example images with visual labels provided by the visual categorizer.

102102

Fig.5. Metadata (keywords) extracted for a query image and the TOP 4 neighbour images.

103103

Fig.6. Top 4 images to be associated with a blog’s paragraph.

104104
