HYBRID PARAMETERIZATION SYSTEM FOR WRITER

IDENTIFICATION

Carlos F. Romero, Carlos M. Travieso, Jesús B. Alonso and Miguel A. Ferrer

Department of Signals and Communications, Technological Centre for Innovation on Communication (CeTIC)

University of Las Palmas de Gran Canaria, Campus de Universitario de Tafira

Ed. de Telecomunicación, Pabellón B. 35017, Las Palmas de G.C., Spain

Keywords: Writer Identification, Graphologist Features, Handwritten Writing, Biometric System, Neural Networks,

Pattern Recognition.

Abstract: In this paper, we present a hybrid parameterization system from classical and graphologist features, as the

existing percentage of cohesion in the writing of each individual, as well as the smaller and greater axes of

the ovals and loops. They have been used on the writer identification together with other parameters applied

to handwritten words. That set of characteristics has been tested with our off-line database, which consists

of 70 writers with 10 samples per writer and as well each sample is composed of 34 words. We have got a

success rate of 96%, applying as classifier Neural Network, and after, the technique of “more voted”

algorithm, with 10 Neural Networks.

1 INTRODUCTION

Nowadays, advances on Computer Science and the

proliferation of computers in the modern society, it

is an unquestionable fact. But the great importance

that continues having the handwritten document and

the own writing, is true.

For this reason and its wide and extented use,

many handwritten documents are exposed to

possible forgeries, deformations or copies, and

generally, with illicit use. The tasks of Graphologist

or Forensic Expert are very hard and tedious, due to

the secuencial and manual work developed, whose

task is to certify and to judge the authenticity or

falsehood of handwritten documents (for example:

testaments) in a judicial procedure.

Nowadays, the Graphologists have to investigate

and use so much time to extract features that allow

to drawing conclusions about the body of writing.

Therefore, they have to work with graph paper and

templates in order to obtain parameters (angles,

dimensions of the line, directions, parallelisms,

curvatures, alignments, etc.). Too, they have to use

magnifying glass with graph paper in order to do

measures of angles and lines.

The motivation of this present work is to develop

an automatic system for the help in this field. It is

possible because our proposal try extracting

information biometric of the writing. The scientific

bases for this idea are from the brain human. If we

try to do writing with the less skilful hand, there will

be some parts or forms very similar to the writing

with the skilful hand, due to those orders are sent by

the brain, and each brain is intrinsic of each person

(Romero et al., 2007).

The act to write is a phenomenon governed by

the brain and integrated in the psychomotricity of

the individual; in contrast to mimic movements, the

handwriting movements are fixed toward a plane

that allows its study and measurement.

The writing like codified and dynamic message

that reflects a certain biometric information of the

individual in its communication with the others is

fundamentally individual, recognizable, univocal

and unique; that it makes possible the people

identification.

Generally, this effect is projected toward the

writing by two types of forces (Romero et al., 2007),

they are:

 Conscious or Known: because it can do a

control of the own free will.

 Unconscious: because it escapes to control of

the own free will. This is divided into: forces

of type mechanical and emotional, where are

harboured feelings.

449

Romero C., Travieso C., Alonso J. and Ferrer M. (2009).

HYBRID PARAMETERIZATION SYSTEM FOR WRITER IDENTIFICATION.

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing, pages 449-454

DOI: 10.5220/0001123104490454

 SciTePress

All the persons transmit their writing by their

brain, and simultaneously, the handwritten impulse,

which is the symbolism of the space. It is obtained

the dimensions of the writing, which are adapted of

proportional form, maintaining the size of the text or

a balance to the natural size, if the individual was

forced to write in a reduced space.

Nowadays, the writer identification is a great

challenge because these researches are not as studied

as the identification based on fingerprints, hands,

face or iris (other biometric techniques), due mainly

to the operation of the brain is very difficult of

parameterize. On the other hand, the mentioned

techniques use widely researched biometric

information.

Most of the characteristics implemented until the

moment offer information of the static

characteristics of the writing (Hertel et al., 2003),

(Marti et al., 2001), (Srihari et al., 2001), because

they are limited the formal aspect of the letters, its

form and dimension. These characteristics are easier

to modify or to falsify. Two or three years ago, some

authors are starting to present graphologist features

(Gupta, et al., 2007). In this work is introduced new

graphologist parameters fusioned with some

classical parameters. It will be showed our best

combination of parameters for identification writer

in the next sections.

The proposed characteristics in this paper are not

limited to the aspect nor the static features, because

this present work observes the handwriting writing

like a performance of the movement in the space.

For example, the cohesion and the analysis of the

opening of the ovals and loops, that reflect to use the

graphologist features in the writing, which are

difficult to modify.

As the majority of the works proposed up to

now, on biometric recognition, the framework of the

system depends on the following basic steps.

 Image pre-processing and segmentation:

Preparation and modification of images, so

that the module of segmentation produce the

results desired. The segmentation separates

the zones of interest (lines, words or

characters), and it is key for the success or

error of the following analysis (Feature

Extraction).

 Feature Extraction: They are qualitative and

quantitative measures that permit to obtain a

significant geometrical characterization of the

style of writing, in order to differentiate

writers among themselves. Pressure, speed,

direction, inclination, cohesion, continuity,

opening of ovals constitutes some of the

graphologist features. The aspect of the letters,

its form and dimension is some of the classical

features. The graphologist features help to be

more discriminating. In this present work, the

most of our graphologist features are

automatically got. In future works, we hope to

reach it.

 Classification: A statistical analysis of the

extracted characteristics is carried out, which

will permit the comparison with the samples

of our database, seeking the writer, who

possesses more similarities.

The most references about writer identification

are using geometry features as angles, lengths,

heights, relations between distances, etc., (classical

parameters) (Zois et al., 2000), (Marti et al., 2001),

(Shihari et al., 2001). Besides the most references

use their own databases and with a size, minor to 50

writers (Hertel et al., 2003), (Said et al., 1998), (Zois

et al., 2000), (Marti et al., 2001), (Romero et al.,

2006). For this reason in this present work, we have

introduced new feature extractions, and we have

built a database lager than in the most references.

Figure 1: System of writer identification.

The rest of the paper is organized of the

following way, in section 2, it becomes a brief

description of the building of the database. In section

3 is briefly described the image pre-processing and

the segmentation of the words. In the following

Acquire Images

Pre-processing

Segmentation

Features Extraction

Database

Static

Features

Graphologist

Features

Classification

Training

Mode

Test

Mode

BIOSIGNALS 2009 - International Conference on Bio-inspired Systems and Signal Processing

450

section, the procedure for the extraction of the

characteristics is explained. Section 5 contents the

used methods for classification. And finally in

section 6, the conclusion of this work is written up.

2 DATABASE

For the building of our database, we have used a

paragraph of 15 lines, on Spanish language. That

text is from “Don Quijote de la Mancha” from

Miguel de Cervantes, and we have used the same

text for each writer. With this size of text, writers

can show their personal characteristics, because they

keep their writing habits.

This database has been built with 70 writers, and

each one has made 10 times this template (paragraph

of 15 lines). The size of paper was DIN-A4 format

(297 mm. × 210 mm). The sheet was written with a

pen of black ink. Each writer of our database had

one week for doing the writing, and therefore, it is

considered like an effect of temporal invariance on

this database.

The creation conditions of our database were the

normalized with the same type of paper (80 gr/m2),

ballpoint pen, and similar place of support (for doing

the writing). Of this way, our work is centred on the

writing and the efficiency of proposed parameters.

In the future work, we are going to change the rest

of variables.

The samples are scanned 200 dpi, obtaining

images on grey scale, with 8 bit of quantification.

Do not add any text to the headers (do not set

running heads) and footers, not even page numbers,

because text will be added electronically.

3 IMAGE PRE-PROCESSING

AND SEGMENTATION

The first step of the image pre-processing consists of

utilizing Otsu’s the method, in order to get the

binarization of the samples (Otsu et al., 1979).

As a result of the binarization, in most cases, the

line of writing remains with irregular aspect. For that

reason, we have implemented other image pre-

processing for skew elimination. We developed a

algorithm in order to detect the maximum projection

of the word, using histogram tool. This permits to

smooth out the baseline, so, the baseline remains

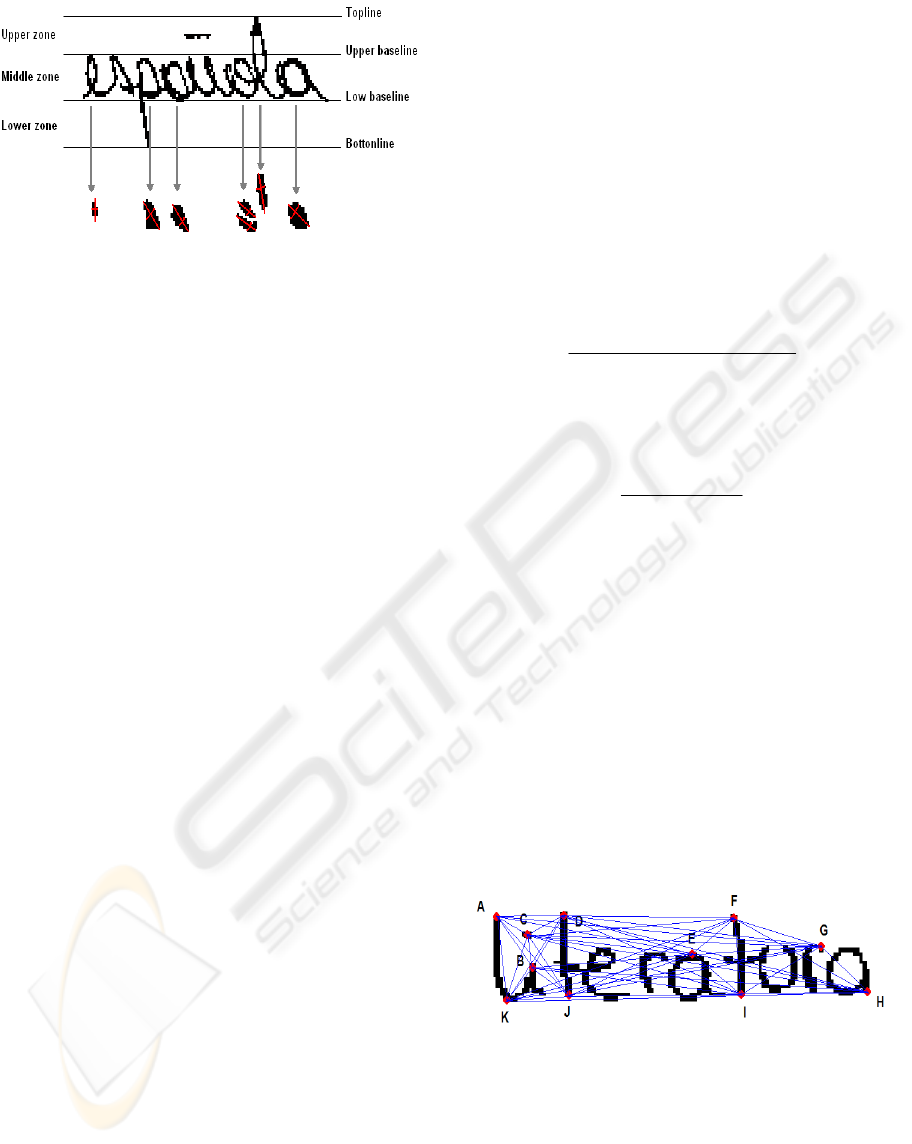

well defined (see figure 2). Besides, it is eliminated

the existing noise in the images after scanning

process, by morphological mathematics.

As previous step to the separation of words or

components connected (by labelling), the detection

and elimination of the punctuation marks (points,

accents and comma) is carried out, by a size

threshold, In particular, we have removed

components connected if they were minor than 60

pixels.

4 FEATURE EXTRACTION

In this present work, we have introduced some new

parameters (graphologist characteristics), and they

have been joined to some classical parameters

(Leedham et al., 2003), (Romero et al., 2007), in

order to improve the previous references.

Handwriting cohesion is called to the percentage

of unions that appear between the letters of the same

one; when saying unions talk about the final strokes

of the letters are continued with the initials of the

following letters without ballpoint pen rises of the

paper.

In order to make an estimation of the cohesion in

the handwriting, the images of the 34 words of each

sample are selected and binarized and their

components connected with connectivity-8 are

labelled to them. As soon as the quantity of

components connected of each word is obtained, it is

proceeded to calculate the average and the variance

of the components connected. Those words have

been selected by their size, the largest.

As for the analysis of the ovals and loops of the

words, segmentation is carried out obtaining an

image where only appears the above mentioned

characteristic (see Figure 2) (Leedham et al., 2003).

The ovals and loops are calculated by labelling, the

closed zones are obtained, and a threshold is

established in order to remove the shortest ovals and

loops, minor than 60 pixels.

Then, it is done the measurement of the minor

and major axes of each ovals and loops from 34

words. Axes are calculated by maximum projection

using histograms. Finally, it is calculated the average

size of the above mentioned axes of the handwriting

sample in analysis.

Also it was studied the eccentricity feature for

both ovals and loops, but it was rejected because it

was producing a decrease of successes rate, because

of the fact that the eccentricity value was very

similar for the inter-classes and intra-classes

relation, and with great variance.

Giving an estimation of the speed, the cohesion

and the oval shapes also it is analyzed particular

features of following letters "a, d, g, q, b, p, o",

HYBRID PARAMETERIZATION SYSTEM FOR WRITER IDENTIFICATION

451

Figure 2: Ovals and loops with its respective major and

minor axes.

which consist on a rounded part or oval that can be

joined or not with the following stroke or with an

ascending or descending. This letters are found by a

labelling of closed area, and non with letter

recognition, because there are writers, who writes

open letters, without loops and ovals.

This new characteristic has been included in the

list of the classical characteristics already developed

in (Romero et al., 2007), (Hertel et al., 2003):

 length of the words,

 quantity of pixels in black,

 estimation of the width of the letters,

 height of the medium body of writing,

 heights of the ascending and descending,

 height relation between of the ascending and

medium body,

 height relation between descending and

medium body,

 height relation between descending and

ascending,

 height relation between medium body and the

wide of writing,

 proportionality index.

The quantity of black pixels and the length of

words (horizontal size of the image), they will give

us an estimation of the dimension and thickness of

the line, the wide of letters and the height of the

medium body. Besides these are distinctive

characteristics of the style of writing.

The estimation of the width of letters is carried

out, seeking the row with greater quantity of black to

white transition (0 to 1). It is counted the number of

white pixels between each transition, this result is

averaged.

In order to measure the height of the medium

body of the words, the goal is to determine the upper

and lower baseline through maximums and

minimum values and to measure the distance among

them (see figure 2).

In order to approach baselines of each word, it

was decided to use the adjustment of minimum

mean square error that is based on find the equation

(see expression 1) that better be adjusted to an set of

points "n" (Chin et al., 1997). The equation is the

following:

baxy

(1)

where the coefficients “a” and “b” determine the

lineal polynomial regression by means of the

following expressions:

∑∑

∑∑∑

===

⎟

⎠

⎞

⎜

⎝

⎛

−

⎟

⎠

⎞

⎜

⎝

⎛

⎟

⎠

⎞

⎜

⎝

⎛

−

xxn

yxyxn

111

(2)

xay

∑∑

−

(3)

Those values of “a” and “b”, based on the

coordinates of minimums or maximums detected in

the contour of the word, are different baselines.

Minimums are to approach the lower baseline and

the maximums for the superior baseline.

The extraction of the proportionality index is

semi-automatic system because the sample of the

word is displayed in the window of the screen and

the operator will mark on the zoomed window, the

interest points using the mouse. This process will be

automated in future works.

The selection of the points is done with the most

representative sites as they can be the ascending

ones, descendent, terminations, etc.

Figure 3: Segments obtained when points are united.

Then, it is united the marked points (to see

Figure 3); each line formed between two points is

considered as a segment. Next, we measured the

length of each segment obtaining a list of lengths.

Using this list, we calculated the average length

and its variance, obtaining proportionality indexes.

BIOSIGNALS 2009 - International Conference on Bio-inspired Systems and Signal Processing

452

5 CLASSIFICATION

AND RESULTS

The identification can be seen as a problem of

classification of N classes, in our case N writers.

There are two variations of interest when are

compared the samples: about the writing of a same

writer and between the writings of two different

writers. The variation of a writer among their own

samples should be smaller than the variation among

samples of two different writers.

In order to give solution to this problem, the

methodology of the used identification was

independent supervised classification. Therefore, we

have a system with two modes, training and test

mode.

For the training, we have used the 50% of our

database, and the remainder to carry out the test

mode. That is, five samples have been chosen to

training and other five for the test, since we have 10

samples for each writer. Besides, a total of 34 words

have been extracted from paragraphs, and there will

be 34 words by sample.

Like our parameters depend on words used and

its writer, we have used the same word for this

process; in particular, we have used a set of 34

words from the paragraph of 15 lines. But, the

samples set for training and test mode of these 34

words are different, being obtained from 10 different

samples of each writer. Therefore, this system works

with a close set of words (34 words).

In order to calculate the characteristics, we have

used 170 words (34 x 5 samples/writer) on the

training process. The criterion of selection to choose

the previous 34 words was their length, mayor of 5

letters, because with this length, they offer

information more general than a word with a shorter

size.

Experiments have been carried out in five times,

for which the results are shown by their averaged

rate and their standard deviation (see table 1). In

each time, the training and test samples were chosen

randomly, with an independent training and test of

sample.

As classifier, we have used a Feed-Forward

Neural Network (NN) with a Back-propagation

algorithm for training (Bishop, 1995) (Juang et al.,

1992), where the number of input neurons is given

by the dimension of the vector of features wit 374

parameters (11 parameter x 34 words). And the

number of output neurons is given by the number of

writers to identify.

Too, we have researched with different number

of neurons in the hidden layer, and finally, 180

neurons were used, because they have presented the

better results.

The average success rate for recognition is 93.02

%, with a standard deviation of 0.83. But this result

was improved using the method of the ‘more voted’

algorithm, where we have built a schedule with 10

neural networks (see figure 4), and we have reached

a recognition rate of 96 %, with a standard deviation

of 0. Those results can be observed on the following

table.

Table 1: Comparison of results without new features vs.

with new features.

Features Mean

Standard

Deviation

Classical features 81,08 % 1,52

Classical Features+Cohesion 89,28 % 1,18

Classical

Features+Cohesion+Axis

93,02 % 0,83

Classical

Features+Cohesion+Axis and

using ‘More voted’ Algorithm

96,00 % 0

Figure 4: Classification System with ‘more voted’

algorithm, based on NN.

Table 2: Comparison of results among different published

methods vs. our work.

Author

Number of

writers

Success

Rates

(Said et al., 1998) 40 95,00 %

(Zois et al., 2000) 50 92,50 %

(Marti et al., 2001) 20 90,70 %

(Srihari et al., 2001) 100 82,00%

(Hertel et al., 2003) 50 90,70 %

(Bensefia et al., 2005) 150 86,00 %

(Schomaker et al., 2004) 100 95,00%

(Romero et al., 2007) 30 94,66%

This present work 70 96,00%

It is a difficult to do a comparison between the

different references, because each one uses a

Neural Network

‘More

Voted’

Algorithm

Neural Network

HYBRID PARAMETERIZATION SYSTEM FOR WRITER IDENTIFICATION

453

different database. Therefore, in the table 2 is

showed the number of writer and its success. For

this present work has been obtained a better success

rate with more writers. In the future works, we are

working on the increase of our database and the

creation of novel and discriminative parameter.

6 CONCLUSIONS

For Graphologist or Forensic Experts, the combined

features (classical and novel graphologist

parameters) contribute more reliable information in

order to identify a person.

Therefore in this work, we have developed a

combined parameterization between classical and

novel graphologist characteristics, in order to be

used in the writer identification from handwriting

documents. In fact, the use of these novel parameters

has improved the classical system.

We have used a back-propagation NN for the

classification. And in order to improve results, we

are implemented a ‘more voted’ algorithm. The

success rate is 96% for 70 writers.

The experiments carried out with our database to

evaluate the power of discrimination of the

implemented characteristics, it is allowing us to

show the considerable increase of the success rate

with all the developed characteristics.

ACKNOWLEDGEMENTS

This present work has been supported by Education

and Science Ministry from Spanish Government

(TEC2006-13141-C03-01).

REFERENCES

Otsu, N., 1979. A threshold selection method from gray-

level histograms. In IEEE Transaction on Systems,

Man and Cybernetics, Vol. 9, Issue 1, pp 62-66.

Gupta, S., Namboodiri, A.M., 2007. Repudiation

Detection in Handwritten Documents. In Lecture

Notes in Computer Science. Vol. 4642, pp. 356-365.

Leedham, G., Chachra, S., 2003. Writer Identification

using Innovate Binarised Features of Handwritten

Numerals. In Proceeding of the 7th International

Conference on Document Analysis and Recognition.

Vol. 1, pp. 413-416.

Romero, C.F., Travieso, C.M., Alonso, J.B., Ferrer, M.A.,

2007. Using Off-line Handwritten Text for Writer

Identification. In WSEAS Transactions on Signal

Processing. Issue 1, Vol. 3, pp. 56-61.

Hertel, C., Bunke, H., 2003. A Set of Novel Features for

Writer Identification. In Proceedings of the Audio and

Video Based Biometric Person Authentication. pp.

679-687.

Chin, W., Harvey M., Jennings, A., 1997. Skew Detection

in Handwritten Scripts. In IEEE Region 10 Annual

Conference. Speech and Image Technologies for

Computing and Telecommunications. Vol. 1, p. 319-

322.

Bishop, C.B., 1995. Neural Networks for Pattern

Recognition, Oxford University Press.

Juang, B.H., Rabiner, L.R., 1992. Spectral representations

for speech recognition by neural networks-a tutorial.

In Proceedings of the Proceedings of the Workshop

Neural Networks for Signal Processing. pp. 214 – 222.

Said, H.E.S., Peake, G.S., Tan, T.N., Baker, K.D., 1998.

Writer Identification from Non-uniformly Skewed

Handwriting Images. In Proceedings of the 9th British

Machine Vision Conference. pp. 478-487.

Zois, E.N., Anastassopoulus, V., 2000. Morphological

Waveform Coding for Writer Identification. In Pattern

Recognition. Vol. 33, Nº3, pp. 385-398.

Marti, U.V., Messerli, R., Bunke, H., 2001. Writer

Identification Using Text Line Based Features. In

Sixth International Conference on Document Analysis

and Recognition, pp. 101-105.

Srihari, S., Cha, S.H., Arora, H., Lee, S., 2001.

Individuality of Handwriting: A Validity Study. In

Proceedings ICDAR’01. pp 106-109.

Bensefia, A., Pasquet, T., Heutte, L., 2005. Handwritten

Document Analysis for Automatic Writer

Recognition. In Electronic Letters on Computer Vision

and Image Analysis. pp. 72-86.

Schomaker, L., Bulacu, M., 2004. Automatic Writer

Identification Using Connected-Component Contours

and Edge-Based Features of Uppercase Western

Script. In IEEE Transactions on Pattern Analysis and

Machine Intelligence. Vol. 26, No. 6, pp. 787 – 798.

Romero, C.F., Travieso, C.M., Alonso, J.B., Ferrer, M.A.,

2006. Writer Identification by Handwritten Text

Analysis. In Proceeding of the 5th WSEAS int. Conf.

on System Science and Simulation in Engineering. pp.

204-208.

BIOSIGNALS 2009 - International Conference on Bio-inspired Systems and Signal Processing

454
