MULTI-MODAL FUSION OF SPEECH-GESTURE USING

INTEGRATED PROBABILITY DENSITY FUNCTION

Chi-Geun Lee, Mun-Sung Han

Electronic and Telecommunication Research Institute, u-Computing service Research Team, Korea

Chang-Seok Bae, Jin-Tae Kim

Electronic and Telecommunication Research Institute, u-Computing service Research Team, Korea

Keywords: Probability Density Function (PDF), Multi-modal recognition, Classifier level Fusion Recognition, Pattern

Recognition.

Abstract: Recently, multi-modal recognition has become a hot topic in the field of Ubiquitous, Speech and gesture

recognition, especially, are the most important modalities of human-to-machine interaction. Although

speech recognition has been explored extensively and successfully developed, it still encounters serious

errors in noisy environments. In such cases, gestures, a by-product of speech, can be used to help interpret

the speech. In this paper, we propose a method of multi-modal fusion recognition of speech-gesture using

integrated discrete probability density function omit estimated by a histogram. The method is tested with a

microphone and a 3-axis accelerator in a real-time experiment. The test has two parts : a method of add-and-

accumulate speech and gesture probability density functions respectively, and a more complicated method

of creating new probability density function from integrating the two PDF’s of speech and gesture.

1 INTRODUCTION

Computing applications are becoming increasingly

complex and pervasive as exemplified by ubiquitous

microprocessors in every appliances and resulting

feature explosion. Recent technologies like speech

or gesture recognition can make such systems more

natural, easy to use, and robust. With the rapid

advancement of computer software and hardware

technology, the field of human-to-human interface

has been developed. Along with aid of computers,

many researchers and engineers have made

machines user-friendly. The natural combination of

a variety of modalities such as speech, gesture, gaze,

and facial expression makes human-to-human

communication easy, flexible and powerful (Sharma

et al., 1998). Similarly, when interacting with

computer systems, users seem to prefer a

combination of several modes to a single one alone.

Despite the much interest and extensive research

in the last decade, human-to-computer interaction

(HCI) is still at an early stage of development.

Therefore its ultimate goal of building natural

perceptual user interfaces remains a challenging

problem.

Two concurrent factors produce awkwardness.

First, the current HCI systems make use of both

rigid rules and syntax over the individual modalities

involved in dialogues. Second, speech and gesture

recognition, gaze tracking and other channels are

isolated because we do not understand how to

integrate them to maximize their joint benefit.

The speech recognition, in particular, needs great

improvements on the robustness and accuracy to

overcome the noisy effect of ambient environment

for commercialization. With growing need and

interest on enhancement of multi-modal fusion

technology, the research for the fusion method of the

various modalities is actively in progress.

The multi-modal fusion method is classified into

features vector level fusion and classifier level

fusion. Feature vector level fusion method has an

advantage of using correlation of the feature data

information of each modality, but it suffers from

computational complexity due to increase of the

number of feature vectors. Another downside of this

method is that it requires a large set of training

information for a robust recognition rate. On the

211

Lee C., Han M., Bae C. and Kim J. (2009).

MULTI-MODAL FUSION OF SPEECH-GESTURE USING INTEGRATED PROBABILITY DENSITY FUNCTION.

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing, pages 211-215

DOI: 10.5220/0001432402110215

 SciTePress

contrary, Classifier fusion method has a key

advantage of simplicity because of recognizers that

are independent, but it has a flaw of its inability to

utilize feature vectors. The simplest form of

classifier fusion method is integrating the weighted

values of two recognition results.

In recent studies, several improvements on

various methods are proposed. Some of the fusion

methods proposed are a method to use each modality

information asynchronously (Alissali et al., 1996), a

method to calculate a suitable weighted value

dynamically according to the confidence of each

modality (Heckmann et al., 2001), (Glotin et al.,

2001), (Ghosh et al., 2001), a method to add new

recognizer in order to combine each recognition

result. The following is the usual procedure for

fusion recognition process: From each modality, the

feature vector is extracted from received input data.

Each recognition score is then estimated by various

recognition algorithms. Finally weighted value is

given to the recognition score of each modality in

order to integrate the modalities (Heckmann et al.,

2001), (Glotin et al., 2001), (Ghosh et al., 2001),

(Kim et al., 2003), (Kwak et al., 2006).

One of the most important problems in the multi-

modal fusion recognition is how to integrate two

modalities. Usually, the number of sample data has

to be large enough to yield an acceptable PDD

(Probability Density Distribution) in order for a

recognition process to be executed on.

In this paper, a discrete probability density

function (PDF) estimated by a histogram for speech-

gesture multimodal fusion is used extensively. The

discrete PDF by histogram is known to produce a

good estimation of a distribution if the number of

samples is sufficient, but the demerit of this

approach is the inherent discontinuity. To avoid this

problem, this paper proposes to use integrated

discrete PDF instead of discrete PDF as it is. In this

way, a reasonable estimation for all value ranges can

be obtained. Furthermore, even in cases that the

number of sample is not sufficiently large, a

reasonable estimation can be obtained.

The proposed method is tested with microphone

and 3-axis accelerator in real-time environment. The

test has two parts: a simple method of add-and-

accumulate speech and gesture probability density

distribution(PDD) separately, and a more

complicated method of creating new probability

density distribution from integrating the two PDD’s

of speech and gesture.

The integrated PDF method that proposed in this

paper had improvement of performance about 3%

compare to the add-and accumulate method.

In section 2, the proposed speech-gesture fusion

recognition system is described. Section 3 explains

the multimodal fusion algorithm using integrated

PDF. Utterance and gesture model list which used in

experiment is explained in section 4. The

experimental result is given in section 5. Finally, we

describe conclusion in section 6.

2 SYSTEM ARCHITECTURE

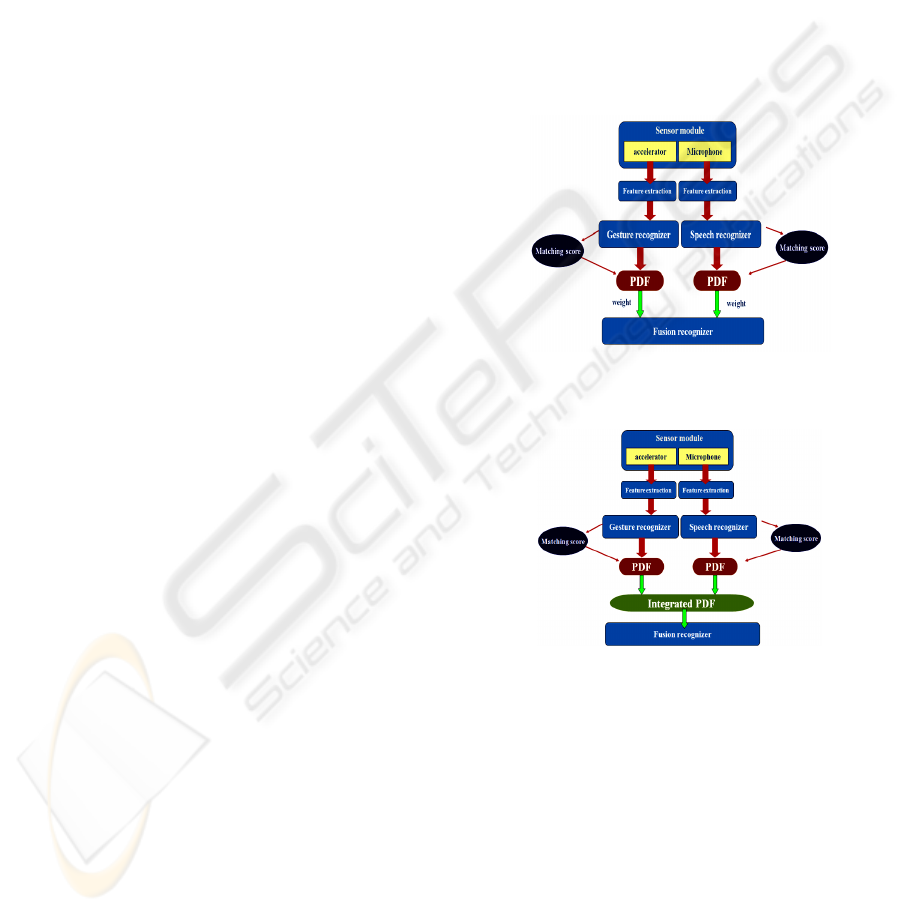

The Speech-gesture fusion recognition system

architecture that implemented for experiment in this

paper is shown in figure 1 and figure 2.

Figure 1: Multi-modal Fusion system using add-and-

accumulate PDD’s.

Figure 2: Multi-modal Fusion system using integrate

PDD’s.

The architecture consists of sensor module,

feature extraction module, independent recognition

module, and fusion recognition module. The sensor

module consists of 3-axis accelerometer and a

microphone in order to obtain the speech and gesture

input data. The feature extraction module is to

extract the feature vector from speech and gesture

input data. Speech feature extraction module is

comprised of the following two modules: Start and

End point Detection module based on the frame

energy, and a feature extraction module based on

Zero-Crossing with Peak Amplitude (ZCPA) and

RelAtive SpecTrAl algorithm (RASTA). The

BIOSIGNALS 2009 - International Conference on Bio-inspired Systems and Signal Processing

212

gesture feature extraction module extracts feature

vectors from accelerometer-based gesture. This

module consists of the following two modules: a

Start Point Detection module based on threshold and

a Feature Extraction module based on velocity

vector.

Speech and gesture recognizer trains the feature

vector received from feature extraction module and

recognition process is executed. Fusion recognition

module then calculates the PDF (Probability Density

Function) based on recognition score from the

results of speech and gesture recognition followed

by creating PDF files. The PDF files are given

weighted value to yield the highest fusion

performance. The fusion recognition module is then

executed either by adding each PDD or by creating a

new histogram according to two different PDDs.

3 MULTI-MODAL FUSION

RECOGNITION ALGORITHM

In this paper, we calculate the recognition score for

the speech and gesture using recognition result of

each modality. Subsequently, we make histogram

about on speech and gesture using recognition score

respectively, and then, we calculate the each

Probability Density distribution for speech and

gesture using the histogram already created.

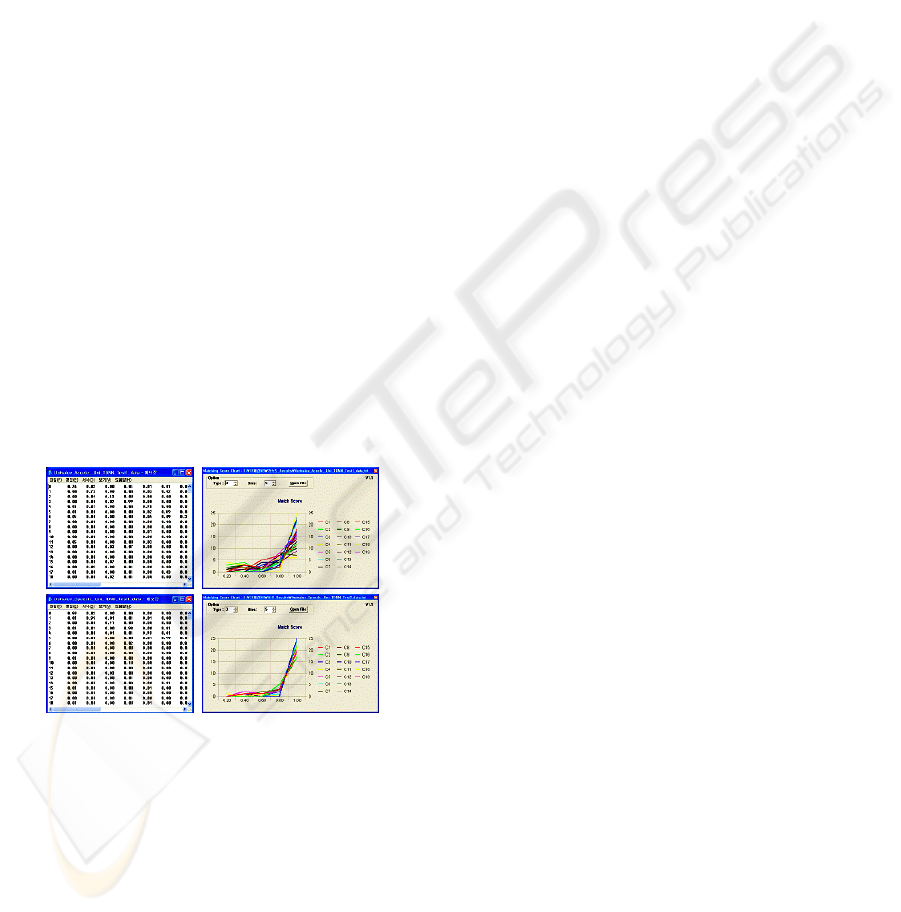

Figure 3: Gesture-Speech recognition score & Histogram.

The recognition score means a degree of

confidence in the recognition and we can assume

that the larger the recognition score is, the higher the

degree of confidence is. In each recognition system,

the recognizer decides that the input data is that of

the learned gesture-speech model with highest

recognition score.

Figure 3 shows the distribution of the recognition

scores for each recognition system. The distributions

are histograms of recognition scores that are

normalized such that the sum of all bins equals 1.

3.1 Probability Density &

Fusion Recognition Algorithm

In this paper, we propose to use an integrated

discrete probability density function for Speech-

gesture fusion recognition. When a certain random

variable cannot be modeled efficiently by well-

known probability density function, integrated

discrete PDF is an effective alternate method to

estimate. With the advantage of its simplicity and

adoptability, the histogram method yields a

reasonable estimate of the original PDF only if there

is sufficient number of samples (Heckmann et al.,

2001). In our experiment, accumulated and

integrated methods of discrete PDF have been

compared to show the integrated method is indeed

effective.

Accumulated discrete PDF is an accumulation of

the discrete PDF by the following equation.

∑

nHKP

)()( (1)

∑

nHKP

)()(

(2)

In the above equation,

)(XH

and

)( XH

are

histograms that are created by recognition score for

each Speech and Gesture class. N is the number of

bins in the histogram.

)(XP

and

)(XP

are

accumulated discrete PDF for Speech and Gesture

classes respectively.

)(XP

is the probability of

recognition score that belongs to speech class and

)( XP

is of gesture class. Each value ranges from 0

to 1 and is normalized so that same value means

same degree of confidence in recognition systems.

In this paper, we implemented accumulated

discrete PDF system first. For the Speech-gesture

fusion recognition, we add two PDFs,

)(XP

and

)(XP

from each recognition system.

The following equation is speech-gesture fusion

method used in accumulated discrete PDF system.

When a recognition score

from speech

recognition system and

from gesture recognition

system are present, the fusion probability F is,

)()1()(

GGSSSS

XPwXPwF •−

•

(3)

where,

)(XP

and

)( XP

are accumulated discrete

PDFs for speech and Gesture recognition systems

respectively.

is the weighting factor to yield

higher performance of fusion recognition system.

MULTI-MODAL FUSION OF SPEECH-GESTURE USING INTEGRATED PROBABILITY DENSITY FUNCTION

213

As the Second method that proposed in this

paper, we can present following equation based on

the equations (1)(2)(3) for the integrated discrete

PDF,

∑

SGSG

nHKP

)()( (4)

where,

is integrated discrete probability

density function for speech and gesture.

is a

histogram obtained from recognition score for the

speech and gesture class. N is the number of bins in

the histogram.

4 GESTURE AND UTTERANCE

In this paper, we define 19 kinds of speech and

natural gestures model separately, which is happen

in daily life concurrently.

Figure 4: Gesture model.

For the define of gesture and speech model, we

selected general speech and symbolic gesture such

as grab, release, open, close, come here, bye, up,

down, right, left, hot, cold, sweat, etc.

Figure 4 is shown that gesture model which for

experiment in this paper.

5 EXPERIMENT AND RESULT

Initially, we analyze the two modalities, namely

speech and body gesture separately. Two modalities

are asynchronous but temporally correlated. For our

concurrent speech and body gesture, classifier fusion

method is the most common way of integrating such

modalities (Glotin et al., 2001). We have

experimented speech-gesture fusion recognition

systems with 19 utterance and gesture.

The test has two parts : a method of add-and-

accumulate speech and gesture probability density

functions separately, and a more complicated

method of creating new probability density function

from integrating the two PDF’s of speech and

gesture. Test is executed in real time in a noisy

environment, and it tested with the speaker-

dependent method.

Speech and gesture feature is extracted by using

zero-crossing with peak amplitude and delta values

between start and end point of gesture. The

experimental data set is collected with a microphone

and 3-axis accelerator. Data corpus consists of 200

units per each speech and gestures. 150 training

units are used, and 50 units are used as test data.

Table 1: Comparison of fusion recognition rate according

to fusion methods.

SNR

Accumulated

PDF

Integrated

PDF

Clean 96.4 98.6

5dB 94.0 97.0

0dB 81.4 85.2

-5dB 64.8 69.6

Table 1 shows the performance for the two

fusion recognition system according to fusion

methods. As shown in table 1, our system has some

improvements on fusion recognition rate in various

noisy environments compared with accumulated

PDF fusion method. If the number of sample data or

modalities were increased, the fusion recognition

performance will be more improved because of the

characteristics of probability density function.

Therefore, the result of this experiment

demonstrates that our fusion method is more

efficient than the accumulated PDF fusion method.

6 CONCLUSIONS

Multi-modal fusion recognition has been tried by

many studies to compensate poor performance in

recognition rate of speech in a noisy condition.

Especially, Speech and gesture are the most

important modalities of human to machine

interaction. For the Multi-modal fusion recognition,

it is essential to use efficient integration method.

In this paper, we proposed the new method that

integrates the Probability Density Function. Our

experiment has shown that the fusion recognition

BIOSIGNALS 2009 - International Conference on Bio-inspired Systems and Signal Processing

214

performance is improved by using the integrated

PDF compared to the legacy accumulated PDF

method. We expect that our proposed method is

useful in the classifier level fusion recognition area.

ACKNOWLEDGEMENTS

This work was supported by the IT R&D program of

MKE/IITA, (2006-S032-02, Development of an

Intelligent Service technology based on the Personal

Life Log), (2008-P1-15-07J31, Research on Human

friendly Next Generation PC Technology

Standardzation on u-Computing).

REFERENCES

Rajeev Sharma, Vladimir I. Pavlovic. Thomas S.Huang,

"Toward Multimodal Human-Computer Interface",

Proceedings of the IEEE Vol. 86. No5. May 1998.

D. Alissali, P. Deleglise, A. Rogozan, "Asynchronous

integration of visual information in an automatic

speech recognition system", in Proc. of Fourth

International Conference on Spoken Language(ICSLP

96), Vol. 1, pp. 34 -37, 1996

M. Heckmann, F. Berthommier, K. Kroschel, "Optimal

weighting of posteriors for audio-visual speech

recognition", in Proc. of IEEE International

Conference on Acoustics, Speech, and Signal

Processing, Vol. 1, pp. 161 -164 , 2001

H. Glotin, D. Vergyr, C. Neti, G. Potamianos, J. Luettin,

"Weighting schemes for audio-visual fusion in speech

recognition", in Proc. of IEEE International

Conference on Acoustics, Speech, and Signal

Processing, Vol. 1, pp. 173 -176, 2001

A. Ghosh, A. Verma, A. Sarkar, "Using likelihood L-

statistics to measure confidence in audio-visual speech

recognition", in Proc. of IEEE Fourth Workshop on

Multimedia Signal Processing, pp. 27-32, 2001

S. Lucey, S. Sridharan, V. Chandran, "Improved speech

recognition using adaptive audio-visual fusion via a

stochastic secondary classifier", in Proc. of

International Symposium on Intelligent Multimedia,

Video and Speech Processing, pp. 551 -554, 2001.

D. Kim, J, Lee, J. Soh, Y. Chung. "Real-time Face

Verification using Multiple Feature Combination and

SVM Supervisor", ICASSP, 2003, Vol. 2, pp 353-356.

Keun-Chang Kwak, Kyu-Dae Ban, Kyung-Suk Bae,

"Speech-based Human-Robot Interaction Components

for URC Intelligent Service Robot", IEEE/RSJ

International Conference on Intelligent Robots and

Systems, Video Session, 2006.

U. Meier, R. Stiefelhagen, J. Yang, A. Waibel, "Towards

Unrestricted Lipreading", International Journal of

pattern Recognition and Artificial Intelligence, Vol.

14, No. 5, pp. 571-785, 2000.

Byung-Jun Yoon and P.P. Vaidynathan, "Discrete PDF

estimation in the presence of noise", Proc.

International Symposium on Circuits and Systems

(ISCAS), Vancouver, May 2004.

MULTI-MODAL FUSION OF SPEECH-GESTURE USING INTEGRATED PROBABILITY DENSITY FUNCTION

215
