ARCHETYPE ALIGNMENT

A Two-level Driven Semantic Matching Approach to

Interoperability in the Clinical Domain

Jesús Bisbal

Universitat Pompeu Fabra (CISTIB) and CIBER-BBN, Pg Circumvallacio 8, Barcelona 08003, Spain

Damon Berry

Dublin Institute of Technology, School of Electrical Systems Engineering, Kevin Street, Dublin 6, Ireland

Keywords: Electronic health records, Two-level modelling, Archetypes, Interoperability, Semantic interoperability,

Ontologies, Ontology alignment.

Abstract: Semantic interoperability between electronic health record systems and other information systems in the

health domain implies agreement about the structure and the meaning of the information that is

communicated. There are still a number of similar but different EHR system approaches. Some of the newer

approaches adopt the two-layer model approach where a generic reference model is constrained by

archetypes into valid clinical concepts which can be exchanged. The meaning of the concepts that are

represented by an archetype can be conveyed by embedding codes from a commonly recognised

terminology at appropriate points in the archetype. However, as the number of archetypes multiply it will

become necessary to match archetypes from different sources to facilitate interoperability.

This paper describes an approach that supports semantic interoperability between heterogeneous two-level

health information systems by identifying similarities between archetypes. The approach identifies

relationships between ontological terms which have been embedded in pairs of archetypes as a means of

matching these terms. The matched terms can then in turn be used to identify similarities between

archetypes. The limited contextual scope of an archetype simplifies this matching process.

1 INTRODUCTION

Safe interoperability of clinical information systems

(Grimson 2001; Dick 1997) requires that the

information being transferred includes all necessary

context so that it can be appropriately interpreted at

a site (e.g. hospital) that is different from where that

information was originally captured.

Misinterpretations may lead to fatal medical

decisions (Kohn 2000). This requirement has widely

been acknowledged in the medical domain (Grimson

2001). Also, in biomedical research (e.g. genomics),

for example, capturing the context of information

has also been clearly identified as an important

requirement (Goble 2008), but a generic

architectural solution has not emerged, as in the case

of clinical applications.

The traditional software engineering approach to

modelling any domain consists of creating a

(possibly very large) model which contains all the

information that is considered necessary for the

software application at hand. The necessary

information is identified by the user experts that take

part in the project. This approach has repeatedly

been followed in the medical domain, and it has

proved rather unsatisfactory (Garde 2007). The

medical domain is characterized by being (Martinez-

Costa 2008):

1. Large: e.g. a well known clinical taxonomy,

SNOMED-CT, contains over 350.000 atomic

concepts and 1.5 million relationships;

2. Complex: different views of information,

requirements, and granularity, all of which must

be represented in the model; and

3. Open-ended: advances in clinical research

constantly update clinical practice, which in

turn change the type of information that is

considered necessary for a given application.

216

Bisbal J. and Berry D. (2009).

ARCHETYPE ALIGNMENT - A Two-level Driven Semantic Matching Approach to Interoperability in the Clinical Domain.

In Proceedings of the International Conference on Health Informatics, pages 216-221

DOI: 10.5220/0001541502160221

 SciTePress

Therefore, instances of a single-model approach

necessarily represent a narrow view of the domain

that needs to be represented, as understood by the

specific set of users that have been involved in the

requirements phase. If a different set of users is

involved, it is likely that a rather different set of

information items will be judged as necessary,

although it will be equally valid.

Currently, it is believed that the most promising

approach to model the clinical domain for

interoperability purposes consists of separating what

is Information, from what is domain Knowledge.

Accordingly, the clinical domain is modelled using

the so-called two-level modelling approach (Grimson

1998; Beale, 2002; Garde 2007). The first level,

referred to as the Reference Model, contains a very

reduced set of building blocks or classes of an object

model, which have a very abstract meaning (i.e.

Element, Item, Entry, Section, Composition, and

Folder). These building blocks are organised in a

hierarchical structure according to a set of generic

constraints. Due to the abstract meaning of these

classes, however, any clinical concept can be

modelled using only this limited set of classes. A

clinical concept (e.g. blood pressure, problem list)

that has been modelled by applying further clinical

constraints to these abstract classes represents the

second level of this architectural approach, the

Knowledge, and is referred to as Archetype.

Archetypes are the basis on which interoperability is

performed in the two-level approach. Figure 1 shows

a representation of the actors involved in this

approach, as well as their relationships (Beale 2002).

It must be noted that the two-level modelling

approach is currently being adopted by the major

medical information standardization bodies: CEN

13606 (or EHRcom, http://www.centc251.org/), and

HL7 RIMv3

(http://www.hl7.org/). Additionally, the

OpenEHR

(http://www.openehr.org/) foundation

provides another specification and open source

implementation of this approach. Although attempts

have been made, there is still further work to

harmonise the reference models and archetype

models used by these efforts.

Therefore, for the time being, in order to achieve

semantic interoperability of clinical applications, the

two-level modelling approach does not suffice. At

the very least, a mapping between the different (de

jure or de facto) standards is needed (Dogac 2005;

Martinez-Costa 2008; Iakovidis 2007). However, it

is also quite likely that more sophisticated mappings

between archetypes will also be required. As

described above, archetypes are the unit of

communication between interoperating applications,

as they define the minimum context that must be

considered for safe communication. Thus archetypes

must be agreed upon before communication. It does

not seem feasible, however, to expect that all

professionals of all disciplines will agree on exactly

all details of the archetypes associated to the data

they would like to exchange. If this approach

becomes widely accepted, it is certain that the

number of available archetypes will become very

large (at the time of writing there are aproximately

700 archetypes in OpenEHR). Although archetypes

are annotated with terms from standardised

ontologies (terminologies, taxonomies, etc), there

will still exist differences both at the archetype level,

as well as at the terminology level. Local variations

at the archetype level will stem from specialization

of archetypes for specific purposes and research

projects, and due to competing standards. Also, there

are several widely used terminologies that could be

used to annotate archetypes (e.g. SNOMED-CT,

MeSH, NCI, FMA). Local ontologies are also used

to annotate archetypes. Therefore, a sound and

general process for matching archetypes is essential.

This paper describes a novel approach to address

semantic interoperability in the healthcare domain.

Archetypes are used to scope the context of the

matching process that will allow two independent

healthcare providers to interoperate. It structures the

matching algorithms at two different levels, the

terminology level and the archetype level,

leveraging the most mature research on ontology

matching. The context of archetype will limit the

matching space, to allow for more accurate mapping

results and, due to the nature of archetypes,

ultimately to very high level of automation.

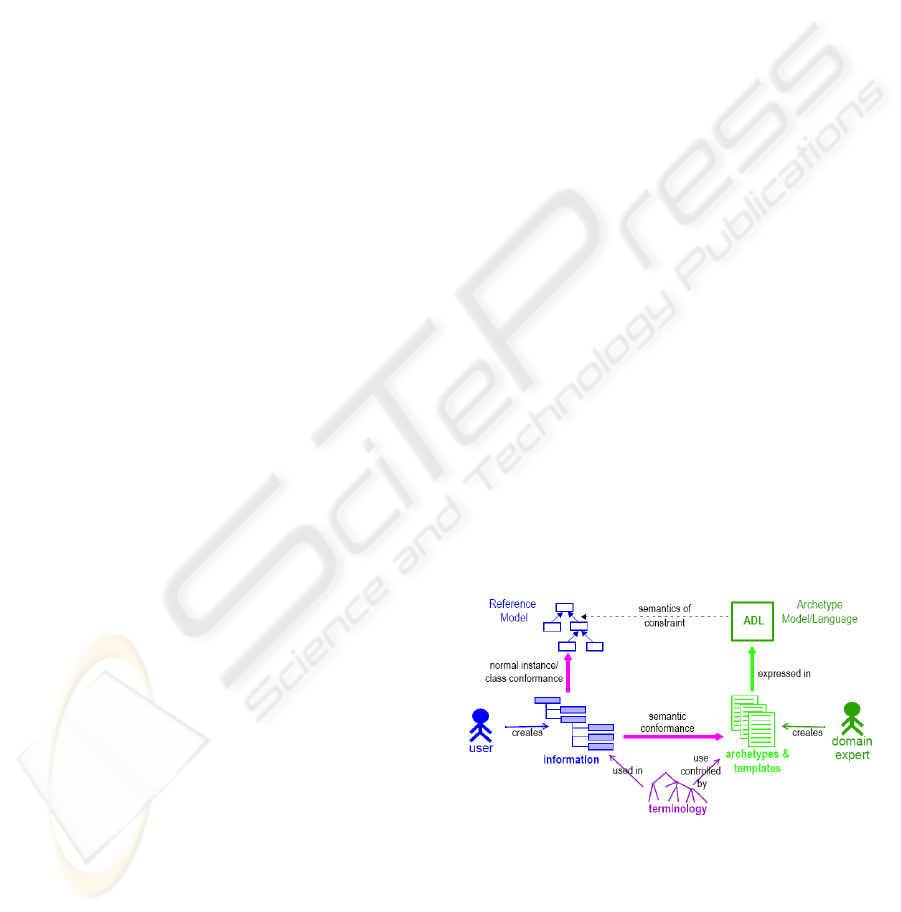

Figure 1: Two-level modelling approach (Beale 2002).

2 RELATED WORK

The two-level modelling paradigm was originally

proposed by the EU-funded project Synapses

(Grimson 1998). Since then, it has evolved (Beale

ARCHETYPE ALIGNMENT - A Two-level Driven Semantic Matching Approach to Interoperability in the Clinical

Domain

217

2002) incorporating additional constraints. This

evolution has not produced a unified approach, but

there are three major players. ISO 13606 and HL7´s

CDA RIMv3 are EU and USA standards. OpenEHR

is promoted by a commercial company

(http://oceaninformatics.biz), and is having a

significant impact. Some research projects aim at

facilitating the interoperability between these

approaches (Iakovidis 2007).

The Artemis project developed a framework to

map archetypes between different standards (Dogac

2005). It defined a syntactic transformation of

(ADL-defined) archetypes into OWL format. The

project developed a tool called OWLmt that was

used to manually define the mappings between the

archetypes, and then automatically map data

instances conforming to the source archetype into

instances conforming to the target archetypes. The

present paper aims at avoiding this manual mapping.

The Poseacle project (Martinez-Costa, 2008) is

taking a software engineering approach for the

semantic transformation of ADL archetypes into

OWL. The final goal is the transformation of one

archetype expressed in one standard into the same

archetype expressed into a different standard. In

contrast, the work presented here aims at aligning

two archetypes (expressed in same or different

standards) that may define similar but not

necessarily the same concepts.

An ontology is the explicit conceptualization of a

domain agreed upon by a community of users

(Martinez-Costa 2008). Due to the large number of

ontologies currently available for many domains and

applications, there is a need to match different

ontologies (i.e. to find equivalences) or to align

them (when the domains only partially overlap). A

large body of research exists on ontology matching

and ontology alignment approaches (Tan 2007).

There are two main categories of ontologies (Garde

2007). ‘Ontologies of reality’ describe real

phenomena, while ‘ontologies of information’

contain the information models of the content to be

stored or communicated. A collection of Archetypes

is an information ontology. The ultimate goal of the

research presented here is to adapt and extend

existing ontology alignment techniques to the

particular case of archetypes, in order to achieve

better quality results and more automation in

semantic interoperability.

3 SYSTEM ARCHITECTURE

As archetypes are the artefacts around which

interoperability is built, there is a need to

automatically map between archetype definitions.

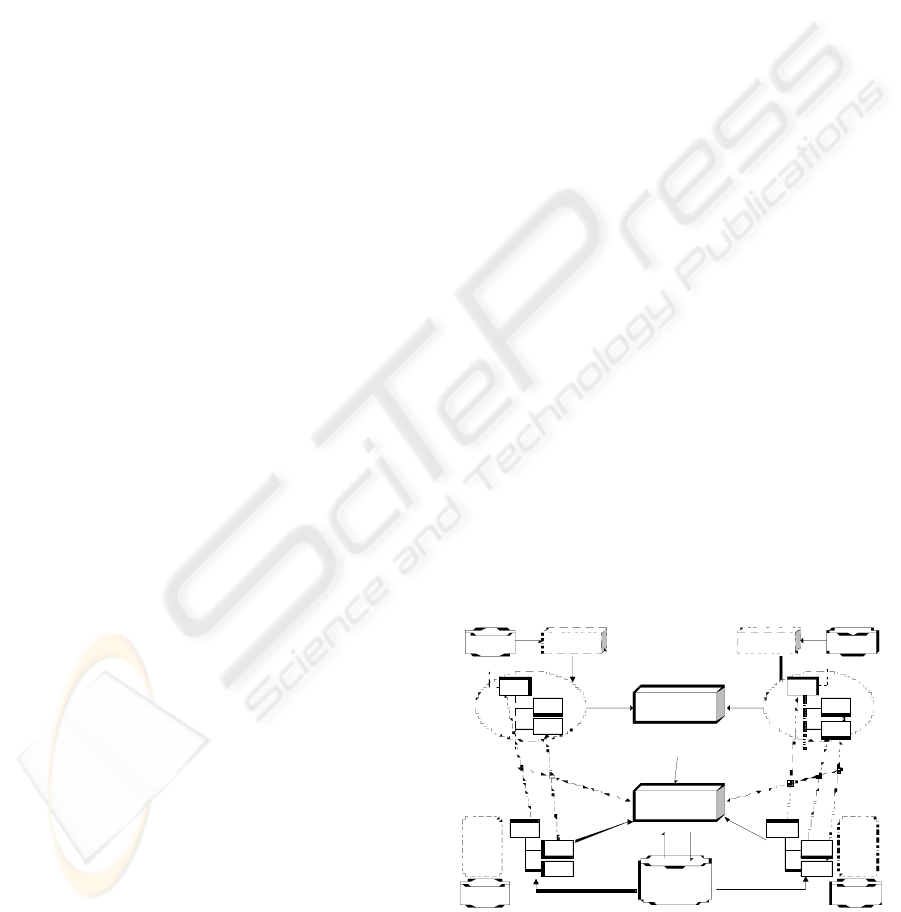

The architecture of the system being implemented to

achieve this goal is shown in Figure 2. The

architecture is clearly separated in two levels.

Archetypes (e.g. blood cholesterol) are used to guide

the alignment process and are used at both levels.

As described in the previous section, the

concepts defined in archetypes using classes from

the reference models are normally annotated using

terms from standard terminologies (e.g. MeSH).

These terminologies must be harmonized before

archetypes can be aligned. However, the alignment

of such ontologies is a significant task by itself.

Thus, a semantic interoperability approach based on

manipulating large terminologies (ontologies) would

suffer scalability (and quality) problems. It should

be noted, however, that archetypes provide a better

context for alignments than general. It is easier to

create mappings if the ontologies to map are smaller

and scoped to the application (Noy 2004). For this

reason, at the upper half of Figure 2, the references

to standard terminologies included in the archetypes

(their ‘annotations’) are extracted.

These references are used to query the standard

terminologies and consistently extract related

concepts (Noy 2004; Jiménez-Ruiz 2007). The

resulting subontologies should be of a reasonable

size, since an archetype must have a limited scope.

Therefore, existing alignment techniques can be

applied to these subontologies (Tan 2007). The

result of this step is a set of alignments between a

few concepts of these standard terminologies. In

some cases there already exists a metathesaurus (e.g.

UMLS) which defines equivalences between terms.

However, in general, especially in research

environments, this will not be the case.

Ont ology

Ali gnment

Ont ology

Ali gnment

(ge ne ric )

( archetyped)

Chol est erol

Archetype

( e.g. C EN 13606)

C holester ol

Ar c h e type

(e. g. OpenEH R)

(r eference models)

Alignments

Histor y

Archetyp es

Re p o s i tory

Archet ypes

R e pos itory

(context / anchors)

Of f -the-shelf tool (e.g .

P r om pt , FOAM)

Aligner–RM wi th

Anc ho r

Ontol ogi es

(Local, M e S H , .. .)

Ontology Interface

(e. g. P rot égé)

Ontologi es

(Local, NCI, ...)

Ont ol ogy Int er face

(e.g. P rotégé)

Extractio n of frames

relevan t to terms used

i n archet yp es

C1’

C2’

C3’

X’

A’

Align small p arts o f large o ntologies:

C1 – C1’ (99 %)

C2 – C2’ (95 %)

C3 – C3’ (91 %)

(anchors ) (anchors )

Figure 2: System architecture.

Once this initial step has been performed, the

aligned terms (concepts) are used as anchors (Noy

HEALTHINF 2009 - International Conference on Health Informatics

218

2001) to the next alignment module, at the lower

half of Figure 2. Anchors are pairs of already

aligned concepts, and are used to tune the similarity

measures of neighbouring concepts, ultimately

providing better quality alignments. This module

will match the remaining parts of the archetypes and

could be implemented using simply existing

ontology alignment algorithms. However, such an

approach would ignore the additional knowledge

provided by the reference models upon which

archetypes are built. Thus, the objective is to modify

the way alignment algorithms work so that they take

into account the specific characteristics of the

reference models (see Section 4). Once this is done,

this new module (termed in the figure Aligner-RM

with Anchors), would map the archetypes. Such a

mapping approach would fall into what is currently

referred to as Semantic Matching (Giunchiglia

2007). To the best of the authors’ knowledge, this

approach has not been yet investigated in the context

of archetypes, using the specific semantics of their

underlying reference models and hierarchical

structure (tree) of archetype definitions.

The last component of the architecture shown

in Figure 2 refers to the history of alignments

between archetypes successfully performed in the

past. Many existing tools store previous alignments

so that they may be reused in future alignment tasks

(Tan 2007). However, this is always done in a local

and proprietary way. The very nature of archetypes

implies that they must (to a large extend) be agreed

upon by a community. Also, the number of different

archetypes that two different healthcare providers

will be interested in exchanging (aligning) will also

be limited. Finally, there are currently only three

competing archetype models. Considering all these

characteristics, it will be very likely that the same or

very similar alignment tasks are repeatedly

performed by the communities using the two-level

approach. Therefore, the history of previous

alignments is expected to play a very central role in

an archetype-oriented alignment architecture. Given

the limited scope of archetypes and the limited

number of possible alignments, in the long run this

history of alignments should increase the level of

automation that could be achieved.

4 IMPLEMENTATION

The architecture described in the previous section is

currently under development. It has been designed

so that most of its components can be built using

existing open source code publicly available from

recent and current research projects. This approach

reduces the overall development time and increases

the quality of the resulting software, as its

components are updated by the advances of these

research projects.

All ontological components (terminologies and

archetypes) are used in their OWL format. Although

OWL is not yet the only language to describe

ontologies, it is becoming widely accepted. That

being said, existing terminologies, taxonomies and

ontologies have been written in many different

languages. For example, MeSH and NCI have their

own proprietary formalisms (now commonly

expressed also in XML). Biological ontologies are

commonly expressed in OBO. Finally, archetypes

have traditionally been expressed with ADL

(archetype definition language).

However, the current trend is towards expressing

all ontologies in OWL and, without loss of

generality, this is the assumption taken for this

architecture. Particularly, NCI is already available in

OWL format (NCI, 2008), and MeSH can readily be

transformed into OWL (Assem 2004). Finally,

recent developments (Martinez-Costa 2008) argue

for archetypes to be expressed in OWL, and some

example archetypes exist that have already been

semantically mapped into OWL. All of these

contributions are being incorporated into the

implementation of the architecture presented here.

Standard terminologies are too large to be

managed in a single file. Thus the implementation

reported here is storing and manipulating them in an

OWL database, using Protégé (protege.stanford.edu)

ontology management system.

The extraction of subontologies from these

standard terminologies is being implemented using

two of Protégé plug-ins that have this specific

purpose, namely Prompt (Noy 2004) and OntoPath

(Jiménez-Ruiz 2007).

The ontology alignment module shown at the

upper half of Figure 2 is generic; it does not add any

benefits to specialize its behaviour to the

characteristics of the two-level model. Its goal is

simply to align the (small) subontologies extracted

from large standard terminologies. Several possible

open source modules can be reused here. In

particular FOAM (Ehrig 2005) is being used for the

current implementation.

The most innovative contributions of the

architecture being implemented are, on the one hand,

the use of two levels of alignments and, on the other,

the actual mapping of archetypes (module at the

lower half Figure 2. The development of this module

is the only significant implementation effort needed

ARCHETYPE ALIGNMENT - A Two-level Driven Semantic Matching Approach to Interoperability in the Clinical

Domain

219

in order to fully realize and evaluate the architecture

advocated in this paper. Its implementation will

modify existing open source alignment algorithms

(particularly, FOAM). Much research will be needed

in order to fully exploit the specific characteristics of

archetypes and reference models in the

implementation of this module. The current

considerations that are being taken into account,

thanks to the existence of an underlying reference

model, include:

1. Elements of archetypes define value ranges that

the conforming data must satisfy. If these do not

match in both archetypes (intersect, include), it

is possible that the two archetypes may not be

aligned.

2. Archetypes can also express the units in which

measurements are taken. If units are different in

both archetypes, interoperation is jeopardized.

3. The reference models include the concept of

‘certainty’. If terms in archetypes do not satisfy

certainty thresholds, automated interoperation

may not be possible.

4. The building classes of the reference models in

all (three) competing standards of the two-level

modeling approach have abstract semantics.

Although the names of the classes are not

shared between these standards, their semantics

are quite similar. If alignments are to be

performed between archetypes of different

standards, aligning algorithms based on string

similarity measures will fail in this case, as class

names can be very disparate. Dictionary-based

approaches will not be of much help either, as

all names are quite abstract. Model Management

research (Atzeni 2008), see section 5, should be

used to address this issue.

5. Archetypes define a hierarchical organization of

classes from the reference model. The particular

location of a given element of an archetype

inside this hierarchy defines its context and

restrains its extract meaning. Semantic matching

research (Giunchiglia 2007) is being inspired by

the same observations, and it will be specialized

for the case of archetypes.

The evaluation of the current implementation of

the architecture described in Section 3 must show

the benefits of the two-level approach to alignment.

It must compare the performance and quality of

algorithms that do not include knowledge of

reference models. FOAM is being used as the

baseline for comparison purposes. In the evaluation,

archetypes expressed in OWL format (particularly,

cholesterol archetypes are used for the time being,

taken from (klt.inf.um.es/~poseacle/ontologies.html)

have been introduced as input to FOAM. This tool

output a set of alignments (510, if threshold 90%),

both with concepts extracted from the archetypes as

well as from the underlying reference models.

Similarity measures in FOAM do not take into

account the semantics of the abstract classes that

build up the reference models or the constraints

enforced when defining archetypes, like for example

those outlined above.

5 FUTURE WORK

This paper has presented an architecture to facilitate

the interoperability between clinical information

systems that use the so-called two-level modelling.

Archetypes in this modelling paradigm are seen as

the centre of the interoperation process. By

automatically identifying appropriate mappings

between archetypes, semantic interoperability is

greatly facilitated.

This architecture leverages and specializes

results from on-going research projects on ontology

alignment and management, and using the open-

source software these produce.

Future research will be mainly focused on two

areas: (sub)ontology extraction, and archetype-aware

alignment algorithms. Subontology extraction can be

compared to defining a view from a database.

However, due to the richer semantics defined by an

ontology, it must be decided how such a view is

extracted, so that the resulting ontology can be

considered consistent. Existing approaches (Noy

2004; Jiménez-Ruiz 2007) are based on the

definition of the path traversals which identify the

nodes are to be extracted. For archetypes, the nodes

to be extracted are those terms used in order to

annotate the concepts of an archetype.

Regarding archetype-aware alignments, Section

4 has illustrated a few examples of how this will be

implemented. The reference model provides a very

specific source of domain knowledge used to align

archetypes. Particularly, when aligning archetypes

which were built according to different reference

models, there is also a need to map between these

reference models, in addition to between the

archetypes. It should be noted that reference models

are considered by the communities of users as being

reasonably stable. Also, they are not unmanageably

large (by design). Therefore, the best approach to

map between reference models is to leverage on a

databases research field called model management

(Atzeni 2008). In model management, when two

models need to be mapped to each other (e.g. from

HEALTHINF 2009 - International Conference on Health Informatics

220

relational to object-oriented), the constructs (e.g.

table, class) of each model are mapped onto the set

of constructs of a more abstract model, the

supermodel. A set of transformations is applied,

within the supermodel, to the set of constructs that

originated from the source model, in order to

transform them into constructs that can be mapped

into the target model. At the end, the resulting

constructs are mapped from the supermodel back

into those of the target model. Such an approach is

highly flexible as of the set of models and constructs

that it can handle. Changes in the models do not

require changes in the applications that perform

those mappings. Such an approach has not been

applied to map between reference models.

(Martínez-Costa 2008) followed similar ideas but

using software engineering principles instead of

using database techniques.

Finally, as outlined in Section 3, the results

history of previous alignment tasks should also be

used to improve the quality and the automation of

future alignments. Given the current trend (Chung

2007) towards cooperation between communities of

users with similar interests, and given the

community-orientated nature of archetypes, it is

clear that the alignment history between archetypes

should be a resource of such a community. It will be

investigated how alignments between archetypes

developed and used on several sites could be shared

and reused by other sites. These alignments

represent the understanding of all these archetypes

(ontologies), and their equivalences, from the point

of view of the different researchers involved in each

of these mappings. This cumulative knowledge will

be useful when new alignments are to be performed.

ACKNOWLEDGEMENTS

This research has jointly been funded by the Ramon

y Cajal and the Jose Castillejo (JC2007-00050)

programmes of the Spanish Ministry for Science and

Innovation, and the EHRland project funded by Irish

Health Information and Quality Authority.

REFERENCES

M. van Assem, M. R. Menken, G. et al. ‘A Method for

Converting Thesauri to RDF/OWL’, The Semantic

Web 2004, LNCS 3298, pages 17-31.

P. Atzeni, P. Cappellari, et al. ‘Model-independent schema

translation’, VLDB Journal 17:1347-1370, Nov. 2008.

T. Beale. ‘Archetypes: Constraint-based domain models

for future-proof information systems’, 11

OOPSLA

Workshop Behavioral Semantics, pp. 16-32, 2002.

V. Bicer, A. Dogac, et al. ‘Archetype-Based Semantic

Interoperability of Web Service Messages in the

Health Care Domain’, Journal Semantic Web 1, 2005.

K. Chung, L. Hossain, and J. Davis. ‘Individual

performance in knowledge intensive work through

social networks’, 2007 ACM SIGMIS CPR conference

on Computer personnel research, pp 159 – 167.

R.S. Dick, et al., (Eds). ‘The Computer-Based Patient

Record: An Essential Technology for Health Care’,

Institute of Medicine, Revised Edition, 1997.

M. Ehrig, and Y. Sure. ‘FOAM - Framework for Ontology

Alignment and Mapping’, in the Workshop on

Integrating Ontologies, 156, pp. 72-76, October 2005.

S. Garde, E. Hovenga, et al. ‘Expressing Clinical Data

Sets with openEHR Archetypes: A Solid Basis for

Ubiquitous Computing’, International Journal of

Medical Informatics. 76(3): 334-341, 2007.

C. Goble, and R. Stevens. ‘State of the nation in data

integration for bioinformatics’, Journal of Biomedical

Informatics, 41(5):687-693, October 2008.

J. Grimson. ‘Delivering the electronic healthcare record

for the 21st century’. Int. J. Med. Inf. 2001; 111-127.

J. Grimson, W. Grimson, et al. ‘A CORBA-based

integration of distributed electronic healthcare records

using the Synapses approach’. IEEE Trans. Inf. Tech.

in Biomedicine, 2(3):124-138, 1998.

F. Giunchiglia, M. Yatskevich, and P. Shvaiko. ‘Semantic

Matching: Algorithms and Implementation’, Journal

on Data Semantics, LNCS 4601, pages 1-38, 2007.

I. Iakovidis, A. Dogac, et al. ‘Interoperability of eHealth

Systems - Selection of Recent EU's Research

Programme Developments’, Proc. Int. Conf. eHealth:

Combining Health Telematics, Telemedicine,

Biomedical Eng. and Bioinformat. to the Edge, 2007.

E. Jiménez-Ruiz, et al. ‘OntoPath: A Language for

Retrieving Ontology Fragments’, LNCS 4803, pp 897-

914, 2007.

L.T. Kohn,et al. (Ed.). ‘To err is human: Building a safer

health system’, National Academic Press, 2000

C. Martínez-Costa, et al. ‘A Model-driven Approach for

Representing Clinical Archetypes for Semantic Web

Environments’. Journal Biomedical Informatics 2008.

NCI Thesaurus, accessed July 2008 at

http://ncicb.nci.nih.gov/download/evsportal.jsp

N.F. Noy, and M.A. Musen. ‘Anchor-PROMPT: Using

non-local context for semantic matching’, in the

workshop on Ontologies and Information Sharing at

the International Joint Conference on Artificial

Intelligence, pp 63-70, 2001.

N.F. Noy, and M.A. Musen. ‘Specifying Ontology Views

by Traversal’, the Semantic Web Conference – ISWC

2004, LNCS 3298, pp 713-725.

H.Tan and P. Lambrix, ‘A method for Recommending

Ontology Alignment Strategies’, the Semantic Web

Conference. LNCS 4825, pages 494-507, 2007.

ARCHETYPE ALIGNMENT - A Two-level Driven Semantic Matching Approach to Interoperability in the Clinical

Domain

221
