IMPLEMENTATION OF RESTRICTION
AND VALIDATION RULES
1
Olegas Vasilecas and Evaldas Lebedys
Vilnius Gediminas technical univercity, Sauletekio av. 11, LT-10223 Vilnius, Lithuania
Keywords: Data quality, Data validation, Restriction rules, Validation rules.
Abstract: The paper discusses implementation of restriction and validation rules. Restriction rules based and
validation rules based data cleaning approaches are discussed. The differences between restriction rules and
validation rules are distinguished. The paper presents a method for automated data validation rules
implementation in data cleaning procedures.
1 INTRODUCTION
At the moment variety of methods and commercial
tools are available that can be used to model
business systems and implement data integrity
constraints through the functionality of active
database management systems. Unfortunately, these
tools do not support data validation – the
implementation of business rules as integrity
constraints, triggers, stored procedures is used only
to avoid entry of erroneous data into the database.
Regardless the use of data quality checks at the entry
of data into the database, errors in data exist. The
application of business rules approach in data quality
assurance is widely discussed in the publications of
recent years. Currently only domain specific data
management tools support data validation, but these
tools do not support system modelling at all or are
suitable to model only some aspects of system.
Therefore, there are no tools that support both
system modelling and data validation. Errors in
software, unintended access to data and other
considerations may be the sources of errors in data.
These circumstances may be crucial for the quality
of data in certain domains, such as statistical data
processing, clinical trials or telecommunications.
Besides, even if the data are erroneous it may not be
changed or rejected at the entry in the database in
certain domains.
Section 1 introduces the paper. Section 2 briefly
presents restriction rules and validation rules. The
quality of data in the context of the clinical trials is
discussed in section 3. The purpose of restriction and
validation rules is analysed in section 4. Section 5
presents automated validation rules based approach.
Section 6 concludes the paper.
2 RELATED LITERATURE
The importance and criticality of data quality (DQ)
is widely discussed in recent publications
(Bertolazzi, 2001), (Motro, 1996). Many external
and internal factors impact the quality of data.
Constraints are implemented in most of information
systems, but errors in data still occur. The whole of
desirable data characteristics are analysed in the
context of data quality. Although, “fitness for use” is
the most widely adopted concept of data quality
(Strong, 1997), DQ is defined using various terms in
different application domains (Bertolazzi, 2001),
(Ehlers, 2003), (Jilovsky, 2005), (Wang, 1996). Data
quality can be defined as a lack of intolerable defects
in data (McKnight, 2004). Although, “fitness for
use” is the most widely adopted concept of data
quality. Different levels of data quality assurance are
implemented in most of systems, especially those
with high data quality importance.
At least two most important procedures are
implemented (Galhardas, 2001):
Restriction of entry of ineligible data (Figure
1);
Cleaning of collected data (Figure 2).
1
The work is supported by Lithuanian State Science and
Studies Foundation according to High Technology
Development Program Project "VeTIS" (Reg.No. B-
07042)
230
Vasilecas O. and Lebedys E. (2009).
IMPLEMENTATION OF RESTRICTION AND VALIDATION RULES.
In Proceedings of the International Conference on Health Informatics, pages 230-236
DOI: 10.5220/0001542202300236
Copyright
c
SciTePress
Data
collection
Paper
documents
Data entry
Data
examination
Error
reporting
Data
correction
Database
Data
representation
User

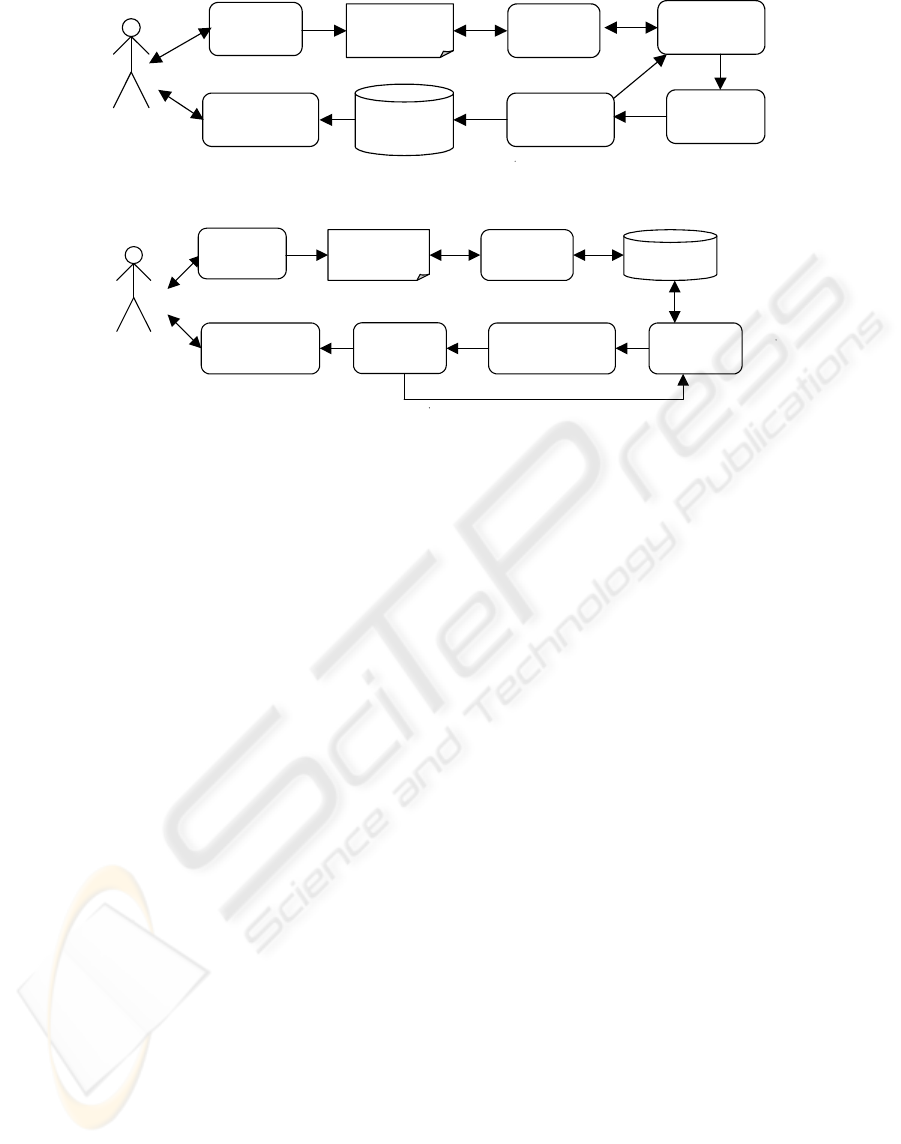

Figure 1: Data processing using restriction rules.
Validation
error reporting
Data
cleaning
Data
correction
Data
representation
User
Data
collection
Paper
documents
Data entry
Database
Figure 2: Data processing using validation rules.
Collected data may become invalid even if
restriction procedures are implemented, thus
constraints prohibiting the entry of erroneous data
are not enough. Data cleaning consists of three steps:
auditing of data to find violations, choosing
transformations to fix violations and applying the
transformations on datasets (Vijayshankar 2001).
Depending on the application domain, all steps of
data cleaning may vary: different methods of data
auditing may be used, different methods for data
transformation can be used. Rules for data auditing
have to be defined, in most cases. These rules are
used to validate date and identify discrepancies.
Data transformation is the next step and it is based
on automated correction of discrepancies or changes
in data requiring user interaction.
Implementation of both procedures, restriction of
entry of ineligible data and cleaning of collected
data, are based on rules (Galhardas, 2001). These
rules may be semantically identical, but the intent of
use and the way of implementation is different.
Depending on the intent of use and the way of
implementation these rules are classified into:
Restriction rules;
Validation rules.
Restriction rules are also called constraints in
software systems. Constraints in software systems
were used to avoid errors in data for many years.
Constraints are effective to avoid user errors and are
widely used up until now. Although, constraints are
implemented in most of information systems, errors
in data still occur. Constraints are not suitable to
eliminate errors that occur due to erroneous program
code, security problems and unexpected access to
the database, inaccurate mass data updates,
inadequate data representation (Akiyama, 2005),
(Ballou, 2006). Variety of methods and commercial
tools are available that can be used to model
business systems and implement data integrity
constraints through the functionality of active
database management systems. Validation rules are
used to examine collected data with intent to identify
data units non compliant with defined requirements.
The following are the active database
management system (ADBMS) features used to
implement restriction rules:
Data types;
Not null constraints;
Lists and ranges of values;
Multiplicity of relationships between tables;
Primary and foreign keys;
Referential integrity constraints;
Stored procedures;
Triggers.
Validation rules can be implemented in ADBMS
using stored procedures. All the other database
management system features are real-time based and
are proceeded at the time of data manipulation – data
entry, data update or data delete. As validation rules
are executed manually and react to real-time data
changes, these ADBMS features are not suitable for
validation rules implementation. Rule repositories
are also often used in parallel with stored procedures
for data validation.
IMPLEMENTATION OF RESTRICTION AND VALIDATION RULES
231
Table 1: The use of ADBMS features to assure data quality.
Data quality category ADBMS feature
Restriction
rules
Validation
rules
Integrity Data types
X
Completeness Not null constraints
X
Consistency, Integrity Lists and ranges of values
X
Completeness Multiplicity of
relationships between
tables
X
Consistency, Integrity Primary and foreign keys
X
Consistency, Integrity Referential integrity
constraints
X
Completeness,
Consistency, Integrity
Stored procedures
XX
Completeness,
Consistency, Integrity
Triggers
X
3 PURPOSE OF RESTRICTION
RULES AND DATA
VALIDATION RULES
We distinguish restriction rules based data
processing and validation rules based data
processing. Restriction rules are implemented in
almost all systems and even in the systems based on
data validation, some restriction rules are used.
Restriction rules and validation rules are mostly used
to ensure the quality of data in respect to the
following data quality categories (Strong, 1997),
(Wang, 1996):
Completeness;
Consistency;
Integrity.
Missing values and data inconsistencies have to
be identify to make data clean. Different types of
inconsistencies have to be considered when
designing both restriction and validation rules:
Data inconsistency within one record;
Data inconsistency within one table
Data inconsistency within one database
Data inconsistency within one different data
sources
Different types of inconsistencies influence
different data quality categories and different tools
are used to clean these inconsistencies (Table 1).
As already mentioned before, restriction rules
are triggering each time data are inserted, updated or
deleted. Restriction rules are based on an automatic
reaction to the changes in data state. Usually
validation rules are executed manually or at the
scheduled time points, but these rules never react to
data changes at the time data are changed. Thus, the
means suitable for implementation of restriction
rules and validation rules differ.
This paper is focusing on validation rules based
data processing and only implementation of
validation rules is discussed further.
4 DATA QUALITY IN CLINICAL
TRIALS
It is obvious that the means for data collection and
analysis in clinical trials have to be precise,
qualitative, verified and validated. These
requirements also stand for the applications used in
clinical trials for data inter-change, data entry, data
clarification, data records tracking, etc. The lack of
the system for gathering and managing all the
requirements for particular trial complicates the
control of quality. Requirements for particular
clinical trial may be expressed as business rules. The
use of business rules approach principles may
facilitate the control of the quality. This is especially
applicable to clinical trial applications. Trial related
knowledge and know-how knowledge stored in
business rules repository gives a broad view on a
whole of all requirements. The question how to
gather all the rules in to one repository arises here.
We propose to use the model of a clinical trial to
gather all the rules in to rules repository. The
modelling of a clinical trial may slightly prolong
clinical trial deign and may require additional
resources, but it is definitely advantaged. First of all
HEALTHINF 2009 - International Conference on Health Informatics
232
a graphical model of a clinical trials gives a broad
view on the organisation and the procedures of a
clinical trial. Besides, clinical trial model may be
suitable to capture trial related rules.
There is no general specification of all
requirements for clinical trial and it complicates
quality control. The model of the clinical trial is not
created during the design of the clinical trial mostly.
As a result of the clinical trial design a clinical trial
protocol is produced. The clinical trial protocol
presents all the information needed for the conduct
of the clinical trial, but the information is
represented in natural language. The use of natural
language for clinical trial description has both
negative and positive aspects:
the positive aspect of the use of natural
language is clarity of the protocol for
everyone interested in the clinical trial. In
other words the protocol is understandable,
easy readable and does not require any special
knowledge;
the negative aspect of the use of natural
language is ambiguity of natural language.
Natural language is informal and can be
interpreted. As clinical trial protocol is the
primary document for the conduct of clinical
trial it is desirable to have unambiguous
specification of all trial procedures.
The use of some formal or semi formal modelling
language for clinical trial modelling may allow
reduce the ambiguity of the protocol. But as there
are special requirements for the clinical trial protocol
and it has to be approved before the start of the trial,
it is impossible to present a model of the trial instead
of clinical trial protocol to the responsible
authorities. Thus a model of a clinical trial cannot
replace protocol. A model of a trial may be prepared
in parallel with the construction of protocol instead
of replacing the clinical trial protocol with the model
of the trial. It would be even better to start the design
of the trial from the model, but it may be impossible,
because the design of the model may prolong the
design of the study. Therefore the trial should be
modelled using any formal or semi formal language
to represent the procedures of the trial in a graphic
way in parallel with the design of the protocol or just
after the clinical trial protocol is created.
There are many modelling languages suitable to
represent different aspects of systems – UML, IDEF,
conceptual graphs, etc (Vasilecas, 2005). As UML
became the most popular modelling language for
any kind of systems in recent years, we analyse the
use UML for clinical trial modelling in this paper.
The Unified Modelling Language is a visual
language for specifying, constructing and
documenting the artefacts of systems. It is a general-
purpose modelling language that can be used with
all major object and component methods, and that
can be applied to all application domains (e.g.,
health, finance, telecom, aerospace) (OMG, 2006).
UML diagrams can be classified into three different
classes (Shen, 2005):
diagrams describing the roles and obligations of
system users generally (Use Case diagrams).
In the clinical trial models these diagrams
should represent the roles and obligations of
the clinical trial team members and
participants. For example, the right to revoke
the patients informed consent or the obligation
of investigator to record medical history in the
Case Report Form can be represented in the
UML Use Case diagrams;
diagrams describing structural system aspects
(class and object diagrams). In the clinical
trial model class diagrams should be used to
represent the organisation of a trial in detail.
For example, each examination, visit,
laboratory assessment, etc., should be
represented as classes with attributes and
operations. Class model may be used to create
the structure of the database for the clinical
trial data;
diagrams describing the internal and external
behaviour of system (state transition diagrams,
sequence and collaboration diagrams). In the
clinical trial models these diagrams should be
used to represent the sequence of actions in
each step of a clinical trial. For example, the
proceeding of screening visit can be described
in sequence or collaboration diagrams and the
states of the patient diary can be represented
in state transition diagrams.
UML models are not fully formal. Some
information represented in UML diagrams can be
interpreted, but generally UML models are suitable
for automation of systems development. We assume
that the use of UML would greatly improve clinical
trial design and data validation processes. We
highlight the following main advantages of UML
usage for clinical trial research:
UML model would give a broad graphical view
on the whole trial. This would improve quality
control and documentation of clinical trial
procedures;
Duties and responsibilities of clinical trail team
members represented in UML Use Case
models would simplify preparation of
operational manuals for investigators and
other team members;
IMPLEMENTATION OF RESTRICTION AND VALIDATION RULES
233
Document
analysis
Requirement
identification
Requirement
specification
Implementation
of requirements
Program
code / SQL
q
ueries
Data
validation
Production of
error
messa
g
es
Error
messages
Data correction /
Error reduction
Data cleaning

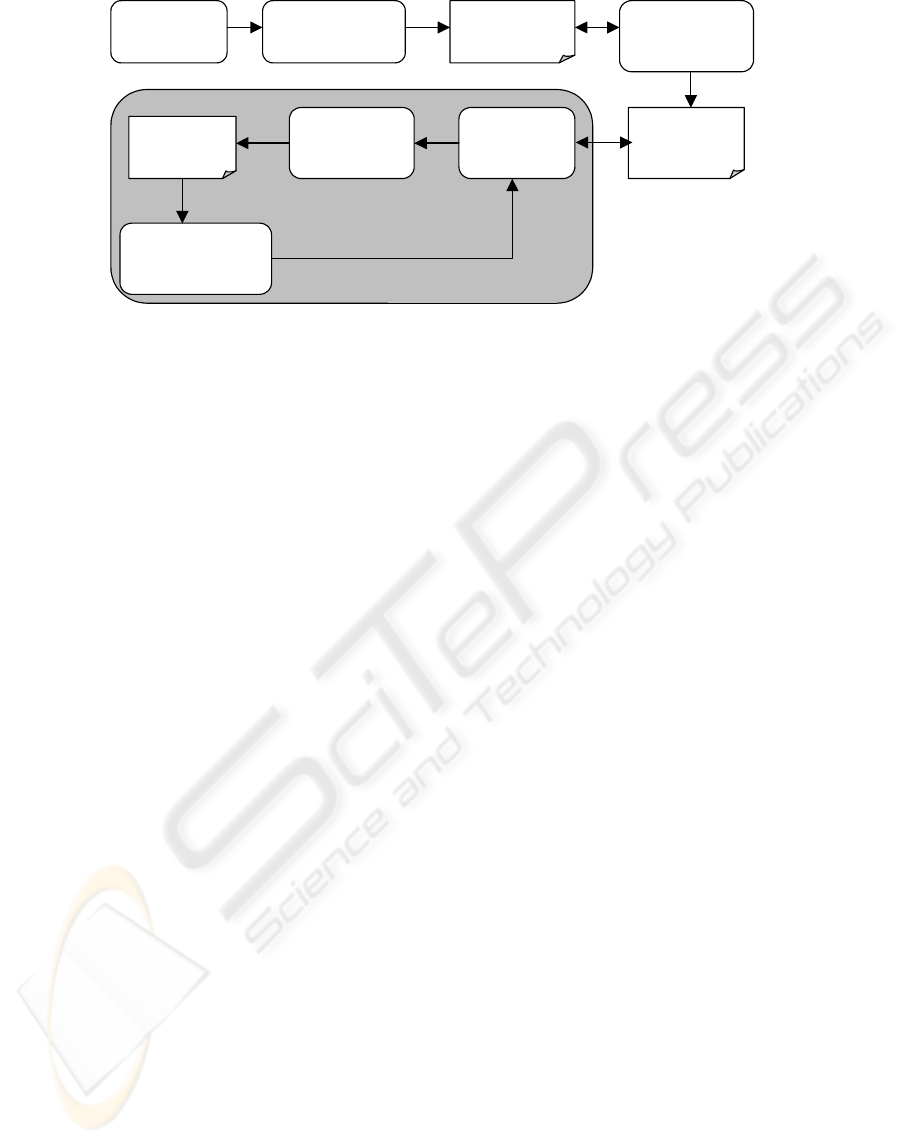

Figure 3: Common data cleaning process.
The organisation of clinical trial structural
components represented in UML Class
diagrams, can be used for clinical trial
database design;
Representation of all requirements for valid
clinical trial data in one model would give a
broad view on all rules for data validation;
The rules described in UML models for valid
data, may be retrieved from UML model and
placed into rules repository (Vasilecas, 2005).
It would simplify the extraction of rules from
source documents.
Because of the limited space of the paper clinical
trial modelling using UML is not discussed in detail.
The novelty of this paper is not the use of UML for
modelling the specific domain – clinical trials. The
aim is to present a way for automation of clinical
trial data validation and improve data clarification.
5 IMPLEMENTATION OF
VALIDATION RULES
Common data cleaning approach is based on manual
identification of system requirements and manual
implementation of data validation rules. All related
documentation is analysed to identify system
requirements. Requirements specification is the
basis for manual implementation of validation rules
expressed in requirements specification. Data
validation is executed then to identify data errors
and produce error messages (Figure 3).
It is always desirable to reduce the amount of
manual job, because automated activities are more
reliable. Previous analysis showed that rules may be
derived from systems models represented by UML
(Vasilecas, 2006). Derived rules can be used for
further analysis and automated implementation. The
Unified Modelling Language was chosen for
analysis, because it is a general-purpose modelling
language that can be used with all major object and
component methods, and that can be applied to all
application domains (OMG, 2006). UML diagrams
can be classified into three different classes (Shen,
2002):
diagrams describing the roles and obligations of
system users generally (Use Case diagrams);
diagrams describing structural system aspects
(class and object diagrams);
diagrams describing the internal and external
behaviour of system (state transition diagrams,
activity diagrams, sequence and collaboration
diagrams.
Business rules in Use Case diagrams mostly
appear as statements describing system actors
competence boundaries and obligations. Business
rules in Use Case diagrams are represented relating
system functions with domain actors. Each Use Case
can be depicted in details using sequence and
collaboration diagrams. Sequence and collaboration
diagrams represent how system actors act and
exchange information to execute the tasks they are
assigned. Sequence and collaboration diagrams
include business rules describing the exact order of
actions to be executed to perform a task. State
transition diagrams are used to specify the sequences
of changes of states of business objects. Event-
Condition-Action (ECA) rules are mostly
represented in state transition diagrams. UML
activity diagrams can be used to model the logic of
the operations captured by a use case or a few use
cases. Activity diagrams represent both the basic
sequence of actions s well as the alternate sequence
of actions. ECA rules are mostly represented in
activity diagrams. Class diagrams include rules that
express constraints of business objects, properties of
HEALTHINF 2009 - International Conference on Health Informatics
234
Document
analysis
System
modeling
Requirement
specification
Implementation
of validation
rules
SQL queries
Data
validation
Production of
error
messa
g
es
Error
messages
Data correction /
Error reduction
System model
represented
using UML
A
nalysis of UML
model / Rule
identification
Rule
repository
Generation of
requirement
s
p
ecification
Data cleaning

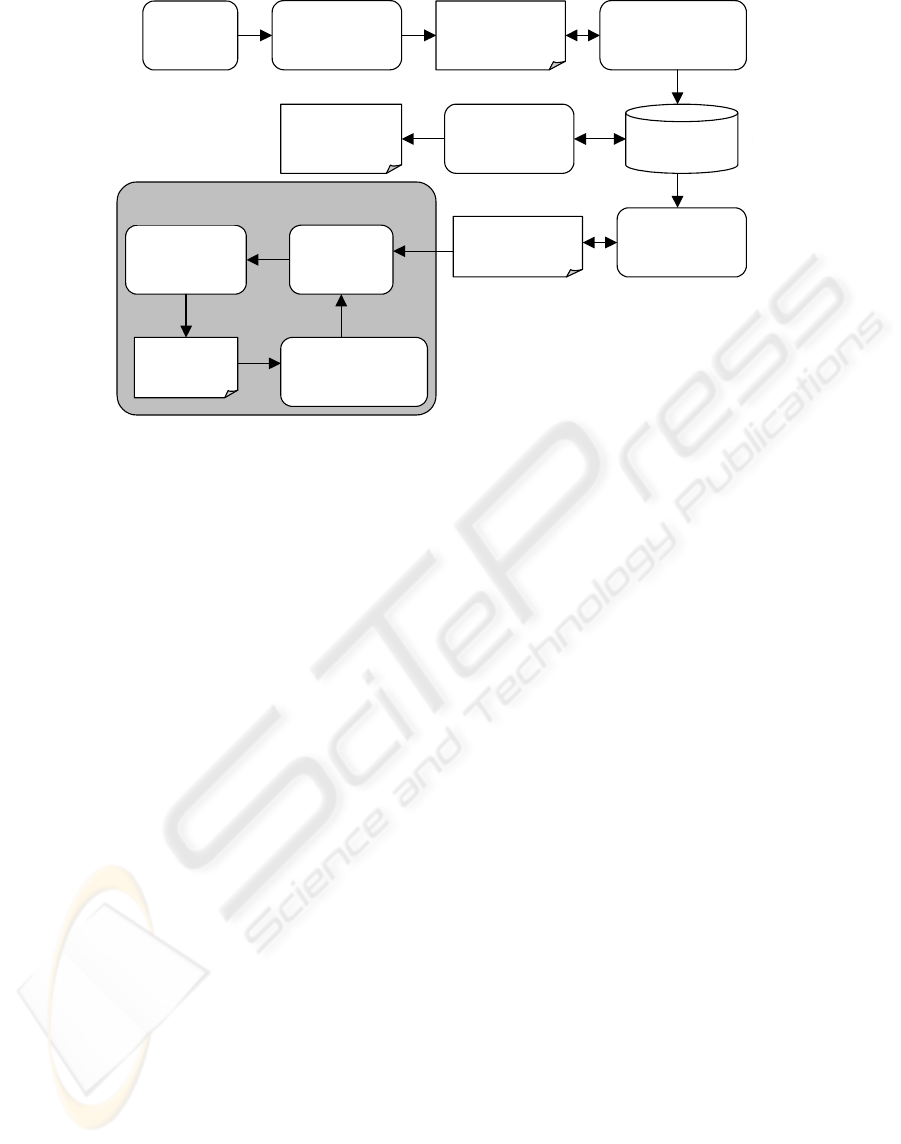

Figure 4: Automated data cleaning process.
relationships between business objects. The rest of
UML diagrams. The rest of UML diagrams are used
to represent aspects of the development and
implementation of software systems and are not
analysed further.
An automated data cleaning approach based on
derivation of rules from system models represented
by UML is presented further (Figure 4). Commercial
case tools are storing UML model data in XML files
usually. In the current stage of research, only Sybase
PowerDesigner was chosen for analysis. The file
PowerDesigner produces is used for analysis and
identification of validation rules. Only the rules that
meet the rule representation templates are derived
from UML models. First of all the system parses
XML file that stores UML model specification. The
system looks for the following components in the
XML file:
actors, use cases and associations that were
represented in Use Case diagrams;
classes, attributes, operations and relations that
were represented in Class diagrams;
objects and messages that were represented in
sequence and collaboration diagrams;
start points, activities, transitions, decisions and
end points that were represented in activity
diagrams;
start points, states, transitions, and end points
that were represented in state chart diagrams.
Each model component is copied to rule
repository. Repository data are indexed after all
model components are copied to rule repository. All
UML diagram components are merged using the
available rule templates. The rules in the repository
can then be used to generate natural language
requirement specification. SQL queries for data
validation are also generated using the rules in the
repository. Further steps of data cleaning a similar to
restriction rules based data processing. The main
difference between these two approaches is
automated generation of data validation queries
using the rules derived from system models.
Further analysis is focused on manual definition
of data validation rules in addition to the rules
derived from system models.
6 CONCLUSIONS
Analysis of recent researchers in data quality area
showed that data quality is relevant for each
organisation and due to its complexity is a
problematic research area. Implementation of
restriction rules is now always sufficient and
additional data cleaning procedures have to be
implemented to have data of a high quality. On the
basis of the previous research we decided that data
quality requirements might be derived from system
models represented by UML. Thus we proposed an
automated data validation rules based approach that
focuses on automatic derivation of data quality
requirements from system models. The proposed
method was implemented in software prototype and
was briefly presented in the paper.
IMPLEMENTATION OF RESTRICTION AND VALIDATION RULES
235
REFERENCES
Akiyama, I., Propheter, S. K. (2005) Methods of Data
Quality Control: For Uniform Crime Reporting
Programs. Federal Bureau of Investigation. URL:
http://www.fbi.gov/hq/cjisd/data_quality_control.pdf.
Ballou, D. P., Chengalur-Smith, I.N., Wang, R.Y. (2006)
Sample-Based Quality Estimation of Query Results in
Relational Database Environments. IEEE Transactions
on Knowledge and Data Engineering, Vol.18, No.5,
639-650.
Bertolazzi, P., Scannapieco, M. (2001) Introducing data
quality in a cooperative context. In the proceedings of
the Sixth International Conference on Information
Quality (IQ2001), Boston, MA, USA, 431-444
Ehlers, U.D., Goertz, L., Hildebrandt, B., Pawlowski, J.
M. (2005) Quality in e-learning: Use and
dissemination of quality approaches in European e-
learning. A study by the European Quality
Observatory, Luxembourg: Office for Official
Publications of the European Communities, URL:
http://www2.trainingvillage.gr/etv/publication/
download/panorama/5162_en.pdf.
Galhardas, H., Florescu, D., Shasha, D., Simon, E., Saita,
Ch. (2001) Declarative data cleaning: Language,
model, and algorithms. In the International Journal on
Very Large Data Bases(VLDB), 371–380.
Jilovsky, C. (2005) Data quality – what is it and does it
matter? Presented at Information Online 2005
Exhibition & Conference, Sydney, URL:
http://conferences.alia.org.au/
online2005/papers/c12.pdf
McKnight, W. (2004) Overall Approach to Data Quality
ROI. White Paper, Firstlogic Inc. URL:
http://www.oracle.com/technology/products/warehous
e/pdf/Overall%20
Approach%20to%20Data%20Quality%20ROI.pdf.
Motro, A. and Rakov, I. (1996) Estimating the Quality of
Data in Relational Databases. In Proceedings of the
1996 Conference on Information Quality, 94-106.
Object Management Group (OMG). (2006) Unified
Modeling Language (UML) Specification:
Infrastructure version 2.0. URL:
http://www.omg.org/docs/ formal/05-07-05.pdf.
Shen, W., Compton, K., Huggins, J. K. (2002) A Toolset
for Supporting UML Static and Dynamic Model
Checking. In proceedings of the 26th International
Computer Software and Applications Conference
(COMPSAC 2002), Prolonging Software Life:
Development and Redevelopment, Oxford, England,
IEEE Computer Society, 147-152.
Strong, D. M., Lee, Y. W., Wang, R. Y. (1997) Data
Quality in Context. Communications of the ACM,
Vol. 40, No.5, 103-110.
Vasilecas, O., Lebedys, E., Laucius, J. (2005) Repository
for Business Rules Represented in UML Diagrams.
Izvestia of the Belarusian Engineering Academy, V1
No. (19)/2, 187-192.
Vasilecas, O., Lebedys, E. (2006) Moving business rules
from system models to business rules repository.
INFOCOMP, V5, No 2, 11-17.
Vijayshankar, R. and Hellerstein, J.M. (2001)
Potter’sWheel: An Interactive Data Cleaning System.
In the International Journal on Very Large Data
Bases(VLDB), 381-390.
Wang, R. Y., Strong, M. D. (1996) Beyond accuracy:
What data quality means to data consumers. Journal of
Management Information Systems, Vol. 12, Issue 4, 5-
33.
Yin, T.C.T. and Chan, J.C.K. (1988) Neural mechanisms
underlie interaural time sensitivity to tones and noise.
In: W.E. Gall, G.M. Edelman and W.M. Cowans
(Eds.), Auditory Function: Neurobiological Bases of
Hearing. John Wiley, New York, pp. 385-430.
Smith, J., 1998. The book, The publishing company.
London, 2
nd
edition.
HEALTHINF 2009 - International Conference on Health Informatics
236
