SPOKEN LANGUAGE INPUT FOR A PATIENT NOTE SYSTEM

Sasha Caskey*, Kathleen McKeown*, Desmond Jordan† and Julia Hirschberg*

*Department of Computer Science, Columbia University, New York, NY 10027 U.S.A.

†Departments of Anesthesiology and Medical Informatics, Columbia University College of Physicians and Surgeons

New York, NY 10032 U.S.A.

Keywords: Speech recognition, Mobile devices, Electronic medical records, Natural language processing.

Abstract: In developing a system to help CTICU physicians write patient notes, we hypothesized that a spoken

language interface for entering observations after physical examination would be more convenient for a

physician than a more traditional menu-based system. We developed a prototype spoken language interface,

allowing input of one type of information, with which we could experiment with factors impacting use of

speech. In this paper, we report on a sequence of experiments where we asked physicians to use different

interfaces, testing how such a system could be used as part of their workflow as well as its accuracy in

different locations, with different levels of domain information. Our study shows that we can significantly

improve accuracy with integration of patient specific and high coverage domain grammars.

1 INTRODUCTION

Our long term goal is the development of a system

to help physicians create progress notes for patients

in the Cardio-Thoracic Intensive Care Unit

(CTICU). In the CTICU, a physician writes one to

two notes daily recording objective and subjective

findings for each of the approximately 28 patients

under their care. When tending to a patient, a

physician reviews the notes written by other

physicians and thus, note writing is an important

form of communication between physicians caring

for the same patient, increasing continuity of care.

At the same time, note writing is a time consuming

process and takes away from time spent on patient

care.

We are developing I

(Intelligent, Interactive,

Multimodal Information Ecosystem for Healthcare),

an interactive system that will reduce the time it

takes to generate progress notes. I

will draw

relevant information from the voluminous patient

record where appropriate, will generate inferences

from raw patient data identifying clinical problems

and highlighting acute medical care issues, and will

generate a skeletal note. Some information from the

note is not available in the online patient record,

however, and can only be provided by the physician

based on physical observations during rounds. We

hypothesize that a mobile, spoken language interface

would make it easy for a physician to enter

information about a patient at the point at which they

have available time, regardless of where they were.

We note that physicians have ready access to cell

phones, which could provide an easy-to-use method

for calling in information.

There are many unresolved issues, about the

feasibility of using a spoken language interface

within the hospital setting. Is there a point in time at

which physicians could naturally incorporate a

phone call into their workflow? Does the noisy

environment of the CTICU make it too difficult to

obtain acceptable accuracy for spoken language

input? While speech has been successfully used in

medical domains before (see Wang et. al. 99 and

Owens 05), the CTICU is a more difficult

environment. Domain-specific, telephony-based,

spoken language interfaces have proven useful when

the range of spoken inputs in response to a prompt is

sufficiently limited by the domain; spoken language

interfaces have gained in commercial use in car

direction systems, in airline reservation systems, and

in directory and weather information systems (Zue

et. al 00). Can we use the constraints of the medical

domain to adequately restrict expectations for input,

increasing accuracy? Finally, even if we can encode

sufficient domain restrictions on expected responses

to prompts, will physicians provide only the

323

Caskey S., McKeown K., Jordan D. and Hirschberg J. (2009).

SPOKEN LANGUAGE INPUT FOR A PATIENT NOTE SYSTEM.

In Proceedings of the International Conference on Health Informatics, pages 323-328

DOI: 10.5220/0001554603230328

 SciTePress

information requested, or will their utterances be

lengthier than required, straying off topic?

In order to investigate these issues, we developed

a prototype telephony-based spoken language dialog

system. To determine when, where, and how to elicit

restricted responses, we deliberately focused our

system to gather one type of information, the

identification of a patient problem, and

experimented with factors that would impact its use.

In this paper, we describe preliminary studies, the

system we developed, and our evaluation to assess

the feasibility of using spoken language to gather

input. Our studies show that we can significantly

improve recognition accuracy using a dialog system

that integrates patient-specific grammars with high

domain coverage. Our user study shows physician

satisfaction with a dialog strategy giving them

control over how information is entered.

2 PRELIMINARY STUDIES

Before developing the spoken language system we

describe here, we carried out several preliminary

studies and user interviews to try to understand how

the system would best fit within physician workflow

and how physicians would interact with such a

system.

We hypothesized that the best time to gather

information based on patient observations would be

during formal medical rounds. At this time most of

the content for note creation is readily available. We

used an off-the-shelf commercial recognizer from

ScanSoft, allowing the physicians to say whatever

they wanted during rounds. While this should have

worked well to obtain note content, we found that

having to record their observations while teaching

residents was too much of a cognitive load, rounds

took twice as long as usual, and accuracy was very

poor, as input was given during conversation with

interruptions. We also experimented with an

approach where physicians provided a two minute

briefing about the patient following rounds, again

using the ScanSoft system, but accuracy was much

too low to be usable. These approaches both

indicated the need for dialog with restricted input

outside of rounds.

3 OVERVIEW OF THE SPOKEN

LANGUAGE SYSTEM

We designed a spoken language system to collect

the current problems of a patient in the CTICU.

These problems are objectively defined ICD-9 codes

(International Classification of Diseases and Related

Health Problems)(ICD9), published by the World

Health Organization, which provides codes to

classify diseases, signs, symptoms, abnormal

findings, complaints, social circumstances and

external causes of injury/disease. Thus, we could

experiment with different dialog strategies for

collecting this well-defined, objective type of

information and try different methods to increase

system accuracy.

The system was deployed on the commercial

grade Genesys VoiceBrowser Platform, using IBM‘s

Websphere Voice Server (WVS) 5.1.3 for

Automatic Speech Recognition (ASR) and Text-to-

Speech (TTS)(VoiceServer). The application was

developed in VoiceXML and grammars were written

in SRGS format. Figure 1 shows how the different

components in the I

application interact. I

was built

as a web application and hosted from a Tomcat web

server. It was responsible for generating the

dynamic VoiceXML content, creating patient-

specific grammars on the fly. Patient-specific

information was supplied by an inference engine

applied to the CTICU Electronic Medical Record

(EMR - Eclipsys). This engine was designed to

generate real-time ICD-9 problem codes for the

patients being evaluated by the system.

Users access the system by calling from any

telephone including landlines and cell phones. Once

connected, the system asks the physician for the

patient’s reference number (RefN). The reference

number was used to associate the information

collected by telephone with a unique set of patient

specific clinical problems inferred over the

EMR(PIS). For development we used an

anonymized dataset. If the system cannot match the

spoken RefN against the PIS, it proceeds to collect

patient problems without access to information from

PIS. The system explains to the user that s/he must

speak one problem at a time and listens for input.

HEALTHINF 2009 - International Conference on Health Informatics

324

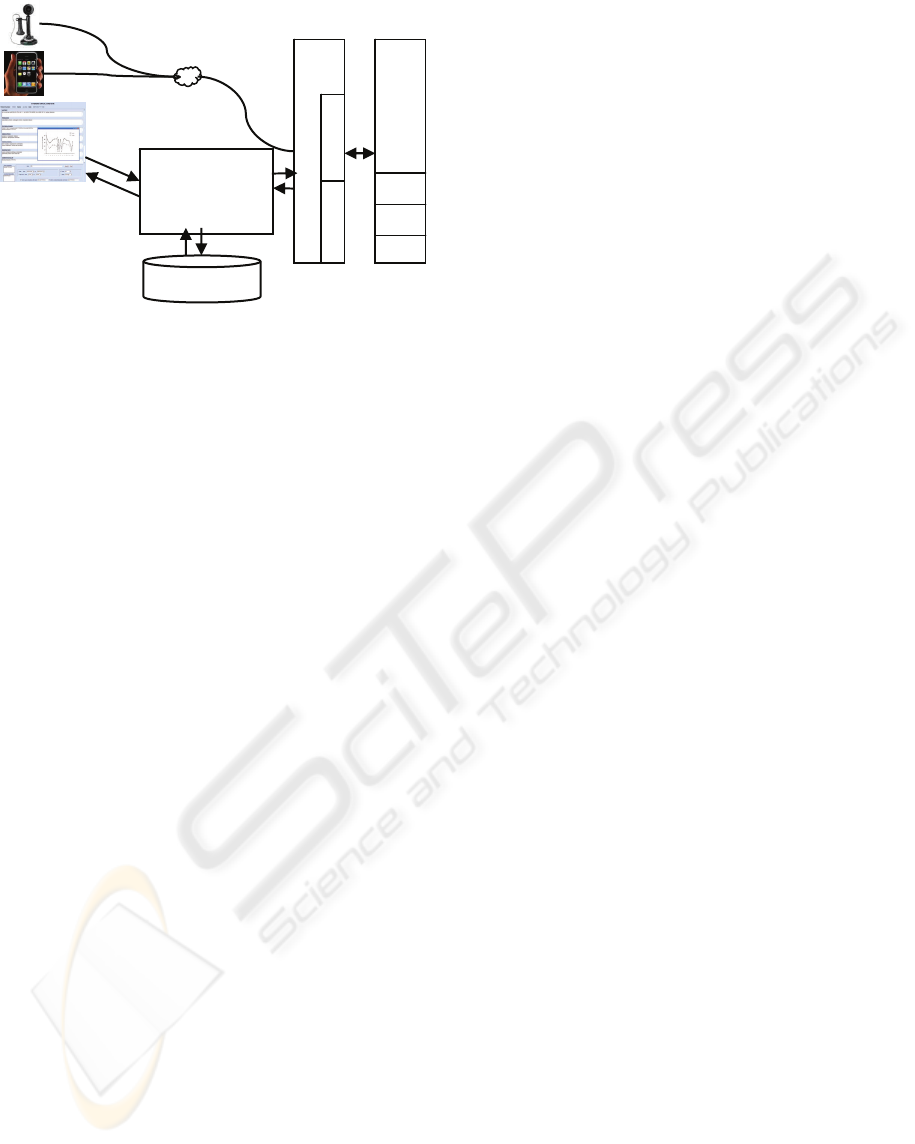

Figure 1: I

Architecture Description.

The user can stop the system at any time by

saying “I’m done.” The system supports collecting

information for multiple patients in one call and also

allows users to interrupt the system when they

become familiar with it and need not listen to

prompts. Once the session ends, the system records

each of the current problems collected and their

equivalent ICD-9 codes in the patient database.

Below is a sample interaction of a user with I

System I'm here to collect information about your

patients. What is the patient's 7 digit Ref N?

User 7432516

System Ok, now let's collect the current problems for this

patient. Please speak one problem at a time. When you are

done, just say “done.” What's the next problem?

User acute respiratory failure

System Ok got it! What’s the next problem?

User hyperglycemia

User done

System Given this patient's profile I would like to suggest

3 other possibilities, would you be willing to confirm them

for me? Please say yes or no.

User yes

System Does the patient have pulmonary edema?

The main challenges in the system from a speech

recognition perspective are: number recognition, for

the RefN; Yes/No recognition for confirmations and

patient problem recognition, which is unique to this

task. Number recognition is a well studied problem

in the field of speech recognition and commercial

recognizers claim to do quite well (recognition

accuracy in the 90th percentile) under normal

operating conditions.

Because we had domain knowledge but not

much spoken data, we chose to model the problems

using a grammar. We use domain knowledge to

generate a Context Free Grammar (CFG) that

represents the possible inputs for this specific

domain. The grammar was constructed by encoding

each of the 109 ICD-9 problems which are

chargeable in the CTICU as a rule in the grammar.

Note that an individual problem could consist of a

single word (e.g., “hypertension”) or a multi-word

phrase (e.g., “systolic heart failure”). We then

modified the grammar to account for variations in

how these terms were spoken, allowing for optional

words in the descriptions. For example: the rule

[acute] systolic heart failure, where brackets denote

an optional parameter, would cover both systolic

heart failure and acute systolic heart failure.

Paraphrases (e.g., abbreviations vs. full phrases)

were added as additional rules. The resulting

grammar contained 122 rules.

Our spoken language application was connected

to a database containing patient information (the PIS

in Figure 1) supplied by the inference engine,

developed by physicians at Columbia Presbyterian

Medical Center, which infers the current status of a

patient by correlating perturbations in the patient

parameters (e.g. lab results, vital statistics, and so

on) with possible diagnoses; it produces a list of

possible problems the patient could have. This list of

ICD9 problems was designed to be a superset of all

possible problems and tended to range from 10 to 30

entries. We used the problem list produced by the

inference system to generate on-the-fly a patient-

specific grammar which we hypothesized could

increase accuracy.

4 METHODS

We structured our experiments in such way as to

gain a better understanding into the following

questions

• Is speech recognition accurate enough for the

hospital environment?

• Can domain knowledge improve recognition

accuracy?

• Will physicians provide expected answers from

a short list versus unconstrained spoken input?

• How can we balance user and system initiative

for efficient interaction?

4.1 Study Design

For the experiment, the I

application was

configured so that it had access to information on the

current patients within the CTICU. After IRB

approval, only physicians who had patients in the

CTICU used the system during the experiments.

This allowed us to collect information about patients

during the normal course of the physician’s daily

Voice Browser

(Genesys)

WVS

(IBM)

MRCP

MRCP Client Telephony

STT

TTS

I3 Application

-Survey

-Patient DB

-Data exchange

with Patient Information System

-Dynamic grammar generation

-Current problem list

patient id

problem list

billing codes

http

vxml

Patient Information System

(Columbia Presbyterian)

Inferred problem list

SPOKEN LANGUAGE INPUT FOR A PATIENT NOTE SYSTEM

325

routine. The experiments were conducted over

multiple days, usually right after morning rounds.

Physicians called from the operating room, after

the patient had been anesthetized, and from various

locations in the ICU, including hallways, meeting

rooms, patient rooms and nurses’ stations; calls

usually shortly after physicians examined their

patients.

We compared two different modes of interaction

with the physician users. The first was system-

driven; the system provided the list of patient

problems using inference engine output and the

physician simply confirmed problems that s/he

believed were associated with a patient. The second

one was user-driven and allowed physicians to

identify the problems they thought were relevant to

the patient. Our system-driven approach requires the

user to pay close attention to what the system

proposes. In our user-driven system the user is free

to enter information as s/he pleases. (Ackermann

and Libosse) observed that systems which require

more usage of human memory were more prone to

errors and took longer to complete.

In the system-driven mode, once the physician

had entered the patient’s RefN, s/he was presented

with a list of problems associated with that patient

and asked to say yes to any that should be included

in the note. At the end of this process, the physician

was asked if s/he would like to augment the list with

additional problems which may not have been

deduced by the inference engine.

The user-driven mode allowed the caller to first

speak all the problems for a given patient. The

system would then compare the collected problems

with those produced by the inference engine (usually

a larger set) and would ask the caller if she would

like the system to present the remaining inferred

problems for inclusion in the patient’s profile. If the

caller responded with yes, the system would then list

the remaining problems one at a time; the caller

would say yes to include a problem in the profile. It

was possible to skip this process by saying done at

any point during the listing.

Since it relies on yes-no recognition, the system-

driven mode should have the advantage of high

accuracy in recognizing problems and should expose

users to problems they might not have thought of.

The user-driven mode should give users more

control over the direction of the dialog, allowing

them to enter the problems they felt were more

important first, and hopefully reducing the cognitive

overhead.

After collecting the speech, we also

experimented with using different combinations of

grammars and language models to recognize the

input. We experimented with the ICD9 grammar and

the ICD9 plus patient-specific grammar. When used

alone the patient specific grammar yielded poor

results. This is because physicians would often

express problems using a more varied vocabulary

and order than encoded in the grammar. UMLS has

been shown to provide useful strings for natural

language processing when properly selected

(McCray, et al.) We experimented with a larger

grammar constructed from the UMLS (16391

Entries) comparing recognition accuracy with the

UMLS grammar alone, the UMLS plus the ICD9

grammar and the UMLS plus both the ICD9 and the

patient specific grammar. We also experimented

with various combinations of language models. Our

language models were trained on data from various

sources including: the UMLS database of disease

descriptions; anonymized discharge notes and

transcriptions of medical interviews. The model

trained on all the data sets combined gave the best

performance in terms of WER. See Table 1

LM+ICD9+Patient Specific for more details. There

were 389k sentences and 49k words used to train our

tri-gram language model.

After using one of the versions of the system, the

users were asked to complete a survey about their

experience with the system. They were asked to

answer four questions, using a scale from one to

five, where one generally meant a negative response

and five a very positive one. They were allowed to

speak or type their answers using the telephone’s

touchpad. The questions were:

Q1 Would you find this system helpful for collecting

patient information?

Q2 Does the system ask questions efficiently?

Q3 Was the system knowledgeable about your patient?

Q4 Would you want to use this system to retrieve

information about your patients?

5 RESULTS

During our experiment we received 44 calls from

both physicians and students. The students were

given a script with made-up patient information. The

physicians called in from the CTICU and were asked

to enter information about their current patients. The

average number of turns per call was 18, where each

turn is an interaction between the system and the

user. The average call duration was 3 minutes and

42 seconds, and the longest call lasted almost 24

minutes.

HEALTHINF 2009 - International Conference on Health Informatics

326

The overall Word Error Rate (WER), which is a

ratio of errors (measured by substitutions, insertions

and deletions of words compared to a reference

transcription) over the total number of words, was

23.39%. (Bangalore and Johnston) reported similar

rates for a multimodal conversational system with

36% WER, when trained on out-of domain data.

When they trained on in domain data they achieved

WER of 25% in offline testing. For most spoken

dialog applications Semantic Accuracy (SA) is more

relevant then WER, though there is usually a

correlation between the two. The SA for the overall

application was 79.31%. To understand the

difference between the two, consider a recognition

output of yes that’s it where the user actually said uh

yes. This would increase the WER by three but since

both have the same semantic tag (e.g. yes) the

semantic result would be correct. In our grammars

for patient problems we used the ICD-9 codes as the

semantic annotation.

Table 1: WER/SA report broken down by grammar.

Categories WER SA SentErr

RefN 7.71 74.19 -

Yes/No 20.78 94.91 -

Done 0 100 -

ICD9 62.42 50.64 50.64

ICD9 + patient specific 59.70 53.20 48.72

LM 56.67 55.76* 53.85

LM+ICD9+patient specific

43.94 61.53* 39.10

Overall (base) 32.55 76.93 27.80

Overall (LM)

23.39 79.31* 24.56

We calculated semantic accuracy for the

grammars by comparing the semantic results to the

semantic transcriptions. For the language model, we

computed semantic accuracy using a unigram

classifier

We break these numbers down by answer

category for WER and SA in Table 1. The most

interesting category, is the one where patient

problems are collected, handled by our ICD9 and

patient-specific grammars. While we see WER rates

of over 40%, SA is over the 60th percentile at

61.53%. To understand whether the patient-specific

grammars are helping us, we ran the same data

through a recognizer configured only with the ICD9

grammar (

ICD9 only in Table 1.) We achieved a WER

of 62.42% and a SA of 50.64% for the current

problems section, which show that combining the

patient-specific information improves the grammar

by 5%. The best results were achieved by running

both grammars and language model in parallel

which improved recognition accuracy by 15% for

SA and 26% for WER in the current problems

section. If we look at our overall numbers (

Overall

(LM)

in Table 1) we see our changes improved the

system in all three categories (WER, SA, SentErr)

when compared to the base system (e.g.

Overall (base)

in Table 1).

5.1 Survey Analysis

Each user was randomly routed to one of the two

systems (user- or system-driven.) Once the user was

finished with a patient s/he would be asked to

answer four questions over the phone. We collected

responses from eight physicians. Results are shown

in Figure 2.

Figure 2 shows that users preferred the system

that allowed them to say the problems first (e.g.

user-driven,) as it scored higher in all questions.

Survey Results

0.5

1.5

2.5

3.5

4.5

User Driven System Driven

Syste m

Average

Would you find this system

helpful for collecting patient

information?

Does the system ask

questions ef ficiently?

Was the system

know ledgeable about your

patient?

Would you w ant to use this

system to retrieve

information about your

patients?

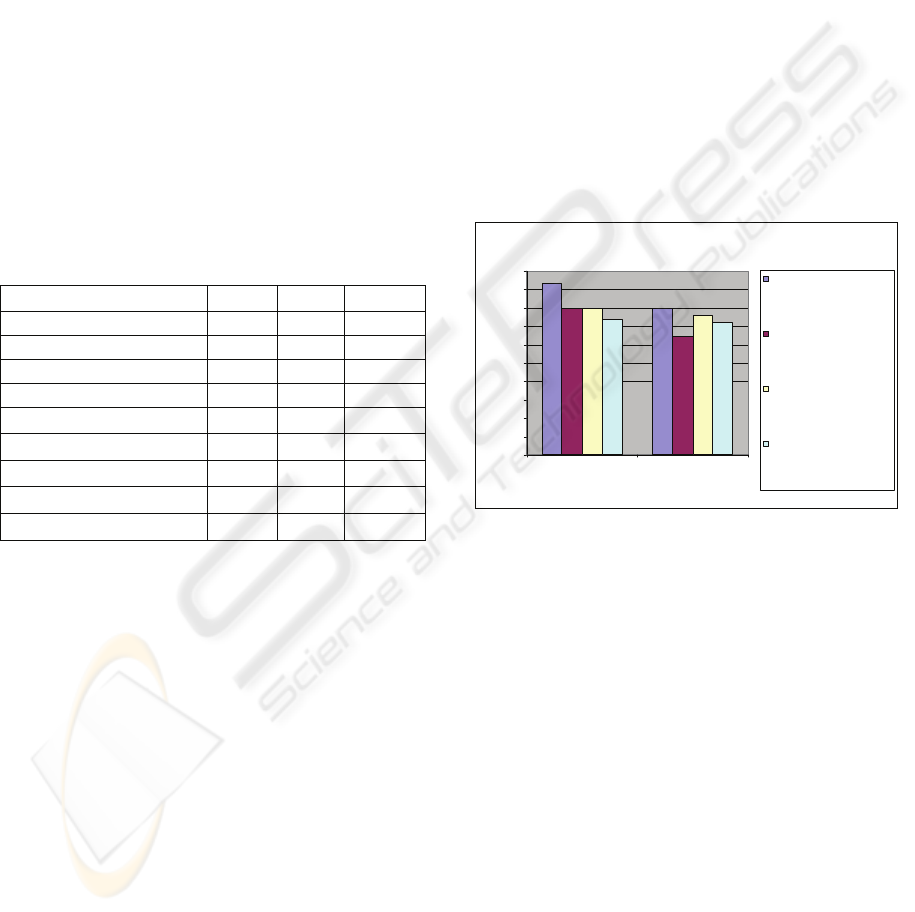

Figure 2: Survey results of questions for each system.

6 DISCUSSION

From the survey responses, it was clear that

physicians found this system helpful for collecting

patient information (avg. 4.5). While they found the

user-driven method more efficient than the system-

driven approach, they mentioned that they were at

times frustrated by the speed and performance of the

system, indicating that there is still room for

improvement. One of the most populated areas, the

nurse’s station, provided the worst acoustic

environment for speech recognition. We found that

other areas such as patient rooms, O.R. and hallways

had less effect on performance.

By analyzing the anonymized transcriptions we

noted that physicians provided expected answers in

over 60% of the inputs for patient problems,

especially those problems which were common in

SPOKEN LANGUAGE INPUT FOR A PATIENT NOTE SYSTEM

327

the CTICU. However, in other cases they tended to

combine problems or modify their descriptions of

them slightly. We plan to develop models that would

allow some provision of multiple problems in one

input.

Our recognition results were clearly affected by

the adverse environment, though we plan to

investigate methods to overcome these barriers,

including building recognizers robust to machine

noises (beeps.) and further smart dialog strategies.

6.1 Related Work

Other researchers have investigated the use of

speech recognition for translation of physician

diagnostic questions to the patient language using a

linguistically based constrained domain grammar

and achieve accuracy results of 69% (Bouillan et al).

Strzalkowski et al experiment with the use of post-

processing correction on a speaker-dependent

system for recognition of dictated radiology reports.

They first observe that recognition accuracy is far

below the advertised 5% and averages 14.3%. Their

linguistically based correction model reduced the

rate to 11.3%. Thus, even in a quiet environment,

with trained, speaker dependent models and close-

talking microphones, error rate is just 10% above

what we achieved. Bangalore & Johnston

experiment with mixing grammar and rule based

models in their MATCH application. MATCH is a

multimodal application that enables mobile users to

access subway and restaurant information for New

York City. In their best results they report 25% for

WER and 59.5% for SentErr. Our numbers for the

overall application are in line with those and in fact

show a slight improvement.

7 CONCLUSIONS

Our research shows that by using patient specific

inferences, we can increase the semantic accuracy of

clinical problem recognition by 5% and by

augmenting our patient specific grammars with a

large coverage language model, we can further

increase semantic accuracy by 15% and WER by

26%. Thus, an approach which is tightly integrated

with underlying patient-specific systems shows

promise for providing a usable spoken language

interface. Our survey shows that physicians find this

to be a helpful method for providing patient

information. Analysis of input shows that physicians

provide short responses that directly answer the

given questions.

REFERENCES

Wang SS, Starren JB. A Java speech implementation of

the mini-mental status exam. Proceedings of the

AMIA Annual Fall Symposium; Hanley&Belfus,

Philadelphia, 1999: 435-439.

Owens, S.. New Operations in Speech. Speechteg

Magazine, August 2005

Zue, V., S. Seneff, J. Glass, J. Polifroni, C. Pao, T. Hazen

and L. Hetherington, Jupiter: A Telephone-based

Conversational Interface for Weather Information,

IEEE Trans. on Speech and Audio Processing, 8(1),

2000.

International Classification of Diseases, Ninth Revision,

Clinical Modification, NCHS, 2007.

National Library of Medicine. Documentation, UMLS

Knowledge Sources. 2007AC Edition, May 2007.

McCray AT, Bodenreider O, Malley J and Browne AC.

Evaluating UMLS Strings for Natural Language

Processing. Proc AMIA Symp 2001.

Ackermann, Chantal and Libossek, Marion (2006):

System-versus user-initiative dialog strategy for driver

information systems, In INTERSPEECH-2006, paper

1172-Mon2FoP.3.

Bouillon, P. and Halimi, S. and Rayner, M. and

Hockey, B. A. Adapting a Medical speech to speech

translation system (MedSLT) to Arabic. Proceedings

of the 2007 Workshop on Computational Approaches

to Semitic Languages: Common Issues and Resources

Strzalkowski, T. and Brandow, R. A Natural Language

Correction Model for Continuous Speech Recognition.

Workshop on Very Large Corpora, EMNLP 1997

Bangalore, S. and Johnston, M. Balancing data-driven

and rule-based approaches in the context of a

Multimodal Conversational System. HLT-NAACL

2004: Main Proceedings

IBM Websphere Voice Server

http://www.ibm.com/software/pervasive/voice_server/

HEALTHINF 2009 - International Conference on Health Informatics

328
