FACIAL NORMAL MAP CAPTURE USING FOUR LIGHTS
An Effective and Inexpensive Method of Capturing the Fine Scale
Detail of Human Faces using Four Point Lights
Jasenko Zivanov, Pascal Paysan and Thomas Vetter
Computer Science Department, University of Basel, Bernoullistrasse 16, 4056 Basel, Switzerland
Keywords:
Face rendering, Face normal map, Normal map capture, Surface reconstruction.
Abstract:
Obtaining photorealistic scans of human faces is both challenging and expensive. Capturing the high-
frequency components of skin surface structure requires the face to be scanned at very high resolutions, outside
the range of most structured light 3D scanners.
We present a novel and simple enhancement to the acquisition process, requiring only four photographic flash-
lights and three texture cameras attached to the structured light scanner setup.
The three texture cameras capture one texture map (luminance map) of the face as illuminated by each of the
four flash-lights. Based on those four luminance textures, three normal maps of the head are approximated,
one for each color channel. Those normal maps are then used to reconstruct a 3D model of the head at a much
higher mesh resolution, in order to validate the normals. Finally, the validated normals are used as a normal
map at rendering time. Alternatively, the reconstructed high resolution model can also be used for rendering.
1 INTRODUCTION
Humans are exceedingly adept at detecting errors in
computer-generated faces, as we have a lifetime of ex-
perience observing real ones. At the same time, faces
are among the objects one would most often want to
render, as they provide a unique way to reach out to
an audience and communicate ideas and impressions.
Two things make the realistic rendering of faces
difficult. One is fine scale skin detail, visible almost
exclusively by the influence it has on shading patterns,
the other is its translucency, and especially the fact
that skin is far more translucent under red light than
under green or blue light (Jensen et al., 2001).
While there are means of capturing high resolu-
tion detail in entire faces, they are limited to excep-
tionally precise range scanners and light domes con-
taining thousands of light sources, both of which are
rather expensive. Our approach sacrifices some preci-
sion in order to perform the same task by using only
four point light sources. Care is taken, however, not
to impair the visual quality of the result - images ren-
dered using the resulting model or normal maps re-
main visually credible, even if they do not allow for
an exact reconstruction of a photograph of the same
head.
By estimating a separate normal map for each
color channel, we can also capture some effects of
subsurface scattering. Since red light tends to travel
further inside skin before leaving it than green or blue
light, skin appears smoother when observed under red
light. As a consequence, darker points on the skin sur-
face appear more red than lighter points.
2 RELATED WORK
Barsky and Petrou (Barsky and Petrou, 2001) present
a normal estimation technique somewhat similar to
ours. They offer a method to estimate the normals
of a non-translucent lambertian surface by evaluating
photographs taken under different simple illumination
conditions. Deviations of the surface from a lamber-
tian reflectiveness, caused by both an inhomogenous
distribution of incoming light and the non-lambertian
reflectance of the material itself, introduce an error
in the lower frequency bands of the resulting normal
map. An example of this can be seen in Fig. 1.(b).
Nehab et al (Nehab et al., 2005) present a
method to combine the low frequency bands of a
range scanned model with higher frequencies ob-
tained through photometric stereo. The method is
aimed at the capture of smaller objects, though, and
does not appear suitable for human faces. Weyrich
13
Zivanov J., Paysan P. and Vetter T. (2009).
FACIAL NORMAL MAP CAPTURE USING FOUR LIGHTS - An Effective and Inexpensive Method of Capturing the Fine Scale Detail of Human Faces
using Four Point Lights.
In Proceedings of the Four th International Conference on Computer Graphics Theory and Applications, pages 13-20
DOI: 10.5220/0001773300130020
Copyright
c
SciTePress
et al (Weyrich et al., 2006) apply the two methods
to capture high resolution meshes of faces. In con-
trast to us, however, they use well above 1000 light
sources, each of which has been painstakingly cali-
brated by taking photographs of a disk of Fluorilon, a
material with an almost ideally lambertian reflective-
ness, at different positions inside the individual light
cones.
Haro et al (Haro et al., 2001) use silicone molds
of skin to acquire normal maps of patches of the fa-
cial surface, and then grow the resulting pattern to
cover the entire face using a texture synthesis tech-
nique. The approach is unable to capture local fine
scale features specific to a person such as wrinkles,
moles and scars. It also ignores the translucency of
skin, although its effects could be computed at ren-
der time, for example through the use of texture space
convolution as in (Borshukov and Lewis, 2003). Us-
ing the geometrically correct normal maps without
addressing the effects of translucency, however, leads
to grainy-looking and sandpaper like skin.
Debevec et al (Ma et al., 2007) offer a scan-
ning technique that produces four independent nor-
mal maps, one for the diffuse reflection in each of the
three color channels and one for specular reflections.
The lighting setup they use is fairly complex though,
as the technique relies on polarized full sphere illumi-
nation.
3 SETUP
We use a structured light 3D scanner system for the
geometry acquisition. The texture is captured using
three high resolution SLR cameras and four photo-
graphic flash lights. The flash lights have an effect on
the face similar to that of theoretical point lights.
The positions of the flash lights have been deter-
mined by scanning a number of taut strings running
together at each of the lights and intersecting the mea-
sured lines in space. When choosing where to place
the lights, care has been taken to maximize areas of
the face lit by at least three lights.
The light intensity distributions of the light cones
do not need to be known, as long as the light intensity
varies only smoothly along the surface. If this is the
case, the light intensity can only have an impact on the
low frequency component of the estimated normals,
while only the high frequencies are taken from the
photographs - the low frequencies can be extracted
from shape.
4 PROCEDURE
After scanning the face using the structured light cap-
ture process, which takes about half a second, the four
flash lights are triggered in quick succession, and four
images are captured by each of the three cameras. The
overall scanning process takes approximately three
seconds.
The twelve photographs are then mapped into the
head’s texture space, resulting in twelve texture maps.
Ray tracing is applied to calculate the self-occlusion
of the face in regard to the cameras and the light
sources.
Before the normal estimation process is initiated,
the four sets of three images are used to reduce the
effects of specularity. This is done by forming min-
ima over the triples of textures captured by the three
cameras under each of the four lights.
We are then left with only four textures of the face,
one for each light source. As most areas of the face
contain shadows in at least one of the textures, we es-
timate most of the normals based on three color val-
ues.
Those normals carry a systematic bias due to the
varying intensity of incoming light across the face,
as our light sources are in reality photographic flash-
lights that spread light inside a cone, and not perfect
point lights. That bias is removed by ensuring that the
average normal direction in a certain area is perpen-
dicular to the surface of the 3D model in that area.
Finally, photographic noise is removed from the
normal maps by reconstructing the 3D-surface at the
resolution of the normal maps, and using the normals
implied by that surface. The surface itself can also be
used as a high-resolution model of the face.
5 SPECULARITY REDUCTION
Specularity is considered a necessary evil in our ap-
proach. Although it carries the most precise nor-
mal information (as specularly reflected light does not
succumb to subsurface scattering), the coverage of the
face by intense specularity in our setup is simply in-
sufficient to allow for a stable estimation of specular
normals and the spatially varying specular reflectance
function.
Let P
icl
be pixel i of the radiance texture of
the head taken by camera c under light l. Essen-
tially, what we are interested in, is the value P
il
:=
min
c
(P
icl
). As diffusely reflected light is assumed to
spread out evenly in all directions, while specularly
reflected light is focused in one particular direction,
looking at a point on the surface from the direction
GRAPP 2009 - International Conference on Computer Graphics Theory and Applications
14
(a) (b)
(c) (d)

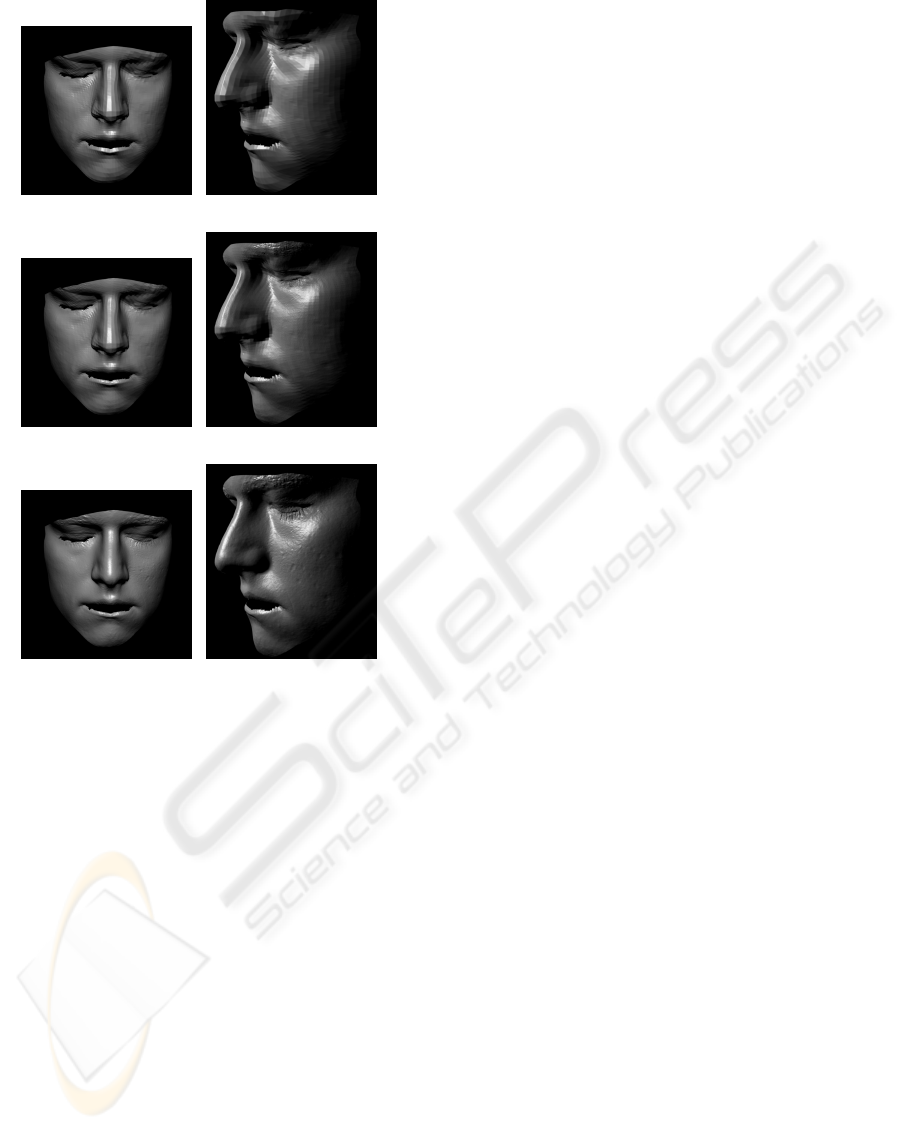

Figure 1: Outline of the capture process. The initial normals
(a) are calculated from the geometry of the mesh. The po-
sitions of multiple vertices are taken into account when the
normal of each vertex is computed, thus the smooth appear-
ance. Photographs of the face are used to estimate the raw
normal maps (b). Low frequencies from (a) and high fre-
quencies from (b) are combined to compute the corrected
normal map (c), which is then used to reconstruct a high
resolution surface, yielding the final reconstructed normal
map (d).
from which it is seen the darkest, also yields the color
closest to the diffuse color of the surface at that point.
Forming the minimum in this naive way would
however create discontinuities in image color at vis-
ibility borders and introduce edges into the resulting
normal map. In order to avoid this, the borders are
interpolated smoothly, using an offset negative gaus-
sian of the distance of each texel to the border as its
weight.
The suppression of specularity could also be per-
formed using cross polarization, ie. placing polariz-
ing filters in front of the camera and the light source,
though great attention would have to be paid to the
orientation of the filters, as the cameras and the light
sources are not located in a plane in space.
Now that specular reflections have been removed
from the input textures, those textures can be used to
estimate normal maps.
5.1 Normal Estimation
After our specularity reduction step, we are left with
four images of the the diffuse radiance of the head, as
seen under the four light sources.
Assuming lambertian reflection, we can express
the luminance of color channel λ {R,G,B} of texel i
under light l as a dot product of
N
iλ
, the normal we are
looking for, and
L
il
, the normalized vector pointing
towards the light, scaled by the surface albedo a
iλ
:
I
ilλ
= a
iλ
·
L
il
·
N
iλ
If the texel is in shadow under only one light,
which is mostly the case, we can simply solve the fol-
lowing linear system of equations, once for each color
channel:
a
iλ
·
L
T
i0
L
T
i1
L
T
i2
·
N
iλ
=
I
i0λ
I
i1λ
I
i2λ
Note that we are only interested in the direction of
N
iλ
at this point, so the value of a
iλ
that only scales
the normal can be ignored.
What remains is a linear system of equations with
three unknowns and three equations. If the texel is
visible under all four lights, we even have an overde-
termined linear system of the same form, that we can
solve in the least squares sense. Due to our setup,
the overdetermined texels usually form a thin vertical
band in the middle of the face.
Either way, solving the system yields the scaled
normal a
iλ
·
N
iλ
. We could hypothetically keep the
length of a
iλ
·
N
iλ
as the value of a
iλ
, but doing so
would introduce irregularities in facial color, as the
normal
N
iλ
still suffers from a low frequency error.
Instead, we only normalize the resulting normal.
5.2 Low Pass Correction
The resulting normal maps still suffer from a system-
atic low frequency error caused by the inhomogenous
distribution of incoming light and deviations from
lambertian reflection (see Fig 1.(b) for an example).
That error can be reduced by discarding the low fre-
quency part of the normal map and replacing it with
the low frequency data from the 3D model. We call
that process the low pass correction.
The low pass correction is performed separately
for the five facial areas - the four areas illuminated by
all but one of the four lights, and the area illuminated
FACIAL NORMAL MAP CAPTURE USING FOUR LIGHTS - An Effective and Inexpensive Method of Capturing the
Fine Scale Detail of Human Faces using Four Point Lights
15
by all four lights. The reason for this is that the five
areas exhibit different low frequency errors, as the er-
ror caused by each light nudges the estimated normal
in a different direction.
Let N
sharp
be the normal map we have just ob-
tained, N
blur
a low-pass filtered version of that nor-
mal map and N
vertex
a low-pass filtered normal map
generated from the 3D geometry, which is created by
rendering the vertex normals into texture space.
We define a new normal map N
comb
as follows:
N
comb
:= N
sharp
+ N
vertex
N
blur
N
comb
has the useful property that when it is itself low-
pass filtered, the result is very close to N
vertex
- the
low frequencies of N
comb
consist of information from
N
vertex
, while only the high frequency information is
taken from N
sharp
. This is highly useful, as variations
in incoming light intensity are always of a low fre-
quency nature.
Since the correction is performed on each vector
component independently, the resulting normals have
to be renormalized.
Our method is similar to the one presented in (Ne-
hab et al., 2005), except that we perform the low-pass
filtering by convolving the normal map linearly with
a gaussian kernel, instead of estimating a rotation ma-
trix for each normal - we assume that the difference
in the lower frequency bands is small enough for that
not to make any difference.
Once the five patches of N
comb
have been com-
puted for all five areas, they can be safely put to-
gether - because they all share the same low frequency
information, there is no longer any danger of edges
(discontinuities in the normal map) appearing at the
seams.
At points illuminated by only two or less lights
(the sixth area), the original vertex normal map,
N
vertex
, is used.
After the low pass correction, the normal map
looks like Fig. 1 (c). In order to render images with it,
a texture containing the surface albedo is needed. The
albedo a
λ
for color channel λ is defined as the ratio
of light of color λ that is reflected off a surface, when
the incoming light direction is perpendicular to it.
5.3 Albedo Estimation
Only after the low pass correction has been com-
pleted, is it safe estimate the surface albedo.
We define the albedo a
iλ
for texel i and color chan-
nel λ as follows:
a
iλ
=
valid l
(
L
il
·
N
iλ
)I
ilλ
valid l
(
L
il
·
N
iλ
)
2
N
iλ
is the estimated surface normal at texel i for
color channel λ,
L
il
is the normalized vector towards
light l and I
ilλ
is the λ channel of the diffuse lumi-
nance of texel i under light l. The expression can be
seen as a weighted average over the individual contri-
butions I
ilλ
/(
L
il
·
N
iλ
), weighted by the squared lam-
bert factors (
L
il
·
N
iλ
)
2
. The weights are squared in
order to suppress the influence of dark pixels, where
the relative error is the largest.
At the end, the albedo is grown into areas where
it is undefined. This is done so tiny cracks can be re-
moved that can form mostly around the lips, where
occlusion is critical and the texture resolution is low
(in our case). This is done by setting the value of each
undefined pixel to the average value of all defined
neighboring pixels (after which the pixel becomes de-
fined), and repeating the procedure a number of times.
Although the data computed so far is sufficient to
render images, the quality of the normal maps can still
be improved. This is done by computing a 3D surface
at the resolution of the normal map with surface nor-
mals that match those of the normal map as closely as
possible. The normals of that surface are then used as
a more realistic normal map.
5.4 Surface Reconstruction
Not every vector field is a possible normal map - at
least not as long as the surface it is supposed to repre-
sent has been adequately filtered prior to sampling.
We are looking for a normal map that actually cor-
responds to a real surface. By enforcing that fact,
we can remove part of the photographic noise that
has found its way into the normals without sacrificing
higher frequency bands of the normal map. We do
that by reconstructing the surface at the resolution of
the normal map. The reconstructed surface can then
be either rendered directly or its surface normals can
be written into a normal map, and the original, coarse
mesh rendered using that normal map.
If the normal map is to be used with the coarse
mesh, the normal maps for all three color channels
have to be used to reconstruct three different meshes.
If the high resolution mesh is to be used for render-
ing, only one of the meshes has to be reconstructed,
preferrably the one corresponding to the green chan-
nel. The effects of subsurface scattering on the color
of skin are thereby lost. The green channel is chosen
because it offers the best trade-off between signal in-
tensity and contrast, because the normals correspond-
ing to the red channel are much softer, while the ones
corresponding to the blue channel are noisy as only
very little blue light is reflected off human skin.
GRAPP 2009 - International Conference on Computer Graphics Theory and Applications
16

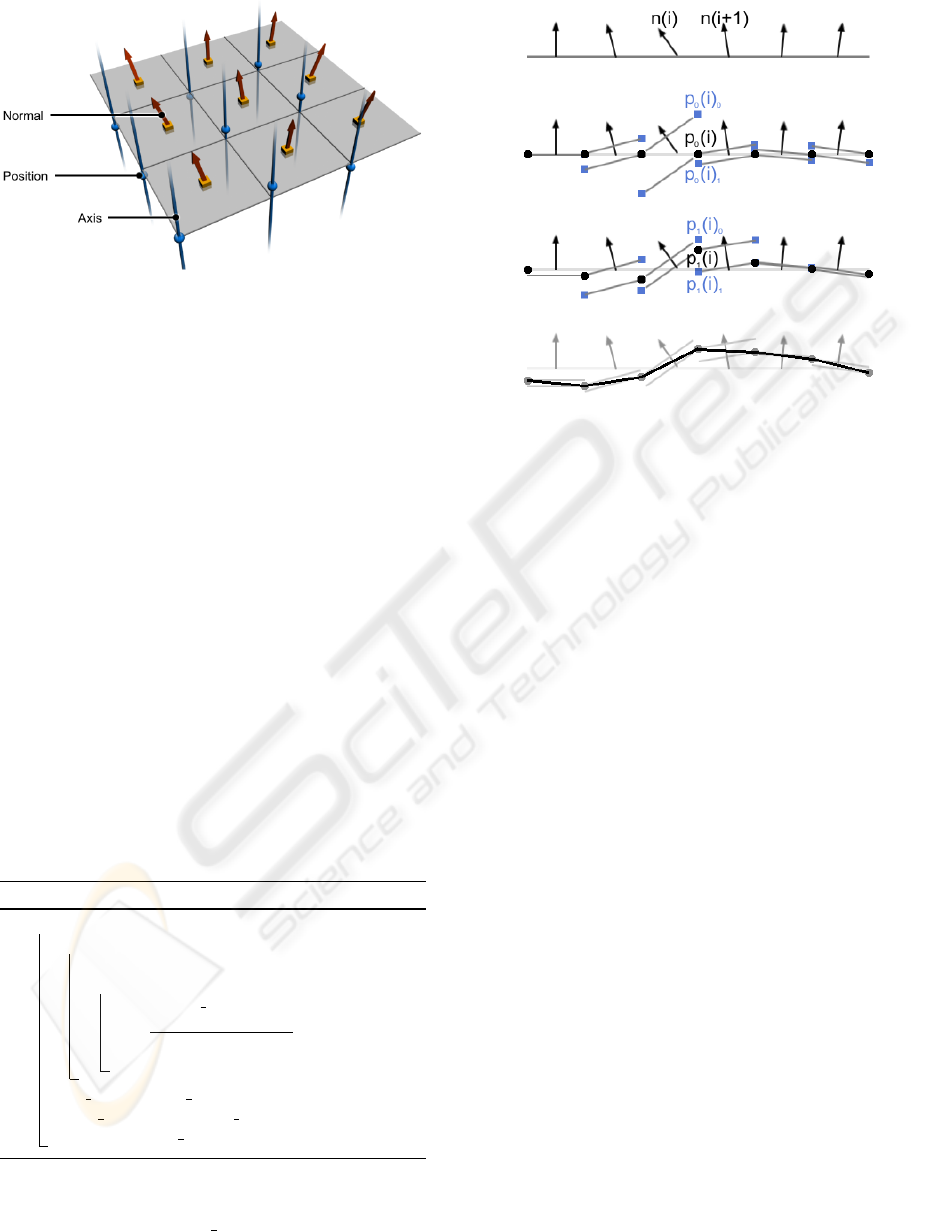

Figure 2: The setup for our surface refinement process.
Note that the positions are placed between the normals of
the normal map.
The surface reconstruction is again similar to (Ne-
hab et al., 2005), although we use an iterative non-
linear method instead of attempting to deal with a
10
6
×10
6
(albeit sparse) matrix. The size of the prob-
lem stems from the fact that the displacement of each
texel is given by the normal map only as relative to its
neighboring texels.
Our procedure looks as follows:
Let N
comb
be the original normal map, and P
0
a
texture holding the 3D positions of each texel. P
0
is
defined in such a way that an entry P
0
(x,y) holds the
3D position of the surface between the four normal
map entries N
comb
(x,y), N
comb
(x + 1,y), N
comb
(x,y +
1) and N
comb
(x + 1,y + 1), as illustrated in Fig. 2.
Furthermore, for each texel P
0
(x,y), a correspond-
ing axis A(x,y) is defined, parallel to the interpolated
vertex normal at that point. It is along that axis, that
the position P
0
(x,y) is allowed to move.
The position P
i+1
(x,y) for each successive itera-
tion is obtained using the following algorithm:
Algorithm 1: Geometry Refinement.
for i {0 ... iterations} do
for (x
t
,y
t
) texels do
error[x
t
,y
t
] = 0;1
for (x
s
,y
s
) neighborhood(x
t
,y
t
) do
n = normal between((x
s
,y
s
),(x
t
,y
t
));2
ε =
dot(P
i
[x
t
,y
t
]P
i
[x
s
,y
s
],n)
dot(A[x
t
,y
t
],n)
;
3
error[x
t
,y
t
] += weight(x
s
,y
s
) · ε;4
avg error = gauss convolution(error);5
norm error = error - avg error;6
P
i+1
= P
i
- norm error ·A;7
The process is illustrated in 2D in figure 3.
The function normal between((x
s
,y
s
),(x
t
,y
t
))
returns the normal from the normal map N
comb
be-
Figure 3: An illustration of our surface reconstruction al-
gorithm as applied to a 2D normal map. The black circular
dots represent the current positions, while the blue square
dots are where the neighboring texels at their current po-
sitions require the positions to be. Please note that all 2D
normal maps in fact correspond to valid 2D-surfaces (ie.
piecewise linear functions), which is not the case with all
3D normal maps.
tween (x
s
,y
s
) and (x
t
,y
t
) if they are diagonal neigh-
bors, and the normalized average of the two normals
in between, if they are not (see Fig. 2).
The variable denoted ε in the code tells by how
much point P
i
[x
t
,y
t
] has to be shifted along A[x
t
,y
t
]
in order for the straight line between P
i
[x
t
,y
t
] and its
neighbor P
i
[x
s
,y
s
] to be perpendicular to n. The sum
of the weight terms of all neighbors has to be one or
less. The weight of diagonal neighbors has been cho-
sen as half as much as the weight of direct neighbors
in our case.
The error is normalized prior to the computation
of P
i+1
, as we are only interested in its high frequency
component - on a coarser scale, the mesh is assumed
to be correct.
Depending on texture resolution, between 20 and
50 such iterations are required to approach a state of
equilibrium.
6 RESULTS
Our method allows for the reconstruction of high res-
olution surface detail of human faces using only very
limited information as input. For this reason, the
method is also susceptible to missing data, in the
form of shadows cast by the face onto itself. This
is problematic, because both the positions of the light
FACIAL NORMAL MAP CAPTURE USING FOUR LIGHTS - An Effective and Inexpensive Method of Capturing the
Fine Scale Detail of Human Faces using Four Point Lights
17
(a) (b)
(c) (d)
(e) (f)
Figure 4: The surface reconstruction process using a 512 ×
512 normal map and a 128 ×128 mesh, resulting in a 512×
512 mesh. The initial surface (a, b), the surface after one
iteration (c, d) and after 41 iterations (e, f).
sources and the shape of the face casting the shadows
are only known up to a certain degree of accuracy.
The four flash lights were mounted approximately
35 degrees left and right and 15 degrees up and down
in front of the person to scan. That arrangement has
been chosen to minimize areas shadowed under more
than one light. Although points illuminated by only
two or less of the four lights can be filled in using
the original vertex normals as a fallback, care has to
be taken to calculate the shadows using an adequate
margin of error. If shadowed texels are not filtered
out strictly enough, they will influence the resulting
normals. At the same time, we can not afford to lose
too many lit texels in the proximity of shadowed re-
gions. The artifacts arising from inadequately sup-
pressed shadows are illustrated in Fig 6.
The estimated normals for all three color channels
are shown in Fig 7. Note that the normals based on
the red channel are much smoother than those based
on the blue channel. This can be explained by the
more extensive scattering of red light in the deeper
layers of the skin (see (Jensen et al., 2001)).
Comparisons between renderings created using
geometric normals and our estimated normal maps
can be seen in Fig. 5 and 8. The geometric nor-
mals have been computed at each vertex by averaging
the normals of nearby triangles. The algorithm takes
about eleven minutes on an Intel Core2 6600 2.40GHz
for one 1024 × 512 normal map. Overall, the method
provides visually convincing results, while the cost
of the required additional hardware remains relatively
low (below 1000 USD, given an existing structured
light scanner).
ACKNOWLEDGEMENTS
This work was partially funded by the NCCR CO-ME
project number 5005-66380.
REFERENCES
Barsky, S. and Petrou, M. (2001). Colour photometric
stereo: simultaneous reconstruction of local gradient
and colour of rough textured surfaces. Eighth IEEE
International Conference on Computer Vision, 2:600–
605.
Borshukov, G. and Lewis, J. (2003). Realistic human face
rendering for” The Matrix Reloaded”. International
Conference on Computer Graphics and Interactive
Techniques, pages 1–1.
Haro, A., Guenter, B., and Essa, I. (2001). Real-time,
Photo-realistic, Physically Based Rendering of Fine
Scale Human Skin Structure. Rendering Techniques
2001: Proceedings of the Eurographics Workshop in
London, United Kingdom, June 25-27, 2001.
Jensen, H., Marschner, S., Levoy, M., and Hanrahan, P.
(2001). A practical model for subsurface light trans-
port. Proceedings of the 28th annual conference on
Computer graphics and interactive techniques, pages
511–518.
Ma, W., Hawkins, T., Peers, P., Chabert, C., Weiss, M., and
Debevec, P. (2007). Rapid acquisition of specular and
diffuse normal maps from polarized spherical gradient
illumination. Submitted to EGSR.
Nehab, D., Rusinkiewicz, S., Davis, J., and Ramamoorthi,
R. (2005). Efficiently combining positions and nor-
mals for precise 3D geometry. Proceedings of ACM
SIGGRAPH 2005, 24(3):536–543.
Weyrich, T., Matusik, W., Pfister, H., Bickel, B., Donner,
C., Tu, C., McAndless, J., Lee, J., Ngan, A., Jensen,
H., et al. (2006). Analysis of human faces using a
GRAPP 2009 - International Conference on Computer Graphics Theory and Applications
18
measurement-based skin reflectance model. Interna-
tional Conference on Computer Graphics and Inter-
active Techniques, pages 1013–1024.
APPENDIX
(a)
(b)

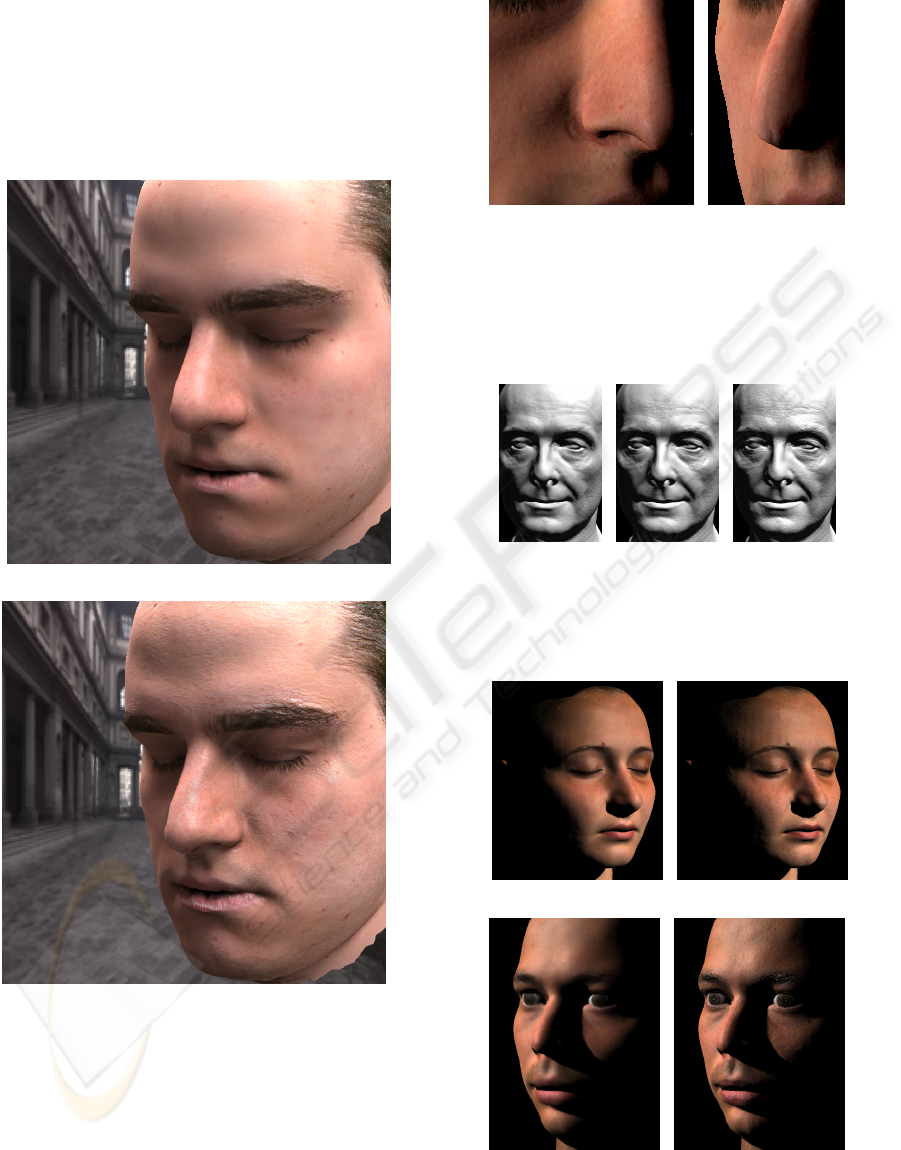

Figure 5: Renderings of a face under omnidirectional light-
ing from the Uffizi light probe. The original geometric nor-
mals can be seen in (a) and the highly detailed normals ob-
tained through our method in (b).
(a) (b)
Figure 6: Possible failure scenarios: points inside shadows
are not discarded strictly enough (a), so the shadow of the
nose leaves an imprint on the normal map, or they are dis-
carded too strictly (b), creating a gap in the normal map at
the center of the nose.
(a) (b) (c)
Figure 7: Shaded normal maps for the red (a), green (b) and
blue (c) channel. Note that the perceived smoothness of the
surface increases with greater wavelength.
(a) (b)
(c) (d)

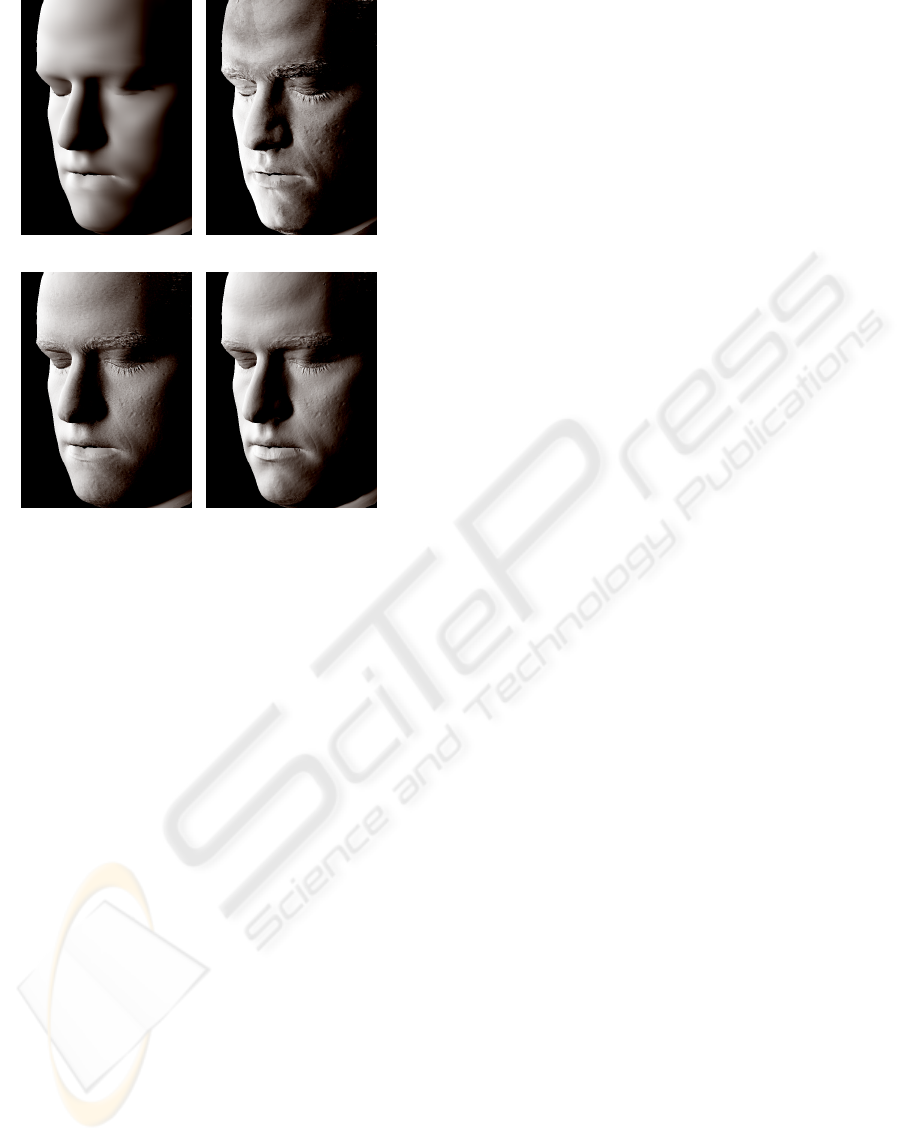

Figure 8: More renderings under a point light using geo-
metric normals (a, c) and our normal map (b, d).
FACIAL NORMAL MAP CAPTURE USING FOUR LIGHTS - An Effective and Inexpensive Method of Capturing the
Fine Scale Detail of Human Faces using Four Point Lights
19
(a)
(b)
(c)

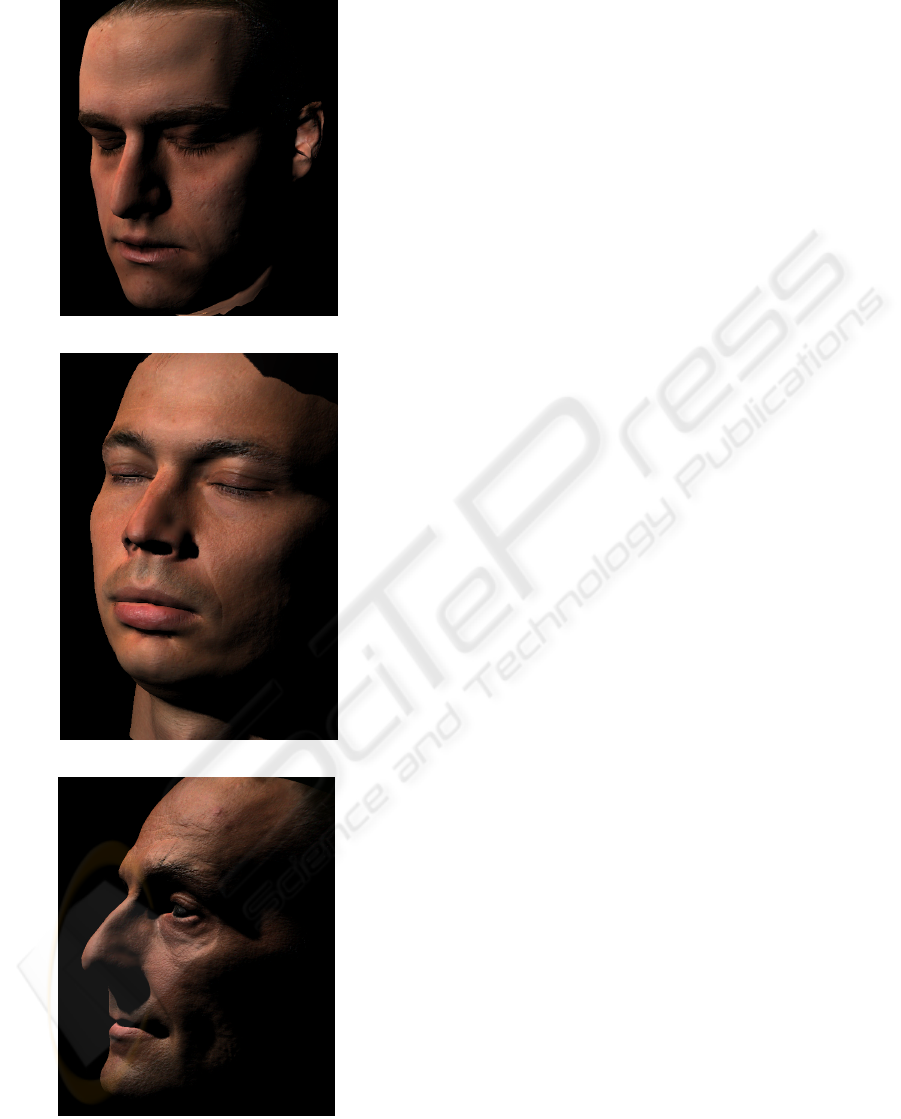

Figure 9: Renderings of normal mapped heads under a point
light.
GRAPP 2009 - International Conference on Computer Graphics Theory and Applications
20
