ACQUISITION, ANNOTATION AND INTERACTIVE

EXPLORATION OF STEREO IMAGES

WITH VIRTUAL REALITY

Mohammed Haouach*

**, Karim Benzeroual*

Christiane Guinot*

** and Gilles Venturini*

* Laboratoire d’Informatique, Université François-Rabelais de Tours, 64 avenue Jean Portalis, 37200 Tours, France

**CE.R.I.E.S., Unité Biométrie et Epidémiologie, 20 Rue Victor Noir, 92521 Neuilly sur Seine, France

Keywords: Stereoscopic acquisition, Camera calibration, Genetic algorithms, 3D visualization, Image annotation,

Hypermedia, Skin relief.

Abstract: We present in the paper a system called Skin3D that integrates all hardware and software to extract

information from 3D images of skin. It is composed of a lighting equipment and acquisition-based

stereoscopic cameras, a camera calibration using genetic algorithms, virtual reality equipment to restore the

images and interact in 3D with them, a set of interactive features to annotate images, annotations and share

these 3D hypermedias. We present a comparative study and an application of Skin3D on faces skin.

1 INTRODUCTION

Relief is a complex and important data for many

domains. In medicine, numerous methods have been

developed in order to acquire relief of various parts

of the human body with the aim of discovering

information and knowledge. In this paper we are

especially interested with the acquisition of a

surface, and more precisely the skin. We have

conceived a complete and operational system called

Skin3D (see an overview in figure 1) which is

compound of three main modules: (1) an acquisition

module that takes stereoscopic photographs of

people with skin problems or specific pathologies,

(2) a camera calibration module that estimates the

cameras parameters which are necessary for

computing 3D information, and (3) a visualization

and exploration module which can be used by

dermatologists to perform 3D measurements, to

create annotations as well as a 3D hypermedia, and

to share the extracted knowledge with others.

In this paper, we will detail respectively each

module in sections 2, 3 and 4, and we present our

motivations and the state of the art for each of them.

In section 5 we described the obtained results on the

precision of camera calibration and a first example

of an annotated 3D hypermedia build on 3D

photographs of faces.

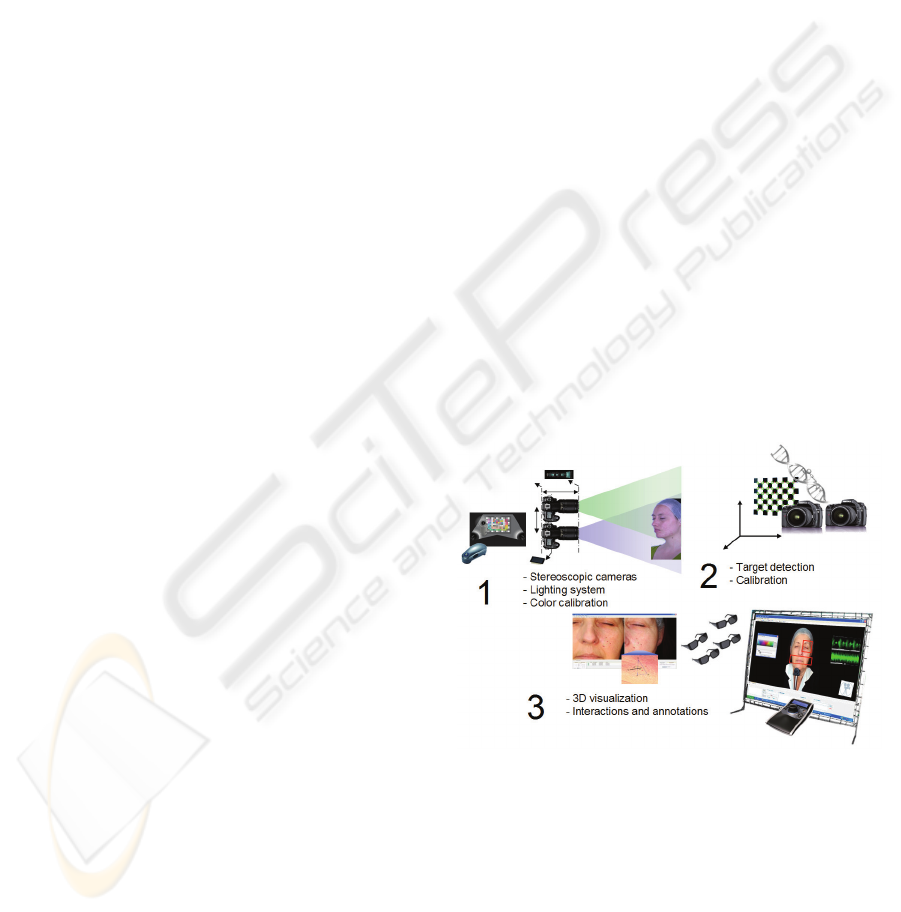

Figure 1: Overview of Skin3D.

2 ACQUISITION AND

CALIBRATION MODULE

2.1 Acquisition of Relief

In the skin domain, two types of relief acquisition

methods can be distinguished, the so-called active

369

Haouach M., Benzeroual K., Guinot C. and Venturini G. (2009).

ACQUISITION, ANNOTATION AND INTERACTIVE EXPLORATION OF STEREO IMAGES WITH VIRTUAL REALITY .

In Proceedings of the International Conference on Health Informatics, pages 369-374

DOI: 10.5220/0001778803690374

 SciTePress

and passive methods (Ben Amor et al. 2005).

Actives methods consist in combining an optical

sensor with a source of light, like for example Laser

scanners, sensors that use structured lights (Salvi,

2004), or profilometry (Rohr and Schrader, 1998).

Passives methods rather use one or more images like

in (Hernandez and Schmitt, 2003) or like

stereophotogrammetry (D'Apuzzo, 2002). In our

application, we have three main constraints: to

acquire the relief in conjunction with the visual

aspect of the skin, to do this with as less constraints

as possible for the experimenter and the subject, to

keep a high visual fidelity to the real skin. These

constraints thus exclude Laser-based systems,

methods that need heavy hardware, or systems that

do not acquire both the relief and texture. Finally,

the last constraint tends to exclude systems that

perform a 3D reconstruction, because this process

alters the visual quality of the acquired relief

compared to a high quality photograph for instance

(Ayoub et al. 1998).

For this module of Skin3D, we have conceived

an acquisition system on the basis of two cameras

assembled together and which are triggered in a

synchronized way. We have designed a specific

lighting system and we have used an optical sensor

to calibrate all graphic devices (cameras, screens,

video projectors, etc).

We have used two Pentax K10 reflex cameras

with a resolution of 10 megapixels and with 50mm

macro objective (ideal for taking pictures of faces).

The stereoscopic support allows us to minimize the

distance between the two cameras (the natural gap

between human eyes is about 6cm) and to maintain

parallelism between cameras (or a small converging

angle of a few degrees only). These conditions are

necessary to ensure a comfortable visualization for

the user during the stereoscopic projection without

important modifications of the original images.

Taking such stereoscopic pictures requires an

adapted lighting system. In our first test we deal

mainly with faces, so we have selected specific

lights to reveal the skin relief while removing all

shadows inherent the shape of the face. This lighting

system is compound of two HMI torches and two

Pentax AF 540 FGZ flashes.

In order to obtain the highest image fidelity both

for the acquisition and visualization, we calibrate all

graphic devices by associating them an ICC profile

(International Color Consortium). This is performed

using an i1 (X-rite) sensor and a standardized color

board.

2.2 Calibration with a Genetic

Algorithm

Camera calibration is a crucial step in stereovision

(Faugeras et al., 1987) because it will determine the

accuracy of the acquired relief. It consists in

estimating the intrinsic and extrinsic parameters of

the cameras (i.e. focal length, distortion,

rotation/translation between the two cameras, etc).

Numerous methods exist in this context (Tsai, 1987)

without a real consensus, even if some algorithms

are relatively common (Zhang, 1998). The type of

methods we have selected consist in taking pictures

of a calibration target with known dimensions, and

then to estimate the parameters that minimize a

target « reconstruction » error. These methods

involve non linear optimization procedures which

may have some problems (stability, initial starting

point). This has lead researchers to make use of

genetic and evolutionary algorithms which are

stochastic procedures with less sensitivity. In this

context, one may cite for instance (Zhang and Ji,

2001) where a single camera is calibrated, (Cerveri

et al. 2001) who use evolution strategies for

stereovision, or (Dipanda et al. 2003) who use one

camera and a Laser.

We have developed a new calibration method,

based on genetic algorithms, and which

distinguishes itself from the others on the following

points: it is specific to stereovision, it uses the notion

of distance between points in its evaluation function

(because we want to make precise measurements), it

can be applied to several models of objectives (“pin-

hole” model but also telecentric model). It proceeds

in the following way (see figure 1, step 2): we take

pictures of a target of known dimensions and with

different orientations, then we detect specific points

(corners) on this target in both left and right images.

The distances between these points are perfectly

known. The objective of our genetic algorithm is to

find the set of parameters that minimizes the

prediction error (i.e. the difference between known

and estimated distances). For this purpose, it uses a

population of individual, where each individual is a

possible set of parameters. At the beginning, the

population is filled with randomly generated

individuals where parameters belong to loosely

defined intervals. Then parents are selected

according to their performance using binary

tournament selection, and we recombine these

individuals using a crossover operator (either a

linear recombination or a discrete uniform

crossover) and using a mutation operator (small

random noise). The evaluation function takes into

HEALTHINF 2009 - International Conference on Health Informatics

370

account the error between the real and estimated

distances, but also other errors computed during the

estimation of points (such as the intersection error,

see for example (Cerveri et al. 2001)).

The parameters that we consider in the

individuals are the 3D transformation between

cameras, the focal lengths, the distortion and the

decentering of the objectives w.r.t. the CCD. After

numerous tests (especially on artificial problems

where the parameters to estimate are known), we

have kept the following parameters: 1000

individuals in the population, stopping of the

algorithm after 30000 generations (one individual is

generated per generation) when the population

improvement is below a given threshold. The

running times for real problems on a standard

computer are about 1 minute.

3 VISUALISATION AND

INTERACTIVE EXPLORATION

3.1 Virtual Reality

This module of skin3D is very important because

once the data are acquired they must be restituted to

the expert with the highest possible fidelity and with

all interactive tools necessary for knowledge

discovery. Using virtual reality is thus necessary in

order to visualize the relief in stereoscopy but also to

let the expert navigate in the 3D image and, for

instance, make annotations. As far as we know

systems for exploring and annotating stereoscopic

images are rare. We may mention (Zhu, 2007) in

ophthalmology but 3D images are basic anaglyphs

with no real interactions.

For the stereoscopic visualization of images, we

have used two types of projection hardware: on the

one hand, standard cathodic screens that

alternatively visualize the left and right images using

active shuttering glasses, and on the other hand, two

video projectors with passive glasses. We have

tested two types of video projectors: the first ones

(F1+ from Projection Design) use a passive

polarization of light (vertical/horizontal

polarizations respectively for each left and right

images), and the others use F2 video projectors with

Infitec filters (equivalent to red/green filters but with

higher quality than basic anaglyphs). These

projectors have allowed us to project skin 3D images

on a 25m2 screen in front of more than 20 people.

As far as navigation is concerned, the user may

move along the 3 axis X, Y et Z. All other moves are

prohibited (like turning around in 3D) because this

would involve a 3D reconstruction that would

decrease the visual and photographic quality of the

pictures. To perform these moves, the expert may

use the mouse or a more specific 3D controller with

6 degrees of freedom (SpacePilot™). Using this

controller is very intuitive, and the user may for

instance navigate in 3D with his left hand and use

the mouse with his right hand for selecting areas.

3.2 Mesuring 3D Information

One may compute the 3D coordinates of a point P

on the skin thanks to the parameters estimated by the

calibration module of Skin3D. Let Pl denote the

projection of P in the left image, and let us suppose

that this projected point was selected by the user. In

order to compute the 3D coordinates of P, one has to

find the point Pr, i.e. the correspondent of Pl in the

right image. This is performed using a pattern

matching algorithm that tries to maximize the

correlation between Pl and Pr. This correlation is

computed using the color values of pixels on two

small images centered respectively on Pl and Pr

(Chambon and Crouzil, 2003). The best candidate is

the point that maximizes the correlation and that

checks other constraints (for instance, the

correspondent of Pr must be, in a symmetrical way,

Pl). Then, using Pl and Pr, the 3D coordinates of P

are known. The expert may thus measure 3D

distances between two selected points. In order to

measure depths (or heights), the expert selects 3

points in the image (see figure 2). These 3 points

represents a plane, and the distance between this

plane and a fourth point can be computed, which

results in a height or depth measurement.

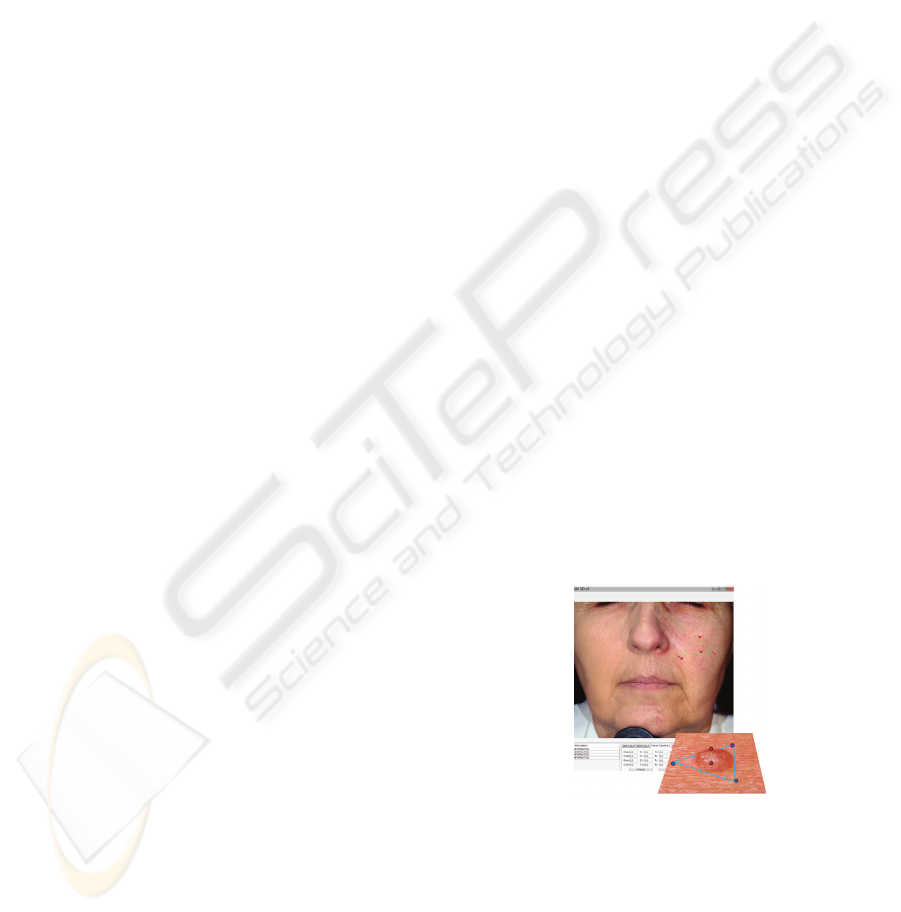

Figure 2: Measuring a depth in the stereoscopic images.

3.3 Selecting Point in 3D

The basic pointing device on a standard display is

2D and is not adapted to stereoscopic visualization

because the position of the pointer is relative to the

2D screen and not to the 3D image, which is very

confusing for the user. This is the reason why we

ACQUISITION, ANNOTATION AND INTERACTIVE EXPLORATION OF STEREO IMAGES WITH VIRTUAL

REALITY

371

have defined a 3D stereoscopic pointer in Skin3D. In

order to properly position this pointer, one has to

compute, for a subset of pixels in the images, the

correspondence between the left and right images

(see figure 3). We thus obtain a depth map for each

of the selected pixels. This map can be used to

correctly position the pointer in the 3D visualization.

The pointer gives the user the feeling that it is flying

just above the skin and that it follows the variation

of the pointed relief.

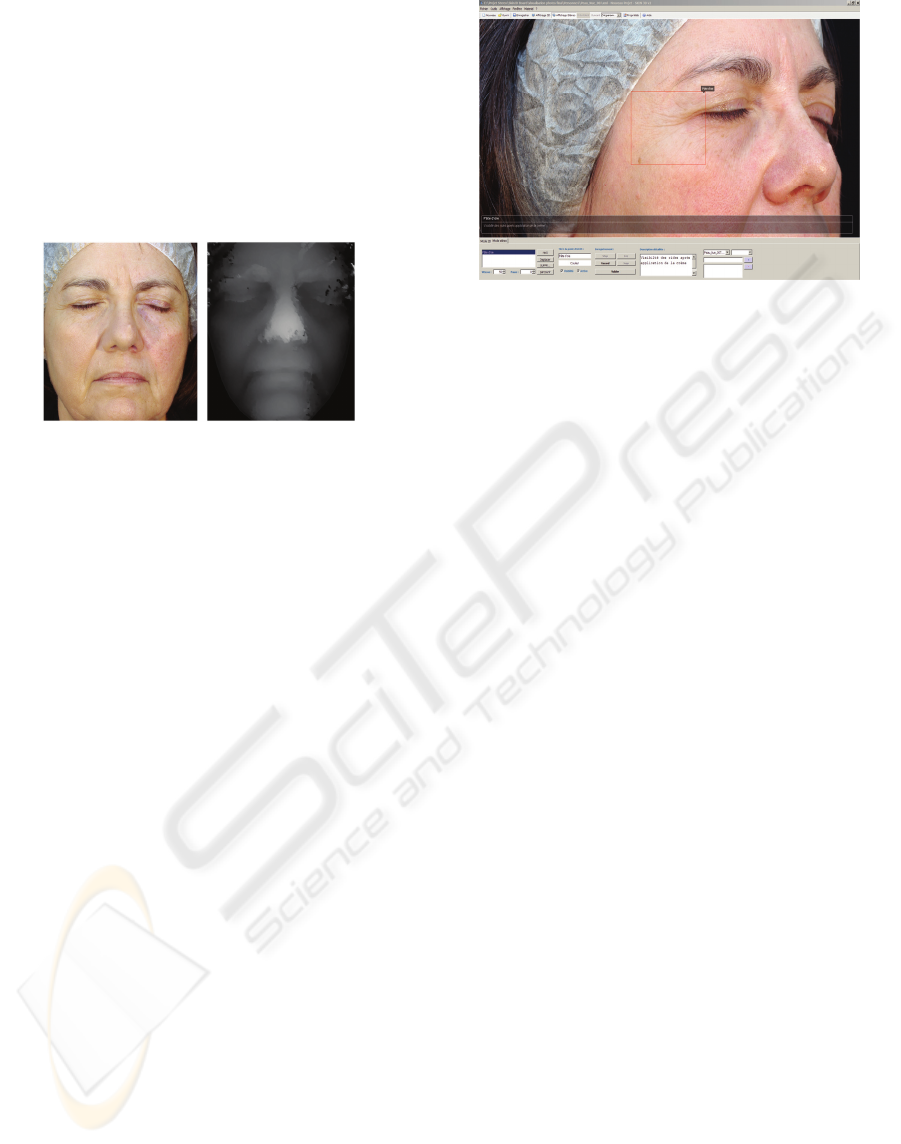

Figure 3: Depth map (right) computed from the image

(left) using 1% of the pixels.

3.4 Annotations of Stereoscopic Images

During the exploration of images, the expert may

select some regions of interest in order to annotate

them. Image annotation is currently the object of

many researches, especially for automatic methods.

For interactive or manual methods, one may cite for

instance the work on VirtualLab (Alfonso, 2005)

where microscopic pictures can be annotated, or

(Chalam et al. 2006) where images can be annotated

using a web interface and with several layers that

allows experts to see the evolution of a pathology for

instance. In this last work (ophthalmology), the

authors mention the possibility to view stereoscopic

images but without any details. So as far as we

know, systems for annotating stereoscopic images

are rare.

Skin3D includes the interactive tools necessary

to associate textual or voice annotations to selected

areas (see figure 4). For this purpose, the user selects

a specific area (wrinkle, specific symptoms, etc.)

and may define for this annotation, a title, a text and

a recording of his voice. Furthermore, annotations

have specific parameters: a name, a color, and a

shape. They can be visible or hidden, and specific

pointer events can be associated to them (display of

the title when the pointer surveys the annotation,

automatic zooming with a double click, etc). These

annotations are recorded in an XML file (see next

section).

Figure 4: Example of annotations in Skin3D.

3.5 Interactive Tour, 3D Hypermedia,

Knowledge Sharing in XML

The author of annotations may generate in an

intuitive way an interactive guided tour of the 3D

picture. For this purpose, he may determine an

ordering of the annotations and the corresponding

selected areas. Skin3D may then automatically scan

these annotations in the specified order, with an

adjusted zoom, and with playing the recorded voice.

The expert’s annotations are turned into an

interactive movie. In this way, the expert may

underline some facts and present them first, and then

he may explain their consequences. Skin3D could

thus be used for teaching purposes.

Several image databases exist in dermatology

like DermAtlas (Bernard, 2008) or Dermnet

(Dermnet, 2007). In Dremnet, it is possible to define

links between 2D images. In comparison, Skin3D

manages 3D images, and allows the expert to define

links between annotations. Each annotation may thus

point to several others, either in the same image or in

other images. The semantic encoding of hyperlinks

is « annotation@picture». These links allow the

expert to create a graph of relations between images,

which may represent for instance relations between

pathologies of different subjects.

For each 3D picture, all recorded information

(parameters of cameras, annotations, guided tours,

hyperlinks, etc) is represented in an XML file. These

files can be sent by email in order to obtain

complementary information from other experts. The

images can thus be annotated in a collaborative way.

Finally, as we will describe it in the conclusion, the

XML encoding facilitates the evolution of this

module in Skin3D.

HEALTHINF 2009 - International Conference on Health Informatics

372

4 RESULTS

4.1 Experimental Comparison

We have compared our calibration method with a

camera calibration toolbox implemented in MatLab

(Bouguet 2008). For this purpose, we have used

pictures of the calibration target that were taken

during the experiment described in the next section.

6 such pictures have been taken with different target

orientations, and in order to compare the two

approaches, we have used a cross validation

technique: each picture is isolated in turn and is used

as an unseen test case, while the 5 others are used

for learning the parameters. Both methods are

evaluated with the same set of detected points, and

with the same error measure (difference between

real and estimated distances).

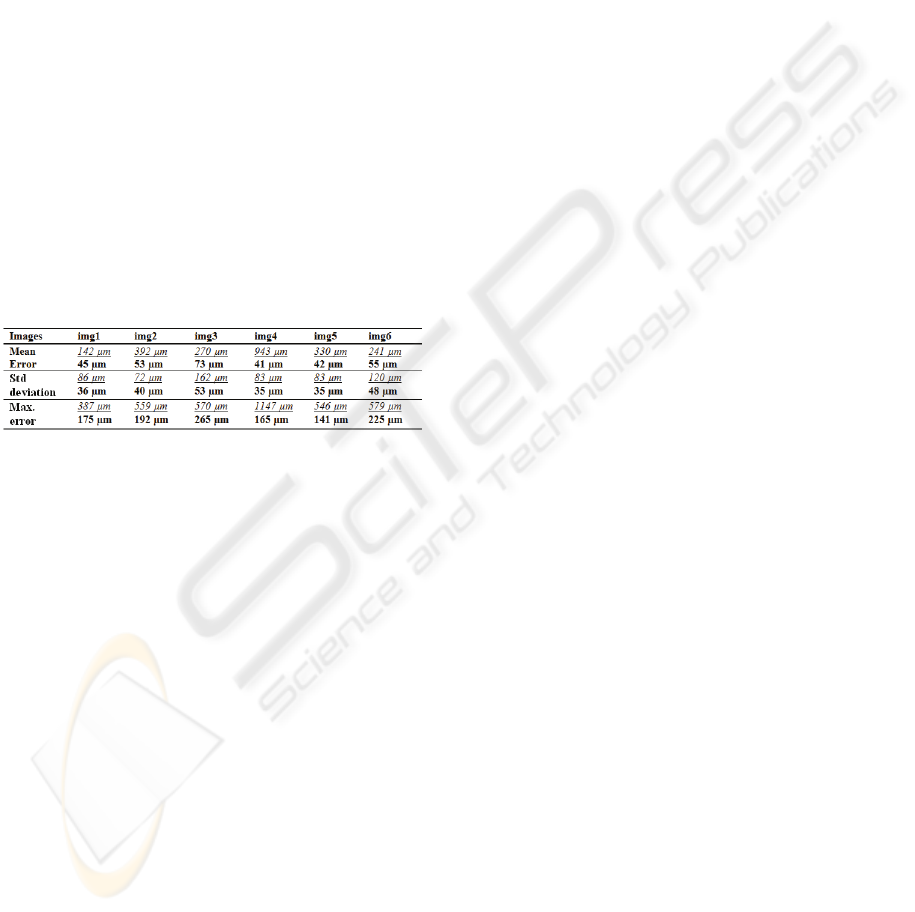

Table 1: Evaluation of calibration accuracy using a cross

validation technique over 6 pictures (48 points and 82

distances per picture). In underline and italic are presented

the results of MatLab’s « Camera Calibration ToolBox »,

and in bold the results of Skin3D.

According to the results, our method has the best

accuracy for all images. These results can be

explained by the fact that the two methods are very

different from each others: classical versus genetic

optimization, optimization of parameters for each

image versus all images. These results are thus very

encouraging and we have planned additional

comparative tests.

4.2 Real Study

In order to evaluate our system in a real world

application, we have conducted a study involving 18

women from 20 to 65 years old who presented skin

specificities. For each woman, we have taken 3D

pictures of their face (front and both sides). For

some women who presented specific symptoms, we

have also taken pictures of their hands and of their

back. In order to analyze the pictures, we have

presented them to a panel of international

dermatologists. They have used Skin3D to visualize

the pictures in stereoscopy, to perform 3D

measurements and to annotate the pictures. They

have defined a guided tour. The possibilities offered

by Skin3D (like 3D visualization and annotations)

have improved the diagnostic of different skin

symptoms by making the identification of specific

information easier than in standard photographs.

5 CONCLUSIONS

We have developed the Skin3D system for the

acquisition, visualization and interactive exploration

of stereoscopic pictures in the domain of

dermatology. We have described its 3 main modules.

We have defined a new calibration method which,

after a first experimental comparison, seems to be

efficient and well adapted to our application. We

have proposed the use of specific virtual reality

hardware in order to visualize stereo images and to

navigate through them. A test was performed with

success on a large screen. We have developed

several ways to perform 3D measurements,

annotations and to share the discovered knowledge.

Several perspectives can be derived from this

work. As far as the acquisition module is concerned,

we want to acquire better cameras with a resolution

of 21 Mpixels in order to increase further the

accuracy of the system. We want to perform parallel

computation of the pattern matching algorithm. We

want to improve also the annotation process by

adding specific algorithms for region automatic

detection. We want to add a search engine for

searching specific text in the annotations. Finally,

we could study the use of domain ontology in order

to help the expert for normalizing the annotations.

REFERENCES

Alfonso, B., 2005. Featured Virtual Lab in their NetWatch

section, a publication by the AAAS Vol 308 Science

Magazine.

Ayoub, A.F., P. Siebert, K. F. Moos, D. Wray, C.

Urquhart, T. B. Niblett, 1998. A vision-based three-

dimensional capture system for maxillofacial

assessment and surgical planning. British journal of

oral & maxillofacial surgery, vol. 36, no5, 353-357

Ben Amor, B., M. Ardabilian, L. Chen, 2005. 3D Face

Modeling Based on Structured-light Assisted Stereo

Sensor. Image Analysis and Processing Vol.3617,

842-849

Bernard, A., M. Cohen, U. Christoph et MD. Lehmann,

2008. DermAtlas, Johns Hopkins University.

www.dermatlas.org.

Bouguet,J., 2008, Camera Calibration Toolbox for Matlab,

www.vision.caltech.edu/bouguetj/calib_doc/

Cerveri, P., A. Pedotti et N. A. Borghese, 2001. Combined

Evolution Strategies for Dynamic Calibration of

ACQUISITION, ANNOTATION AND INTERACTIVE EXPLORATION OF STEREO IMAGES WITH VIRTUAL

REALITY

373

Video-Based Measurement Systems. IEEE

Transactions on evolutionary computations, vol.5,

No.3. 271-282

Chalam, KV., P. Jain, VA. Shah, Gaurav Y. Shah, 2006.

Evaluation of web-based annotation of ophthalmic

images for multicentric clinical trials. Indian Journal

of Ophthalmology 54, 126-129.

Chambon, S., A. CROUZIL 2003. Dense matching using

correlation: new measures that are robust near

occlusions. British Machine Vision Conference -

BMVC 2003, vol. 1, 143-152.

D'Apuzzo, N., 2002. Modeling human faces with

multiimage photogrammetry. Three-Dimensional

Image Capture and Applications vol. 4661, 191-197.

www.dermnet.com.

Dipanda, A., S. Woo, F. Marzani, J.M. Bilbault, 2003. 3-D

shape reconstruction in an active stereo vision system

using genetic algorithms. The journal of pattern

recognition society, Vol.36, 2143-2159.

Hernandez Esteban, C., F. Schmitt, 2003. Silhouette and

Stereo Fusion for 3D Object Modeling; Computer

Vision and Image Understanding Volume 96, Issue 3,

367-392.

Faugeras, O. D., and Toscani, G, 1987. Camera calibration

for 3d computer vision. International Workshop on

Machine Vision and Machine Intelligence, 240–247.

Rohr, M., K. Schrader, 1998. Fast Optical in vivo

Topometry of Human Skin (FOITS) Comparative

Investigations with Laser Profilometry. SÖFW Journal

124, 52 - 59

Salvi, J., J. Pagès, J. Batlle, 2004. Pattern codification

strategies in structured light systems. Pattern

Recognition. Vol. 37, Issue 4, 827-849

Tsai, R. Y., 1987. A versatile camera calibration technique

for high-accuracy 3D machine vision metrology using

off-the-shelf tv cameras and lenses. IEEE Journal of

Robotics and Automation, 3(4), 323-344.

Zhang, Y., Q. Ji, 2001. Camera Calibration With Genetic

Algorithms, IEEE International Conference on

Robotics and Automation. 120-130

Zhang, Z., 1998. A Flexible New Technique for Camera

Calibration. Technical Report MSR-TR-98-71 of

Microsoft Research.

Zhu, Y., 2007. A Java program for stereo retinal image

visualization. Computer Methods and Programs in

Biomedicine, Vol.85, Issue 3, 214-219.

HEALTHINF 2009 - International Conference on Health Informatics

374
